    Dahua 8MP TiOC 4K Kit — 16× HDW3849H-AS-PV-ANZ-S2 + 16CH NVR4216-16P-AI/ANZ

    SKU DH-K81616TIOC-0T In Stock - Ready to Ship
    $5,399.00 inc GST

    Dahua DH-K81616TIOC kit: sixteen 8MP DH-IPC-HDW3849H-AS-PV-ANZ-S2 TiOC eyeballs with warm light, siren, strobe and two-way talk, and a 16-channel DHI-NVR4216-16P-AI/ANZ PoE recorder. Choose the drive size in the options.

    • ✓16 × 8MP TiOC eyeballs, F1.0 lens
    • ✓30 m IR and 30 m warm light, colour at night
    • ✓Siren, voice warnings and red-blue strobe
    • ✓Two-way talk on every camera
    • ✓16-port PoE recorder, all ports used
    • ✓No HDD or 2–10TB fitted, 4K HDMI, DMSS app
    Hard Disk Options



    Description

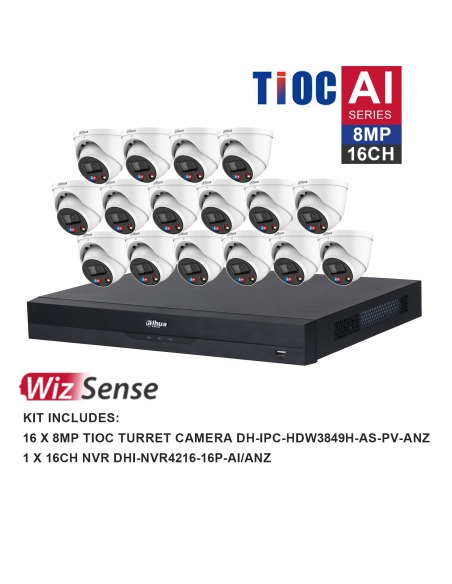

    Dahua DH-K81616TIOC kit: sixteen white DH-IPC-HDW3849H-AS-PV-ANZ-S2 cameras and the DHI-NVR4216-16P-AI/ANZ recorder, shown at true relative size
    Dahua · WizSense · TiOC kit · 16 cameras · 16 channels

    Sixteen 8MP cameras that light up and speak up.
    One cable to each, from a 16-port PoE recorder.

    This is the Dahua DH-K81616TIOC: sixteen white DH-IPC-HDW3849H-AS-PV-ANZ-S2 TiOC eyeballs and a DHI-NVR4216-16P-AI/ANZ recorder. Each camera records 8MP, has IR and warm light to 30 m, a siren, a red and blue strobe and two-way talk, and takes its power from the recorder over one Cat6 cable.

    In one sentence: the DH-K81616TIOC is a Dahua kit of sixteen DH-IPC-HDW3849H-AS-PV-ANZ-S2 8MP (3840 × 2160) TiOC eyeball cameras with F1.0 lenses, 30 m IR and warm light, siren and strobe deterrence and two-way audio, plus a DHI-NVR4216-16P-AI/ANZ 16-channel recorder with 16 PoE ports, two SATA bays and 4K HDMI.

    Sixteen cameras and the recorder. Choose the drive size in the options.

    The kit is sold without a hard drive, or with a 2, 4, 8 or 10TB drive fitted: choose the drive size in the options above. This kit uses all 16 of the recorder's PoE ports. Dahua makes this camera with a 2.8 mm or a 3.6 mm lens: confirm with us which lens is in stock. Sixteen cameras at full load can draw more than the recorder's 130 W PoE total: see the PoE question below.

    In the box
    • 16 × DH-IPC-HDW3849H-AS-PV-ANZ-S2 TiOC eyeball cameras (white)
    • 1 × DHI-NVR4216-16P-AI/ANZ 16-channel PoE recorder
    • A hard drive, only if you chose one in the options
    You also need
    • Cat5e or Cat6 cable from each camera to the recorder
    • A monitor or TV with HDMI or VGA for setting up
    • Your router, for the DMSS phone app
    • A SATA surveillance drive, if you chose No HDD

    It does more than record.

    When someone crosses a line or walks into a zone you drew, each camera can switch on its warm light for colour video, flash red and blue, and sound its siren or a recorded warning. SMD 4.0 sorts people and vehicles from animals, so those responses are kept for real targets, and one tap in the DMSS app turns them off while you are home.

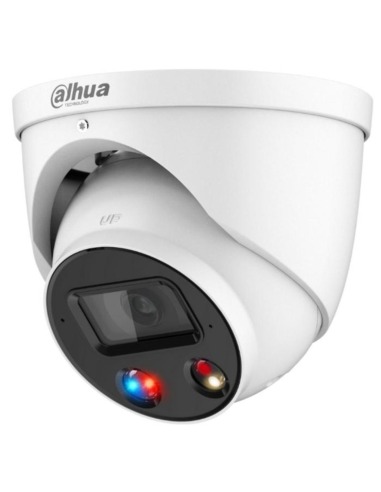

    Dahua DH-IPC-HDW3849H-AS-PV-ANZ-S2 TiOC eyeball, three-quarter view showing the lens, warm light and red-blue strobe

    The cameras

    8MP through an F1.0 lens.

    A 1/2.7" sensor records 3840 × 2160 at up to 25/30 fps through an F1.0 lens, in colour down to 0.004 lux at F1.0. One IR LED and one warm light each reach 30 m, and Smart Dual Light keeps the IR on until a person or vehicle appears, then switches to warm light for colour. Siren, red and blue strobe, dual mic and speaker. Metal housing, IP67.

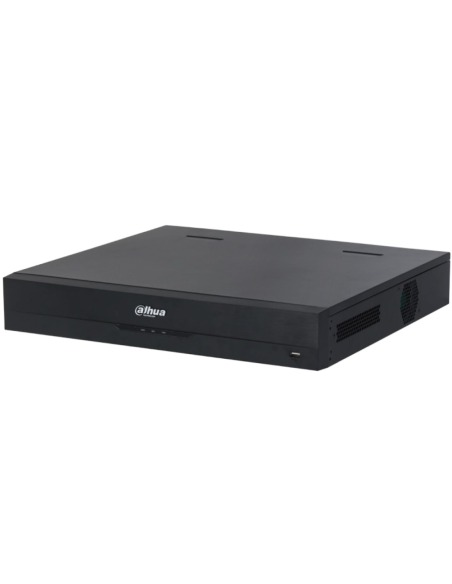

    Dahua DHI-NVR4216-16P-AI/ANZ 16-channel WizSense PoE recorder, front view

    The recorder

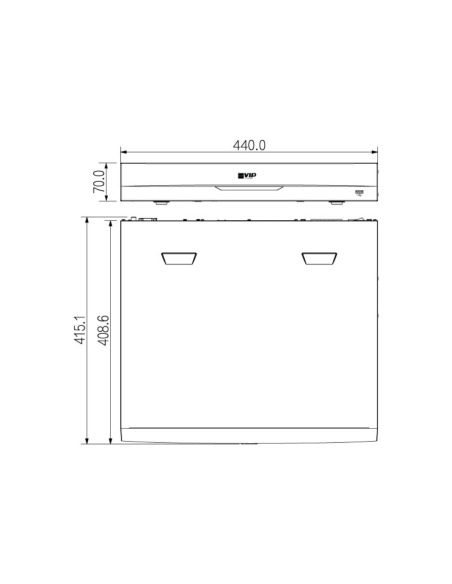

    16 PoE ports in a 1U, 375 mm case.

    The DHI-NVR4216-16P-AI/ANZ records 16 IP cameras up to 16MP, takes 256 Mbps of incoming video (180 Mbps with AI on) and shows 4K on HDMI. It holds two SATA drives of up to 20TB each and runs face recognition (1 channel), perimeter protection (2 channels) and SMD Plus (4 channels) itself.

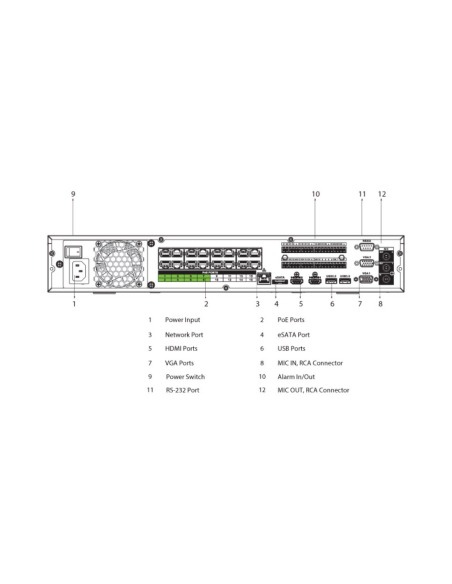

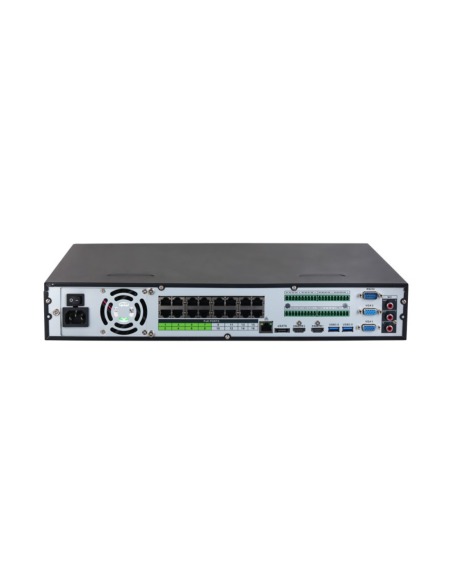

    Dahua DHI-NVR4216-16P-AI/ANZ rear panel with 16 PoE ports, network, VGA, HDMI, audio and USB

    One cable per camera

    Power and video on the same cable.

    Each PoE port gives up to 25.5 W, with 130 W shared across all 16. Dahua rates each camera at 5.8 W basic and 10.1 W at most, with the warm light, siren, strobe and analytics on: about 93 W for sixteen at basic, but 161.6 W at full load. If many cameras may light up and sound at once, power a few from a 12 VDC supply or a separate PoE switch. Ask us to plan it.

    How it goes in

    From the box to the first alert.

    01

    Fit the drive

    If you chose No HDD, power off, open the recorder and fit one or two SATA surveillance drives, then format them from the startup wizard.

    02

    Mount the cameras

    Fix each eyeball to a wall or eave through the three Ø 4.5 mm holes on an 84 mm circle in its base, then pan, tilt and rotate the ball to frame the view.

    03

    Run one cable to each

    Cat5e or Cat6 from each camera to a PoE port on the recorder, up to 100 m. The port powers the camera.

    04

    Set the rules

    Connect HDMI and your router, add the recorder to DMSS, then draw tripwire or intrusion zones and choose what the light, strobe and siren do.

    Pair it with

    What goes with it

    Security

    Datatek 24SECCAB cabinet

    Locks the recorder and a monitor up to 24″ in a steel wall cabinet, so an intruder can't walk off with the footage.

    Extra PoE power

    12 VDC supply or PoE switch

    For a few of the cameras, if many may run their lights, strobes and sirens at once: keeps the load inside the recorder's 130 W. Ask us which suits your site.

    Power backup

    ION 650VA UPS

    Keeps the recorder and cameras recording through short power cuts and protects them from surges.

    Cabling

    Cat6 cable

    One run from each camera to the recorder, up to the usual 100 m Ethernet limit.

    Where it is used

    Where a 16-camera TiOC kit fits.

    Large homes and acreage

    Every side of the house, the driveway, sheds and gates, with a siren for anyone at the car.

    Shops and cafés

    Entry, counter, stockroom and rear lane, with a voice warning at the roller door after hours.

    Offices and clinics

    Reception, car park and side doors, with people and vehicle alerts to your phone.

    Warehouses and yards

    Gates, roller doors and loading bays in colour at night, 30 m of light from each camera.

    Strata common areas

    Bin rooms, car park ramps and side gates, with a warning before anyone goes further.

    Farms and workshops

    Machinery sheds and fuel tanks, with two-way talk to speak to visitors.

    2.8 mm or 3.6 mm camera lens

    2.8 mm lens3.6 mm lens
    Horizontal view106°85°
    Vertical view55°45°
    Diagonal view125°102°
    Close focus1.5 m2.2 m

    Both lenses are columns of the same Dahua DH-IPC-HDW3849H-AS-PV-ANZ-S2 datasheet; everything else is the same. Confirm with us which lens is in stock. For ten of these cameras on the same recorder, with six ports left free, see the DH-K81610TIOC; for sixteen 6MP TiOC cameras, the DH-K61616TIOC.

    Common questions

    Is this a complete system?

    It has sixteen cameras and the recorder that powers and records them. Add Cat6 cable to each camera, a monitor for setting up, and a hard drive if you chose No HDD in the options.

    Is a hard drive included?

    Only if you choose one. The kit is sold without a hard drive, or with a 2, 4, 8 or 10TB drive fitted: choose the drive size in the options above. The recorder has two SATA bays, each taking a drive of up to 20TB, so there is room for a second drive.

    Which lens do the cameras have?

    Dahua makes the DH-IPC-HDW3849H-AS-PV-ANZ-S2 with a 2.8 mm lens (106° across) or a 3.6 mm lens (85° across, sees detail a little further). Confirm with us which is in stock when you order.

    How far do the cameras see at night?

    Up to 30 m with IR and up to 30 m with warm light. Dahua rates them in colour down to 0.004 lux at F1.0, and with the lights on they record at 0 lux.

    What sets off the siren and strobe?

    A tripwire crossing or an intrusion into a zone you draw, filtered for people, vehicles or both. You choose the light, strobe and sound for each rule, and can disarm them with one tap in DMSS.

    Can I talk through the cameras?

    Yes. Each camera has a built-in dual microphone and a speaker, so you can listen and talk back from the DMSS app.

    Can the recorder power all sixteen cameras?

    At their basic draw, yes; at Dahua's maximum, not all at once. Each camera draws 5.8 W basic and up to 10.1 W with the warm light, siren, strobe and analytics on. Sixteen at 5.8 W is about 93 W, inside the recorder's 130 W PoE total, but sixteen at 10.1 W is 161.6 W. If many cameras may light up and sound at the same time, power a few from a 12 VDC supply or a separate PoE switch.

    Can I add more cameras later?

    Not on this recorder: all 16 channels and PoE ports are used. More cameras need a bigger recorder: ask us.

    Can the recorder take every camera at full resolution?

    Yes, with the bit rate set to suit. Dahua rates each camera's stream at up to 16384 kbps (about 16 Mbps); sixteen at that rate would be about 262 Mbps, more than the recorder's 180 Mbps with AI on (256 Mbps with it off). Set each main stream to about 11 Mbps or less and all sixteen record at full 8MP.

    Does this kit do AcuPick search?

    No, not with this recorder. The cameras support AcuPick with a Dahua recorder that offers it, and Dahua lists AcuPick on its NVR5 AI recorders, not on the NVR4216-16P-AI/ANZ. This recorder gives Quick Pick, which picks people and vehicles out of the cameras' SMD events so you can find them quickly.

    Can I watch it on my phone?

    Yes. Connect the recorder to your router, turn on P2P and scan its QR code with Dahua's DMSS app on iPhone or Android for live view, playback, alerts and talk-back.

    What warranty does it have?

    Dahua gives these 3 Series network cameras and NVR4 recorders a 3-year manufacturer warranty. Claims are handled in Australia through InFront Technologies: call 1300 736 970 or email [email protected].

    Supported by InFront Technologies.

    Help planning camera positions, the lens or the drive size: call 1300 736 970 or email [email protected]. The camera and recorder datasheets are on the Attachments tab.

    Installation and safety

    Low-voltage cameras. The cameras run on PoE from the recorder (up to 10.1 W each) and have no mains connection. The recorder has its own 100–240 VAC power supply and plugs into a normal power point.

    Cabling. Concealed data cabling is customer cabling under AS/CA S009 and needs an ACMA-registered cabler. A new power point needs a licensed electrician.

    Audio and siren. Recording conversations is covered by state and territory surveillance laws, and a siren near homes should respect local noise rules. Check them, and use signage, before you switch the microphones or sirens on.

    What it does not do. No optical zoom and no Wi-Fi on the cameras.

    Placement. Cameras are IP67 for outdoors. The recorder is for indoor use, with space around its vents.

    Figures. From Dahua's DH-IPC-HDW3849H-AS-PV-ANZ-S2 (Rev 002) and DHI-NVR4216-16P-AI/ANZ datasheets on the Dahua Australia site.

    Audio
    Two-way talk (built-in mic + speaker)
    Resolution
    8MP (3840 × 2160)
    Brand
    Dahua
    Lens
    2.8 or 3.6 mm fixed (confirm with us), F1.0
    HDD
    2× SATA (up to 20 TB) (optional fitted drive at checkout)
    AI
    SMD 4.0, tripwire, intrusion, AI SSA; AcuPick-capable (needs NVR5+)
    Sensor
    1/2.7″ CMOS
    Camera Model
    16× DH-IPC-HDW3849H-AS-PV-ANZ-S2
    Field of View
    106° H / 55° V / 125° D (2.8 mm)
    Channels
    16 IP / 16 PoE
    Active Deterrence
    Siren + red/blue strobe (TiOC)
    How many Camera Cables are included?
    This Kit does NOT include Camera Cables
    Warranty
    Dahua 3-year manufacturer warranty, handled in Australia through InFront
    Camera Count
    16
    Kit Type
    IP CCTV kit (cameras + PoE NVR)
    Night Vision
    30 m IR + 30 m warm light
    Camera Protection
    IP67
    Camera Power
    PoE or 12 VDC
    NVR
    NVR4216-16P-AI/ANZ
    Local Display
    HDMI 4K + VGA
    App
    DMSS
    Operating Temperature (camera)
    −40 °C to +60 °C
    NVR Search
    Quick Pick (NVR4 WizSense); AcuPick on NVR5+
    DH-K81616TIOC
