VIP Vision Professional AI Series 2.0MP PTZ Ceiling Mount Camera - VSIPPTZ-2C-I
- Stream up to 2.0MP (1920x1080) at 50fps
- 4.9 - 156mm motorised varifocal lens with 2.2 - 68.2° viewing
- H.265 encoding for efficient storage & streaming
- Built-in microphone and microSD slot for edge recording
- 3D digital noise reduction & true WDR (120dB)
- Tripwire, Intrusion, Motion detection and more
- Power via 12VDC or Power over Ethernet (802.3at)
- IK10-rated metal housing
- Includes 24VAC/3A PSU.

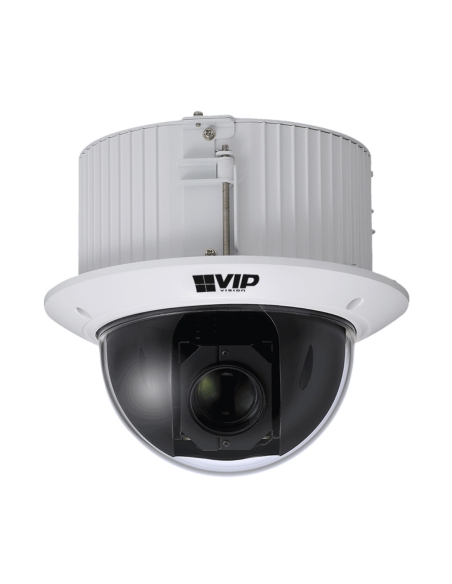

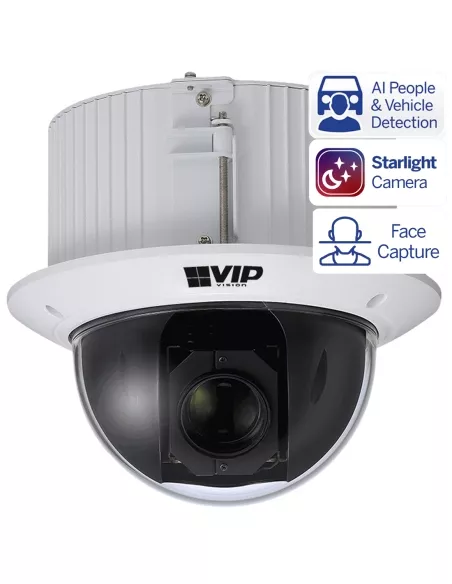

VIP Vision Professional AI Series 2.0MP PTZ Ceiling Mount Camera
VSIPPTZ-2C-I
This VSIPPTZ-2C-I camera delivers lightning-fast PTZ mobility, up to 25x optical zoom and auto-tracking, all in a vandal-resistant body. Experience AI face detection & AI Perimeter Protection technology, providing meaningful video event notifications in real time. Ideal for indoor, time-critical applications such as in banks, retail, gaming, and more.
Camera Features:
• Stream up to 2.0MP (1920x1080) at 50fps
• 4.9 - 156mm motorised varifocal lens with 2.2 - 68.2° viewing
• H.265 encoding for efficient storage & streaming
• Built-in microphone and microSD slot for edge recording
• 3D digital noise reduction & true WDR (120dB)
• Tripwire, Intrusion, Motion detection and more
• Power via 12VDC or Power over Ethernet (802.3at)
• IK10-rated metal housing
Includes 24VAC/3A PSU.
- Dimensions
- Ø186 mm x 253 mm
- Ethernet
- RJ-45 (10/100Base-T)
- Housing
- Metal
- Net Weight
- 2.2 kg
- Operating Conditions
- –30°C to +60°C
- Power Supply
- 24VAC / 3A (±25%) / Hi-PoE (IEEE802.3at)
- Ingress Protection
- N/A
- Vandal Resistance
- IK10
- Bit Rate
- H.265/H.264: 3 kbps–20480 kbps
- Frame Rate (Main)
- 1080p (1 ~ 50fps)
- Frame Rate (Sub)
- D1(1 ~ 25fps)
- Frame Rate (Third)
- 720p (1 ~ 25fps)
- Max. User Access
- 20 Users
- Power Consumption
- Video Compression
- H.265/H.264B/H.264M/H.264H/MJPEG/H.265+/H.264+
- Resolution
- 1080p (1920 x 1080) to CIF (352 x 288)
- Series
- Professional AI Series
- Focus
- 1 m–1.5 m Min.
- Interoperability
- ONVIF / CGI
- Effective Pixels
- 1920 (H) x 1080 (V)
- Image Sensor
- 1/2.8" STARVIS™ CMOS
- RS485
- N/A
- Alarm Interface
- 1 channel in: 5 mA 3-5 VDC / 1 channel out: 300 mA 12 VDC
- Camera Type
- PTZ Dome
- Max. Resolution
- 2.0 Megapixel
- Field of View
- 62.8°–2.2°
- Lighting Compensation
- BLC / HLC / WDR (120dB)
- Pan / Tilt Range
- Pan: 0 ~ 360° (endless) / Tilt: 0 ~ 90° / Auto-flip 180°
- Day/Night
- Auto (ICR) / Color / B&W
- Detect (25px/m)
- 2152m
- Gain Control
- Auto / Manual
- Identify (250px/m)
- 215m
- Lens Type
- Motorised Varifocal
- Noise Reduction
- 2D / 3D NR
- Observe (63px/m)
- 850m
- Recognise (125px/m)
- 430m
- White Balance
- Auto / Natural / Street Lamp / Outdoor / Manual / Regional Custom
- Audio Interface
- 1 input (RCA Port)/ 1 output (RCA Port) / Audio Compression - G.711a; G.711Mu; G726; G.723
- Bit Rate Control
- Constant bit rate (CBR) / Variable bit rate (VBR)
- Edge Storage
- MicroSD Card (up to 256GB) / NAS / FTP /SFTP
- ePoE
- No
- Infrared System
- 2 x Infrared LED, 50m range, Auto/manual on/off control
- Lens / Iris
- 4.9 mm ~ 156 mm F1.35-F4.4 Motorised Lens with Auto Iris
- Min Illumination
- Color: 0.005 Lux @ F1.35 / B/W: 0.0005 Lux @ F1.35
- Pan/Tilt/Rotation
- Pan: 0° ~ 360° Tilt: 0° ~ 90°
- Picture Control
- Flip 180°
- Protocol
- IPv4/IPv6; HTTP; HTTPS; SSL; TCP/IP; UDP; UPnP; ICMP; IGMP; SNMP; RTSP; RTP; SMTP; NTP; DHCP; DNS; PPPOE; DDNS; FTP; IP Filter; QoS; Bonjour; 802.1x
- RAM / ROM
- 1GB / 4GB
- S/N Ratio
- ≥ 55 dB
- Smart Scene Adaptive (SSA)
- No
- Streaming Method
- Unicast / Multicast
- Video Interface
- 1 Output (Vpp 75Ω)
- Auto Tracking
- Support
- Modes / Presets
- Up to 300 presets / 5 Pattern, 8 Tour, Auto Pan, Auto Scan
- PTZ Speed
- Preset: Pan: 500°/s; Tilt: 500°/s Manual: Pan: 350°/s; Tilt: 250°/s
- Start-up Action
- Auto-restore to previous PTZ/lens status
- Heat Map
- N/A
- People Counting
- N/A
- Perimeter Protection
- Tripwire & Intrusion (Add recognition of humans & vehicles), Fast Moving Detection, Loitering Detection, Parking & Gathering Detection
- Digital Zoom
- 16x
- Event Triggers
- Motion detection / Video tamper / Scene change / Network disconnection / IP address conflict / Illegal access / Storage anomaly
- Face Capture
- Support
- Face Recognition
- N/A
- Image Stabilisation
- Electronic
- IVS Functions
- Abandoned object / Missing object
- Metadata
- Support
- Optical Defog
- Support
- Privacy Masking
- Up to 24 areas
- Region of Interest
- Support
