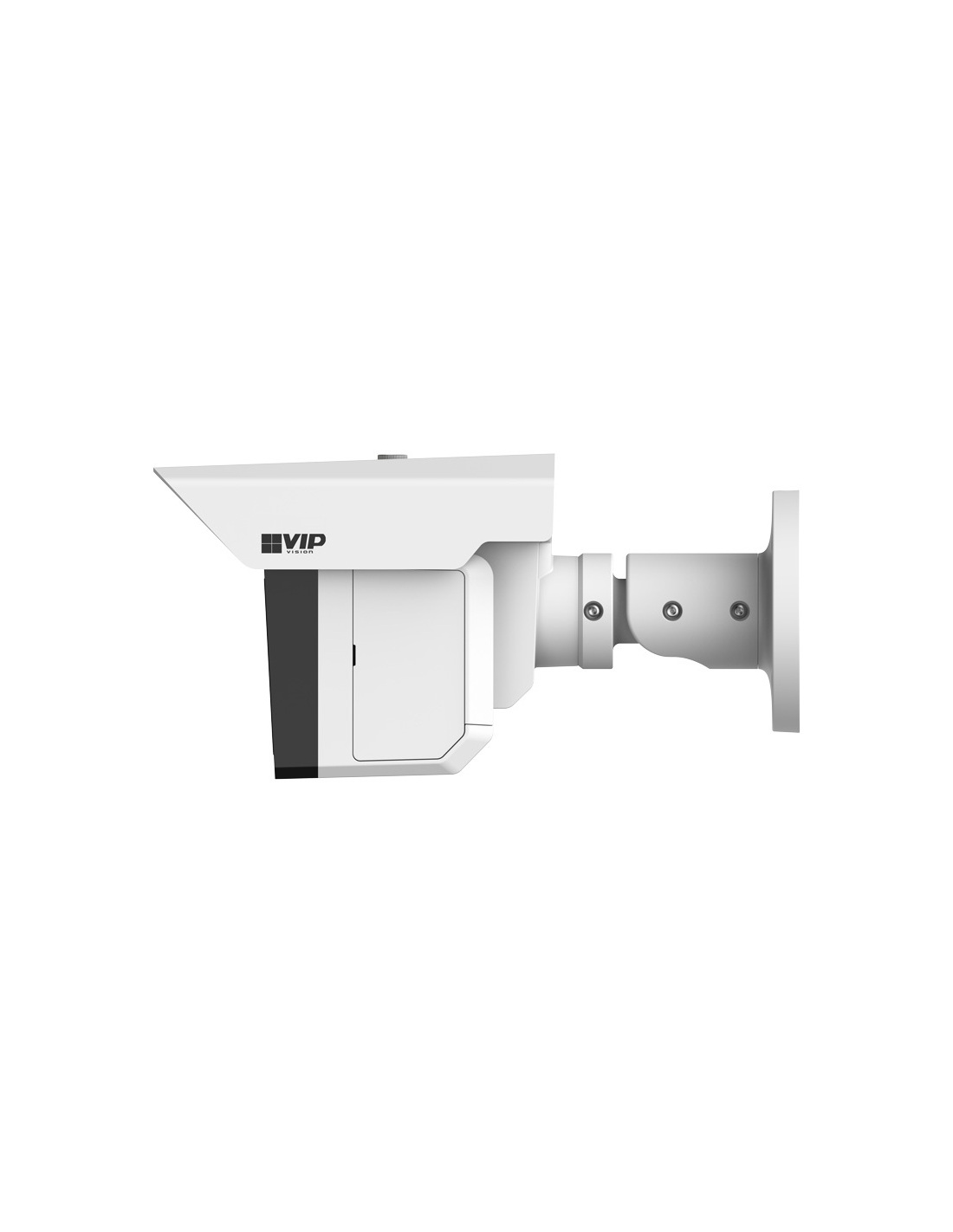

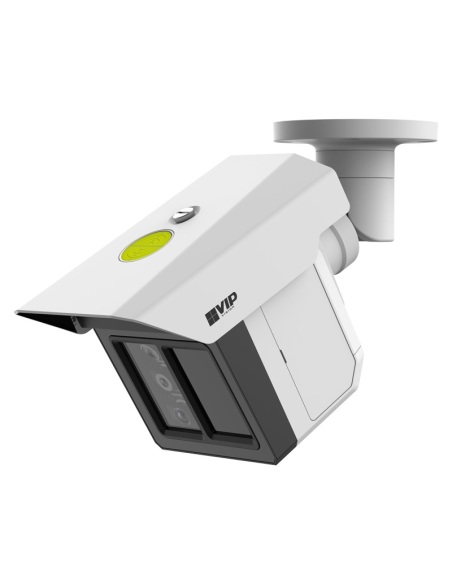

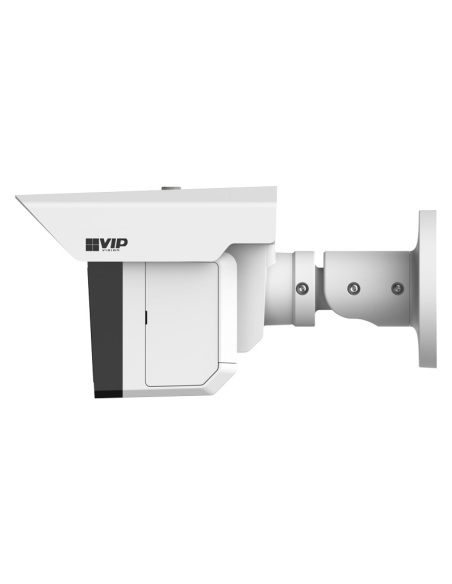

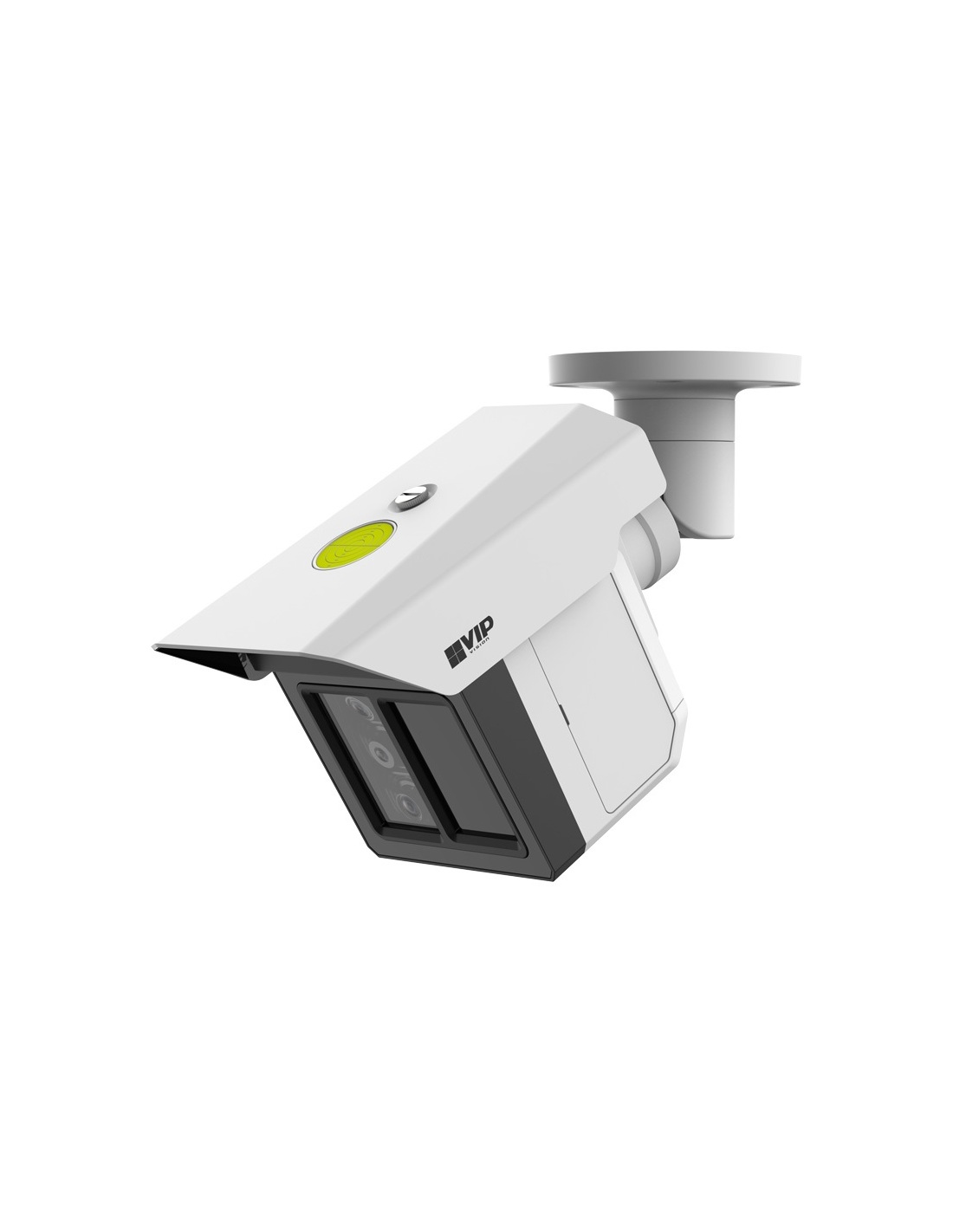

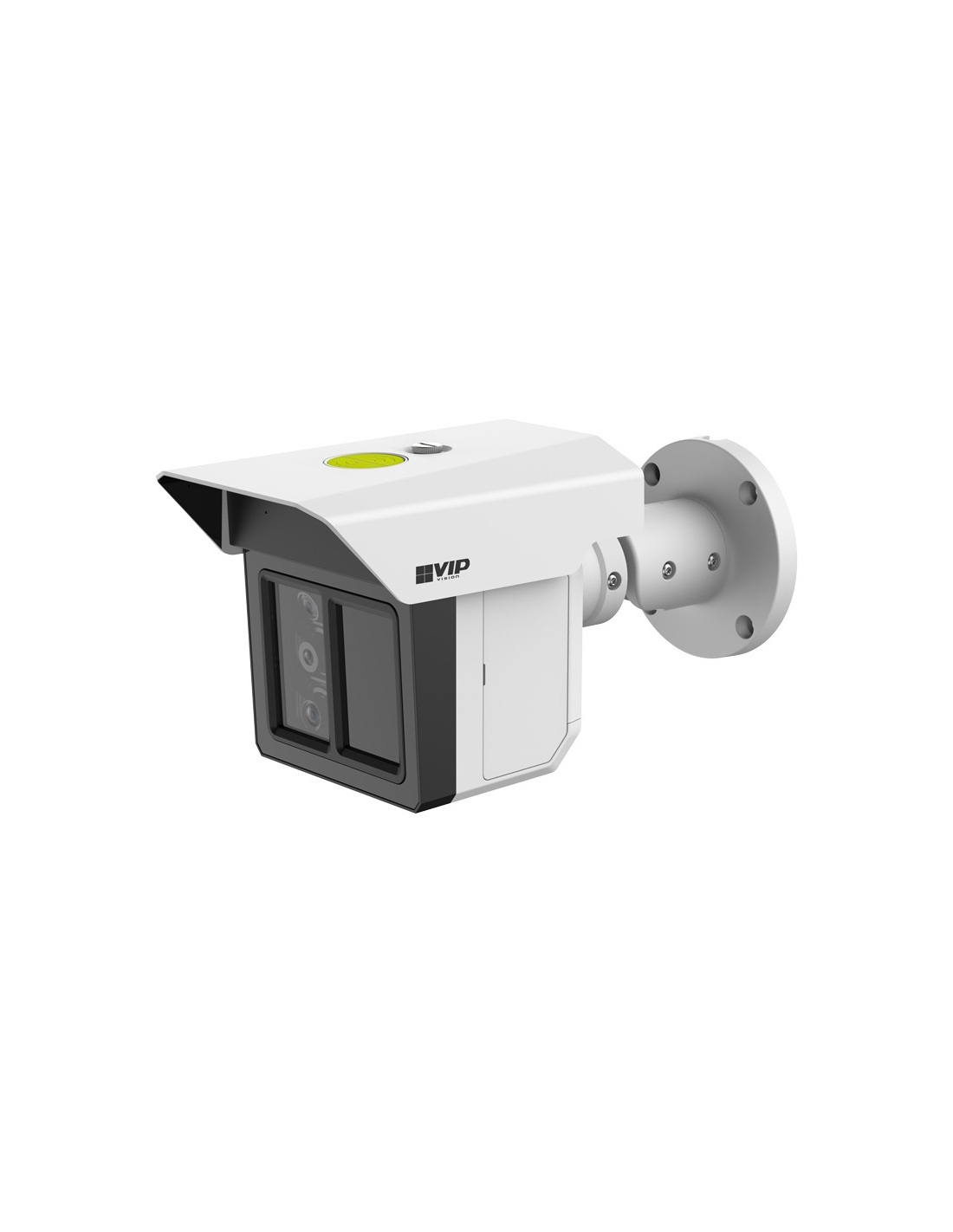

VIP Vision Triple-Sight AI Perimeter Protection Camera - VSIPU-2TS
VSIPU-2TS
In Stock - Ready to Ship $ 999.00
inc-GST
or 4 interest-free payments of $249.75 with
- Three 1080p channels: wide, medium and long range
- Detection range up to 331m on the long-range channel
- AI human and vehicle detection for perimeter protection
- Up to 100m infrared night vision
- Built-in dual microphones and loudspeaker for two-way audio and deterrence
VIP Vision Triple-Sight AI Perimeter Protection Camera
4 Years Warranty!
VSIPU-2TS
Three cameras in one housing. The VSIPU-2TS combines a wide-angle view with two telephoto views, so you can watch a broad area and see detail at long range at the same time. AI human and vehicle detection keeps alerts focused on real threats.
Features:
• Three 1080p channels: wide, medium and long range
• Detection range up to 331m on the long-range channel
• AI human and vehicle detection for perimeter protection
• Up to 100m infrared night vision
• Built-in dual microphones and loudspeaker for two-way audio and deterrence
• MicroSD recording up to 1TB, plus NAS/FTP
• IP67 weatherproof and IK10 vandal-resistant
• ePoE for extended cable runs
Ideal for:
Large yards, car parks, farms, construction sites, factories and long fence lines.
Full specifications are listed in the Data Sheet tab. Need help choosing or planning an install? Our technical team at InFront Technologies is happy to help.

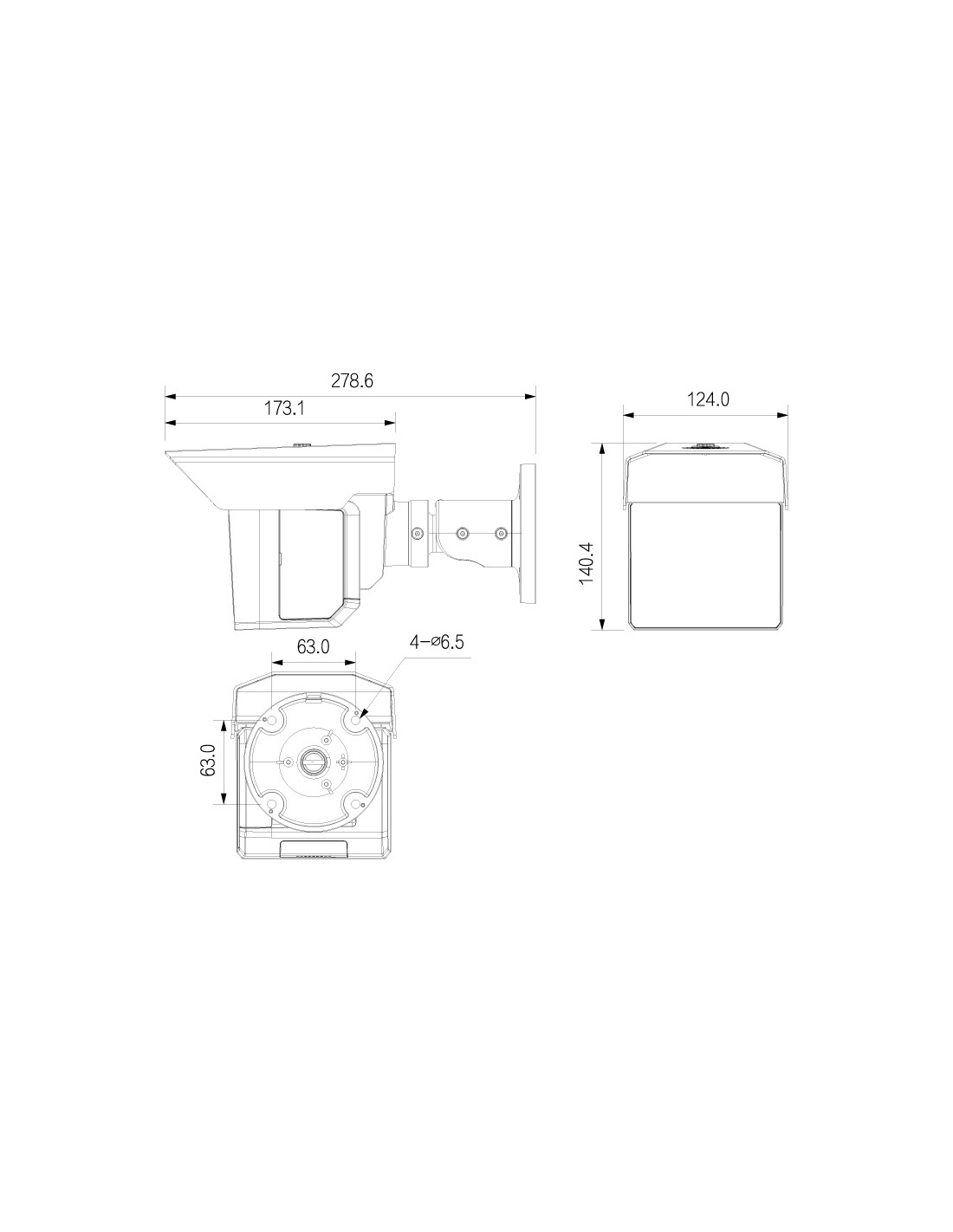

- Dimensions

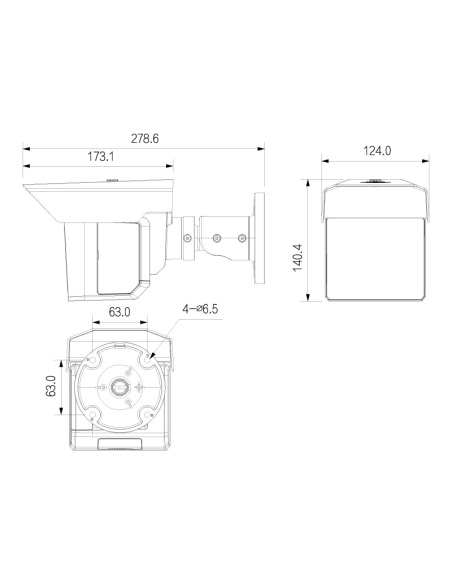

- 278.6 x 124.0 x 140.4 mm (L × W × H)
- Ethernet
- RJ-45 (10/100 Base-T)
- Housing
- Metal
- Net Weight
- 2.40kg
- Operating Conditions
- Temperature: –40 °C to +60 °C, Humidity: ?95% RH (non-condensing)
- Power Supply
- 12VDC / PoE+ (802.3at) / ePoE, Dual power backup (simultaneous PoE and 12VDC)
- Ingress Protection
- IP67
- Vandal Resistance
- IK10
- Bit Rate
- 3 kbps – 8192 kbps
- Frame Rate (Main)
- 1920 × 1080 @ 1–25 fps
- Frame Rate (Sub)
- 704 × 576 @ 1–25 fps
- Frame Rate (Third)
- N/A
- Max. User Access
- 20 Users
- Power Consumption
- 4.3W (12VDC), 5.5W (PoE), Max Consumption (infrared + loudspeaker + IVS): 22.1W (12VDC), 23.6W (PoE)
- Video Compression
- H.265, H.264, H.264H, H.264B, MJPEG (MJPEG sub-stream only)
- Resolution
- Channel 1–3: 1080p (1920 × 1080)
- Series
- Ultimate AI Series
- Focus
- Fixed Focus
- Interoperability
- ONVIF (Profle S & Profle G & Profle T & Profle M); CGI
- Effective Pixels
- 1920 (H) × 1080 (V)
- Image Sensor
- Channel 1–3: 1/2.8" CMOS
- RS485
- 1 x RS485 Port (1200~115,200bps)
- Alarm Interface
- 2 channels input (5mA 3~5VDC, wet contact), 2 channels output (300mA 12VDC, wet contact)
- Camera Type
- Bullet
- Max. Resolution
- 2.0 Megapixel
- Field of View
- Channel 1: H 85.9°, V 46.7°, Channel 2: H 25.7°, V 14.4°, Channel 3: H 13°, V 7.4°
- Lighting Compensation
- BLC / HLC / Digital WDR / SSA
- Day/Night
- Auto (ICR) / Colour / B/W
- Detect (25px/m)
- Ch 1: 53.7m, Ch 2: 172.4m, Ch 3: 331.0m
- Gain Control
- Auto / Manual
- Identify (250px/m)
- Ch 1: 5.4m, Ch 2: 17.2,m Ch 3: 33.1m
- Lens Type
- Fixed
- Noise Reduction
- 3D NR
- Observe (63px/m)
- Ch 1: 21.5m, Ch 2: 69.0m, Ch 3: 132.4 m
- Recognise (125px/m)
- Ch 1: 10.7m, Ch 2: 34.5m, Ch 3: 66.2m
- White Balance
- Auto, natural, street lamp, outdoor, manual, regional custom
- Audio Interface
- Built in dual mic, Built-in loudspeaker, 1 channel RCA input/output, / Audio Compression: G.711a; G.711Mu; G726; PCM
- Bit Rate Control
- VBR / CBR
- Edge Storage
- MicroSD Card (up to 1TB) / NAS / FTP / SFTP
- ePoE
- Yes
- Infrared System
- Built-in IR illumination, up to 100m
- Intelligent Functions
- Motion Detection (4 zones), Region of Interest (4 zones), Privacy Masking (4 zones), Smart IR, Abandoned Object, Moving Object
- Lens / Iris
- Channel 1: 3.6mm F1.6, Channel 2: 12mm F2.0, Channel 3: 25mm F2.8, Iris: Fixed (Channel 1–3)
- Min Illumination
- 0.0004lux @ F1.6 (B/W, 30 IRE)
- Pan/Tilt/Rotation
- Tri-axial Adjustment: Pan: 0~360° Tilt: 0~70° Rotation: 0~360° / Micro PTZ: Tilt: -5~10° / Built-in level
- Picture Control
- Mirror / Flip / Rotation (0°, 90°, 180°, 270°)
- Protocol
- IPv4, IPv6, HTTP, HTTPS, TCP, UDP, ARP, RTP, RTSP, RTCP, SMTP, FTP, SFTP, DHCP, DNS, DDNS, QoS, UPnP, NTP, Multicast, ONVIF (S/G/T), CGI, SDK
- RAM / ROM
- 2GB / 4MB
- S/N Ratio
- >56 dB
- Smart Scene Adaptive (SSA)
- Yes
- Streaming Method
- Unicast / Multicast
- Video Interface
- No additional video output
- Event Trigger
- Motion Detection, Video Tampering, Scene Change, Network Disconnection, IP Conflict, Illegal Access, Storage Anomaly
- Face Attributes
- N/A
- Face Detection
- N/A
- Heat Map
- N/A
- Intelligent Search
- Smart search via NVR, search tripwire & intrusion events by human or vehicle
- People Counting
- N/A
- Perimeter Protection
- Tripwire & Intrusion (Human & Vehicle classification supported)
