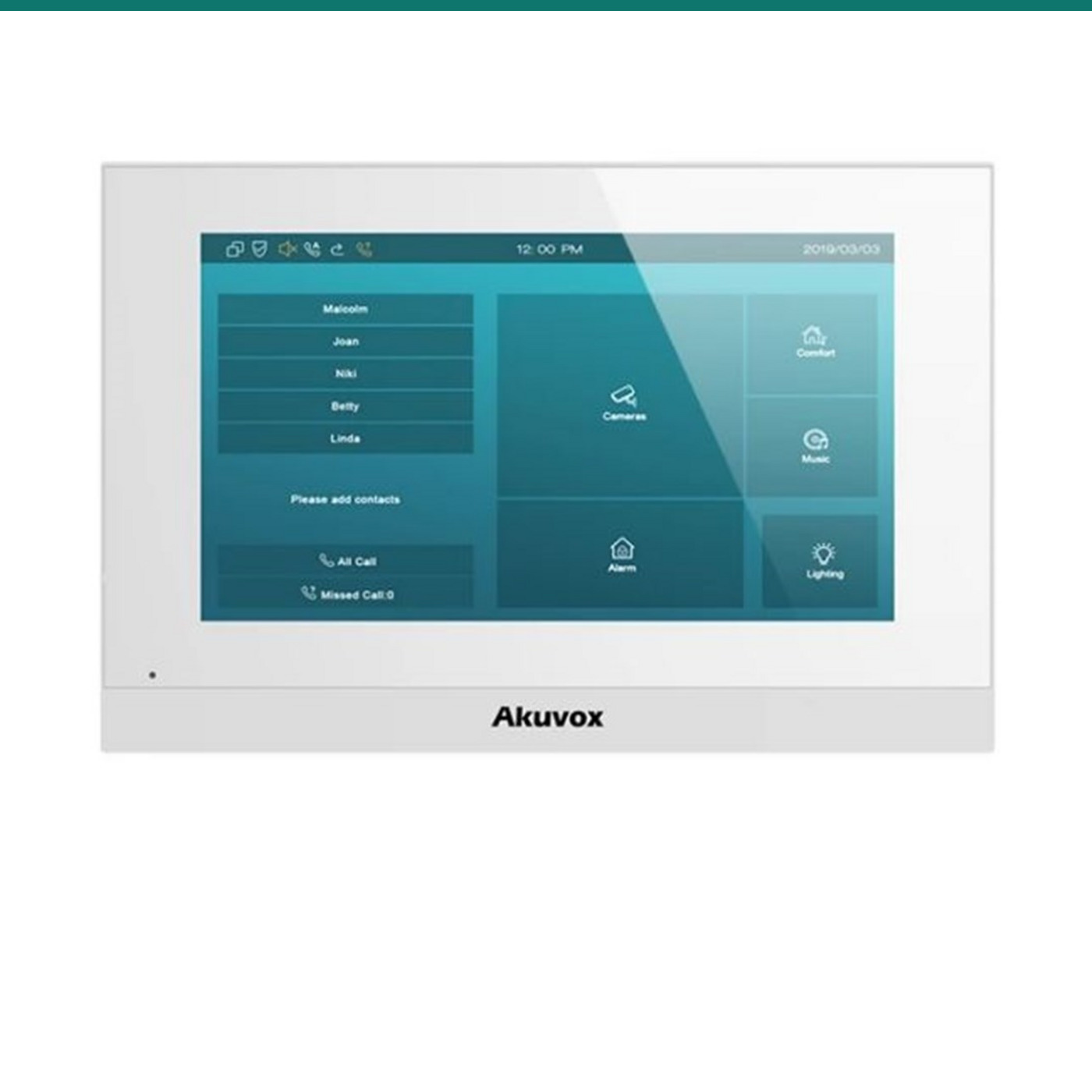

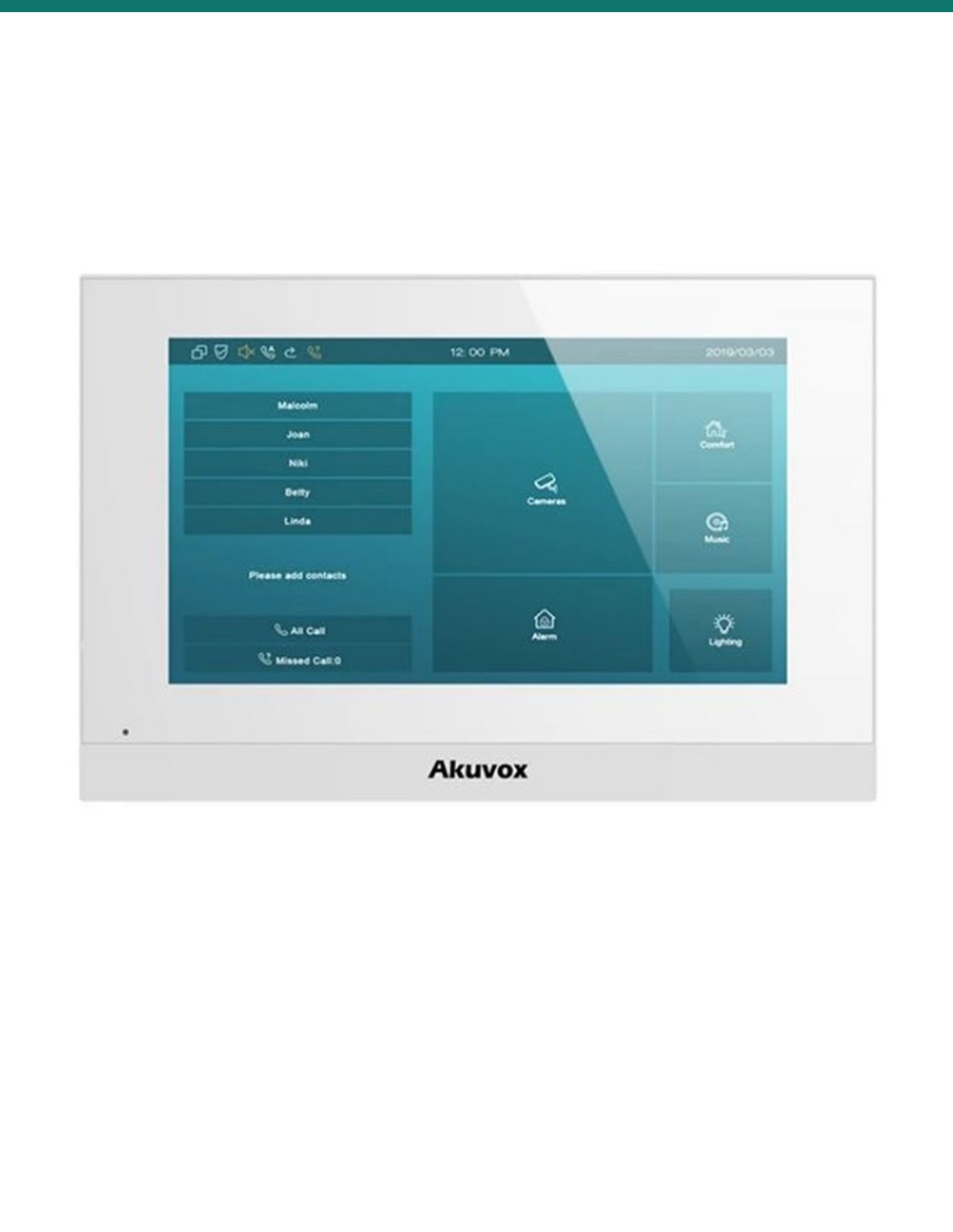

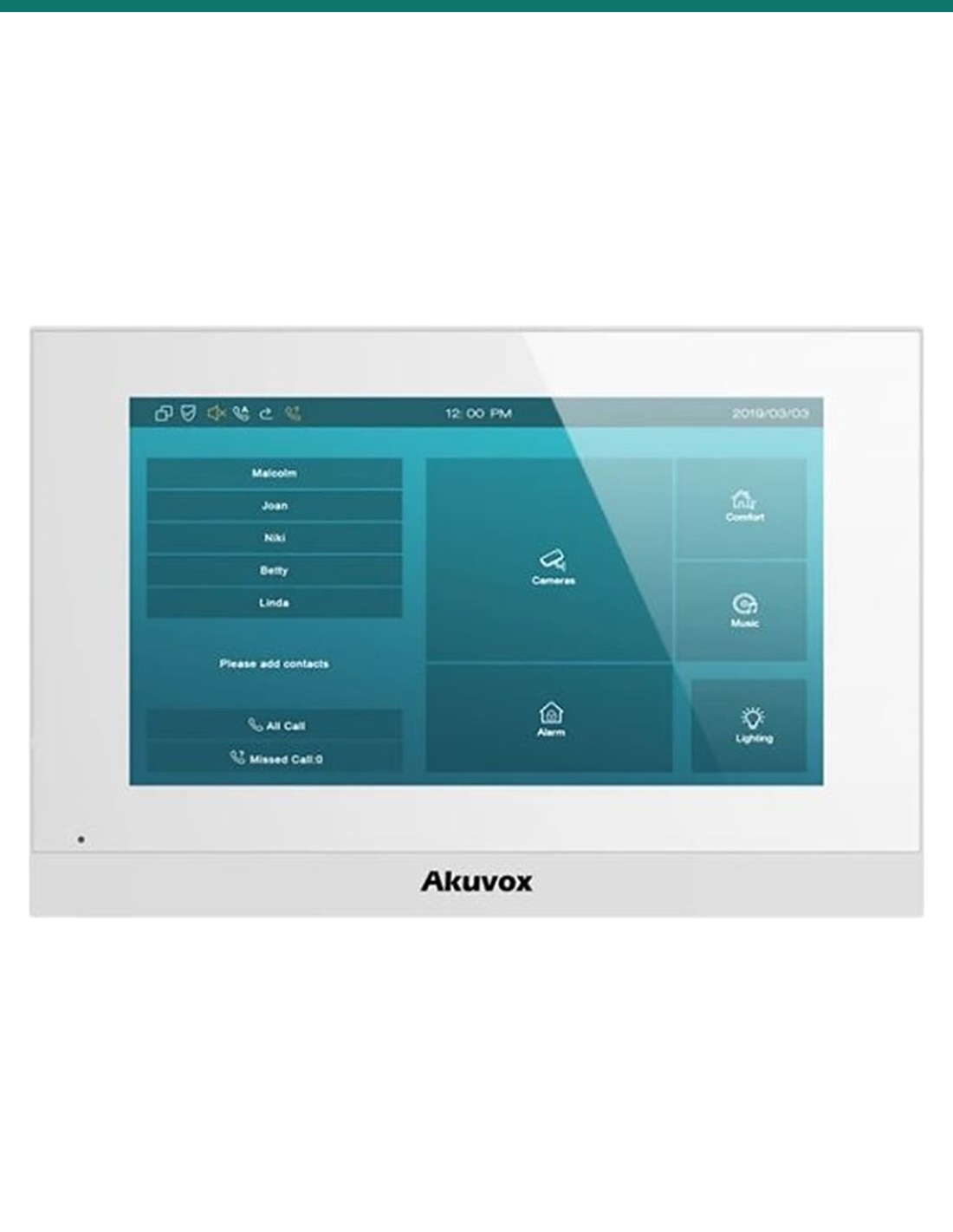

Akuvox C313W-2 white 7-inch 2-wire indoor monitor — front

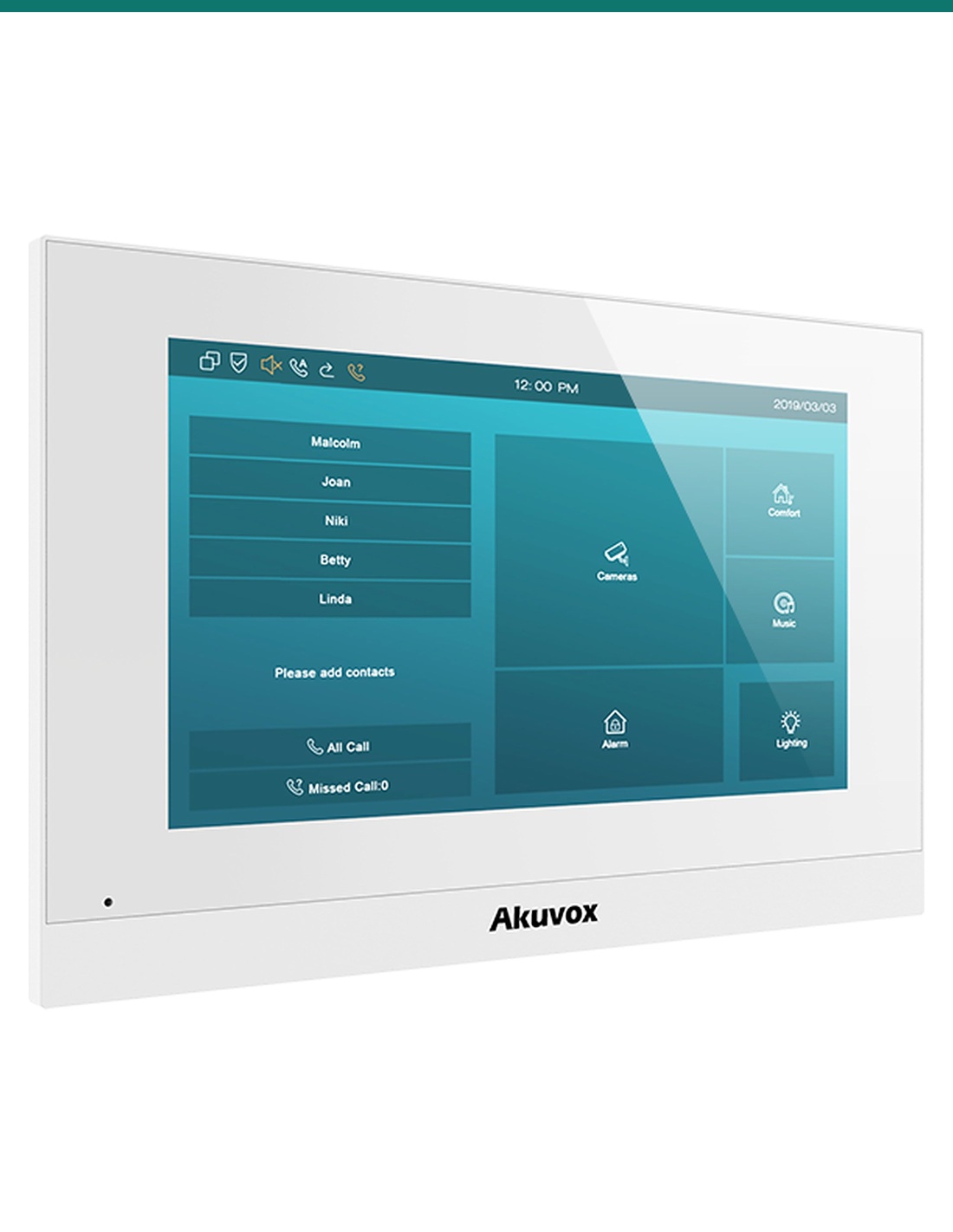

Akuvox C313W-2 white indoor monitor — left three-quarter view

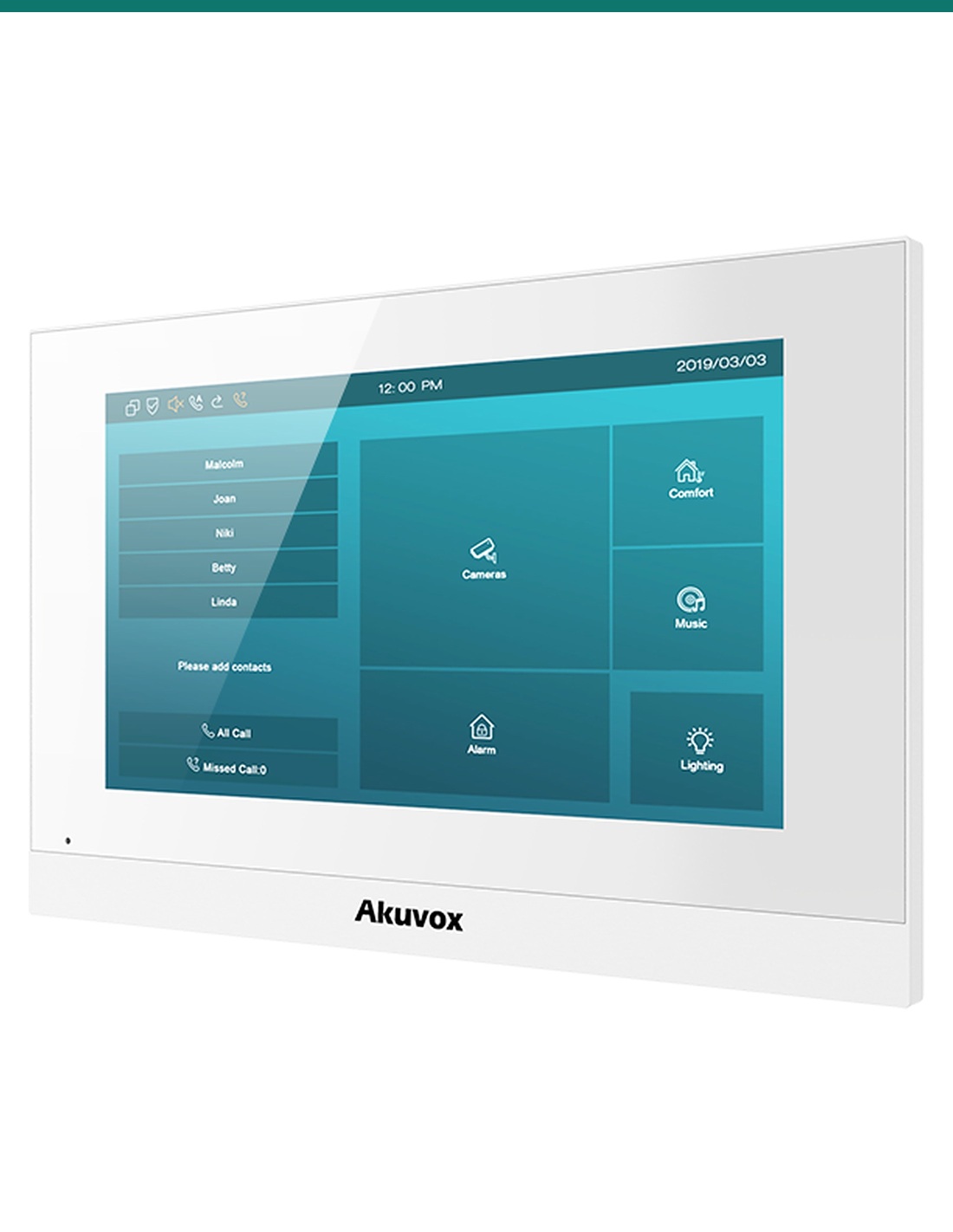

Akuvox C313W-2 white indoor monitor — right three-quarter view

Akuvox C313W-2 White 7″ 2-Wire Linux SIP Indoor Monitor with Wi-Fi — AK-C313W-2WHITE

AK-C313W-2WHITE
In Stock - Ready to Ship
$ 257.00
inc-GST

or 4 interest-free payments of $64.25 with

Akuvox C313W-2 in white is a 7″ Linux touch monitor for the Akuvox 2-wire IP system. It runs on the two wires an old analogue intercom already uses and joins the home network by Wi-Fi or Ethernet.

  • ✓7″ capacitive touch screen, 800 × 480, 220 nits
  • ✓Two 2-wire ports plus 2.4 GHz Wi-Fi and a 10/100 RJ45 port
  • ✓Powered by an Akuvox NS-2 over the 2-wire line, 48 V DC or PoE 802.3af (≤7.62 W full load)
  • ✓8 alarm inputs, 1 relay, bell input, RS485 · 200.2 × 132.2 × 27.2 mm

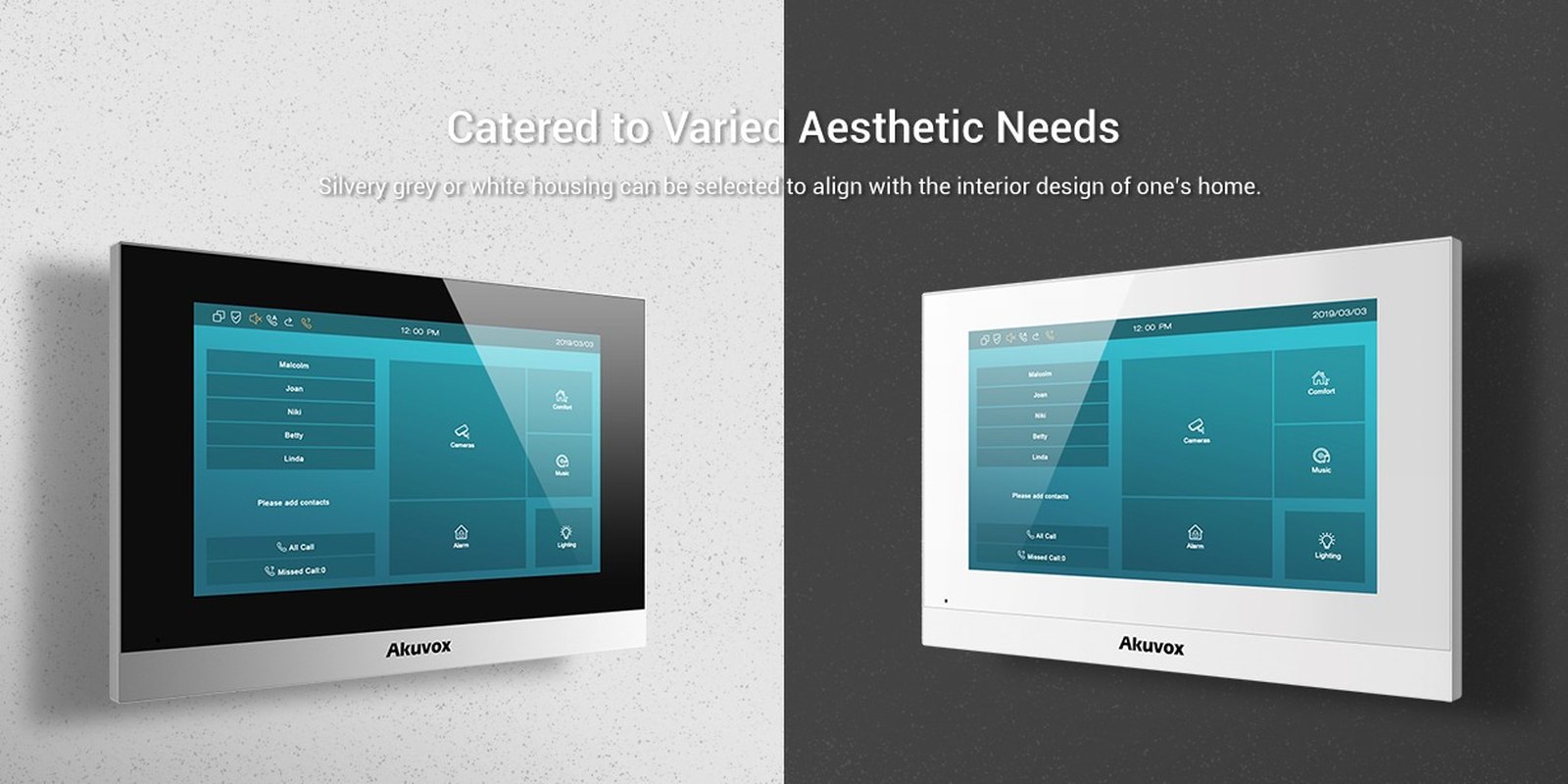

Akuvox C313W-2 indoor monitors in silver and white finishes

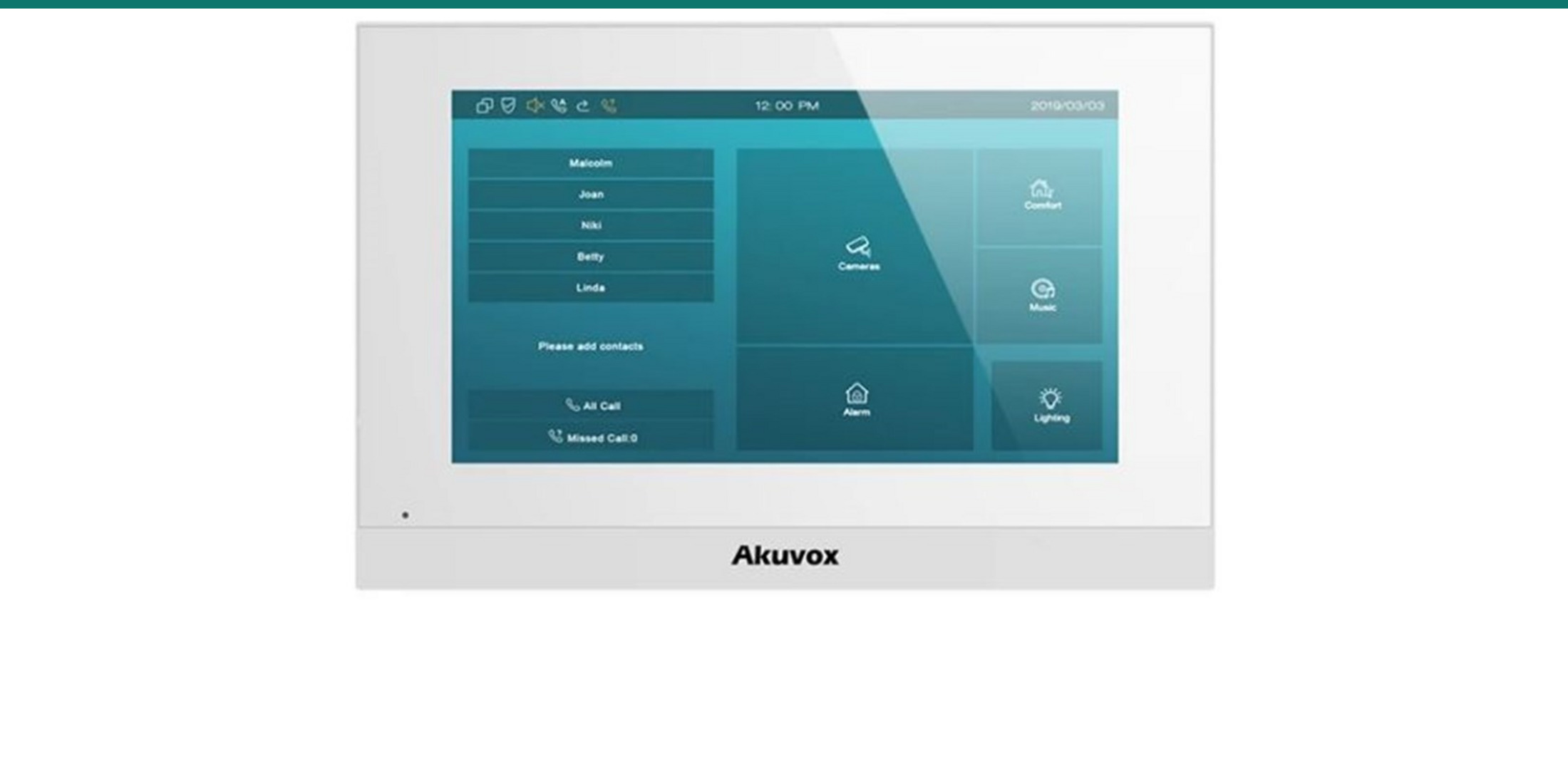

Akuvox · C313W-2 · White 2-wire indoor monitor

Video intercom on two wires.
In a clean white finish.

The AK-C313W-2WHITE is Akuvox’s C313W-2 in white: a 7″ SIP touch monitor with two 2-wire ports, built to replace analogue handsets on existing cabling while working with Akuvox door phones, the SmartPlus app and IP PBXs.

This SKU is the indoor monitor only.

You receive the white C313W-2 monitor, its wall bracket, cables and fixings. The 2-wire door phone, NS-2 switch or 48 V supply, and lock hardware are sold separately — or choose the Akuvox 2-wire IP intercom kit.

In the box

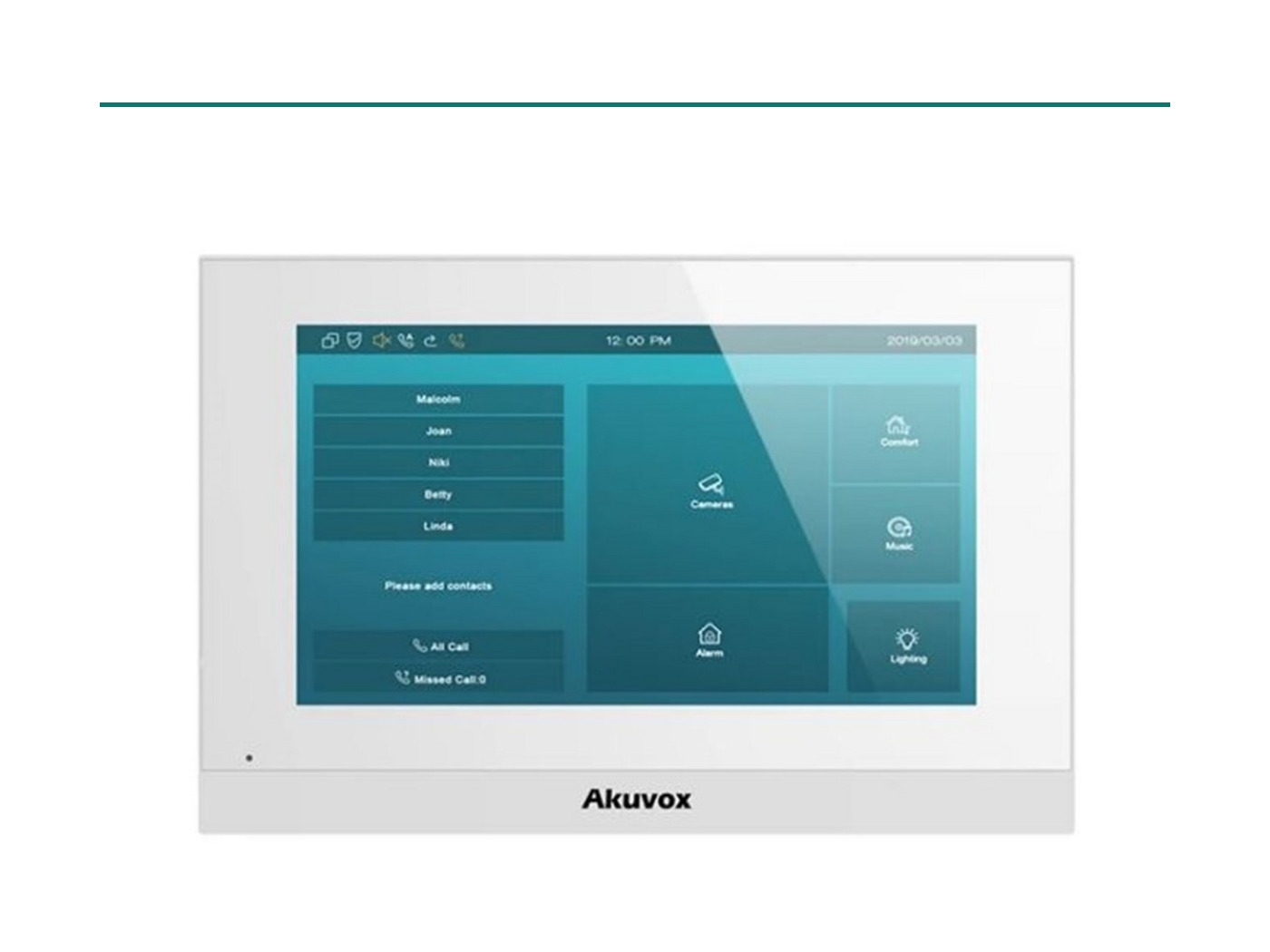

  • Akuvox C313W-2 indoor monitor (white)
  • Wall bracket
  • 11-pin and 10-pin wiring cables
  • 2 × ST4×20 screws, 2 × M4×30 screws, 2 × plastic anchors
What you also need (sold separately)
  • Akuvox 2-wire door phone (R20A-2, R20K-2 or E12S-2)
  • Akuvox NS-2 switch with 48 V DIN-rail supply, or a 48 V DC supply
  • C313 table bracket if it will sit on a desk
  • Electric lock and lock PSU if the relay releases a door

New features without new cable.

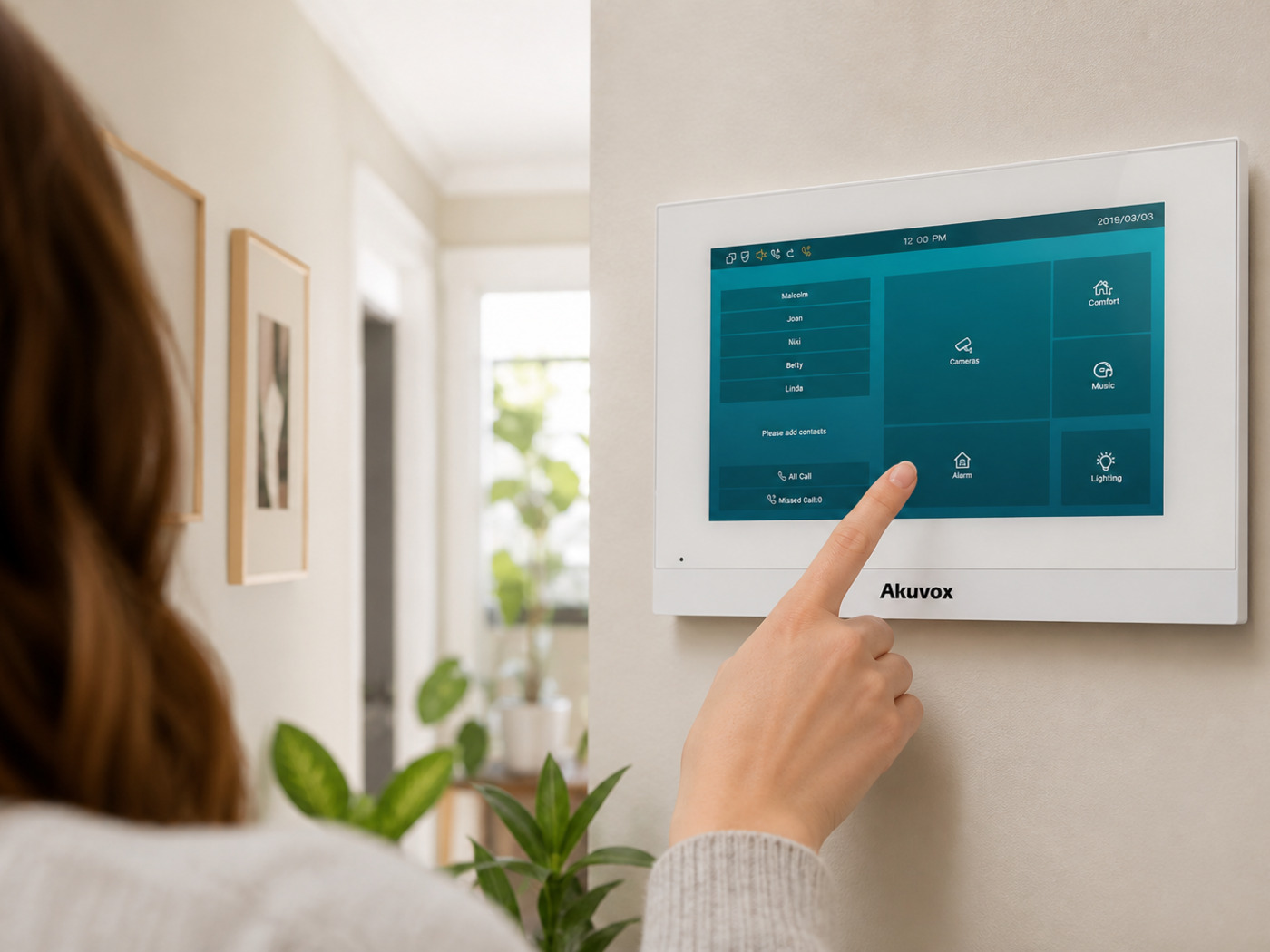

Answer the door on a 7″ screen, unlock it, watch cameras and take calls on the SmartPlus app — all over the pair the old intercom used. The 2-wire line carries both power and data.

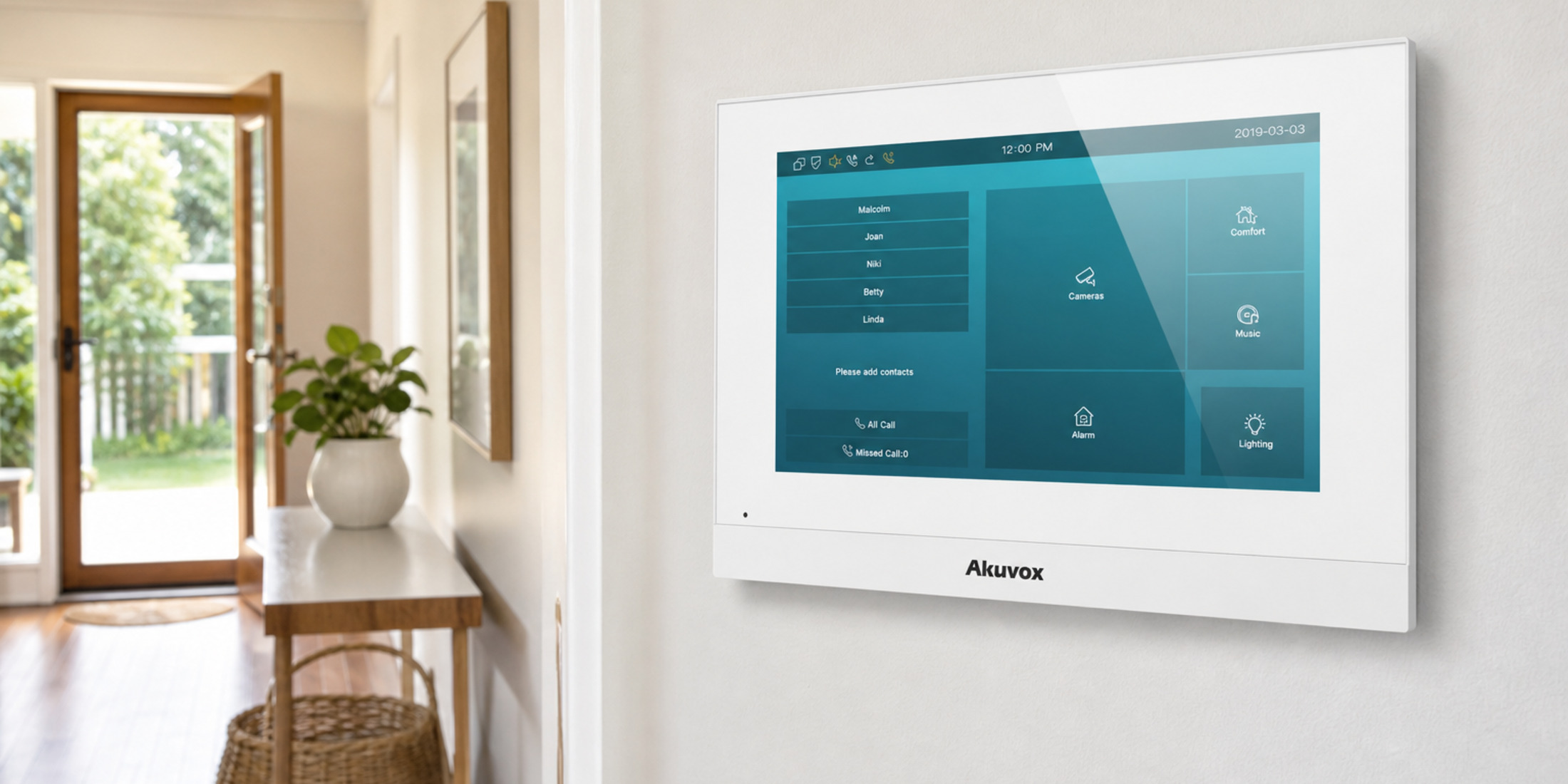

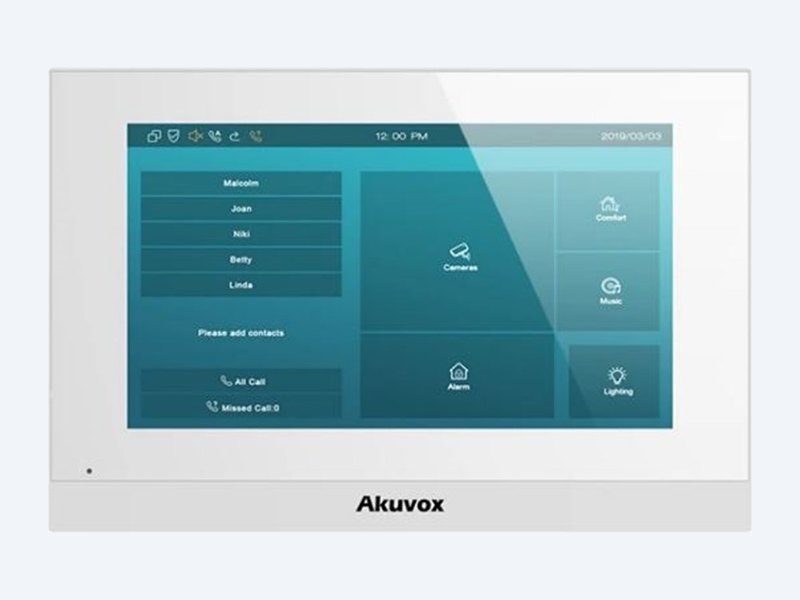

Akuvox C313W-2 white indoor monitor front view

2-wire

Reuse the old intercom pair.

Two 2-wire ports connect the C313W-2 straight to an Akuvox 2-wire door phone, or back to an NS-2 switch that powers up to six devices.

With an NS-2 on 48 V, Akuvox rates runs of up to 300 m on 18–24 AWG cable when each device has its own pair.

Network

Wi-Fi or Ethernet for the app.

Built-in 802.11 b/g/n Wi-Fi at 2.4 GHz links the monitor to the home router, so door calls can also reach the Akuvox SmartPlus app.

A 10/100 RJ45 port is available where data cable exists, and accepts PoE 802.3af power.

Home hub

Door, alarms and cameras.

800 × 480 capacitive touch screen with SIP audio (PCMU, PCMA, G.722) and H.264 video from door phones and compatible IP cameras.

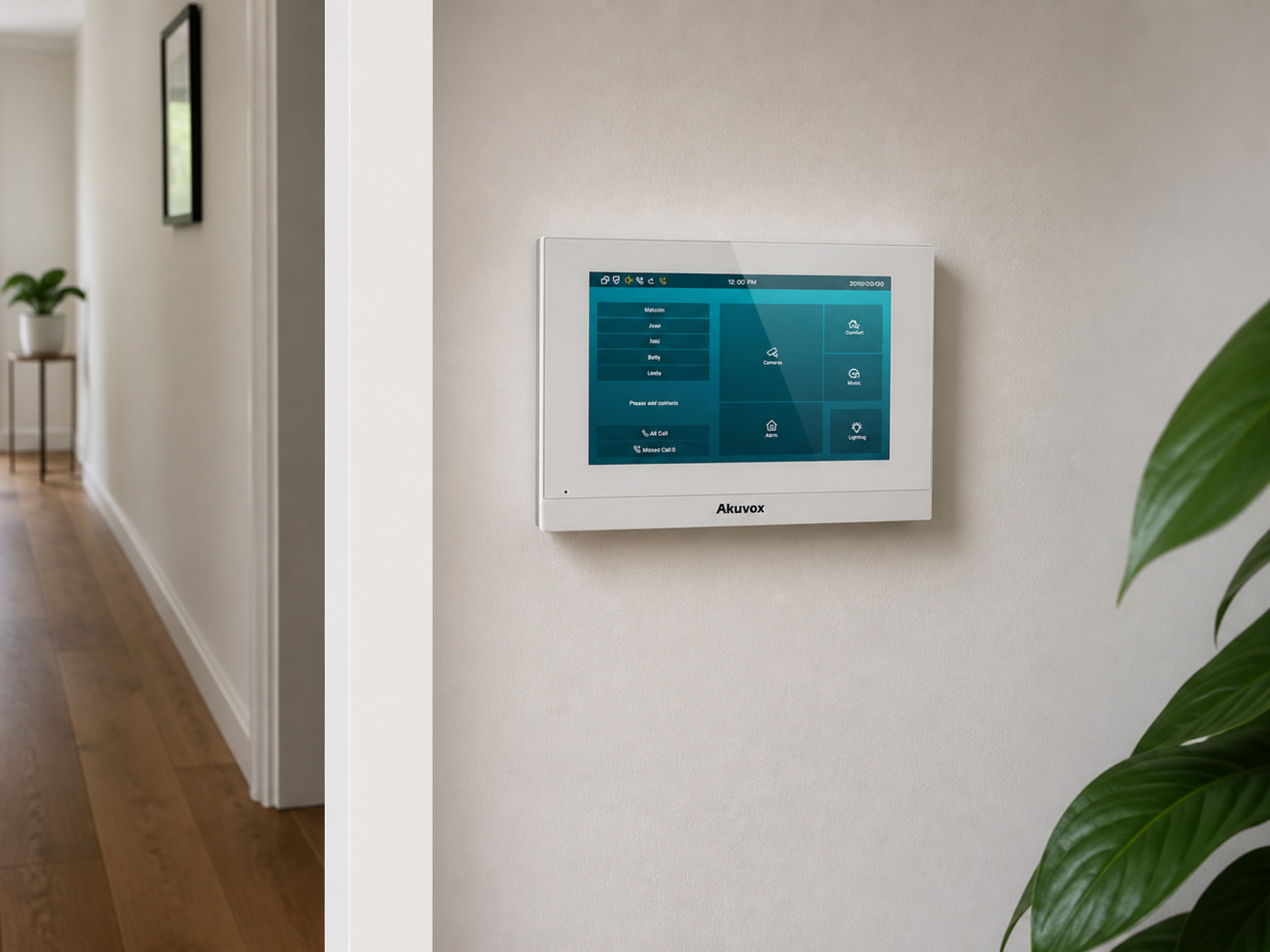

Eight alarm inputs, a relay, a bell input and RS485 cover security sensors, a local door release and a doorbell. Wall-mounts on US or European boxes, or sits on a table bracket.

How it works

Replacing an analogue handset.

01

Remove the handset

Take off the old analogue unit and identify the two wires.

02

Connect 2-wire

Land the pair on a 2-wire port — direct from the door phone or from an NS-2 port.

03

Mount and power

Fit the bracket, then power from the NS-2, 48 V DC or PoE.

04

Go online

Join Wi-Fi or Ethernet, set up SmartPlus and test a call and door release.

Pair it with

Builds a 2-wire video intercom

Door

Akuvox 2-wire door phone

R20A-2, R20K-2 or E12S-2 on the same pair, with video and door release.

Power hub

Akuvox NS-2

Powers and networks up to six 2-wire devices from one DIN-rail switch.

Desk

C313 table bracket

Stands the monitor on a bench or bedside table.

Works with

Platforms and integrations

SIP PBX and IP phones

Standard SIP v1 / v2 lets the C313W-2 call, and be called by, extensions on any SIP-capable PBX.

Akuvox SmartPlus

Once online over Wi-Fi or Ethernet, door calls can also ring residents’ phones in the SmartPlus app.

Akuvox 2-wire system

Works with R20A-2, R20K-2 and E12S-2 door phones and the NS-2 switch; standard IP door phones join through an NC-2.

RTSP IP cameras

RTSP support lets the monitor show compatible IP camera streams alongside door phone video.

Watch

See it in action

2-wire intercom kit initial setup
Akuvox 2-wire SIP video intercom overview
Wiring Akuvox 2-wire devices for a villa

Downloads

Datasheets and guides

Compliance certificates and technical documents are available on request for tenders and installers — send an enquiry.

Answers

Common questions

How is the C313W-2 different from the C313W?

The C313W-2 adds two 2-wire ports and a 48 V DC input so it can run over existing two-wire intercom cabling, powered by an Akuvox NS-2 or 48 V supply.

Which door phones does it work with over 2 wires?

Akuvox 2-wire door phones: R20A-2, R20K-2 and E12S-2. A standard IP door phone can join through an Akuvox NC-2.

Do I need an NS-2?

Not for a single monitor and door phone — the Akuvox 2-wire kit uses a door phone, a C313W-2 and a power adapter. Use an NS-2 for several 2-wire devices.

How much power does it draw?

At 48 V DC it draws no more than 2.02 W in standby and 7.62 W at full load. Feed it from an NS-2 over the pair, a 48 V DC supply or 802.3af PoE.

What else can I connect to it?

Eight alarm inputs for door, window or motion sensors, one relay for a local door or gate release, a bell input for a doorbell button and an RS485 port.

Can it sit on a desk?

Yes. It is rated for wall-box or desktop installation; the C313 table bracket stands it on a bench or bedside table.

How is the white version different from the silver?

Only the finish: all-white housing versus a black front with silver trim. Specs and features are the same.

Can I answer the door from my phone?

Yes. With the monitor online over Wi-Fi or Ethernet, calls can also go to the Akuvox SmartPlus app.

An affordable 2-wire monitor.

Pick the white C313W-2 for light walls; the silver C313W-2 is the same monitor with a black front and silver trim. For a larger 1024 × 600 screen and Wi-Fi 6, see the S562W-2.

Installation & safety notice

Low-voltage product (SELV). Power over the 2-wire line from an Akuvox NS-2, from a 48 V DC supply on the DC connector, or from IEEE 802.3af PoE on the RJ45 (≤7.62 W full load).

When a licensed tradesperson is required. Concealed data and intercom cabling is customer cabling under AS/CA S009 and must be installed by an ACMA-registered cabler. Electric locks, maglocks and lock power supplies may require a licensed electrician or security installer.

Ethernet
1 × RJ45 10/100 Mbps, PoE 802.3af
Memory
128 MB RAM / 128 MB ROM
Power
Akuvox NS-2 over 2-wire, 48 V DC or PoE 802.3af
Colour
White
Power Consumption
≤2.02 W standby, ≤7.62 W full load (48 V DC)
Installation
Wall (US or European wall box) or desktop
Working Temperature
−10 °C to +45 °C
Brand
Akuvox
Size
200.2 × 132.2 × 27.2 mm
Warranty
Australian warranty
Product Type
2-wire SIP indoor monitor
Model
C313W-2
Wi-Fi
802.11 b/g/n, 2.4 GHz
Audio Codecs
PCMU, PCMA, G.722
2-Wire Ports
2
I/O
8 alarm inputs, 1 relay, 1 bell input, RS485
OS
Linux
Screen
7″ capacitive touch, 800 × 480, 220 nits
Video Codec
H.264
