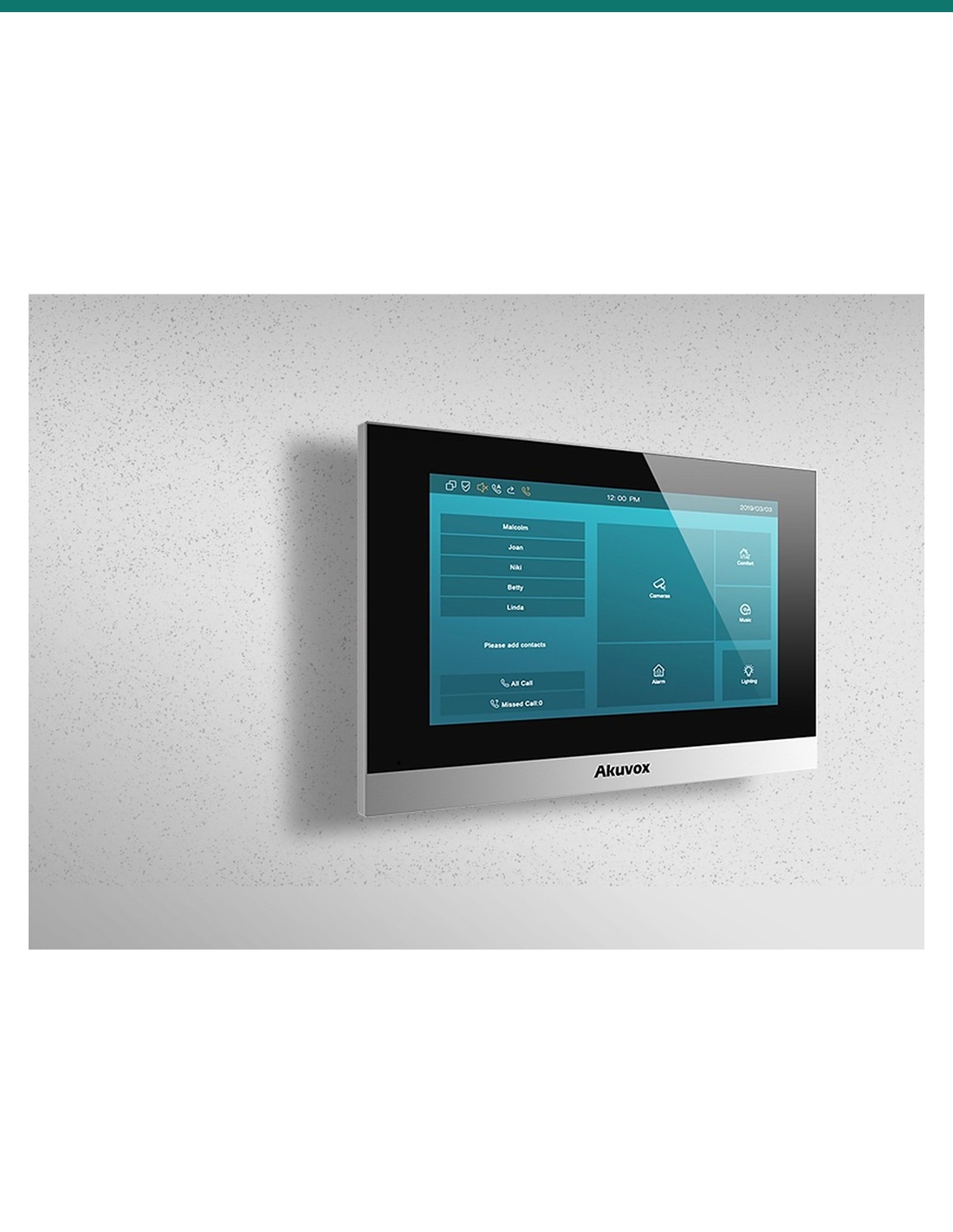

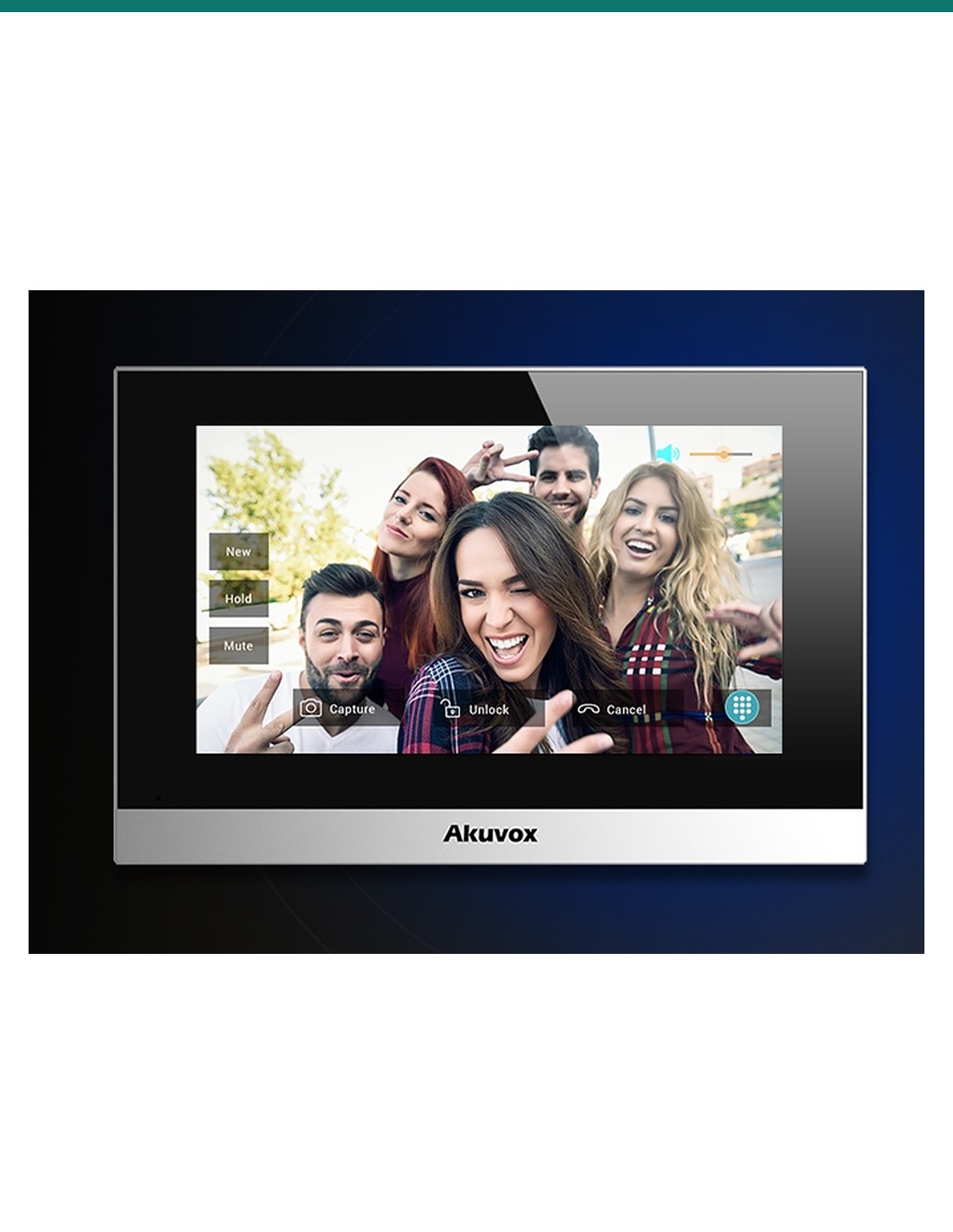

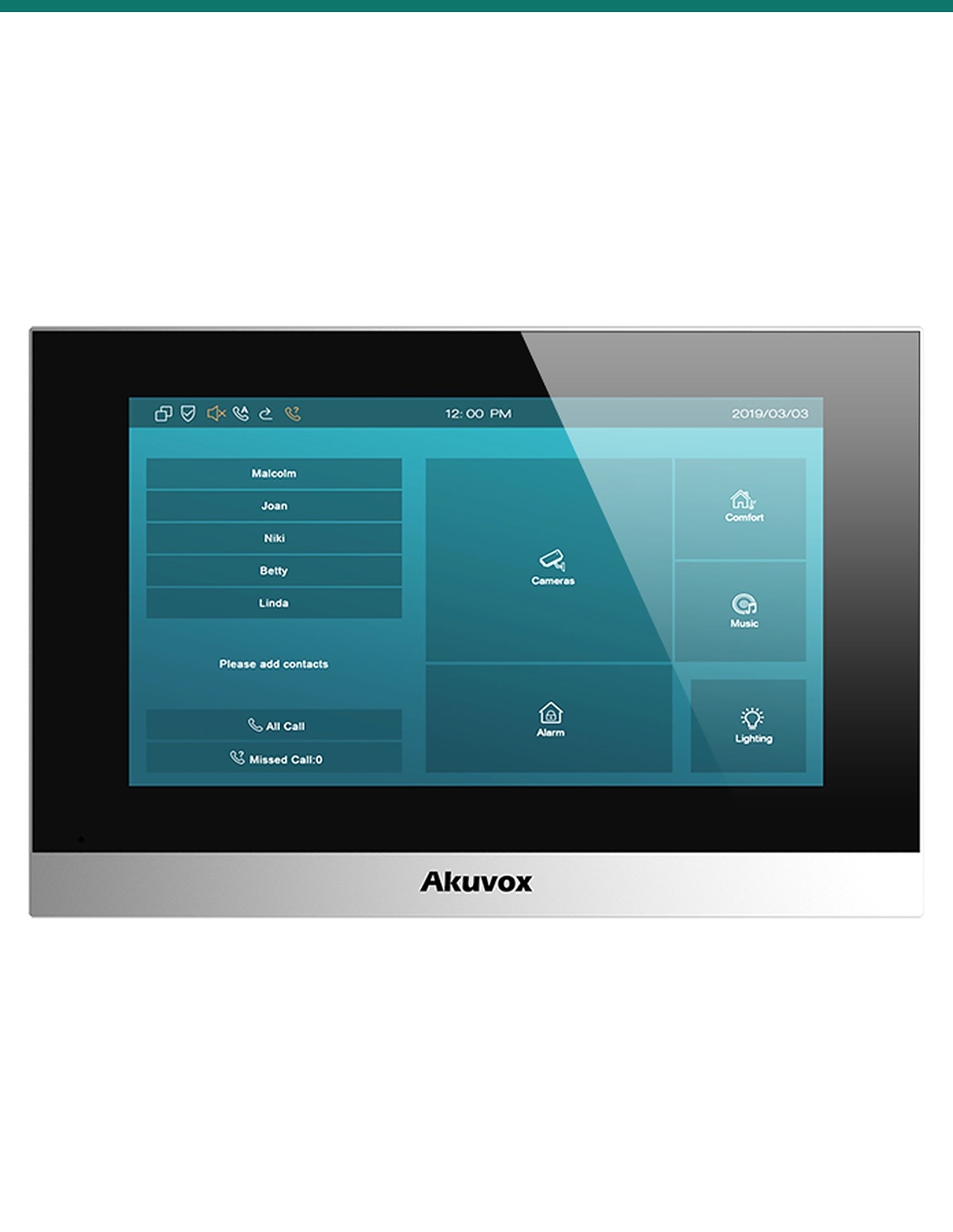

Akuvox C313S Silver 7-inch Linux SIP Indoor Monitor with PoE — AK-C313S-SILVER

SKU AK-C313S-SILVER In Stock - Ready to Ship
$200.00 inc GST

Akuvox C313S is a silver-trimmed 7-inch touch screen SIP indoor monitor running Linux. It is the wired IP version of the C313: two RJ45 ports and 802.3af PoE, no Wi-Fi. See and talk to visitors at your Akuvox door station, unlock from the screen, and monitor eight alarm zones.

  • ✓7-inch 1024 × 600 capacitive touch screen · black glass with silver trim
  • ✓2 × RJ45 10/100 ports · PoE 802.3af (≤6 W) or 12 V DC
  • ✓8 alarm inputs, bell input, relay out and RS485
  • ✓Wall box or desk mount · 200.2 × 132.2 × 27.2 mm

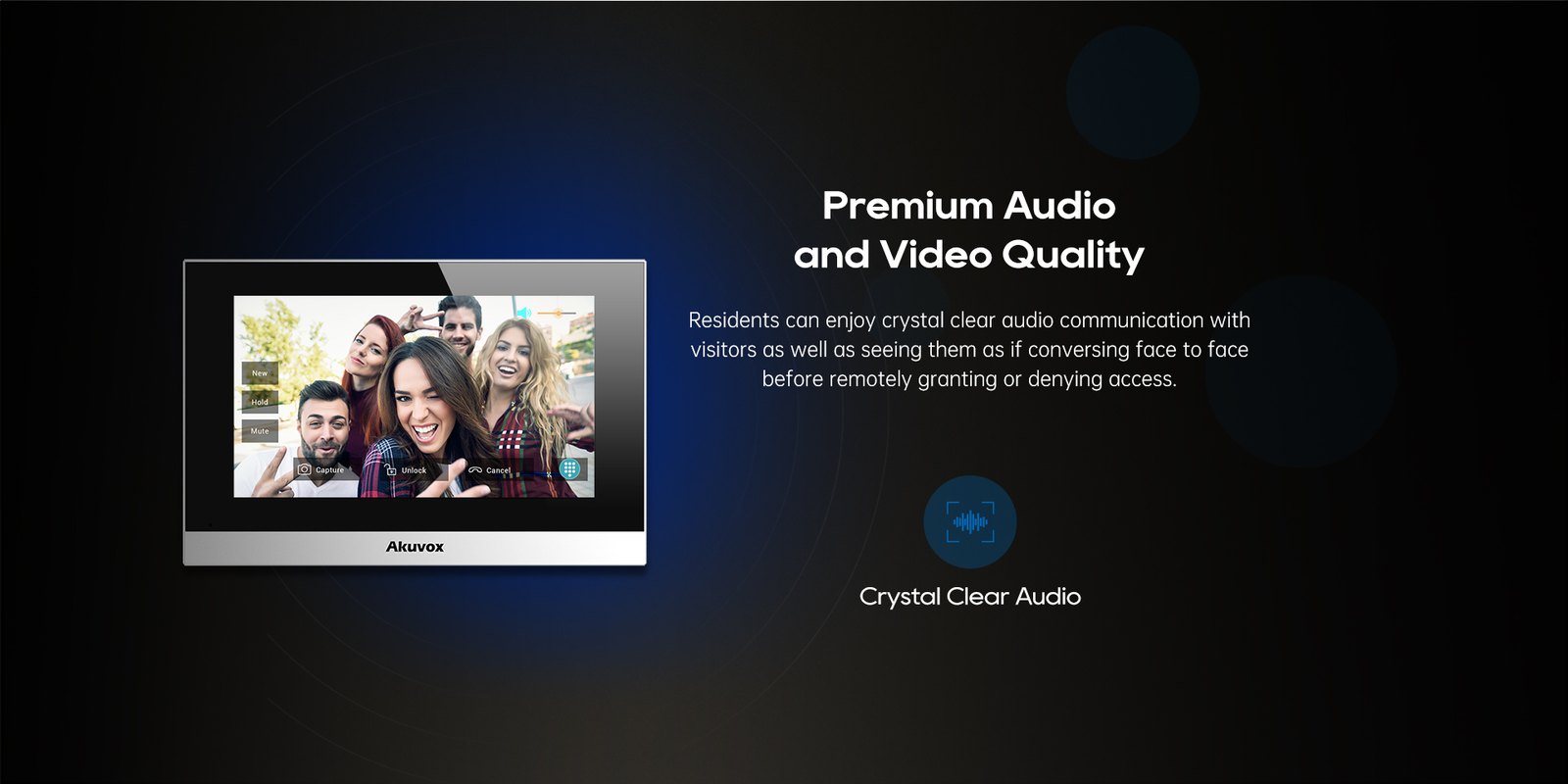

Akuvox C313 silver indoor monitor showing a visitor at the door
Akuvox · C313S · Silver 7-inch Linux monitor

See who’s at the door.
7-inch touch screen, one PoE cable.

The AK-C313S-SILVER is Akuvox’s compact Linux indoor monitor for cabled IP intercom systems. A 7-inch capacitive touch screen shows video from your SIP door station, you talk hands-free, and one tap releases the lock. Black glass with a silver lower trim, in a thin housing that sits neatly on a standard wall box.

This SKU is the indoor monitor only.

You receive the silver C313S monitor with its standard mounting hardware. Door stations, PoE switch, power supply and the optional desk bracket are sold separately.

In the box
  • Akuvox C313S indoor monitor (silver)
  • Standard mounting hardware
What you also need (sold separately)
  • Akuvox SIP door station, or another SIP door phone or PBX
  • PoE 802.3af switch or injector, or a 12 V DC supply
  • Cat Ethernet cable to the monitor position
  • C313 / C315 table bracket if you want it on a desk

Answer, see, unlock.

When a visitor presses the button, the C313S rings and shows the door camera. Tap to answer, talk through the built-in speaker and microphone, then tap unlock — all from the touch screen.

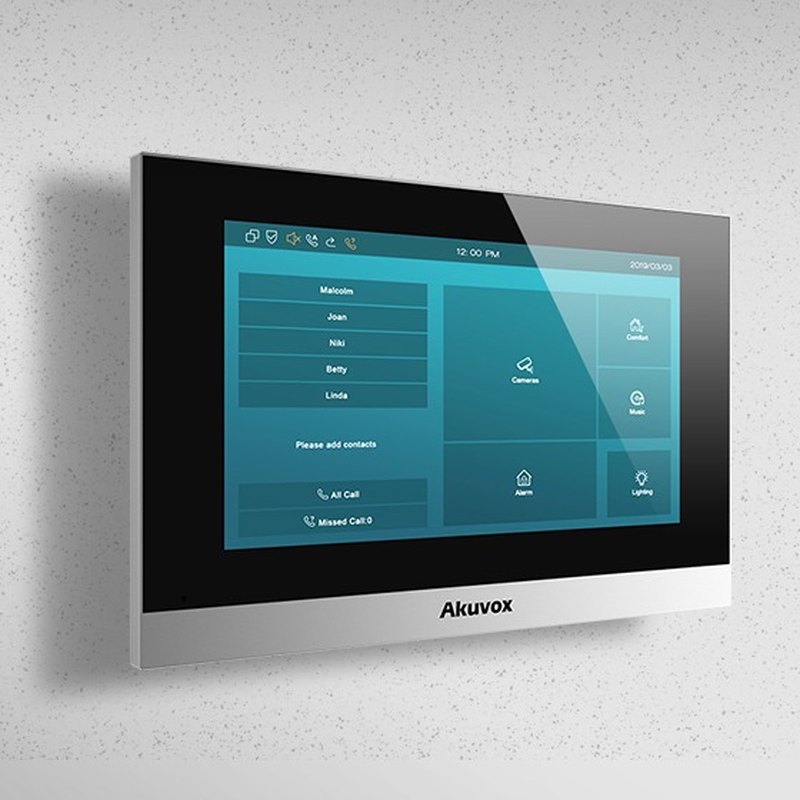

Akuvox C313 silver indoor monitor mounted on a wall

Display

Seven inches of touch screen.

A 7-inch projected-capacitive touch screen at 1024 × 600 shows H.264 video from your door station and gives you one-tap answer, unlock and monitoring.

Echo cancellation, voice activity detection and automatic gain control keep two-way audio clear, with G.722 wideband audio over SIP v1 / v2.

Install

One cable, wall or desk.

Two RJ45 ports and 802.3af PoE mean a single Cat cable powers the monitor and carries the call. A 12 V DC input covers sites without PoE.

It fits a US or European electrical wall box, or stands on a desk with the C313 / C315 table bracket. Eight alarm inputs, a bell input, a relay and RS485 connect local sensors and devices.

How it works

From door call to open door.

01

Mount

Fix to a US or European wall box, or use the C313 / C315 table bracket on a desk.

02

Power and network

Run 802.3af PoE to an RJ45 port, or use a 12 V DC supply.

03

Register

Register the monitor to your Akuvox door station or SIP PBX in the web portal.

04

Test

Call from the door, check video and audio, and confirm unlock works.

Pair it with

Builds a complete video intercom

Door

Akuvox door station

E12S, R20K, R20B or R29C call the monitor with video and let residents release the lock.

Desk

C313 / C315 table bracket

Stand the monitor on a bench or bedside table instead of the wall.

Network

PoE switch

One 802.3af PoE port powers the monitor and carries the call.

Works with

Platforms and integrations

SIP PBX and IP phones

Standard SIP v1 / v2 registers the C313S to Akuvox door stations, IP phones or extensions on any SIP-capable PBX.

Akuvox SmartPlus

Door calls keep working locally in the building while residents can also answer through the SmartPlus cloud app.

Auto-provisioning

Auto-provisioning and the web portal let installers configure and update every monitor in a building from one server.

Downloads

Datasheets and guides

Compliance certificates and technical documents are available on request for tenders and installers — send an enquiry.

Answers

Common questions

Is the C313S Android?

No. The C313S runs Linux, which keeps it simple and quick to start. Choose an Android model such as the S567 if you need apps.

Does the C313S have Wi-Fi?

No. The S is the wired IP version with two RJ45 ports. The C313W adds 2.4 GHz Wi-Fi.

How does it differ from the C313W-2?

The C313S is an IP monitor on Ethernet and PoE. The C313W-2 is the two-wire version for retrofits on existing two-core intercom cabling.

Does it have a camera?

No. It shows video from the door station; residents are heard but not seen.

Can it run on PoE?

Yes. It takes 802.3af PoE (≤6 W full load) or a 12 V DC supply (≤6.59 W).

Does it fit an Australian wall plate box?

It is designed for US or European electrical wall boxes. It can also be desk-mounted with the C313 / C315 table bracket.

Can residents also answer on their phones?

Yes, with Akuvox SmartPlus: the building intercom works locally while residents can also take door calls in the SmartPlus app.

A tidy silver monitor for every apartment.

Choose the C313S for cabled IP buildings, the C313W where you need Wi-Fi, and the C313W-2 to reuse existing two-wire cabling.

Installation & safety notice

Low-voltage product (SELV). Power from IEEE 802.3af PoE (≤6 W full load), or a 12 V DC supply (≤6.59 W) where PoE is not available.

When a licensed tradesperson is required. Concealed data and intercom cabling is customer cabling under AS/CA S009 and must be installed by an ACMA-registered cabler. Electric locks, maglocks and lock power supplies may require a licensed electrician or security installer.

Memory
128 MB RAM / 128 MB ROM
Audio
1 microphone, 1 speaker
Power
PoE 802.3af or 12 V DC
Colour
Silver
Operating System
Linux
Working Temperature
−10 °C to +45 °C
Brand
Akuvox
Consumption
PoE ≤6 W, 12 V DC ≤6.59 W full load
Mounting
Wall (US or European wall box) or desk
Network
2 × RJ45, 10/100 Mbps (no Wi-Fi)
Size
200.2 × 132.2 × 27.2 mm
Warranty
Australian warranty
Product Type
SIP video indoor monitor
Model
C313S
Audio Codecs
PCMU, PCMA, G.722
Screen
7-inch capacitive touch screen, 1024 × 600
Inputs / Outputs
8 alarm inputs, 1 bell input, 1 relay out, RS485
Brightness / Contrast
180 nits, 800:1
Video Codec
H.264
