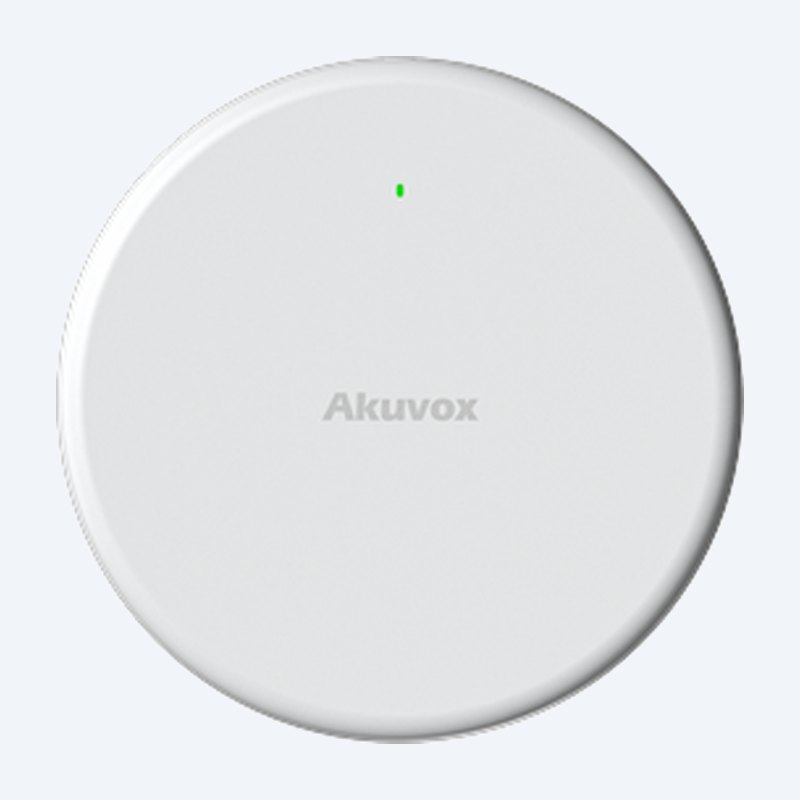

Akuvox MR01 White mmWave Fall-Detection Radar Sensor — AK-MR01
$558.50 inc GST
Akuvox MR01 is a 60 GHz mmWave radar that watches for falls and bed exits without a camera, then raises an alert through Akuvox SmartPlus and its own buzzer. Mount it on the wall or ceiling and power it by PoE or USB-C.
- ✓Fall and bed-exit detection with multi-person tracking — no camera
- ✓Covers about 6 × 4 m from the ceiling, or 5 m at 140° from a wall
- ✓PoE or 5 V 2 A USB-C power; Wi-Fi or wired network
- ✓Alarm buzzer, speaker and 1 relay output · Ø110 × 24 mm
Akuvox · MR01 · Fall-detection radar
Watching for falls.
Without a camera.
The AK-MR01 is Akuvox’s AI fall-detection radar. It uses millimetre-wave sensing instead of video, so bedrooms and bathrooms stay private while staff or family still get an alert.
This SKU is the radar sensor.
This SKU is the radar sensor. The box includes side and top mounting brackets, wiring cover, rubber plugs, pin cable, USB Type-C cable, screws, anchors and a diode. The PoE switch or USB power supply is sold separately.
In the box
- Akuvox MR01 radar sensor
- Side and top mounting brackets
- Wiring cover, rubber plugs and pin cable
- USB Type-C cable
- Screws, anchors and diode
What you also need(sold separately)
- PoE switch or 5 V 2 A USB-C power supply
- Network (PoE cable or Wi-Fi)
- Akuvox SmartPlus account for app alerts
Privacy-first monitoring.

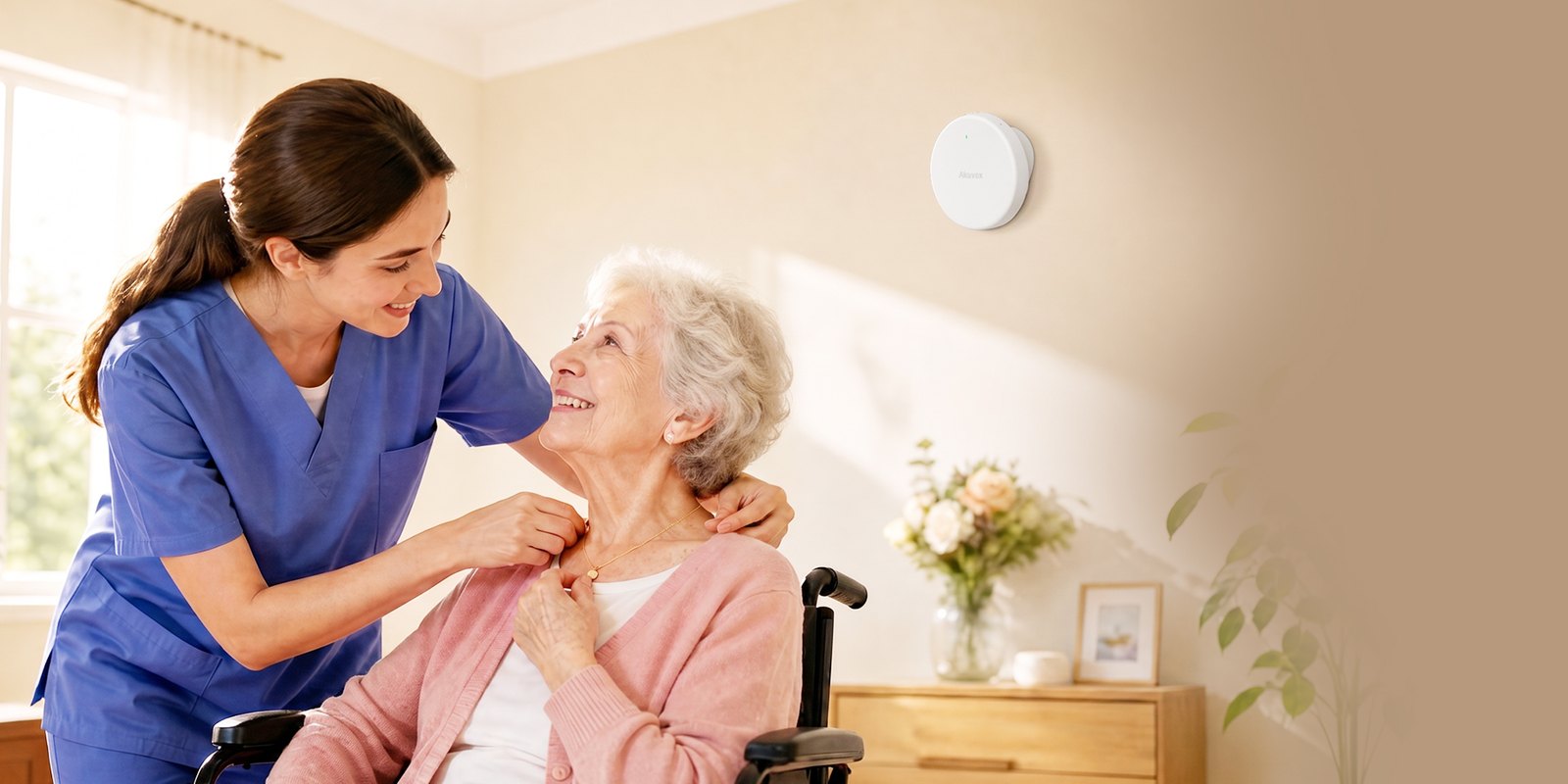

Suited to aged care rooms, assisted living and people living alone. Radar reads movement and posture, not faces.
Detect
Falls and bed exits.
The 60–61 GHz FMCW radar with 4 transmit and 4 receive antennas tracks multiple people and recognises falls and someone leaving a bed.
Alerts reach carers through Akuvox SmartPlus, with a local alarm buzzer and a relay output for local alarm equipment.
Mount
Ceiling or wall.
From the ceiling it covers about 6 × 4 m. On a wall it looks up to 5 m ahead across a 140° fan.

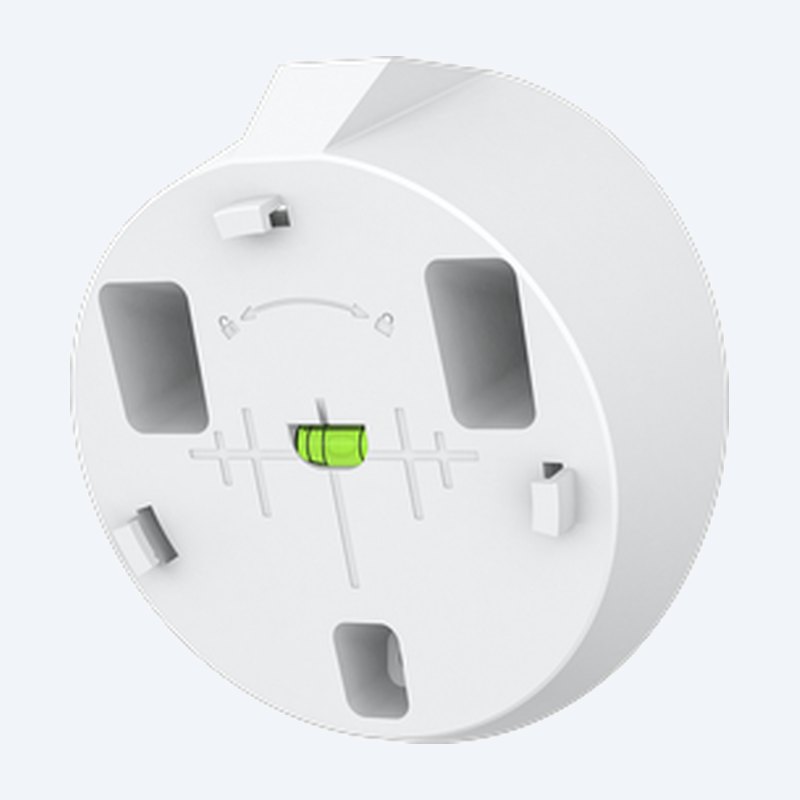

Side and top brackets are supplied. Run PoE for one-cable installs, or use USB-C power with Wi-Fi.
At a glance
Key specs — AK-MR01
Show all specifications
- Detection
- Fall, bed exit, multi-person
- Radar
- 60–61 GHz FMCW, 1 GHz bandwidth, 4T4R, 11 dBm
- Coverage
- Ceiling 6 × 4 m; wall 5 m ahead, 140°
- Network
- RJ45 (PoE) or Wi-Fi 802.11b/g/n
- Power
- PoE (IEEE 802.3) or 5 V 2 A USB Type-C
- Outputs
- 1 relay, alarm buzzer, 1 speaker
- Mounting
- Wall or ceiling (brackets included)
- Material / colour
- Plastic, white
- Size
- Ø110 × 24 mm
- Working temperature
- −10 °C to +45 °C
- Warranty
- Australian warranty
- Brand
- Akuvox
- Reference
- AK-MR01
Physical and power
- Housing
- Plastic
- Power
- IEEE 802.3 PoE, or 5 V 2 A DC adapter over USB Type-C
- Wi-Fi
- IEEE 802.11b/g/n
- RJ45 port
- 1
- USB Type-C port
- 1
- Relay output
- 1
- Alarm buzzer
- Yes
- Speaker
- 1
- Dimensions
- Ø110 × 24 mm
- Installation
- Wall or ceiling mounted
- Working temperature
- −10 °C to +45 °C
- Storage temperature
- −20 °C to +70 °C
- Working humidity
- 10–90% RH
Radar
- Frequency band
- 60–61 GHz
- Bandwidth
- 1 GHz
- Modulation
- Frequency-modulated continuous wave (FMCW)
- Transmit power
- 11 dBm
- Antennas
- 4 transmit, 4 receive (4T4R)
Detection
- Ceiling mounting
- 6 × 4 m area
- Wall mounting
- Up to 5 m ahead, 140° fan
- Fall detection
- Yes, including with several people in the room
- Bed-exit detection
- Yes, reported separately for each bed in range
- Alerts
- Akuvox Cloud to the carer’s SmartPlus app, plus local buzzer
Installation and deployment
- Ceiling height
- Top of bracket no higher than 3000 mm
- Wall height
- Centre of radar no higher than 2000 mm
- Wall bracket
- Angled 20° downward
- Clearance
- No moving, metal or light objects within 70 cm; for wall mounting, nothing taller than 1.5 m in the detection range
- Deployment
- Configuration export and batch deployment; remote maintenance via Akuvox Cloud
Pair it with
Works alongside
Phone
Akuvox R15P
Big-button SIP phone with SOS key for seniors.
Monitor
Akuvox S562
Indoor monitor for staff stations and residents.
Works with
Platforms and integrations
Akuvox Cloud and SmartPlus
Fall and bed-exit alarms are pushed through Akuvox Cloud to the carer’s SmartPlus app, and the radar can be maintained remotely.
Local alarm equipment
The relay output can switch a local alarm device when a fall is detected.
Watch
See it in action
Downloads
Datasheets and guides
PDFMR01 DatasheetAkuvox MR01 datasheet V1.0, May 2026 edition · 3.3 MBPDFMR01 quick guideOfficial Akuvox MR01 quick guide (PDF) · 2.7 MBPDFMR01 dimension drawingsRadar, ceiling and wall bracket and mounting-height drawings in mm, May 2026 · 591 KB
Compliance certificates and technical documents are available on request for tenders and installers — send an enquiry.
Answers
Common questions
Does it use a camera?
No. It is a 60 GHz millimetre-wave radar, so no images are captured — suitable for bedrooms and bathrooms.
How are alerts sent?
Through Akuvox Cloud to the carer’s SmartPlus app, plus the built-in buzzer and a relay output for local alarm equipment.
How much area does it cover?
About 6 × 4 m when ceiling-mounted, or up to 5 m ahead across a 140° fan when wall-mounted.
Can it watch more than one person or bed?
Yes. It still detects falls with several people in range, and reports bed exits separately for each bed it can see.
How is it powered and connected?
One PoE cable (IEEE 802.3) for power and network, or a 5 V 2 A USB-C adapter with Wi-Fi 802.11b/g/n. A built-in Wi-Fi access point is used for first setup.
How high should it be mounted?
On a ceiling, no more than 3000 mm to the top of the bracket. On a wall, the centre of the radar no higher than 2000 mm, on the supplied 20° bracket. Keep moving, metal or light objects at least 70 cm away.
Is it a medical device?
No. Akuvox states the MR01 is a supplementary monitoring device and should support, not replace, care staff and emergency procedures.
Safer rooms.
The MR01 watches a room without a camera, raising fall and bed-exit alerts for aged care and assisted living.
Installation & safety notice
Low-voltage product (SELV). Powered by PoE (IEEE 802.3) or 5 V 2 A over USB Type-C. Treat as SELV low-voltage equipment.
When a licensed tradesperson is required. Concealed data and intercom cabling is customer cabling under AS/CA S009 and must be installed by an ACMA-registered cabler. Electric locks, maglocks and lock power supplies may require a licensed electrician or security installer.
- Material
- Plastic
- Detection
- Falls, bed exit, multiple people
- Power
- PoE (IEEE 802.3) or 5 V 2 A USB Type-C
- Colour
- White
- Working Temperature
- −10 °C to +45 °C
- Brand
- Akuvox
- Outputs
- 1 relay output, buzzer, speaker
- Mounting
- Wall or ceiling, brackets included
- Network
- RJ45 or Wi-Fi 802.11b/g/n
- Size
- Ø110 × 24 mm
- Warranty
- Australian warranty
- Product Type
- mmWave fall-detection radar sensor
- Model
- MR01
- Coverage
- 6 × 4 m (ceiling); 5 m, 140° (wall)
- Radar
- 60–61 GHz FMCW, 4T4R, 11 dBm
