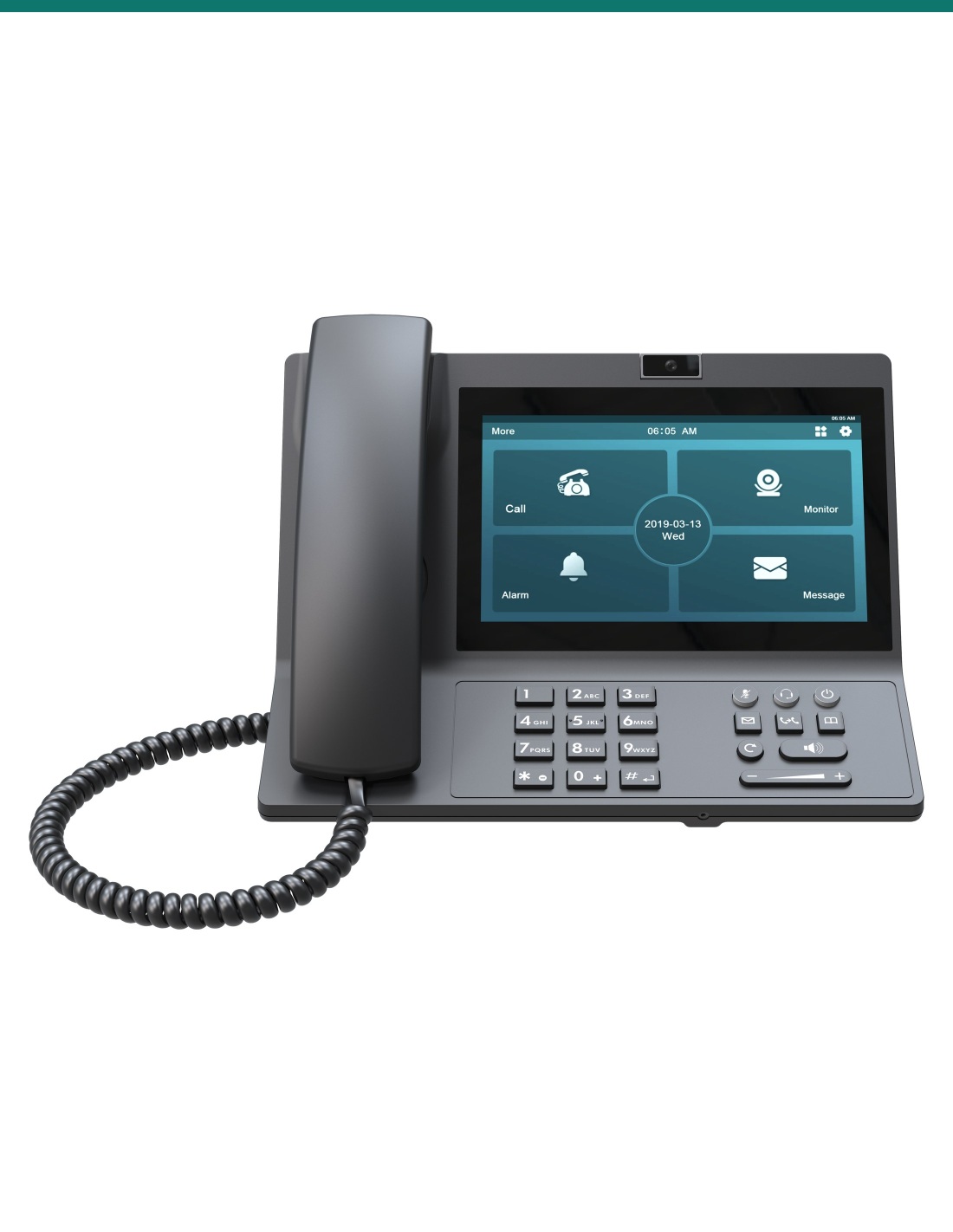

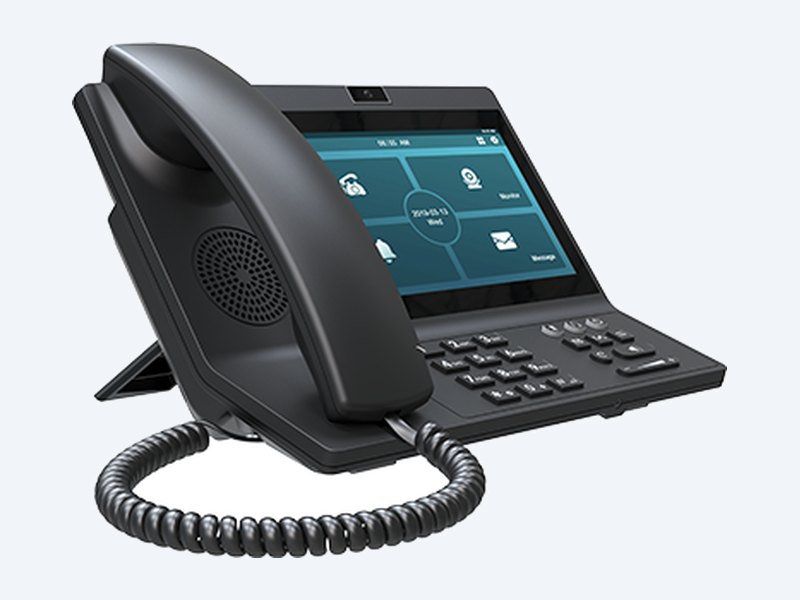

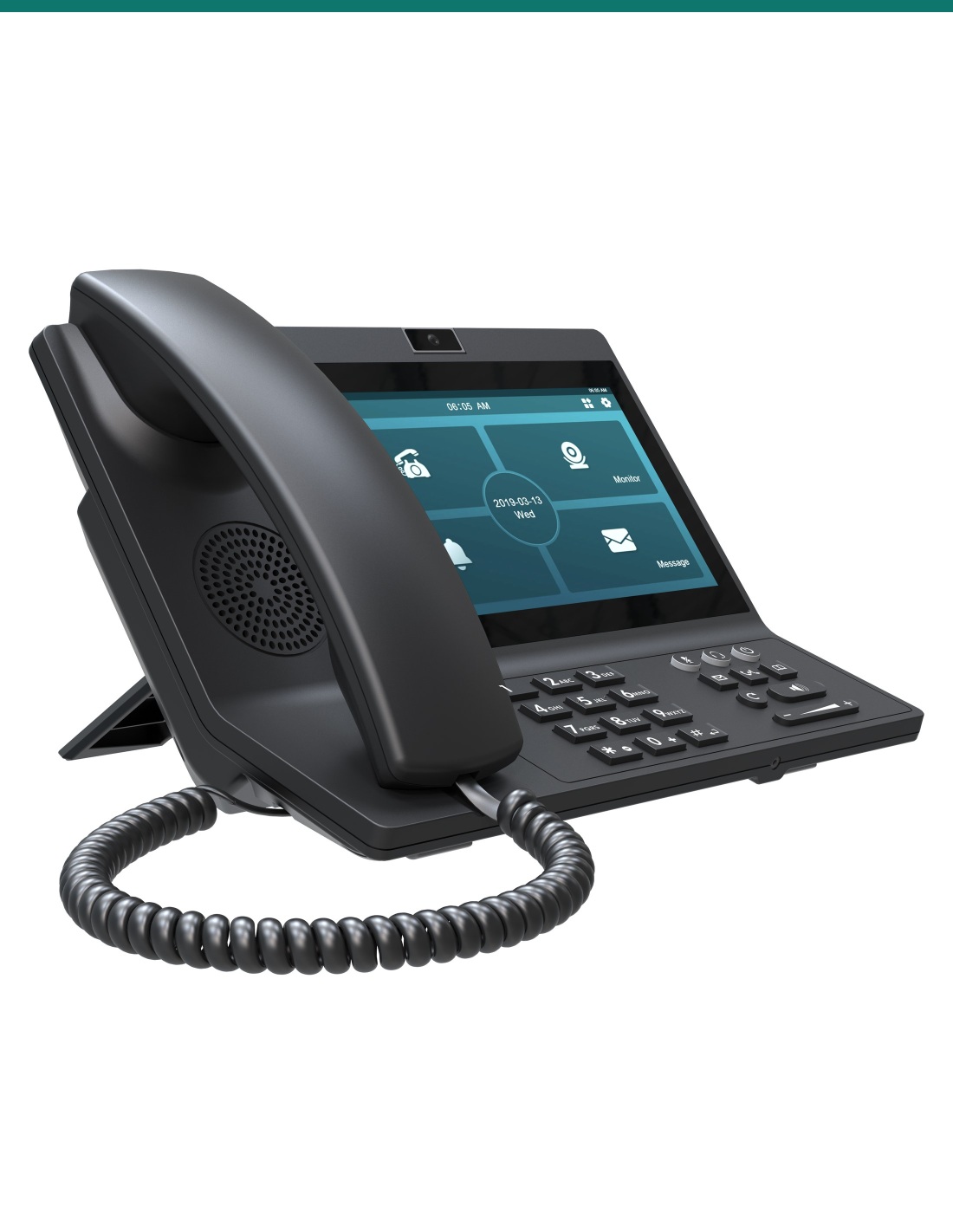

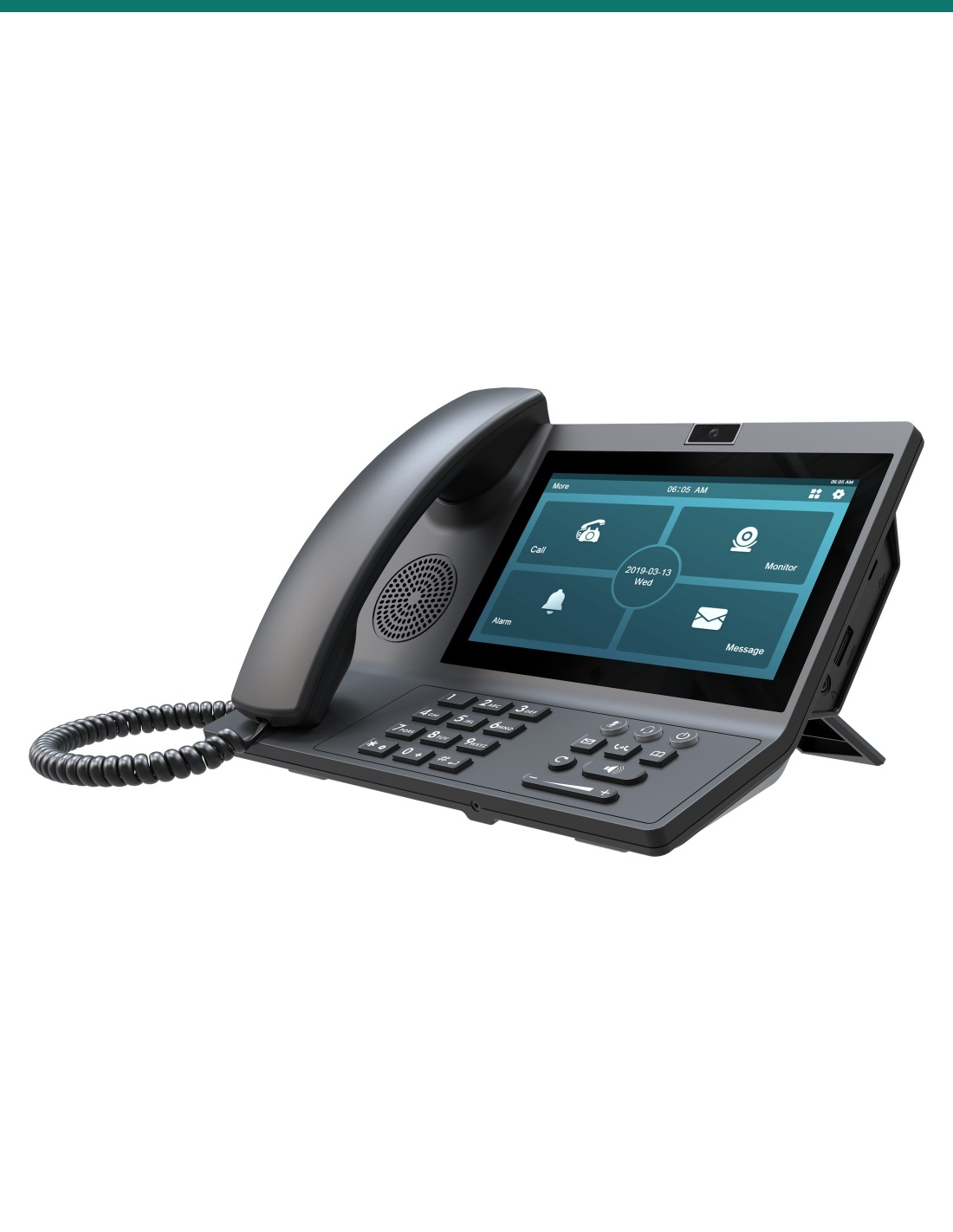

Akuvox VP-R49G is a desk IP video phone with a 7-inch touch screen, corded handset and a 2MP camera with privacy shutter. Running Android 9.0, it works as a concierge or guard unit for Akuvox intercoms.
The AK-VP-R49G combines a business video phone and an intercom guard unit. A 7-inch touch screen, corded handset and 2MP camera handle face-to-face calls with residents and visitors, while Android 9.0 runs Akuvox’s intercom features alongside third-party apps.
This SKU is the video phone.
You receive the VP-R49G with handset and cord, foot stand, 12 V DC power adapter, Ethernet cable and quick guide. Door stations and the PoE switch are sold separately.
Calls from door stations arrive with live video on the 7-inch screen. Pick up the handset or use the full-duplex speakerphone, then open the door remotely during the call.
Calls
A 2MP CMOS camera with a privacy shutter and a 7-inch 1024 × 600 touch screen give H.264 / H.265 video calls up to 720p.
Full-duplex speakerphone with AEC, noise suppression and G.722 wideband audio, plus a corded handset or 3.5 mm headset for privacy.
Android
2 GB RAM and 8 GB flash run Android 9.0, with browser, contacts, gallery, surveillance and video apps built in.
The Android API supports installing third-party apps, and HDMI out lets you mirror the screen to a larger display.
Guard unit
As a guard unit it takes audio and video calls from residents and visitors, opens doors remotely during calls and streams live video from door phone cameras.
Guards can also review alarm logs and send group messages, with two SIP accounts, call transfer, conference and multicast paging.
How it works
01
Fit the foot stand and set the phone on the desk.
02
Connect a gigabit PoE port, or use the 12 V adapter with Wi-Fi or Ethernet.
03
Register one or two SIP accounts to your Akuvox system or PBX.
04
Call from a door station, check video and audio, and confirm remote unlock.
At a glance
Show all specifications
Pair it with
Door
E12S, R20K, R20B, R25K or R28A call the guard unit with video and accept remote unlock.
Network
One 802.3af port powers the phone; the second RJ45 can pass through to a PC.
Residents
Residents on S562, S563 or C313 monitors can call the desk directly.
Works with
Two SIP accounts (RFC 3261) register the phone on your PBX or SIP service alongside its intercom role.
Takes video calls from Akuvox SIP door phones and opens the door remotely during the call.
Looks up contacts from an LDAP directory as well as its local phonebook.
Android 9.0 with API support for installing third-party Android apps.
Watch
Downloads
Compliance certificates and technical documents are available on request for tenders and installers — send an enquiry.
Answers
Both. It is a desk IP video phone with a handset that also works as an Akuvox intercom guard unit.
Yes. It can open the door remotely for visitors during a call from an Akuvox door station.
The phone, handset and cord, foot stand, a 12 V DC power adapter, an Ethernet cable and a quick guide.
From 802.3af PoE on either gigabit port, or the supplied 12 V / 1 A DC adapter. Typical consumption is about 12 W.
Yes. It runs Android 9.0 and supports installing third-party Android apps.
Two SIP accounts, with call transfer, conference, multicast paging and local audio / video call recording.
Yes. It has an HDMI video output, plus a USB Type-C port and a 3.5 mm headset jack.
It is designed as a desk phone and ships with a foot stand.
Choose the VP-R49G for concierge desks, guard rooms and management offices that need to see and talk to residents and visitors.
Low-voltage product (SELV). Power from IEEE 802.3af PoE over one of its gigabit ports, or the supplied 12 V / 1 A DC adapter; typical consumption is about 12 W.
When a licensed tradesperson is required. Concealed data and intercom cabling is customer cabling under AS/CA S009 and must be installed by an ACMA-registered cabler. Electric locks, maglocks and lock power supplies may require a licensed electrician or security installer.
