Akuvox R25K Black 4MP Wide-Angle SIP Video Door Phone with Keypad — AK-R25K-BLACK
$576.50 inc GST
Akuvox R25K in black is a keypad SIP video door phone with a 4 MP fisheye camera that sees 150° both across and top to bottom — faces, the whole porch and parcels at the door. Card, NFC and PIN entry, two lock relays, IP65 aluminium, PoE.
- ✓4 MP fisheye camera, 150° (H) / 150° (V), 2K at 30 fps, IR night lighting
- ✓Backlit keypad plus 13.56 MHz / 125 kHz card reader and NFC
- ✓2 relays, 2 inputs, Wiegand and RS485 for access-control integration
- ✓PoE 802.3af · IP65 · 185 × 85 × 24 mm · SIP and ONVIF

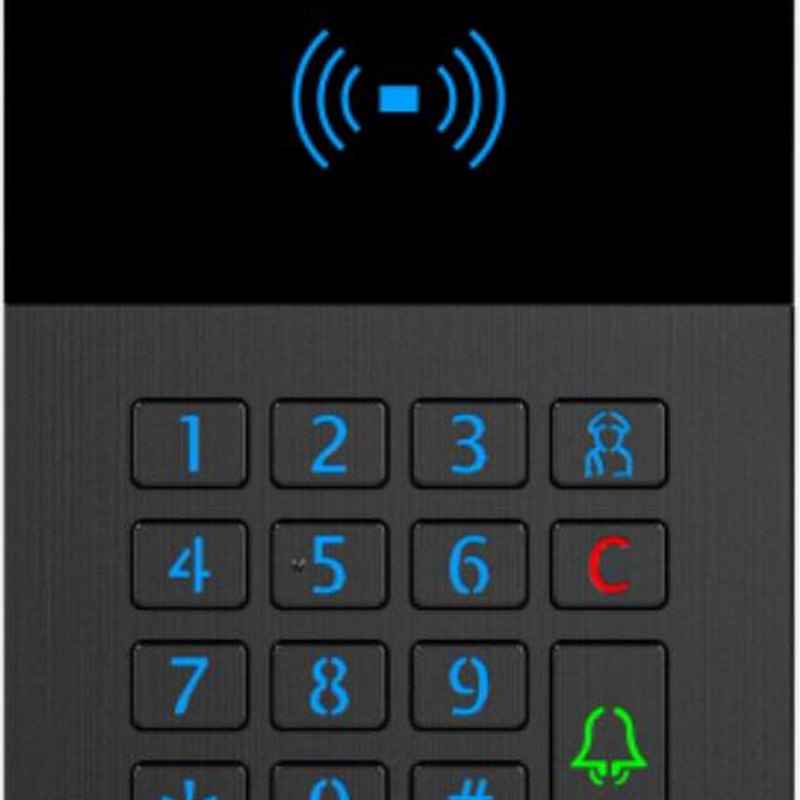

Akuvox · R25K · Black keypad door station
A keypad door phone that sees the whole doorstep.
4 MP fisheye, 150° each way.
The AK-R25K-BLACK is Akuvox’s R25K in black brushed aluminium. It keeps the compact keypad format of the R20K, but swaps in a 4 MP fisheye camera with a 150° vertical view — so residents see the visitor’s face, the path behind them and the parcel left at their feet.
This SKU is the door station only.
You receive the black R25K surface-mount door phone. Indoor monitors, the in-wall kit, rain hood, PoE switch and lock hardware are sold separately.
In the box
- Akuvox R25K door phone (black)
- Surface-mount hardware
- Quick-start guide
What you also need(sold separately)
- Compatible Akuvox indoor monitor, SmartPlus app or SIP endpoint
- PoE 802.3af switch or injector
- Electric lock / maglock and lock PSU if the door is released
- R20K/R25K in-wall kit for flush mounting
One door station. Every way in.
Visitors dial a flat and residents see them in 4 MP before they open up. Residents and staff skip the call entirely — tap a card, key in a PIN, or unlock from their phone.

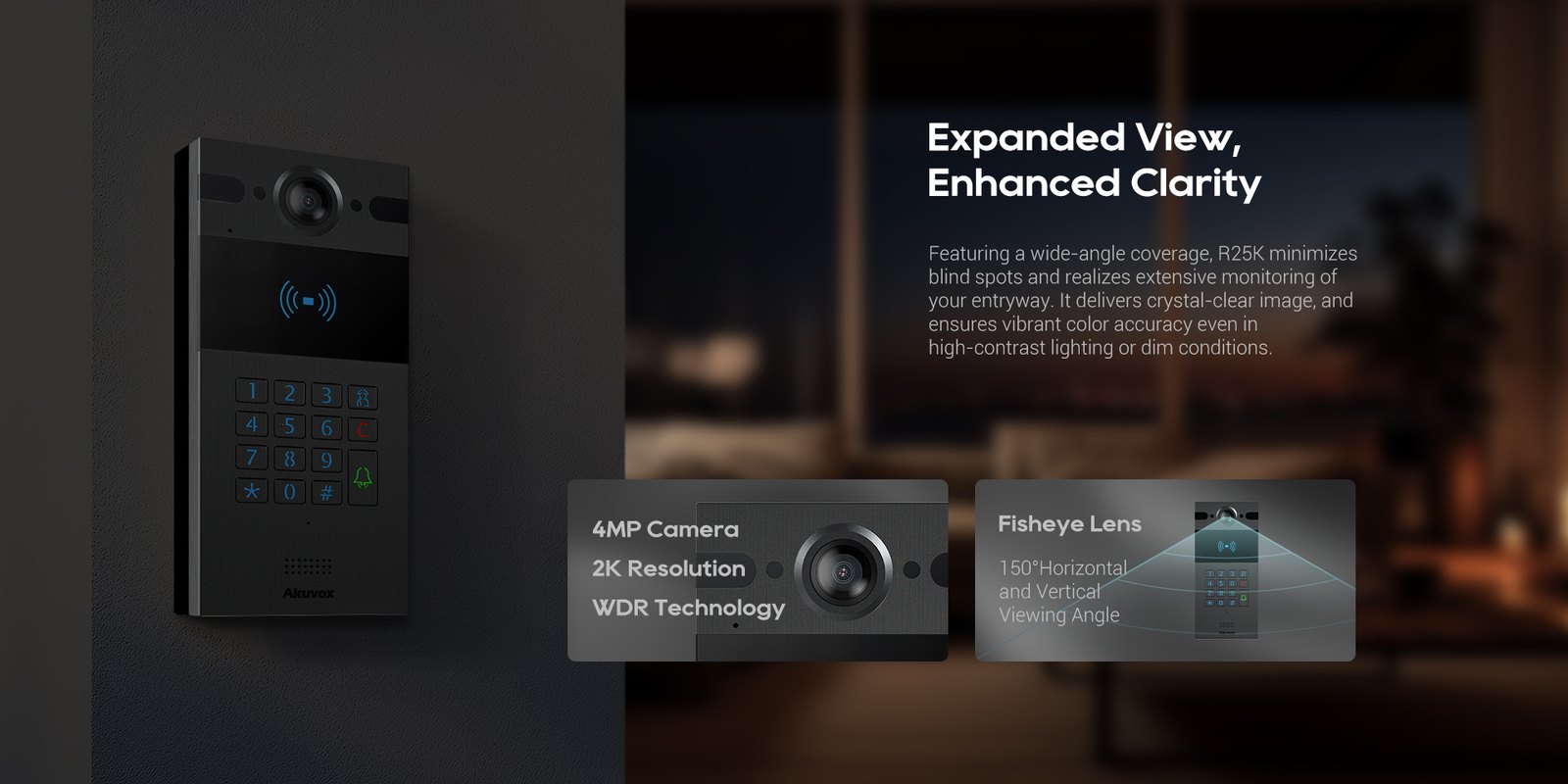

Camera
Face to feet in one frame.
4 MP 1/3.2″ CMOS behind a fisheye lens covers 150° horizontally and 150° vertically. Video streams in H.264 at up to 2000 × 2000, 2K at 30 fps.
WDR handles a bright street behind a shaded porch. IR LEDs, a light sensor and 0.1 lux minimum illumination keep night calls usable. ONVIF and RTSP let you record the door on your NVR.
Built for outside

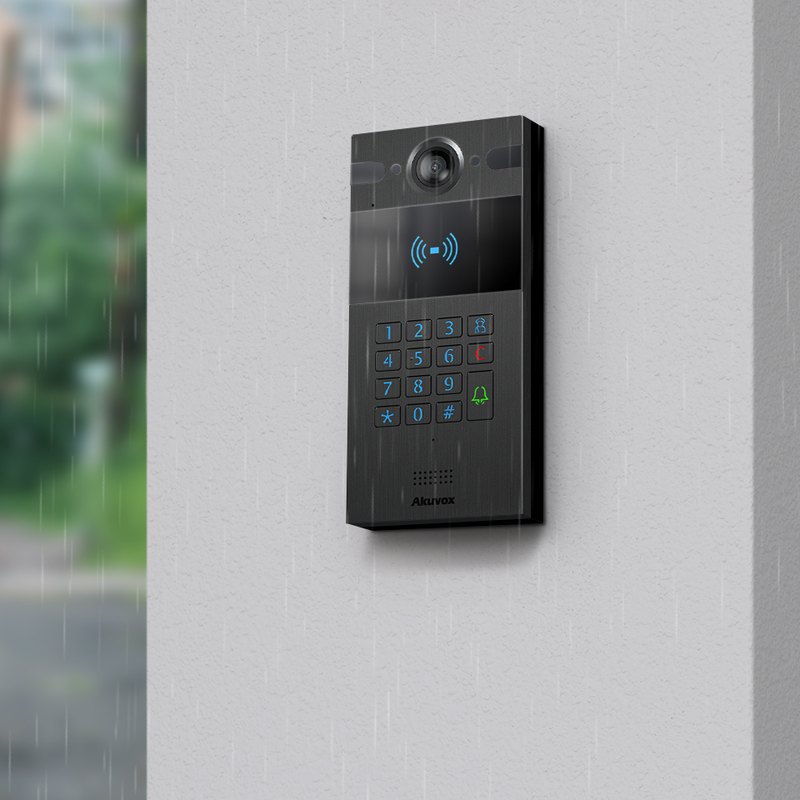

IP65 aluminium in a slim plate.
Brushed black aluminium front, IP65 rated, −30 °C to +60 °C. 185 × 85 × 24 mm — the same footprint as the R20K.
Surface-mounts as supplied. For a flush finish use the black R20K/R25K in-wall kit, and add a rain hood on exposed elevations.

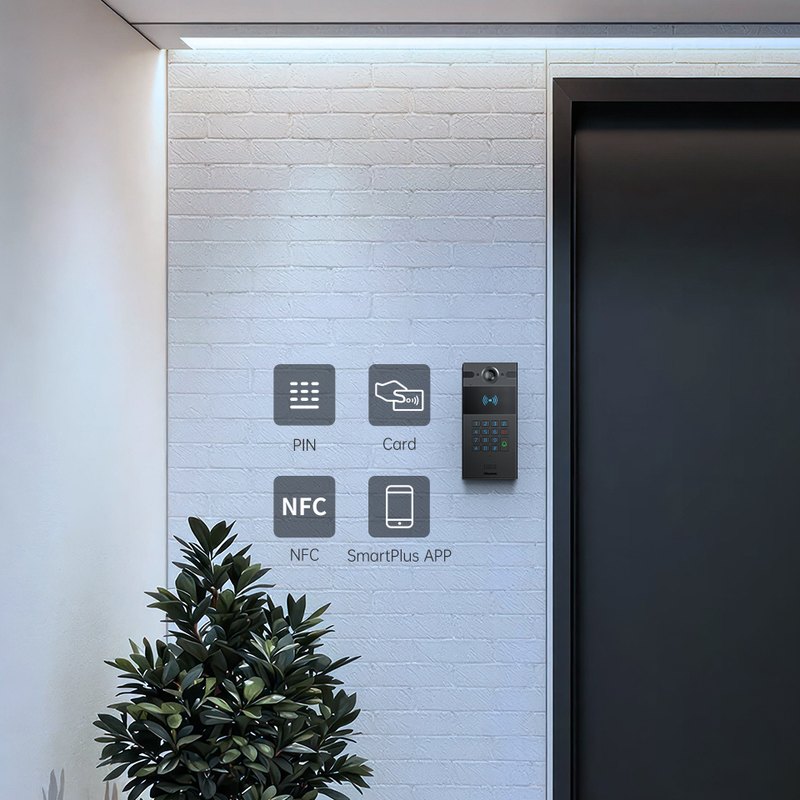

Access
PIN, card, NFC or app.
The 13.56 MHz and 125 kHz reader takes EM, MIFARE and DESFire EV1 / EV2 / EV3 credentials, plus NFC from Android phones. It stores up to 25,000 cards, 5,000 PINs and 5,000 users.
Two relays drive two doors or a door and a gate. Two inputs, selectable Wiegand in/out and RS485 connect exit buttons, door sensors and access controllers.
How it works
From dialled flat to open door.
01
Mount
Surface-mount as supplied, or fit the black R20K/R25K in-wall kit for flush. Add a rain hood where the door is exposed.
02
PoE and SIP
Run 802.3af PoE to the RJ45, then register the station to Akuvox indoor monitors, SmartPlus or your SIP PBX.
03
Enrol credentials
Load cards, PINs and room numbers in the web portal, or import an access table: up to 25,000 cards and 5,000 PINs.
04
Test the door
Place a call, check the fisheye picture day and night, and confirm each relay releases the right lock.
At a glance
Key specs — AK-R25K-BLACK
Show all specifications
- Finish
- Black brushed aluminium
- Camera
- 4 MP, 1/3.2″ CMOS, fisheye lens
- Field of view
- 150° (H) / 150° (V)
- Unlock
- Card, PIN, NFC, SmartPlus app, DTMF
- Capacity
- 25,000 cards · 5,000 PINs · 5,000 users
- I/O
- 2 relays, 2 inputs, Wiegand in/out, RS485, tamper
- Power
- PoE IEEE 802.3af
- Protection
- IP65
- Size
- 185 × 84.5 × 24 mm (H × W × D)
- Warranty
- Australian warranty
- Brand
- Akuvox
- Reference
- AK-R25K-BLACK
Physical and power
- Front panel
- Aluminium
- Keypad
- Numeric keypad with extra buttons
- Camera
- 4 MP with automatic lighting
- Sensors
- Light sensor, motion sensor, tamper alarm
- Speaker / microphone
- 1 / 1
- Ethernet
- RJ45, 10/100 Mbps adaptive
- Power
- IEEE 802.3af PoE
- Ingress protection
- IP65
- Installation
- Surface (wall) or flush mounted
- Dimensions (H × W × D)
- 185 × 84.5 × 24 mm
- Working temperature
- −30 °C to +60 °C
- Storage temperature
- −40 °C to +70 °C
- Working humidity
- 10–90%
- Operating system
- Linux
Interfaces
- Relay outputs
- 2
- Inputs
- 2
- Wiegand
- 1 channel, input or output (selectable)
- RS485
- Yes
- RF reader
- 13.56 MHz and 125 kHz
- NFC
- Yes (Android phones)
Video
- Sensor
- 1/3.2″ CMOS
- Resolutions
- CIF, VGA, 4CIF, 720p, 1080p, 2K
- Maximum resolution
- 2000 × 2000
- Frame rate
- 2K at 30 fps
- Codec
- H.264
- Viewing angle
- 150° (H) / 150° (V)
- Night lighting
- High-intensity IR LEDs with internal light sensor
- Minimum illumination
- 0.1 lux
- White balance
- Auto
- Third-party video
- Compatible with NVRs (ONVIF, RTSP)
Audio
- SIP
- SIP v1 (RFC 2543), SIP v2 (RFC 3261)
- Narrowband codecs
- G.711a, G.711μ
- Wideband codec
- G.722
- DTMF
- In-band, out-of-band (RFC 2833), SIP INFO
- Processing
- Echo cancellation, voice activity detection, comfort noise generator
Door entry and capacity
- Unlock methods
- EM / MIFARE card, PIN, NFC, DTMF
- Relay control
- Each relay controlled individually by DTMF tones
- Camera
- Permanently operational
- Card types
- EM, MIFARE, DESFire EV1 / EV2 / EV3
- Users
- 5,000
- Cards
- 25,000
- PINs
- 5,000
Network and management
- Protocols
- IPv4, HTTP, HTTPS, FTP, DNS, NTP, RTSP, RTP, TCP, UDP, ICMP, DHCP, ARP
- Provisioning
- Auto-provisioning
- Management
- Web portal, configuration backup / restore, firmware upgrade
- Logs
- System logs including door access logs, entry log export, web packet capture
- Access table
- Export / import
Pair it with
Builds a complete door entry system
Indoor
Akuvox indoor monitor
Residents answer, see the visitor and release the door from a compatible Akuvox SIP indoor station or the SmartPlus app.
Flush
R20K/R25K in-wall kit (black)
Recesses the station into the wall. Pair with the black rain hood on exposed doors.
Credentials
MIFARE cards and fobs
Akuvox 13.56 MHz cards work with the R25K reader once enrolled.
Lock
Electric lock / maglock
The two relays switch your lock power supply. Strike, maglock and lock PSU are separate items.
Works with
Platforms and integrations
SIP PBX and softphones
Standard SIP v1 / v2 lets the R25K call Akuvox monitors, IP phones or extensions on your own PBX.
NVRs over ONVIF / RTSP
Record the 4 MP door picture on an ONVIF or RTSP-capable NVR alongside your CCTV cameras.
Akuvox SmartPlus
Residents answer calls and open the door from the SmartPlus app on iOS or Android.
Wiegand and RS485 access control
The selectable Wiegand port and RS485 connect third-party access controllers, readers and Akuvox relay modules.
Watch
See it in action
Downloads
Datasheets and guides
PDFR25K DatasheetAkuvox R25K datasheet, November 2025 edition · 246 KBPDFR25K on-wall install guideOfficial Akuvox R25K on-wall install guide (PDF) · 3.4 MBPDFR25K dimension drawingsPanel and wall-bracket drawings in mm, September 2025 · 1.3 MB
Compliance certificates and technical documents are available on request for tenders and installers — send an enquiry.
Answers
Common questions
How is R25K different from R20K?
Same keypad format and footprint. R25K has a 4 MP fisheye camera covering 150° × 150°; R20K has a 2 MP camera covering 110° × 58°.
How many cards and PINs does it hold?
Up to 25,000 cards, 5,000 PINs and 5,000 users. Access tables can be exported and imported through the web portal.
Can I open the door from my phone?
Yes. Akuvox SmartPlus app users can answer calls and unlock, and Android phones can also unlock over NFC.
What PoE does it need?
IEEE 802.3af PoE from a switch or injector.
Can it be flush-mounted?
Yes, with the black R20K/R25K in-wall installation kit, which is sold separately.
Will it record to my existing NVR?
Yes. The R25K supports ONVIF and RTSP, so most ONVIF-capable NVRs can add it as a camera channel.
Is an indoor monitor included?
No. Pair it with a compatible Akuvox indoor monitor, the SmartPlus app or any SIP endpoint.
A wider view at the door.
Choose R25K over R20K when you want the 4 MP fisheye picture — deliveries, small children and anyone standing close to the door stay in frame.
Installation & safety notice
Low-voltage product (SELV). Power from IEEE 802.3af PoE. Treat as SELV low-voltage equipment.
When a licensed tradesperson is required. Concealed data and intercom cabling is customer cabling under AS/CA S009 and must be installed by an ACMA-registered cabler. Electric locks, maglocks and lock power supplies may require a licensed electrician or security installer.
- Audio
- SIP v1 / v2, G.711, G.722, echo cancellation
- Keypad
- Backlit numeric keypad with extra buttons
- Power
- PoE 802.3af
- Colour
- Black
- Capacity
- 25,000 cards, 5,000 PINs, 5,000 users
- Working Temperature
- −30 °C to +60 °C
- Brand
- Akuvox
- Protection
- IP65
- Camera
- 4 MP fisheye, 150° (H) / 150° (V)
- Size
- 185 × 84.5 × 24 mm (H × W × D)
- Warranty
- Australian warranty
- Video
- H.264, up to 2000 × 2000, 2K at 30 fps
- Product Type
- SIP door station
- Model
- R25K
- Finish
- Black aluminium
- RF Reader
- 13.56 MHz and 125 kHz
- I/O
- 2 relays, 2 inputs, Wiegand, RS485
- OS
- Linux
- Unlock
- Card, PIN, NFC (Android), SmartPlus app
- Card Types
- EM, MIFARE, DESFire EV1 / EV2 / EV3
