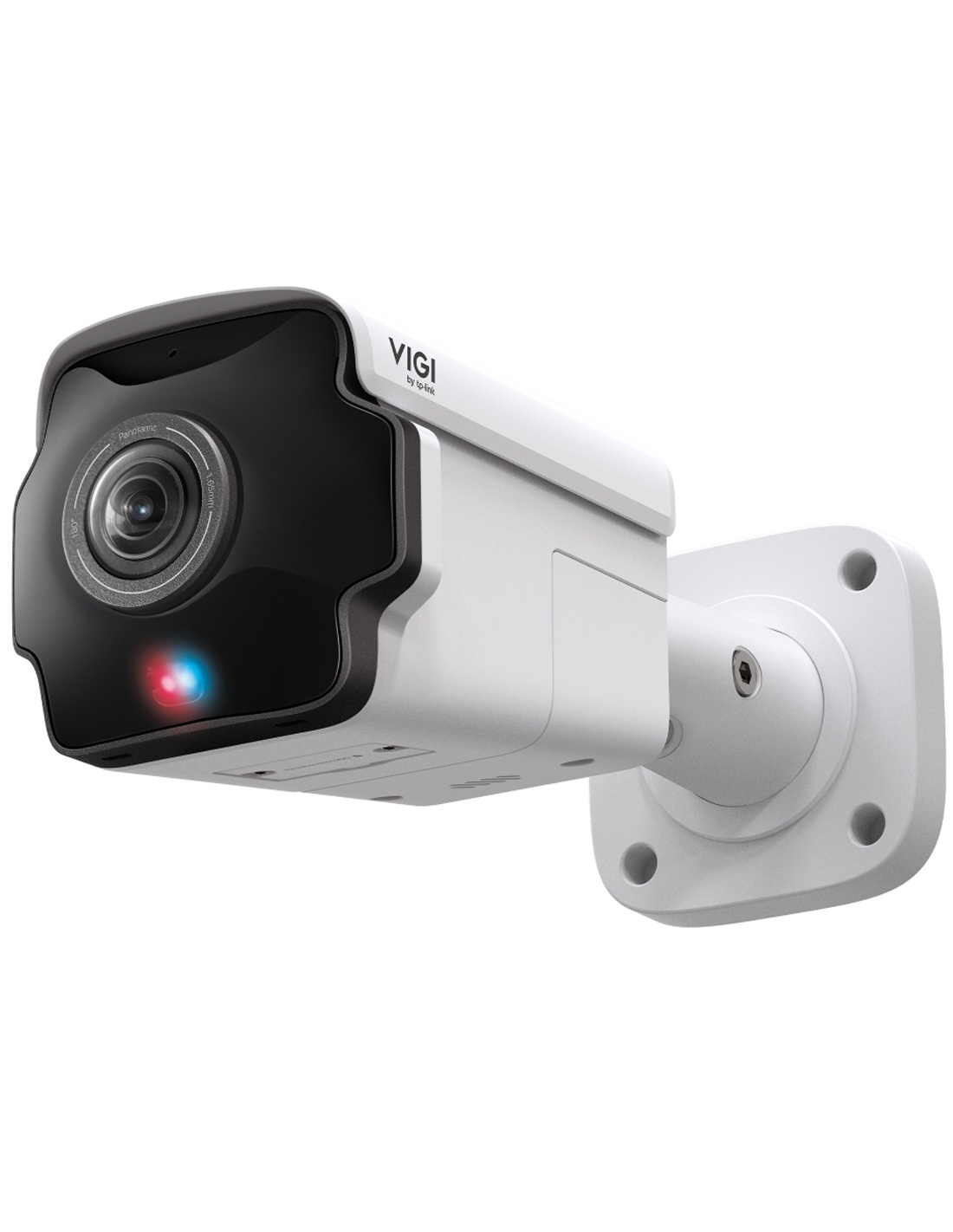

VIGI 8MP 4K (8MP) UHD Outdoor IR 180° Panoramic Bullet IP Network Camera - InSight-S385PI
- 180° Panorama View with Huge Vision
- 4K (8MP) Ultra HD and IR Range Up to 65.62 ft (20 m)
- Red-Blue Warning Lights with Stronger Deterrence
- People & Vehicle Analytics
- Human & Vehicle Classification
- Smart Detection
- Smart Video Enhancement Technology
- Audio and Alarm Interface Available
- IP67 Weatherproof and IK10 Vandal Proof
- H.265+ Compression Technology
TP-Link VIGI InSight-S385PI 8MP Outdoor IR Panoramic Bullet Camera
8MP Ultra HD | 180° Panoramic View | AI Detection | Active Defence | IP67 & IK10 Rugged Design
The VIGI InSight-S385PI delivers advanced 8MP panoramic surveillance with integrated AI analytics, active defence, and robust weather resistance. Featuring a 180° ultra-wide field of view and intelligent detection for vehicles and people, this dome camera enhances perimeter protection, public spaces, and commercial premises with reliable, high-definition coverage.
Key Features & Benefits
- 8MP Ultra-HD Imaging — 3840 × 2160 resolution provides crystal-clear video detail.
- 180° Panoramic Coverage — Broad area monitoring reduces the need for multiple cameras.
- AI Detection — Advanced analytics accurately identify humans and vehicles.
- Active Defence — Red & blue lights trigger on detection to deter intruders in real-time.
- Night Vision — Up to 20m IR illumination for clear viewing in darkness.
- IP67 & IK10 Certified — Resistant to weather, dust, and vandalism for outdoor durability.
- H.265+ Compression — Saves storage space without sacrificing image quality.
- PoE Simplicity — Power and data transmission via a single cable for easy installation.
- Audio Recording — Captures sound along with video for comprehensive monitoring.
Real-World Applications
Car Parks & Entrances — Optimised for wide entrance monitoring with active deterrence features.
Shops & Commercial Areas — Secure expansive storefronts or outdoor public zones.
Logistics & Industrial Sites — Reliable coverage for yards, loading bays, and outdoor workspaces.
Transport & Infrastructure — Ideal for stations, depots, or facilities needing durable security solutions.
School Grounds & Campuses — Comprehensive surveillance for playgrounds and shared exterior spaces.

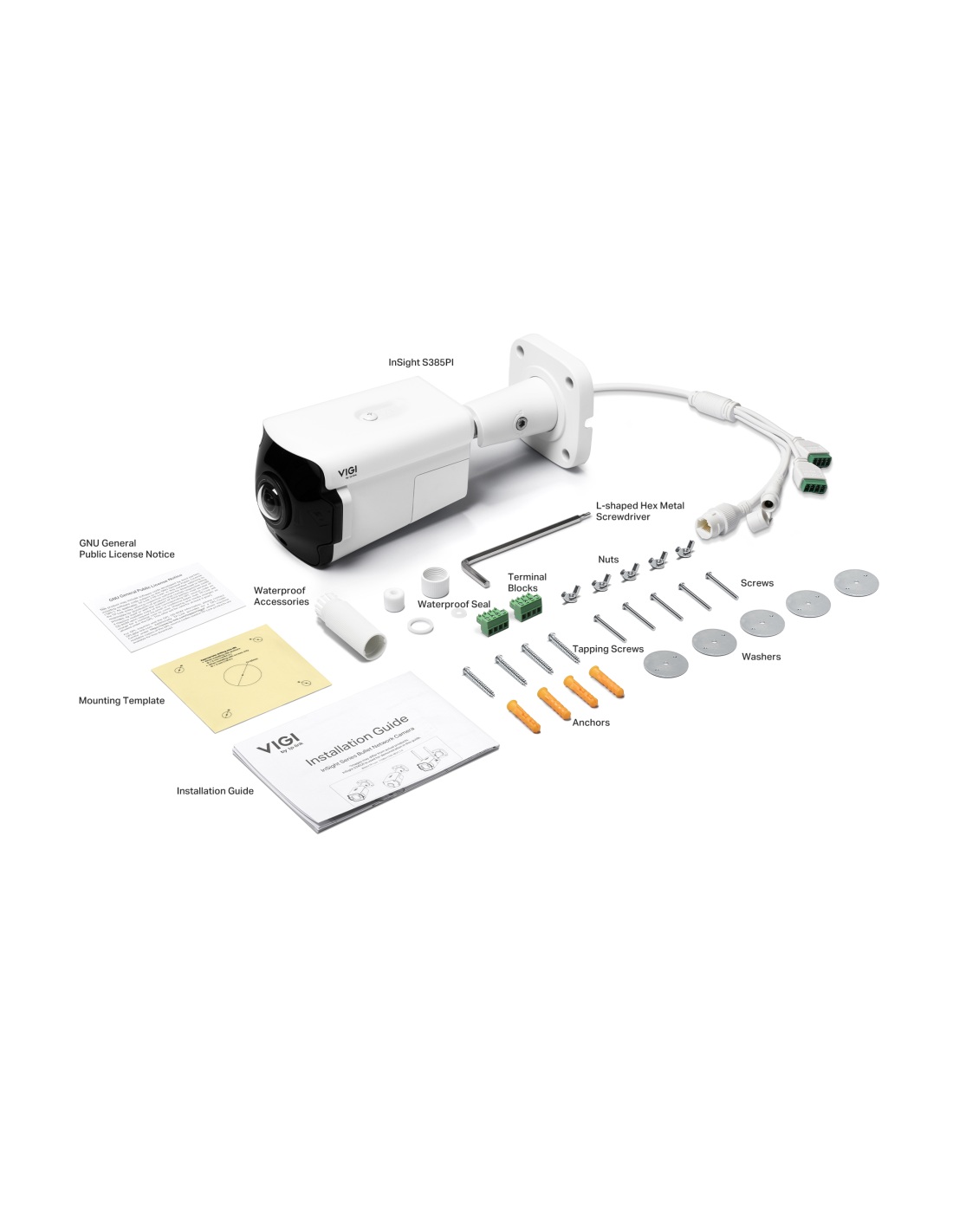

What’s in the Box
Reliable panoramic protection made easy — The VIGI InSight-S485PI offers high-definition, wide-area coverage, advanced AI alerts, and active deterrence for outdoor commercial and public security applications.
- Net Weight
- 1.01Kg
- Power Supply
- 12V DC 5%, Max. 18W, 5.5 mm Coaxial Power Plug; PoE: 802.3at, Class 4, Max. 21W
- Audio
- 1 Audio In, 1 Audio Out
- Material
- Metal
- Operating temperature
- -30 to 60
- Power
- DC Power Port
- Video Compression
- Main Stream: H.265+/H.265/H.264+/H.264; Sub-Stream: H.265/H.264
- Network Protocol
- TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS, FTP/SFTP, RTP, IPv4, IPv6, ARP
- Alarm
- 1 Alarm In, 1 Alarm Out
- Audio Input
- Built-in microphone
- Audio Output
- Built-in Speaker
- Certifications
- CE, NTRA, VCCI, KC, BSMI, FCC, IP67, IK10, ONVIF
- Image Sensor
- 1/2.7 Progressive Scan CMOS
- Minimum Illumination
- 0.005 Lux; 0 Lux with IR light
- Max. Resolution
- 3840 x 2160
- Security
- Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication
- Protection
- IP67 Weatherproof, IK10 Vandal Proof
- Operating Humidity
- 95% or Less (Non-Condensing)
- Storage Temperature
- -40 to 60
- Lens Type
- Fixed Focal Lens
- Bit Rate Control
- CBR, VBR
- DORI Distance
- 1.65 mm: D: 144.36 ft (44 m), O: 60.15 ft (18.33 m), R: 28.87 ft (8.8 m), I: 14.44 ft (4.4 m)
- Network Interface
- 1 RJ45 10/100M Self-Adaptive Ethernet Port, PoE
- Image Settings
- Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance, Prevent Overexposure to Infrared Light, HLC Adjustable by Client Software
- Aperture
- F2.0
- Focal Length
- 1.65 mm
- Storage Humidity
- 95% or Less (Non-Condensing)
- Shutter Speed
- 1/3 to 1/10000 s
- Slow Shutter
- Yes
- Day/Night Mechanism
- IR Cut Filter
- Day/Night Switch
- Unified/ Scheduled/ Auto
- Lens Mount
- M12
- Illuminator On/Off Control
- Auto/Scheduled/Always on/Always off
- Main Stream Frame Rate
- 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps; 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
- Main Stream Resolution
- 3840x2160, 2560x1440, 2304x1296, 2048x1280, 1920x1080, 1280x720
- Sub-Stream Frame Rate
- 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps; 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
- Sub-Stream Resolution
- 848x480, 704x576, 640x480, 640x360, 352x288, 320x240
- H.264 Type
- High Profile
- H.264+
- Main Stream Supported
- H.265 Type
- Main Profile
- H.265+
- Main Stream Supported
- Video Bit Rate
- Main Stream: 256 Kbps to 8 Mbps; Sub-Stream: 64 Kbps to 1024 Kbps
- Image Enhancement
- BLC/3D DNR/HLC/SmartIR
- Wide Dynamic Range
- 120 dB
- Image Parameters Switch
- Yes
- Privacy Mask
- Up to 4 Masks
- ROI
- 4 Regions
- OSD Setting
- Yes
- Audio Communication
- Two-Way Audio
- Audio Compression
- Yes
- Audio Sampling Rate
- 8KHz
- Environment Noise Filtering
- Yes
- Audio Bit Rate
- 64 Kbps (G.711 alaw)
- ONVIF
- Yes
- API
- Open Network Video Interface (Profile S/T/G)
- Simultaneous Live View
- 3 Main Streams & 3 Sub-Streams
- Client
- VIGI App, VIGI Security Manager, Web UI, VIGI VMS, VIGI Cloud VMS
- Web Browser
- Google Chrome 57 and above, Firefox 52 and above, Safari 11 and above, Microsoft Edge 91 and above
- Cloud
- Yes
- Smart Event
- Intrusion Detection, Line-Crossing Detection, Region Entering Detection, Region Exiting Detection, Object Abandoned Detection, Object Removal Detection, Loitering Detection, People Detection, Vehicle Detection, Abnormal
- Basic Event
- Motion Detection (Enhanced with Human & Vehicle Classification for more accurate alerts), Video Tampering Detection, Exception (Illegal Login), Alarm Input Device
- Alarm Linkage
- Memory Card Video Recording, Upload to FTP Server, Alarm Output Device, Push Notifications, Send to Alarm Server, Active Defence-Sound Alarm, Active Defence-Light Alarm, Email Alarm
- Reset Button
- Yes
- On-board Storage
- Built-In Memory Card Slot, Support MicroSD Card, up to 512 GB*5
- Built-in Microphone
- Yes; Records Anything Going on within a 15-ft Radius of the Camera
- Built-in Speaker
- Yes

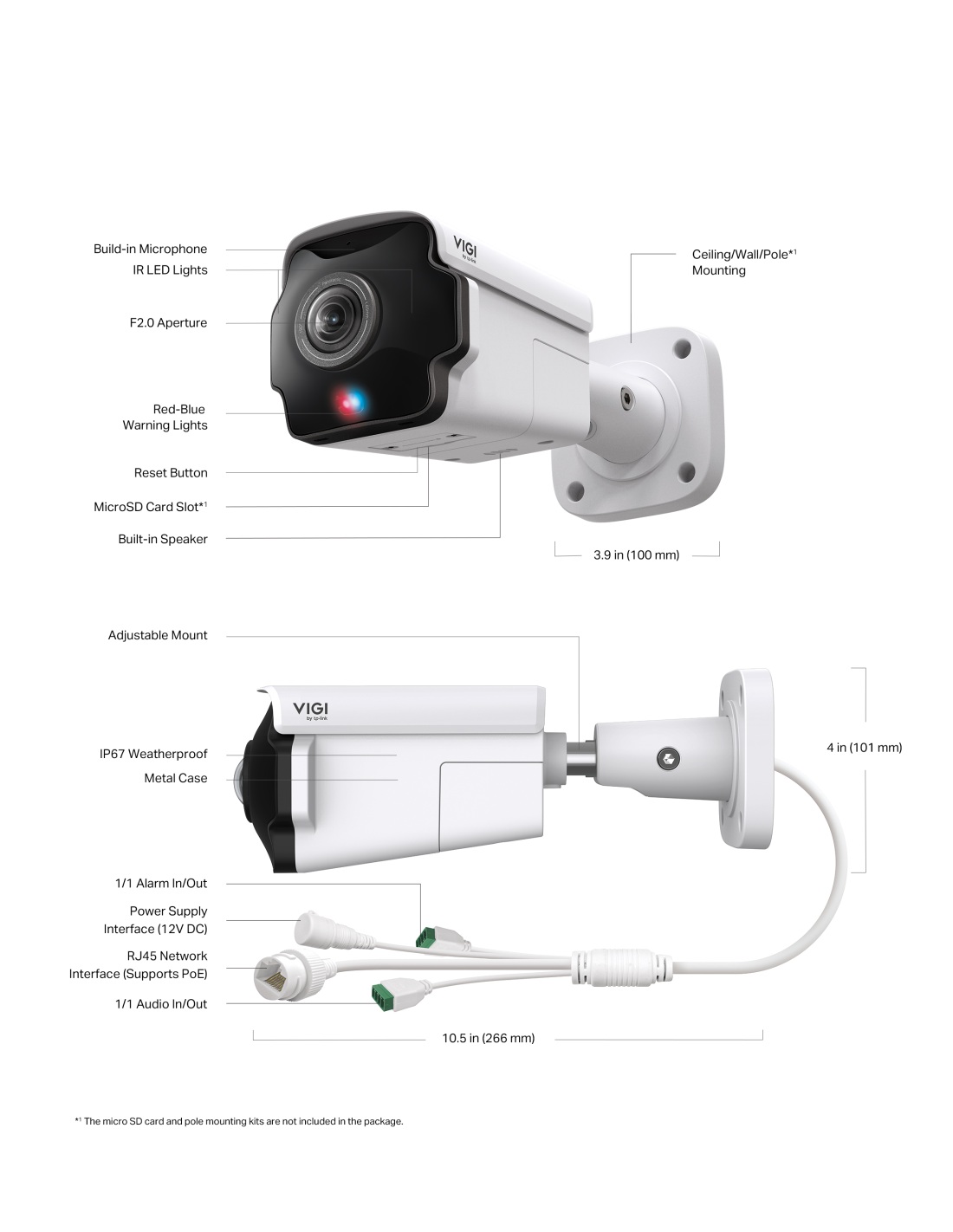

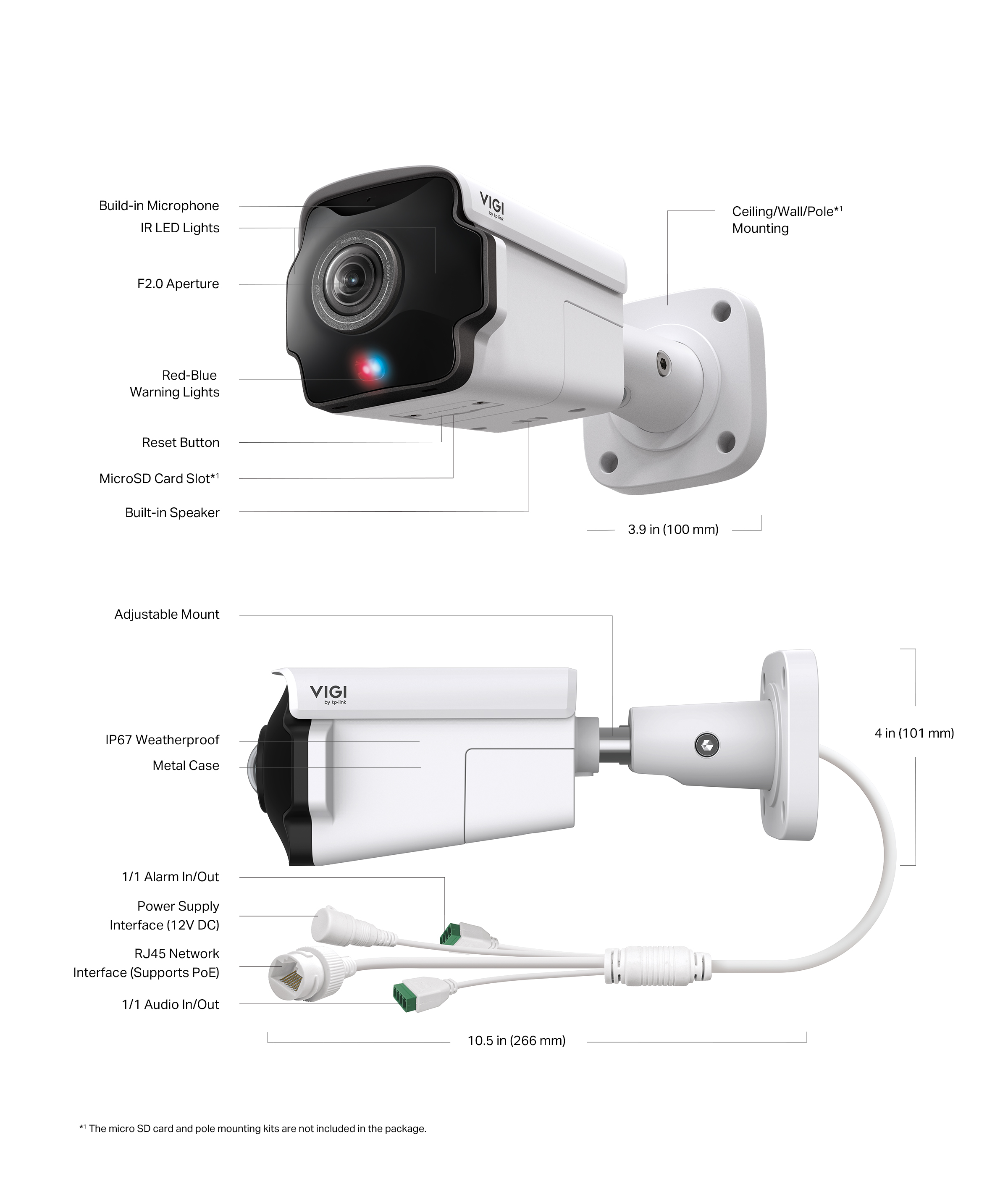

- Product Dimensions (L x W x H)
- 10.5 3.9 4 in (266 100 101 mm)
- IR LED Quantity
- 4
- IR LED Range
- 65.62 ft (20 m)*1
- IR LED Wavelength
- 850nm
- Horizontal FOV
- 180
- Vertical FOV
- 86
- Diagonal FOV
- 180
- Angle Adjustment (Manual) Range
- Pan: 0 to 360, Tilt: 0 to 90, Rotation: 0 to 360
- SNR
- 52 dB
- Deep Learning Function
- People & Vehicle Analytics: Search and filter to people or vehicle of interest based on many different attributes, making post-event search faster and easier.*2
- Red-Blue Warning Lights
- Yes
- Package Contents
- VIGI Network Camera, Quick Start Guide, Waterproof Cable Attachments, Mounting Accessories
CAMERA | |
---|---|
Image Sensor | 1/2.7” Progressive Scan CMOS |
Shutter Speed | 1/3 to 1/10000 s |
Slow Shutter | Yes |
Minimum Illumination | 0.005 Lux; 0 Lux with IR Light |
Day/Night Mechanism | IR Cut Filter |
Day/Night Switch | Unified/ Scheduled/ Auto |
LENS | |
---|---|
Type | Fixed Focal Lens |
Focal Length | 1.65 mm |
Aperture | F2.0 |
FOV | • Horizontal FOV: 180° • Vertical FOV: 86° • Diagonal FOV: 180° |
Lens Mount | M12 |
DORI Distance | 1.65 mm: • D: 144.36 ft (44 m) • O: 60.15 ft (18.33 m) • R: 28.87 ft (8.8 m) • I: 14.44 ft (4.4 m) |
Angle Adjustment (Manual) | |
---|---|
Range | Pan: 0° to 360°, Tilt: 0° to 90°, Rotation: 0° to 360° |
ILLUMINATOR | |
---|---|
IR LED | • Quantity: 4 • Range: 65.62 ft (20 m)*1 • Wavelength: 850nm |
Illuminator On/Off Control | Auto/Scheduled/Always on/Always off |
VIDEO | |
---|---|
Max. Resolution | 3840 x 2160 |
Main Stream | • Frame Rate: 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps • Resolution: 3840x2160, 2560x1440, 2304x1296, 2048x1280, 1920x1080, 1280x720 Note: • If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps. |
Sub-Stream | • Frame Rate: 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps • Resolution: 848x480, 704x576, 640x480, 640x360, 352x288, 320x240 • Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps. |
Bit Rate Control | CBR, VBR |
Video Compression | • Main Stream: H.265+/H.265/H.264+/H.264 • Sub-Stream: H.265/H.264 |
H.264 Type | High Profile |
H.264+ | Main Stream Supported |
H.265 Type | Main Profile |
H.265+ | Main Stream Supported |
Video Bit Rate | • Main Stream: 256 Kbps to 8 Mbps • Sub-Stream: 64 Kbps to 1024 Kbps |
Image | |
---|---|
Image Settings | • Mirror • Brightness • Contrast • Saturation • Sharpness • Exposure • WDR • White Balance • Prevent Overexposure to Infrared Light • HLC Adjustable by Client Software |
Image Enhancement | BLC/3D DNR/HLC/SmartIR |
Wide Dynamic Range | 120 dB |
SNR | ≥ 52 dB |
Image Parameters Switch | Yes |
Privacy Mask | Up to 4 Masks |
ROI | 4 Regions |
OSD Setting | Yes |
AUDIO | |
---|---|
Audio Communication | Two-Way Audio |
Audio Input | Built-in Microphone Audio In Interface |
Audio Output | Built-in Speaker Audio Out Interface |
Audio Compression | Yes |
Audio Sampling Rate | 8KHz |
Environment Noise Filtering | Yes |
Audio Bit Rate | 64 Kbps (G.711 alaw) |
NETWORK | |
---|---|
Protocol | TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS, FTP/SFTP, RTP, IPv4, IPv6, ARP |
ONVIF | Yes |
API | Open Network Video Interface (Profile S/T/G) |
Simultaneous Live View | 3 Main Streams & 3 Sub-Streams |
Client | VIGI App, VIGI Security Manager, Web UI, VIGI VMS, VIGI Cloud VMS |
Web Browser | • Google Chrome® 57 and above • Firefox® 52 and above • Safari® 11 and above • Microsoft® Edge 91 and above |
Cloud | Yes |
Security | Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication |
ALARM AND EVENT MANAGEMENT | |
---|---|
Smart Event | • Intrusion Detection • Line-Crossing Detection • Region Entering Detection • Region Exiting Detection • Object Abandoned Detection • Object Removal Detection • Loitering Detection • People Detection • Vehicle Detection • Abnormal Sound Detection • Scene Change Detection |
Basic Event | • Motion Detection (Enhanced with Human & Vehicle Classification for more accurate alerts) • Video Tampering Detection • Exception (Illegal Login) • Alarm Input Device |
Alarm Linkage | • Memory Card Video Recording • Upload to FTP Server • Alarm Output Device • Push Notifications • Send to Alarm Server • Active Defence-Sound Alarm • Active Defence-Light Alarm • Email Alarm |
Deep Learning Function | |
---|---|
People & Vehicle Analytics | Search and filter to people or vehicle of interest based on many different attributes, making post-event search faster and easier.*2 |
INTERFACES | |
---|---|
Network Interface | 1 RJ45 10/100M Self-Adaptive Ethernet Port, PoE |
Alarm | 1 Alarm In, 1 Alarm Out Red-Blue Warning Lights |
Reset Button | Yes |
Power | DC Power Port |
On-board Storage | Built-In Memory Card Slot, Support MicroSD Card, up to 512 GB*5 |
Built-in Microphone | Yes; Records Anything Going on within a 15-ft Radius of the Camera |
Built-in Speaker | Yes |
Audio | 1 Audio In, 1 Audio Out |
GENERAL | |
---|---|
Operating Temperature | -30℃ to 60℃ |
Storage Temperature | -40℃ to 60℃ |
Operating Humidity | 95% or Less (Non-Condensing) |
Storage Humidity | 95% or Less (Non-Condensing) |
Package Contents | • VIGI Network Camera • Quick Start Guide • Waterproof Cable Attachments • Mounting Accessories |
Material | Metal |
Net Weight | 1.01Kg |
Power Supply | • 12V DC ± 5%, Max. 18W, 5.5 mm Coaxial Power Plug • PoE: 802.3at, Class 4, Max. 21W |
Protection | IP67 Weatherproof, IK10 Vandal Proof |
Product Dimensions (L x W x H) | 10.5 × 3.9 × 4 in (266 × 100 × 101 mm) |
Certifications | CE, NTRA, VCCI, KC, BSMI, FCC, IP67, IK10, ONVIF |
