VIP Vision Pinhole Series 2MP HD 1080p Fixed WDR Surveillance Camera - VSIPPH-2S3
- Stream up to HD 1080p at 25fps
- Fixed 2.8mm lens with 108° field of view
- True WDR (120dB)
- Auto electronic day/night & 2D digital noise reduction
- Discreet pinhole housing for covert surveillance
- IVS functions include motion detection, tripwire & intrusion

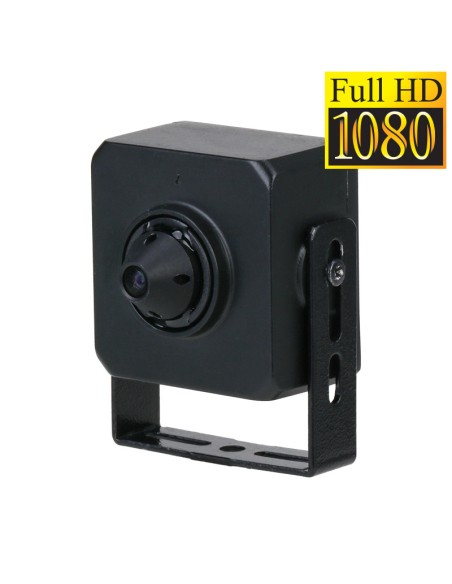

VIP Vision Pinhole Series 2MP 1080p Fixed WDR Surveillance Camera
VSIPPH-2S3
The VSIPPH-2S3 pinhole camera is designed for discreet/covert surveillance applications and is ideal for use at controlled ingress points, in shelf surveillance, vehicles, ATMs, and more.
Camera Features:
• Stream up to HD 1080p at 25fps
• Fixed 2.8mm lens with 108° field of view
• True WDR (120dB)
• Auto electronic day/night & 2D digital noise reduction
• Discreet pinhole housing for covert surveillance
• IVS functions including motion detection, tripwire & intrusion

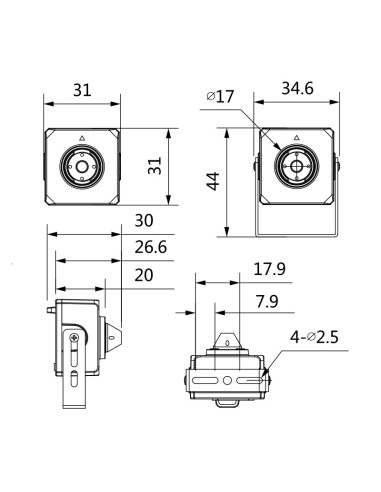

- Dimensions
- 35mm x 44mm x 30mm
- Ethernet
- RJ45 (10/100 Base-T)
- Housing
- Metal
- Net Weight
- 0.10kg
- Operating Conditions
- -30° ~ +60° C / Less than 95% RH
- Power Supply
- 12VDC / Non POE
- Bit Rate
- H.265: 12K~6400Kbps/ H.264: 32K~8192Kbps
- Frame Rate (Sub)
- D1 (1 ~ 25fps)
- Max. User Access
- 10/20 Users
- Video Compression
- H.265 / H.264 / MJPEG (sub stream)
- Resolution
- 1080p (1920 x 1080) to CIF (352 x 288)
- Series
- Pinhole Series
- Focus
- Fixed / 0.6m Min. Focus Distance
- Interoperability
- ONVIF Profile S / API
- Effective Pixels
- 1920 (H) x 1080 (V)
- Image Sensor
- 1/2.7” 2.0 Megapixel Progressive Scan CMOS
- Camera Type
- Pinhole
- Max. Resolution
- 2.0 Megapixel
- Field of View
- Horizontal: 108°, Vertical: 59°
- Lighting Compensation
- BLC / HLC / WDR (120dB)
- Day/Night
- Auto (Electronic) / Colour / B&W
- Detect (25px/m)
- 42m
- Gain Control
- Auto/ Manual
- Noise Reduction
- 3D DNR
- White Balance
- Auto / Natural / Street Lamp / Outdoor / Manual
- Audio Interface
- 1 Input, 1 Output (RCA)
- Bit Rate Control
- Constant bit rate (CBR) / Variable bit rate (VBR)
- Edge Storage
- NAS / Local PC
- Intelligent Functions
- Tripwire, Intrusion, Motion Detection (4 Zone), Region of Interest (4 Zone), Privacy Masking (4 Zone)
- Min Illumination
- Colour: F2.0 0.005lx (1/3s)
- Protocol
- IPv4/IPv6; HTTP; HTTPS; SSL; TCP/IP; UDP; UPnP; ICMP; IGMP; SNMP; RTSP; RTP; SMTP; NTP; DHCP; DNS; PPPOE; DDNS; FTP; IP Filter; QoS; Bonjour
- RAM / ROM
- 128MB / 128MB
- S/N Ratio
- >56dB
- Streaming Method
- Unicast / Multicast
