Uniview Dual-Camera Wi-Fi Video Doorbell, 3MP + 2MP Package Camera, Wi-Fi 6, Human & Package Detection - ED-525B-WB
ED-525B-WB
In stock $ 184.50
inc-GST
or 4 interest-free payments of $46.12 with
Uniview ED-525B-WB dual-camera Wi-Fi video doorbell: 3MP main camera plus a 2MP camera facing the doorstep for parcels. Human and package detection, Wi-Fi 6, 8 GB storage, IP65, works with Uniview NVRs.
- ✓3MP + 2MP dual camera
- ✓Human and package detection
- ✓Wi-Fi 6, 2.4 and 5 GHz
- ✓Wired to 12–24 V AC doorbell power
- ✓Wireless or mechanical chime
- ✓Works with Uniview NVRs, IP65
Uniview · Doorbell · 3MP + 2MP
See the visitor
and the parcel at their feet.

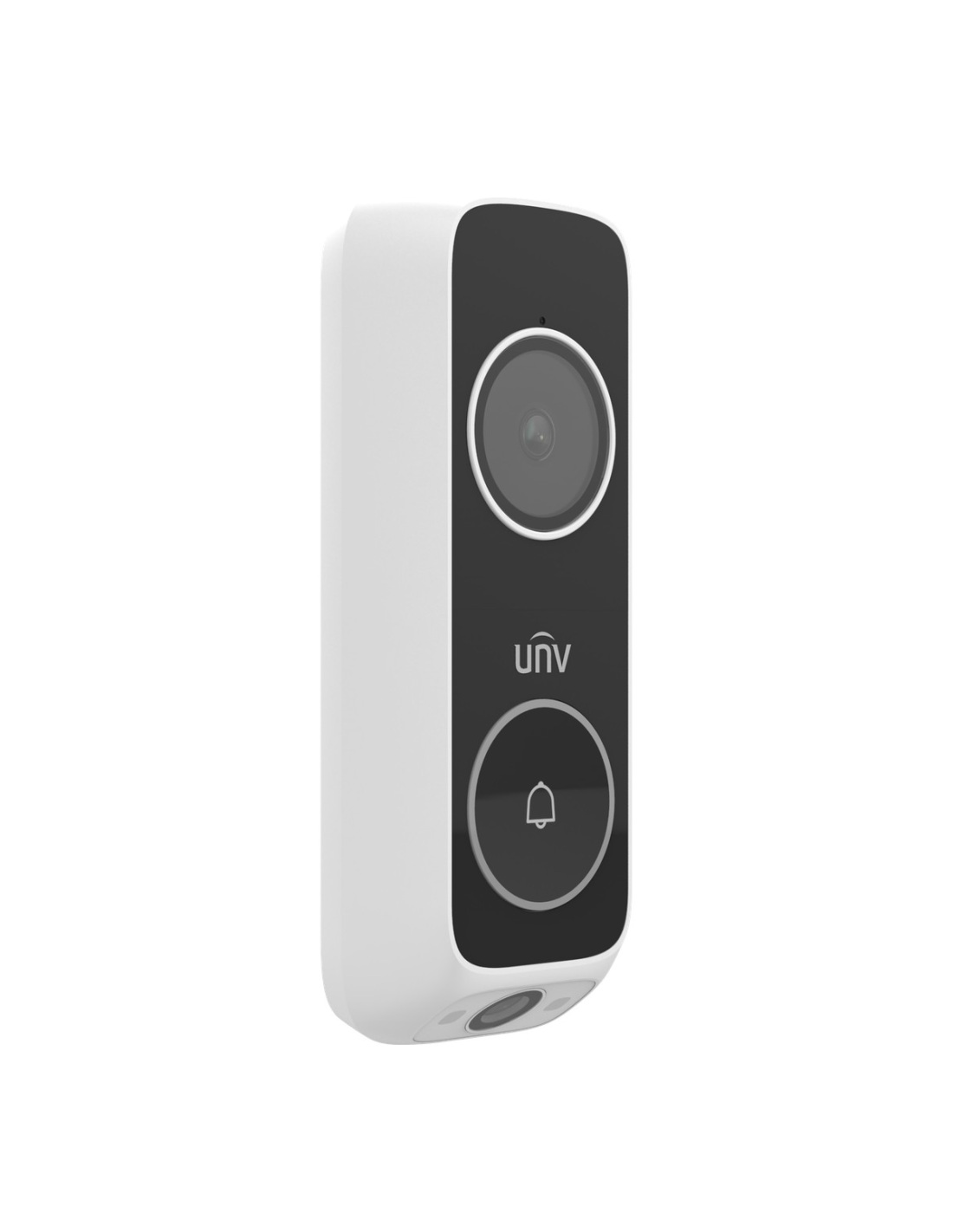

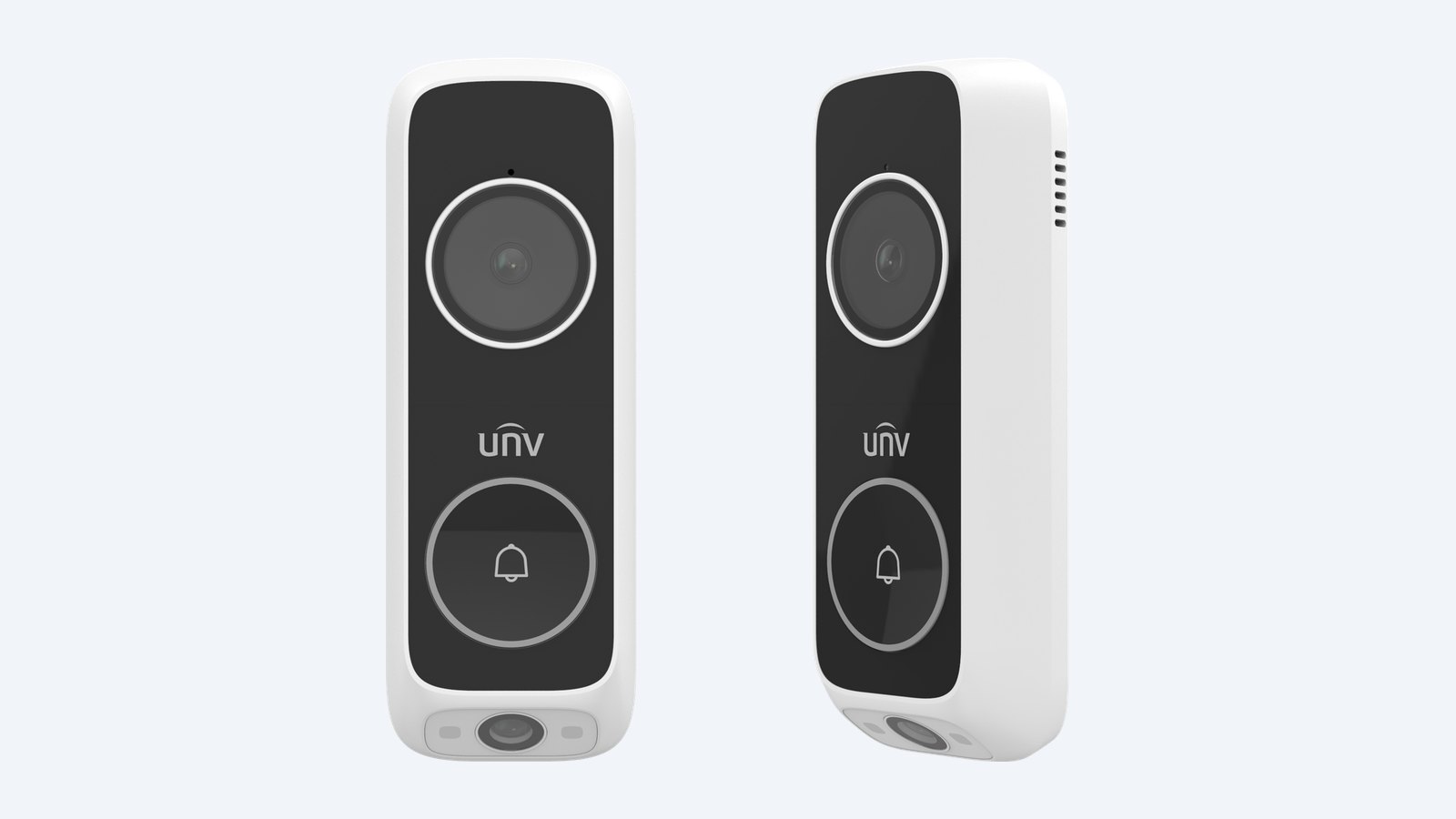

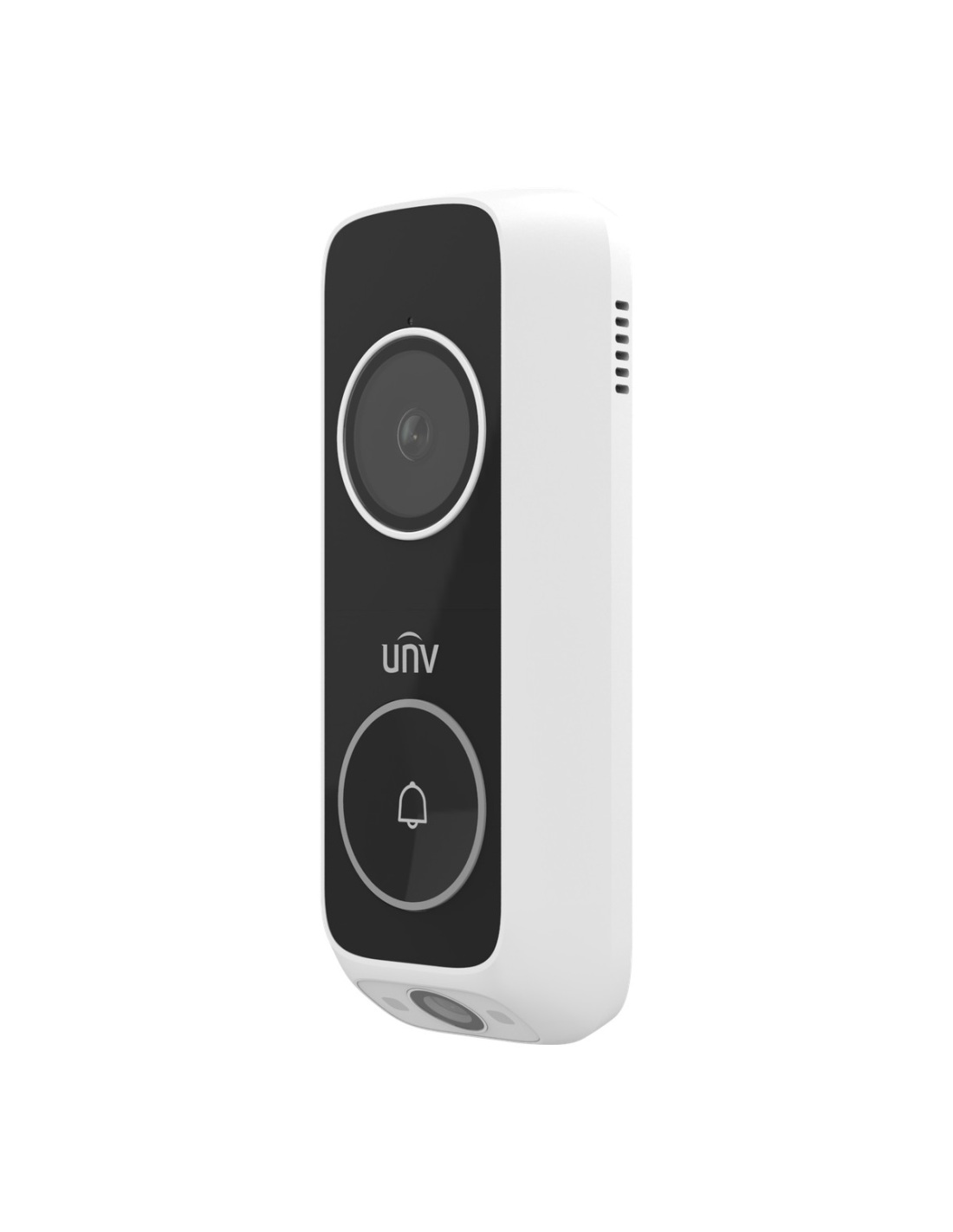

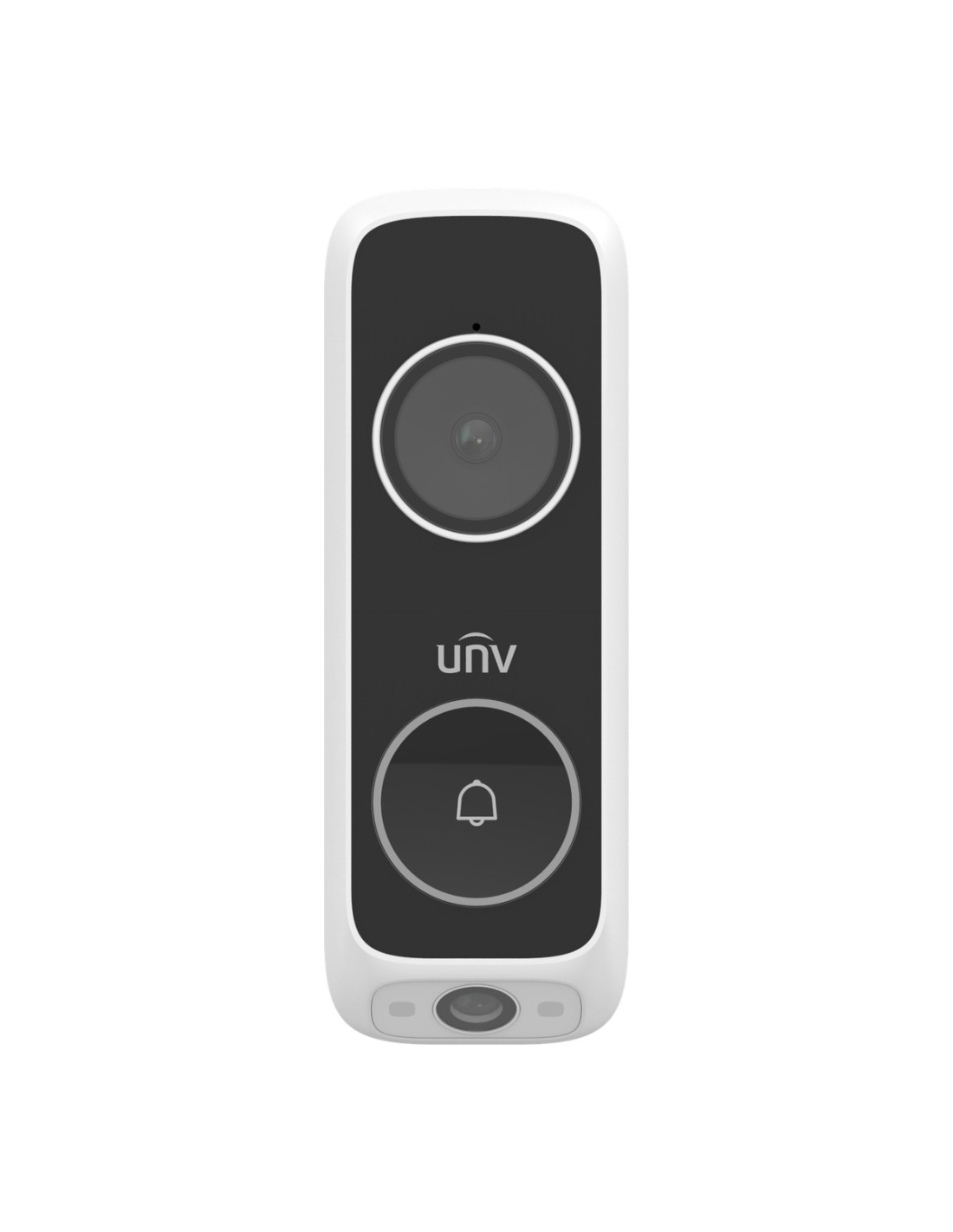

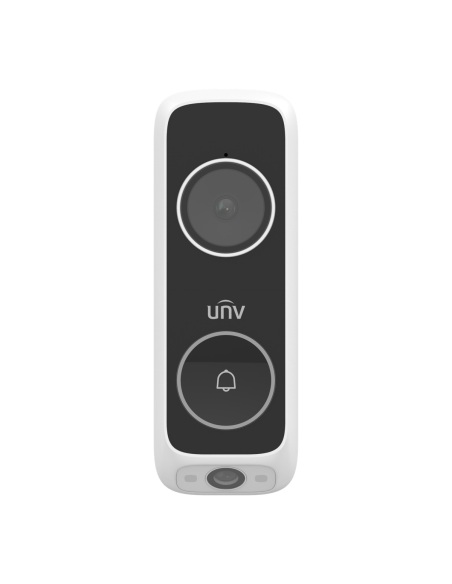

This is the Uniview ED-525B-WB. A Wi-Fi video doorbell with two cameras: a 3MP main camera for the visitor and a 2MP camera that looks down at the doorstep, so parcels left on the ground stay in view. It detects people and packages and rings your phone.
In one sentence: the ED-525B-WB is a Uniview dual-camera video doorbell with a 3MP main camera, a 2MP downward camera, human and package detection, true HDR, dual-band Wi-Fi 6, 8 GB of built-in storage and IP65 weather sealing.
Wires to your existing doorbell transformer.
The ED-525B-WB runs from 12–24 V AC doorbell wiring and connects over Wi-Fi. Use it with up to three wireless chimes, or your existing mechanical chime.
In the box
- ED-525B-WB doorbell
- Mounting bracket
- Quick guide
You also need
- 12–24 V AC doorbell transformer and wiring
- Wi-Fi at the door (2.4 or 5 GHz)
- The UNV-Link app on your phone
- A wireless or mechanical chime (optional)
Two cameras, no blind spot at the step.
The main 3MP camera covers 116° across for the visitor’s face and the path. The second, 2MP camera faces the ground, 96.8° across, so a parcel left right at the door is still on screen. Infrared reaches 5 m and a white light 2 m.

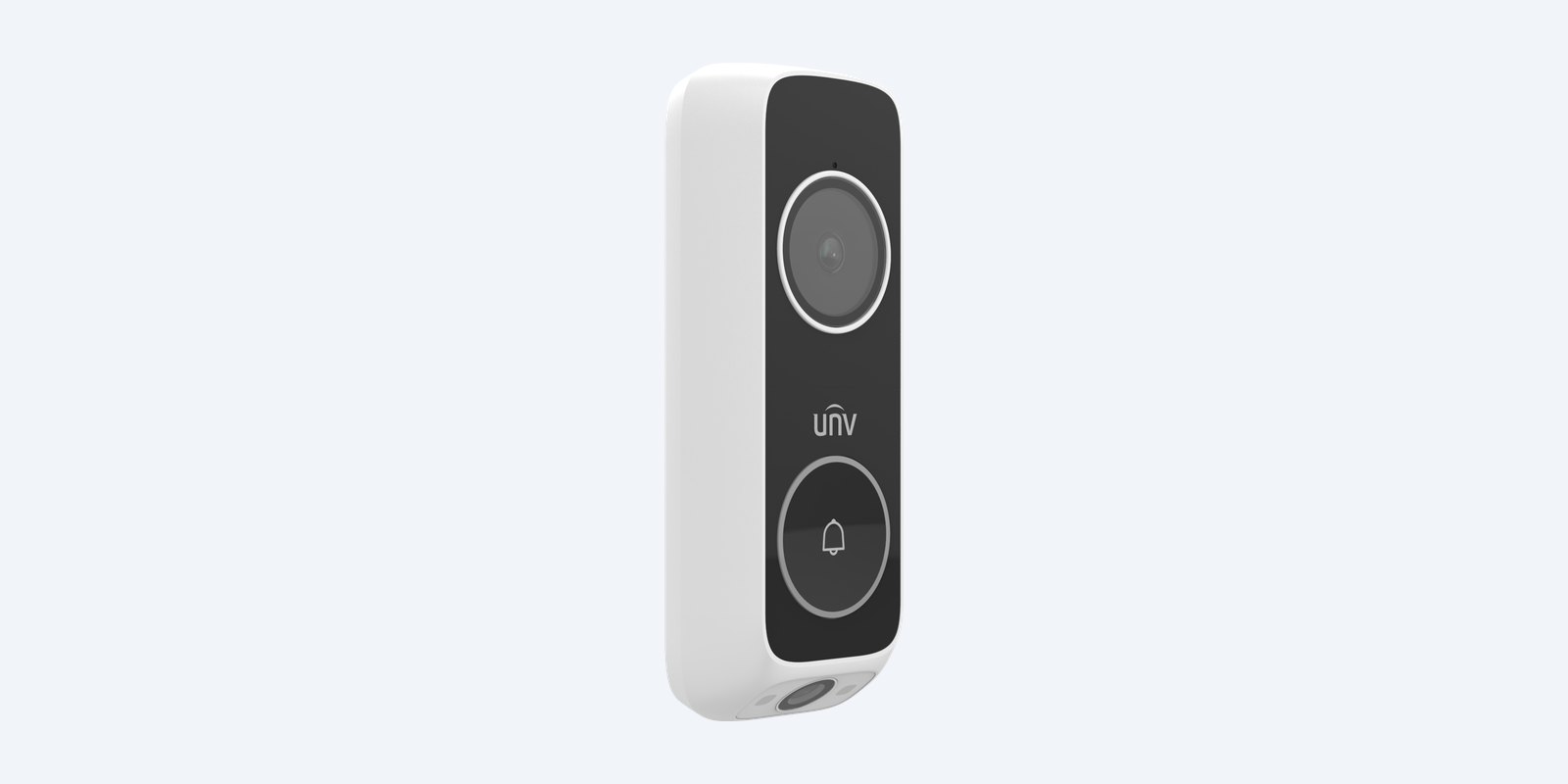

Profile
Slim enough for a door frame.

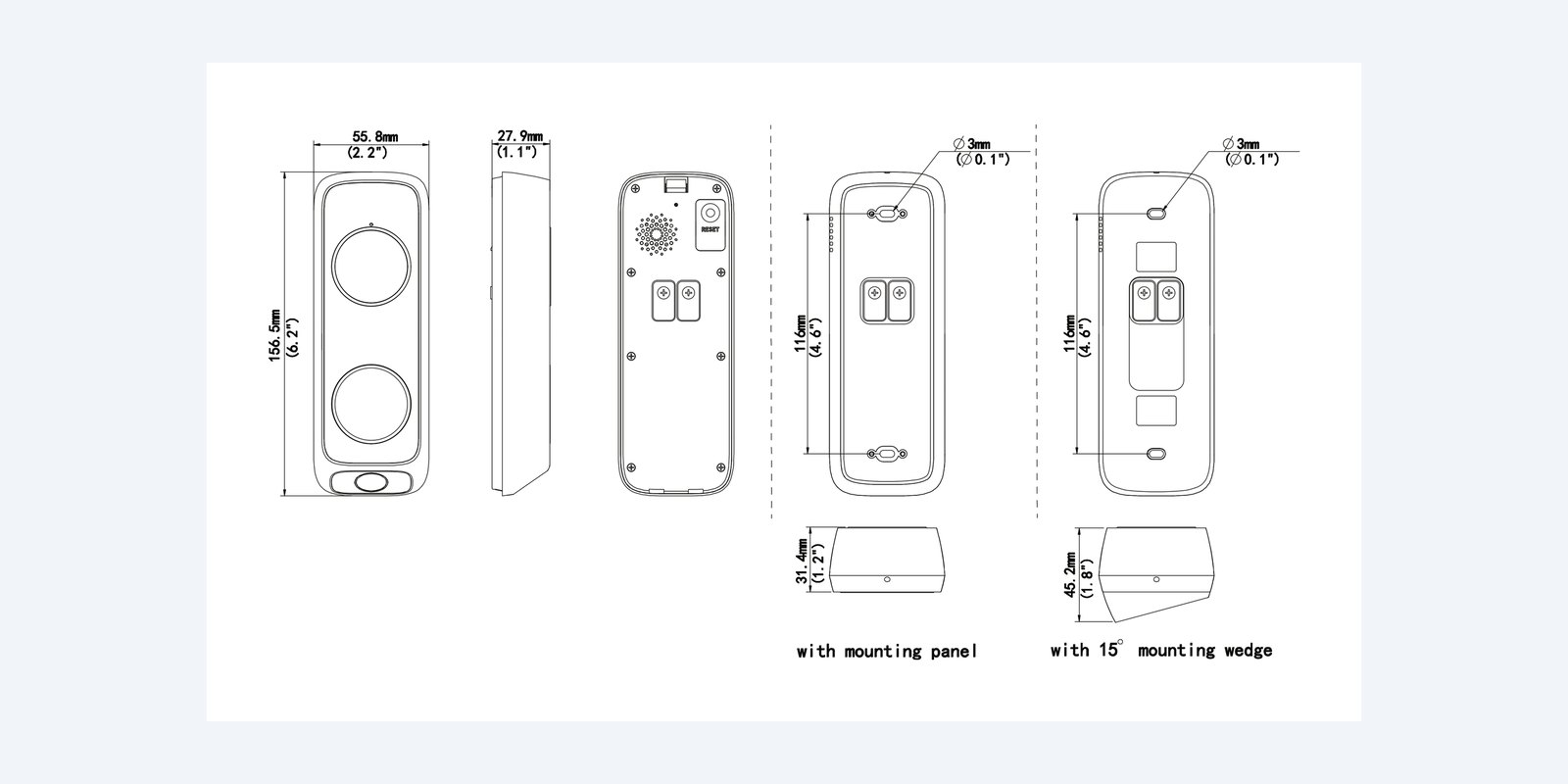

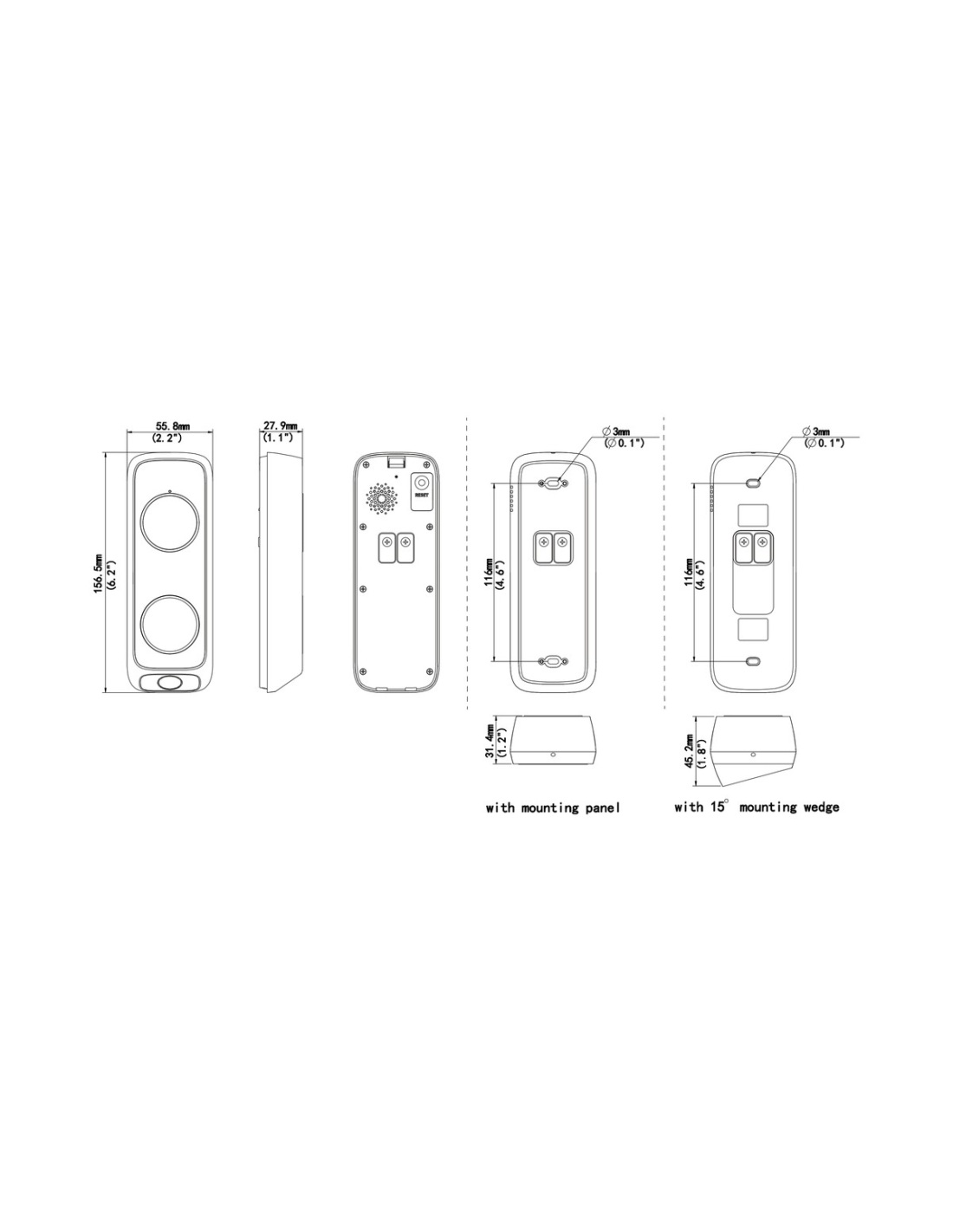

At 55.8 mm wide and 27.9 mm deep it fits a narrow frame. It clips onto a mounting bracket, and the drawing shows a 15° wedge for angling it towards the path.
Size
55.8 × 156.5 × 27.9 mm.
It weighs 142 g. The housing is rated IP65 and runs from −30 °C to 60 °C.
How it goes in
From the box to the first ring.
01
Turn off the power
Switch off the doorbell transformer at the board before touching the wires.
02
Fit the bracket
Screw the mounting bracket to the frame and connect the doorbell wires to it, then fit the doorbell onto the bracket.
03
Add it to the app
Power back on and add the doorbell in the UNV-Link app; Bluetooth setup passes it your Wi-Fi details.
04
Pair a chime
Pair up to three wireless chimes, or set it for your mechanical chime, and choose the detection alerts you want.
At a glance
ED-525B-WB
Show specs
Cameras
3MP main (116° across) + 2MP downward (96.8° across)
Detection
Motion, human and package
True HDR, DWDR
Night
IR up to 5 m, white light up to 2 m, 0.02 lux
Compression
H.265, H.264
Wi-Fi
Wi-Fi 6, dual band 2.4 and 5 GHz, WPA3; Bluetooth setup
Storage
8 GB built-in eMMC
Chime
Up to 3 wireless chimes (Sub-1GHz) or 1 mechanical chime
App
UNV-Link; also Alexa and Google Home
NVR
Live view, playback and alarms on Uniview NVRs
Power
12–24 V AC (24 V AC with a mechanical chime)
Weather
IP65
Size and weight
55.8 × 156.5 × 27.9 mm, 142 g
Operating
−30 °C to 60 °C
Pair it with
What goes with it
Indoor
Uniview 7" indoor station
The OEI-372S-H-W can link doorbells along with cameras and door stations.
Recording
Uniview NVR
Add the doorbell to a Uniview NVR for continuous recording and playback alongside your cameras.
Chime
Wireless chime
Up to three Sub-1GHz wireless chimes can ring around the house.
Wiring
Doorbell transformer
A 12–24 V AC transformer powers it; 24 V AC is needed with a mechanical chime.
Where it is used
Where it fits
Front doors
See and talk to visitors from anywhere.
Parcel deliveries
The downward camera keeps parcels on the step in view.
Townhouses and units
A slim unit for narrow door frames.
Homes with CCTV
Records on a Uniview NVR with the rest of your cameras.
Uniview door options side by side

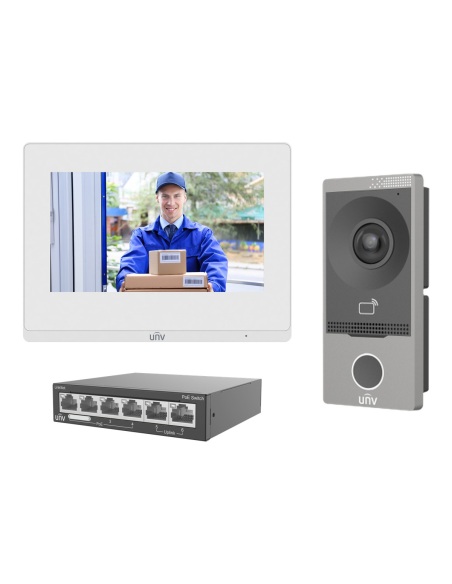

| ED-525B-WB doorbell | KIT/201S/372S/NSW2020 | KIT/201S-Z/372S/NSW2020 | |
|---|---|---|---|
| What it is | Wi-Fi video doorbell | Wired IP intercom kit | Wired IP intercom kit |
| Door unit | ED-525B-WB, 3MP + 2MP cameras | OEU-201S-HMK-W, 2MP camera | OEU-201S-HMK-Z, metal front |
| Answer on | Phone app (also viewable on Uniview NVRs) | 7" indoor station and app | 7" indoor station and app |
| Card reader | — | 13.56 MHz, 10,000 cards | 13.56 MHz, 10,000 cards |
| Door lock control | — | 2 lock interfaces | 2 lock interfaces |
| Connection | Wi-Fi 6, 2.4 and 5 GHz | Cat6 with PoE (Wi-Fi also listed) | Cat6 with PoE |
| Power | 12–24 V AC doorbell wiring | PoE from the kit switch | PoE from the kit switch |
| Weather rating | IP65 | IP65, IK08 | IP65, IK08 |
| Operating | −30 °C to 60 °C | −30 °C to 60 °C | −40 °C to 60 °C |
The kits include the OEI-372S-H-W white 7" indoor station and an NSW2020-6T-POE-IN 4-port PoE switch. The indoor station is also sold on its own. — means not fitted. Figures from the Uniview datasheets.
Common questions
Why two cameras?
The 3MP main camera shows the visitor and the path. The 2MP second camera looks down at the doorstep, where parcels are left, which a single doorbell camera usually cannot see.
Does it need a battery?
No. It is wired to a 12–24 V AC doorbell transformer, so it never needs charging.
What chime does it work with?
Up to three Uniview Sub-1GHz wireless chimes, or one mechanical chime. With a mechanical chime the supply must be 24 V AC (26 VA) and the chime must be connected.
Which Wi-Fi does it need?
Wi-Fi 6 on 2.4 or 5 GHz, with WPA3 security supported. Check the signal at the front door before fitting; a mesh node or extender helps if it is weak.
Where is the video stored?
On 8 GB of built-in storage in the doorbell. Add it to a Uniview NVR for longer recording and playback with your other cameras.
Does it detect people and parcels?
Yes. It detects motion, people and packages, and sends the alarm to the app and to a Uniview NVR.
Does it work with Alexa or Google Home?
Uniview lists Amazon Alexa and Google Home support.
Can I see it at night?
Yes. Infrared lights the porch to about 5 m, and a white light up to 2 m can show colour.
Will it survive the weather?
It is rated IP65 against dust and rain and runs from −30 °C to 60 °C.
Which app does it use?
Uniview’s UNV-Link app for iPhone and Android. Bluetooth makes the first setup quick.
Is it NDAA compliant?
Yes, Uniview lists it as NDAA compliant.
What is the warranty?
Uniview 3-year manufacturer warranty, handled in Australia through InFront. Contact us first and we will organise any claim.
Supported by Infront Technologies.
Not sure your doorbell wiring suits it? Call 1300 736 970 or email [email protected] with a photo of your current doorbell and transformer, and we will check.
Installation and safety
Power. 12–24 V AC, 12 VA with a wireless chime; 24 V AC, 26 VA with a mechanical chime. Switch the transformer off before wiring; mains work on the transformer must be done by a licensed electrician.
Placement. Mount at a comfortable face height beside the door, out of direct rain where possible. Rated IP65, −30 °C to 60 °C.
Figures. From the Uniview ED-525B-WB datasheet. Uniview 3-year manufacturer warranty, handled in Australia through InFront.
- Dimensions
- 55.8 × 156.5 × 27.9 mm
- Power Supply
- 12–24 V AC
- Audio
- Two-way talk
- Ingress Protection
- IP65
- Operating Environment
- −30 °C to 60 °C
- Weight
- 142 g
- Video Compression
- H.265, H.264
- Resolution
- 3MP main camera + 2MP downward camera
- Brand
- Uniview
- Field of View
- 116° across (main), 96.8° across (downward)
- Intelligent Functions
- Motion, human and package detection
- Min Illumination
- 0.02 lux
- WDR
- True HDR, DWDR
- Storage Capacity
- 8 GB eMMC
- Connectivity
- Wi-Fi 6 (2.4/5 GHz), Bluetooth
- Smart Home Compatibility
- Amazon Alexa, Google Home
- Warranty
- 3 years
- Product Type
- Video Doorbell
- Model
- ED-525B-WB
- Night Vision
- IR up to 5 m, white light up to 2 m
