Akuvox R29S 7″ Android SIP Video Door Phone with On-Wall Kit — AK-R29S

SKU AK-R29S CALL stock OR Max avail. in cart
$2,105.00 inc GST

Akuvox R29S is the standard model of the R29 7-inch Android door phone series, supplied with the on-wall mounting kit. A large touchscreen directory, 2 MP wide-angle camera and dual-frequency card reader cover apartment and commercial entrances, with card, PIN and QR entry, three relays, PoE+ and an IP65 / IK06 aluminium panel.

  • ✓7″ IPS touchscreen (800 × 1280) on Android with searchable resident directory
  • ✓2 MP camera, 105° wide · card, PIN, QR code and NFC entry
  • ✓100,000 cards · 20,000 PINs · 3 relays, 3 inputs, Wiegand, RS485
  • ✓802.3at PoE+ · IP65 / IK06 · on-wall surface box included


Akuvox · R29S · Android touchscreen door phone

A big touchscreen at the door.
On-wall kit in the box.

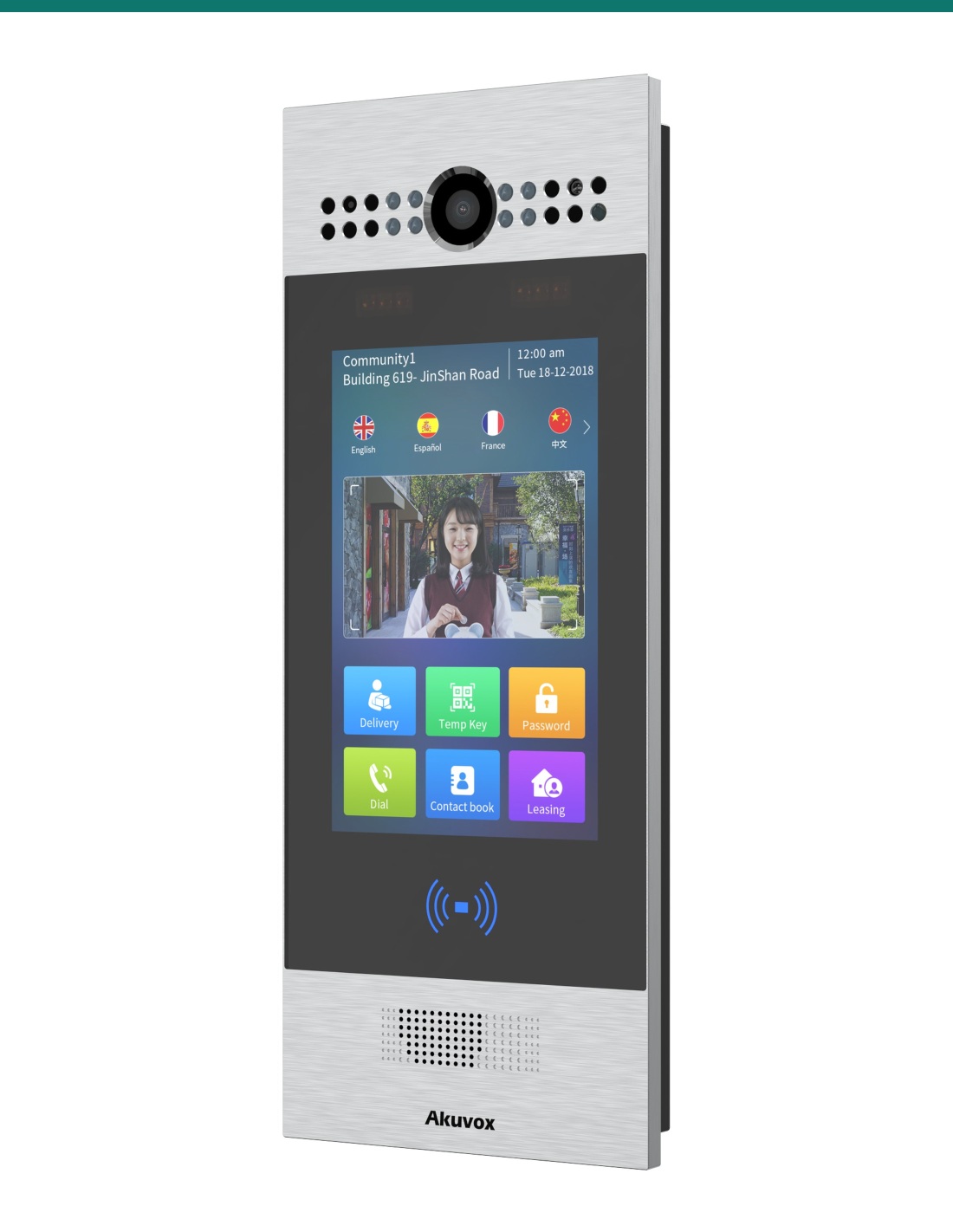

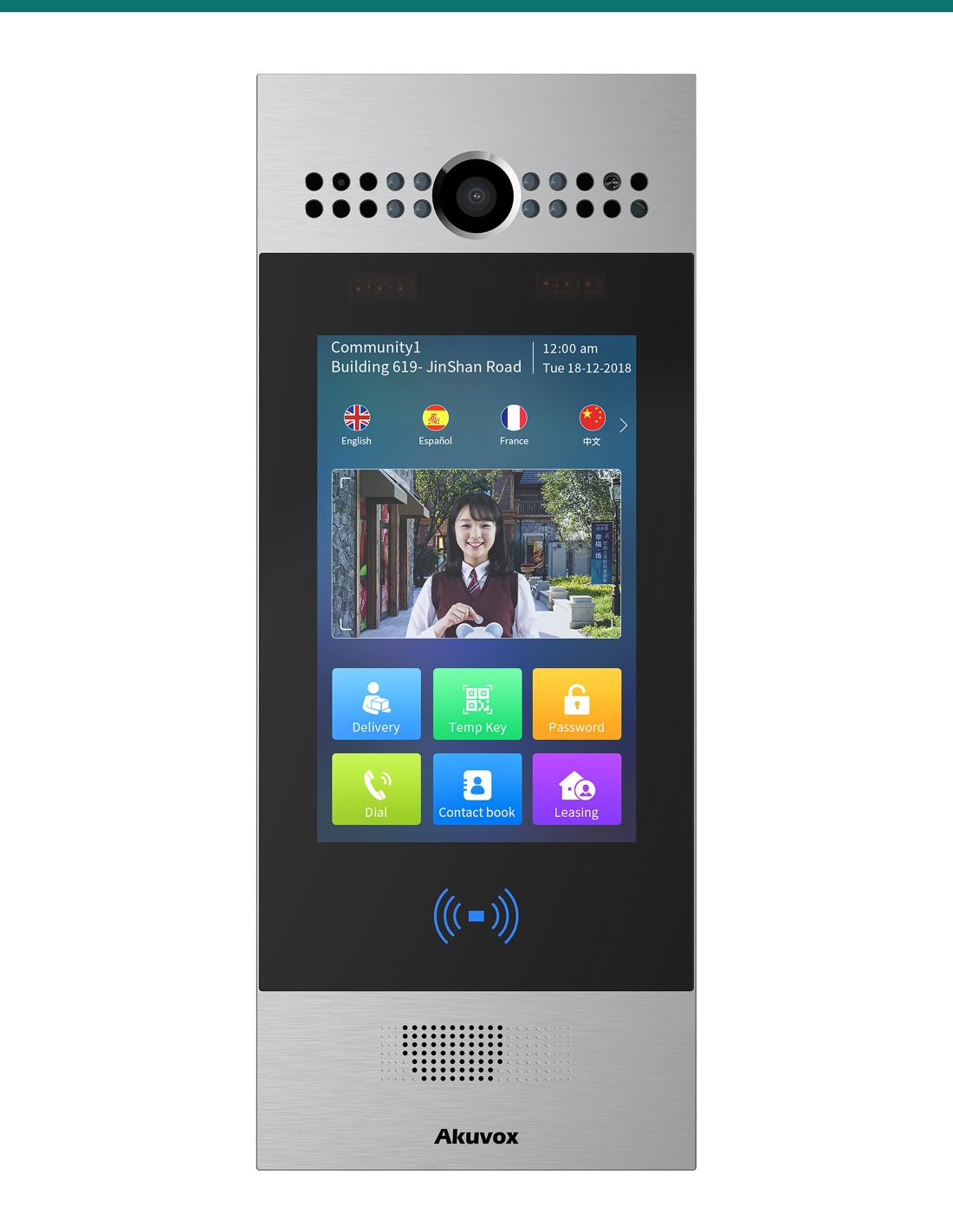

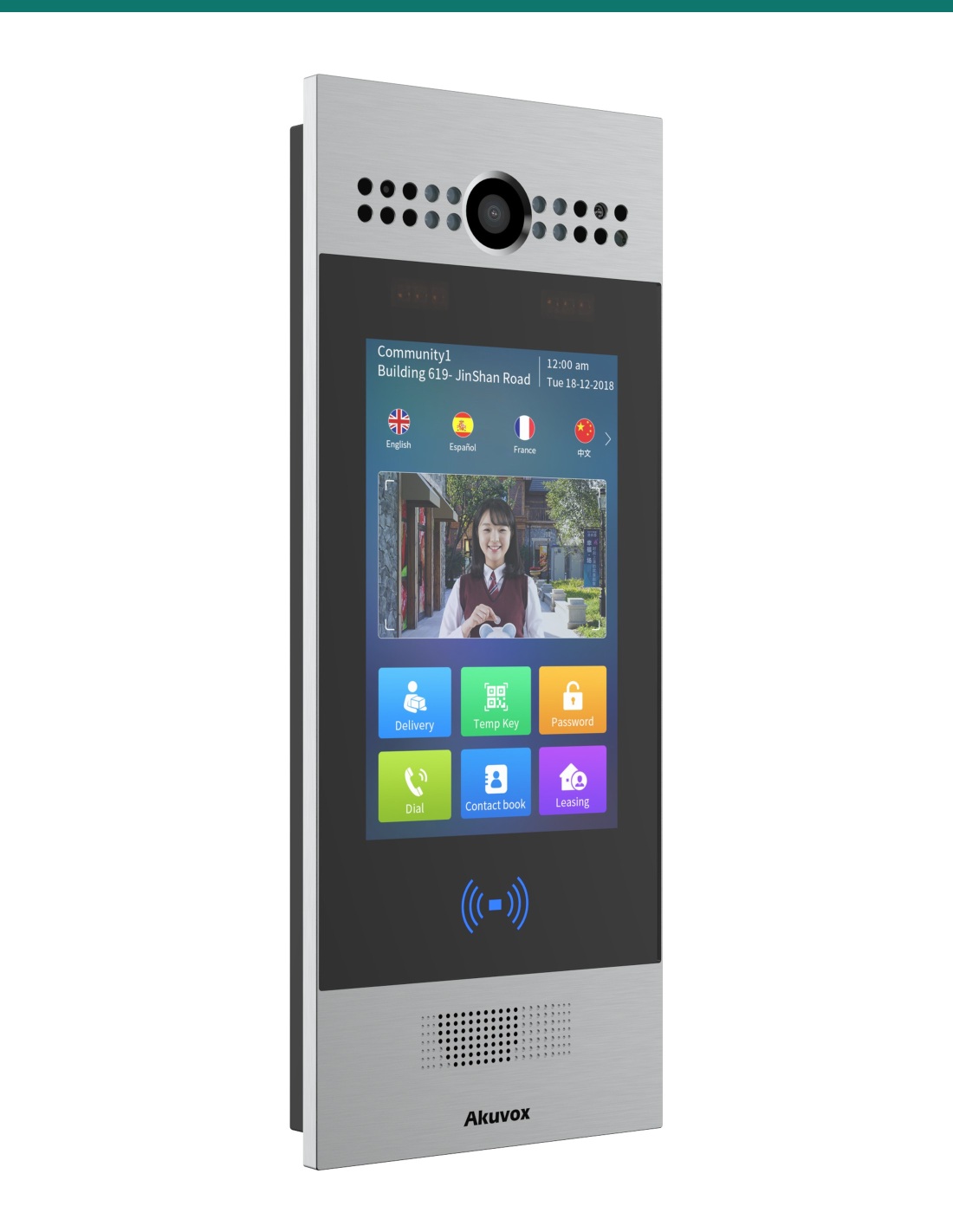

The AK-R29S is the standard R29 door phone: a 7-inch Android touchscreen, a 2 MP wide-angle camera and a 13.56 MHz / 125 kHz card reader in a 324 × 130 × 27 mm silver aluminium panel. This SKU includes the R29 on-wall surface box, so it is ready for brick, render or cladding without cutting a cavity.

This SKU includes the on-wall kit.

You receive the R29S door station with the R29 on-wall surface mounting box. A rain hood, PoE+ switch or injector, lock hardware and indoor monitors are sold separately. For a flush finish use the R29 in-wall kit instead.

In the box
  • Akuvox R29S door station (silver)
  • R29 on-wall surface mounting box
  • Wiring accessories and fixings
  • Quick guide
What you also need (sold separately)
  • 802.3at PoE+ switch or injector
  • Akuvox indoor monitor, SmartPlus app or SIP endpoint
  • Electric lock / maglock and lock PSU
  • R29 rain hood for exposed entrances

Which R29 is the R29S?

Akuvox builds the R29 in several versions. The R29S is the standard version with one 2 MP camera and card, PIN and QR entry. The R29C adds a second camera for facial recognition and Bluetooth, and the R29C-L adds LTE. Choose the R29S when a touch directory and cards are all the entrance needs.

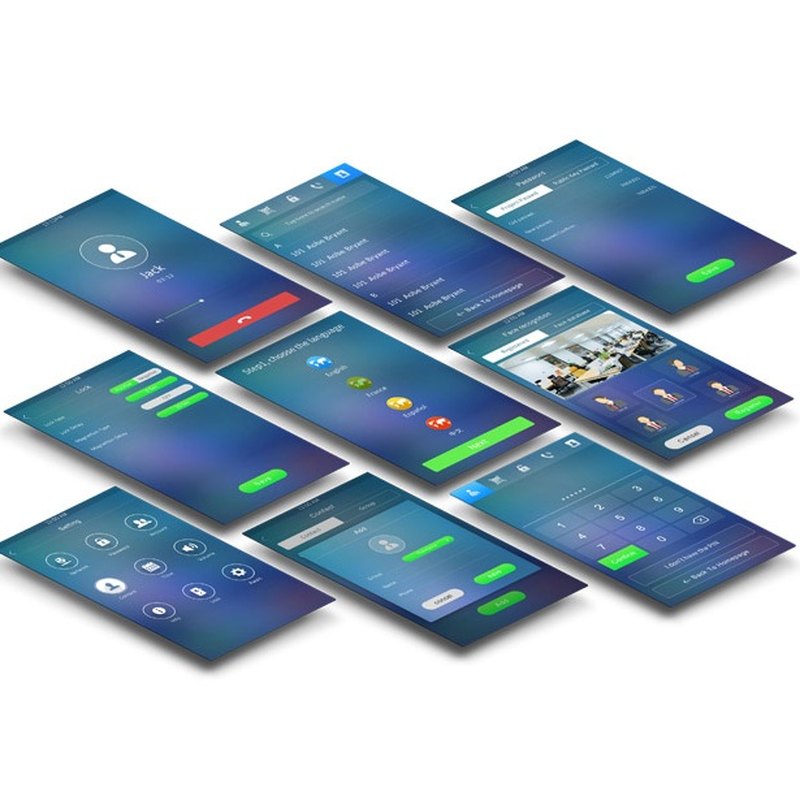

Akuvox R29 touchscreen interface screens

Interface

A directory visitors can search.

The 7-inch capacitive touchscreen (800 × 1280) shows a searchable resident list with options for visitors, deliveries and PIN entry.

Android lets integrators add third-party apps or customise the screens for the building.

Included

On-wall box in the box.

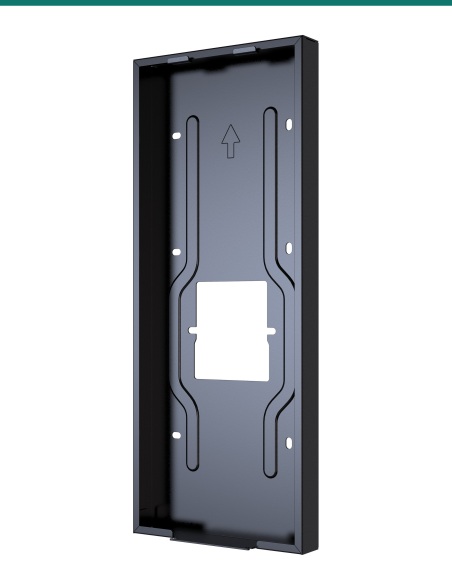

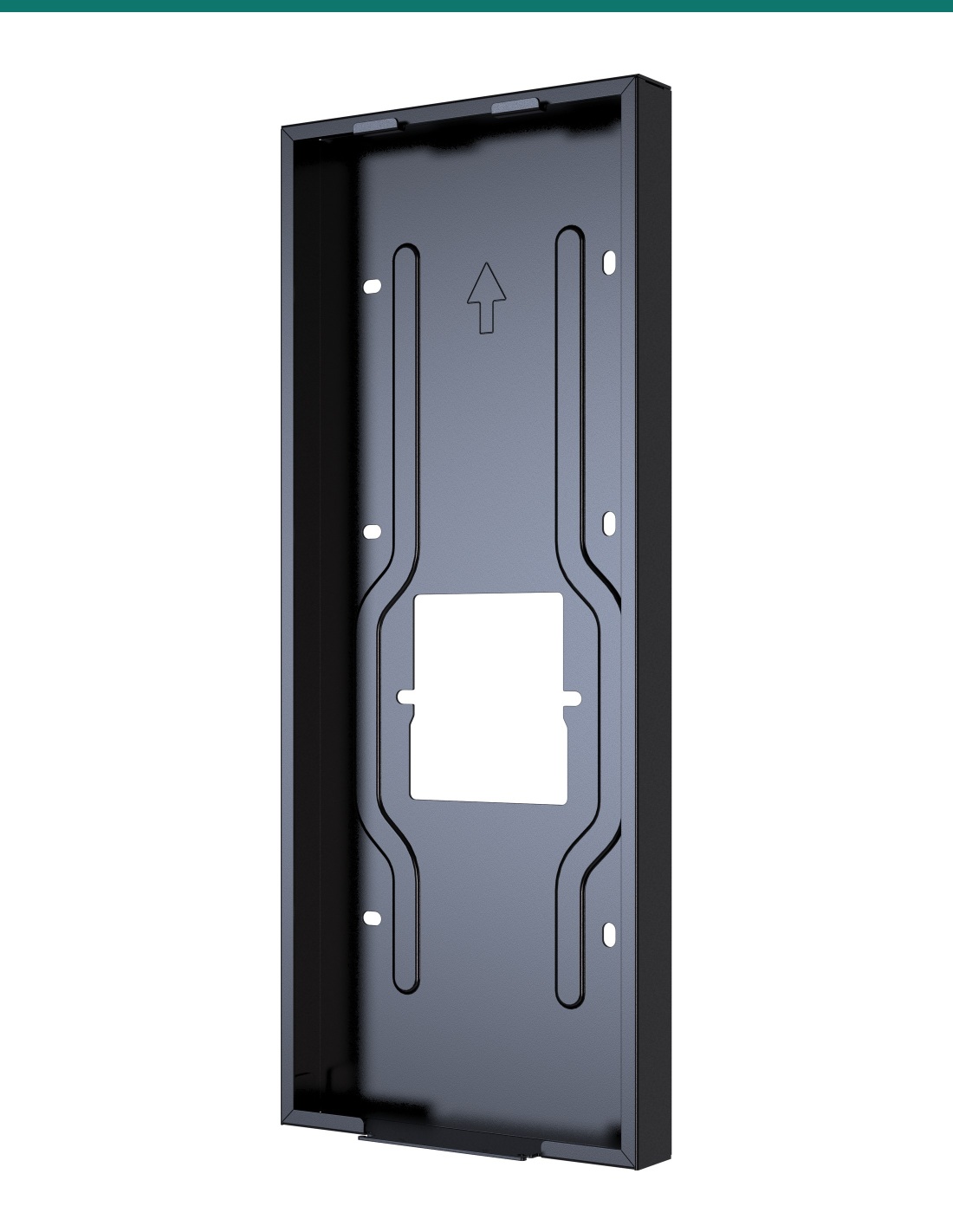

The R29 on-wall surface box screws to a flat wall and the R29S clips into it, so there is no cavity to cut in brick, render or cladding.

Add the R29 on-wall rain hood where rain or direct sun hits the entrance.

Akuvox R29 on-wall surface mounting box

Access

Cards, PINs, QR codes and phones.

The dual-frequency reader takes EM, MIFARE, DESFire EV1 / EV2 / EV3 and FeliCa cards and Android phones via NFC. Residents can also enter a PIN, and visitors can scan a QR code.

It stores 20,000 users, 100,000 cards and 20,000 PINs, with three relays for a door, a gate and a third lock.

How it works

From bare wall to first call.

01

Fix the box

Screw the included on-wall box to the wall at the marked height and feed the cables through.

02

Wire the I/O

Connect PoE+, the lock relays, exit button and door sensor inputs.

03

Fit the panel

Clip the R29S into the box and fasten it; add a rain hood at exposed entrances.

04

Register and test

Register to Akuvox monitors, SmartPlus or your SIP PBX, enrol cards and PINs, and test each relay.

Pair it with

Completes an R29 entry system

Weather

R29 on-wall rain hood

Fits over the surface box to shelter the screen and camera.

Flush

R29 in-wall kit

Use instead of the included surface box for a flush finish in a cavity.

Indoor

Akuvox indoor monitor

Residents answer, see the visitor and release the door from an Akuvox SIP monitor or the SmartPlus app.

Credentials

Akuvox cards and fobs

13.56 MHz MIFARE cards and fobs for residents and staff.

Works with

Platforms and integrations

SIP PBX and softphones

SIP v1 / v2 lets the R29S call Akuvox indoor monitors, IP phones or extensions on your own PBX.

Akuvox SmartPlus

Residents answer calls and unlock from the SmartPlus app.

NVRs and ONVIF

ONVIF support lets a compatible NVR record the entrance camera with the rest of your CCTV.

Wiegand and RS485 access control

The selectable Wiegand port and RS485 connect third-party access controllers, readers and Akuvox relay modules.

Downloads

Datasheets and guides

Compliance certificates and technical documents are available on request for tenders and installers — send an enquiry.

Answers

Common questions

How is the R29S different from the R29C?

The R29S has one 2 MP camera and no facial recognition; entry is by card, PIN, QR code or NFC. The R29C adds a 1 MP auxiliary camera for face liveness, stores 20,000 faces and supports Bluetooth unlock.

Is the mounting kit included?

Yes, this SKU includes the R29 on-wall surface box. For flush mounting, add the R29 in-wall installation kit.

How is it powered?

By 802.3at PoE+ from a PoE+ switch or injector over one Cat6 cable.

Which cards does it read?

EM, MIFARE, DESFire EV1 / EV2 / EV3 and FeliCa cards, plus NFC from Android phones.

Can it control more than one door?

Yes. It has three relay outputs and three inputs, plus a Wiegand port and RS485 for external readers or relay modules.

Is it weatherproof?

The panel is rated IP65 and IK06. Add the R29 rain hood where it faces rain or direct sun.

What mounting height does Akuvox show?

The R29 drawings place the bottom of the panel at 1,212 mm, with the camera centre at about 1,500 mm.

A touch directory without the extras you don’t need.

The R29S gives apartments and offices the full R29 screen and reader, with the surface box already included.

Installation & safety notice

Low-voltage product (SELV). Power over the network from an 802.3at PoE+ switch or injector. Treat as SELV low-voltage equipment.

When a licensed tradesperson is required. Concealed data and intercom cabling is customer cabling under AS/CA S009 and must be installed by an ACMA-registered cabler. Electric locks, maglocks and lock power supplies may require a licensed electrician or security installer.

Power
802.3at PoE+
Colour
Silver
Capacity
20,000 users · 100,000 cards · 20,000 PINs
Working Temperature
−20 °C to +55 °C
Brand
Akuvox
Display
7″ IPS capacitive touchscreen, 800 × 1280
Field of View
105° (H) / 55° (V)
Protection
IP65 / IK06
Camera
2 MP, 1/2.8″ CMOS
Mounting
On-wall kit included (flush with in-wall kit)
Size
324 × 130 × 27 mm (H × W × D)
Warranty
Australian warranty
Video
H.264, up to 1920 × 1080 at 25 fps
Product Type
Android SIP video door station
Model
R29S
Finish
Aluminium front panel
RF Reader
13.56 MHz and 125 kHz, NFC (Android phones)
I/O
3 relays, 3 inputs, Wiegand in/out, RS485
OS
Android
Unlock
Card, PIN, QR code, NFC, DTMF
Card Types
EM, MIFARE, DESFire EV1 / EV2 / EV3, FeliCa
