Akuvox E21A Vandal-Resistant Stainless Steel SIP Emergency Intercom — AK-E21A

SKU AK-E21A In Stock - Ready to Ship
$481.00 inc GST

Akuvox E21A is a vandal-resistant, audio-only SIP emergency intercom: one call button, hands-free speaker and microphone, a 316-grade stainless steel front rated IP65 and IK10, and two relays. For car parks, campuses and medical centres.

  • ✓One call button, hands-free audio with echo cancellation, line out
  • ✓316-grade stainless steel · IP65 · IK10 · 210 × 120 × 45.6 mm
  • ✓2 relays and 2 inputs, controlled by DTMF from the answering phone
  • ✓PoE 802.3af or 12–24 V DC · SIP v1 / v2 · G.711 and G.722


Akuvox · E21A · Audio emergency intercom

A help point built to take a hit.
Stainless, IP65, IK10.

The AK-E21A is Akuvox’s E21A: an outdoor-rated, audio-only SIP emergency intercom. One press calls security hands-free from car parks, campuses, medical centres and industrial parks.

This SKU is the intercom station only.

You receive the E21A station. The E21 in-wall box or on-wall rain cover, PoE switch and the answering endpoint are sold separately.

In the box
  • Akuvox E21A emergency intercom
  • Quick-start guide
What you also need(sold separately)
  • E21 in-wall box (flush) or E21 on-wall rain cover (surface)
  • PoE 802.3af switch or injector (or 12–24 V DC)
  • SIP endpoint to answer: guard station, Akuvox indoor monitor or PBX

Press once. Security answers.

Car parks, campuses, medical centres, subways and industrial parks: wherever people need to call for help, the E21 gives them one big button and a clear voice line to the guard.

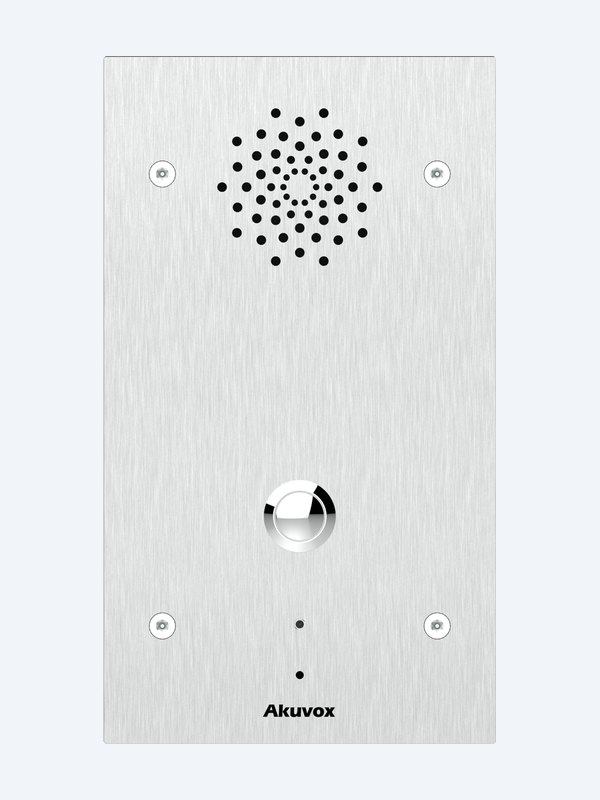

Akuvox E21A emergency intercom front view

Call

One button, hands-free.

A single call button dials the guard station over SIP. Speaker and microphone with echo cancellation, voice activity detection and G.722 wideband audio keep speech clear.

A line-out port is provided for external audio equipment. Two DTMF-controlled relays let the guard open a gate or boom during the call.

Tough

316 stainless, IP65, IK10.

The 316-grade stainless steel front is rated IP65 against dust and rain and IK10, the top impact level, for unattended public spaces.

210 × 120 × 45.6 mm, −20 °C to +55 °C. Flush-mount with the E21 in-wall box, or surface-mount with the E21 on-wall rain cover. Power from 802.3af PoE or 12–24 V DC.

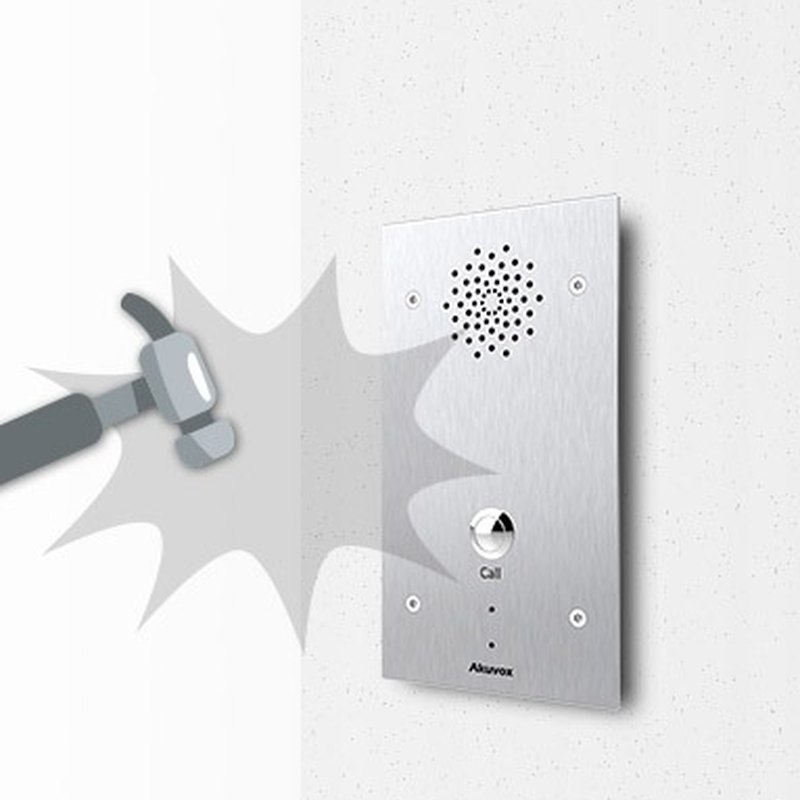

Akuvox E21A stainless front withstanding an impact test

How it works

From wall to first call.

01

Mount

Set the E21 in-wall box for a flush finish, or fix the on-wall rain cover for surface mounting.

02

Power

Run Cat5e/Cat6 with 802.3af PoE to the RJ45, or land 12–24 V DC.

03

SIP

Register the station and set the number the call button dials.

04

Test

Press the button, check audio, and confirm any relay opens the gate or boom.

Pair it with

Completes a help-point system

Flush

E21 in-wall box

Recesses the station into the wall.

Surface

E21 on-wall rain cover

Surface mount with a built-in rain hood.

Answer

Akuvox indoor monitor

A guard room monitor can answer E21 calls over SIP.

Works with

Platforms and integrations

SIP PBX and guard phones

Standard SIP v1 / v2 lets the E21A ring a guard-room phone, ring group or Akuvox indoor monitor on your own PBX.

Gates, booms and doors

The guard opens a gate, boom or door during the call by sending DTMF tones that trigger either relay.

External audio (line out)

The line-out port passes call audio to an external amplifier or recording device.

Watch

See it in action

Installing the E21 emergency intercom

Downloads

Datasheets and guides

Compliance certificates and technical documents are available on request for tenders and installers — send an enquiry.

Answers

Common questions

What is the difference between E21A and E21V?

Same 316 stainless IP65 / IK10 body, button, audio and relays. E21V adds a 2 MP camera (116° × 60°, 1080p) with IR night lighting and a motion sensor; E21A is audio-only.

Can it be used outdoors?

Yes. The front is IP65 and IK10, rated −20 °C to +55 °C. In exposed spots the E21 on-wall rain cover adds a hood.

How is it powered?

IEEE 802.3af PoE, or a 12–24 V DC supply.

How is it mounted?

The E21 is flush-mount: use the E21 in-wall box (190 × 100 × 60 mm cut-out), or surface-mount it with the E21 on-wall rain cover. Both are sold separately.

Can the guard open a gate?

Yes. The two relays are triggered individually by DTMF tones from the answering phone during the call.

How high should it be mounted?

Akuvox's placement drawing puts the button centre no higher than 1,200 mm above ground, with the bottom of the panel at about 1,130 mm.

Is the answering station included?

No. Calls go to any SIP endpoint — a guard-room phone, softphone, PBX extension or Akuvox indoor monitor — sold separately.

An outdoor help point.

Choose E21A when audio is enough — or E21V when the guard needs to see the caller.

Installation & safety notice

Low-voltage product (SELV). Power from IEEE 802.3af PoE or a 12–24 V DC supply. Treat as SELV low-voltage equipment.

When a licensed tradesperson is required. Concealed data and intercom cabling is customer cabling under AS/CA S009 and must be installed by an ACMA-registered cabler. Electric locks, maglocks and lock power supplies may require a licensed electrician or security installer.

Audio
Hands-free, echo cancellation, G.711 / G.722
Power
PoE 802.3af or 12–24 V DC
Colour
Stainless steel
Installation
Flush (in-wall box) or surface (on-wall rain cover)
Working Temperature
−20 °C to +55 °C
Brand
Akuvox
Protection
IP65 / IK10
Network
RJ45 10/100 Mbps
Size
210 × 120 × 45.6 mm (H × W × D)
Warranty
Australian warranty
Product Type
SIP emergency intercom (audio)
Call Buttons
1
Model
E21A
I/O
2 relays, 2 inputs, line out
OS
Linux
Front panel
316-grade stainless steel
Relay Control
DTMF from the answering phone
