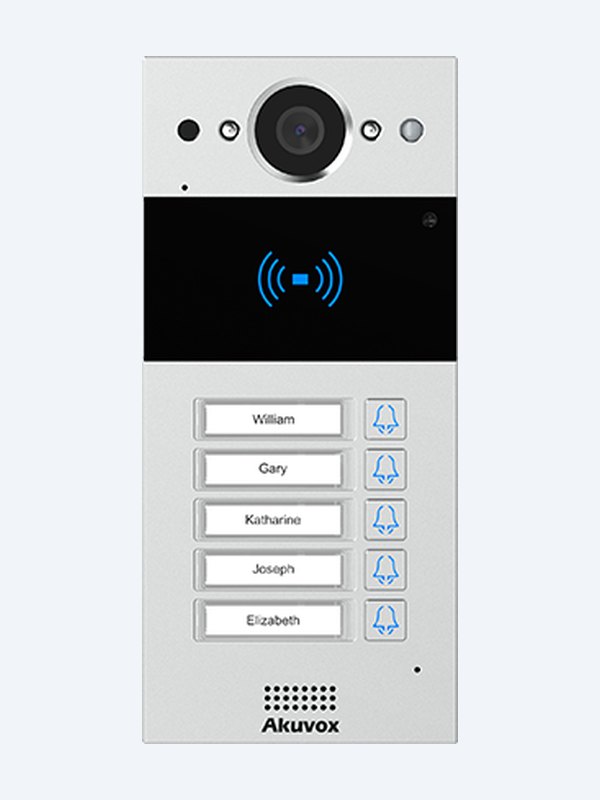

Akuvox R20B 5-Button Silver SIP Video Door Phone with Card Reader — AK-R20B5BONWALL
$417.00 inc GST
Akuvox R20B with five call buttons is a compact SIP video door phone for small apartment blocks and multi-tenant offices — one labelled button per tenant, no keypad to learn. 2 MP camera, card and NFC entry, two lock relays and an IP65 aluminium front. Surface-mount model, PoE powered.
- ✓5 call buttons, each with a name plate
- ✓2 MP camera, 110° (H) / 58° (V), 1080p at 30 fps, IR night lighting
- ✓13.56 MHz / 125 kHz card reader and NFC (Android), 25,000 cards, 2 relays
- ✓PoE 802.3af · IP65 · 185 × 84.5 × 24 mm · Wiegand and RS485
Akuvox · R20B · 5-button door station
One button per tenant.
Five labelled calls, one compact plate.
The AK-R20B5BONWALL is Akuvox’s R20BX5: the compact R20 door station with five speed-dial buttons and name plates, in silver aluminium. Visitors press the right name, the right resident answers — simple for guests, tidy for the building.
This SKU is the surface-mount door station only.
You receive the silver R20B 5-button surface-mount door phone. Indoor monitors, rain hood, PoE switch and lock hardware are sold separately.
In the box
- Akuvox R20B 5-button door phone (silver)
- Surface-mount hardware
- Quick-start guide
What you also need(sold separately)
- One Akuvox indoor monitor, SmartPlus account or SIP endpoint per button
- PoE 802.3af switch or injector
- Electric lock / maglock and lock PSU if the door is released
- Rain hood on exposed elevations
Press a name. Talk. Open.
Each button dials its own flat or office over SIP, so residents answer on an Akuvox indoor monitor, the SmartPlus app or any SIP phone. Residents let themselves in with a card or an Android phone.
Call buttons
Five names, five direct lines.
Each of the 5 buttons has its own name plate and is set to a SIP number, Akuvox indoor monitor or SmartPlus account in the web portal.
No directory to scroll and no codes to remember — ideal where visitors are couriers and guests.
Compact
Fits where bigger panels can’t.

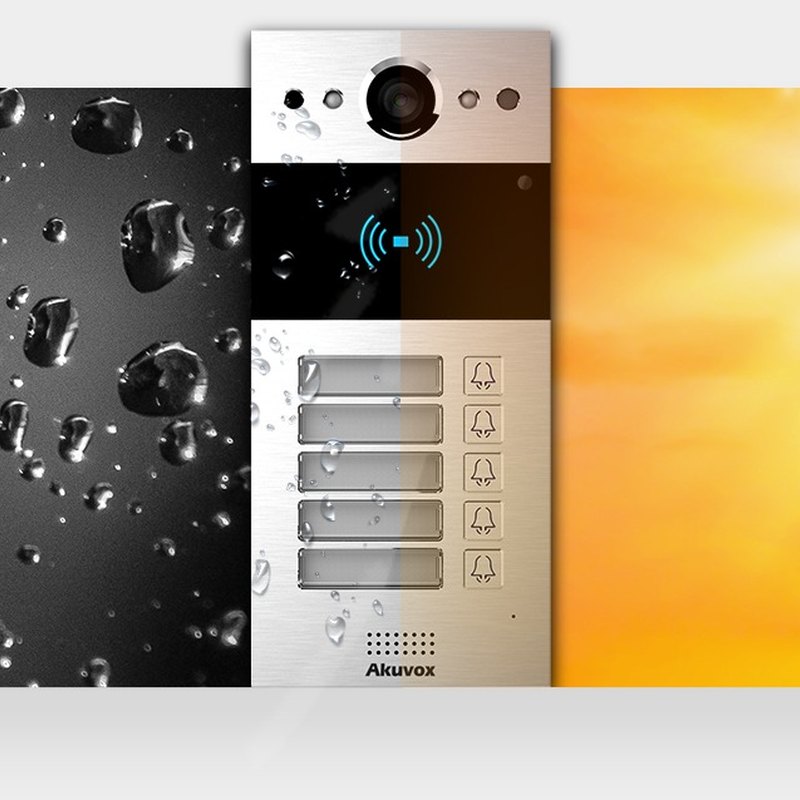

185 × 84.5 × 24 mm aluminium, IP65 against rain and dust, −30 °C to +60 °C, with a tamper alarm.
2 MP 1/2.8″ camera, 110° (H) / 58° (V), 1080p at 30 fps, with automatic IR night lighting and a 0.1 lux minimum. ONVIF and RTSP for NVR recording.
Access
Card, NFC or app for residents.
The 13.56 MHz and 125 kHz reader takes EM, MIFARE and DESFire EV1 / EV2 / EV3 cards, plus NFC from Android phones. Up to 25,000 cards and 5,000 users.
Two relays drive two doors or a door and a gate. Two inputs, Wiegand in/out and RS485 connect exit buttons, door sensors and controllers.
How it works
From name plate to open door.
01
Mount
Surface-mount the station at the entry; add a rain hood if exposed.
02
PoE and SIP
Run 802.3af PoE to the RJ45 and register the station with your monitors, SmartPlus or SIP PBX.
03
Assign buttons
Map each of the 5 buttons to a resident, then slide printed names into the plates.
04
Test the door
Call each button, check the picture day and night, and confirm the relays release the right locks.
At a glance
Key specs — AK-R20B5BONWALL
Show all specifications
- Model
- R20BX5
- Finish
- Silver aluminium alloy
- Call buttons
- 5, with name plates
- Camera
- 2 MP, 1/2.8″ CMOS, 110° (H) / 58° (V)
- Video
- H.264, 1080p at 30 fps, auto night mode
- RF reader
- 13.56 MHz and 125 kHz (EM, MIFARE, DESFire), NFC
- Capacity
- 25,000 cards · 5,000 users
- I/O
- 2 relays, 2 inputs, Wiegand in/out, RS485, tamper
- Power
- PoE IEEE 802.3af
- Protection
- IP65, −30 °C to +60 °C
- Size
- 185 × 84.5 × 24 mm (H × W × D)
- Warranty
- Australian warranty
- Brand
- Akuvox
- Reference
- AK-R20B5BONWALL
Physical and power
- Front panel
- Aluminium alloy
- Call buttons
- 5, each with a name plate
- Camera
- 2 MP with automatic lighting
- Sensors
- Light sensor, motion sensor, tamper alarm
- Speaker / microphone
- 1 / 1
- Ethernet
- RJ45, 10/100 Mbps adaptive
- Power
- IEEE 802.3af PoE
- Ingress protection
- IP65
- Installation
- Surface (wall) or flush mounted
- Dimensions (H × W × D)
- 185 × 84.5 × 24 mm
- Working temperature
- −30 °C to +60 °C
- Storage temperature
- −40 °C to +70 °C
- Working humidity
- 10–90%
- Operating system
- Linux
Interfaces
- Relay outputs
- 2
- Inputs
- 2
- Wiegand
- 1 channel, input or output (selectable)
- RS485
- Yes
- RF reader
- 13.56 MHz and 125 kHz
- NFC
- Yes (Android phones)
Video
- Sensor
- 1/2.8″ CMOS
- Resolutions
- CIF, VGA, 4CIF, 720p, 1080p
- Maximum resolution
- 1920 × 1080
- Frame rate
- 1080p at 30 fps
- Codec
- H.264
- Viewing angle
- 110° (H) / 58° (V)
- Night lighting
- High-intensity IR LEDs with internal light sensor
- Third-party video
- Compatible with NVRs (ONVIF, RTSP)
Audio
- SIP
- SIP v1 (RFC 2543), SIP v2 (RFC 3261)
- Narrowband codecs
- G.711a, G.711μ
- Wideband codec
- G.722
- DTMF
- In-band, out-of-band (RFC 2833), SIP INFO
- Processing
- Echo cancellation, voice activity detection, comfort noise generator
Door entry and capacity
- Relay control
- Each relay controlled individually by DTMF tones
- Camera
- Permanently operational
- Night mode
- Automatic, with LED illumination
- White balance
- Auto
- Minimum illumination
- 0.1 lux
- Card types
- EM, MIFARE, DESFire EV1 / EV2 / EV3
- Users
- 5,000
- Cards
- 25,000
- PINs
- 5,000
Network and management
- Protocols
- IPv4, HTTP, HTTPS, FTP, DNS, NTP, RTSP, RTP, TCP, UDP, ICMP, DHCP, ARP
- Provisioning
- Auto-provisioning
- Management
- Web portal, configuration backup / restore, firmware upgrade
- Logs
- System logs including door access logs, entry log export, web packet capture
- Access table
- Export / import
Pair it with
Builds a complete multi-tenant entry
Indoor
Akuvox indoor monitor
One per button: residents see the visitor and release the door from a compatible Akuvox SIP indoor station.
Weather
R20B rain hood (silver)
Akuvox R20K/R25K/R20B rain hoods keep driving rain off the buttons.
Angle
R20K/R20B angle bracket
Turns the camera towards visitors where the station sits side-on to the path.
Credentials
MIFARE cards and fobs
Akuvox 13.56 MHz cards and fobs work with the R20B reader once enrolled.
Works with
Platforms and integrations
SIP PBX and softphones
Standard SIP v1 / v2 lets the station call Akuvox monitors, IP phones or extensions on your own PBX.
NVRs over ONVIF / RTSP
Record the door camera on an ONVIF or RTSP-capable NVR alongside your CCTV cameras.
Akuvox SmartPlus
Residents answer calls and open the door from the SmartPlus app on iOS or Android, and can view extra IP cameras beside the door feed.
Wiegand and RS485 access control
The selectable Wiegand port and RS485 connect third-party access controllers, readers and Akuvox relay modules.
Watch
See it in action
Downloads
Datasheets and guides
PDFR20K/R20B in-wall guideOfficial Akuvox R20K/R20B in-wall guide (PDF) · 4.5 MBPDFR20B on-wall install guideOfficial Akuvox R20B on-wall install guide (PDF) · 4.4 MBPDFR20BX5 DatasheetAkuvox R20BX5 datasheet V3.0, September 2025 edition · 250 KBPDFR20BX5 dimension drawingsPanel, bracket, rain-cover, angle-bracket and in-wall box drawings in mm, March 2026 · 1.5 MB
Compliance certificates and technical documents are available on request for tenders and installers — send an enquiry.
Answers
Common questions
How does this differ from the other R20B models?
Only the number of call buttons. The 2-, 3- and 4-button R20B models share the same camera, reader, relays and 185 × 84.5 × 24 mm housing.
Does the R20B have a keypad for PIN entry?
No. Residents use cards, NFC or the SmartPlus app. For PIN entry choose the R20K keypad model.
Can each button ring a different apartment?
Yes. Each button is programmed to its own SIP number, Akuvox indoor monitor or SmartPlus account.
Which cards does the reader take?
125 kHz EM and 13.56 MHz MIFARE and DESFire EV1 / EV2 / EV3 cards, up to 25,000 of them, plus NFC from Android phones.
What power does it need?
IEEE 802.3af PoE from a switch or injector.
Can it be flush-mounted?
Yes. This SKU ships for surface mounting; the R20K / R25K / R20B in-wall kit recesses it, and matching rain hoods cover both install types.
Is an indoor monitor included?
No. Add one compatible Akuvox indoor monitor, SmartPlus account or SIP endpoint per tenancy.

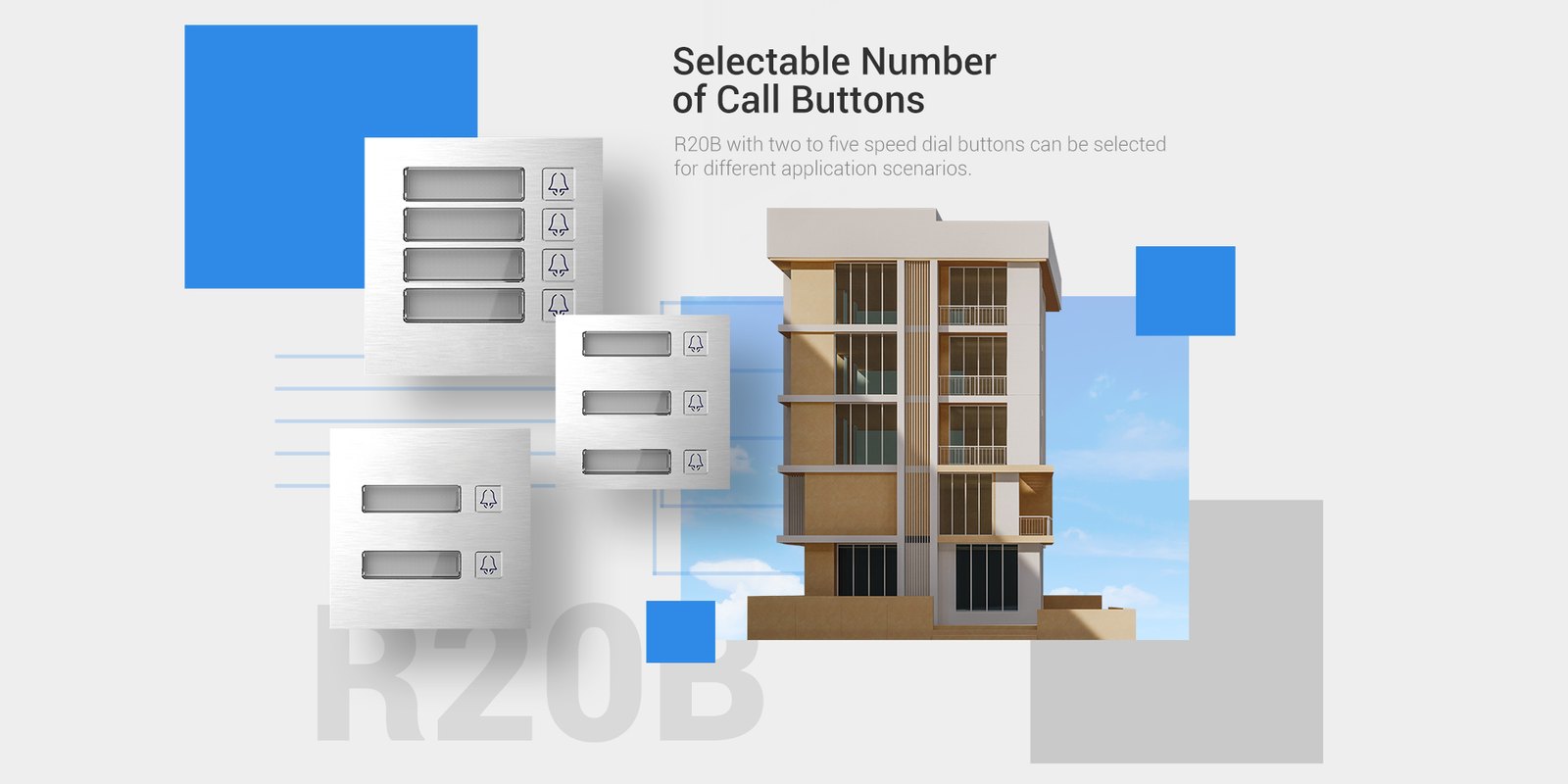

The right button count.
Pick the R20B that matches the tenancies: this 5-button model, or the 2-, 3- and 4-button versions in the same housing. Need more flats? Step up to the R20K keypad.
Installation & safety notice
Low-voltage product (SELV). Power from IEEE 802.3af PoE. Treat as SELV low-voltage equipment.
When a licensed tradesperson is required. Concealed data and intercom cabling is customer cabling under AS/CA S009 and must be installed by an ACMA-registered cabler. Electric locks, maglocks and lock power supplies may require a licensed electrician or security installer.
- Power
- PoE 802.3af
- Colour
- Silver
- Capacity
- 25,000 cards, 5,000 users
- Working Temperature
- −30 °C to +60 °C
- Brand
- Akuvox
- Protection
- IP65
- Camera
- 2 MP, 1/2.8″ CMOS, 110° (H) / 58° (V)
- Mounting
- Surface mount; flush with in-wall kit
- Size
- 185 × 84.5 × 24 mm (H × W × D)
- Warranty
- Australian warranty
- Video
- H.264, 1080p at 30 fps
- Product Type
- SIP door station
- Call Buttons
- 5, with name plates
- Model
- R20B (R20BX5)
- Finish
- Silver aluminium alloy
- RF Reader
- 13.56 MHz and 125 kHz
- Night Vision
- Auto night mode, IR LED illumination, 0.1 lux
- I/O
- 2 relays, 2 inputs, Wiegand, RS485
- Unlock
- Card, NFC (Android), SmartPlus app, DTMF
- Card Types
- EM, MIFARE, DESFire EV1 / EV2 / EV3
