Akuvox E21V Vandal-Resistant 2MP SIP Video Emergency Intercom — AK-E21V

SKU AK-E21V In Stock - Ready to Ship
$578.50 inc GST

Akuvox E21V is a vandal-resistant SIP emergency intercom with a 2 MP camera: one call button, hands-free audio, a 316-grade stainless steel front rated IP65 and IK10, and two relays. For car parks, campuses and gates.

  • ✓2 MP camera, 116° (H) / 60° (V), 1080p at 30 fps, IR night lighting and motion sensor
  • ✓One call button, hands-free audio with echo cancellation, line out
  • ✓316-grade stainless steel · IP65 · IK10 · 210 × 120 × 45.6 mm
  • ✓2 relays, 2 inputs · PoE 802.3af or 12–24 V DC · SIP and ONVIF


Akuvox · E21V · Video emergency intercom

A help point that sees and hears.
2 MP video, IP65, IK10.

The AK-E21V is Akuvox’s E21V: the E21 vandal-resistant emergency intercom with a 2 MP camera. One press calls security hands-free, and the guard sees who is asking for help.

This SKU is the intercom station only.

You receive the E21V station. The E21 in-wall box or on-wall rain cover, PoE switch and the answering endpoint are sold separately.

In the box
  • Akuvox E21V emergency intercom
  • Quick-start guide
What you also need(sold separately)
  • E21 in-wall box (flush) or E21 on-wall rain cover (surface)
  • PoE 802.3af switch or injector (or 12–24 V DC)
  • SIP endpoint to answer: guard station, Akuvox indoor monitor or PBX

Press once. Security answers.

Car parks, campuses, medical centres, subways and industrial parks: wherever people need to call for help, the E21 gives them one big button and a clear voice line to the guard.

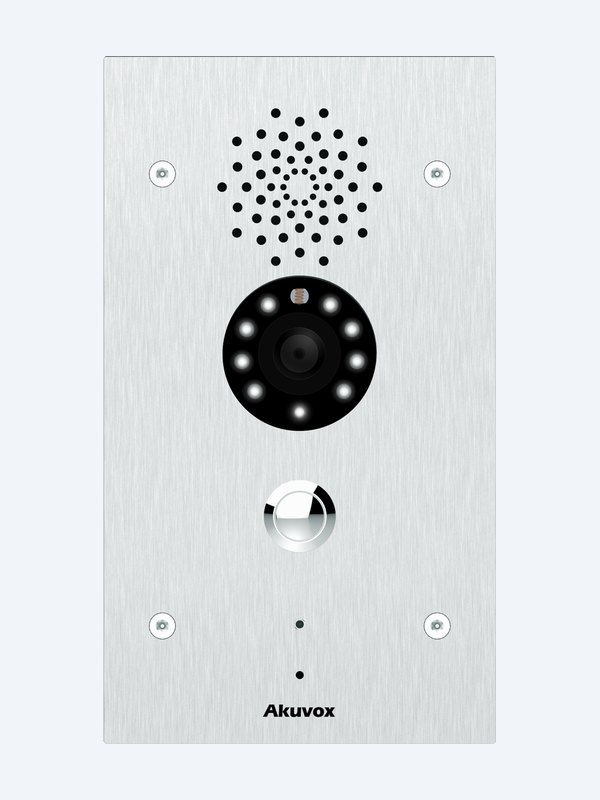

Akuvox E21V emergency intercom front view

Video

See who is calling for help.

A 2 MP 1/2.8″ camera covers 116° × 60° and streams H.264 up to 1920 × 1080 at 30 fps. IR LEDs and a light sensor keep the picture usable at night, down to 0.1 lux.

ONVIF and RTSP let you record the help point on your NVR. A motion sensor is built in.

Audio

Clear speech in noisy places.

Hands-free speaker and microphone with echo cancellation, voice activity detection and G.722 wideband audio carry a clear conversation in car parks and stations.

A line-out port is provided for external audio equipment, and calls go over SIP to any guard station, indoor monitor or PBX.

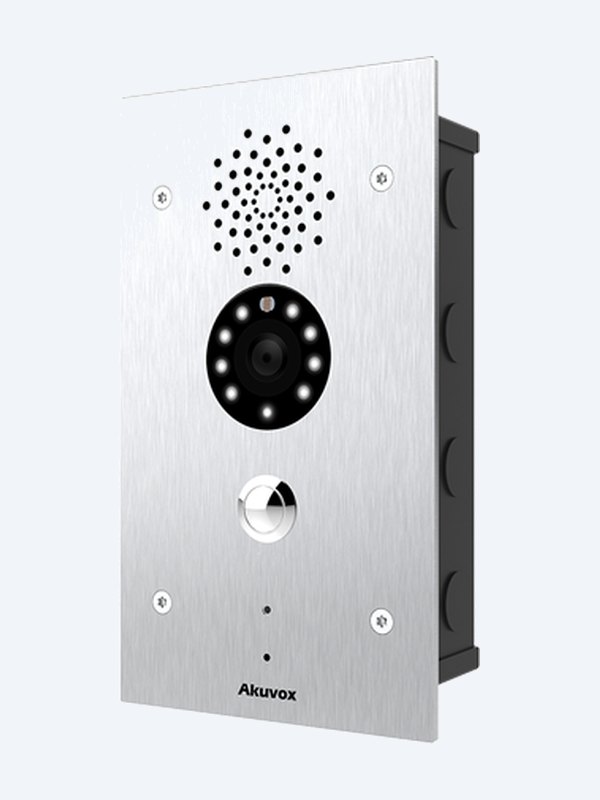

Akuvox E21V flush-mounted in its in-wall box

Install

Flush in its box, or on the wall.

210 × 120 × 45.6 mm, IP65 and IK10, −20 °C to +55 °C. Flush-mount with the E21 in-wall box, or surface-mount with the E21 on-wall rain cover.

Two relays (DTMF controlled) and two inputs open a gate or boom and take a door sensor. Power from 802.3af PoE or 12–24 V DC.

How it works

From wall to first call.

01

Mount

Set the E21 in-wall box for a flush finish, or fix the on-wall rain cover for surface mounting.

02

Power

Run Cat5e/Cat6 with 802.3af PoE to the RJ45, or land 12–24 V DC.

03

SIP

Register the station and set the number the call button dials.

04

Test

Press the button, check audio and video, and confirm any relay opens the gate or boom.

Pair it with

Completes a help-point system

Flush

E21 in-wall box

Recesses the station into the wall.

Surface

E21 on-wall rain cover

Surface mount with a built-in rain hood.

Answer

Akuvox indoor monitor

A guard room monitor can answer E21 calls over SIP.

Works with

Platforms and integrations

SIP PBX and guard phones

Standard SIP v1 / v2 lets the E21V ring a guard-room phone, ring group or Akuvox indoor monitor on your own PBX.

NVRs over ONVIF / RTSP

Record the help-point camera on an ONVIF or RTSP-capable NVR alongside your CCTV.

Gates, booms and doors

The guard opens a gate, boom or door during the call by sending DTMF tones that trigger either relay.

External audio (line out)

The line-out port passes call audio to an external amplifier or recording device.

Watch

See it in action

Installing the E21 emergency intercom

Downloads

Datasheets and guides

Compliance certificates and technical documents are available on request for tenders and installers — send an enquiry.

Answers

Common questions

What is the difference between E21V and E21A?

Same 316 stainless IP65 / IK10 body, button, audio and relays. E21V adds a 2 MP camera (116° × 60°, 1080p) with IR night lighting and a motion sensor; E21A is audio-only.

Can it be used outdoors?

Yes. The front is IP65 and IK10, rated −20 °C to +55 °C. In exposed spots the E21 on-wall rain cover adds a hood.

How is it powered?

IEEE 802.3af PoE, or a 12–24 V DC supply.

How is it mounted?

The E21 is flush-mount: use the E21 in-wall box (190 × 100 × 60 mm cut-out), or surface-mount it with the E21 on-wall rain cover. Both are sold separately.

Can the guard open a gate?

Yes. The two relays are triggered individually by DTMF tones from the answering phone during the call.

How high should it be mounted?

Akuvox's placement drawing puts the button centre no higher than 1,200 mm above ground, with the bottom of the panel at about 1,130 mm.

Will it record to my NVR?

Yes. The E21V supports ONVIF and RTSP, so a compatible NVR can record the 1080p help-point camera.

Is the answering station included?

No. Calls go to any SIP endpoint — a guard-room phone, softphone, PBX extension or Akuvox indoor monitor — sold separately.

An outdoor help point.

Choose E21V when the guard needs to see the caller — or E21A when audio is enough.

Installation & safety notice

Low-voltage product (SELV). Power from IEEE 802.3af PoE or a 12–24 V DC supply. Treat as SELV low-voltage equipment.

When a licensed tradesperson is required. Concealed data and intercom cabling is customer cabling under AS/CA S009 and must be installed by an ACMA-registered cabler. Electric locks, maglocks and lock power supplies may require a licensed electrician or security installer.

Audio
Hands-free, echo cancellation, G.711 / G.722
Power
PoE 802.3af or 12–24 V DC
Colour
Stainless steel
Installation
Flush (in-wall box) or surface (on-wall rain cover)
Working Temperature
−20 °C to +55 °C
Brand
Akuvox
Protection
IP65 / IK10
Motion Sensor
Yes
Camera
2 MP, 1/2.8″ CMOS, 116° (H) / 60° (V)
Network
RJ45 10/100 Mbps, ONVIF, RTSP
Size
210 × 120 × 45.6 mm (H × W × D)
Warranty
Australian warranty
Video
H.264, up to 1920 × 1080 at 30 fps
Product Type
SIP video emergency intercom
Call Buttons
1
Model
E21V
Night Vision
IR LEDs and light sensor, 0.1 lux
I/O
2 relays, 2 inputs, line out
OS
Linux
Front panel
316-grade stainless steel
