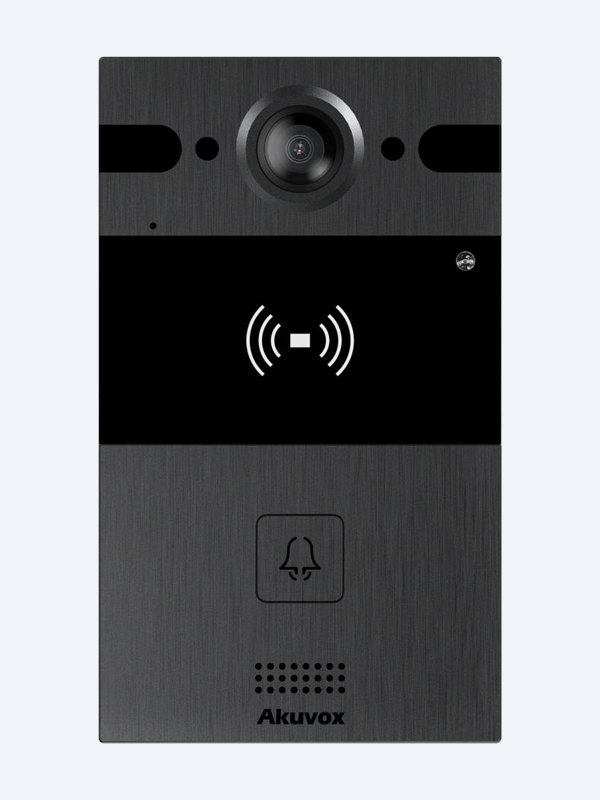

Akuvox R25A Black 4MP Fisheye Single-Button SIP Video Door Phone with Card Reader — AK-R25A-BLACK
$450.50 inc GST
Akuvox R25A is a single-button SIP video door phone in black brushed aluminium with a 4 MP fisheye camera that sees 150° across and 150° top to bottom — the visitor’s face and the parcel at their feet. Card and NFC entry, two relays, IP65, PoE.
- ✓4 MP 1/3.2″ fisheye camera, 150° (H) / 150° (V), up to 2000 × 2000, 2K at 30 fps
- ✓One backlit call button, 13.56 MHz / 125 kHz card reader and NFC — 5,000 cards, 1,000 users
- ✓2 relays, 2 inputs, Wiegand and RS485
- ✓PoE 802.3af or 12 V DC · IP65 · −40 °C to +55 °C · 145 × 85 × 22 mm
Akuvox · R25A · Black single-button door station
One button. The whole doorstep.
4 MP fisheye, 150° each way.
The AK-R25A-BLACK is Akuvox’s R25A in space grey brushed aluminium. It keeps the compact single-button format of the R20A but adds a 4 MP fisheye lens, so the camera covers 150° vertically as well as horizontally.
This SKU is the door station only.
You receive the black R25A door phone. Indoor monitor, in-wall box, rain hood, PoE switch and lock hardware are sold separately.
In the box
- Akuvox R25A door phone (black)
- Wall-mounting bracket, screws, wall anchors and Allen wrench
- Wiring cover, sealing plate, rubber cable plugs and safety rope
- 2 diodes for lock coils
What you also need(sold separately)
- Compatible Akuvox indoor monitor, SmartPlus app or SIP endpoint
- PoE 802.3af switch or injector, or a 12 V DC 1 A adapter
- Electric lock / maglock and lock PSU if the door is released
- Black R20A / R25A in-wall kit for flush mounting
Built for homes that want to see more.

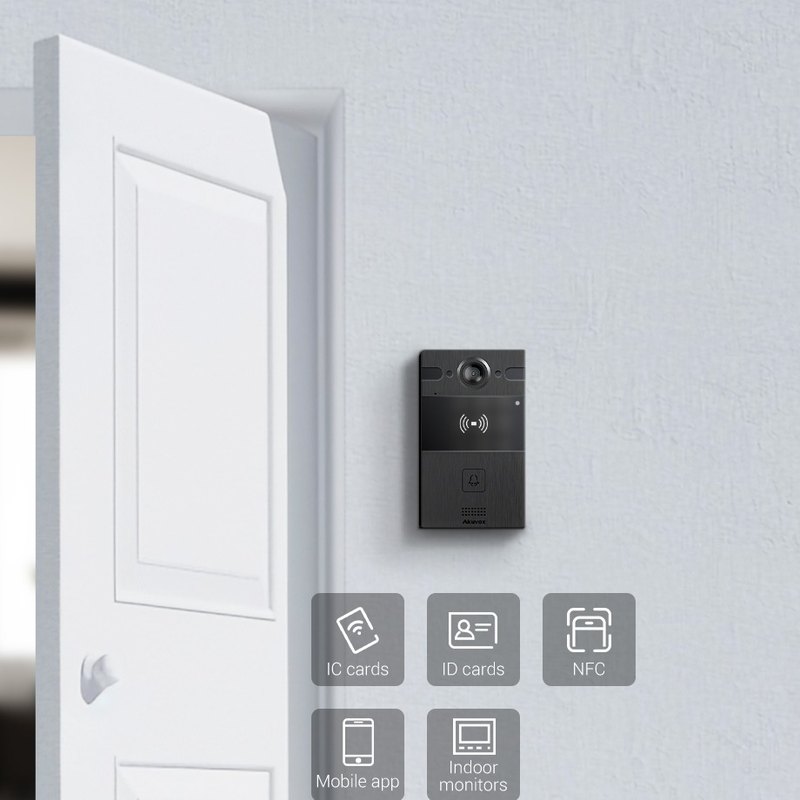

Visitors press one button; you see them head to toe in 4 MP on an Akuvox indoor monitor or the SmartPlus app. Family let themselves in with a card or phone.
Camera
Face to feet in one frame.
4 MP 1/3.2″ CMOS behind a fisheye lens covers 150° horizontally and 150° vertically, streaming H.264 at up to 2000 × 2000, 2K at 30 fps.
Auto night mode with LED illumination, a light sensor and 0.1 lux minimum keep night calls usable. ONVIF and RTSP let you record the door on your NVR.
Built to last

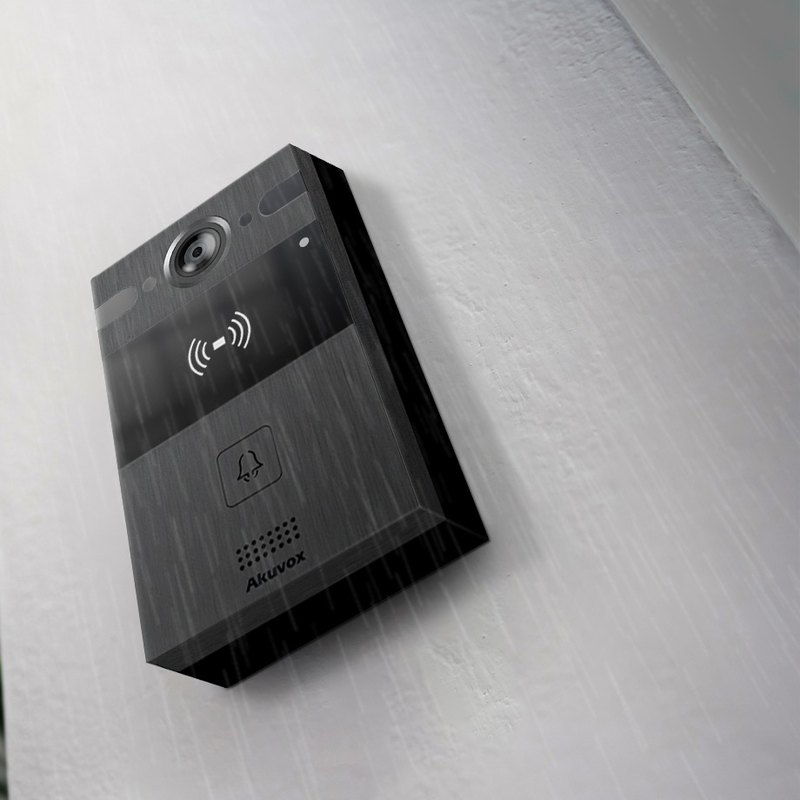

−40 °C to +55 °C, IP65.

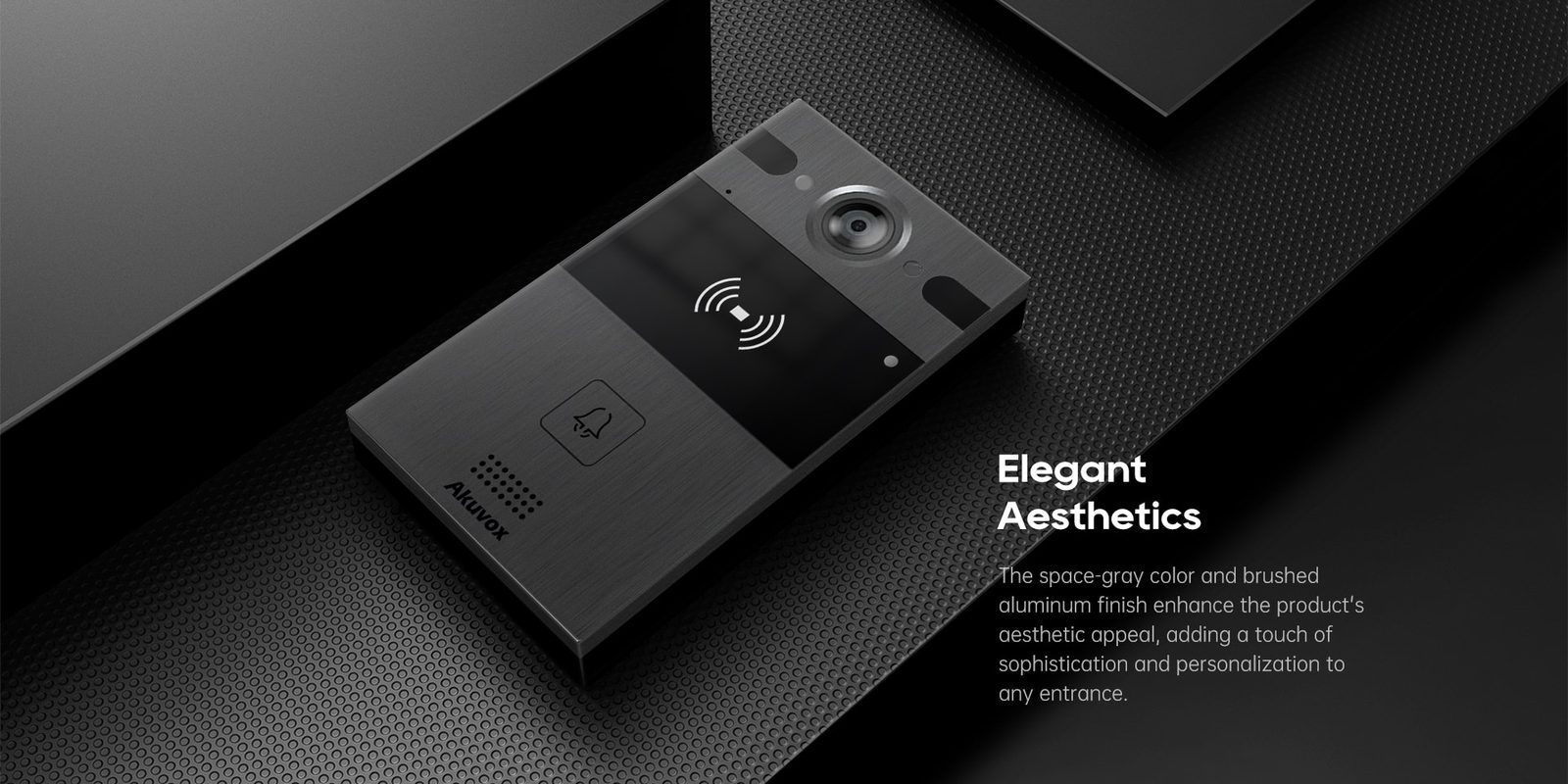

Space grey brushed aluminium, IP65 rated against rain and dust, with a tamper alarm. 145 × 85 × 22 mm.
Surface-mounts as supplied; add the black R20A / R25A in-wall kit for flush, and a black rain hood on exposed doors.
Access
Card, NFC, app or DTMF.
The 13.56 MHz and 125 kHz reader takes RF cards and NFC. It stores up to 5,000 cards, 1,000 users and 1,000 contacts.
Two relays drive two doors or a door and a gate. Two inputs, Wiegand and RS485 connect exit buttons, door sensors and access controllers.
How it works
From button press to open door.
01
Mount
Surface-mount as supplied, or flush with the black R20A / R25A in-wall kit.
02
PoE and SIP
Run 802.3af PoE to the RJ45 and register to an Akuvox indoor monitor, SmartPlus or your SIP PBX.
03
Enrol cards
Add residents and their cards in the web portal: up to 5,000 cards.
04
Test the door
Press the button, check the fisheye picture day and night, and confirm each relay releases the right lock.
At a glance
Key specs — AK-R25A-BLACK
Show all specifications
- Finish
- Space grey brushed aluminium
- Call button
- 1, blue backlight
- Camera
- 4 MP fisheye, 150° (H) / 150° (V)
- Video
- H.264, up to 2000 × 2000, 2K at 30 fps
- Night
- Auto night mode, IR LEDs, 0.1 lux minimum
- Entry
- 13.56 MHz / 125 kHz cards, NFC, DTMF, SmartPlus app
- Capacity
- 5,000 cards · 1,000 users · 1,000 contacts
- I/O
- 2 relays, 2 inputs, Wiegand, RS485, tamper
- Power
- IEEE 802.3af PoE or 12 V DC
- Protection
- IP65, −40 °C to +55 °C
- Size
- 145 × 85 × 22 mm (H × W × D)
- Warranty
- Australian warranty
- Brand
- Akuvox
- Reference
- AK-R25A-BLACK
Physical and power
- Front panel
- Aluminium
- Call button
- 1, with blue backlight
- Camera
- 4 MP with automatic lighting
- Infrared LEDs
- Yes
- Sensors
- Light sensor, motion sensor, tamper alarm
- Speaker / microphone
- 1 / 1
- Ethernet
- RJ45, 10/100 Mbps adaptive
- Power
- IEEE 802.3af PoE
- Ingress protection
- IP65
- Installation
- Surface (wall) or flush mounted
- Dimensions (H × W × D)
- 145 × 85 × 22 mm
- Working temperature
- −40 °C to +55 °C
- Storage temperature
- −40 °C to +70 °C
- Working humidity
- 10–90%
- Operating system
- Linux
Interfaces
- Relay outputs
- 2
- Inputs
- 2
- Wiegand
- Yes
- RS485
- Yes
- RF card reader
- 13.56 MHz and 125 kHz
- NFC
- Yes
Video
- Sensor
- 1/3.2″ CMOS
- Resolutions
- CIF, VGA, 4CIF, 720p, 1080p, 2K
- Maximum resolution
- 2000 × 2000
- Frame rate
- 2K at 30 fps
- Codec
- H.264
- Viewing angle
- 150° (H) / 150° (V)
- Third-party video
- Compatible with NVRs (ONVIF, RTSP)
Audio
- SIP
- SIP v1 (RFC 2543), SIP v2 (RFC 3261)
- Narrowband codecs
- G.711a, G.711μ
- Wideband codec
- G.722
- DTMF
- In-band, out-of-band (RFC 2833), SIP INFO
- Processing
- Echo cancellation, noise suppression, voice activity detection, comfort noise generator
Door entry
- Relay control
- Each relay controlled individually by DTMF tones
- Camera
- Permanently operational
- Night mode
- Automatic, with LED illumination
- White balance
- Auto
- Minimum illumination
- 0.1 lux
Capacity
- Users
- 1,000
- Contacts
- 1,000
- Cards
- 5,000
Network and management
- Protocols
- IPv4, HTTP, HTTPS, FTP, DNS, NTP, RTSP, RTP, TCP, UDP, ICMP, DHCP, ARP
- Provisioning
- Auto-provisioning
- Management
- Web portal, configuration backup / restore, firmware upgrade
- Logs
- System logs including door access logs, entry log export, web packet capture
- Access table
- Export / import
Installation and in the box
- In the box
- R25A door phone, wiring cover, sealing pressing plate, safety rope, 6 × M2.5×6 screws, 2 diodes, 3 rubber cable plugs
- Wall-mounting set
- Wall-mounting bracket, 4 wall-mounting screws, 2 × M3×6 hex socket screws, Allen wrench, 2 × M4×30 screws, 4 × ST4×20 screws, 4 wall anchors
- Alternative power
- 12 V DC, 1 A adapter (not included)
- 12 V DC cable run
- Up to 50 m on 20 AWG, 40 m on 22 AWG, 20 m on 24 AWG
- Mounting height
- Camera centre about 1500 mm above the ground
Pair it with
Builds a complete door entry system
Indoor
Akuvox indoor monitor
Answer, see the visitor and release the door from a compatible Akuvox SIP indoor station or the SmartPlus app.
Flush
R20A / R25A in-wall kit (black)
Recesses the R25A into the wall in a matching black finish.
Weather
R20A / R25A rain hood (black)
On-wall and in-wall hoods keep rain off the fisheye lens.
Angle
R20A / R25A angle bracket
Turns the camera towards visitors where the station sits side-on to the path.
Works with
Platforms and integrations
SIP PBX and IP phones
Standard SIP v1 / v2 lets the R25A call Akuvox monitors, IP phones or extensions on an on-site or hosted PBX.
NVRs over ONVIF / RTSP
Record the 4 MP fisheye picture on an ONVIF or RTSP-capable NVR alongside your CCTV cameras.
Akuvox SmartPlus
Residents answer calls and open the door from the SmartPlus app on iOS or Android, including remote sites over the internet.
Wiegand and RS485 access control
Wiegand and RS485 ports connect the R25A to third-party access controllers and readers.
Watch
See it in action
Downloads
Datasheets and guides
PDFR25A DatasheetAkuvox R25A datasheet V2.0 (2026) · 326 KBPDFR25A on-wall install guideOfficial Akuvox R25A on-wall install guide (PDF) · 4.9 MBPDFR25A in-wall install guideOfficial Akuvox R25A in-wall install guide (PDF) · 1.5 MBPDFR25A dimension drawingsDoor phone, bracket, in-wall box and angle bracket drawings in mm, September 2025 · 1.3 MB
Compliance certificates and technical documents are available on request for tenders and installers — send an enquiry.
Answers
Common questions
How is R25A different from R20A?
Same 145 × 85 mm single-button format and two relays. R25A adds a 4 MP fisheye camera covering 150° × 150°, a space grey brushed finish and a −40 °C to +55 °C working range; R20A has a 2 MP 110° × 58° camera but stores more credentials (20,000 cards against 5,000).
How many cards and users does it store?
Up to 5,000 cards, 1,000 users and 1,000 contacts. For bigger card lists the R20A stores 20,000 cards, and the keypad R25K 25,000.
Does it fit R20A mounting accessories?
Yes. The R20A / R25A in-wall kit and angle bracket are drawn for the R25A in Akuvox’s dimension drawings, and the R20A / R25A rain hoods suit the same 145 × 85 mm housing and wall bracket. Use the black versions with this model.
What power does it need?
IEEE 802.3af PoE over the network cable, or a 12 V DC 1 A adapter. On 12 V DC keep the power run within 50 m on 20 AWG, 40 m on 22 AWG or 20 m on 24 AWG cable.
Does it have a keypad?
No — one call button plus card, NFC and app entry. For a keypad with the same fisheye camera choose the R25K.
Will it record to my NVR?
Yes. The R25A supports ONVIF and RTSP, so ONVIF-capable NVRs can add it as a camera channel and record the fisheye view.
What comes in the box?
The door phone with its wall-mounting bracket and fixings, wiring cover, rubber cable plugs and two diodes for lock coils. Indoor monitor, power supply and lock hardware are sold separately.
A wider view at the front door.
Choose R25A over R20A when you want the 4 MP fisheye picture and a dark brushed finish; need a keypad too? See the R25K.
Installation & safety notice
Low-voltage product (SELV). Power from IEEE 802.3af PoE or a 12 V DC 1 A adapter. Treat as SELV low-voltage equipment.
When a licensed tradesperson is required. Concealed data and intercom cabling is customer cabling under AS/CA S009 and must be installed by an ACMA-registered cabler. Electric locks, maglocks and lock power supplies may require a licensed electrician or security installer.
- Audio
- SIP v1 / v2, G.711, G.722, echo cancellation
- Power
- PoE 802.3af or 12 V DC 1 A
- Colour
- Black
- Capacity
- 5,000 cards, 1,000 users, 1,000 contacts
- Working Temperature
- −40 °C to +55 °C
- Brand
- Akuvox
- Protection
- IP65
- Camera
- 4 MP fisheye, 1/3.2″ CMOS, 150° (H) / 150° (V)
- Mounting
- Surface mount; flush with in-wall kit
- Size
- 145 × 85 × 22 mm (H × W × D)
- Warranty
- Australian warranty
- Video
- H.264, up to 2000 × 2000, 2K at 30 fps
- Product Type
- SIP door station
- Model
- R25A
- Finish
- Space grey brushed aluminium
- RF Reader
- 13.56 MHz and 125 kHz, NFC
- Night Vision
- Auto night mode, IR LEDs, 0.1 lux minimum
- I/O
- 2 relays, 2 inputs, Wiegand, RS485
- Call button
- 1, blue backlight
