Akuvox S532 Silver 2.8″ Keypad SIP Video Door Phone with Card and Bluetooth Entry — AK-S532

SKU AK-S532 In Stock - Ready to Ship
$698.50 inc GST

Akuvox S532 is a keypad SIP video door phone for apartment and building entrances. Visitors dial a room number or browse the directory on the 2.8-inch display; residents enter with a card, PIN, Bluetooth or NFC phone. Silver aluminium, IP66 / IK08, PoE+ or 12 V DC.

  • ✓Numeric keypad, 2.8″ display and 2 MP 130° (H) / 90° (V) camera, 1080p at 30 fps
  • ✓EM, MIFARE, DESFire and FeliCa cards, PIN, BLE 5.0 and NFC · 50,000 cards, 10,000 PINs
  • ✓2 relays, 4 inputs, Wiegand, RS485 and analogue audio line out
  • ✓PoE+ (802.3at) or 12 V DC · IP66 / IK08 · −40 °C to +60 °C · 301 × 106 × 35.8 mm

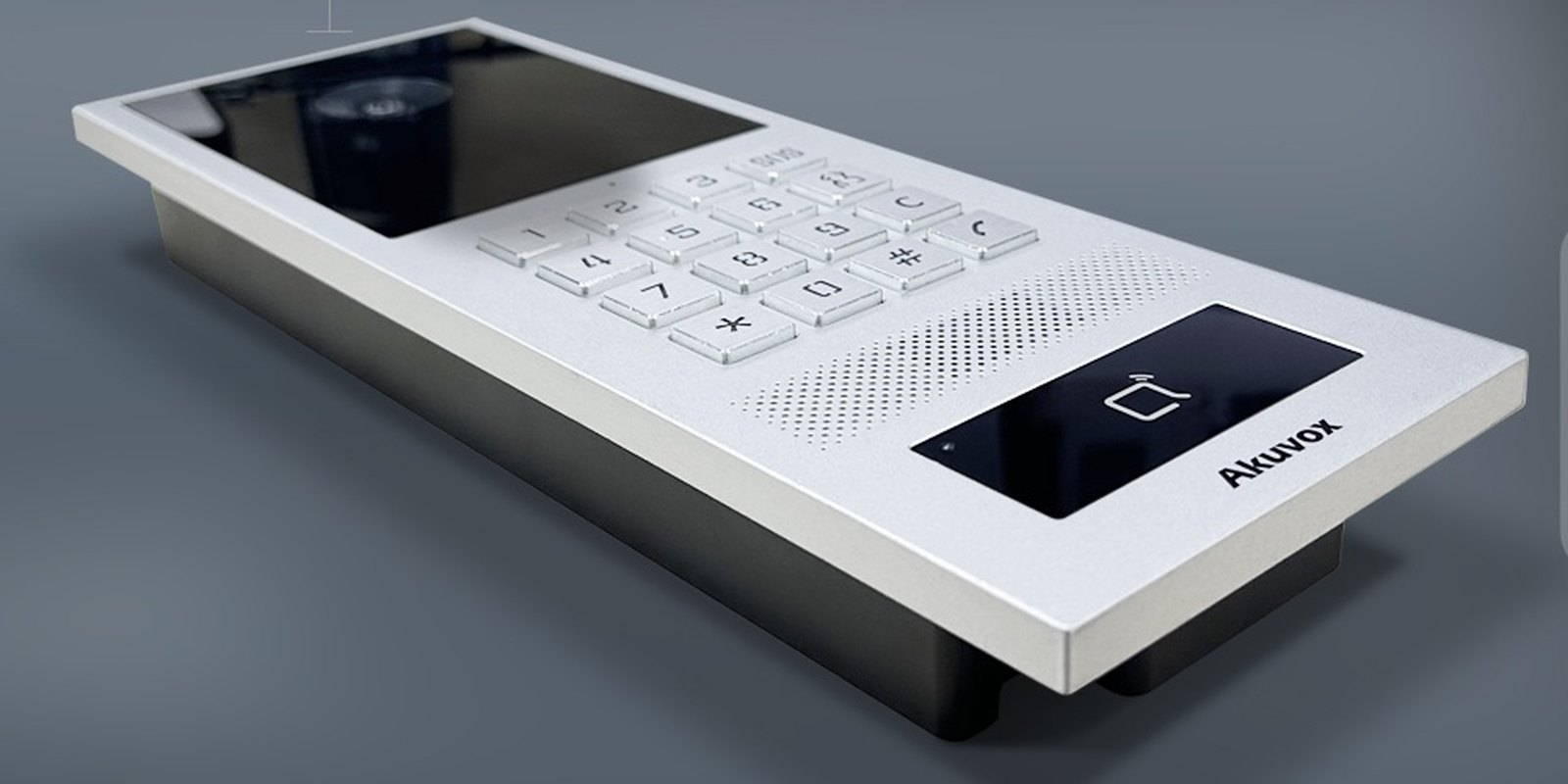

Akuvox S532 keypad door phone aluminium panel
Akuvox · S532 · Keypad door phone

A keypad door phone for the whole building.
Dial a flat, punch a PIN, tap a card.

The AK-S532 is Akuvox’s Linux keypad door station. A 2.8-inch display, a 130° 2 MP camera, a full numeric keypad and a dual-frequency card reader sit in a 301 × 106 mm aluminium plate rated IP66 and IK08.

This SKU is the S532 door station only.

You receive the S532 main unit with its wiring accessories. Choose the S532 on-wall or in-wall kit to suit the site — they are sold separately, as are rain covers, indoor monitors, PoE switch and lock hardware.

In the box
  • Akuvox S532 door station with wiring cover
  • Card reader touch plate and plate removal key
  • 2 × 8-pin and 2 × 7-pin terminal blocks, 2 diodes
  • M3×9.5 Torx and M3×5 crosshead screws, T10 wrench, flat-head screwdriver
  • Rubber cable plugs (large, medium and small)
What you also need(sold separately)
  • S532 on-wall or in-wall installation kit
  • PoE 802.3at switch or injector, or a 12 V DC 2 A adapter
  • Akuvox indoor monitor, SmartPlus app or SIP endpoint
  • Electric lock / maglock and lock PSU

Familiar for visitors, flexible for residents.

Visitors use the keypad they already know: room number and call, or the on-screen directory. Residents choose a card, a PIN, Bluetooth on their phone, NFC or the SmartPlus app.

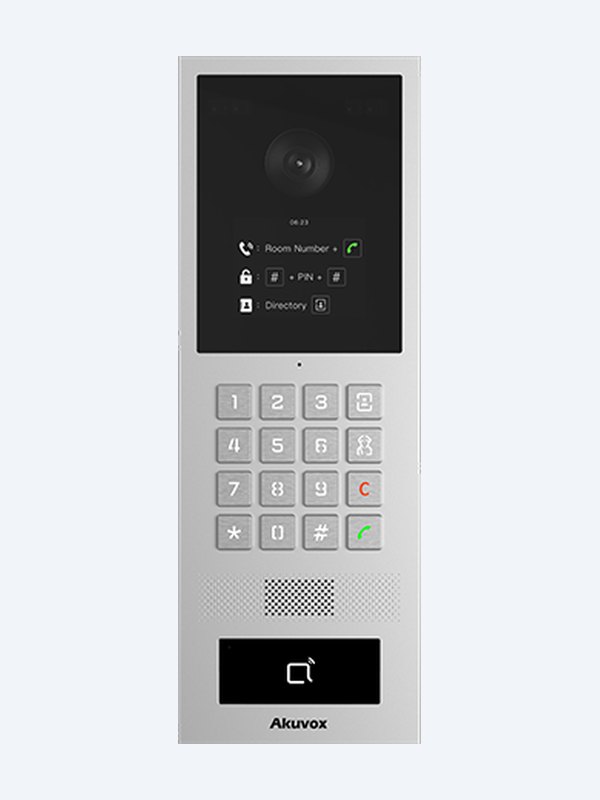

Akuvox S532 keypad door phone front

Keypad

Room number, PIN or directory.

The 2.8-inch display (320 × 240) shows the call, PIN and directory prompts above a numeric keypad with call and cancel keys.

The station holds 10,000 users, 500 contacts, 50,000 cards and 10,000 PINs, and reads EM, MIFARE, DESFire EV1 / EV2 / EV3 and FeliCa cards.

Security

A 130° view of the entrance.

The 2 MP camera covers 130° horizontally and 90° vertically, with IR LEDs, a light sensor and 0.1 lux minimum illumination for night use.

Akuvox pairs radar and image-based motion detection to flag movement at the door and push alerts to the SmartPlus app. Video streams at up to 1080p / 30 fps to compatible NVRs.

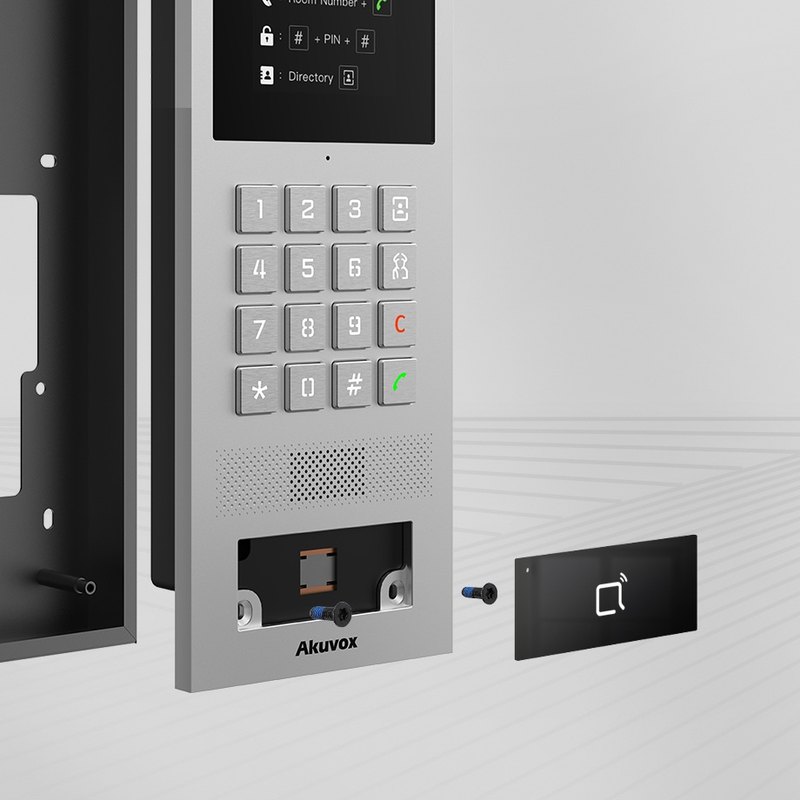

Akuvox S532 mounting box and card reader panel

Install

Concealed fixing, quicker install.

The S532 uses an anti-disassembly concealed mounting design with no screw fixing at the bottom of the plate, which Akuvox says saves installation time.

Flush-mount or surface-mount with the S532 in-wall or on-wall kit, and add the matching rain cover for exposed entrances.

How it works

From bare wall to first call.

01

Fit the kit

Install the S532 on-wall or in-wall kit, plus rain cover if the entrance is exposed.

02

Wire and power

Run PoE+ (802.3at) or 12 V DC and connect the lock to one of the two relays; use the inputs for exit buttons and door sensors.

03

Register and enrol

Register to Akuvox indoor monitors, SmartPlus or your SIP PBX, then add users, cards and PINs in the web portal.

04

Test the door

Make a test call, check the picture day and night and confirm the relay releases the lock.

Pair it with

Builds a complete door entry system

Mount

S532 on-wall or in-wall kit

Required to mount the station on the wall surface or flush in a cavity.

Weather

S532 rain cover

On-wall and in-wall rain covers shelter the keypad at exposed entrances.

Indoor

Akuvox indoor monitor

Residents answer, see the visitor and release the door from an Akuvox SIP monitor or the SmartPlus app.

Credentials

MIFARE cards and fobs

Akuvox 13.56 MHz cards work with the S532 reader once enrolled.

Works with

Platforms and integrations

SIP PBX and softphones

Standard SIP v1 / v2 lets the S532 call Akuvox monitors, IP phones or extensions on your own PBX.

NVRs over ONVIF / RTSP

Record the 1080p entrance picture on an ONVIF or RTSP-capable NVR alongside your CCTV cameras.

Akuvox SmartPlus

Residents answer calls and open the door from the SmartPlus app, including Bluetooth entry from their phone.

Analogue handsets

The analogue audio line out feeds an analogue switch so existing analogue handsets in the building can take calls.

Wiegand and RS485 access control

The selectable Wiegand port and RS485 connect third-party access controllers, readers and Akuvox relay modules.

Watch

See it in action

Akuvox S532 retrofit-friendly door phone overview
Opening doors and making calls on the S532
Connecting the S532 to analog handsets

Downloads

Datasheets and guides

Compliance certificates and technical documents are available on request for tenders and installers — send an enquiry.

Answers

Common questions

Does the S532 have facial recognition?

No. It is a keypad station with card, PIN, Bluetooth and NFC entry. For face entry, look at the S535.

Is a mounting kit included?

No. Use the S532 on-wall or in-wall installation kit, sold separately. Matching rain covers are available for both.

What power does it need?

IEEE 802.3at PoE+ from a switch or injector, or a 12 V DC 2 A adapter. On 12 V DC, Akuvox allows cable runs up to 30 m on 20 AWG or 20 m on 22 AWG.

How many residents can it handle?

Up to 10,000 users, 50,000 cards and 10,000 PINs, with 500 contacts in the on-screen directory. Access tables can be exported and imported in the web portal.

Can residents open the door from their phone?

Yes. BLE 5.0 lets SmartPlus app users unlock from their phone, and Android phones can also unlock over NFC.

Can it work with existing analogue handsets?

Yes. The analogue audio output connects to an analogue switch so older analogue handsets can answer calls — useful when upgrading a building in stages. One of the videos on this page shows the setup.

Will it record to my NVR?

Yes. The S532 supports ONVIF and RTSP, so most ONVIF-capable NVRs can add it as a camera channel.

How high should it be mounted?

Akuvox’s placement drawings put the camera centre 1,500 mm above the ground, with the bottom of the panel about 1,245 mm up.

A tough keypad station for busy entrances.

Choose the S532 for apartment blocks, offices and gated sites that want a physical keypad and a large user list.

Installation & safety notice

Low-voltage product (SELV). Power from IEEE 802.3at PoE+ or a 12 V DC, 2 A adapter.

When a licensed tradesperson is required. Concealed data and intercom cabling is customer cabling under AS/CA S009 and must be installed by an ACMA-registered cabler. Electric locks, maglocks and lock power supplies may require a licensed electrician or security installer.

Audio
SIP v1 / v2, G.711, G.722, echo cancellation
Power
PoE 802.3at or 12 V DC 2 A
Colour
Silver
Capacity
10,000 users, 50,000 cards, 10,000 PINs
Working Temperature
−40 °C to +60 °C
Brand
Akuvox
Display
2.8″, 320 × 240
Protection
IP66 / IK08
Camera
2 MP, 130° (H) / 90° (V)
Size
301 × 106 × 35.8 mm (H × W × D)
Warranty
Australian warranty
Video
H.264, 1080p at 30 fps
Product Type
Keypad SIP video door station
Model
S532
Finish
Aluminium front panel
RF Reader
13.56 MHz and 125 kHz
I/O
2 relays, 4 inputs, Wiegand, RS485, line out
OS
Linux
Unlock
Card, PIN, BLE, NFC (Android)
Card Types
EM, MIFARE, DESFire EV1 / EV2 / EV3, FeliCa
Akuvox S50 black MIFARE Classic 1K card — frontAkuvox S50 black MIFARE Classic 1K card — front 2
  • New
CompareComparingQuick view
In Stock - Ready to Ship
Akuvox Access Readers & Controllers

Akuvox S50 Black 13.56 MHz MIFARE Classic 1K ISO Card — AK-CARD-S50

Akuvox
AK-CARD-S50
$ 6.20
Akuvox S50 is a 13.56 MHz MIFARE Classic 1K card in standard ISO card size, slot-punched for a lanyard. It is Akuvox’s everyday card for its door phones and access terminals. Sold as a single card.✓MIFARE Classic 1K (S50), 13.56 MHz, ISO 14443A✓Reads on Akuvox door phones and access terminals with 13.56 MHz readers✓Slot-punched PVC...
Akuvox S532 black in-wall rain cover — frontAkuvox S532 black in-wall rain cover — front 2
  • New
CompareComparingQuick view
In Stock - Ready to Ship
Akuvox Mounting & Accessories

Akuvox S532 Black In-Wall Rain Cover for Flush-Mounted S532 — AK-S532BINH

Akuvox
AK-S532BINH
$ 57.30
Akuvox AK-S532BINH is the in-wall rain cover for a flush-mounted S532 keypad door phone. It is an open black frame with a hood: it sits around the recessed S532 at the wall face and shelters the camera, display and keypad from rain and overhead sun.✓Rain cover for a flush-mounted Akuvox S532✓Open frame, 312 × 110 mm, hood projects 52.5 mm at...
Akuvox S532 in-wall mounting box — frontAkuvox S532 in-wall mounting box — front 2
  • New
CompareComparingQuick view
In Stock - Ready to Ship
Akuvox Mounting & Accessories

Akuvox S532 In-Wall Installation Kit for Flush Mounting — AK-S532INWALLK

Akuvox
AK-S532INWALLK
$ 57.30
Akuvox AK-S532INWALLK flush-mounts the S532 keypad SIP door phone. The metal back box goes into a 289 × 98 × 52.5 mm wall opening, the bracket screws onto it, and the S532 hangs on the bracket so only the front panel stands proud of the wall. Screws and anchors included.✓Flush-mounts the Akuvox S532 (301 × 106 × 35.8 mm)✓Wall cut-out 289 ×...
Akuvox S532 black on-wall mounting box — frontAkuvox S532 black on-wall mounting box — front 2
  • New
CompareComparingQuick view
In Stock - Ready to Ship
Akuvox Mounting & Accessories

Akuvox S532 Black On-Wall Installation Kit for Surface Mounting — AK-S532ONWALLK

Akuvox
AK-S532ONWALLK
$ 57.30
Akuvox AK-S532ONWALLK is the on-wall installation kit for the S532 keypad SIP door phone. The S532 ships without a mounting box: this black surface box screws to the wall, the S532 hangs on its hooks and locks in with a Torx screw. Template, screws and anchors are included.✓Surface-mounts the Akuvox S532 (301 × 106 × 35.8 mm)✓Black wall box,...
Akuvox S532 silver on-wall cover plate — three-quarter viewAkuvox S532 silver on-wall cover plate — three-quarter view 2
  • New
CompareComparingQuick view
In Stock - Ready to Ship
Akuvox Mounting & Accessories

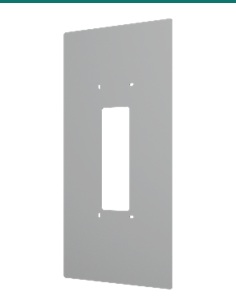

Akuvox S532 Silver On-Wall Cover Plate for Retrofit Installs — AK-S532WALLPLATE

Akuvox
AK-S532WALLPLATE
$ 63.00

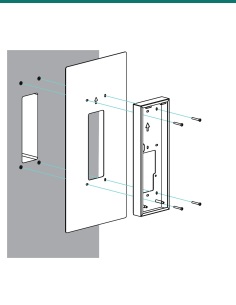

Akuvox AK-S532WALLPLATE is the silver cover back plate for surface-mounting an S532 where an old intercom used to be. It goes against the wall behind the S532 on-wall box and hides the opening, screw holes and marks left by the old panel, giving the new door phone a clean background. It fixes with the screws from the S532 on-wall installation...
