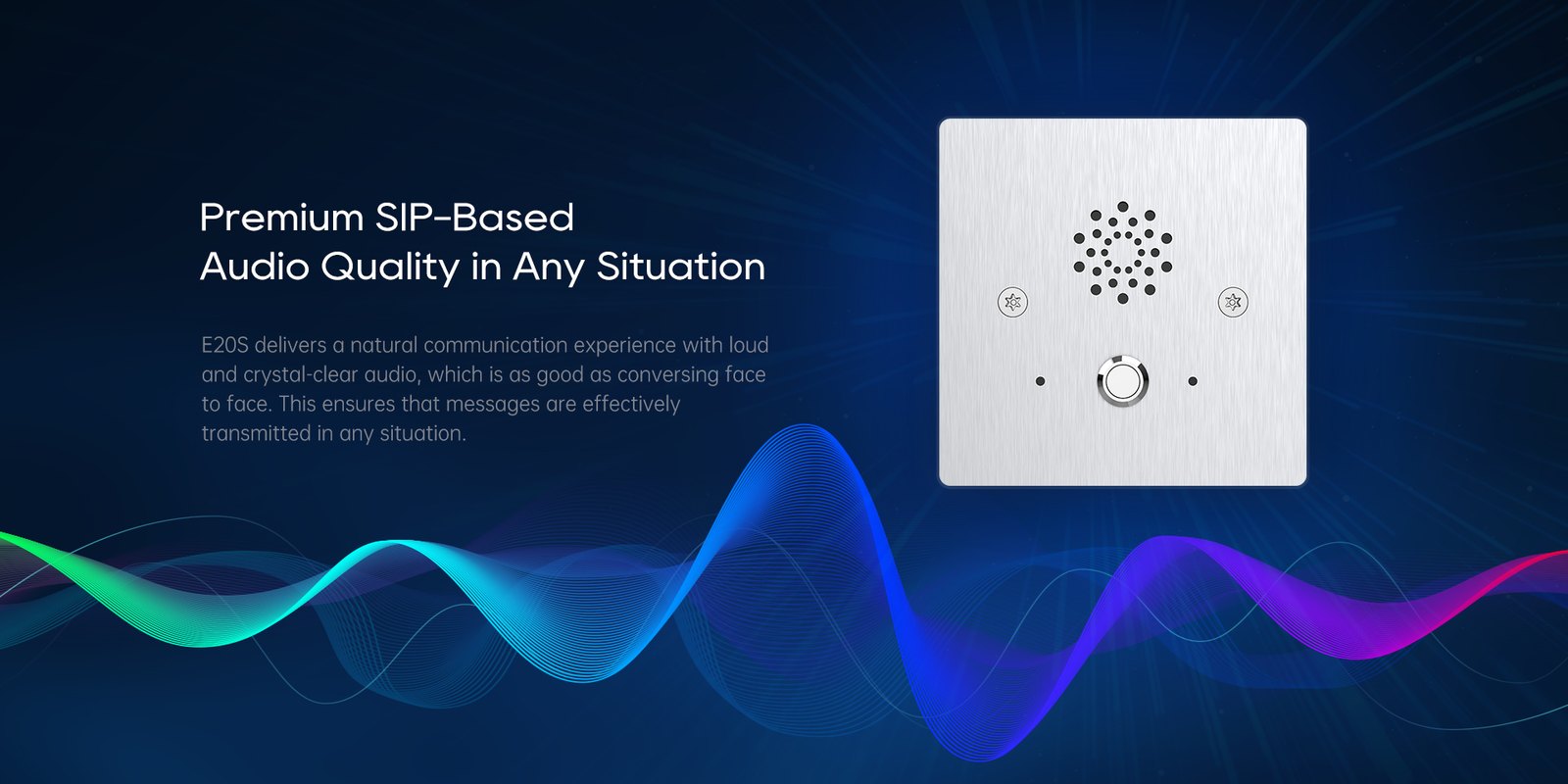

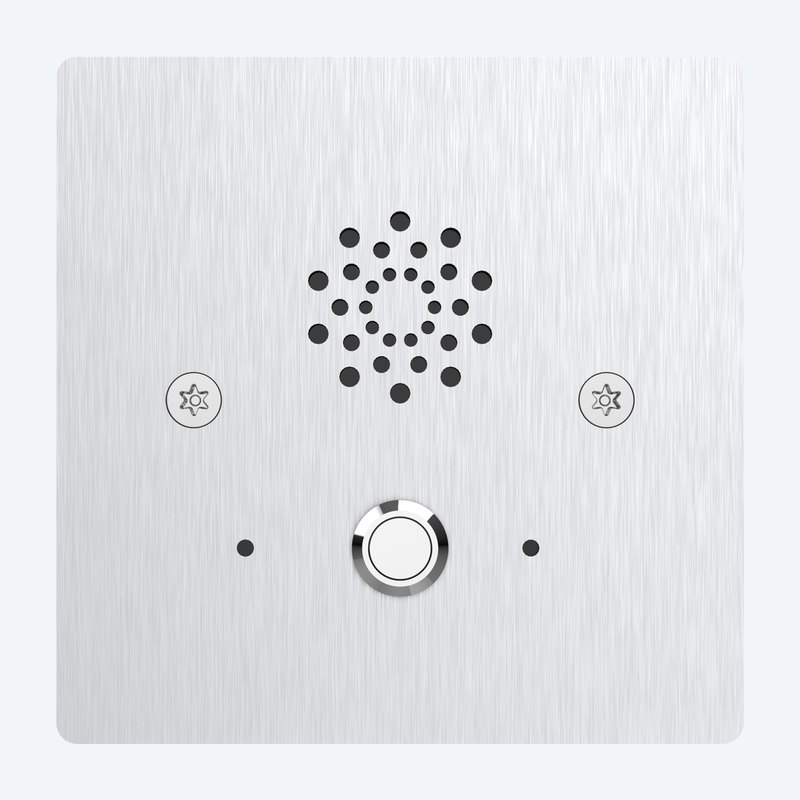

Akuvox E20S Stainless Steel SIP Emergency Push-Button Intercom — AK-E20S
$353.00 inc GST
Akuvox E20S is a palm-sized SIP emergency intercom: one push button, hands-free speaker and microphone, and a 316-grade stainless steel IK10 front. It flush-mounts on a standard single wall box and runs on PoE. For indoor use.
- ✓One push button, hands-free two-way audio with echo cancellation
- ✓316-grade stainless steel front, IK10 impact rating
- ✓Flush-mounts on 86-type and 1299 single wall boxes · 100 × 100 × 37.7 mm
- ✓PoE 802.3af only · SIP v1 / v2 · G.711 and G.722 · indoor use
Akuvox · E20S · SIP emergency intercom
One button for help.
Stainless, IK10, PoE.
The AK-E20S is Akuvox’s E20S push-button emergency station. Press once and it calls a guard room, reception or a SIP phone hands-free — no handset, no screen, nothing to break.
This SKU is the intercom station only.
You receive the E20S station. The in-wall box, PoE switch and the answering endpoint (indoor monitor, SIP phone or PBX) are sold separately.
In the box
- Akuvox E20S emergency intercom
- Quick-start guide
What you also need(sold separately)
- 86-type or 1299 single in-wall box (or the E20 in-wall kit)
- PoE 802.3af switch or injector
- SIP endpoint to answer: Akuvox indoor monitor, SIP phone or PBX
Press. Talk. Help arrives.
Lifts, car-park lobbies, disabled toilets, corridors and receptions: wherever someone may need to call for help, E20S gives them one obvious button and a clear voice line.
Call
One button. Hands-free.
A single call button on the stainless front dials a pre-set SIP number. Built-in speaker and microphone with echo cancellation keep the conversation hands-free.
One SIP account, G.711a / μ and G.722 codecs, QoS and auto-answer — so a guard can also call the station back and talk straight away.
Tough
316 stainless, IK10.

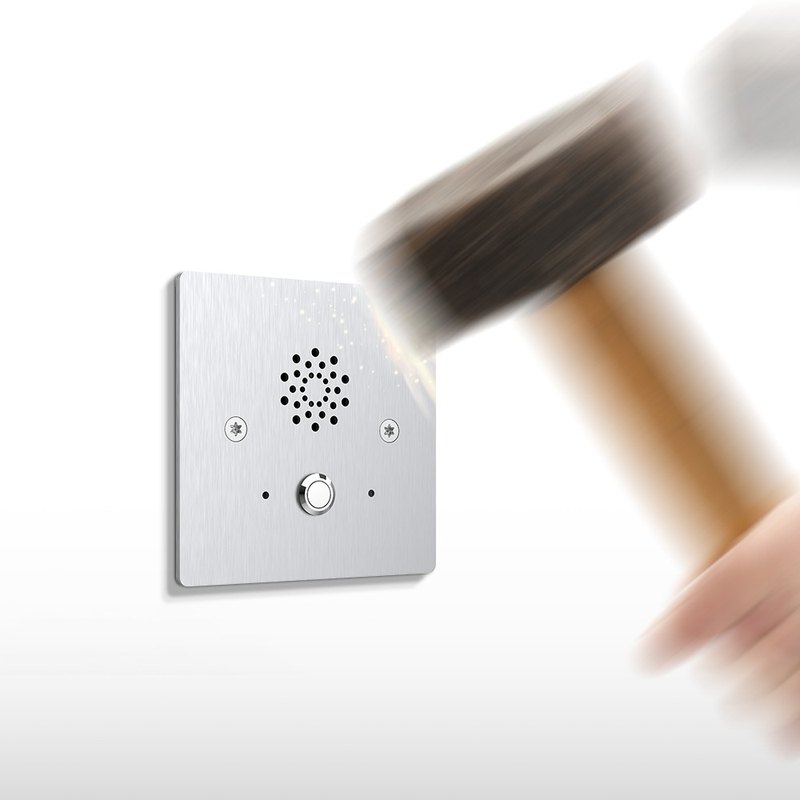

The 316-grade stainless steel front is rated IK10, the top impact level, for public corridors and lifts where equipment gets knocked.
At 100 × 100 × 37.7 mm the panel sits flush over a standard single wall box. The E20S is rated for indoor use.
Install
A standard wall box and one cable.
E20S fits 86-type and 1299 single in-wall boxes. One Cat5e/Cat6 run with 802.3af PoE carries power and network.
Set DHCP or a static IP, register the SIP account, and the station is ready. NTP keeps its clock right.
How it works
From wall box to first call.
01
Wall box
Fit an 86-type or 1299 single in-wall box, or the E20 in-wall kit.
02
PoE
Run Cat5e/Cat6 with 802.3af PoE to the RJ45.
03
SIP
Register the SIP account and set the number the button calls.
04
Test
Press the button and confirm the call reaches the right endpoint with clear audio.
At a glance
Key specs — AK-E20S
Show all specifications
- Front panel
- 316-grade stainless steel, IK10
- Button
- 1 call button
- Audio
- Hands-free, echo cancellation, auto answer
- Codecs
- G.711a, G.711μ, G.722
- SIP
- SIP v1 / v2, 1 account, QoS
- Network
- RJ45 10/100 Mbps, DHCP or static IP
- Power
- PoE IEEE 802.3af only
- Mounting
- Flush, on 86-type or 1299 single wall box
- Use
- Indoor, −20 °C to +55 °C
- Size
- 100 × 100 × 37.7 mm (H × W × D)
- Warranty
- Australian warranty
- Brand
- Akuvox
- Reference
- AK-E20S
Physical and power
- Front panel
- 316-grade stainless steel
- Call button
- 1
- Speaker / microphone
- 1 / 1
- Ethernet
- RJ45, 10/100 Mbps adaptive
- Power
- IEEE 802.3af PoE
- Dimensions (H × W × D)
- 100 × 100 × 37.7 mm
- Installation
- Flush-mounted on a 1299 or 86-type single in-wall box
- Impact protection
- IK10
- Environment
- Indoor use only
- Working temperature
- −20 °C to +55 °C
- Storage temperature
- −25 °C to +60 °C
- Working humidity
- 10–90%
- Operating system
- Linux
Calls and audio
- SIP
- SIP v1 (RFC 2543), SIP v2 (RFC 3261)
- SIP accounts
- 1
- Audio codecs
- G.711a, G.711μ, G.722
- Two-way audio
- Over IP, with echo cancellation
- QoS
- Yes
- Auto answer
- Yes
Network
- Network mode
- DHCP or static IP
- System time
- NTP
- Protocols
- IPv4, HTTP, HTTPS, FTP, DNS, NTP, RTP, TCP, UDP, ICMP, DHCP, ARP
Pair it with
Completes a help-point system
Mount
E20 in-wall kit
Standard 86 in-wall kit to flush-mount the E20S.
Answer
Akuvox indoor monitor
A guard room or reception monitor can answer E20S calls over SIP.
Network
PoE switch
Any IEEE 802.3af PoE switch or injector powers the station.
Works with
Platforms and integrations
SIP PBX and IP phones
One SIP account registers the E20S to your PBX, so the button can ring a reception desk phone, ring group or softphone.
Akuvox indoor monitors and guard units
Calls can go peer-to-peer over SIP to an Akuvox indoor monitor in a guard room or office.
Downloads
Datasheets and guides
PDFE20 quick guideOfficial Akuvox E20 quick guide (PDF) · 788 KBPDFE20S DatasheetAkuvox E20S datasheet V2.0 · 2.7 MBPDFE20 dimension drawingsE20 panel, 86 flush box and mounting-height drawings in mm, July 2023 · 385 KB
Compliance certificates and technical documents are available on request for tenders and installers — send an enquiry.
Answers
Common questions
Can it be used outdoors?
No. Akuvox rates the E20S for indoor use only. For outdoor help points use the E21A (audio) or E21V (with camera), which are IP65.
How is it powered?
IEEE 802.3af PoE only — there is no DC input, so plan a PoE switch port or injector.
What wall box does it fit?
1299 and 86-type single in-wall boxes, or the E20 in-wall 86 back box. The 100 × 100 mm faceplate covers the box.
Does it have a camera or door relay?
No. E20S is an audio-only push-button station with no relay. For a camera and relays, look at the E21V.
Can security call it back?
Yes. Auto answer lets a guard or reception call the station and talk straight away, without anyone pressing the button.
How high should it be mounted?
Akuvox's placement drawing puts the centre of the button no higher than 1,200 mm above the floor, so it is reachable from a wheelchair.
What can it call?
Any SIP endpoint: Akuvox indoor monitors, SIP desk phones or extensions on a SIP PBX.
A compact help point.
Choose E20S for indoor help points on a standard wall box. For outdoor or camera-equipped help points, look at the E21A and E21V.
Installation & safety notice
Low-voltage product (SELV). Power from IEEE 802.3af PoE only. Treat as SELV low-voltage equipment.
When a licensed tradesperson is required. Concealed data and intercom cabling is customer cabling under AS/CA S009 and must be installed by an ACMA-registered cabler. Electric locks, maglocks and lock power supplies may require a licensed electrician or security installer.
- Audio
- Hands-free, 1 speaker, 1 microphone, echo cancellation
- Power
- PoE 802.3af only
- Colour
- Stainless steel
- Installation
- Flush, on 86-type or 1299 single wall box
- Working Temperature
- −20 °C to +55 °C
- Brand
- Akuvox
- Network
- RJ45 10/100 Mbps, DHCP or static IP
- Size
- 100 × 100 × 37.7 mm (H × W × D)
- Warranty
- Australian warranty
- Product Type
- SIP emergency intercom
- Call Buttons
- 1
- Model
- E20S
- SIP accounts
- 1
- Use
- Indoor only
- OS
- Linux
- Front panel
- 316-grade stainless steel
- Impact Rating
- IK10
- Codecs
- G.711a, G.711μ, G.722
- Auto Answer
- Yes
