HiLook 4xPoE 4 Channel 4K HDMI, 1x SATA Network Video Recorder - NVR-104MH-C/4P
- 4 channels
- Simplified GUI
- Auto-discovery and connection
- Up to 8MP IPC
- 40Mbps throughput
- H.265+/H.265/H.264+/H.264 video compression
- 1-ch at 8 MP / 4-ch at 1080p synchronous playback
- HDMI/VGA output
- PoE budget: 50W
- 1 SATA port - (No HDD included)
- P2P cloud connection
- HiLookVision App – IOS, Android and PC
HiLook 4xPoE 4 Channel 4K HDMI, 1x SATA Network Video Recorder
NVR-104MH-C/4P
The HiLook HIL-104MHC4P is a 4-channel PoE NVR which is part of HiLooks C series recorders, it has 1 HDD bay and can take up to a 6TB hard drive. With auto-discovery and connection features, this recorder truly is easy to set up, minimizing commissioning time. The simplified user interface is and is extremely easy for end-users to operate.
The HiLook range supports P2P cloud connection for hassle-free and secure remote access setup. The HiLookVision App is available on IOS, Android, and PC. HiLook by Hikvision is a very cost-effective range introduced to fulfill the needs of entry-level customers and is suitable for small to medium projects. It is as reliable as the traditional Hikvision range but with only basic video surveillance functionality.
Features:
- 4CH 4xPoE Plug & Play 4K NVR
- Third-party network cameras supported
- 1 HDMI, 1 VGA, HMDI up to 4K(3840x2160)
- 4ch network cameras with 40M bandwidth
- Up to 1 SATA interface (max 6TB)
- Plug & Play with up to 4 independent PoE
- Support VCA detection and VCA search
- Support H.265+/H.264/MPEG4 formats
- Support mobile monitoring via Hik-Connect

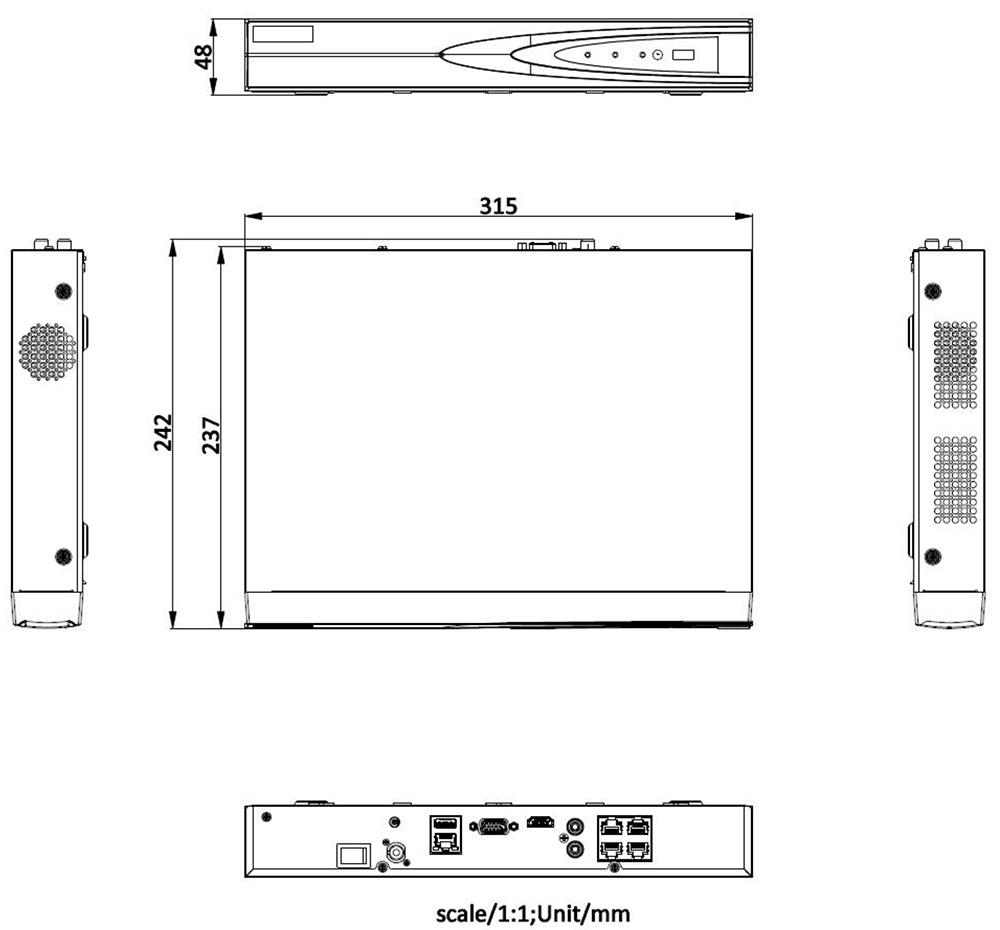

- 315 x 240 x 48 mm
Functions:
Professional and Reliability
- H.265+ compression effectively reduces storage space by up to 75%
HD Video Output
- Provide independent HDMI and VGA outputs
- HDMI video output at up to 4K resolution
Storage and Playback
- 1 SATA interface for HDD connection (up to 6 TB capacity per HDD)
- Smart search/smart playback to improve the playback efficiency
Smart Function
- Support multiple VCA (Video Content Analytics) events
- Configurable special camera smart functions, such as VCA detection (motion, line crossing, intrusion, etc.), heat map, ANPR, and people counting
Network & Ethernet Access
- 4 independent PoE network interfaces
- 1 self-adaptive 10/100 Mbps Ethernet interface
- HiLookVision & DDNS (Dynamic Domain Name System) for easy network management

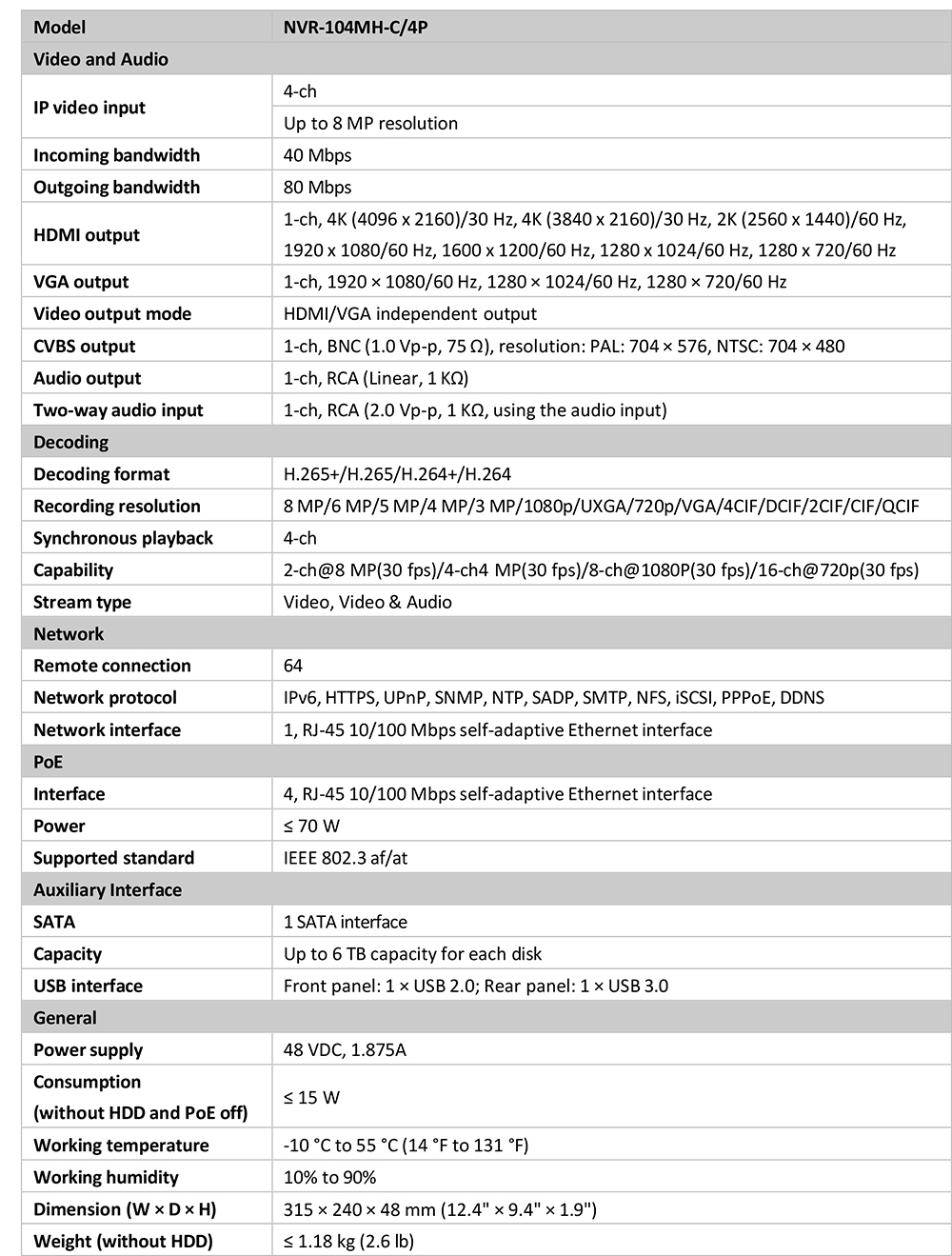

Specifications:
