SR-PSU-DVR12V5: a 12V 5A, 60W desktop power supply (C.SA Electronics CS-1205000) with a 5.5 × 2.1 mm centre positive plug, to suit Swann 16-channel DVRs such as the DVR16-5580. Not made by Swann.
- ✓12V DC, 5A, 60W output, centre positive
- ✓5.5 × 2.1 mm barrel plug, as Swann uses on its DVRs
- ✓RCM mark and SAA-202218-EA on the label
- ✓100–240V AC input, Australian mains lead included
- ✓Not for 48V Swann NVRs
Description

Replacement power for a Swann 16-channel DVR.
12V. 5A. Centre positive.
The SR-PSU-DVR12V5 is a 12V 5A, 60W desktop supply, model CS-1205000 made by C.SA Electronics, with the 5.5 × 2.1 mm centre positive plug Swann uses on its 12V DVRs. Swann specifies a 12V 5A adaptor for the DVR16-5580.
In one sentence: the SR-PSU-DVR12V5 is a 12V DC, 5A, 60W desktop power supply (C.SA Electronics model CS-1205000) with a 5.5 × 2.1 mm centre positive barrel plug and 100 to 240V AC input, to suit Swann DVRs that run on a 12V adaptor.
Not made by Swann. Check your old adaptor reads 12V first.
This is a replacement supply that suits Swann DVRs; it is made by C.SA Electronics, not Swann. Your old adaptor must read 12V DC with a round 5.5 × 2.1 mm barrel plug. Swann DVRs use 12V adaptors from 2A to 5A, and a 5A supply runs any of them because the recorder only draws what it needs. Swann NVRs run on 48V and need a different supply.
- 12V 5A power supply (CS-1205000) with DC lead
- Australian mains lead
- Nothing else for a straight swap
- A power point near the DVR
When a Swann DVR keeps restarting or will not start.
A tired adaptor is one of the most common reasons a Swann DVR stops working: no lights, a recorder that reboots, a hard drive that drops out or cameras that lose their picture. Swann's own troubleshooting starts by swapping the adaptor. This 12V 5A supply covers the biggest 12V rating Swann lists for its DVRs.

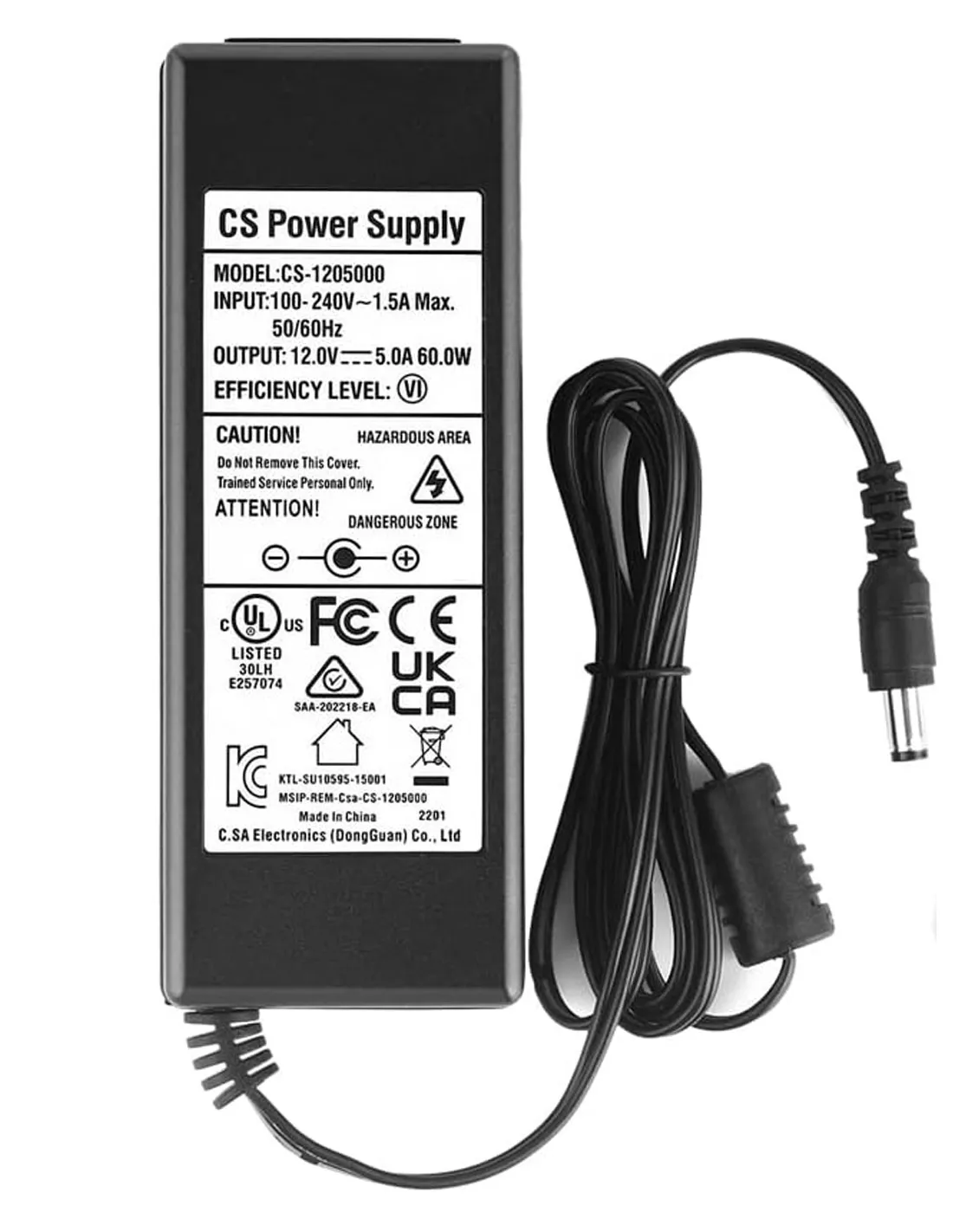

The label
Model CS-1205000, 12.0V 5.0A 60.0W.
Input 100 to 240V AC, 50/60Hz, 1.5A max. Output 12.0V DC, 5.0A, 60.0W, efficiency level VI. The label also shows the centre positive symbol: the inside of the plug is +12V.

Approvals
RCM mark and Australian approval number.
The label of the unit pictured carries the RCM mark with Australian approval number SAA-202218-EA, plus UL listing E257074, FCC, CE, UKCA and KC marks. The house symbol means indoor use only. Maker: C.SA Electronics (DongGuan) Co., Ltd.

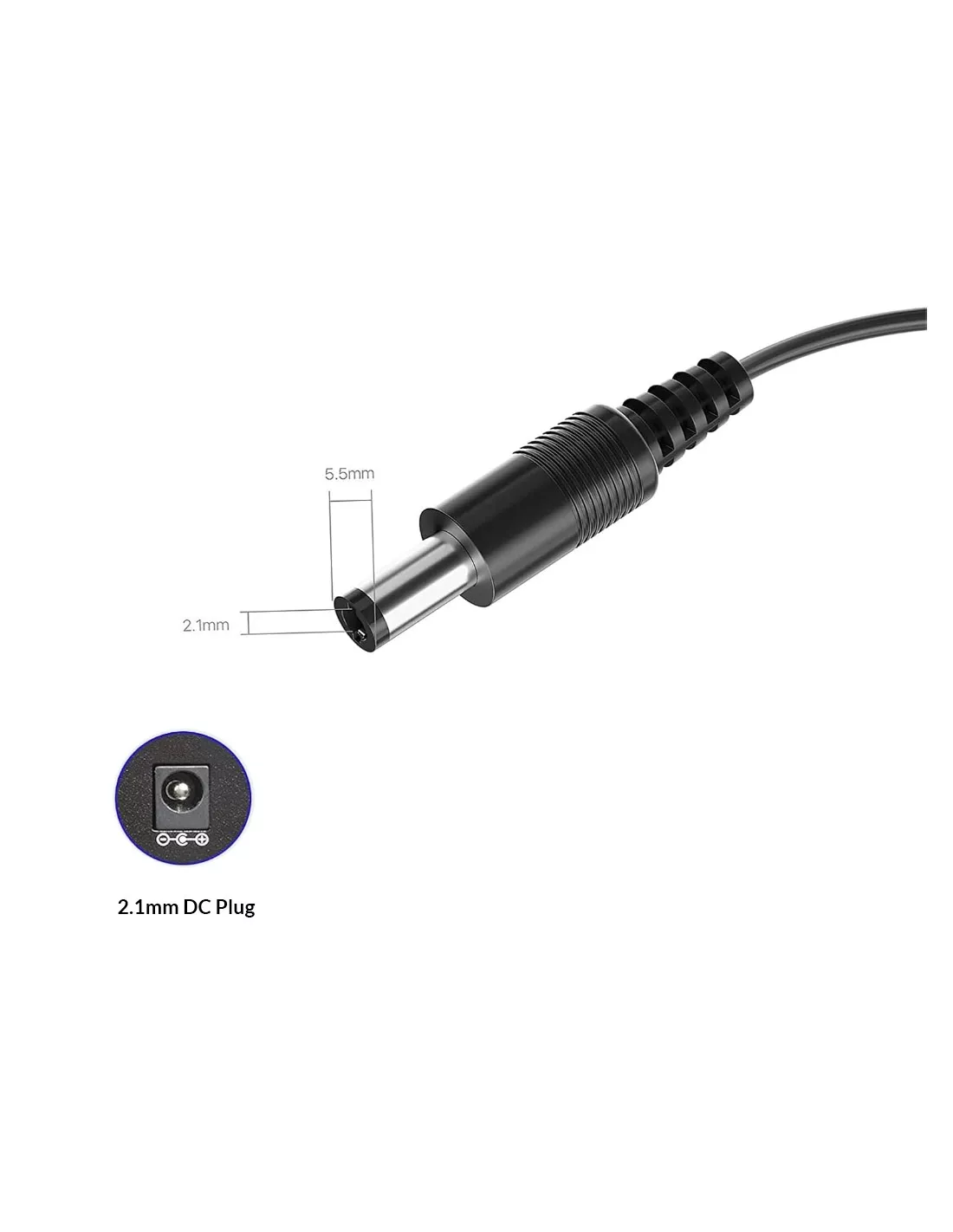

The plug
5.5 × 2.1 mm barrel, centre positive.
Swann states its 12V DVR adaptors use a 5.5 mm outside, 2.1 mm inside plug. The DC lead has a ferrite filter and a moulded strain relief at the plug.
How it goes in
Swapped in a minute.
01
Check the label
The old adaptor must read 12V DC, 5A or less, centre positive, with a 5.5 × 2.1 mm barrel plug.
02
Shut down
Shut the DVR down from its menu, switch off at the wall and unplug the old adaptor.
03
Connect the new supply
Push the barrel plug fully into the DVR's 12V socket, fit the mains lead and plug it into the power point.
04
Power up and check
Switch on. Confirm the DVR boots, finds its hard drive and shows every camera.
At a glance
SR-PSU-DVR12V5
Show specs
Output
12.0V DC, 5.0A, 60.0W
Polarity
Centre positive: inside +12V, outer sleeve GND
DC plug
Barrel, 2.1 mm inside, 5.5 mm outside
Input
100–240V AC, 50/60Hz, 1.5A max (label)
Efficiency
Level VI
Supply model
CS-1205000
Maker
C.SA Electronics (DongGuan) Co., Ltd; not made by Swann
Approvals on the label
RCM with SAA-202218-EA, UL listed E257074, FCC, CE, UKCA, KC
Use
Indoor only (house symbol on the label)
Case size
145 × 60 × 33.7 mm ±1 (maker's figure)
DC lead
1.2 m on the maker's standard build; confirm with us if length matters
Operating temperature
0 to 40 °C (maker's figure)
Mains
Australian mains lead included
Swann rating
Swann specifies 12V 5A for the DVR16-5580; other Swann DVRs use 12V 2A to 5A
Not for
Swann NVRs (48V), 2.5 mm DC sockets, 24V AC equipment
Colour
Black

Looking into the end of the plug: the inside contact is +12V and the outer sleeve is ground (0V). Drawn from the centre positive symbol on the rating label.
Where it is used
Where it is used
Swann 16-channel DVRs
The DVR16-5580 and other 16-channel models whose adaptor reads 12V, after the original has failed.
Swann 4 and 8-channel DVRs
A 12V 5A supply also runs smaller Swann DVRs on the same plug; Swann says the recorder only draws what it needs.
Installer van stock
One spare that covers every Swann 12V DVR rating from 2A to 5A.
Shops and offices
A quick fix to get the business DVR recording again the same day.
Groups of 12V cameras
With a splitter, 12V cameras drawing 5A or less in total on a 2.1 mm plug.
Other 12V gear
Equipment that takes 12V DC on a centre positive 5.5 × 2.1 mm plug and draws 5A or less.
Works with
Swann DVRs on a 12V 5.5 × 2.1 mm plug: check first
Swann lists these 16-channel DVRs as using a 12V adaptor with a 5.5 × 2.1 mm plug. Swann only states the current for the DVR16-5580 (12V 5A); the others use 12V 2A to 5A, which this 5A supply covers. Always check your old adaptor reads 12V DC.
Swann 16-channel models
DVR16-5580, DVR16-5580G, DVR16-5580G2, DVR16-5580RU
12V 5A per Swann
DVR16-4980
12V, 5.5 × 2.1 mm
DVR16-4880RU
12V, 5.5 × 2.1 mm
DVR16-4680, DVR16-4680A, DVR16-4680RN, DVR16-4680RU
12V, 5.5 × 2.1 mm
DVR16-4580G, DVR16-4580RN, DVR16-4580V
12V, 5.5 × 2.1 mm
DVR16-4575
12V, 5.5 × 2.1 mm
DVR16-4550, DVR16-4500
12V, 5.5 × 2.1 mm
DVR16-4400, DVR16-4200, DVR16-4000
12V, 5.5 × 2.1 mm
DVR16-3425, DVR16-3250, DVR16-3200, DVR16-3000
12V, 5.5 × 2.1 mm
DVR16-1550, DVR16-1500, DVR16-1425, DVR16-1000
12V, 5.5 × 2.1 mm
Swann 4 and 8-channel DVRs (DVR4- and DVR8- models)
12V, 5.5 × 2.1 mm; a 5A supply also runs them
Pair it with
Other parts for Swann systems
Camera power
Cameras need power too?
Our SR-PSU-12v2A-4S 12V 2A supply with a 4-way splitter powers up to four analogue cameras drawing 2A or less in total.
4 & 8-channel
Smaller Swann DVR?
The SR-PSU-12v2A-OEM 12V 2A plug-pack suits Swann 4 and 8-channel DVRs whose adaptor reads 12V 2A.
NVR
Swann NVR with network cameras?
NVRs run on 48V. See our 48V Swann NVR supplies, such as the SR-PSU-NVR48-1.5 and SR-PSU-48V-3.75 for the 8580 series.
Recorder failed?
IVSEC DVR8-5000
If a new supply does not bring the DVR back, the IVDVR8-5000-2TB recorder works with Swann SWPRO analogue cameras.
SR-PSU-DVR12V5 or the SR-PSU-12V5A
| SR-PSU-DVR12V5 (this supply) | SR-PSU-12V5A | |
|---|---|---|
| Output | 12V DC, 5A, 60W | 12V DC, 5A, 60W |
| Plug | 2.1 mm inside, 5.5 mm outside, centre positive | 2.1 mm inside, 5.5 mm outside, centre positive |
| Input | 100–240V AC, 1.5A max | 100–240V AC, 1.5A max |
| Supply model | C.SA Electronics CS-1205000 | Generic, model not stated |
| Approvals shown | RCM with SAA-202218-EA, UL, FCC, CE, UKCA, KC on the label | Listed as Australian approved |
| Power LED | Not stated | Yes |
| Best for | Replacing a Swann DVR adaptor | Powering a group of cameras |
Same rating and plug. This listing is the named CS-1205000 supply with its approvals shown on the label; the SR-PSU-12V5A is our generic 12V 5A supply for camera groups.
Common questions
Is this a genuine Swann power supply?
No. It is model CS-1205000, made by C.SA Electronics, sold as a replacement that suits Swann DVRs. It has the 12V output and 5.5 × 2.1 mm centre positive plug Swann uses on its DVRs.
Will it fit my Swann DVR16-5580?
Yes. Swann specifies a 12V 5A adaptor for the DVR16-5580, and this supply gives 12V DC at 5A on a 5.5 × 2.1 mm centre positive plug.
My old adaptor is 12V 2A or 3A. Can I use this 5A supply?
Yes, as long as it reads 12V. Swann says a higher current adaptor at the correct voltage causes no problems because the recorder only draws the current it needs.
Does it work on a Swann NVR?
No. Swann NVRs run on 48V. Use one of our 48V NVR supplies instead.
Is it approved for Australia?
Yes. The label of the unit pictured carries the RCM mark and Australian approval number SAA-202218-EA, and it comes with an Australian mains lead.
What plug size is it?
A round barrel plug, 5.5 mm outside and 2.1 mm inside, centre positive. Swann states this is the plug size for its 12V DVR adaptors.
What does centre positive mean?
The inside of the plug is +12V and the outer sleeve is ground. Check the polarity symbol on your old adaptor matches before connecting.
How do I check the supply with a multimeter?
Set the meter to DC volts, plug the supply in, then put the red probe inside the plug and the black probe on the outer sleeve. It should read about 12V.
How do I know my old supply has failed?
No lights on the DVR, a recorder that restarts by itself, a hard drive that drops out or cameras losing their picture. Swann's troubleshooting starts by swapping the adaptor, and it is the cheapest part to rule out first.
How long is the DC lead?
The maker's standard build has a 1.2 m DC lead. Ask us if you need the exact length of current stock.
Can I use it outdoors?
No. The label marks it for indoor use only. Keep it dry and give it room to shed heat.
Can you check my DVR before I order?
Yes. Email a photo of the DVR's underside label and the old adaptor label to [email protected] or call 1300 736 970.
Supported by InFront Technologies.
Not sure it fits? Call 1300 736 970 or email a photo of your DVR and old adaptor labels to [email protected] and we will confirm before you buy.
Installation and safety
Mains powered. The supply plugs into a standard power point with its mains lead. Do not open the case. A new power point needs a licensed electrician.
Match the voltage, polarity and plug. Only connect it to equipment whose old supply reads 12V DC, centre positive, on a 5.5 × 2.1 mm plug. Swann warns that more than 12V on a DVR can damage it and void its warranty.
Beware of non-compliant supplies. Every mains power supply sold in Australia must carry the RCM mark. Unbranded adaptors from online marketplaces often do not, and some cannot deliver their rated current.
Indoor use. Indoor use only, 0 to 40 °C. Do not seal it in a box without airflow.
What it does not do. It is not a battery charger or a UPS, and it cannot power a 48V NVR or PoE cameras.
Figures. From the rating label of the unit pictured (C.SA Electronics model CS-1205000), the maker's product page for case size, lead and temperature, and Swann's support articles for Swann ratings and plug size.
