ENSA Ceiling Mount Microwave Sensor Motion Activated Switch
ENSA-MS2
The ENSA-MS2 is an intelligent sensor switch, designed for indoors ceiling mounting. It features configurable ambient light sensing, microwave motion detection and on-time delay, so you may tailor light usage and energy consumption to your exact specifications.
Add three step energy saving to any light with sensor switches:
1) Daylight sensor: Activates motion sensor when lux levels fall below limit
2) Motion sensor: Detects movement, turns light on only when necessary
3) On-timer: Light-on duration is set only as long as is required
Product Features:
• Automatically activate and deactivate lighting for energy efficiency
• Adjustable sensors: Daylight (2~2000lx) / Motion (1~8m) / On-timer (10s~12min)
• 360° circle / Ø1 ~ 8m microwave detection

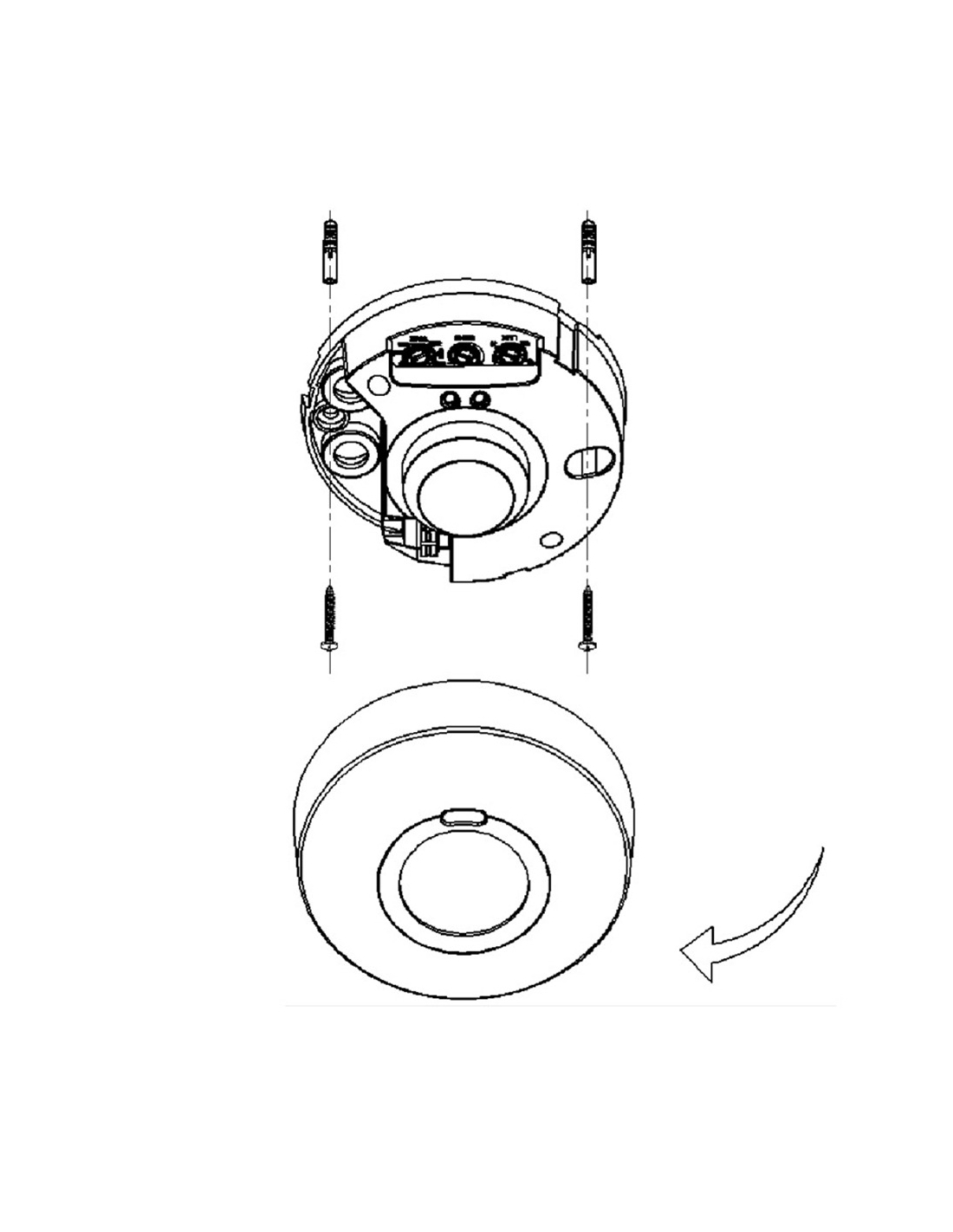

• Circular ceiling mount, for indoor use only
• 3 year warranty
- Dimensions
- Ø100 x 40mm
- Ingress Protection
- IP20
- Operating Environment
- -20 ~ 40°C /
- Input Voltage
- 220 ~ 240VAC 50Hz
- Daylight Sensing
- 3 ~ 2000 Lux
- Daylight Sensor
- Yes
- Max. Rated Load (Resistive/Inductive)
- 1200W / 300W
- Motion Detection Adjustment
- 100% to 12% (knob)
- Motion Detection Area
- 360° circle (Ø1 ~ 8m adjustable)
- Motion Detection Speed
- 0.6 ~ 1.5m/s
- Motion Sensor Type
- Microwave
- Mounting Type
- Ceiling
- On-timer Delay
- 10s ~ 12min
- Power Consumption (Sensing Mode)
- 0.9W
- Recommended Installation Height
- 1.5 ~ 3.5m
- Stand-by Dimming
- N/A
- Stand-by Period
- N/A
