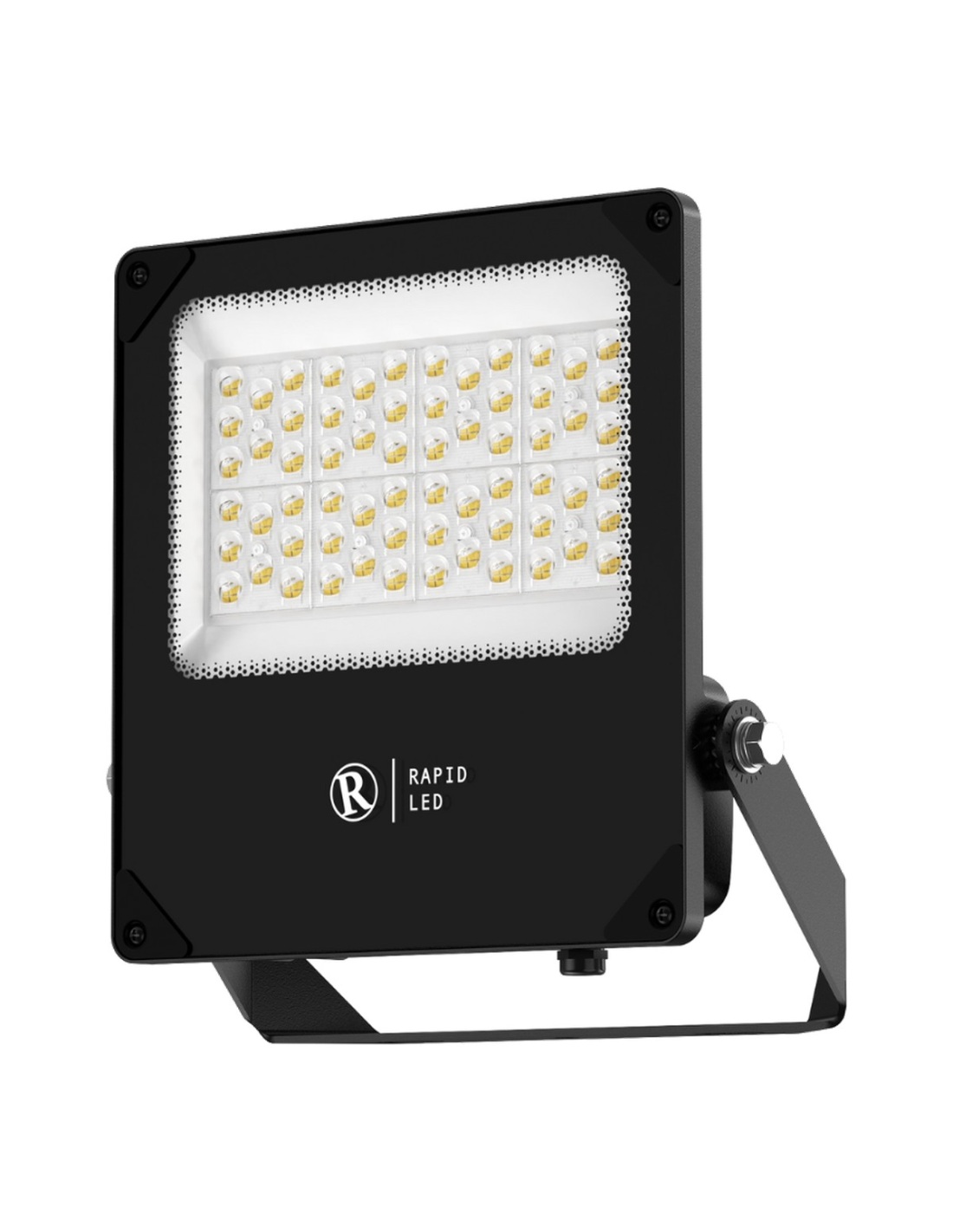

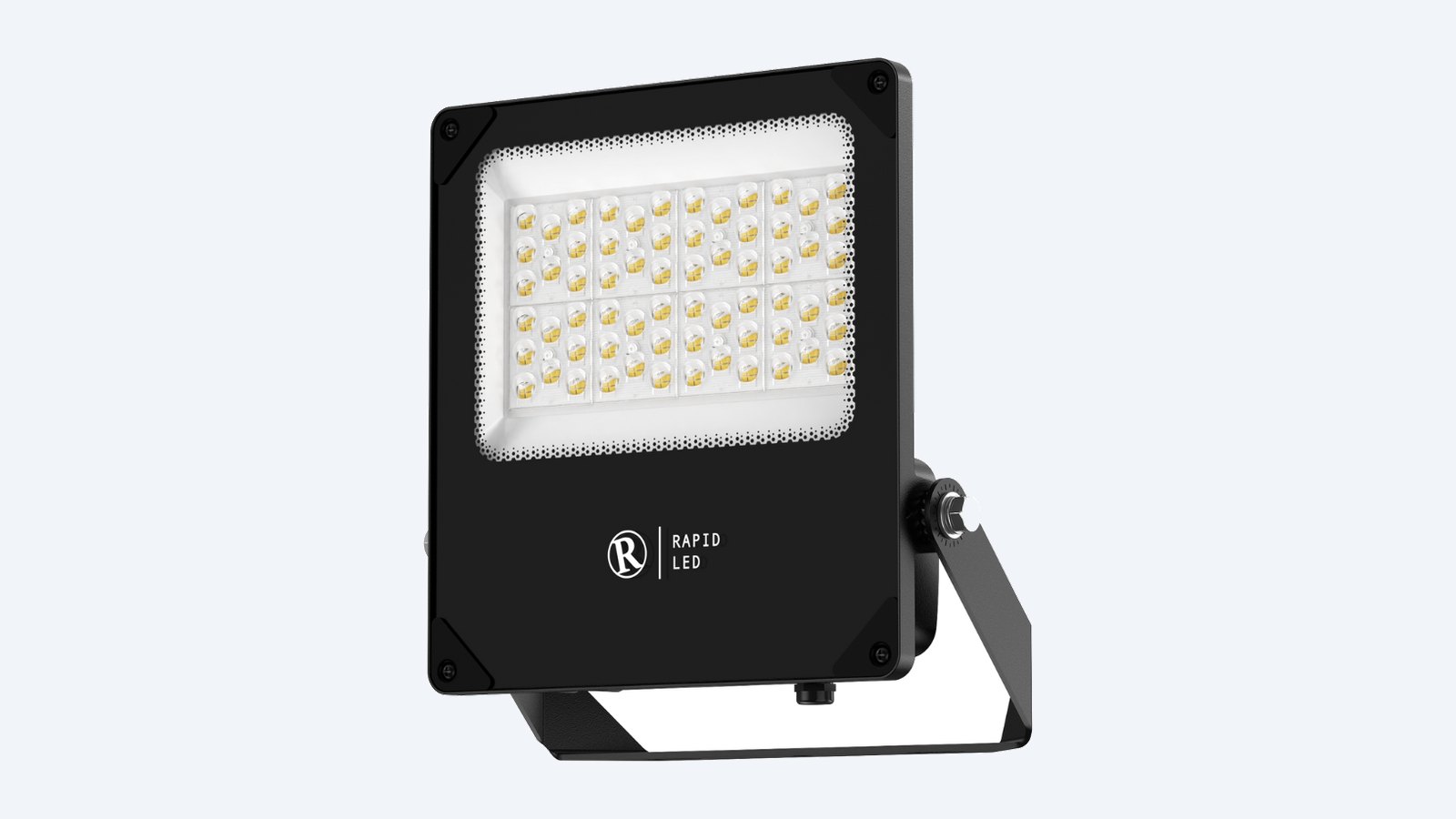

• R3043 floodlight with stainless steel bracket

• A licensed electrician
• An IP-rated terminal block or junction box
• M10 fixings for the bracket (Rapid’s recommended screw size)

01

Set it before it goes up

Power off. Choose 100W / 75W / 50W and 3000K or 4000K on the DIP switch. Use a plastic tool, not metal.

02

Fix the bracket

Wall, beam or pole mount. Rapid recommends M10 screws. Keep it out of arm’s reach.

03

Wire it in

Brown or black to active, blue or white to neutral, green/yellow to earth, in a terminal block by a licensed electrician.

04

Aim and lock

Tilt the head on the bracket to put the 70 × 120° beam where it is needed, then tighten.

Wiring

Terminal block

Not included. An IP-rated junction box suits outdoor runs.

Control

Sensor or timer

The CHAMPION is on/off and not dimmable. Switch it with a sensor, photocell or timer on the circuit.

Fixing

M10 screws or a pole

Bracket or pole mount. Rapid recommends M10 screws.

Trade

A licensed electrician

Rapid requires installation by a licensed electrical contractor for the warranty.

Coastal homes and units

C4 corrosion rating for salt air on driveways, decks and boundary walls.

Marinas and boat ramps

Rapid built the CHAMPION for marine and coastal applications.

Car parks and yards

Wide 70 × 120° beam for open hardstand and loading areas.

Building façades

3000K warm white for architecture, 4000K for working light.

Sports and courts

Pole or bracket mount, IK08 against stray balls.

Security perimeters

IP66 sealed for all-night duty on fence lines and side paths.

Can I change the wattage on site?

Yes. The R3043 sets to 100W / 75W / 50W on its DIP switch. Turn the mains off first, and use a non-metal tool.

What colour temperatures does it have?

Two: 3000K warm white and 4000K neutral white, on the same DIP switch.

How bright is it?

14,600 lumens at full output, 130–140 lumens per watt, with a 70 × 120° beam.

Is it suitable near the ocean?

Yes. The housing is rated corrosivity category C4 (ISO 9223) with an electrophoresis and powder-coat finish, and Rapid designed the range for marine and coastal sites.

Is it dimmable?

No. It is an on/off floodlight. Use a sensor, photocell or timer on the circuit to control it.

What is the IP and IK rating?

IP66 and IK08.

How big and heavy is the R3043?

366 × 315 × 55 mm and 3 kg. Effective projected area is 0.1 m² for wind loading on a pole.

Can it go on a pole?

Yes. Rapid lists bracket mount and pole mount. The stainless steel bracket takes M10 screws.

Is a terminal block included?

No. Rapid’s guide says the terminal block is not included and the fitting must be installed by a licensed electrician.

What current does it draw?

0.48 A at full output on 220–240 VAC, with 74 A @ 136 µs in-rush. Allow for in-rush when you put several on one breaker.

What is the warranty?

5 years: 2 years replacement and labour, then 3 years replacement only, with proof of purchase and installation by a licensed electrical contractor.

Who sells the R3043 in Australia?

Infront Technologies sells it Australia-wide and handles the warranty. The Rapid installation guide is on the Attachments tab.
