Ensa High Bay Intelligent Motion Activated Switch - ENSA-MS8

ENSA-MS8
In Stock - Ready to Ship
$ 69.90
inc-GST
  • Automatically activate and deactivate lighting for energy efficiency
  • Suitable for high bay LED lights
  • Adjustable sensors: Dimming (10~50%) / Motion sensitivity (25~100%) / On-timer (5s~30min)
  • 360° (ceiling) / 150° (wall) (15m height) microwave detection
  • Purpose built for high factory ceilings, IP65 rated for outdoor use



Ensa High Bay Intelligent Motion Activated Switch



ENSA-MS8

3 Years Warranty!



The ENSA-MS8 is an intelligent sensor switch, designed for high ceiling environments. It features ambient light sensing, microwave motion detection, dimming interface and configurable on-time delay, so you may tailor light usage and energy consumption to your exact specifications.

Add three step energy saving to any light with sensor switches:

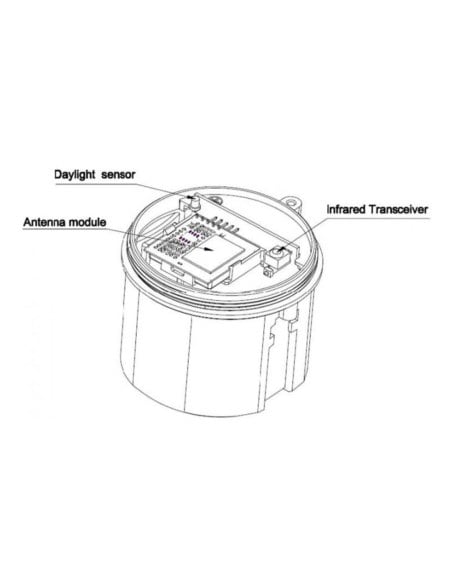

1) Daylight sensor: Activates motion sensor when lux levels fall below the limit

2) Motion sensor: Detects movement, turns light on only when necessary

3) On-timer: Light-on duration is set only as long as is required



Product Features:



• Automatically activate and deactivate lighting for energy efficiency

• Suitable for high bay LED lights

• Adjustable sensors: Dimming (10~50%) / Motion sensitivity (25~100%) / On-timer (5s~30min)

• 360° (ceiling) / 150° (wall) (15m height) microwave detection

• Purpose built for high factory ceilings, IP65 rated for outdoor use

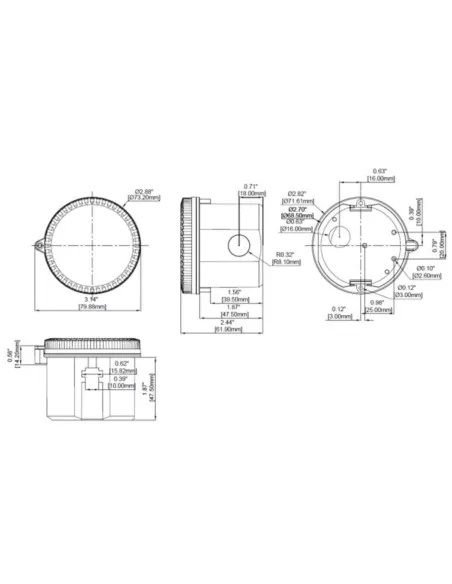

Dimensions
Ø73 x 62mm
Ingress Protection
IP65
Operating Environment
-35 ~ 55°C
Input Voltage
220 ~ 240VAC 50Hz
Daylight Sensing
5lux / 15lux / 30lux / 50lux / 100lux / 150lux / Disable (Ambient light diffusion)
Daylight Sensor
Yes
Max. Rated Load (Resistive/Inductive)
1200W / 800W
Motion Detection Adjustment
100% / 75% / 50% / 25%
Motion Detection Area
360° (Ceiling) / 150° (Wall) 15m
Motion Detection Speed
0.3 ~ 1m/s
Motion Sensor Type
Microwave
Mounting Type
Ceiling/Wall
On-timer Delay
5s ~ 30min
Power Consumption (Sensing Mode)
Recommended Installation Height
15m
Stand-by Dimming
50% / 30% / 20% / 10%
Stand-by Period
5s / 5min / 10min / 30min / 60min / Infinite

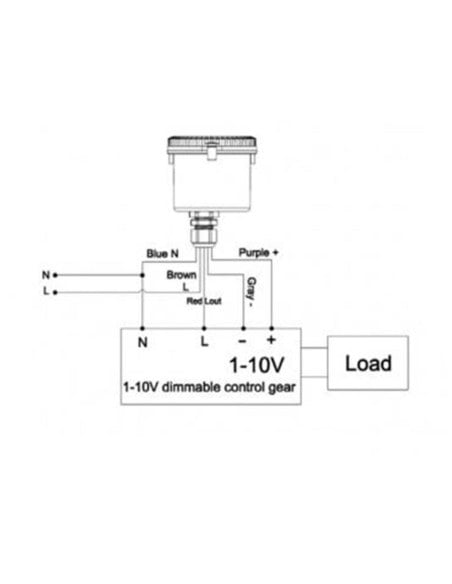

1 ~ 10V Step Dimming
< 50mA (Non-constant source) / 10%(1.4-1.6V), 20%(1.9-2.1V) / 30%(2.9-3.1V), 50% (4.9-5.1V)
Load Capacity
120VAC: 4A; 220-277VAC: 3A
Rec. Installation Height
15m Max.
