Rapid LED R3077-600 HERO-2 600W High Power LED Floodlight, 82,000lm, 30° Lens, IP66
R3077-600
In stock $ 1,499.95
inc-GST
or 4 interest-free payments of $374.99 with
Rapid LED R3077-600 HERO-2 is a 600W high-power floodlight for high mounting: 82,000 lumens through a 30° lens, IP66, with 10 kV surge protection.
- ✓82,000 lumens, 145 lm/W
- ✓30° lens for long throw
- ✓Mounts up to 20 m
- ✓IP66, IK08, 10 kV surge
- ✓5-year warranty

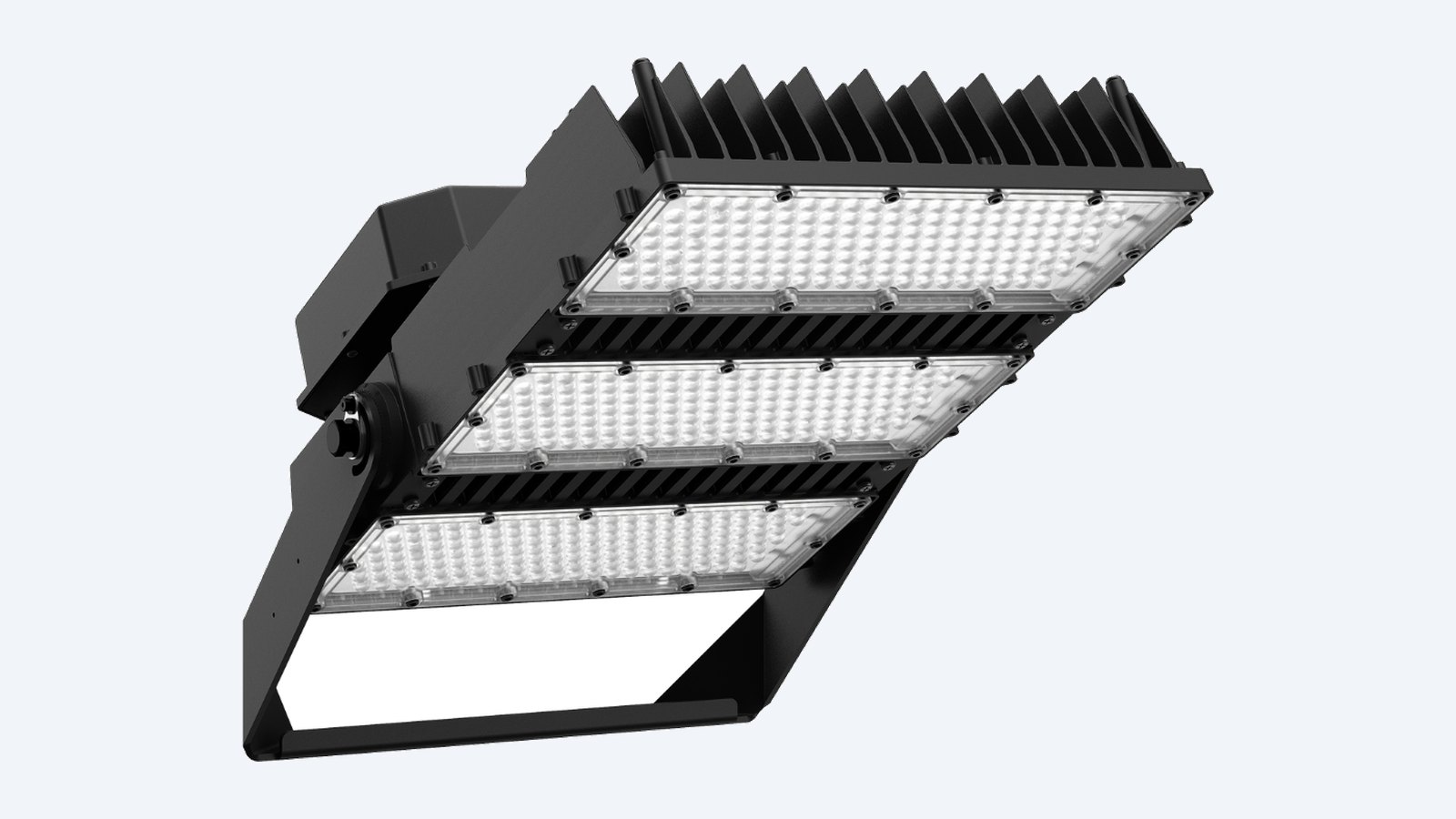

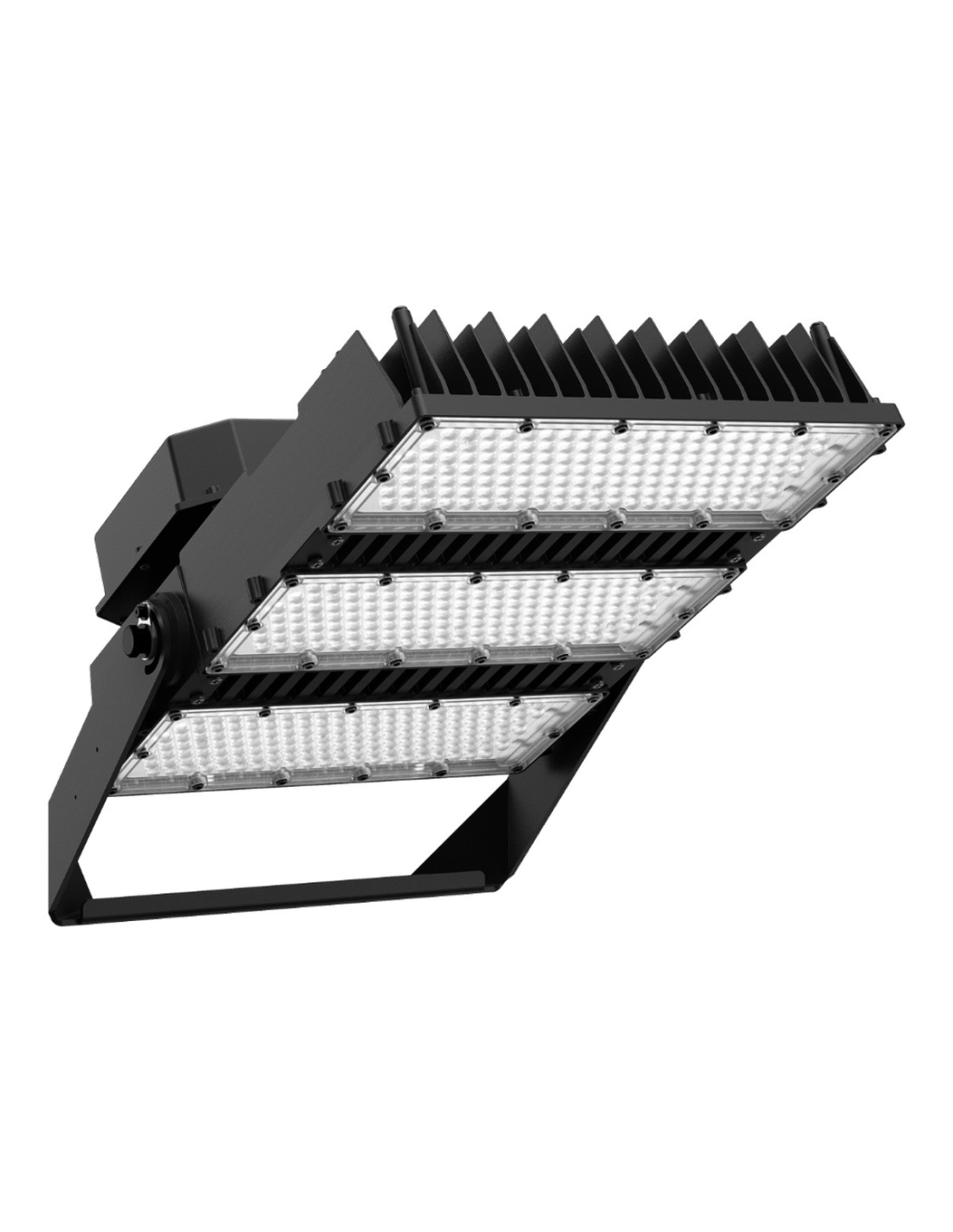

Rapid LED · HERO-2 · 600W
82,000 lumens from one head.
For the high poles.
This is the R3077-600. Three LED modules, a 30° lens and 145 lumens per watt, for mounting heights up to 20 metres.
In one sentence: the R3077-600 is a Rapid LED HERO-2 600W high-power IP66 floodlight with 82,000 lumens, a 30° lens and an Inventronics driver, made for high mounting on stadiums, yards and large sites.
Floodlight only. Wiring and the pole are separate.
Rapid’s guide says the terminal block is not included, and the fitting must be installed by a licensed electrician.
In the box
- R3077-600 floodlight with mounting bracket and 1500 mm flex
You also need
- A licensed electrician
- An IP-rated terminal block or junction box
- A pole, crossarm or structure rated for 11.3 kg
- A safety rope (the guide shows a safety rope installation)
When 300W is not enough light.
HERO-2 is Rapid’s high-mount floodlight: 600W, 82,000 lumens, a narrow 30° lens to throw light down from height, and 10 kV surge protection for exposed poles.

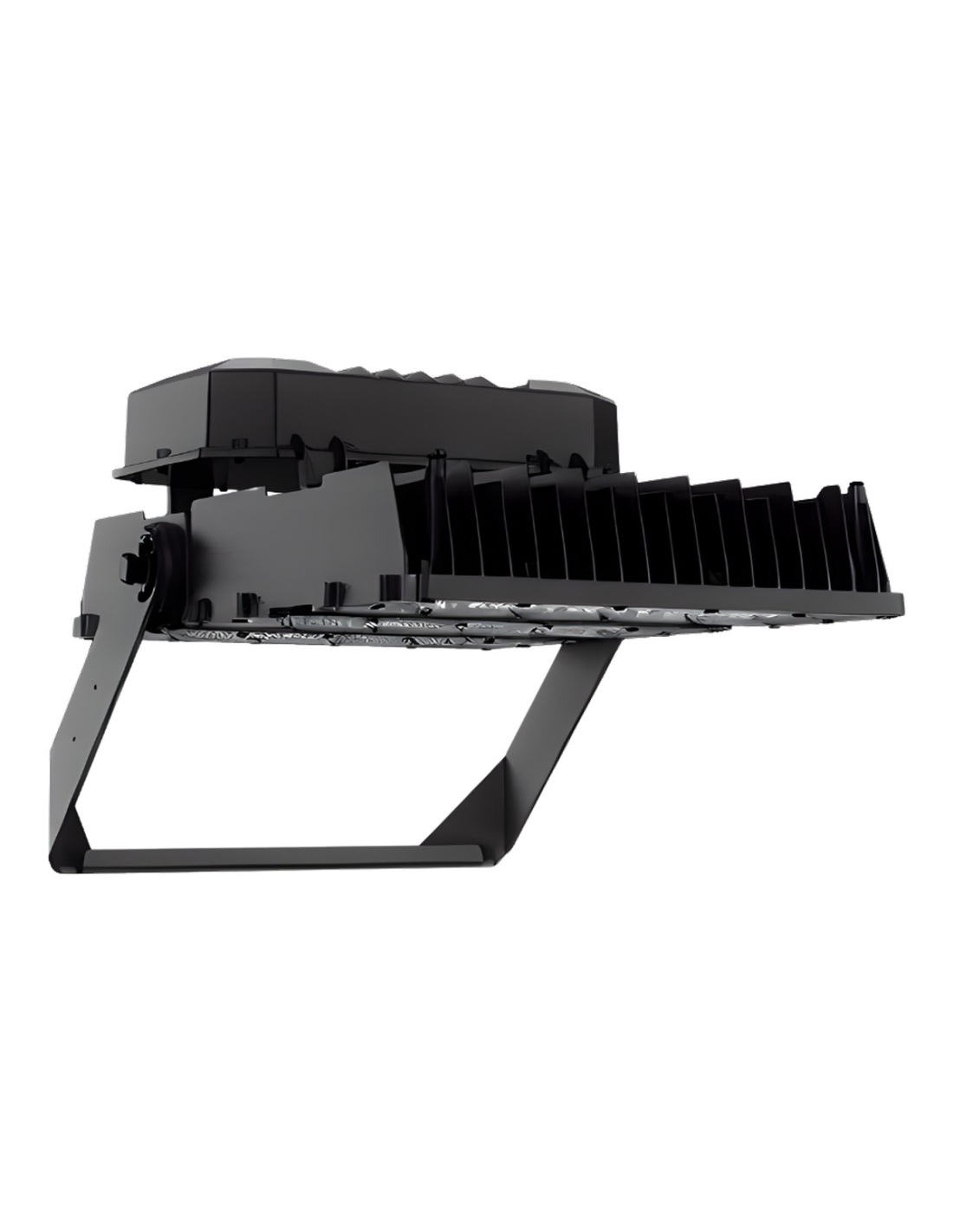

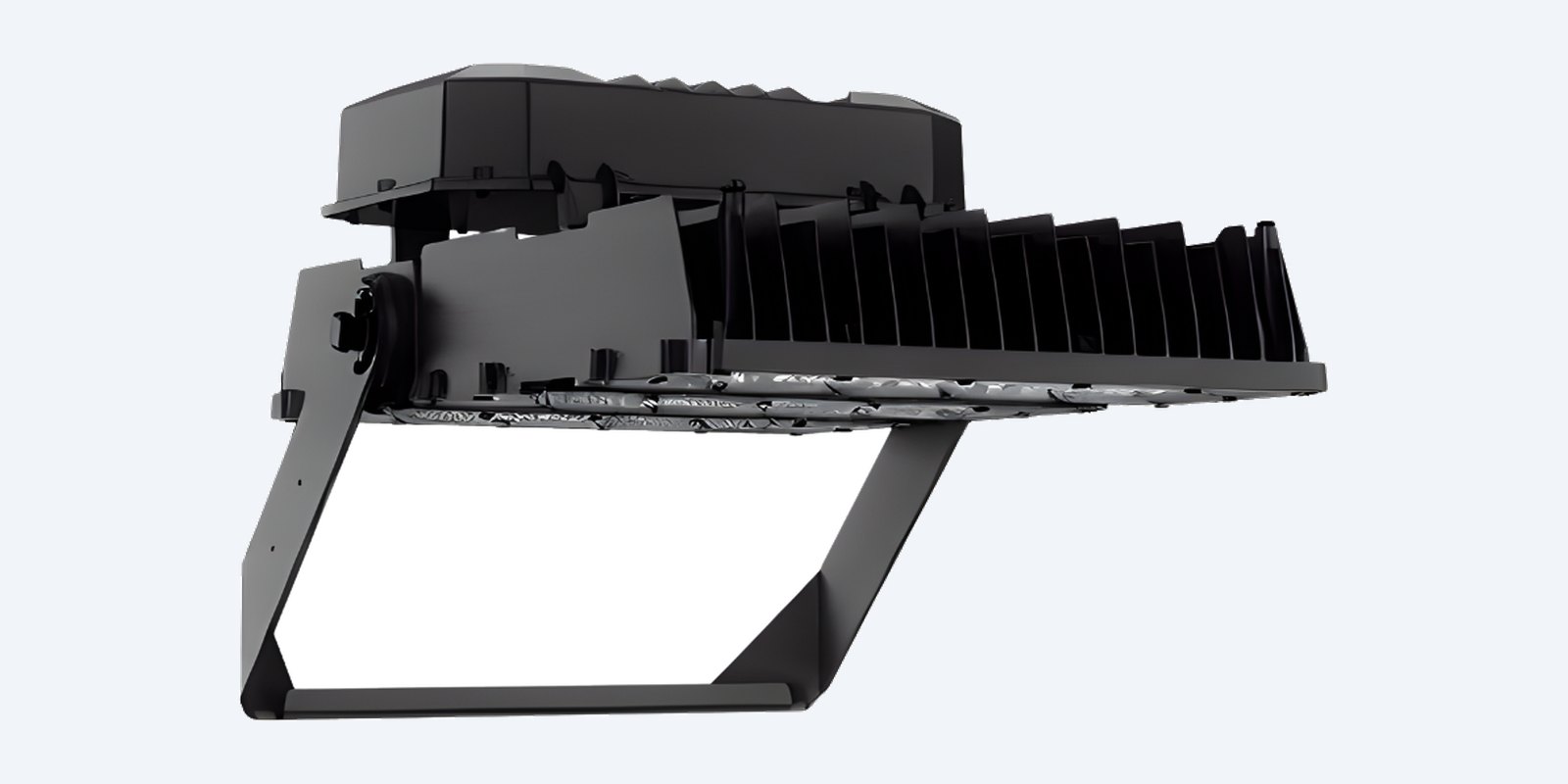

Side
Fins on every module.
Powder-coated aluminium housing with deep fins over each LED module. Tempered glass and polycarbonate optics. The U bracket tilts the head vertically to aim it.

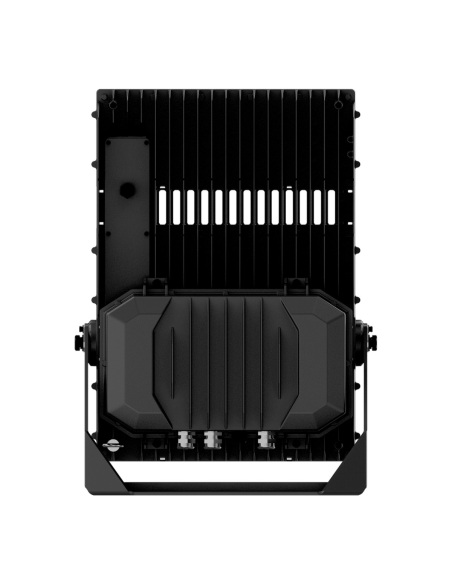

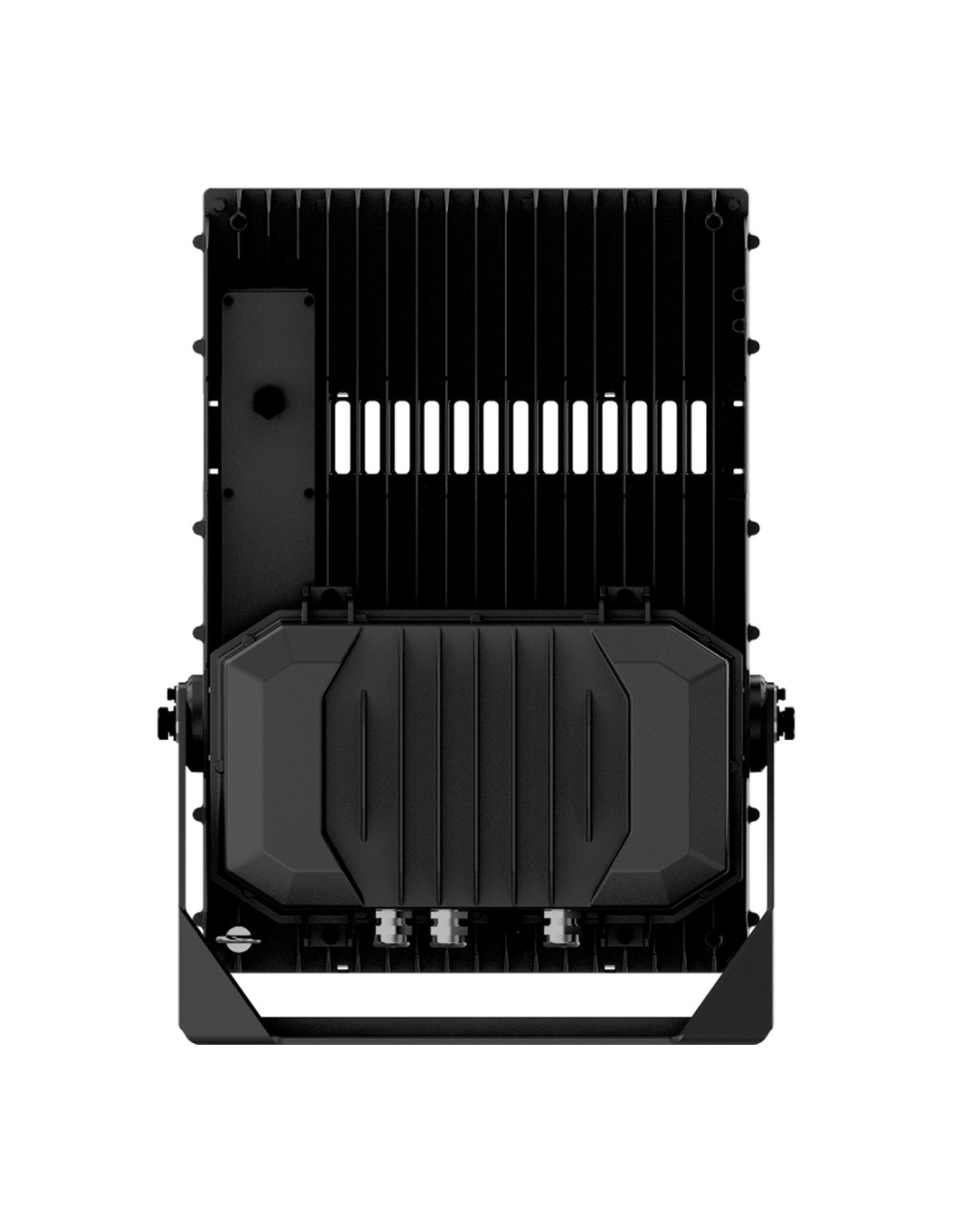

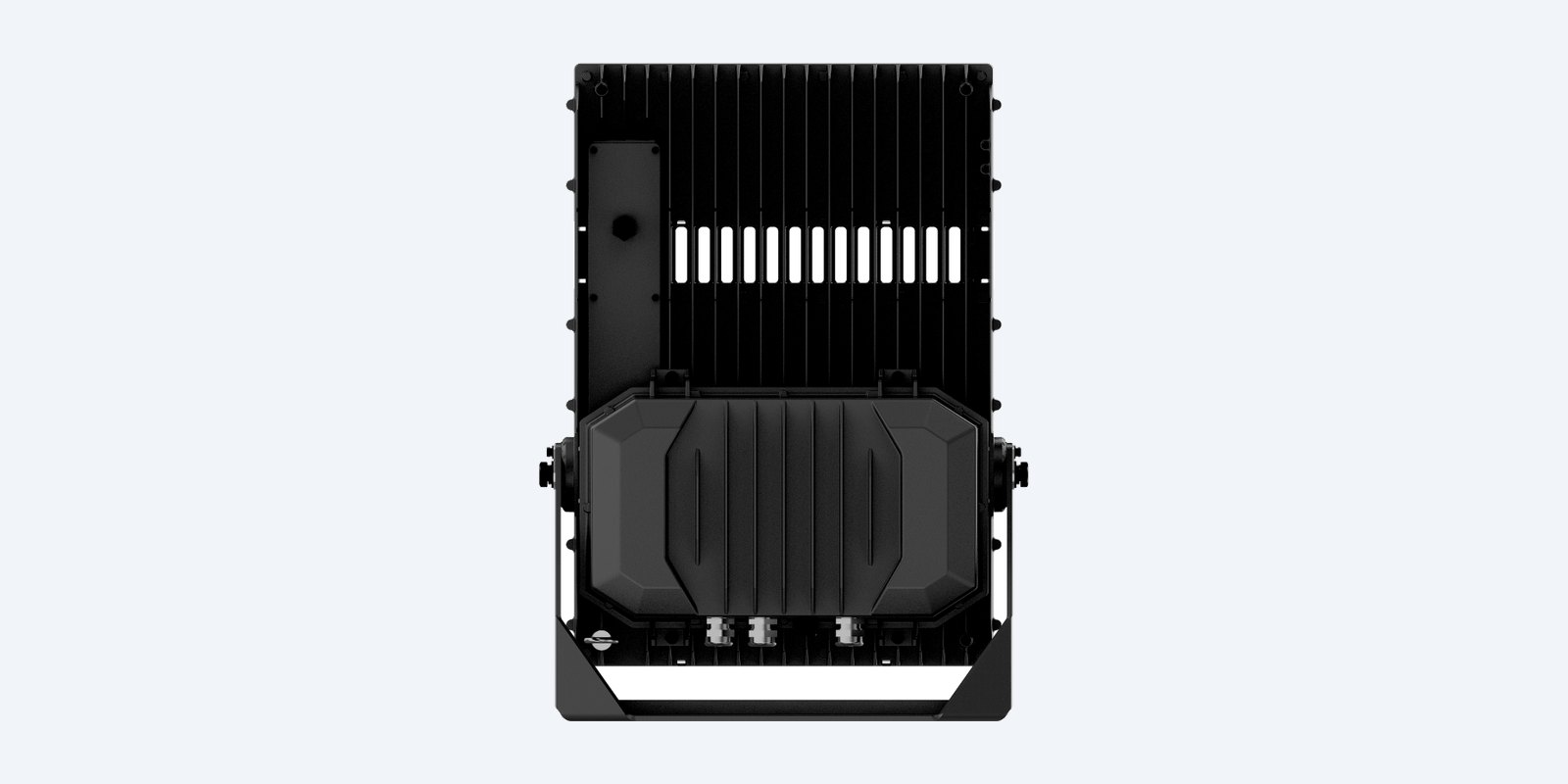

Rear
Inventronics driver, 10 kV surge.
Constant-current Inventronics driver, power factor above 0.95, 10 kV line-neutral and line/neutral-earth surge protection. 2.70 A on 100–240 VAC. On/off, not dimmable; DALI control gear is available from Rapid on request.
How it goes in
From the pole to full output.
01
Check the structure
11.3 kg and 500 × 365 × 311 mm. Mount no higher than 20 m.
02
Fix and rope it
Bracket or pole mount, plus the safety rope shown in Rapid’s guide.
03
Wire it in
1500 mm flex to a terminal block, by a licensed electrician. Allow 110 A in-rush per light.
04
Aim the 30° beam
Tilt the head on the bracket, then lock it.
At a glance
R3077-600
Show specs
Model
R3077-600 (HERO-2)
Wattage
600W
Lumen output
82,000 lm
Efficacy
145 lm/W
Beam angle
30° lens on this code (60° also listed by Rapid)
Colour
Daylight white
CRI
Above 70
LED
3030
Lifetime
L70 over 152,600 hours
Driver
Inventronics, constant current
Power factor
Above 0.95
Input
100–240 VAC, 50/60 Hz, 2.70 A
In-rush current
110 A max @ 200 µs
Surge protection
10 kV line-neutral, 10 kV line/neutral-earth
Control
On/off. DALI control gear on request
IP / IK rating
IP66 / IK08
Corrosivity
C3 (ISO 9223)
Housing
Powder-coated aluminium alloy, black
Optics
Tempered glass and polycarbonate lens
Mounting
Bracket or pole mount, up to 20 m high
Flex
1500 mm
Dimensions
500 (H) × 365 (W) × 311 (D) mm
Weight
11.3 kg ±0.5
Operating temperature
−30 °C to +50 °C
Class
Class I (earthed)
Standards
AS/NZS 60598.1, AS/NZS 60598.2.5, AS/NZS 61347.1, AS/NZS 61347.2.13, EN 55015
Warranty
5 years (2 years replacement and labour, 3 years replacement only)
Pair it with
What this floodlight does not include
Wiring
Terminal block
Not included. Use an IP-rated junction box at the pole.
Structure
Pole or crossarm
Rated for 11.3 kg per head, mounted no higher than 20 m.
Safety
Safety rope
Rapid’s guide shows a safety rope installation for the head.
Control
Contactor or timer
On/off as supplied. Ask about DALI control gear when ordering.
Where it is used
Sites that need light from height.
Stadiums and arenas
Rapid lists stadiums and arenas as the HERO-2’s home.
Distribution centres
Open hardstand and loading aprons lit from tall poles.
Large warehouses
High mounting with 82,000 lumens per head.
Industrial yards
IP66 and 10 kV surge for exposed poles.
Airports and aprons
Long throw from the 30° lens.
Ports and laydown areas
Big areas, few poles, high output per pole.
How the R3077-600 compares
| R3077-600 | R3077-400 | |
|---|---|---|
| Wattage | 600W | 400W |
| Lumens | 82,000 lm | 54,400 lm |
| Lens on code | 30° | 45° |
| Size (H × W × D) | 500 × 365 × 311 mm | 365 × 336 × 311 mm |
| Input current | 2.70 A | 1.80 A |
Both are HERO-2: IP66, IK08, 10 kV surge, Inventronics driver. Figures from the same Rapid LED HERO-2 technical table and specification. The 400W is not stocked online — ask us.
Common questions
How bright is the R3077-600?
82,000 lumens from 600W, 145 lumens per watt.
What beam angle is it?
The R3077-600 code is the 30° lens. Rapid also lists a 60° optic for the HERO-2.
How high can I mount it?
No higher than 20 metres, per Rapid’s installation guide.
Is it dimmable?
Not as supplied. It is on/off. Rapid offers DALI control gear on request.
What voltage does it run on?
100–240 VAC, 50/60 Hz, drawing 2.70 A at full load.
What in-rush current should I allow for?
110 A maximum for 200 µs per light. Size breakers and contactors for that when several heads share a circuit.
What is the IP and IK rating?
IP66 and IK08, with corrosivity category C3 (ISO 9223).
How big and heavy is it?
500 × 365 × 311 mm and 11.3 kg ±0.5.
Is the cable included?
Yes, a 1500 mm flex. The terminal block is not included.
How long will the LEDs last?
Rapid rates L70 at over 152,600 hours.
What is the warranty?
5 years: 2 years replacement and labour, then 3 years replacement only, with proof of purchase and installation by a licensed electrical contractor.
Who sells the R3077-600 in Australia?
Infront Technologies sells it Australia-wide and handles the warranty. The Rapid installation guide is on the Attachments tab.
Supported by Infront Technologies.
Installation guide attached. Lighting a field or a yard? Call 1300 736 970 and we will price the poles and heads together.
Installation and safety
Mains luminaire. 100–240 VAC, Class I. Installation, wiring and any new circuit must be done by a licensed electrician.
Working at height. Mount no higher than 20 m, out of arm’s reach, with the safety rope fitted. Use a structure rated for the 11.3 kg head and its wind load.
Figures. From the R3077-600 column of the Rapid LED HERO-2 technical table (Version 04.2025) and the rapidled.com.au specification. Rapid’s two sources give 5000K and 5700K for the colour, so this page says daylight white.
- Dimensions
- 500 x 365 x 311 mm
- Weight
- 11.3 kg
- Material
- Powder coated aluminium
- Operating temperature
- -30 to +50 C
- Colour
- Black
- Lifespan
- L70 152,600 hours
- Input Voltage
- 100-240V AC
- Beam Angle
- 30 degrees
- Dimmable
- No (DALI on request)
- Brand
- Rapid LED
- IP Rating
- IP66
- Mounting
- Bracket or pole
- Warranty
- 5 Years
- Wattage
- 600W
- CRI
- Above 70
- IK Rating
- IK08
- Model
- R3077-600
- Lumens
- 82,000 lm
- Corrosion Rating
- C3 (ISO 9223)
