Rapid LED R3250-600 MAVERICK 600W High Performance LED Floodlight, 87,000lm, 4000K, IP66 IK10
R3250-600
In stock $ 3,299.95
inc-GST
or 4 interest-free payments of $824.99 with
Rapid LED R3250-600 MAVERICK is a 600W high-performance area floodlight: 87,000 lumens at 4000K, asymmetric optics, IK10, on a pole or straight arm.
- ✓87,000 lumens, 145 lm/W
- ✓Seoul LEDs, Meanwell driver
- ✓IP66 and IK10
- ✓Pole or straight-arm bracket, 60 mm
- ✓5-year warranty
Rapid LED · MAVERICK · 600W
87,000 lumens on a pole.
IK10. Meanwell. Seoul LEDs.
This is the R3250-600, the 600W twin-module MAVERICK. 145 lumens per watt, asymmetric optics, and a pole or straight-arm bracket for 60 mm poles.
In one sentence: the R3250-600 is a Rapid LED MAVERICK 600W high-performance IP66, IK10 area floodlight with 87,000 lumens at 4000K, Seoul LEDs and a Meanwell driver, for sports grounds, car parks and large outdoor areas.
Floodlight only. Pole, wiring and options are separate.
Rapid lists two bracket styles for this housing — adjustable pole mount or straight arm, both for a 60 mm round pole. Tell us which one you need when you order.
In the box
- R3250-600 MAVERICK floodlight
You also need
- A licensed electrician
- A pole or spigot, 60 mm round
- Photocell and NEMA socket (3, 5 or 7 pin) if you want dusk-to-dawn — optional
- House side shield if light must stay off neighbours — optional
For lighting that has to work hard.
MAVERICK is Rapid’s high-performance area floodlight: 600W, 87,000 lumens at 4000K, asymmetric distribution, and IK10 impact rating — a step up from the IK08 CHAMPION.

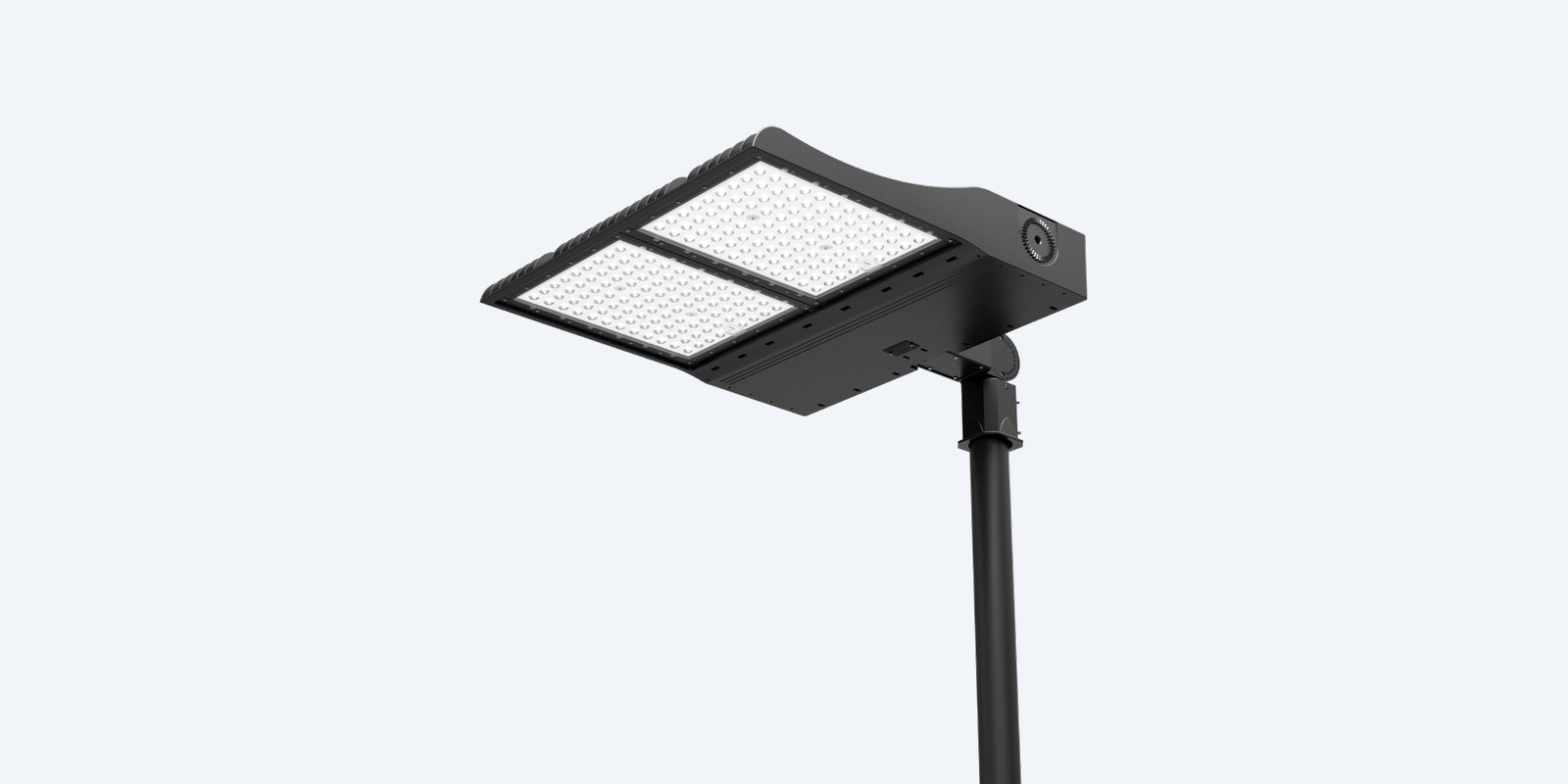

Pole top
Two modules, one head.

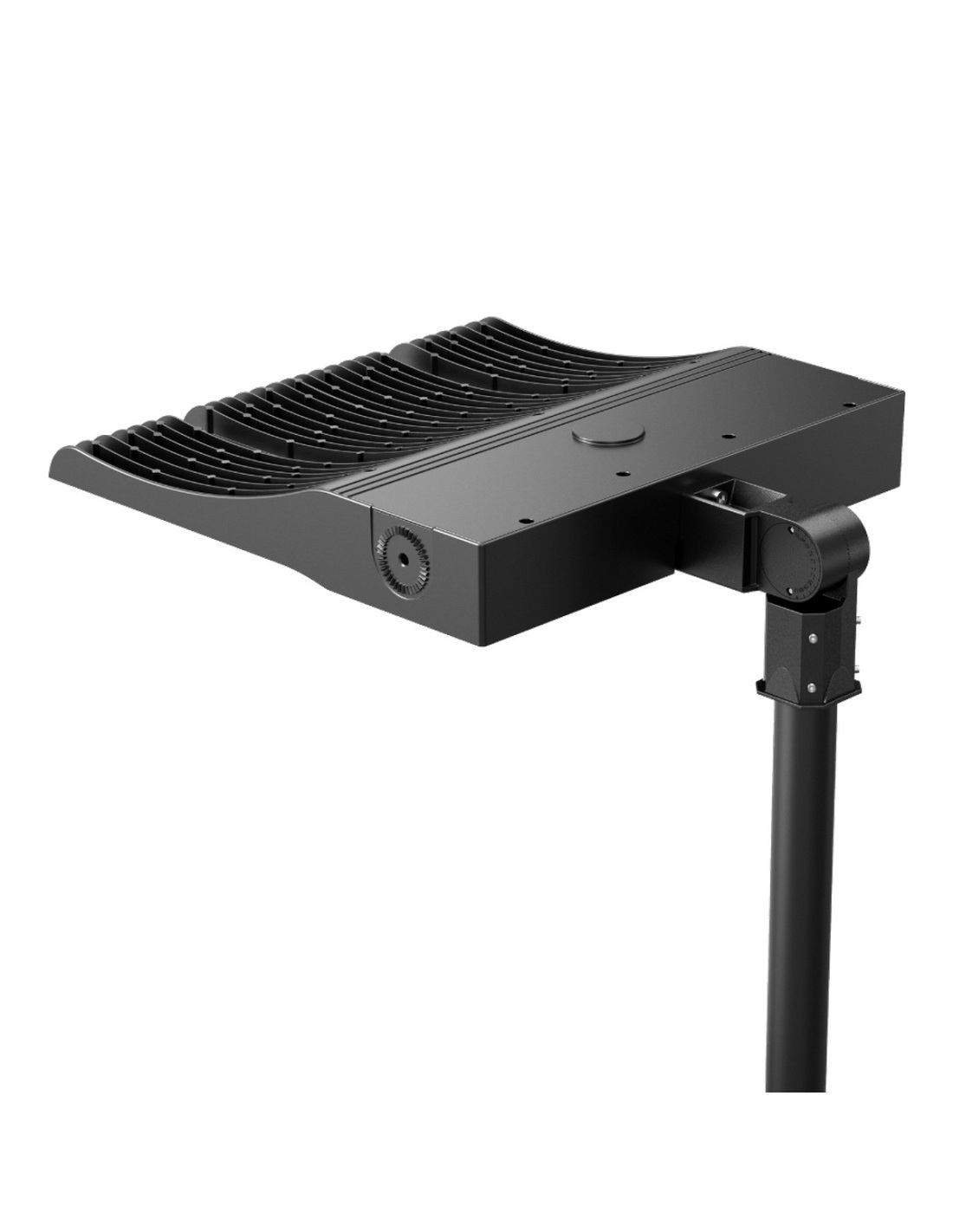

The 600W MAVERICK doubles the optic area of the single-module housing: 621 × 601 × 104 mm, 18.0 kg ±0.3. Here on the adjustable pole mount bracket for a 60 mm round pole.

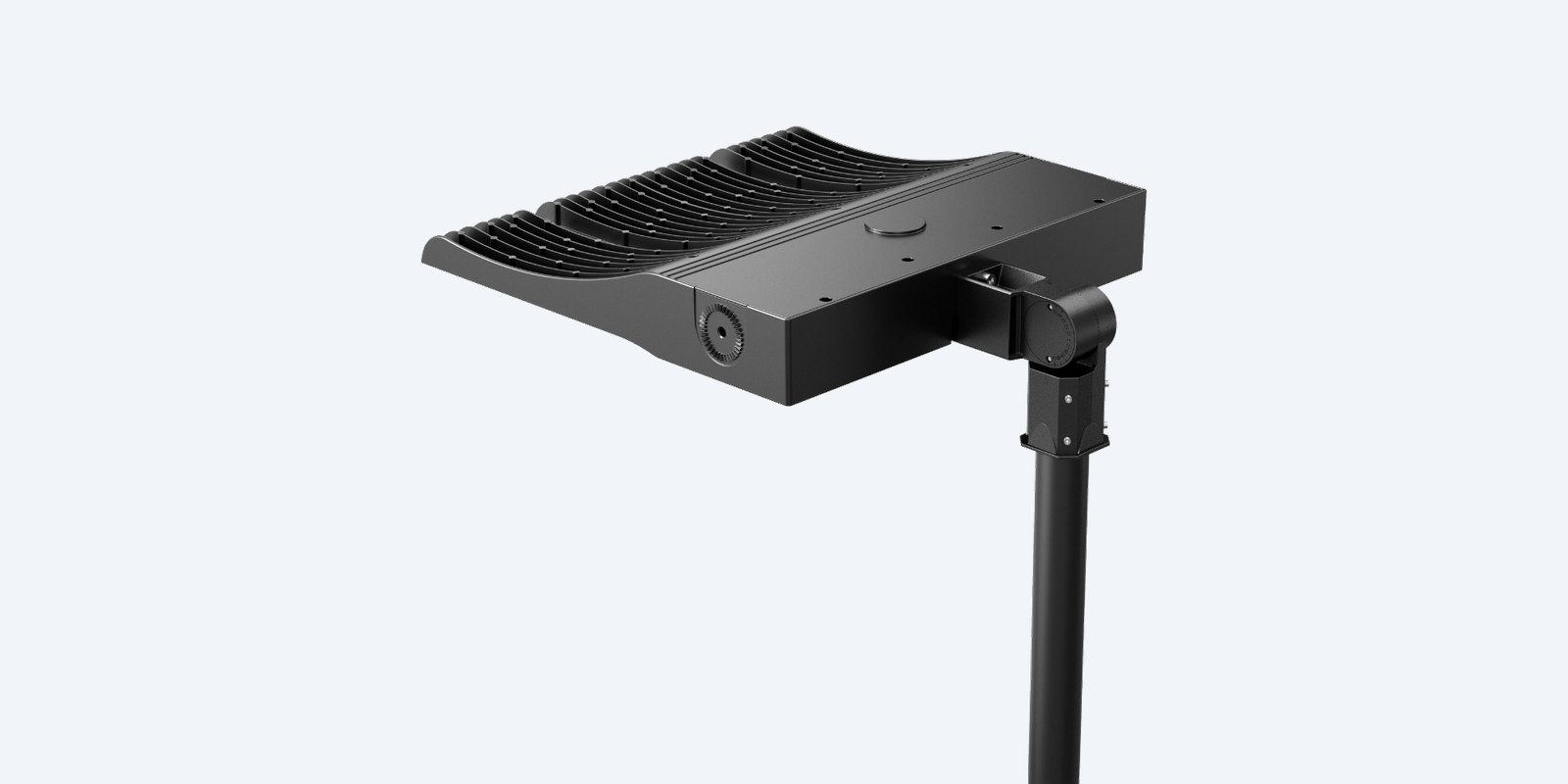

Underside
IK10, Meanwell inside.
Powder-coated aluminium housing with an electrophoresis coat for corrosion resistance. IP66 and IK10. Meanwell constant-current driver, surge protection 6 kV line-line and 10 kV line-earth.

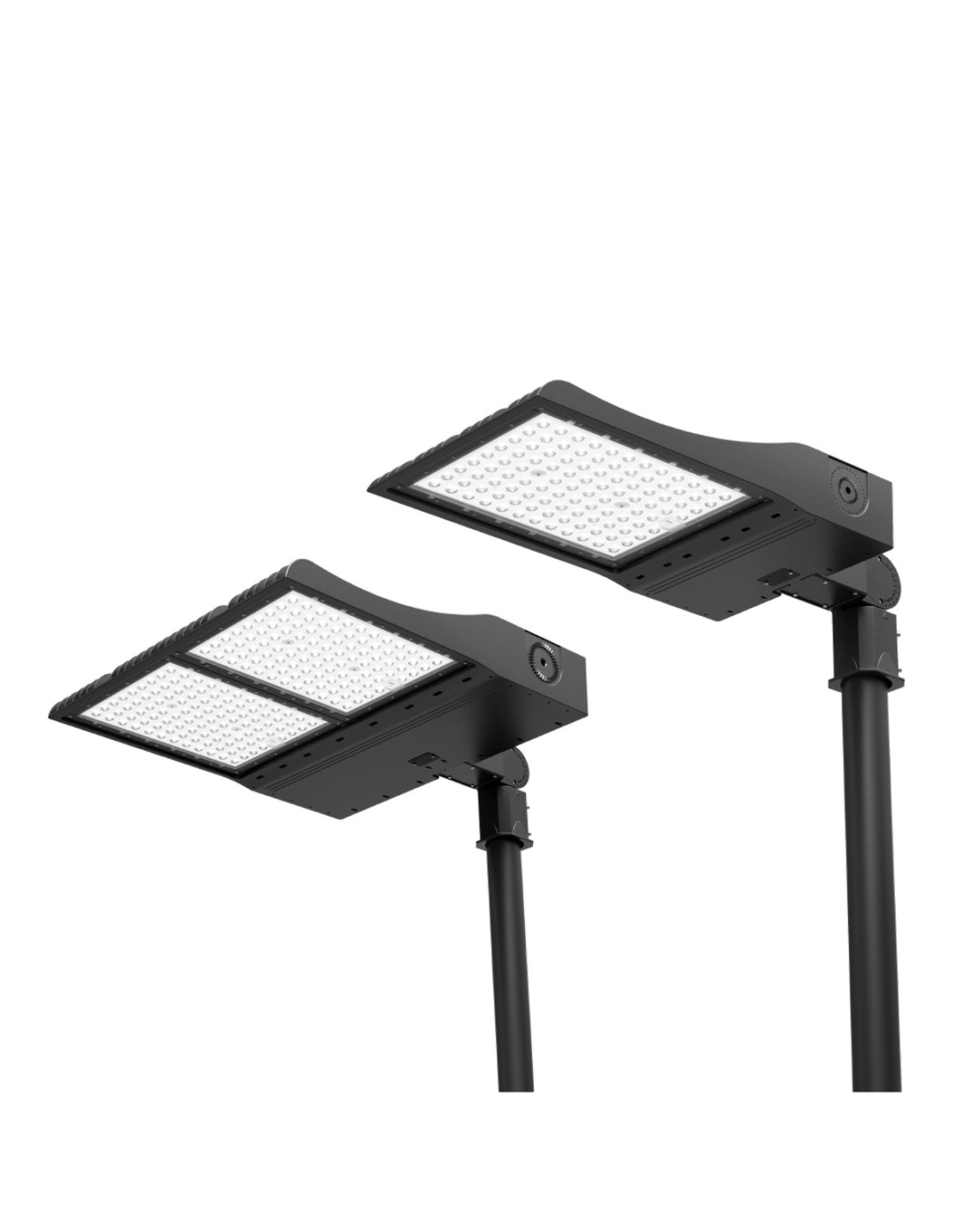

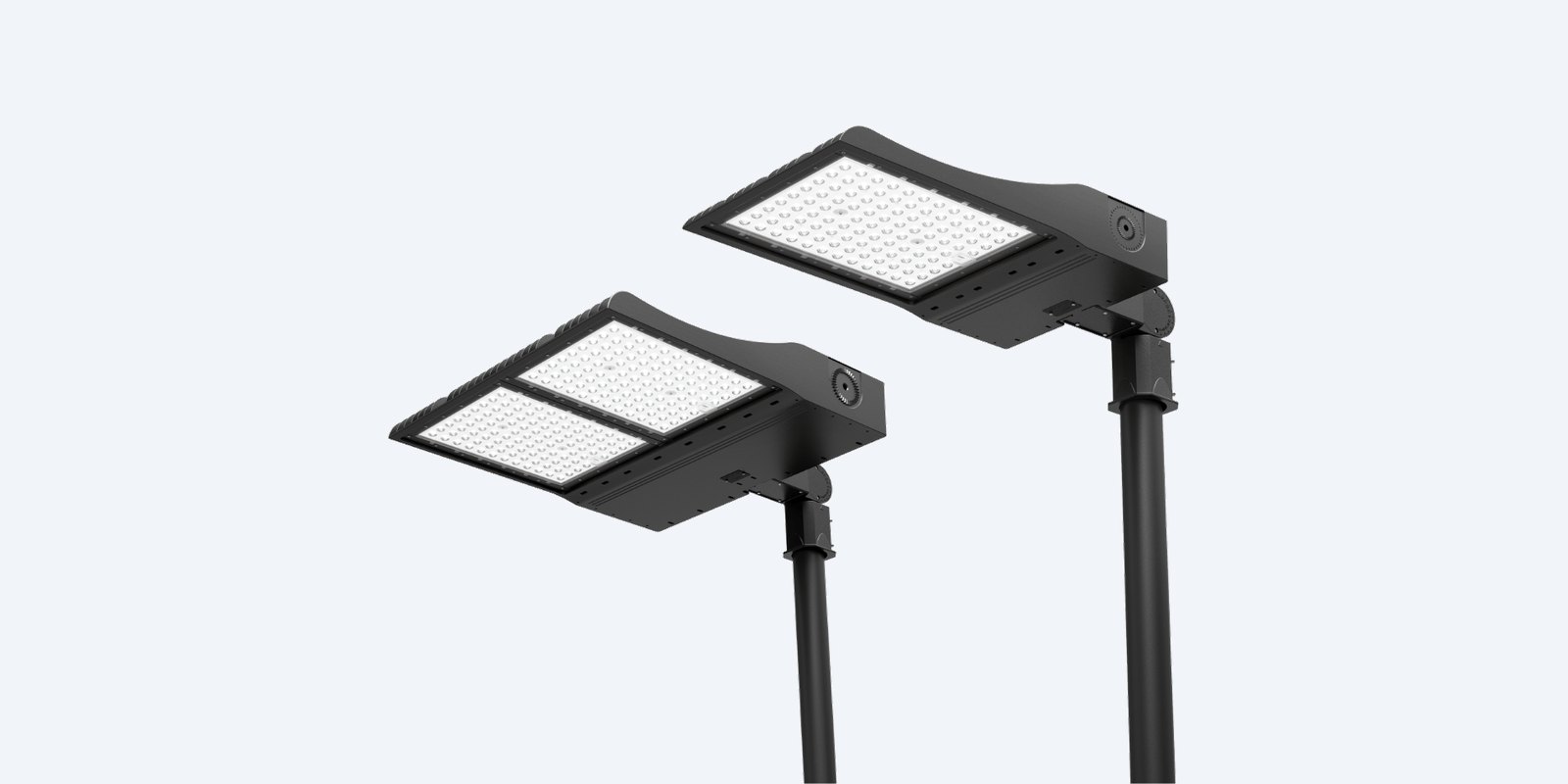

The range
Single or twin module.
180W, 240W and 300W use the single-module housing. 450W and 600W use the twin. All are 145 lumens per watt with the same bracket options.
How it goes in
From the pole to dusk-to-dawn.
01
Choose the bracket
Adjustable pole mount or straight arm, for a 60 mm round pole.
02
Mount the head
18.0 kg ±0.3, 621 × 601 × 104 mm. Use a pole rated for the weight and wind area.
03
Wire it in
220–240 VAC by a licensed electrician. Add the NEMA socket and photocell if ordered.
04
Aim the optic
Set the tilt so the asymmetric beam lands on the field or car park, not the sky.
At a glance
R3250-600
Show specs
Model
R3250-600 (MAVERICK-600)
Wattage
600W
Lumen output
87,000 lm
Efficacy
145 lm/W
Colour temperature
4000K
CRI
Above 70
Distribution
Asymmetric. Standard optic 10503; options 10502, 10504, 10505
LED
Seoul SMD
Lifetime
Over 50,000 hours (L70, Ta 30 °C)
Driver
Meanwell, constant current
Power factor
Above 0.90
Input
220–240 VAC, 50/60 Hz
Surge protection
6 kV line-line, 10 kV line-earth
Dimming
Optional
Control
Optional photocell, NEMA socket 3 / 5 / 7 pin
IP / IK rating
IP66 / IK10
Housing
Powder-coated aluminium alloy, electrophoresis coat, black
Lens
Polycarbonate
Mounting
Adjustable pole mount bracket or straight arm bracket, 60 mm round pole (straight arm also suits square pole)
Options
U bracket (ordered to suit), house side shield
Dimensions
621 × 601 × 104 mm
Weight
18.0 kg ±0.3
Operating temperature
−30 °C to +50 °C
Warranty
5 years (2 years replacement and labour, 3 years replacement only)
Pair it with
What this floodlight does not include
Structure
A 60 mm pole
Both MAVERICK brackets suit a 60 mm round pole.
Control
Photocell and NEMA socket
Optional, for dusk-to-dawn switching. 3, 5 or 7 pin.
Spill
House side shield
Optional, to keep light off the houses behind the pole.
Trade
A licensed electrician
Rapid requires installation by a licensed electrical contractor for the warranty.
Where it is used
Where the MAVERICK goes.
Sports fields
Rapid lists the MAVERICK under sports lighting.
Tennis and netball courts
Pole-top heads with asymmetric optics along the court.
Car parks
Area lighting on 60 mm poles, photocell optional.
Industrial yards
IK10 housing and 10 kV earth surge protection.
Council and school grounds
House side shield option where neighbours are close.
Logistics hardstand
Twin-module output for wide aprons.
How the R3250-600 compares
| R3250-600 | R3250-450 | |
|---|---|---|
| Wattage | 600W | 450W |
| Lumens | 87,000 lm | 65,250 lm |
| Housing | Twin module | Twin module |
| Size | 621 × 601 × 104 mm | 621 × 601 × 104 mm |
| Weight | 18.0 kg ±0.3 | 16.5 kg ±0.3 |
Both are MAVERICK: 145 lm/W, 4000K, IP66, IK10, Meanwell driver. Figures from the rapidled.com.au specification for each model.
Common questions
How bright is the R3250-600?
87,000 lumens from 600W, 145 lumens per watt.
What colour temperature is it?
4000K neutral white as standard.
What kind of beam does it have?
Asymmetric distribution. The standard optic is 10503, with 10502, 10504 and 10505 as options.
What pole does it fit?
A 60 mm round pole, on the adjustable pole mount bracket or the straight arm bracket. The straight arm also suits a square pole.
Is the pole included?
No. The pole, wiring and optional photocell are separate.
Can it switch on at dusk by itself?
Yes, with the optional photocell on a NEMA socket (3, 5 or 7 pin).
Is it dimmable?
Dimming is an option on the MAVERICK. Ask us when you order.
What is the IP and IK rating?
IP66 and IK10, the highest standard impact rating.
What driver and LEDs does it use?
A Meanwell constant-current driver and Seoul SMD LEDs, power factor above 0.90.
How big and heavy is it?
621 × 601 × 104 mm and 18.0 kg ±0.3.
What is the warranty?
5 years: 2 years replacement and labour, then 3 years replacement only, with proof of purchase and installation by a licensed electrical contractor.
Who sells the R3250-600 in Australia?
Infront Technologies sells it Australia-wide and handles the warranty. The Rapid installation guide is on the Attachments tab.
Supported by Infront Technologies.
Installation guide attached. Lighting a court, field or car park? Call 1300 736 970 and we will price the heads, brackets and options together.
Installation and safety
Mains luminaire. 220–240 VAC. Installation, wiring and any new circuit must be done by a licensed electrician.
Poles and height. Use a pole rated for the 18.0 kg ±0.3 head and its wind area. Work at height needs the right access equipment.
Figures. From the rapidled.com.au specification for the R3250-600. The attached guide is Rapid’s twin-module MAVERICK instruction manual.
- Dimensions
- 621 × 601 × 104 mm
- Weight
- 18.0 kg ±0.3
- Material
- Powder coated aluminium
- Operating temperature
- -30 to +50 C
- Colour
- Black
- Lifespan
- 50,000 hours
- Input Voltage
- 220-240V AC
- Beam Angle
- Asymmetric
- Colour Temperature
- 4000K
- Dimmable
- Optional
- Brand
- Rapid LED
- IP Rating
- IP66
- Mounting
- Pole or straight arm, 60 mm
- Warranty
- 5 Years
- Wattage
- 600W
- CRI
- Above 70
- IK Rating
- IK10
- Model
- R3250-600
- Lumens
- 87,000 lm
