• R3250-180 MAVERICK floodlight

• A licensed electrician
• A pole or spigot, 60 mm round
• Photocell and NEMA socket (3, 5 or 7 pin) if you want dusk-to-dawn — optional
• House side shield if light must stay off neighbours — optional

01

Choose the bracket

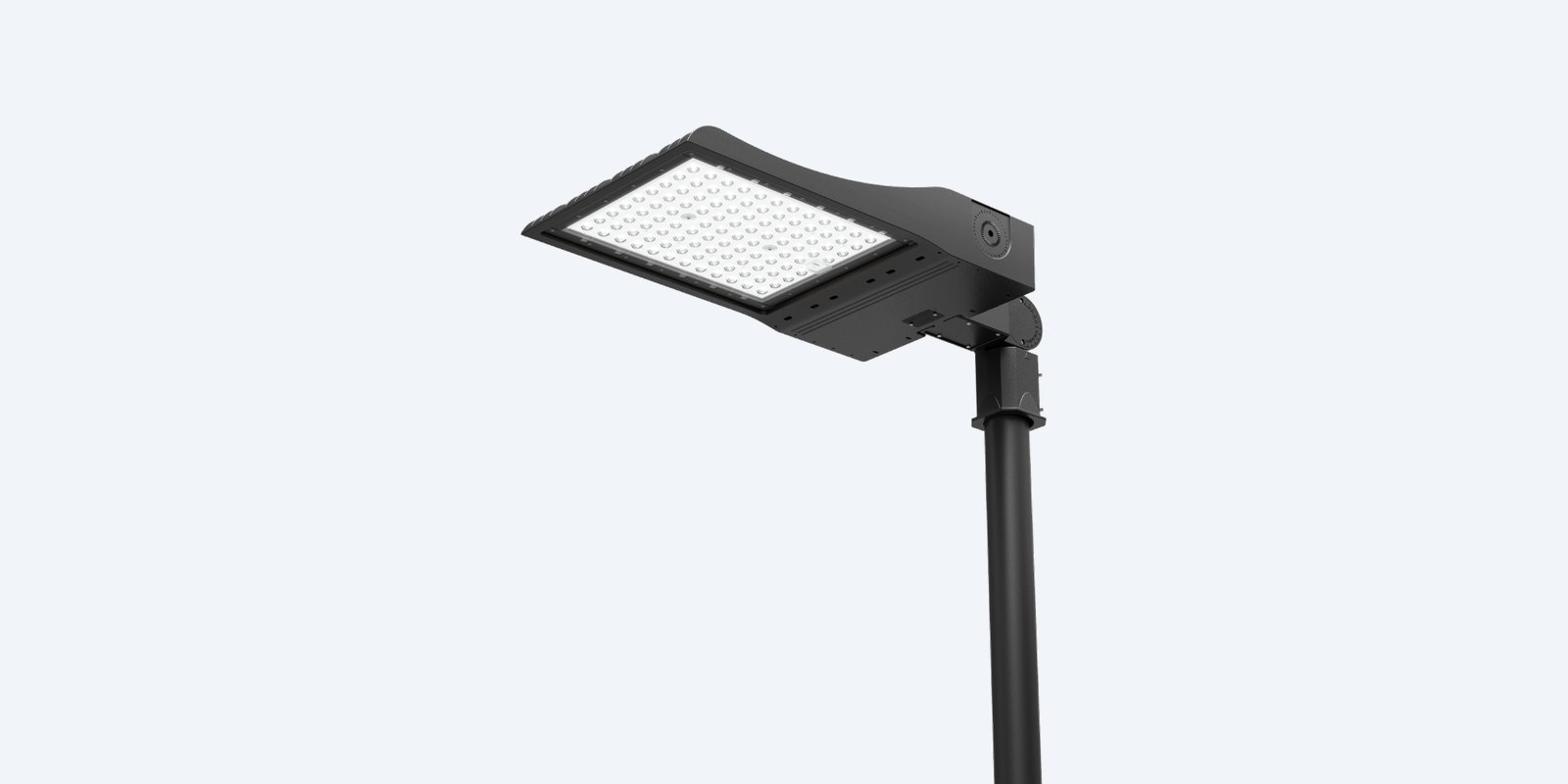

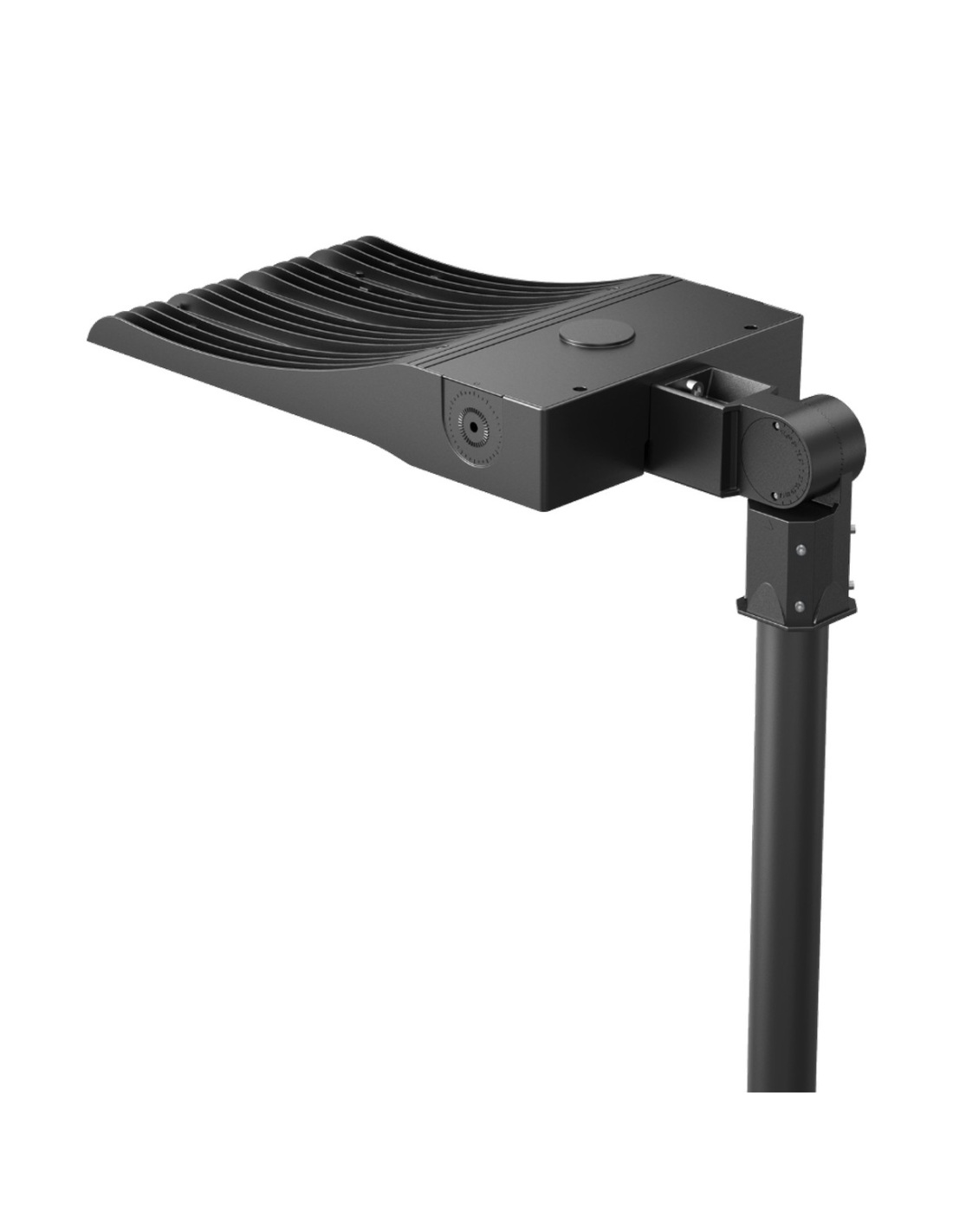

Adjustable pole mount or straight arm, for a 60 mm round pole.

02

Mount the head

7.8 kg ±0.3, 571 × 322 × 94 mm. Use a pole rated for the weight and wind area.

03

Wire it in

220–240 VAC by a licensed electrician. Add the NEMA socket and photocell if ordered.

04

Aim the optic

Set the tilt so the asymmetric beam lands on the field or car park, not the sky.

Structure

A 60 mm pole

Both MAVERICK brackets suit a 60 mm round pole.

Control

Photocell and NEMA socket

Optional, for dusk-to-dawn switching. 3, 5 or 7 pin.

Spill

House side shield

Optional, to keep light off the houses behind the pole.

Trade

A licensed electrician

Rapid requires installation by a licensed electrical contractor for the warranty.

Sports fields

Rapid lists the MAVERICK under sports lighting.

Tennis and netball courts

Pole-top heads with asymmetric optics along the court.

Car parks

Area lighting on 60 mm poles, photocell optional.

Industrial yards

IK10 housing and 10 kV earth surge protection.

Council and school grounds

House side shield option where neighbours are close.

Logistics hardstand

Single-module heads in rows along the yard.

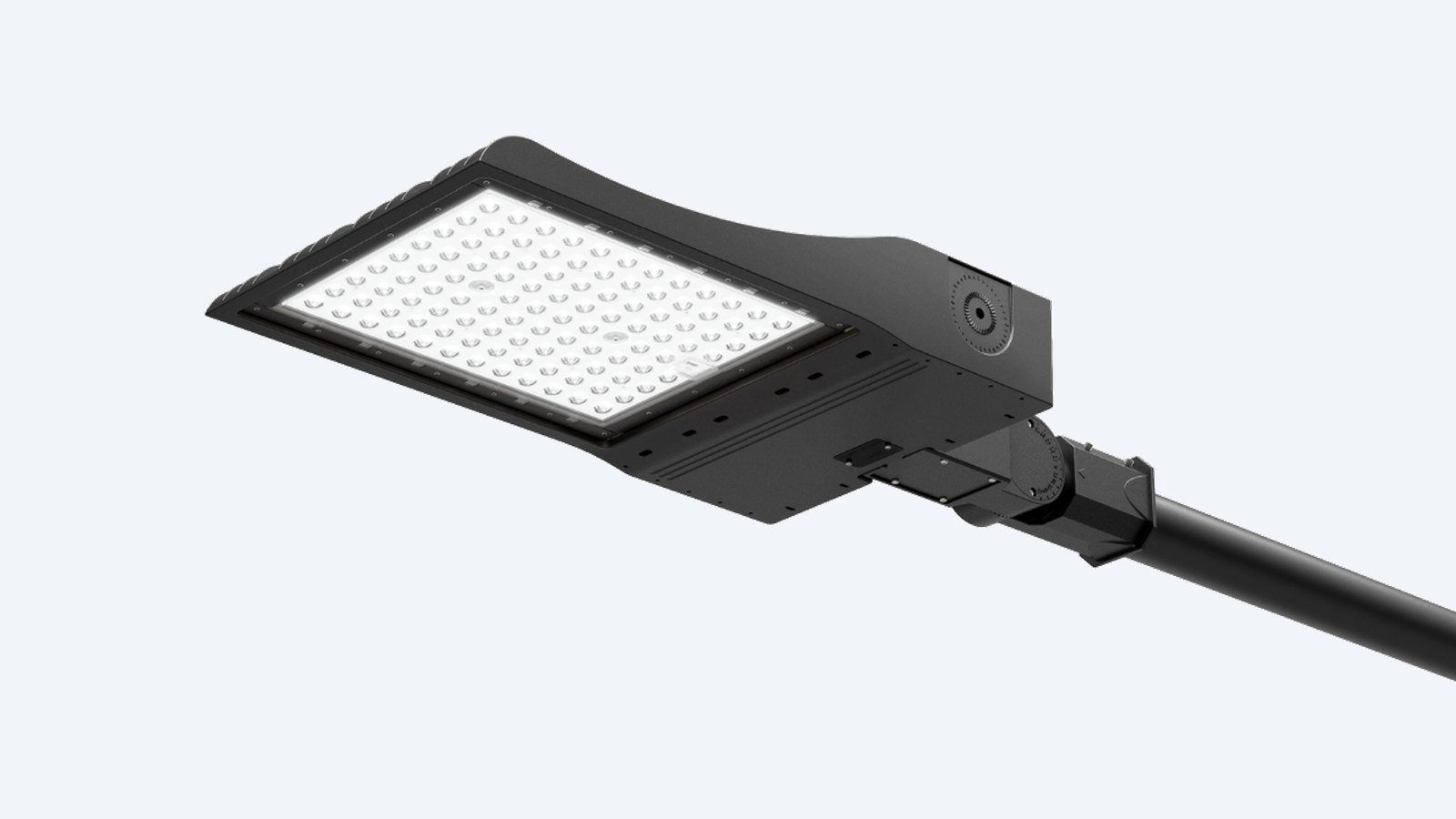

How bright is the R3250-180?

26,100 lumens from 180W, 145 lumens per watt.

What colour temperature is it?

4000K neutral white as standard. Rapid lists 5000K daylight as an indent option.

What kind of beam does it have?

Asymmetric distribution. The standard optic is 10503, with 10502, 10504 and 10505 as options.

What pole does it fit?

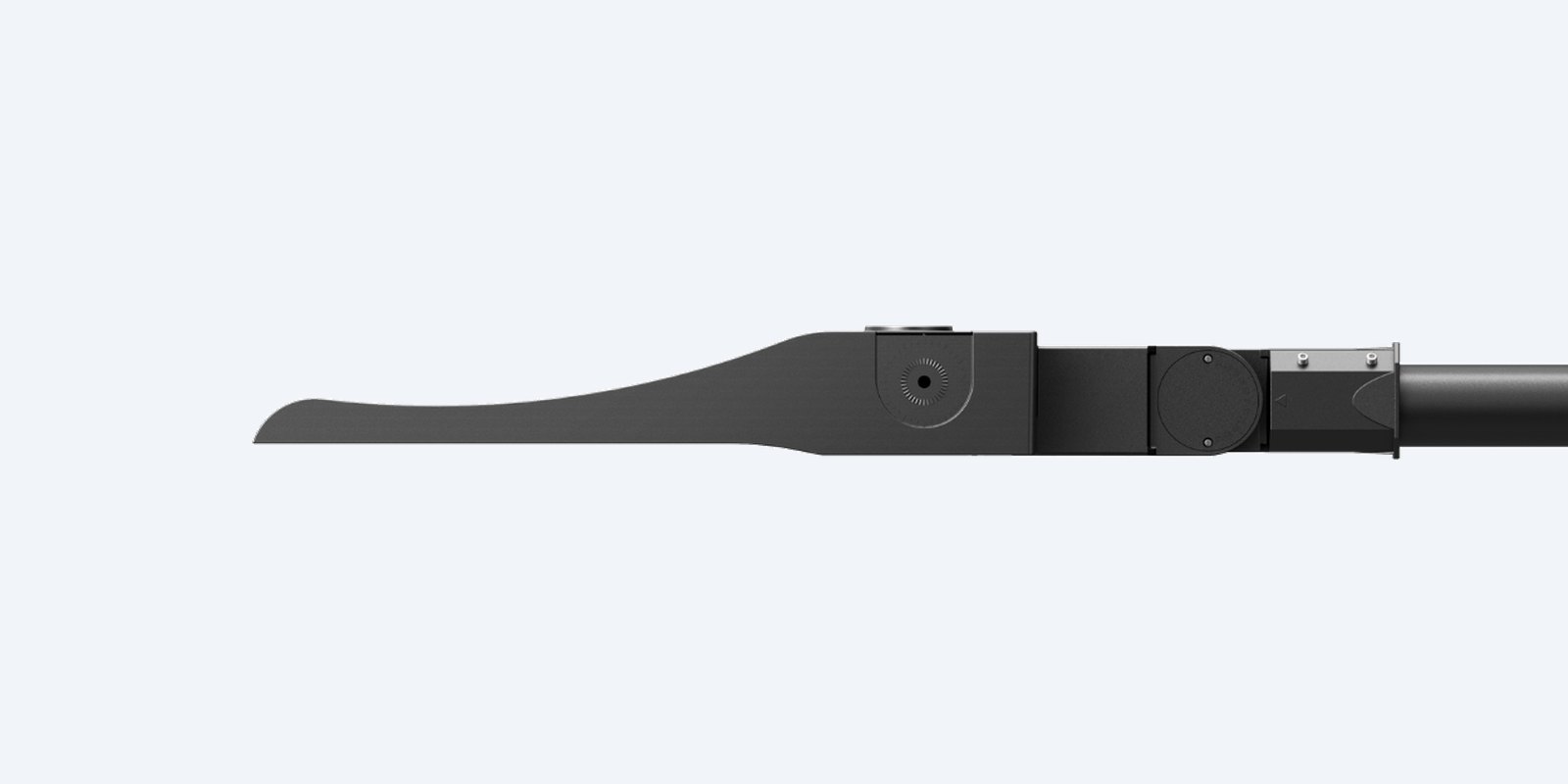

A 60 mm round pole, on the adjustable pole mount bracket or the straight arm bracket. The straight arm also suits a square pole.

Is the pole included?

No. The pole, wiring and optional photocell are separate.

Can it switch on at dusk by itself?

Yes, with the optional photocell on a NEMA socket (3, 5 or 7 pin).

Is it dimmable?

Dimming is an option on the MAVERICK. Ask us when you order.

What is the IP and IK rating?

IP66 and IK10, the highest standard impact rating.

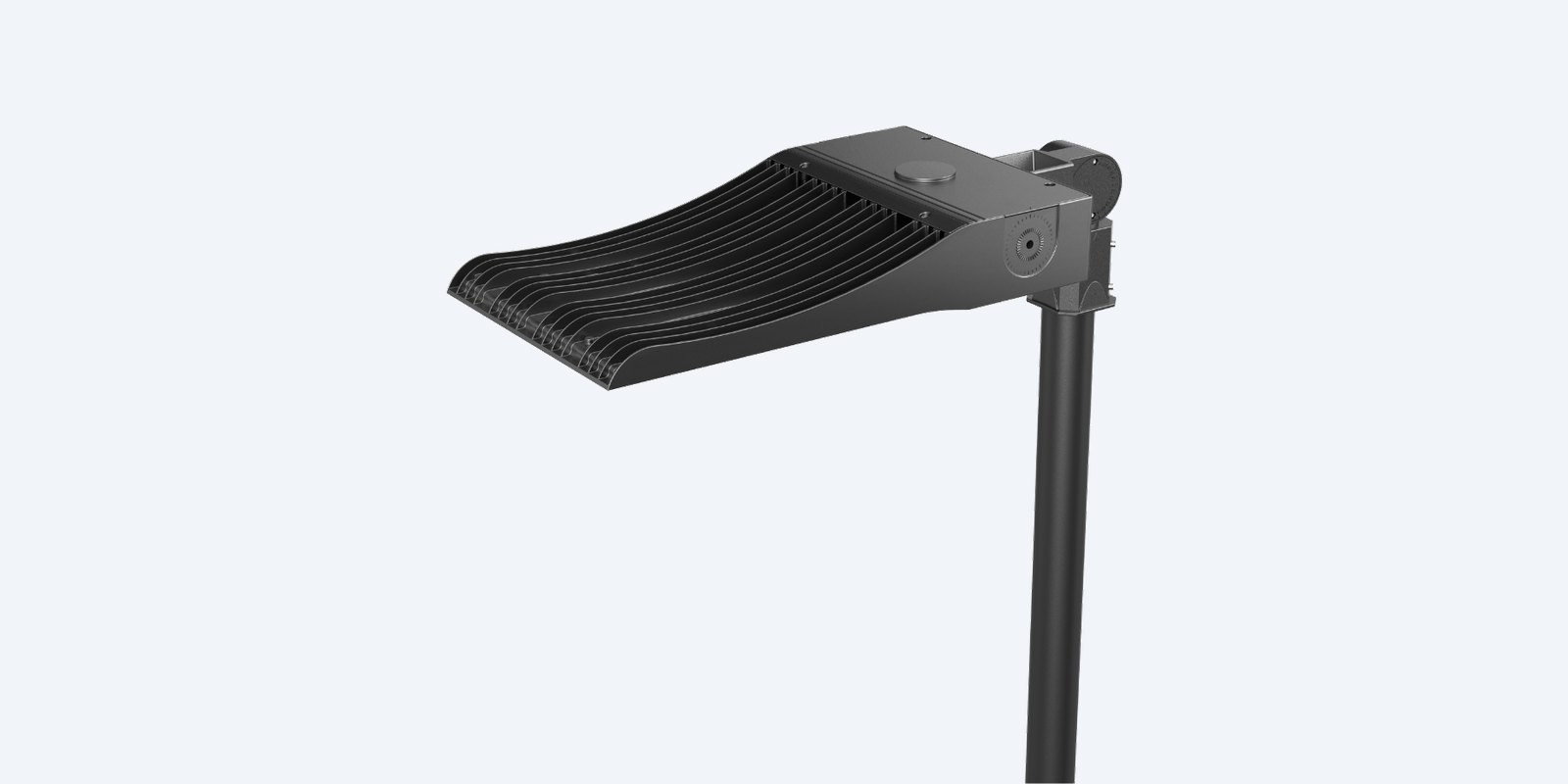

What driver and LEDs does it use?

A Meanwell constant-current driver and Seoul SMD LEDs, power factor above 0.90.

How big and heavy is it?

571 × 322 × 94 mm and 7.8 kg ±0.3.

What is the warranty?

5 years: 2 years replacement and labour, then 3 years replacement only, with proof of purchase and installation by a licensed electrical contractor.

Who sells the R3250-180 in Australia?

Infront Technologies sells it Australia-wide and handles the warranty. The Rapid installation guide is on the Attachments tab.
