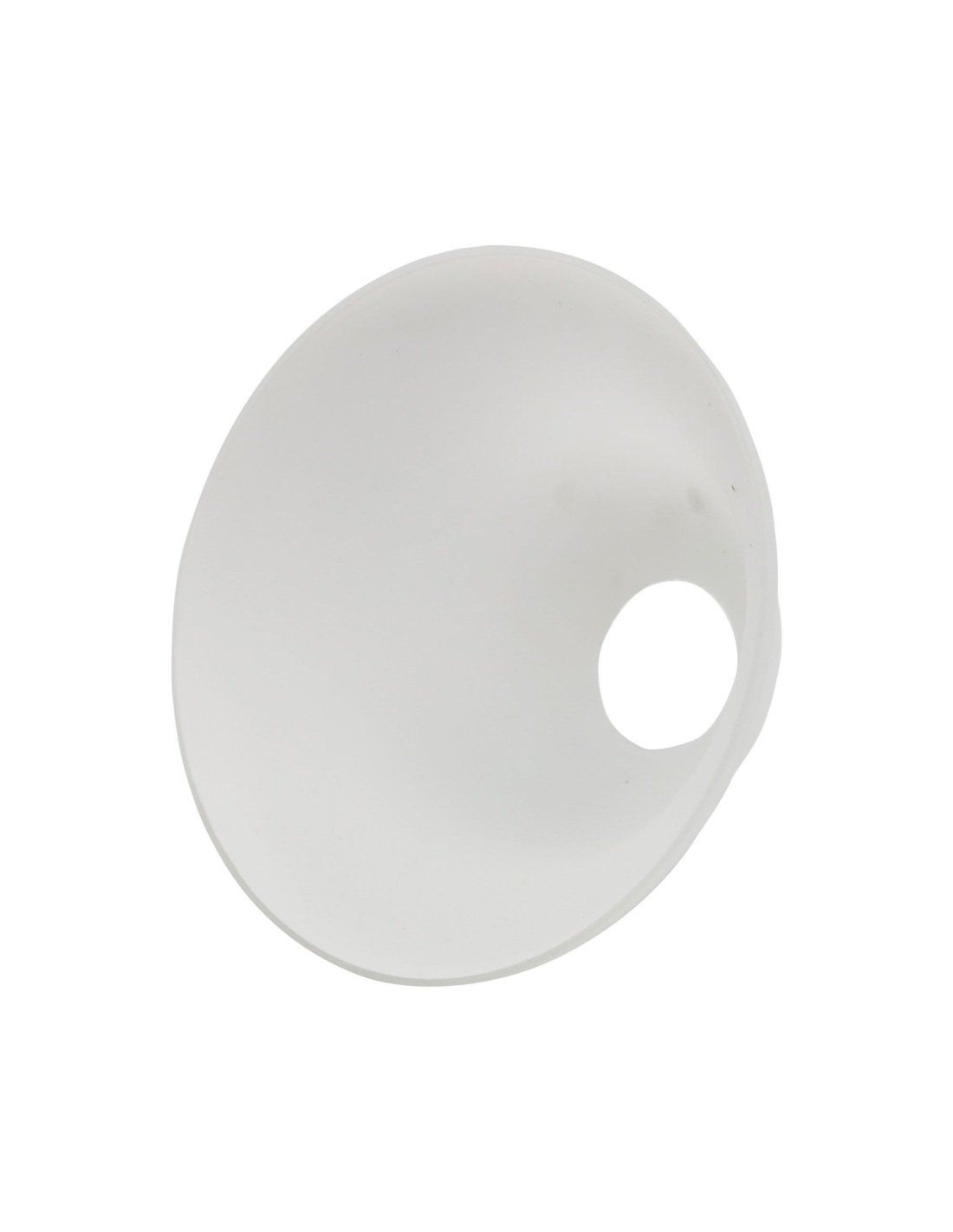

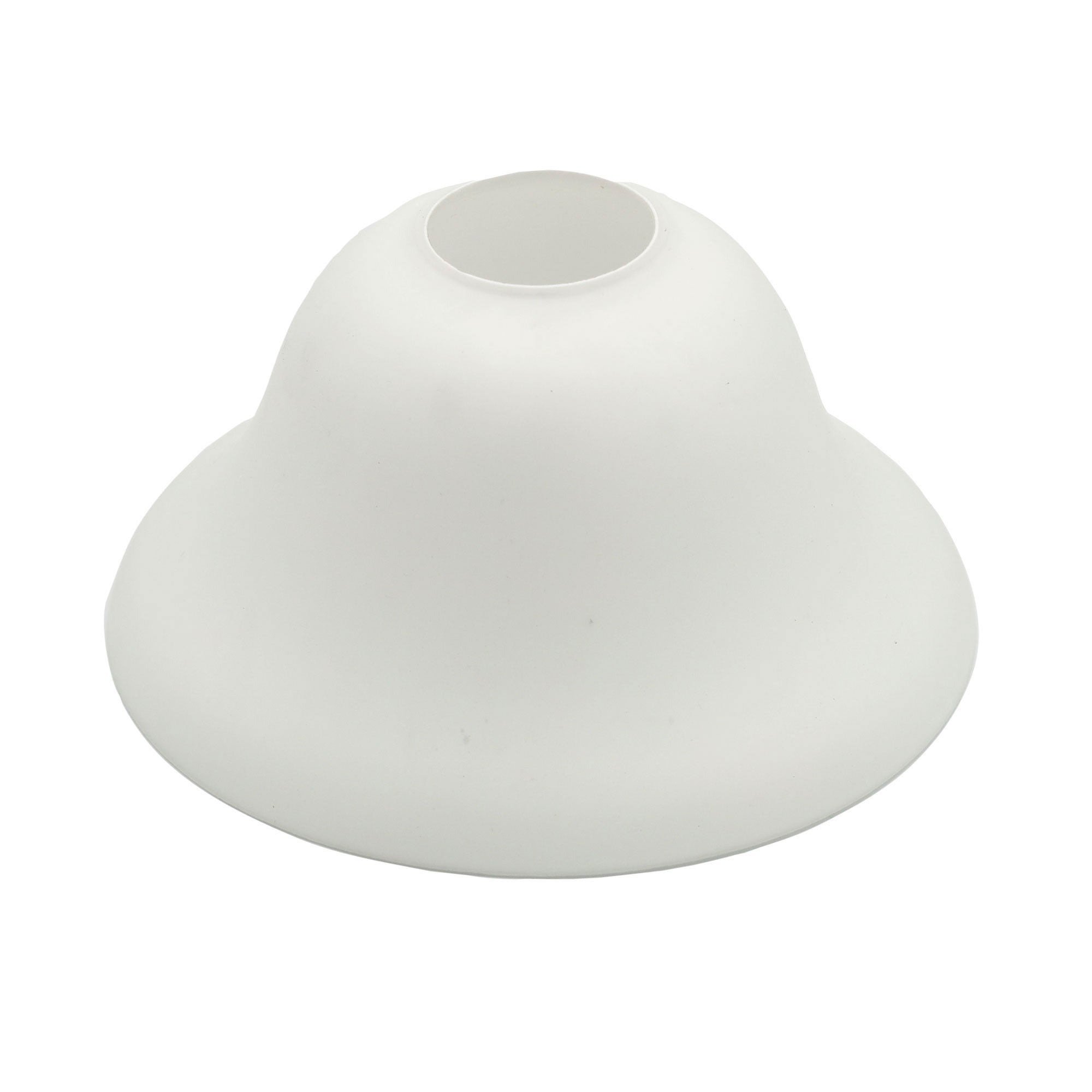

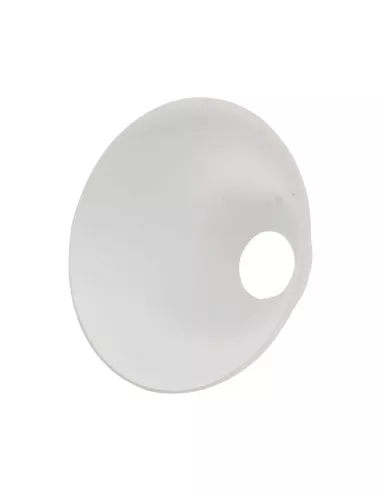

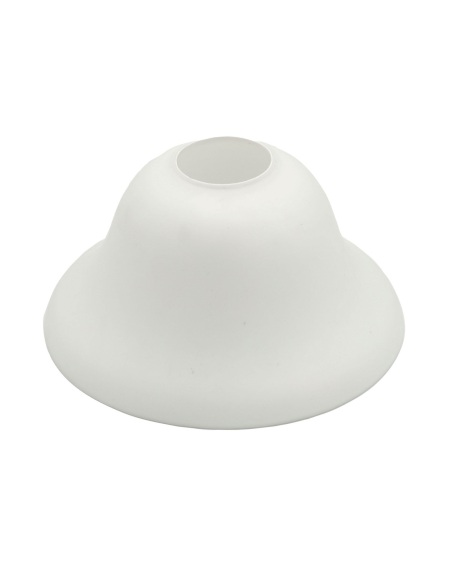

BELL GLASS 19cm Opal Matt replacement glass - RG-69400
Oriel Lighting bell glass replacement shade for multi-light pendants. Opal glass, 190 mm diameter × 100 mm high with ~43 mm opening for ES/E27 lampholders (check your fitter size). Simple way to refresh tired fittings or replace broken glass. Sizes may vary slightly due to glass manufacturing—please measure your existing shade. Item code RG-69400.
Pickup Ashmore, QLD — call first to confirm office hours.
Various Payment Types at Checkout.
All Payment Options are available at Checkout: Visa/MC/Amex, Zip, Afterpay, Paypal and Bank Dep
Replacement Bell Glass Shade — 19 cm Opal Matt
For multi-light pendants • E27 opening (~43 mm) • Simple refresh
Give tired pendants a clean, even glow with the Oriel RG-69400 bell-style replacement glass. The opal matt finish softens glare and suits kitchens, dining rooms and island clusters. Designed to sit over an ES/E27 lampholder, it’s a quick, affordable way to replace broken or yellowed shades.
Design Highlights
- Classic bell profile: timeless look that works in singles or clusters.
- Opal matt glass: diffuses hotspots for comfortable, even light.
- E27 opening: ~43 mm bore fits standard ES/E27 lampholders (use a shade ring/collar; not included).
- Easy upgrade: swap like-for-like to refresh multi-light pendants.
- Genuine Oriel spare: quality glass for a tidy finish.
Quick Specs
Dimensions | H100 × Ø190 mm (Opening ~Ø43 mm, E27) |
---|---|
Material | Opal matt glass |
Mounting | Over ES/E27 lampholder with shade ring/collar (not included) |
Brand | Oriel Lighting |
SKU | RG-69400 |
Ideal for multi-light bars and cluster pendants, this replacement shade keeps light comfortable while hiding the view of the globe. Match the opening size to your lampholder and replace in minutes for a crisp, modern finish.
Ready to restore your pendant? Order the Oriel bell-glass shade and bring back the glow.
Buying Guide & Helpful Info (Australia)
Fit is determined by the opening (bore) and the lampholder. This shade has an opening of about 43 mm for ES/E27. It sits on the lampholder’s threaded section and is secured with a shade ring/locking collar (usually two rings — one above, one below). Rings are not included; reuse your existing ones or order replacements.
Will it fit my pendant?
- If your current glass drops over an E27 lampholder and is held by rings, this is the right style.
- If your old shade used a clipper bowl with three screws/springs, or a bayonet/lipped fitter, this glass isn’t suitable.
How to measure for compatibility
- Power off: isolate the fitting before handling.
- Measure the opening: check the inner diameter of your existing glass (target ~43 mm).
- Check lampholder size: confirm it’s ES/E27 and that you have two shade rings.
- Confirm clearance: ensure the 190 mm diameter suits your space and the fitting’s arms.
Install in a few minutes
- Remove the lower shade ring.
- Slide the glass over the lampholder until seated.
- Refit the ring and tighten gently — do not overtighten.
Care & safety
- Clean with a soft cloth and mild detergent; avoid abrasives.
- Handle over a soft surface during install.
- Minor size variation is normal with glass manufacturing; measure before purchase.
