ENSA Ceiling Mount PIR Sensor Motion Activated Switch - ENSA-PS2

SKU ENSA-PS2 In Stock - Ready to Ship
$24.90 inc GST
  • Automatically activate and deactivate lighting
  • Adjustable sensors
  • 360° rectangle / 4m x 20m passive infrared detection
  • Ceiling mount, for indoor use only
  • 3 year warranty

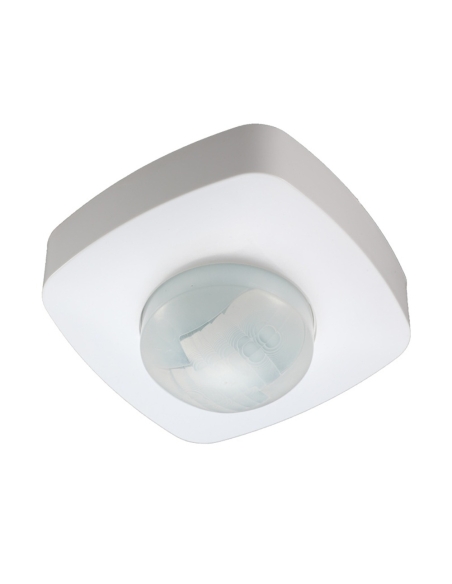

ENSA Ceiling Mount PIR Sensor Motion Activated Switch



ENSA-PS2



The ENSA-PS2 is an intelligent sensor switch, designed for indoor ceiling mounting. It features configurable ambient light sensing, passive infrared motion detection and on-time delay, so you may tailor light usage and energy consumption to your exact specifications.

Add three step energy saving to any light with sensor switches:

1) Daylight sensor: Activates motion sensor when lux levels fall below limit

2) Motion sensor: Detects movement, turns light on only when necessary

3) On-timer: Light-on duration is set only as long as is required



Product Features:



• Automatically activate and deactivate lighting for energy efficiency

• Adjustable sensors: Daylight (3~2000lx) / Motion (4x20m square) / On-timer (10s~30min)

• 360° rectangle / 4m x 20m passive infrared detection

• Ceiling mount, for indoor use only

• 3 year warranty



ENSA%20Sensor%20Switch%20Series%20Product%20Brochure%20(PDF)-11.jpgENSA%20Sensor%20Switch%20Series%20Product%20Brochure%20(PDF)-22.jpg

Dimensions
100 x 100 x 50mm
Ingress Protection
IP20
Operating Environment
-20 ~ 40°C /
Input Voltage
220 ~ 240VAC 50Hz
Daylight Sensing
3 ~ 2000 Lux
Daylight Sensor
Yes
Max. Rated Load (Resistive/Inductive)
2000W / 1000W
Motion Detection Adjustment
N/A
Motion Detection Area
360° rectangle (4m x 20m)
Motion Detection Speed
0.6 ~ 1.5m/s
Motion Sensor Type
Passive Infrared
Mounting Type
Ceiling
On-timer Delay
10s / 30s / 90s / 5min / 10min / 30min
Power Consumption (Sensing Mode)
0.4W
Recommended Installation Height
4 ~ 10m
Stand-by Dimming
N/A
Stand-by Period
N/A
