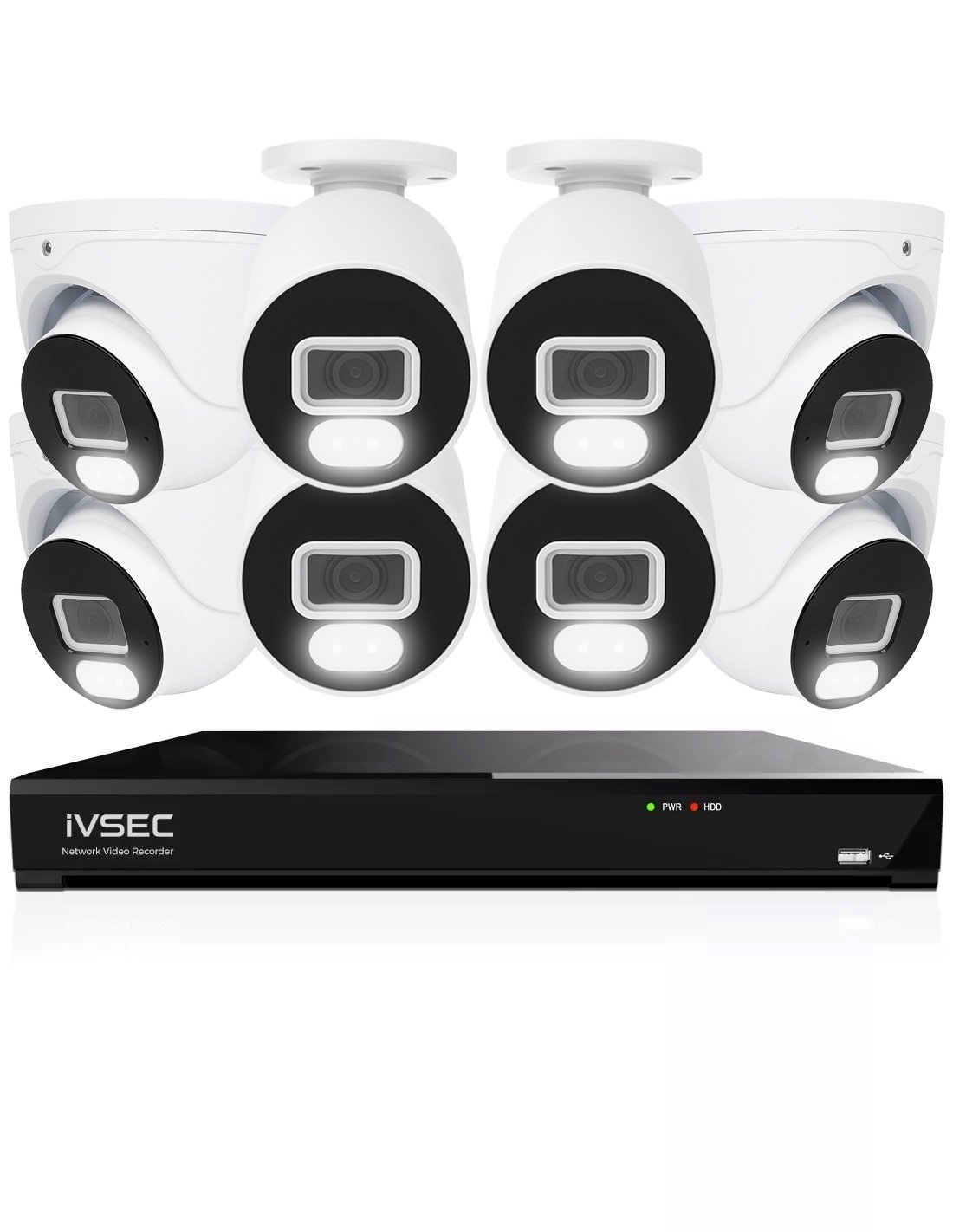

IVSEC IVK8L-8204B4D 4K kit: four 820B bullets and four 820D turret domes with the white lights on, and the NR008XB recorder

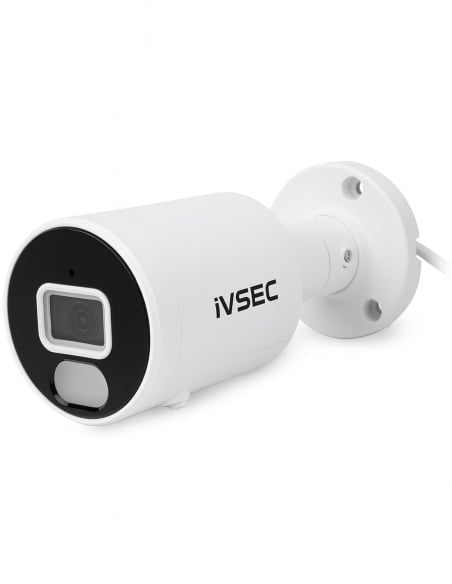

IVSEC 820B 4K bullet camera, front angle

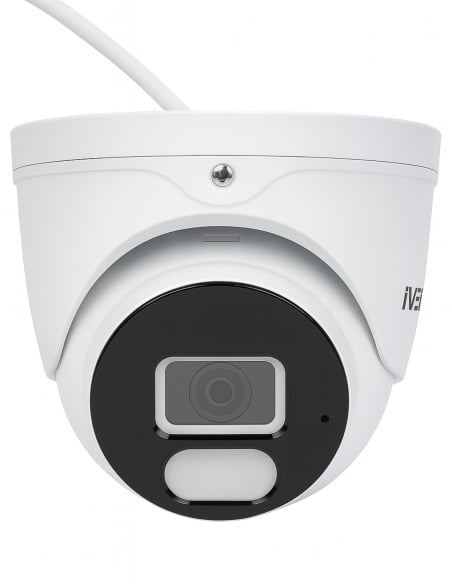

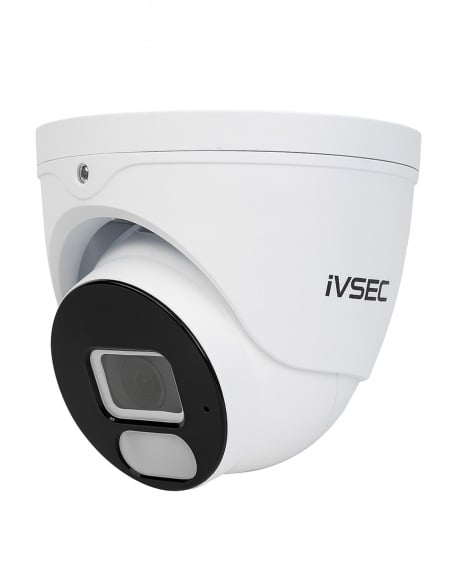

IVSEC 820D 4K turret dome camera, front angle

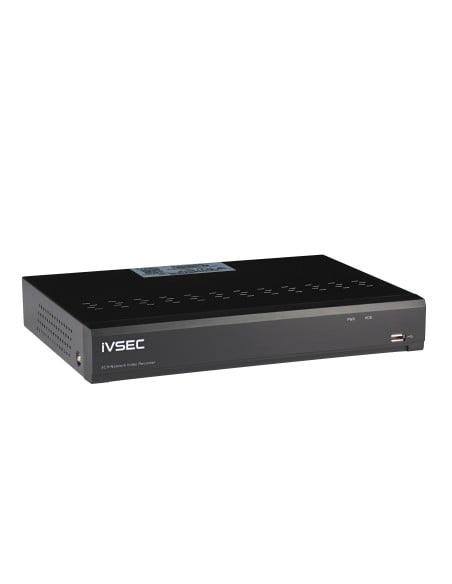

IVSEC NR008XB 8-channel PoE recorder, front

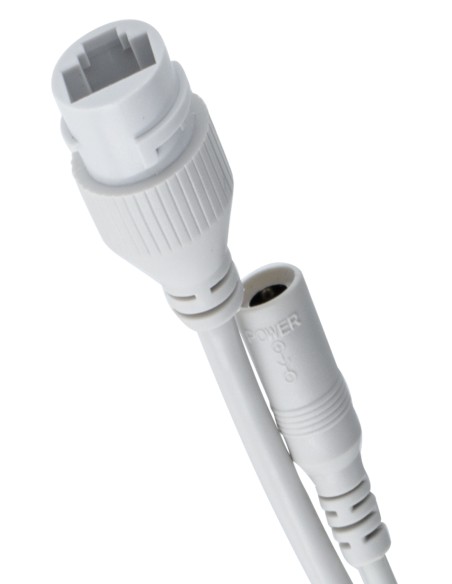

Wired PoE camera: cable tail with network connector and 12 V DC socket

1 / 7

IVSEC 4K 8MP Smart IP 2TB 8CH 8x820 Bullet & Dome Cameras UHD NVR CCTV Security System (8x8)

Name: IVSEC 4K 8MP Smart IP 2TB 8CH 8x820 Bullet & Dome Cameras UHD NVR CCTV Security System (8x8)
Brand: IVSEC
SKU: IVK8L-8204B4D
Price: 1398 AUD
Availability: InStock

SKU IVK8L-8204B4D In Stock - Ready to Ship

$1,398.00 inc GST

IVSEC IVK8L-8204B4D: four 820B bullets and four 820D turret domes with white light colour night vision and smart detection, plus an 8-channel PoE NR008XB recorder with 2TB.

✓4 × 820B bullet and 4 × 820D turret dome, 4K, 110° view
✓Colour night vision with white light, IR, up to 25 m
✓Smart human and vehicle detection
✓Built-in microphone, IP66 metal housing
✓8-channel PoE recorder, 2TB drive (up to 16TB)
✓Free IVSEC X app, 3-year warranty

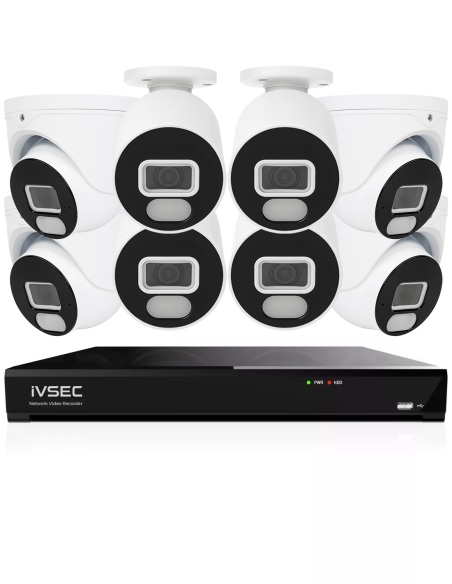

IVSEC IVK8L-8204B4D kit: four 820B bullets and four 820D turret domes with the white lights on, above the IVSEC NR008XB recorder

IVSEC · 820 Series · Smart IP

Eight 4K cameras, colour day and night.
One 8-channel recorder with 2TB.

A complete 4K wired CCTV kit: four 820B bullets and four 820D turret domes with a white light for colour night vision, smart human and vehicle detection and a microphone, plus an IVSEC NR008XB PoE recorder and a 2TB drive.

In one sentence: the IVSEC IVK8L-8204B4D is a wired 4K CCTV kit with four 820B bullets and four 820D turret domes, white light colour night vision to 25 m, smart human and vehicle detection, and an 8-channel PoE NR008XB recorder with a 2TB drive.

Everything for eight cameras is in the box.

The cameras run on one network cable each, back to the recorder, which powers them. All eight PoE ports are used by this kit.

In the box

4 × IVSEC 820B 4K bullet cameras
4 × IVSEC 820D 4K turret dome cameras
IVSEC NR008XB 8-channel PoE recorder
2TB surveillance hard drive for the recorder
4 × 20 m and 4 × 30 m Cat5e cables
48 V recorder power supply and USB mouse
Camera mounting screws

You also need

A TV or monitor with HDMI or VGA, for setup at the recorder
A network cable from the recorder to your router, for the phone app
Longer or extra cable if a camera is more than 30 m away

See faces and number plates in colour at night.

When it gets dark the white light switches on with motion, so the footage stays in colour instead of grey infrared. Smart detection sorts people and vehicles from leaves and shadows, so the alerts on your phone are worth opening.

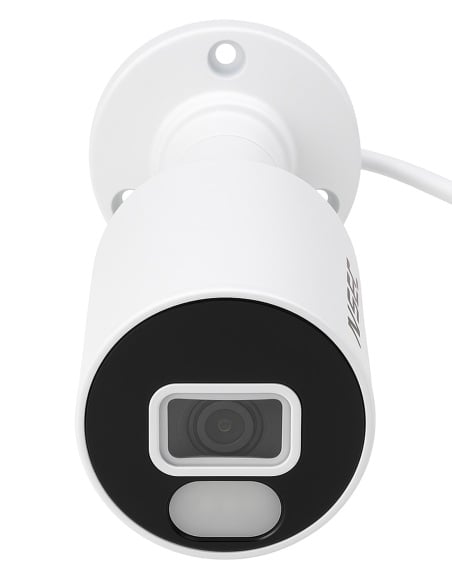

IVSEC 820B 4K bullet camera switching its white light on for colour night vision

The bullets

820B: 4K bullets in metal.

The 820B has a 2.8 mm lens with a 110° view and a white light under the lens for colour footage at night, up to 25 m. The bullet suits walls and long views, in an IP66 metal housing.

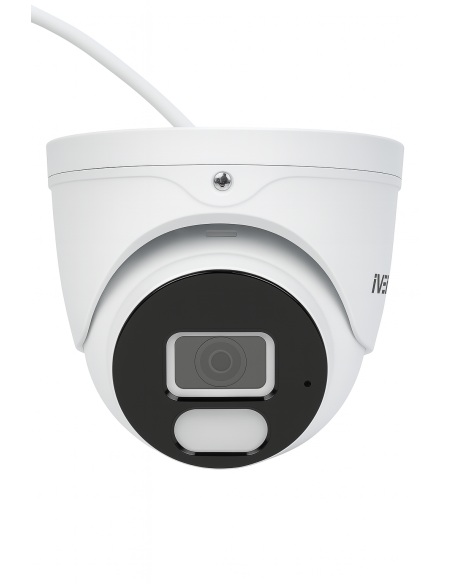

IVSEC 820D 4K turret dome camera switching its white light on for colour night vision

The turret domes

820D: the same camera, lower profile.

The 820D has the same lens, white light and smart detection in a turret dome that sits neatly under eaves and ceilings.

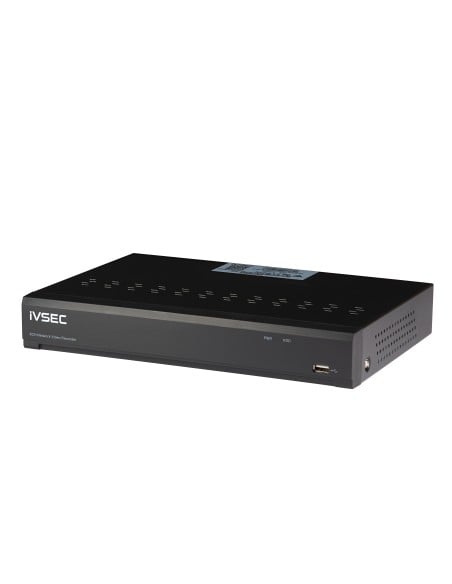

IVSEC NR008XB 8-channel PoE network video recorder, front angle

The recorder

Eight PoE+ ports, one drive bay.

The NR008XB powers and records up to eight cameras at up to 12MP, with 76 Mbps of incoming bandwidth. It shows on a TV over HDMI or VGA up to 4K, and its single SATA bay takes up to 16TB.

How it goes in

From box to phone alerts.

Set up the recorder

Fit the 2TB drive in the recorder's bay if it is not already installed, then connect a TV with an HDMI cable and your router with a network cable, and power it up.

Run one cable per camera

Cat5e from each camera back to a PoE port on the recorder. The kit includes 4 × 20 m and 4 × 30 m cables; runs can go up to 100 m.

Mount and aim the cameras

Fix each camera with the supplied screws and angle it. The cameras are found automatically when they are plugged in.

Finish in the wizard and app

Set the password in the startup wizard, scan the recorder's QR code with the free IVSEC X app, then set smart detection and the white light mode.

At a glance

IVK8L-8204B4D

Show specs

Cameras

4 × 820B bullet and 4 × 820D turret dome, white

Recorder

IVSEC NR008XB, 8 channels, 8 × PoE ports

Resolution

4K (3840 × 2160) output from a 5MP sensor, up to 15 fps

Lens and view

2.8 mm fixed, 110° wide angle

Night vision

Colour with the white light, or infrared, up to 25 m

Smart detection

Human and vehicle, line crossing, perimeter intrusion, motion

Audio

Built-in microphone (records sound)

Camera storage

microSD up to 256 GB in each camera

Camera power

PoE from the recorder, or 12 V DC

Camera housing

Metal, IP66, indoor or outdoor

Recorder storage

2TB drive supplied, 1 SATA bay, up to 16TB

Recording

Up to 12MP per channel, 76 Mbps incoming

Compression

H.265+, H.265, H.264+, H.264 (recorder)

Display

HDMI and VGA, up to 4K

Interoperability

ONVIF Profile S, G, T

Software

IVSEC X app (iOS and Android), PC client, web browser

Cables included

4 × 20 m and 4 × 30 m Cat5e

Warranty

3 years

Pair it with

Good to add

Storage

A bigger drive

Choose a 4TB to 14TB drive option above instead of the 2TB, for longer recording before the oldest footage is overwritten.

Room to grow

A bigger recorder

This kit fills every port. If you may want more cameras later, look at a kit with more channels.

Deterrence

The IVSEC 850 Series

Want a siren, red and blue strobes and two-way talk? The 850 Series kits add them, with AI detection.

Security

A lockable cabinet

Keep the recorder out of reach so a thief can't take the footage with it. Ask us about the 24SECCAB security cabinet.

Where it is used

Where a eight-camera kit fits.

Larger homes

Every side of the house, the driveway, the pool gate and the back fence on one recorder.

Shops and cafés

Doors, counters, stockroom and the rear lane, with alerts for people after hours.

Offices

Entries, reception and the car park, viewed from a PC, a Mac or the phone app.

Workshops and factories

Roller doors, yards and the gate, in colour at night with the white light.

Farms and acreage

House, sheds and gates within cable reach, up to 100 m per run.

Strata and small blocks

Car park, bin room, letterboxes and the front entry on one system.

IVK8L-8204B4D or IVK8L-8208B

	IVK8L-8204B4D (this kit)	IVK8L-8208B
Cameras	4 × 820B bullet and 4 × 820D turret dome	8 × 820B bullet
Resolution and view	4K, 110°	4K, 110°
Night vision	Colour or IR, up to 25 m	Colour or IR, up to 25 m
Recorder and drive	NR008XB, 2TB	NR008XB, 2TB
PoE ports	All 8 used	All 8 used

The same 820 Series camera in two housings. Bullets stand out and suit walls and long views; turret domes sit lower profile under eaves and ceilings.

Common questions

What is in the IVK8L-8204B4D kit?

In the box: 4 × IVSEC 820B 4K bullet cameras; 4 × IVSEC 820D 4K turret dome cameras; IVSEC NR008XB 8-channel PoE recorder; 2TB surveillance hard drive for the recorder; 4 × 20 m and 4 × 30 m Cat5e cables; 48 V recorder power supply and USB mouse; camera mounting screws.

Can I add more cameras later?

This kit uses all eight PoE ports, and the recorder records eight cameras. If you may need more, choose a kit with more channels.

How long will the 2TB drive record?

It depends on how many cameras record, the bit rate and whether you record all the time or only on events. When the drive is full the oldest footage is overwritten. For longer recording, choose a 4TB to 14TB drive option.

Do the cameras need a power point each?

No. Each camera is powered by the recorder through its network cable (PoE), so one Cat5e run per camera is all it needs.

Can I see colour at night?

Yes. The white light switches on so the cameras record in colour up to 25 m. You can set them to infrared instead, which records in black and white without a visible light.

Is it really 4K?

The cameras output 4K (3840 × 2160) video from a 5MP sensor at up to 15 fps. For a native 8MP sensor at 20 fps, look at the IVSEC 850 Series.

Do the cameras record sound?

Yes. Each camera has a built-in microphone, so the recording includes audio. They have no speaker, so you can't talk back through them.

Do I have to register an account to use the app?

No. The free IVSEC X app connects by scanning the recorder's QR code and does not need you to register an email address.

What smart detection does it have?

Human and vehicle detection, line crossing and perimeter intrusion, plus standard motion detection, so you can get alerts for people and cars instead of every moving shadow.

Does it have a siren or strobe lights?

No. The 820 Series uses a white light. For a siren, red and blue strobes and two-way talk, choose an IVSEC 850 Series kit.

Are the cameras weatherproof?

Yes. The cameras have metal housings rated IP66, so they can go outdoors under eaves or on walls. The recorder is for indoor use.

What warranty does the kit have?

Three years. InFront Technologies handles warranty and technical support in Australia on 1300 736 970.

Supported by InFront Technologies.

Help choosing a drive size, more cameras or cable lengths: call 1300 736 970 or email [email protected].

Installation and safety

Power. The recorder runs from its 48 V plug-in supply and powers the cameras over PoE. There is no mains wiring in the kit. A new power point needs a licensed electrician.

Cabling. Cable run inside walls or ceilings is customer cabling under AS/CA S009 and needs an ACMA-registered cabler.

Privacy and audio. Recording people and conversations is covered by state and territory surveillance laws. Point cameras at your own property, put up signage, and check the rules before you switch on audio.

What it does not do. These are wired cameras: no Wi-Fi, no battery and no 4G, and no siren, strobe or two-way talk. The recorder must stay connected to your router for the app to work away from home.

Figures. From IVSEC's specifications for the 820 Series cameras and the NR008XB recorder.
