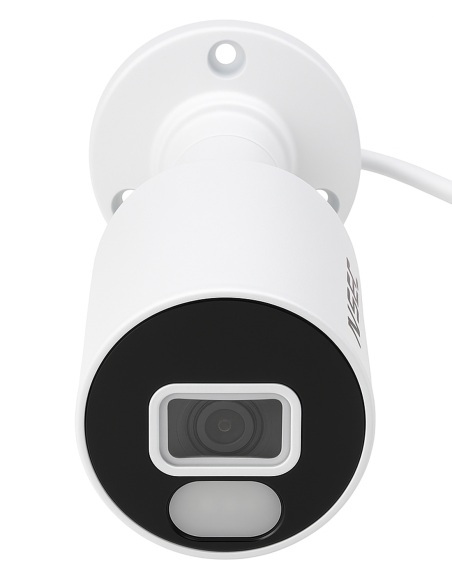

IVSEC 820B 4K bullet camera, front angle

IVSEC 820B camera cable tail, network and 12 V DC

IVSEC NVR 9000 16-channel recorder, front

IVSEC NVR 9000 recorder, rear with sixteen PoE+ ports

1 / 6

IVSEC 4K 8MP Smart IP 4TB 16CH 12x820B Bullet Cameras UHD NVR CCTV Security System (16x12)

Name: IVSEC 4K 8MP Smart IP 4TB 16CH 12x820B Bullet Cameras UHD NVR CCTV Security System (16x12)
Brand: IVSEC
SKU: IVK16L-82012B
Price: 2148 AUD
Availability: InStock

SKU IVK16L-82012B-4T In Stock - Ready to Ship

$2,148.00 inc GST

IVSEC IVK16L-82012B: twelve 820B bullet cameras with white light colour night vision and smart detection, plus a 16-channel PoE NVR 9000 recorder with 4TB.

✓12 × 820B bullet, 4K, 110° view
✓Colour night vision with white light, IR, up to 25 m
✓Smart human and vehicle detection
✓Built-in microphone, IP66 metal housing
✓16-channel PoE recorder, 4TB drive (up to 32TB)
✓Free IVSEC X app, 3-year warranty

IVSEC IVK16L-82012B kit: twelve 820B bullet cameras with the white lights on, above the IVSEC NVR 9000 recorder

IVSEC · 820 Series · Smart IP

Twelve 4K cameras, colour day and night.
One 16-channel recorder with 4TB.

A complete 4K wired CCTV kit: twelve 820B bullet cameras with a white light for colour night vision, smart human and vehicle detection and a microphone, plus an IVSEC NVR 9000 PoE recorder and a 4TB drive.

In one sentence: the IVSEC IVK16L-82012B is a wired 4K CCTV kit with twelve 820B bullet cameras, white light colour night vision to 25 m, smart human and vehicle detection, and a 16-channel PoE NVR 9000 recorder with a 4TB drive.

Everything for twelve cameras is in the box.

The cameras run on one network cable each, back to the recorder, which powers them. Four of the sixteen PoE ports are left free for more cameras later.

In the box

12 × IVSEC 820B 4K bullet cameras
IVSEC NVR 9000 16-channel PoE recorder
4TB surveillance hard drive for the recorder
6 × 20 m and 6 × 30 m Cat5e cables
48 V recorder power supply and USB mouse
Camera mounting screws

You also need

A TV or monitor with HDMI or VGA, for setup at the recorder
A network cable from the recorder to your router, for the phone app
Longer or extra cable if a camera is more than 30 m away

See faces and number plates in colour at night.

When it gets dark the white light switches on with motion, so the footage stays in colour instead of grey infrared. Smart detection sorts people and vehicles from leaves and shadows, so the alerts on your phone are worth opening.

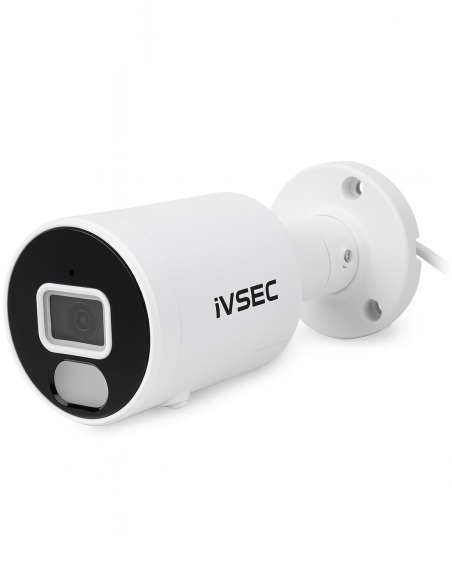

IVSEC 820B 4K bullet camera switching its white light on for colour night vision

The cameras

4K bullets with a white light.

Each 820B has a 2.8 mm lens with a 110° view, wide enough to cover a yard or a room from the corner. The white light under the lens gives colour footage at night up to 25 m, or switch to infrared.

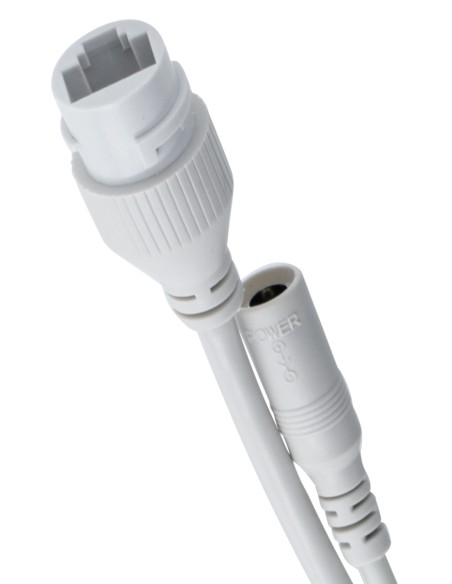

IVSEC 820 Series camera cable tail with network connector and 12 V DC socket

One cable

Power and video on one run.

The camera's tail has a weatherproof network connector for PoE from the recorder, plus a 12 V DC socket if you ever need to power it separately.

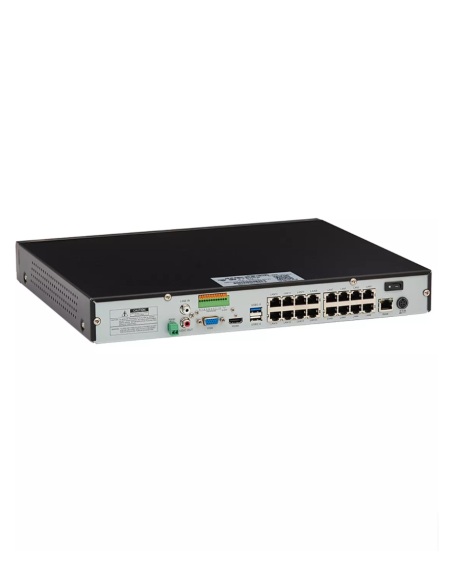

IVSEC NVR 9000 recorder from the rear, with sixteen PoE+ ports, HDMI, VGA, USB and network

The recorder

Sixteen PoE+ ports, two drive bays.

The NVR 9000 powers and records up to sixteen cameras at up to 12MP, with 160 Mbps of incoming bandwidth. It shows on a TV over HDMI or VGA up to 4K, and its two SATA bays take up to 16TB each.

How it goes in

From box to phone alerts.

Set up the recorder

Fit the 4TB drive in the recorder's bay if it is not already installed, then connect a TV with an HDMI cable and your router with a network cable, and power it up.

Run one cable per camera

Cat5e from each camera back to a PoE port on the recorder. The kit includes 6 × 20 m and 6 × 30 m cables; runs can go up to 100 m.

Mount and aim the cameras

Fix each camera with the supplied screws and angle it. The cameras are found automatically when they are plugged in.

Finish in the wizard and app

Set the password in the startup wizard, scan the recorder's QR code with the free IVSEC X app, then set smart detection and the white light mode.

At a glance

IVK16L-82012B

Show specs

Cameras

12 × 820B bullet, white

Recorder

IVSEC NVR 9000, 16 channels, 16 × PoE ports

Resolution

4K (3840 × 2160) output from a 5MP sensor, up to 15 fps

Lens and view

2.8 mm fixed, 110° wide angle

Night vision

Colour with the white light, or infrared, up to 25 m

Smart detection

Human and vehicle, line crossing, perimeter intrusion, motion

Audio

Built-in microphone (records sound)

Camera storage

microSD up to 256 GB in each camera

Camera power

PoE from the recorder, or 12 V DC

Camera housing

Metal, IP66, indoor or outdoor

Recorder storage

4TB drive supplied, 2 SATA bays, up to 16TB each (32TB)

Recording

Up to 12MP per channel, 160 Mbps incoming

Compression

H.265+, H.265, H.264+, H.264 (recorder)

Display

HDMI and VGA, up to 4K

Interoperability

ONVIF Profile S, G, T

Software

IVSEC X app (iOS and Android), PC client, web browser

Cables included

6 × 20 m and 6 × 30 m Cat5e

Warranty

3 years

Pair it with

Good to add

Storage

A bigger drive

Choose a 6TB to 14TB drive option above instead of the 4TB, for longer recording before the oldest footage is overwritten.

More cameras

IVSEC 820B or 820D

Four PoE ports are free. Add more 820B bullets or 820D turret domes and they appear on the recorder when plugged in.

Deterrence

The IVSEC 850 Series

Want a siren, red and blue strobes and two-way talk? The 850 Series kits add them, with AI detection.

Security

A lockable cabinet

Keep the recorder out of reach so a thief can't take the footage with it. Ask us about the 24SECCAB security cabinet.

Where it is used

Where a twelve-camera system fits.

Warehouses and factories

Loading docks, roller doors, the yard and the gate, with line crossing alerts after hours.

Retail and hospitality

Every entry, the floor, the counter and the back lane on one recorder.

Schools and clubs

Gates, car parks, walkways and the canteen, viewed from the office PC or the app.

Strata and apartment blocks

Car park, lifts, bin rooms, letterboxes and entries on one system.

Large homes and acreage

The full boundary, sheds, driveway and gates, in colour at night.

Offices and medical centres

Entries, reception, car parks and the side doors, with alerts for people and vehicles.

IVK16L-82012B or IVK16L-82012D

	IVK16L-82012B (this kit)	IVK16L-82012D
Cameras	12 × 820B bullet	12 × 820D turret dome
Resolution and view	4K, 110°	4K, 110°
Night vision	Colour or IR, up to 25 m	Colour or IR, up to 25 m
Recorder and drive	NVR 9000, 4TB	NVR 9000, 4TB
PoE ports	4 of 16 free	4 of 16 free

The same 820 Series camera in two housings. Bullets stand out and suit walls and long views; turret domes sit lower profile under eaves and ceilings.

Common questions

What is in the IVK16L-82012B kit?

In the box: 12 × IVSEC 820B 4K bullet cameras; IVSEC NVR 9000 16-channel PoE recorder; 4TB surveillance hard drive for the recorder; 6 × 20 m and 6 × 30 m Cat5e cables; 48 V recorder power supply and USB mouse; camera mounting screws.

Can I add more cameras later?

Yes. The recorder has sixteen PoE ports and this kit uses twelve, so you can add four more IVSEC cameras such as the 820B, 820D or the 850 Series. ONVIF cameras from other brands also connect, though some features may not work on every model.

How long will the 4TB drive record?

It depends on how many cameras record, the bit rate and whether you record all the time or only on events. When the drive is full the oldest footage is overwritten. For longer recording, choose a 6TB to 14TB drive option. The recorder also has a second bay.

Do the cameras need a power point each?

No. Each camera is powered by the recorder through its network cable (PoE), so one Cat5e run per camera is all it needs.

Can I see colour at night?

Yes. The white light switches on so the cameras record in colour up to 25 m. You can set them to infrared instead, which records in black and white without a visible light.

Is it really 4K?

The cameras output 4K (3840 × 2160) video from a 5MP sensor at up to 15 fps. For a native 8MP sensor at 20 fps, look at the IVSEC 850 Series.

Do the cameras record sound?

Yes. Each camera has a built-in microphone, so the recording includes audio. They have no speaker, so you can't talk back through them.

Do I have to register an account to use the app?

No. The free IVSEC X app connects by scanning the recorder's QR code and does not need you to register an email address.

What smart detection does it have?

Human and vehicle detection, line crossing and perimeter intrusion, plus standard motion detection, so you can get alerts for people and cars instead of every moving shadow.

Does it have a siren or strobe lights?

No. The 820 Series uses a white light. For a siren, red and blue strobes and two-way talk, choose an IVSEC 850 Series kit.

Are the cameras weatherproof?

Yes. The cameras have metal housings rated IP66, so they can go outdoors under eaves or on walls. The recorder is for indoor use.

What warranty does the kit have?

Three years. InFront Technologies handles warranty and technical support in Australia on 1300 736 970.

Supported by InFront Technologies.

Help choosing a drive size, more cameras or cable lengths: call 1300 736 970 or email [email protected].

Installation and safety

Power. The recorder runs from its 48 V plug-in supply and powers the cameras over PoE. There is no mains wiring in the kit. A new power point needs a licensed electrician.

Cabling. Cable run inside walls or ceilings is customer cabling under AS/CA S009 and needs an ACMA-registered cabler.

Privacy and audio. Recording people and conversations is covered by state and territory surveillance laws. Point cameras at your own property, put up signage, and check the rules before you switch on audio.

What it does not do. These are wired cameras: no Wi-Fi, no battery and no 4G, and no siren, strobe or two-way talk. The recorder must stay connected to your router for the app to work away from home.

Figures. From IVSEC's specifications for the 820 Series cameras and the NVR 9000 recorder.
