Watchguard Monitored Multi-Voltage Mortise Electric Door Strike - ACLOC105

SKU ACLOC105 In Stock - Ready to Ship
$144.50 inc GST

Watchguard ACLOC105: a monitored stainless steel mortise door strike that runs on 12 or 24 VDC and switches between fail-secure and fail-safe.

  • ✓12 VDC at 280 mA or 24 VDC at 140 mA
  • ✓Fail-secure by default, convertible to fail-safe
  • ✓Lock, door and keeper sensors (NO, NC, COM)
  • ✓12.7 mm door latch, 10.8 mm keeper depth
  • ✓Stainless faceplate 175 × 29 × 3 mm
  • ✓Varistors, screws and template included



Description

Watchguard ACLOC105 monitored mortise electric door strike, black body with the stainless keeper
Watchguard · VIP Vision access control · Door strike

12 or 24 VDC. Three sensors.
A monitored mortise strike you can set either way.

The Watchguard ACLOC105 is a mortise electric door strike for access control. It runs on 12 or 24 VDC, switches between fail-secure and fail-safe, and reports the lock, door and keeper state to your controller.

In one sentence: the Watchguard ACLOC105 is a stainless steel mortise electric door strike that runs on 12 VDC at 280 mA or 24 VDC at 140 mA, converts between fail-secure and fail-safe, and has lock, door and keeper sensor outputs.

Door strike only. The reader, power supply and cable are separate.

This listing is one ACLOC105 strike. It needs something to switch it (a reader, controller or intercom relay), a 12 or 24 VDC supply and cable to the door frame.

In the box
  • ACLOC105 door strike
  • 2 strike plates
  • 6 screws
  • 2 varistors
  • Installation manual
  • Mounting template
You also need
  • An access control reader, controller or intercom with a lock relay
  • A 12 VDC or 24 VDC supply able to deliver 280 mA (12 V) or 140 mA (24 V) for the strike
  • Multi-core cable from the controller to the frame, with spare cores for the sensors
  • An exit button if people leave through the door

Know when the door is really locked.

Most strikes only release. The ACLOC105 also tells the system what happened: a lock sensor reports whether the strike is locked or released, a door sensor reports whether the door is open, and a keeper sensor reports the keeper's position. Each is a dry contact with NO, NC and COM wires, rated 1 A at up to 30 V AC/DC.

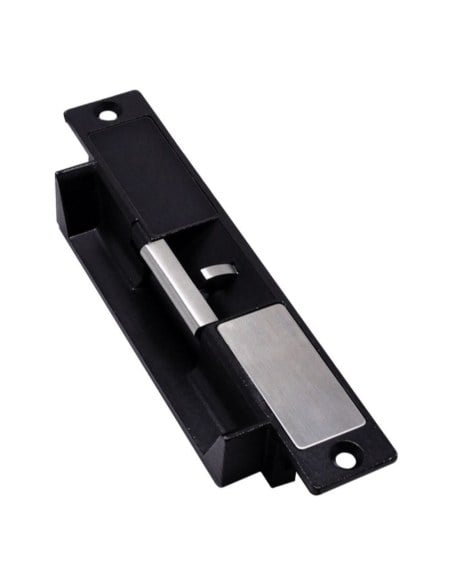

Close-up of the ACLOC105 stainless keeper and latch sensor inside the black strike body

Keeper

12.7 mm latch, 10.8 mm keeper depth.

The stainless keeper swings open when the strike releases, so the door's latch can pass. Watchguard rates it for a 12.7 mm door latch with a 10.8 mm keeper depth. Fail-secure is the default; change it to fail-safe by turning the set plate inside the strike.

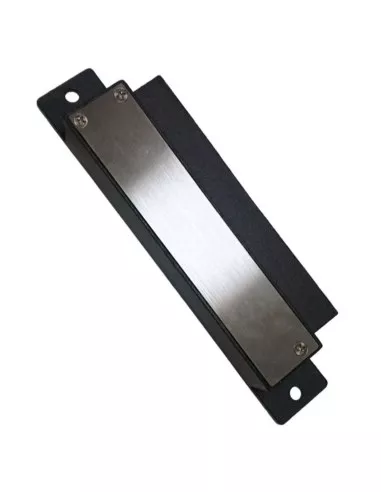

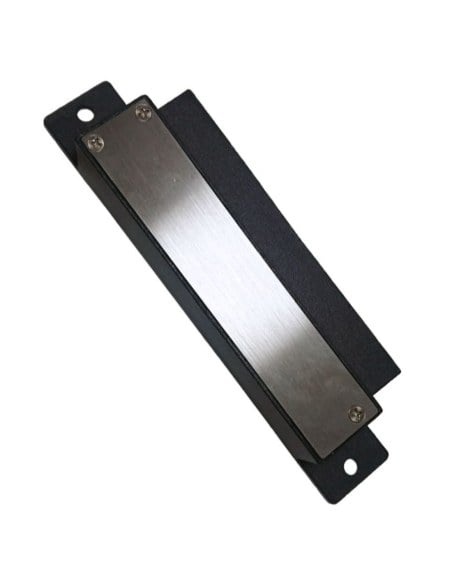

Rear view of the ACLOC105 strike body with its screwed stainless back plate and the black faceplate tabs

Rear view

175 × 29 mm faceplate, 27 mm deep.

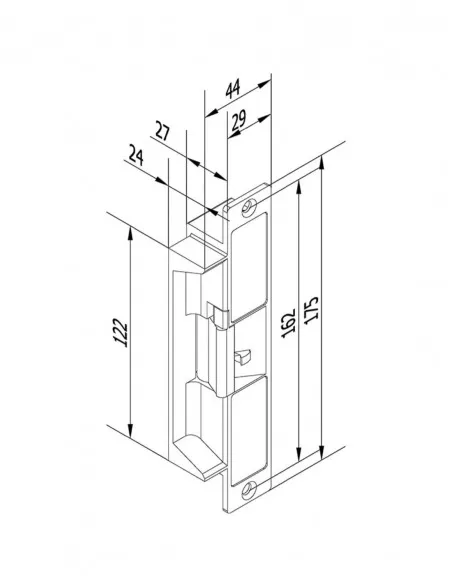

The strike body sits in a pocket cut into the frame and the 175 × 29 × 3 mm faceplate screws over it. Overall size is 175 × 29 × 27 mm. The power and sensor wires leave from the body.

How it goes in

From frame cut to first swipe.

01

Cut the frame

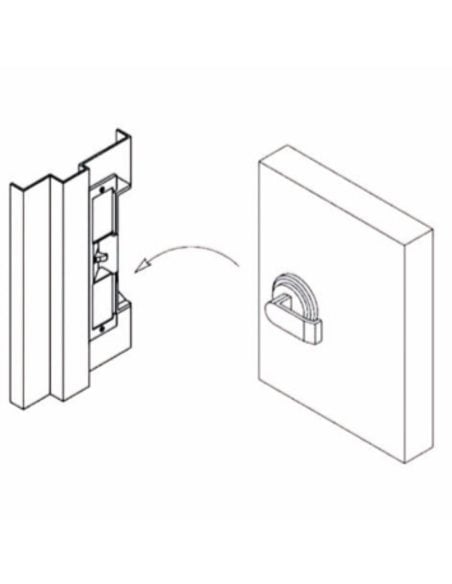

Use the mounting template and Watchguard's drawing to cut the pocket and fixing holes in the frame, lined up with the door's latch.

02

Set the mode

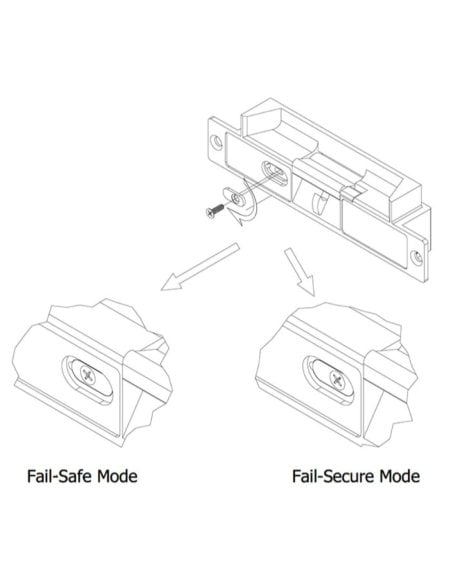

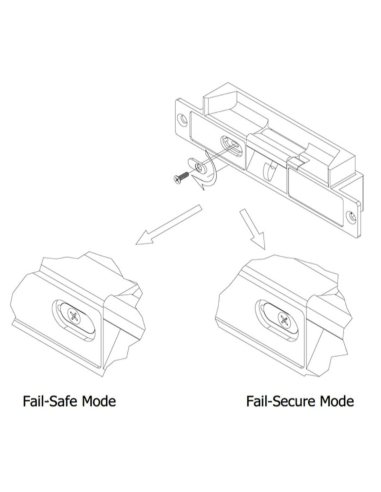

It ships fail-secure. For fail-safe, loosen the screw, turn the set plate 180°, refit it and fit the cover plate with its double-sided tape.

03

Wire power and sensors

Wire the four power leads for 12 V or 24 V as the manual shows, fit the varistor across the input, then run the lock, door and keeper contacts to the controller.

04

Fix and test

Screw the strike in, then test with the reader or exit button: the door should open on release and the sensors should report locked, unlocked and door open.

Pair it with

What switches and powers it

Reader

Watchguard ACRDR103 keypad

A standalone card and PIN reader made to drive electric locks directly, for fail-safe or fail-secure locks. It runs on 12 VDC.

Intercom

Akuvox E12S video doorbell

Its lock relay switches the strike's power supply, so visitors can be let in from the app or a card at the door.

Exit

Watchguard ACDSW100 exit button

A heavy duty release button with NO, NC and COM contacts for the inside of the door.

Power

PS5000SM 12 VDC 5 A supply

A 12 VDC switched-mode supply with a 2.1 mm plug, with headroom for a reader plus the strike's 280 mA.

Where it is used

Where it is used

Office entries

Card or PIN entry on a staff door, with the lock and door state reported back.

Shop back doors

Fail-secure, so the door stays locked if the power goes out.

Comms and plant rooms

Know when the door is left open or the strike didn't lock.

Apartment lobbies

Released from an intercom relay when a visitor is let in.

Clinics and schools

Staff-only areas on a reader, with an exit button inside.

Upgrades on 24 V sites

Runs on the 24 VDC lock supply many existing sites already have.

ACLOC105 or ACLOC102

ACLOC105 (this strike)ACLOC102
TypeMortise mountMortise mount
Power12 VDC at 280 mA or 24 VDC at 140 mA12 VDC at 260 mA
Lock modeFail-secure or fail-safeFail-secure or fail-safe
SensorsLock, door and keeperLock and door
Door latch12.7 mm12.7 mm
Keeper depth10.8 mm12.7 mm
Faceplate175 × 29 × 3 mm165 × 31 × 2 mm
Overall size175 × 29 × 27 mm165 × 31 × 40.2 mm
ConstructionStainless steelStainless steel

Both are on Watchguard's electronic door strikes datasheet (March 2023). Sensor details from each model's installation sheet.

Common questions

What voltage does the ACLOC105 need?

12 VDC or 24 VDC. It draws 280 mA at 12 V and 140 mA at 24 V. You choose by how the four power leads are joined, as shown in the manual.

Is it fail-secure or fail-safe?

Both. It ships fail-secure, which stays locked when the power is off. Turn the set plate inside the strike 180° to make it fail-safe, which releases when the power is off.

What does monitored mean here?

It has three sensor outputs: the lock sensor shows whether the strike is locked or released, the door sensor shows whether the door is open, and the keeper sensor reports the keeper. Your controller or alarm panel reads them.

What are the sensor contacts rated at?

1 A maximum at up to 30 V AC or DC. Each sensor has NO, NC and COM wires, so it suits normally open or normally closed inputs.

Can it run on AC?

Watchguard's current datasheet and installation sheet only give DC figures, 12 VDC or 24 VDC. An older catalogue also listed AC; run it on DC, or ask us first.

What comes in the box?

The strike, 2 strike plates, 6 screws, 2 varistors, the installation manual and a mounting template.

What is the varistor for?

It soaks up the voltage spike when the strike's coil switches off. Fit it across the power input wires as the manual shows.

What size is it?

The faceplate is 175 × 29 × 3 mm and the whole strike is 175 × 29 × 27 mm. It takes a 12.7 mm door latch with a 10.8 mm keeper depth.

Will it work with a standalone reader?

Yes. Readers such as the Watchguard ACRDR103 drive the lock output directly and work with fail-safe or fail-secure locks. Match the reader's lock output to the strike's 280 mA at 12 V.

Can an intercom open it?

Yes, through the intercom's lock relay. The relay switches the strike's power supply, as on the Akuvox E12S.

How is it different from the ACLOC102?

The ACLOC105 adds 24 VDC operation and a keeper sensor. The ACLOC102 runs on 12 VDC at 260 mA and has lock and door sensors only.

Who should install it?

A security or access control installer. Fitting access control for others needs a security licence in most states, and concealed cabling should be run by a registered cabler.

Supported by InFront Technologies.

Need help matching the strike to your reader, intercom or power supply? Call 1300 736 970 or email [email protected]. The datasheet is on the Attachments tab.

Installation and safety

Low voltage only. 12 VDC or 24 VDC. Never connect the strike or its sensor contacts to mains; the sensor contacts are rated 30 V, 1 A at most.

Exit doors. A fail-secure strike stays locked when power fails. On a door that is an exit path, check the building code and fire rules with a licensed installer before you choose the mode.

Licensing and cabling. Installing access control for others needs a security licence in most Australian states. Concealed cabling should be installed by a registered cabler.

What it does not do. It is not a reader or controller and does not include a power supply. Watchguard publishes no weather rating, so fit it to a sheltered door.

Figures. From Watchguard's electronic door strikes datasheet (March 2023) and the ACLOC105 technical data and instructions.

Construction
Stainless steel
Door Latch
12.7mm
Faceplate Dimensions
175 x 29 x 3mm
Keeper Depth
10.8 mm
Lock Configuration
Fail secure / Fail Safe (switchable)
Lock Status Sensor
Yes
Overall Dimensions
175 x 29 x 27mm
Power input
12/24VDC at 280/140mA
Type
Mortise Mount
