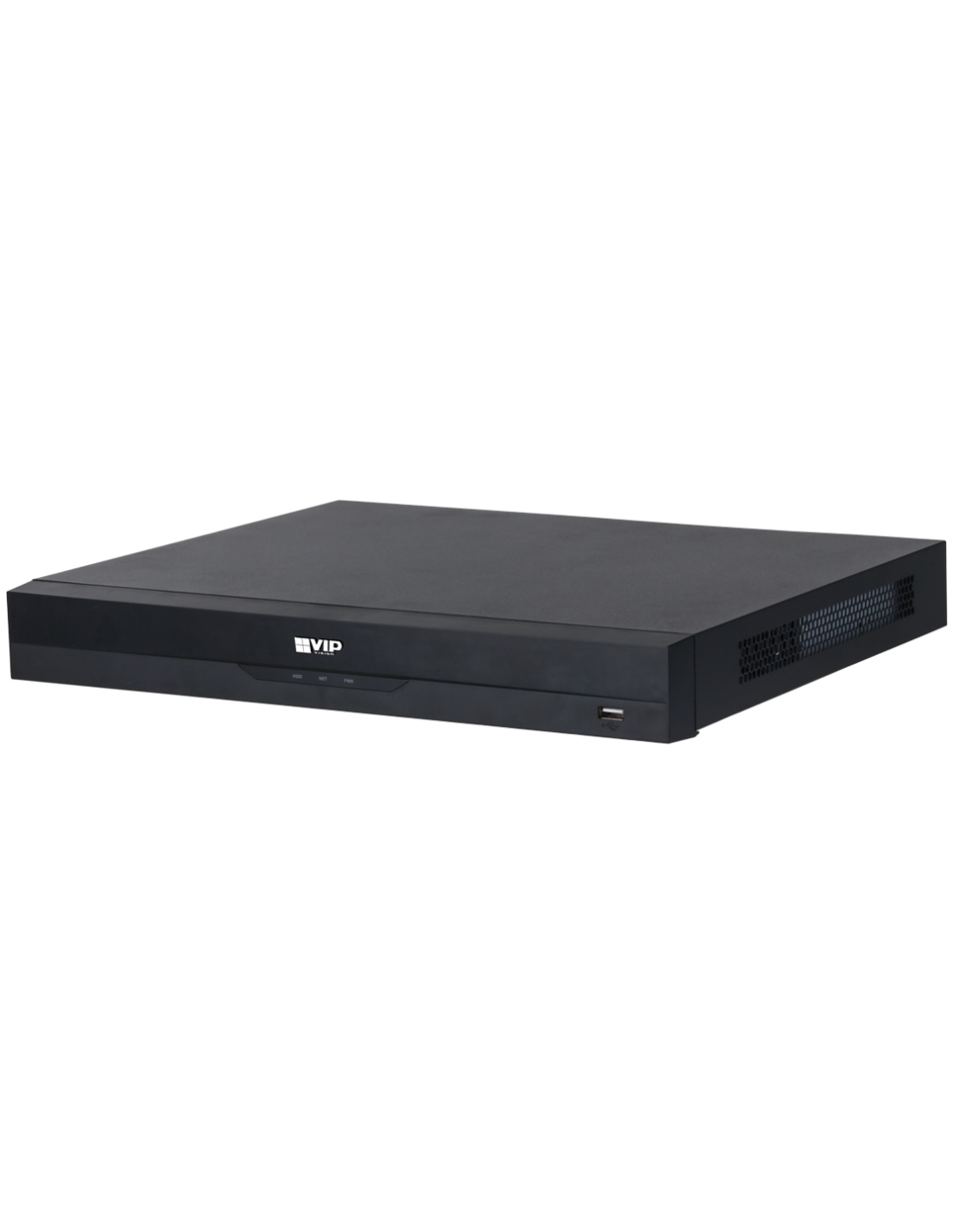

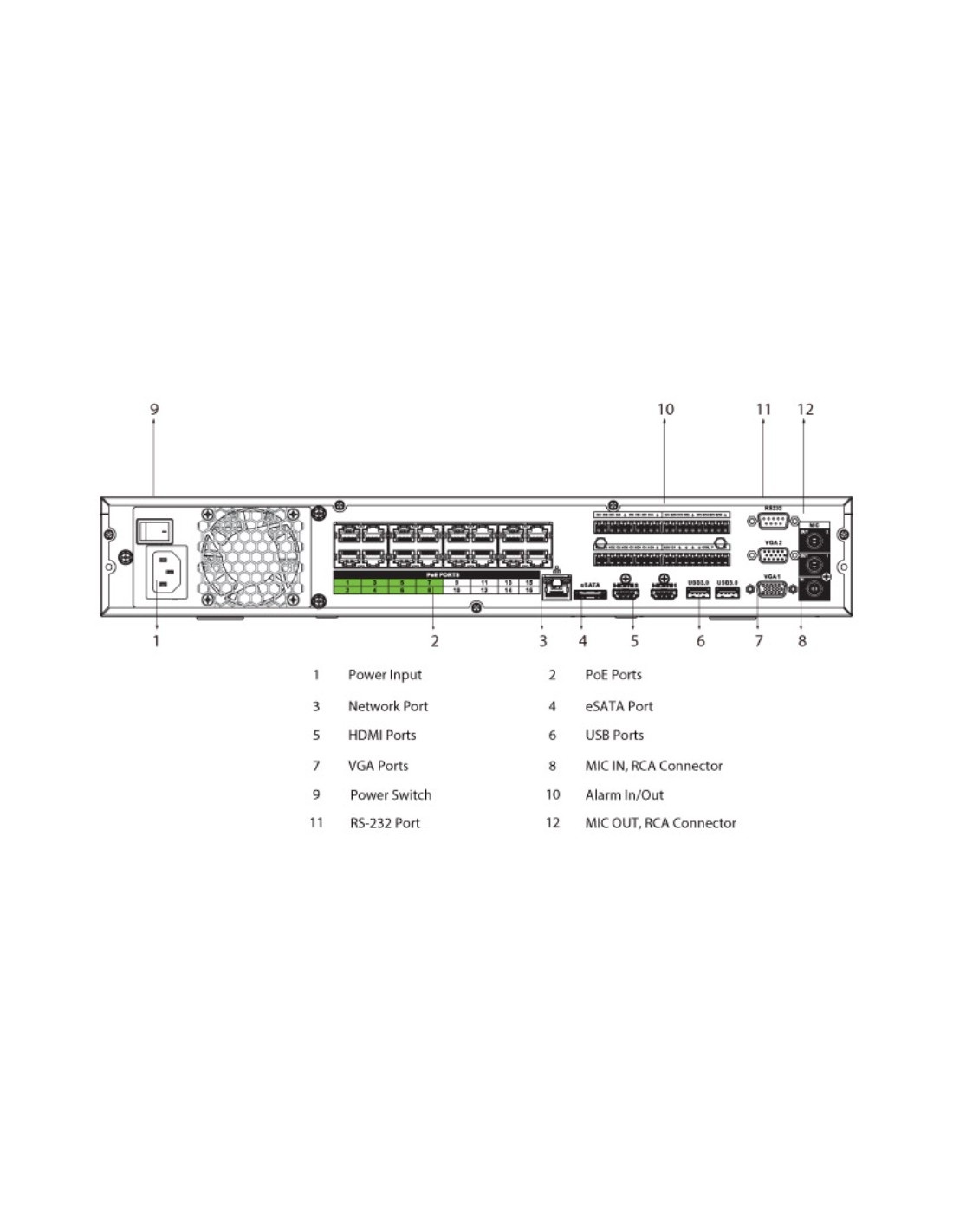

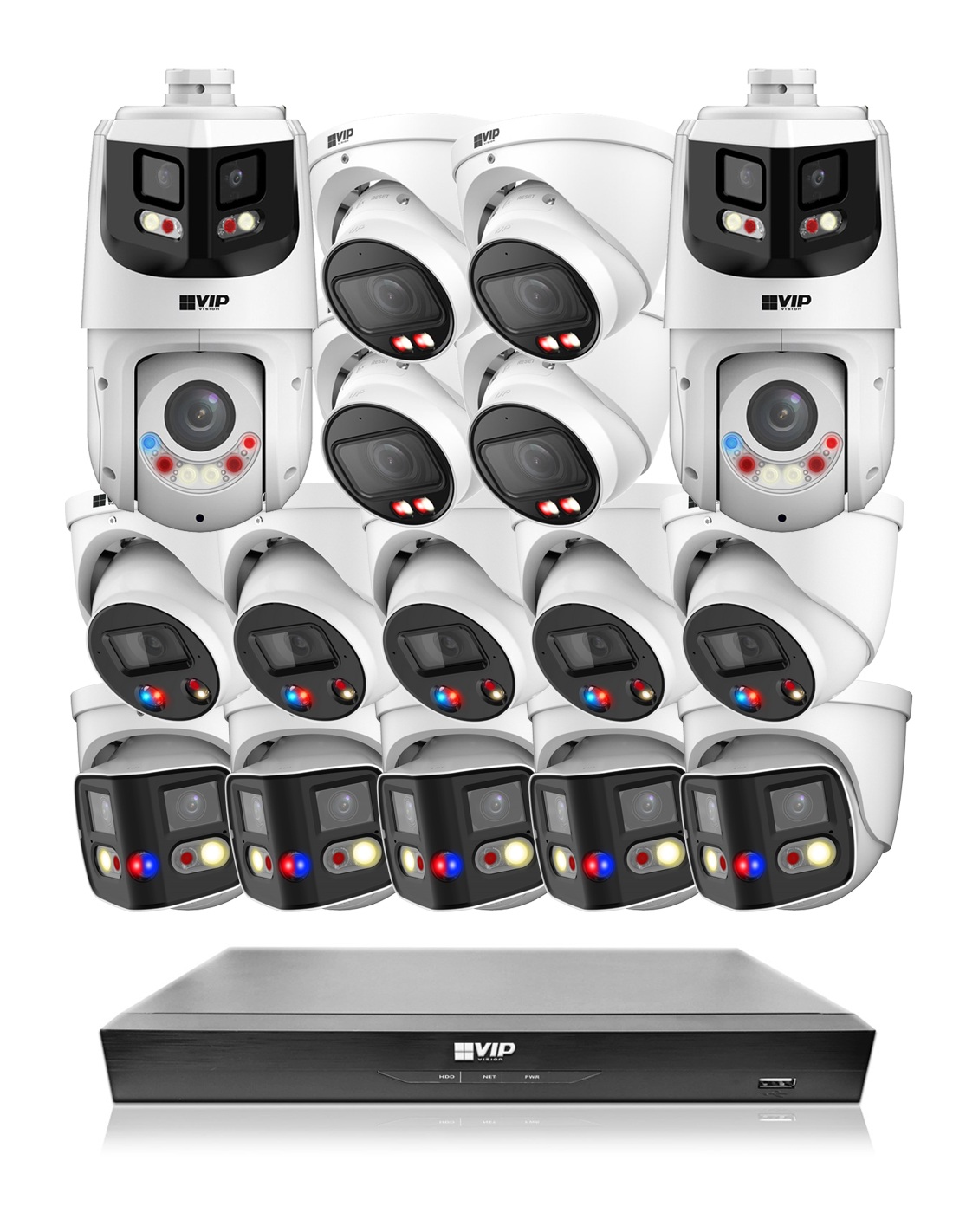

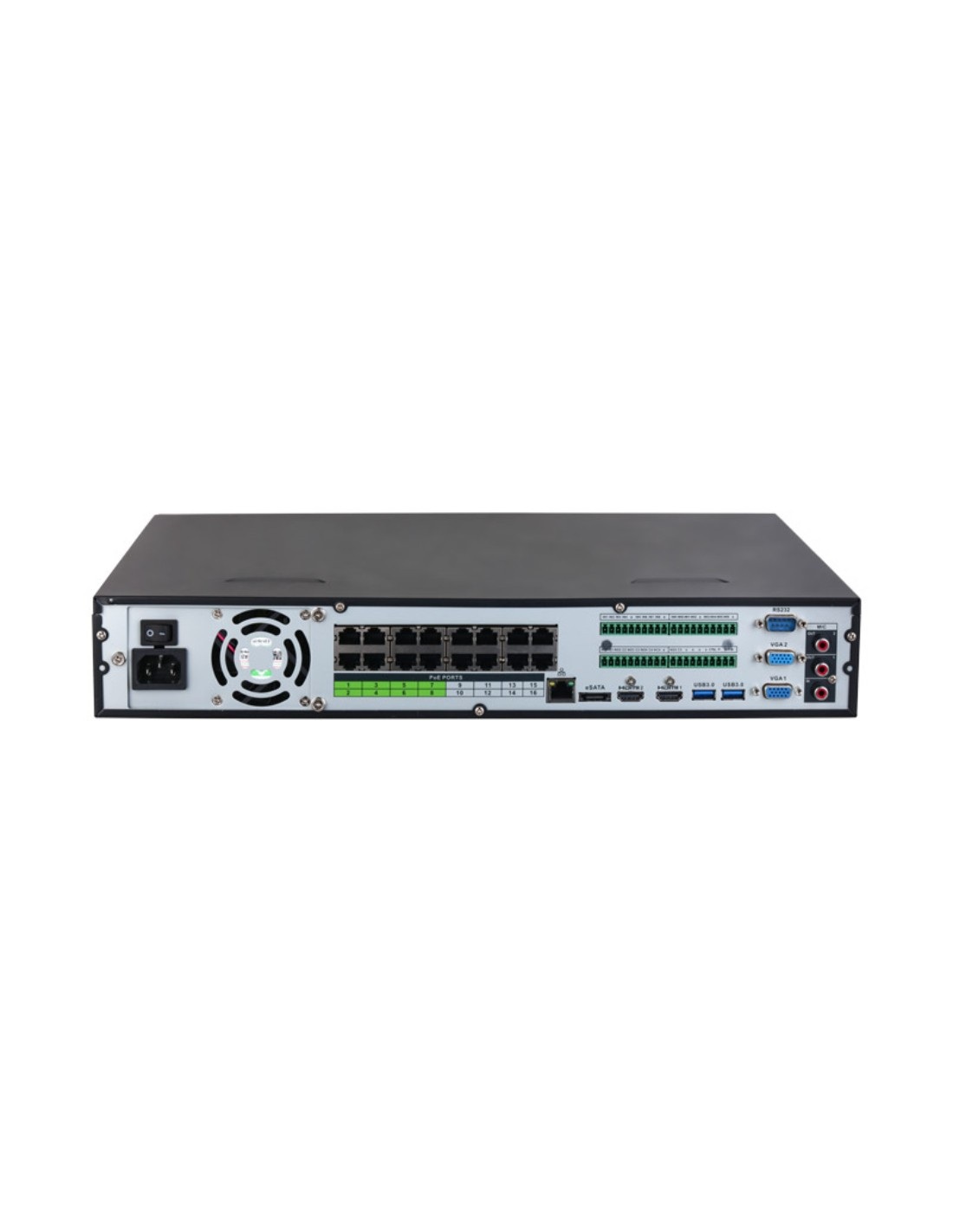

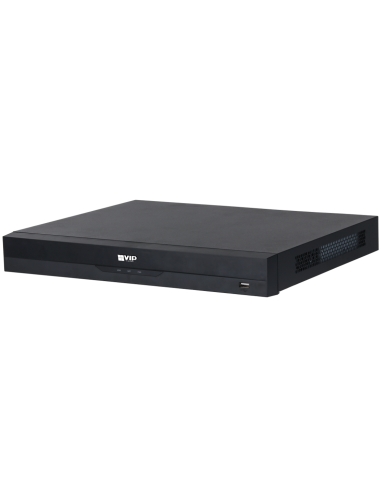

• 1 × VIP Vision Professional AI NVR32PRO-I3 32-channel recorder with 6TB surveillance drive fitted

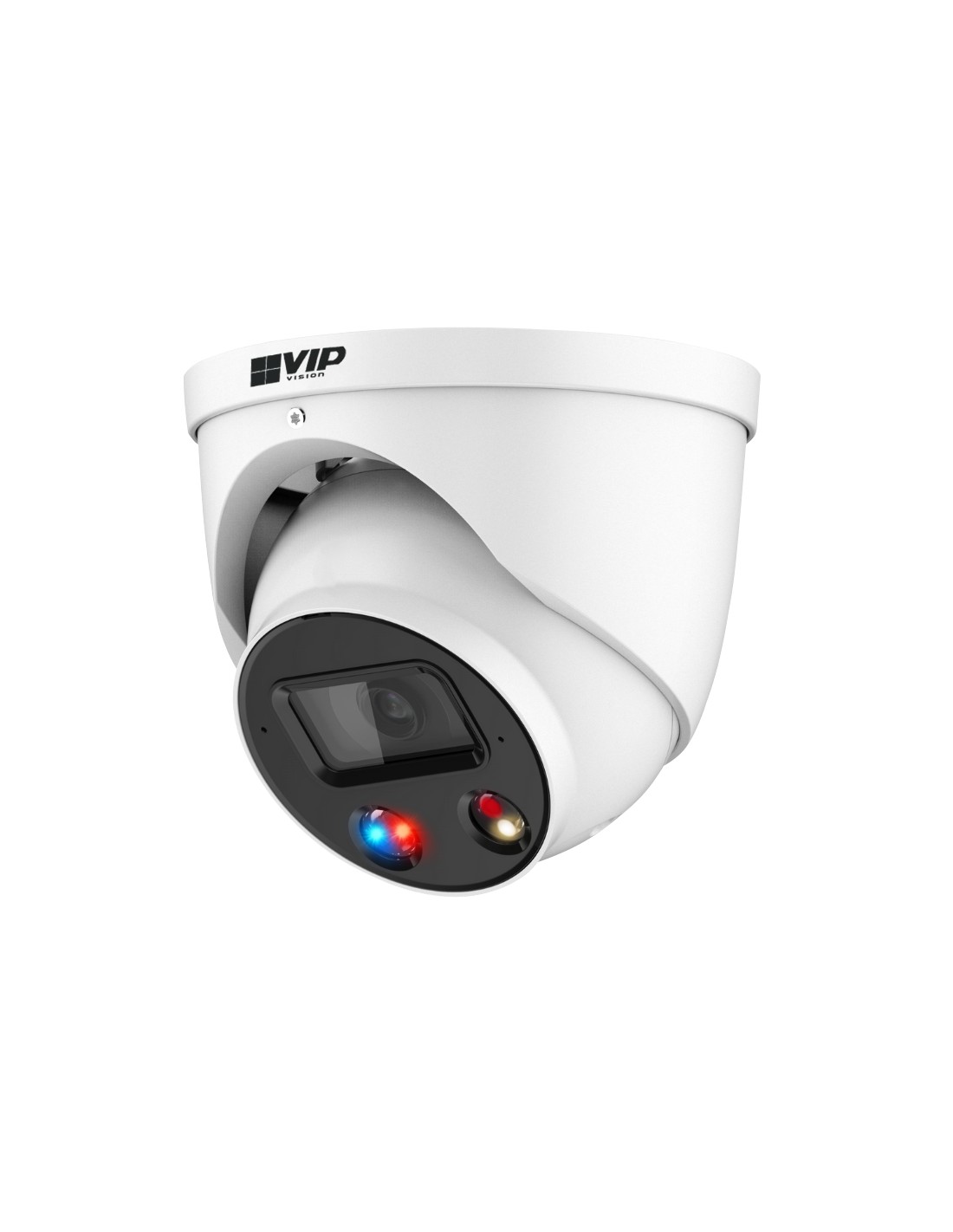

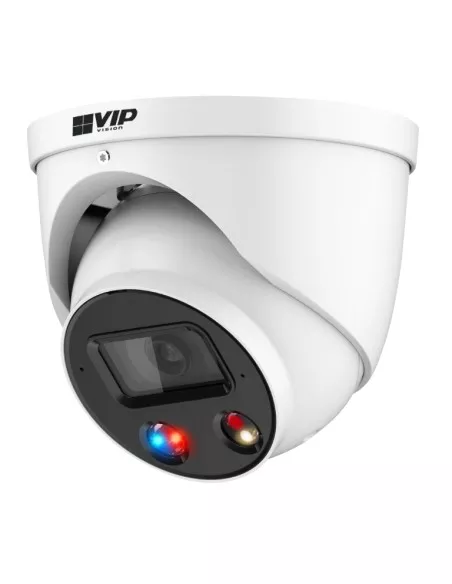

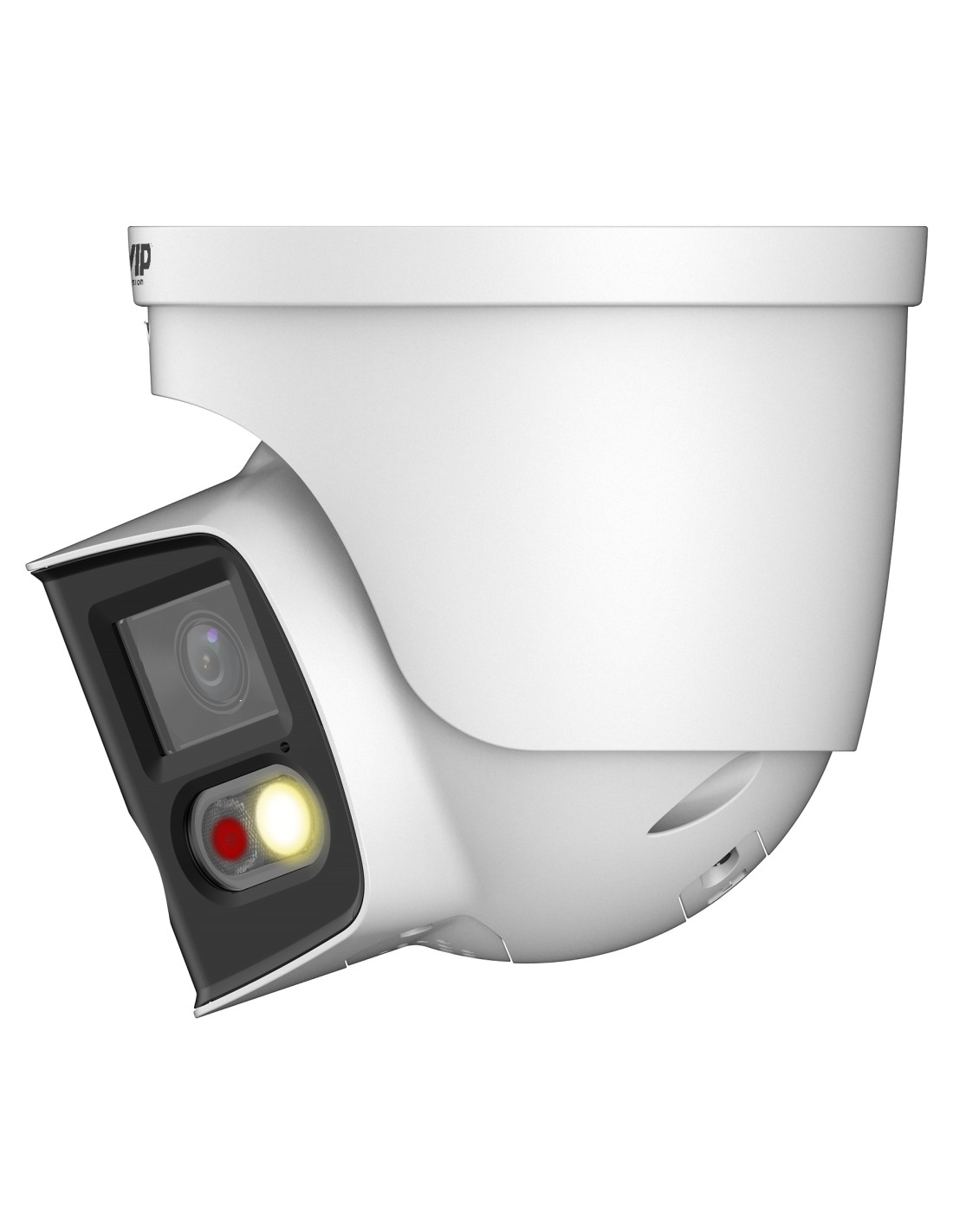

• 5 × VIP Vision VSIPP-8DG-ID4 8MP 4K deterrence turret

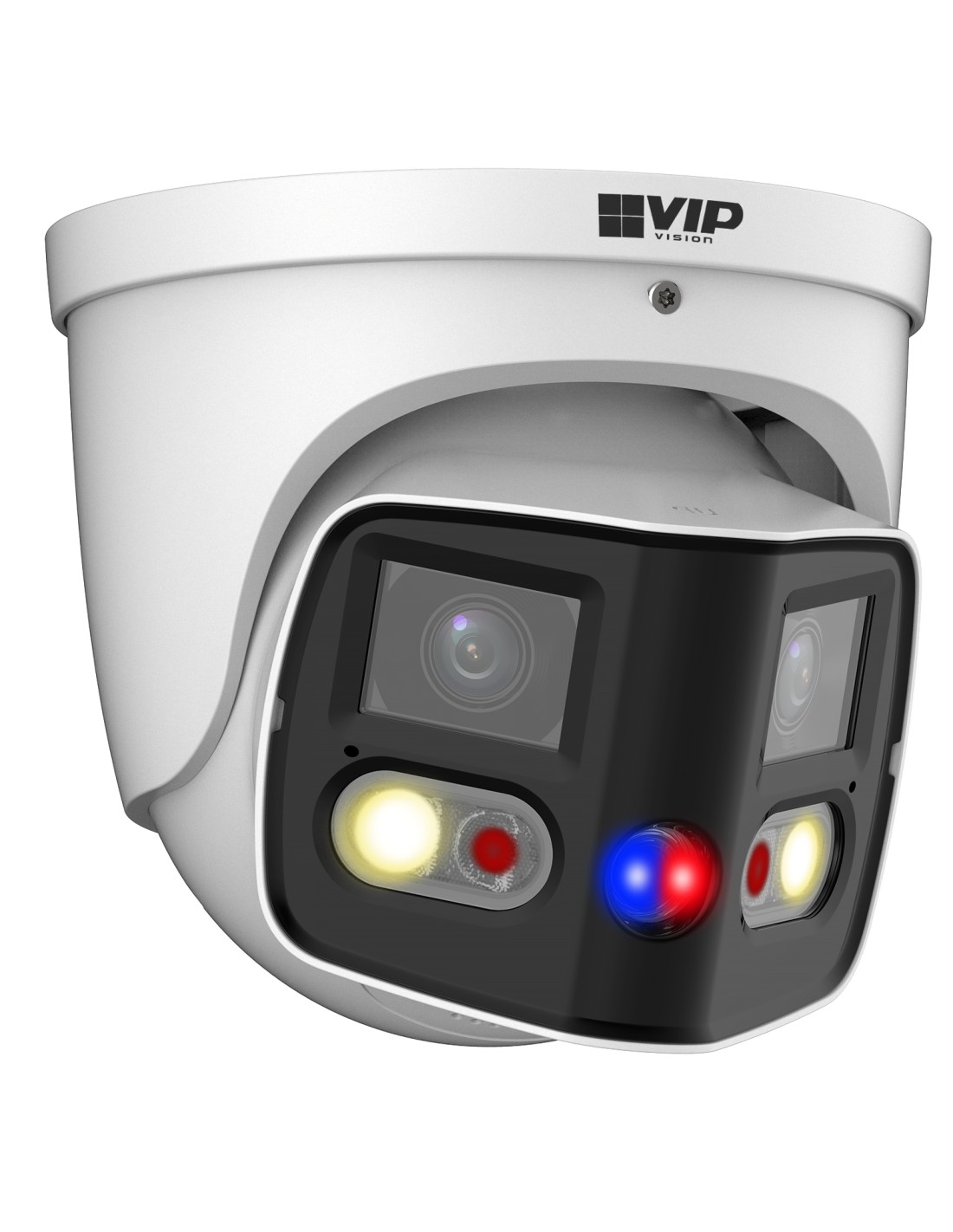

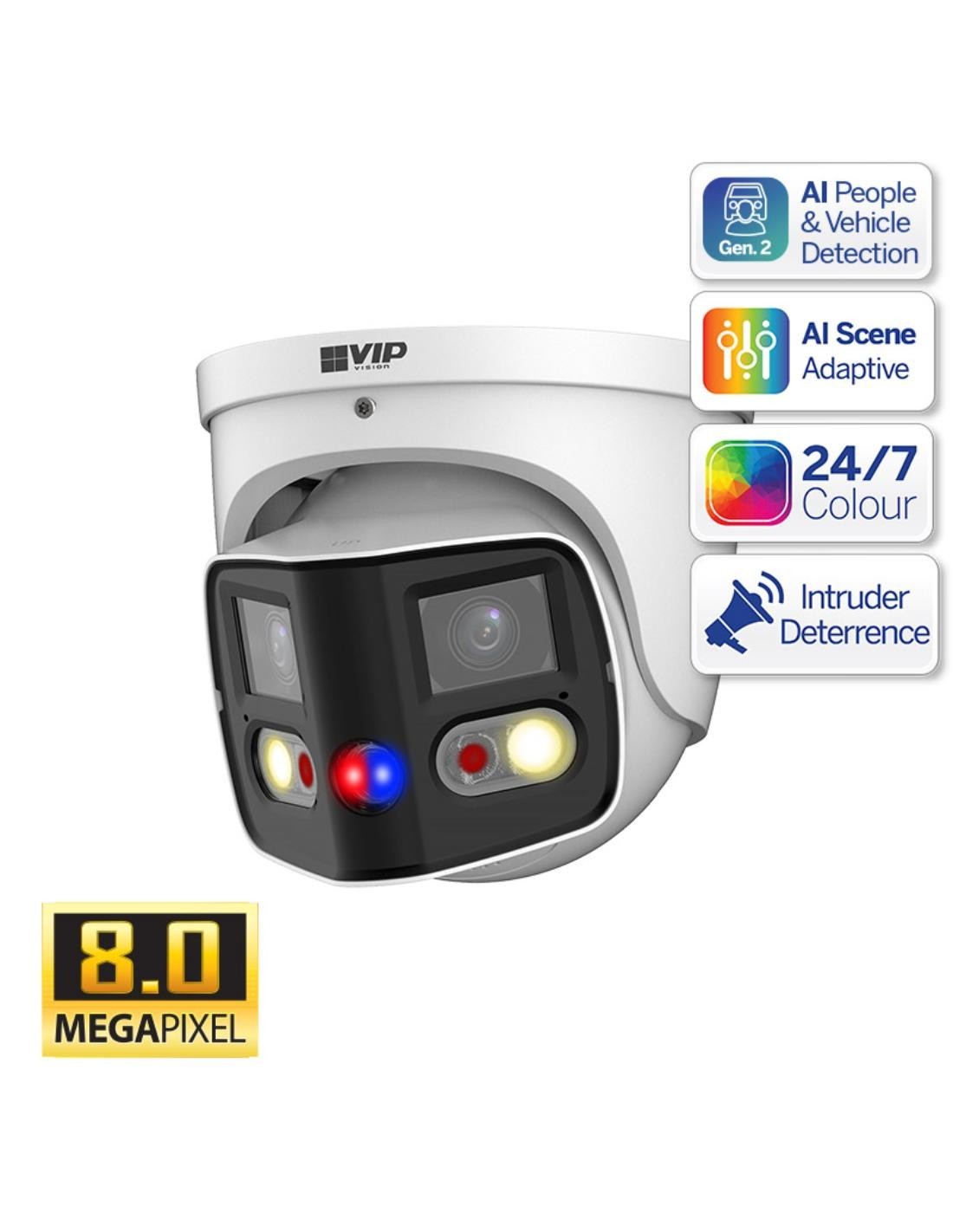

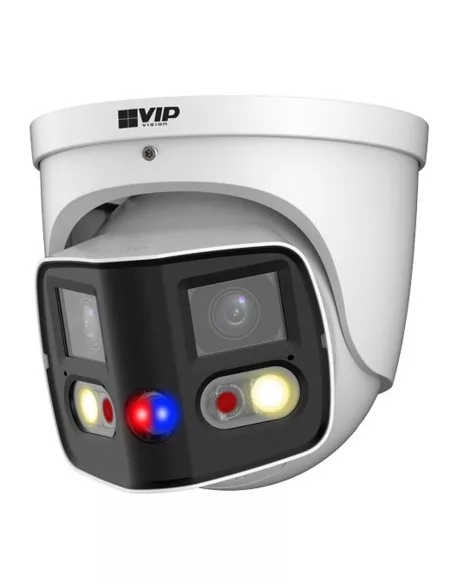

• 5 × VIP Vision VSIPP-8DD-ID3 8MP 180° dual-lens turret

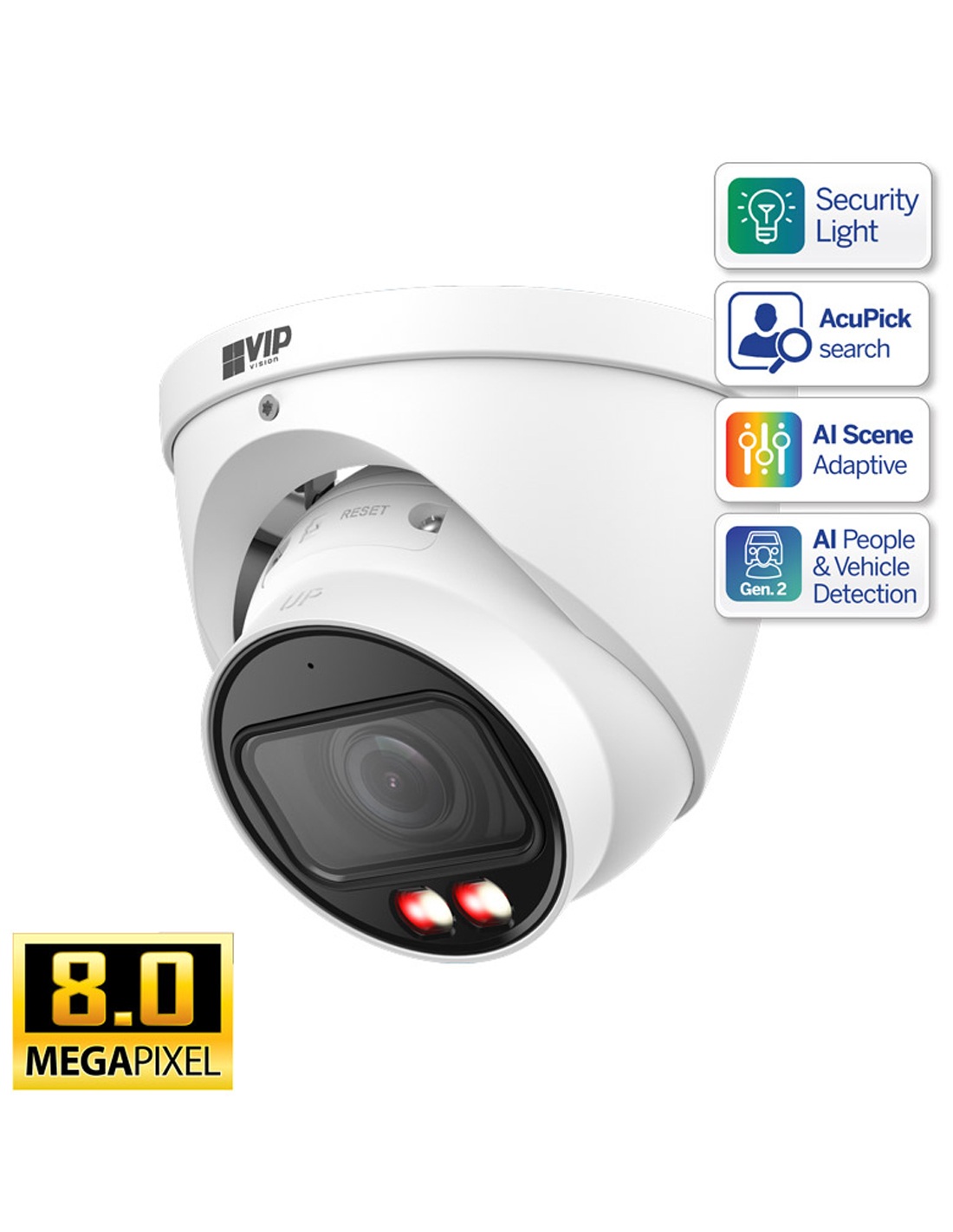

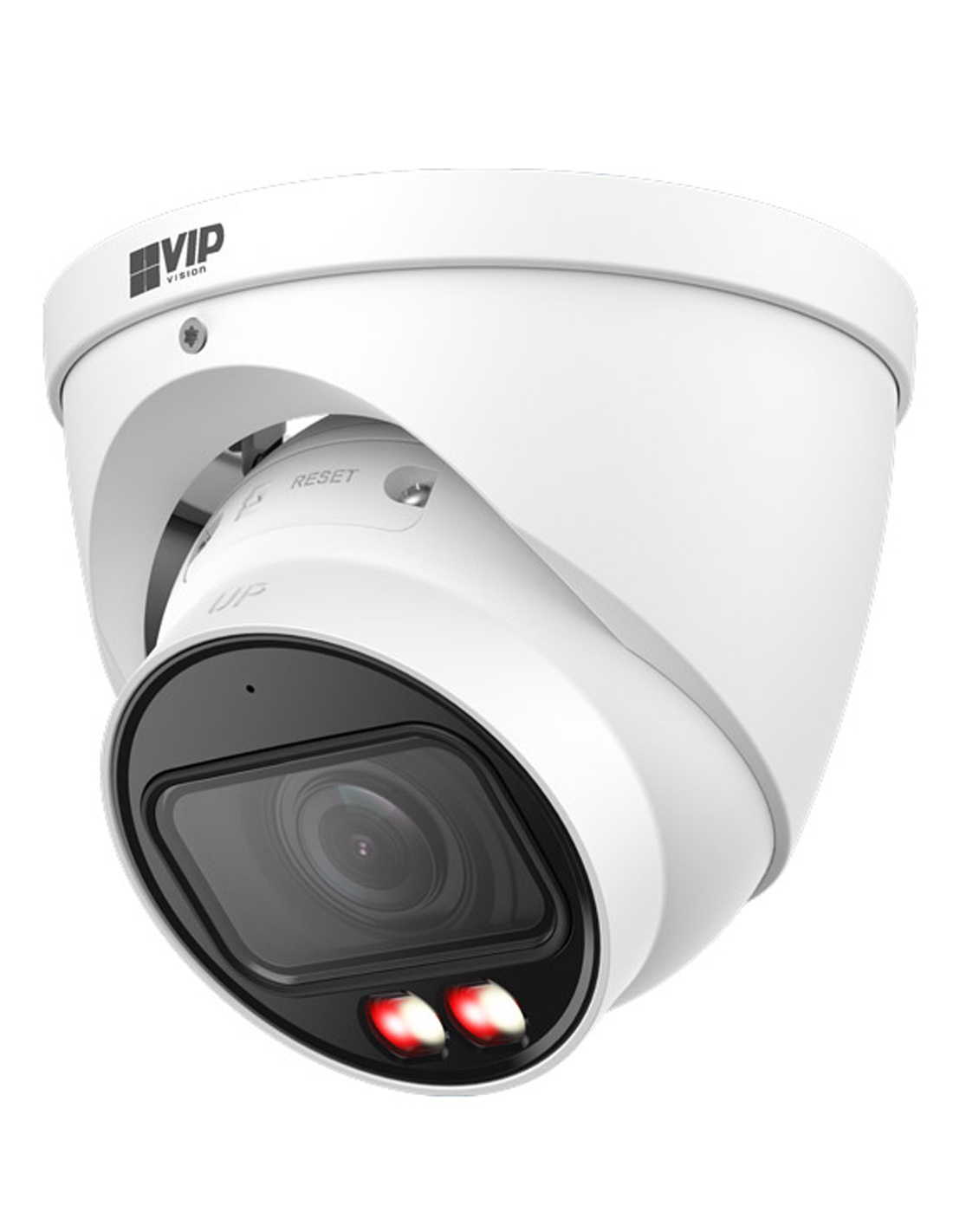

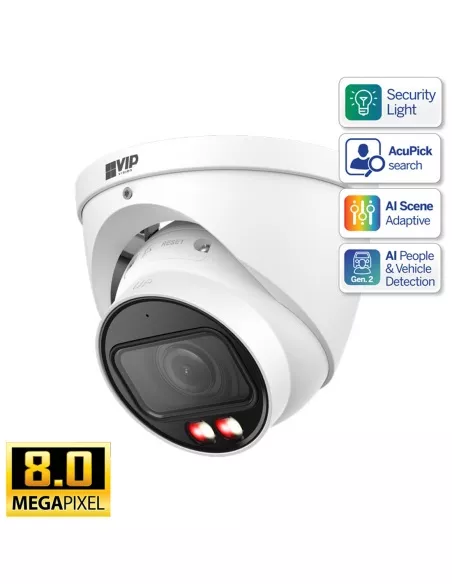

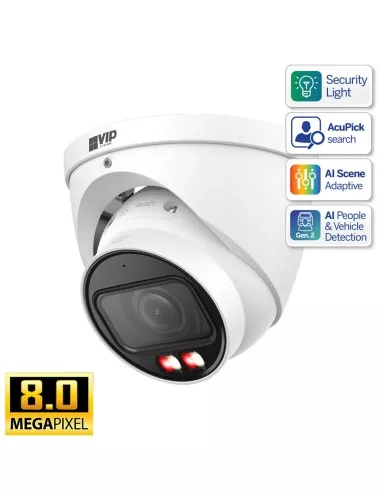

• 4 × VIP Vision VSIPP-8DIRMG-I3 8MP 4K motorised zoom turret

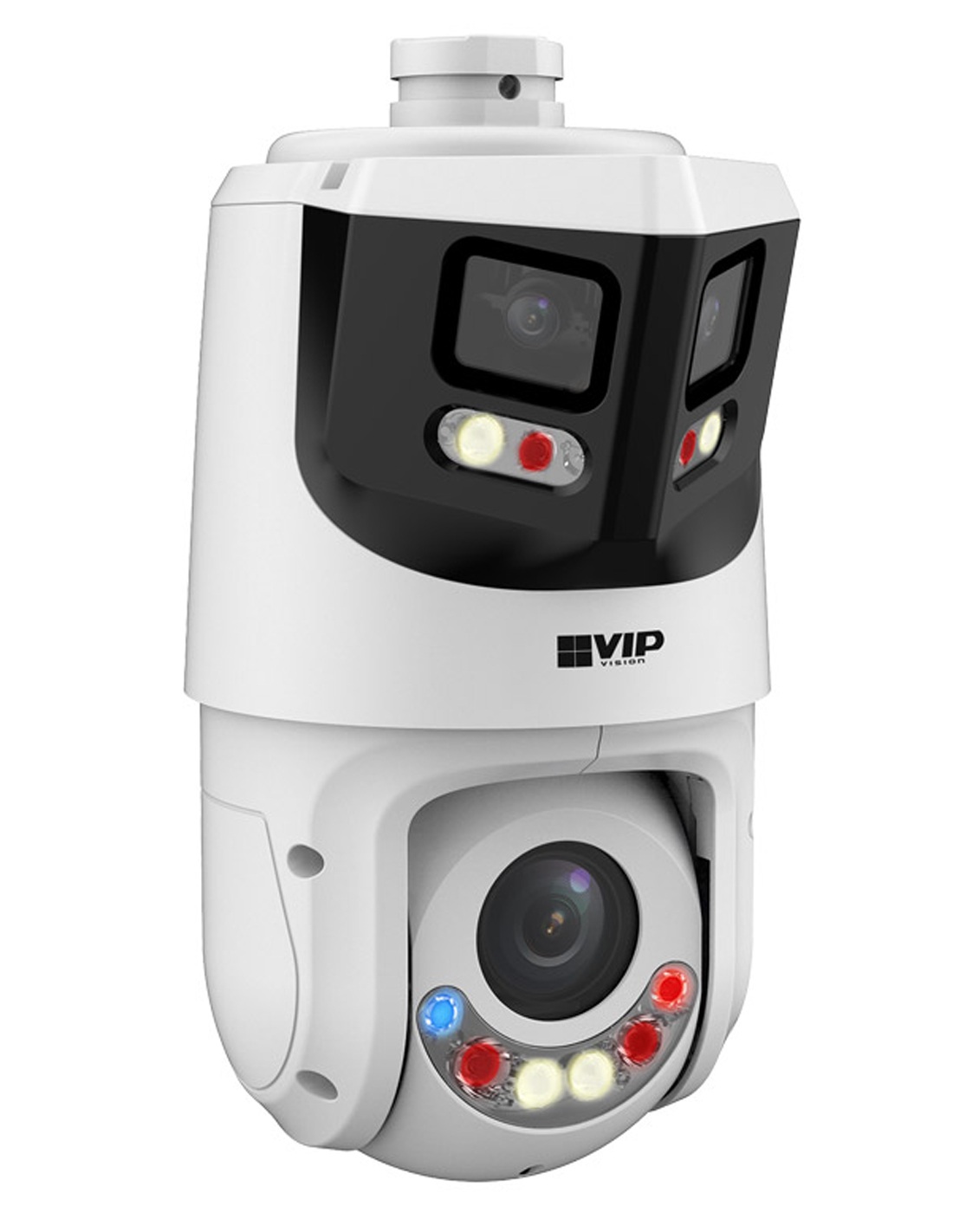

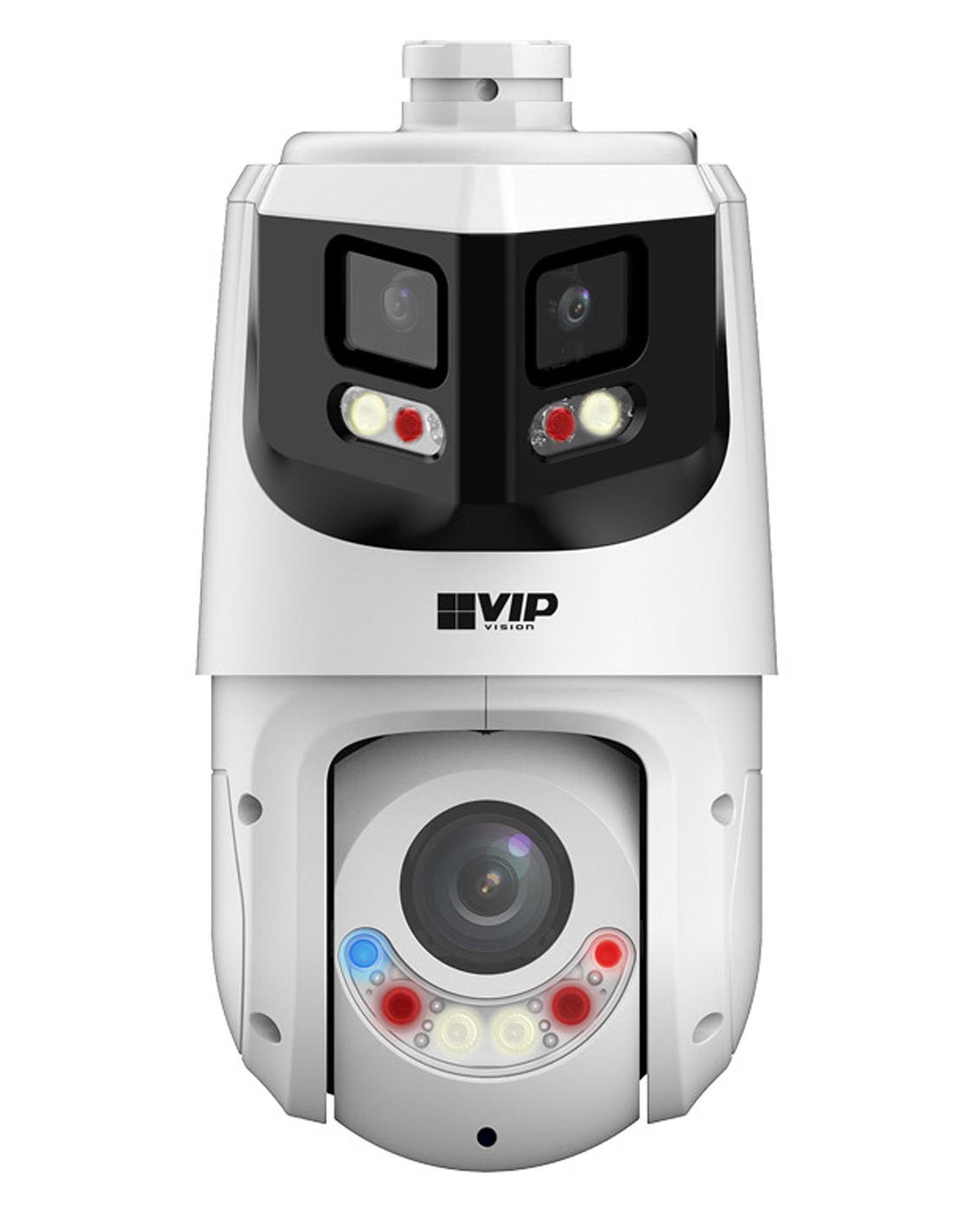

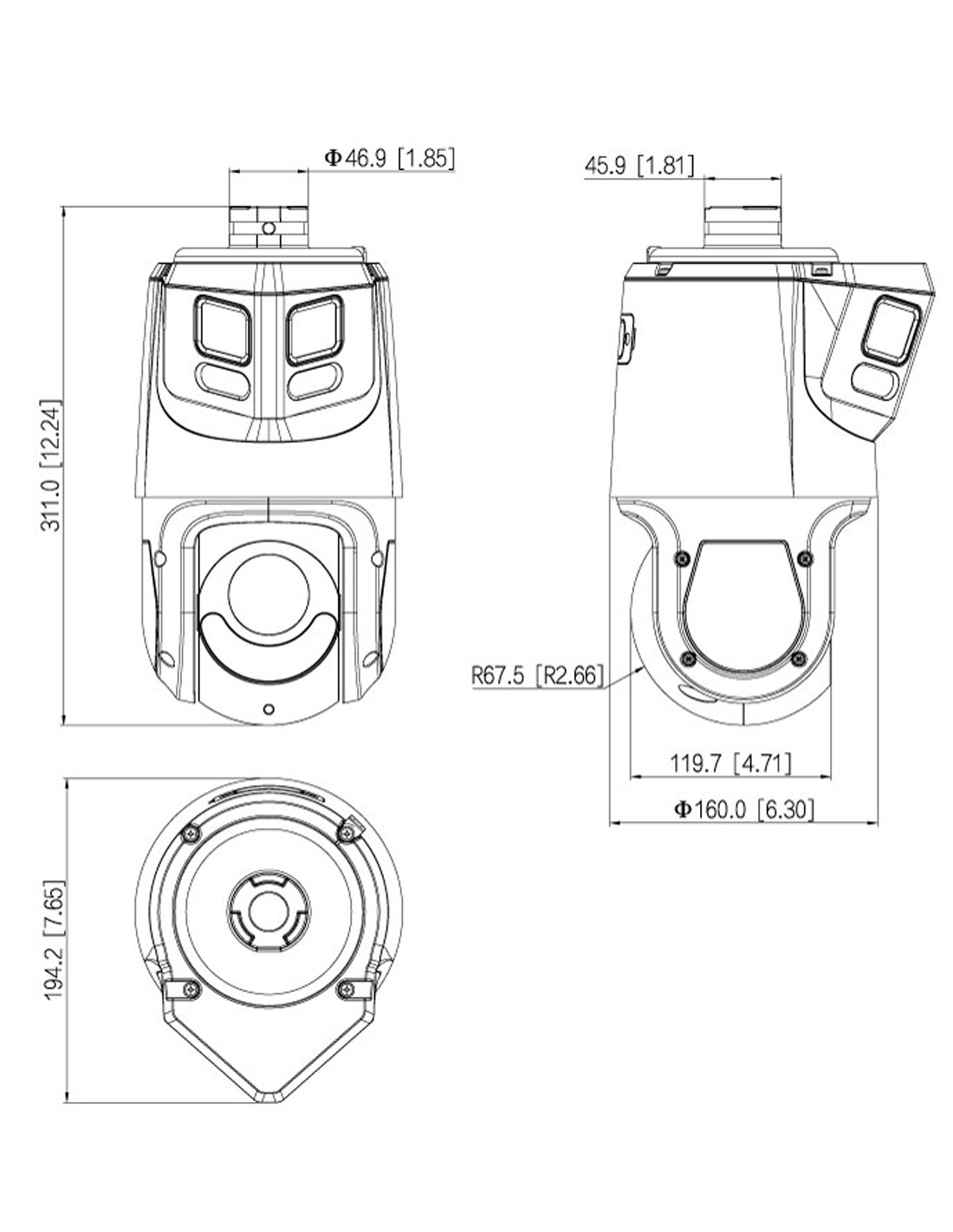

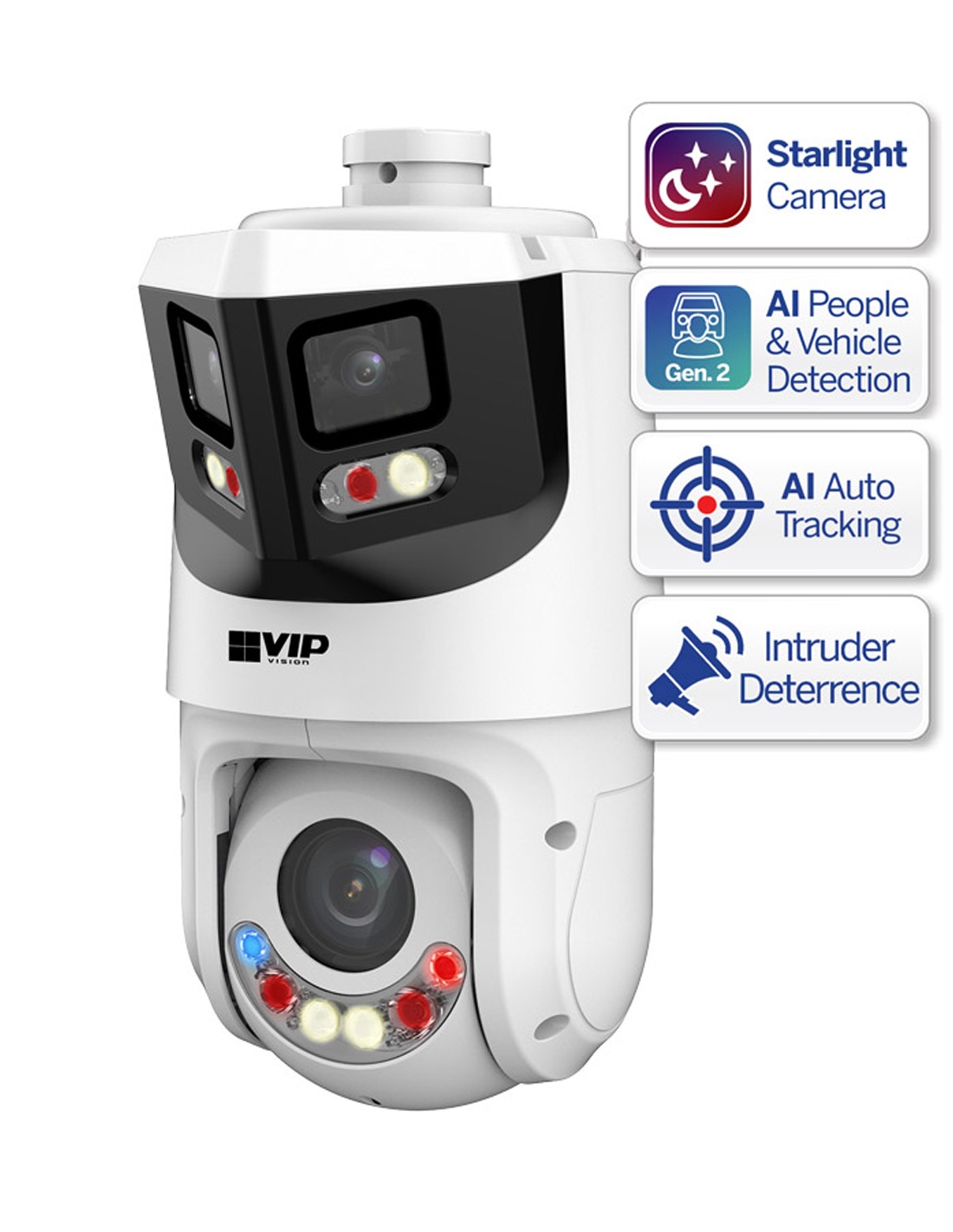

• 2 × VIP Vision VSIPPTZ-4P8X 8MP + 4MP dual-lens PTZ
• Recorder power cable, HDMI cable, 1 m network cable and USB mouse
• Screws, plugs and a mounting template for each camera
• Quick start guides

• A monitor or TV with HDMI or VGA
• Your router and internet connection, for the phone app
• A PoE switch to power the cameras (the NVR32PRO-I3 has no PoE ports)
• Cat5e or Cat6 cable from the recorder to each camera (up to 100 m per run)
• Optional junction boxes for a neat, sealed cable entry

01

Plan the positions

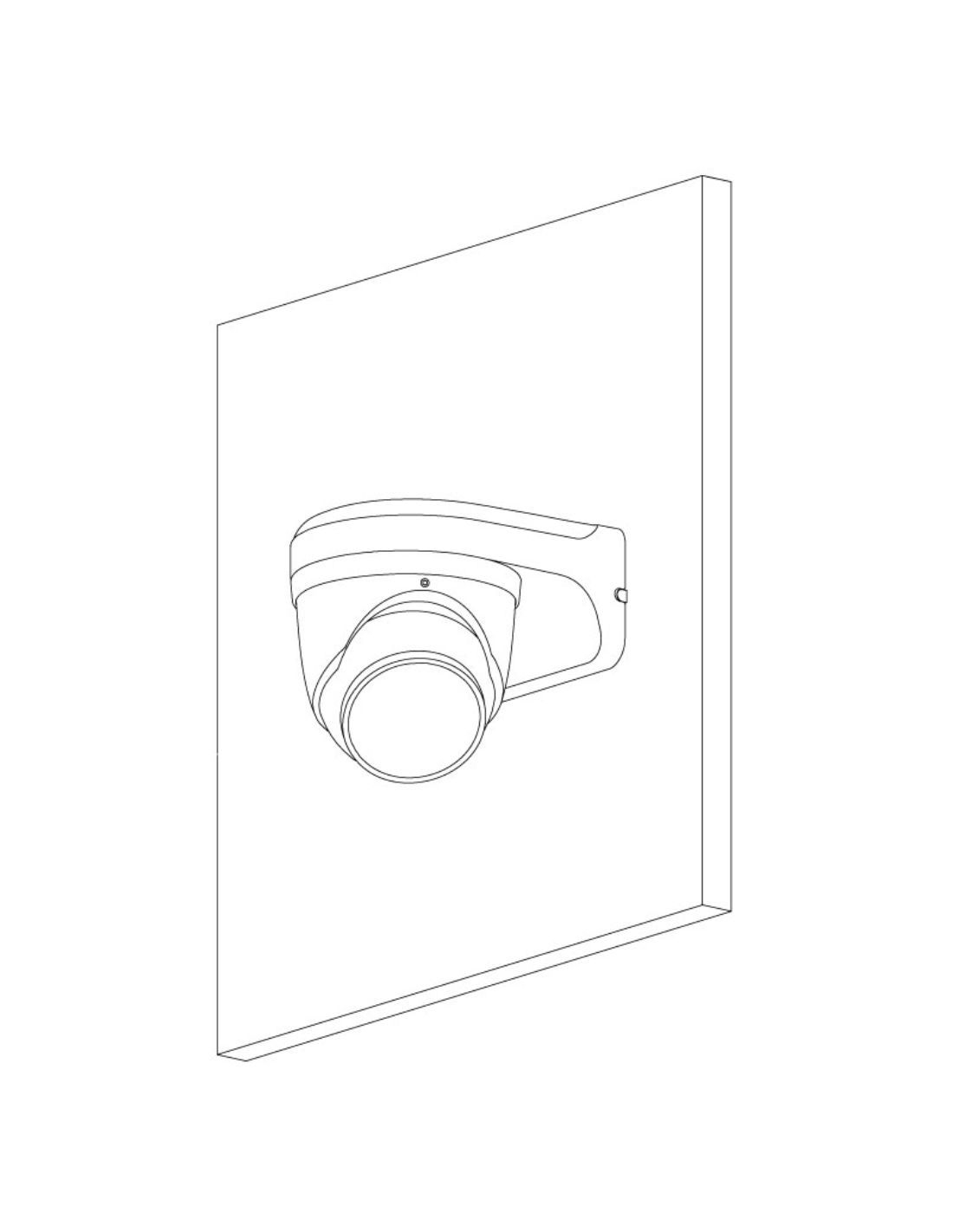

Mount the cameras about 2.4–3 m high, under eaves where you can. Put the 180° cameras on a corner or the middle of a long wall, and aim the others at doors, gates and paths.

02

Run the cables

Run one network cable from each camera back to the PoE switch. PoE works on runs up to 100 m.

03

Connect the recorder

Plug the cameras into the PoE switch, the screen into HDMI or VGA and the network port into your router, then power on and follow the startup wizard.

04

Set the app and zones

Scan the recorder’s QR code with the DMSS app, then draw tripwire lines or zones so alerts, lights and sirens only fire for people and vehicles.

More cameras

VSIPP-8DG-ID4 deterrence turret

Another deterrence turret for a second door, gate or driveway. Sixteen channels are free.

Mounting

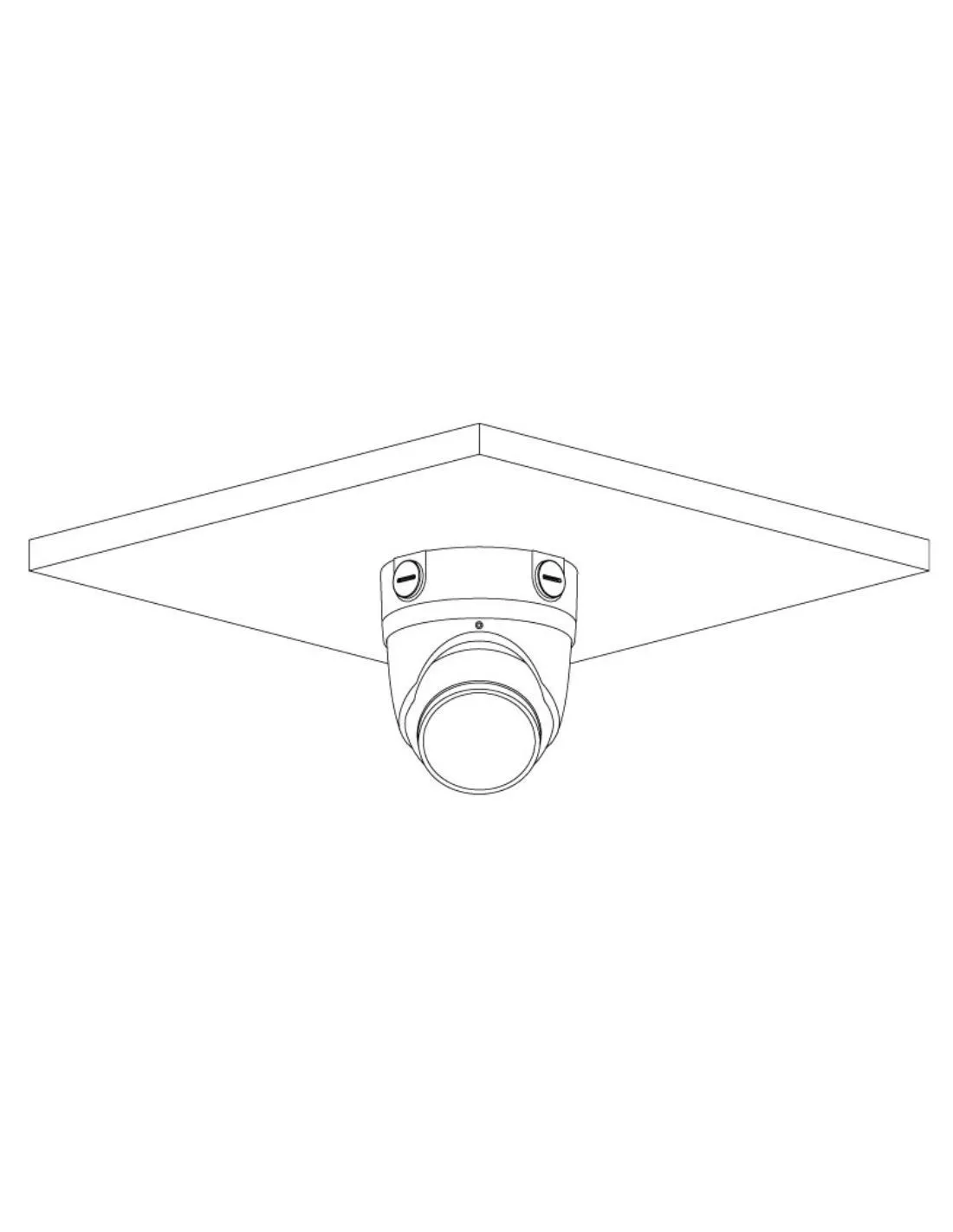

Junction boxes

A matching VIP Vision junction box hides and seals the cable join behind each camera. Ask us for the right one for each model.

Cabling

Cat6 cable box

Cable is not included in this kit. A 305 m box of solid-copper Cat6 covers most homes.

Warehouses

Loading docks, roller doors and the yard perimeter.

Retail sites

Shop floor, entries, stockroom and car park.

Schools and clubs

Gates, car parks and building entries.

Car parks

Wide views with a PTZ to follow vehicles.

Large homes and acreage

The house, sheds, gates and long driveway.

Factories

Perimeter, doors and work areas around the clock.

What is the difference between the cameras?

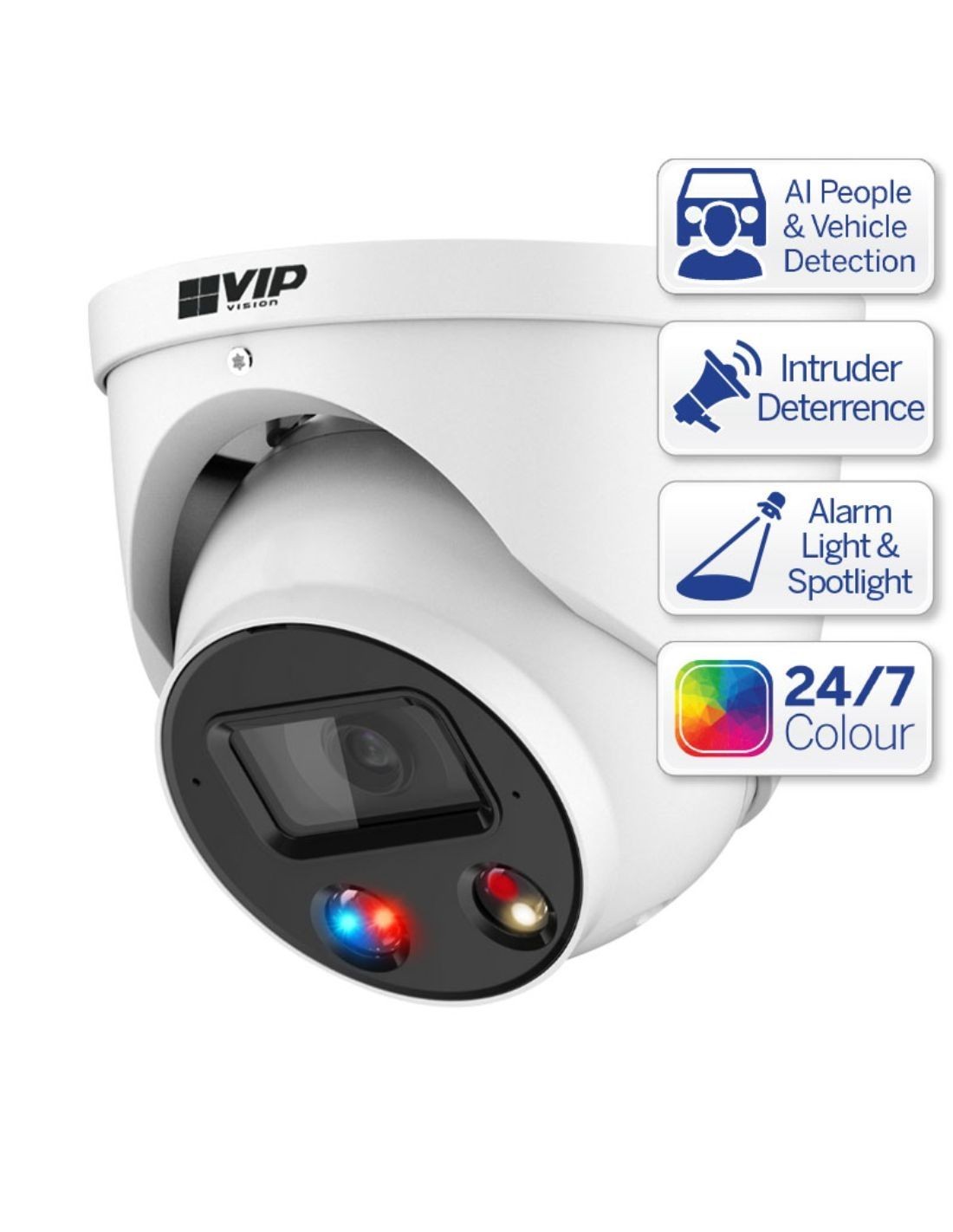

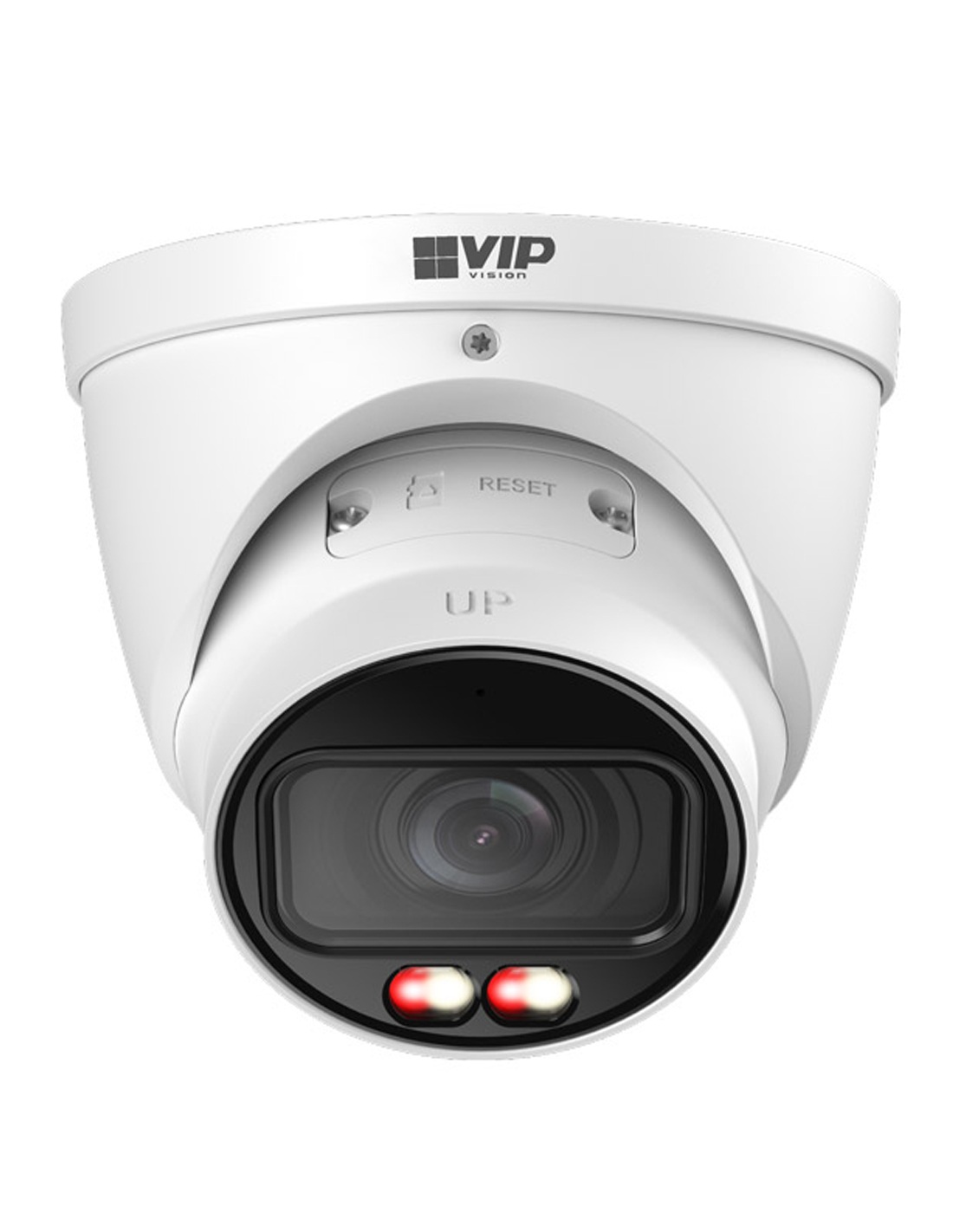

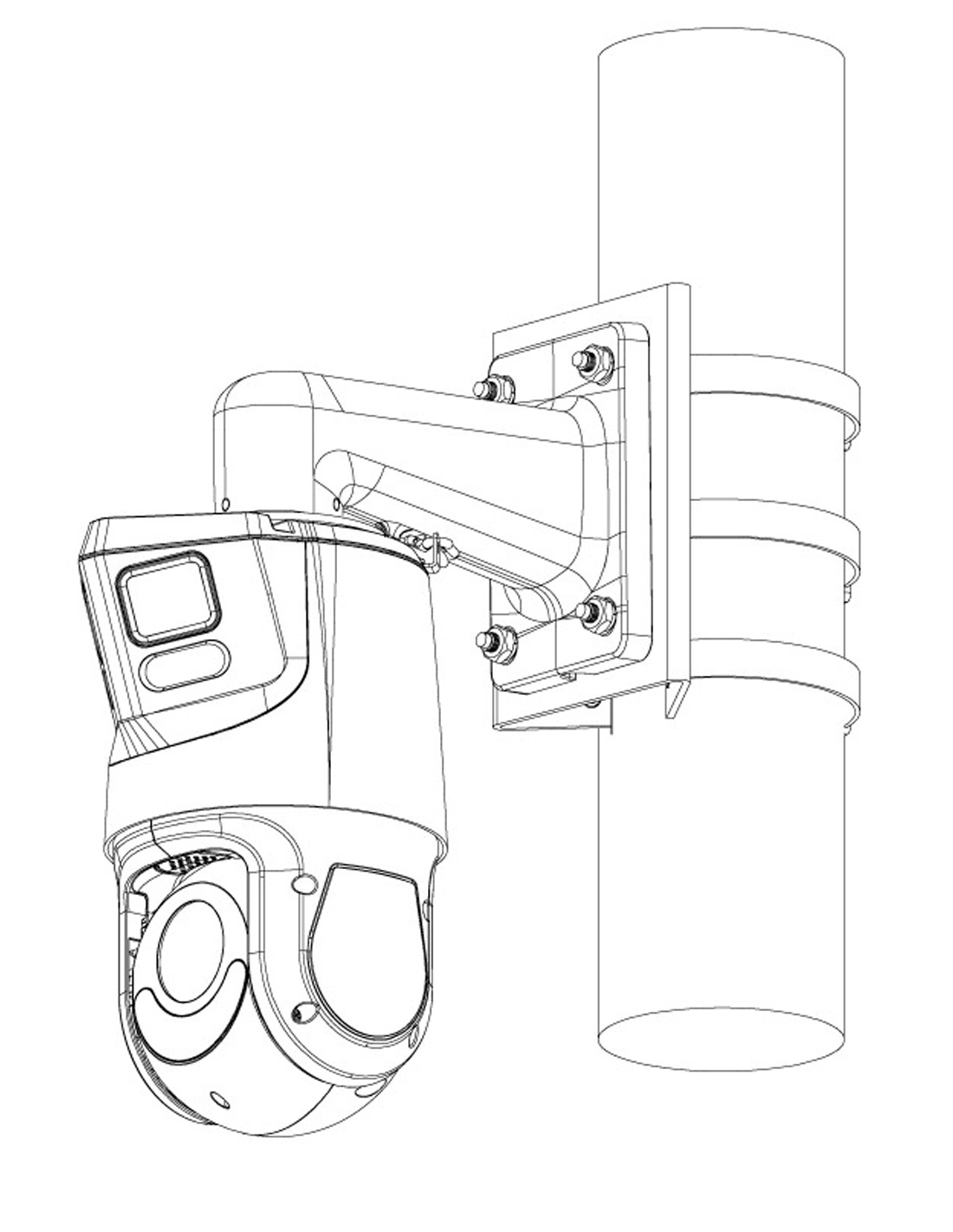

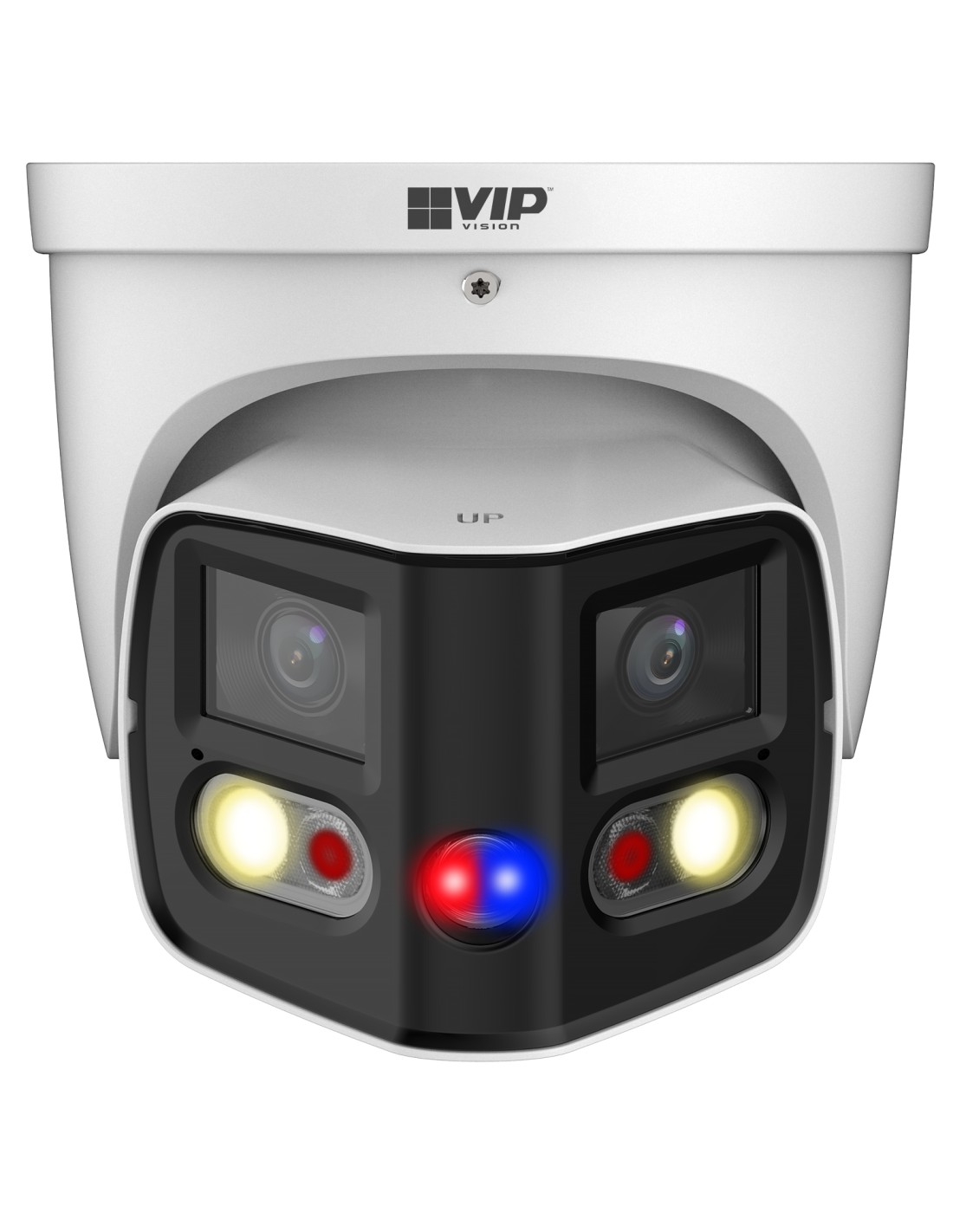

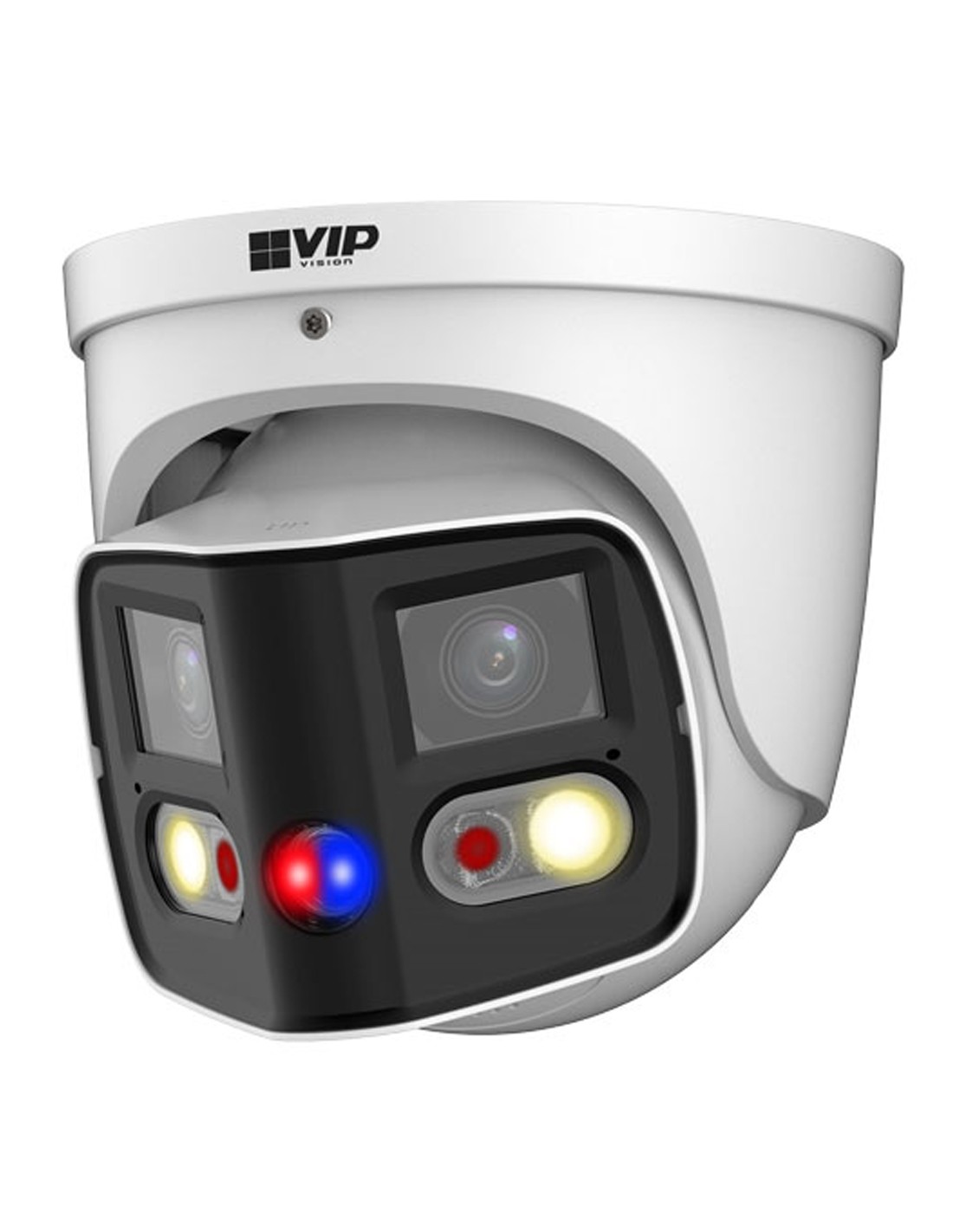

The VSIPP-8DG-ID4 is a single-lens 8MP turret with a 106° view, a spotlight, a red and blue strobe and a siren, best for detail at a door, gate or driveway. The VSIPP-8DD-ID3 uses two lenses to cover 180° in one picture, with lights, strobe and siren, best for a whole yard or driveway from one spot. The VSIPP-8DIRMG-I3 is an 8MP turret with a motorised 2.7–13.5 mm zoom, best for gates, driveways and car parks further away. The VSIPPTZ-4P8X pairs an 8MP 180° panoramic lens with a 4MP 25× zoom PTZ that tracks people and vehicles across a large area.

Is the hard drive included?

Yes. A 6TB surveillance drive is fitted in the recorder. There are 3 more bays, and each bay takes a drive of up to 16TB. Bigger drives are in the options.

How many days will it record?

As a rough guide, about 7 to 11 days with all 16 cameras recording around the clock on H.265 on the 6TB drive. Recording on events, or adding a bigger drive, stretches that a long way.

Are the cables included?

No, because every site needs a different length. Each camera needs its own Cat5e or Cat6 run of up to 100 m back to the PoE switch.

Do the cameras need power points?

No. A PoE switch powers the cameras through the network cable, so power points are only needed at the switch and the recorder.

What sets off the lights and siren?

A person or vehicle crossing a tripwire line or entering a zone you draw. You choose which cameras react and when, so it can stay quiet during the day.

Can I talk through the cameras?

Yes, on the VSIPP-8DG-ID4 and VSIPP-8DD-ID3: a built-in microphone and speaker let you listen and talk from the app. The other cameras record sound but have no speaker.

Can I add more cameras later?

Yes. Sixteen channels are free on the NVR32PRO-I3. VIP Vision Professional AI cameras plug straight in.

Can I watch it on my phone?

Yes. Connect the recorder to your router and scan its QR code in the free DMSS app for live view, playback and alerts on iPhone and Android.

How far do they see at night?

Infrared reaches 30 m on the VSIPP-8DG-ID4, 25 m on the VSIPP-8DD-ID3, 50 m on the VSIPP-8DIRMG-I3 and 50 m on the VSIPPTZ-4P8X in black and white, and the warm white lights give colour closer in.

Can I install it myself?

Many customers do, because each camera needs one cable and the recorder finds it automatically. In Australia, cable run inside walls and ceilings should be installed by a registered cabler.

What is the warranty?

4 years, supported in Australia by Infront Technologies. Contact us first and we will organise any claim.
