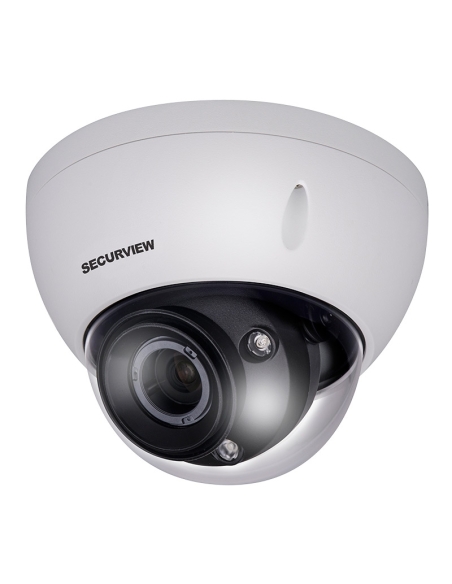

Securview VSCVI8MPVDIRM Ultimate Series 8.0MP WDR Motorised HDCVI Dome
- Stream ~ Ultra HD 8.0MP
- Motorised varifocal lens
- Smart infrared illumination, ~ 100m range
- ~ 700m 8.0MP video transmission over coaxial cable
- Dual BNC outputs for HD and composite video
- 12VDC and 24VAC Dual voltage compatible
- True WDR and 2D/3D noise reduction
- IP67/IK10, metal weather rated camera housing
Securview Ultimate Series 8.0MP WDR Motorised HDCVI Dome
VSCVI8MPVDIRM
4 Years Warranty!
The VSCVI8MPVDIRM features an auto iris motorised lens, dual voltage, true WDR and alarm/audio inputs. Experience incredible Ultra HD resolution footage for HDCVI recorders.
Camera Features:
• Stream up to Ultra HD 8.0MP (3840 x 2160)
• Motorised varifocal lens with auto-iris (DC)
• Smart infrared illumination, up to 100m range
• Up to 700m 8.0MP video transmission over coaxial cable (performed under ideal test conditions)

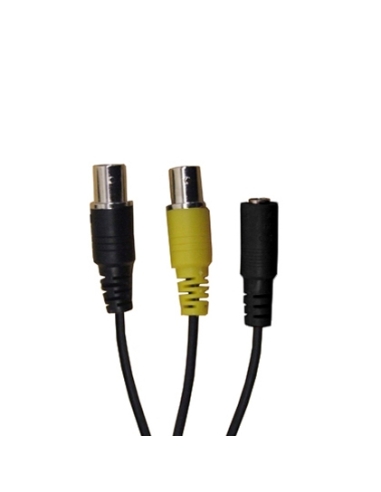

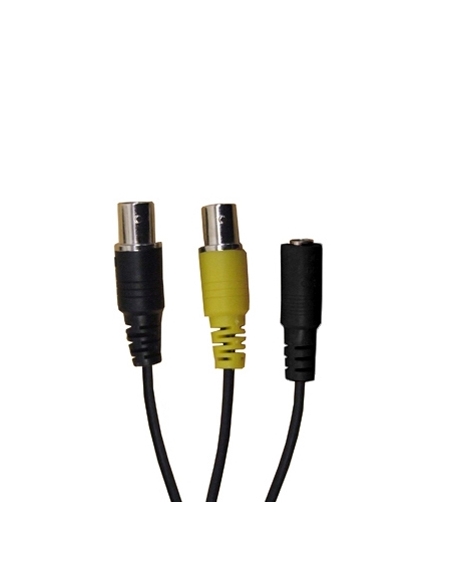

• Dual BNC outputs for HD and composite video
• Dual voltage compatible: 12VDC and 24VAC
• True WDR (120dB) and 2D/3D noise reduction
• IP67/IK10, metal weather rated camera housing
Backwards compatible: HDCVI/Analogue dual BNC video outputs. Analogue mode configuration via on-camera buttons, OSD or tester.

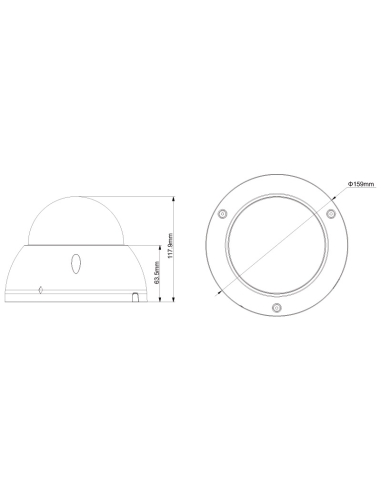

- Dimensions
- Ø159 x 118mm
- Housing
- Metal, Polycarbonate
- Power input
- 12VDC / 24VAC
- Ingress Protection
- IP67
- Operating Environment
- -30° to 60°C / RH95% (max)
- Weight
- 0.90kg
- Power Consumption
- < 12.4W
- Video Compression
- H.264 / MJPEG
- Video Output
- 2 x BNC video output
- Resolution
- 8.0MP (3840 x 2160) to CIF (352 x 288)
- Audio Input
- 1 channel in
- Vandal Resistant
- IK10
- Category
- HDCVI Surveillance
- Series
- Ultimate Series
- Angle of View
- 112° (wide) ~ 46° (tele)
- Focus
- Auto/Manual Focus / 0.2m Min. Focus Distance
- Frame Rate
- 15fps (8.0MP) / 25fps (4.0MP and lower)
- Effective Pixels
- 3840 (H) x 2160 (V)
- Image Sensor
- 1/2” 8.0 Megapixel CMOS
- Lens
- 3.7 ~ 11mm F1.5 Motorised Lens; Auto Iris
- Minimum Illumination
- 0.005 Lux at F1.5 (Colour) / 0 Lux IR Active
- Alarm Interface
- 2 channel in / 1 channel out
- Camera Type
- Dome
- Max. Resolution
- 8.0 Megapixel
- Lighting Compensation
- BLC / HLC / WDR (120dB)
- Transmission Distance
- Rated for up to 700m via 75-3 coaxial cable (performed in ideal test conditions)
- Day/Night
- Auto (ICR) / Colour / B&W
- Detect (25px/m)
- 83m (wide) / 190m (tele)
- Electronic Shutter
- 1/3 ~ 1/100,000s
- Gain Control
- Auto
- Identify (250px/m)
- 8m (wide) / 19m (tele)
- Infrared Range
- 50m
- Lens Type
- Motorised Varifocal
- Mode Switching
- Dual BNC video outputs
- Modes Supported
- HDCVI & Composite
- Noise Reduction
- 2D / 3D
- Observe (63px/m)
- 33m (wide) / 6m (tele)
- OSD Menu
- Support
- Recognise (125px/m)
- 17m (wide) / 38m (tele)
- Signal Noise Ratio
- > 65dB
- Synchronisation
- Internal
- Tri-Axis Mounting
- Yes
- White Balance
- Auto
