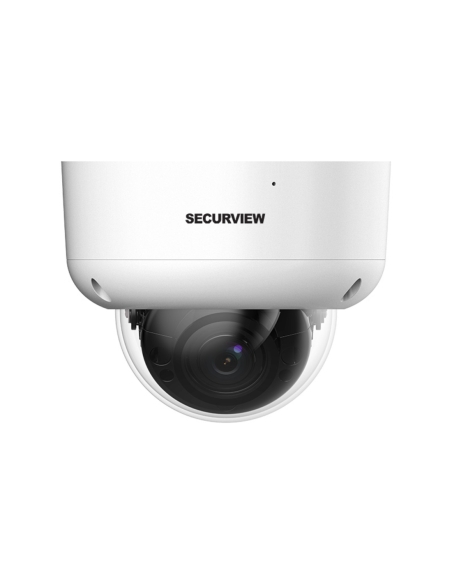

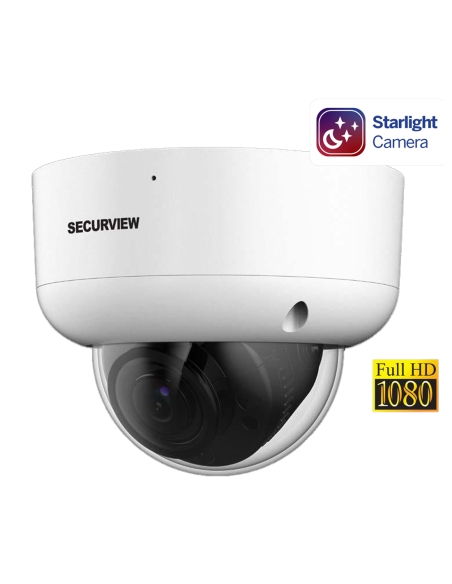

Securview Professional Series 2.0MP Motorised HDCVI Vandal Dome - VSCVI-2DIRMD
- Stream up to 2.0MP (1920 x 1080) at 25fps
- Motorised varifocal 2.7~13.5mm lens with fixed iris
- 108° ~ 30° horizontal viewing angles
- Superb colour image performance in low light at 0.001lx
- Smart infrared illumination, up to 60m range
- CVI / TVI / AHD / CVBS / Composite switchable via DIP switch
- True WDR (130dB) and 2D/3D noise reduction
- Audio signal transmission over coaxial cable
- IP67-rated weather-resistant metal housing
- Dual power input 12VDC/24VAC
- Switch modes via DIP switches
Securview Professional Series 2.0MP Motorised HDCVI Vandal Dome
VSCVI-2DIRMD
With high-resolution image quality up to 1080p and a compact, weather-resistant aluminium body, the VSCVI-2DIRMD captures excellent video footage, ultra-low light performance, long-range infrared, and zero image distortion with its flat lens cover.
Camera Features:
• Stream up to 2.0MP (1920 x 1080) at 25fps
• Motorised varifocal 2.7~13.5mm lens with fixed iris
• 108° ~ 30° horizontal viewing angles
• Superb colour image performance in low light at 0.001lx
• Smart infrared illumination, up to 60m range
• CVI / TVI / AHD / CVBS / Composite switchable via DIP switch
• True WDR (130dB) and 2D/3D noise reduction
• Audio signal transmission over coaxial cable
• IP67 rated weather-resistant metal housing
• Dual power input 12VDC/24VAC
• Switch modes via DIP switches
Specifications:

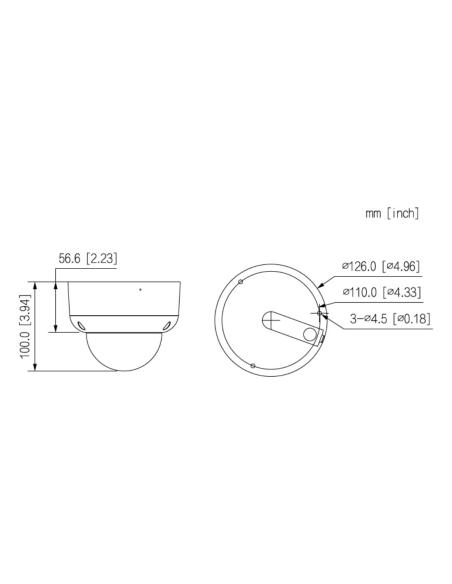

- Dimensions
- Ø126mm x 100mm
- Housing
- Metal
- Power input
- 12VDC / 24VAC
- Ingress Protection
- IP67
- Operating Environment
- -30° to 60°C / RH90% (max)
- Weight
- 0.65kg
- Power Consumption
- < 9.9W
- Video Output
- 1 x CVI / TVI / AHD / CVBS by one BNC port (DIP Switch)
- Resolution
- 1080p (1920 x 1080) to 960H (960 × 576/960 × 480)
- Audio Input
- 1 channel in & Built-in Mic
- Series
- Professional Series
- Angle of View
- 108° ~ 30° (H) / 56° ~ 17° (W)
- Focus
- Fixed / 0.8m Min. Focus Distance
- Frame Rate
- 25fps (1080p and lower)
- Effective Pixels
- 1920 (H) × 1080 (V)
- Image Sensor
- 2.0 Megapixel CMOS
- Lens
- 2.7mm ~ 13.5mm F1.3 Motorised Lens, fixed iris
- Minimum Illumination
- 0.001 Lux at F1.5 (Colour) / 0 Lux IR Active
- Camera Type
- Vandal Dome
- Max. Resolution
- 2.0 Megapixel
- Lighting Compensation
- BLC / HLC / WDR (130dB)
- Day/Night
- Auto (ICR) / Color / B&W
- Detect (25px/m)
- 44m
- Electronic Shutter
- 1/25s ~ 1/100,000 s
- Infrared Range
- 60m
- Lens Type
- Motorised Varifocal
- Mode Switching
- DIP Switches
- Modes Supported
- HDCVI, AHD, HDTVI & Composite
- Noise Reduction
- 3D
- Observe (63px/m)
- 18m
- Recognise (125px/m)
- 9m
- Signal Noise Ratio
- > 65dB
Experience your own moment of victory by upgrading your existing analogue surveillance system to high definition with the Securview Victory Series range of security cameras recorders and accessories.
The Victory Series consists of a wide range of professional HD video-over-coaxial cable surveillance solutions built for commercial and residential applications.
The Victory Series is purpose-built to deliver confidence and peace of mind in your surveillance system. The range features up to 1080p full HD recording, enabling you to capture large images with fine detail.
Don’t be left wondering when you need to rely on your CCTV, ensure you have usable video evidence when it matters most.
