• Fan motor with hanger bracket and terminal block
• Ceiling canopy, dress ring and standard downrod
• 3 polymer blades with screws and base plate (in the blade box)
• Remote control with pre-paired receiver
• 18W CCT LED light kit
• Screw pack and owner’s manual

• A licensed electrician
• An earthed 240 V circuit with an all-pole isolation switch
• A joist or batten that holds four times the fan’s weight
• A longer downrod (90 or 180 cm) for high or raked ceilings, if needed

01

Fix the hanger bracket

Screw it into a joist or batten that holds four times the fan’s weight. The terminal block is already on the bracket.

02

Assemble and hang

Fit the canopy and downrod, route the wires through, then seat the hanger ball in the bracket with the groove on the tab.

03

Wire the receiver

Active, neutral and earth to the terminal block, then plug the receiver into the fan. Isolate the power first — this is electrician’s work.

04

Blades, light and remote

Fit the three blades and the LED light kit, then restore power and test all 6 speeds and reverse on the remote.

Height

Longer downrod

90 cm and 180 cm downrods in matching finishes drop the fan to the right height on high or raked ceilings.

Control

DC wall control

ThreeSixty’s DC wall control replaces the remote receiver: 5 speeds, light on/off and dimming, with a companion handset.

Ceilings

Sloped-ceiling kit

For ceilings steeper than 12°. Ask us to quote it with the fan.

Trade

A licensed electrician

Needed for the hard-wired install and for ThreeSixty’s in-home warranty.

Bedrooms

Whisper-quiet on low, 7 watts, with a sleep timer.

Living rooms

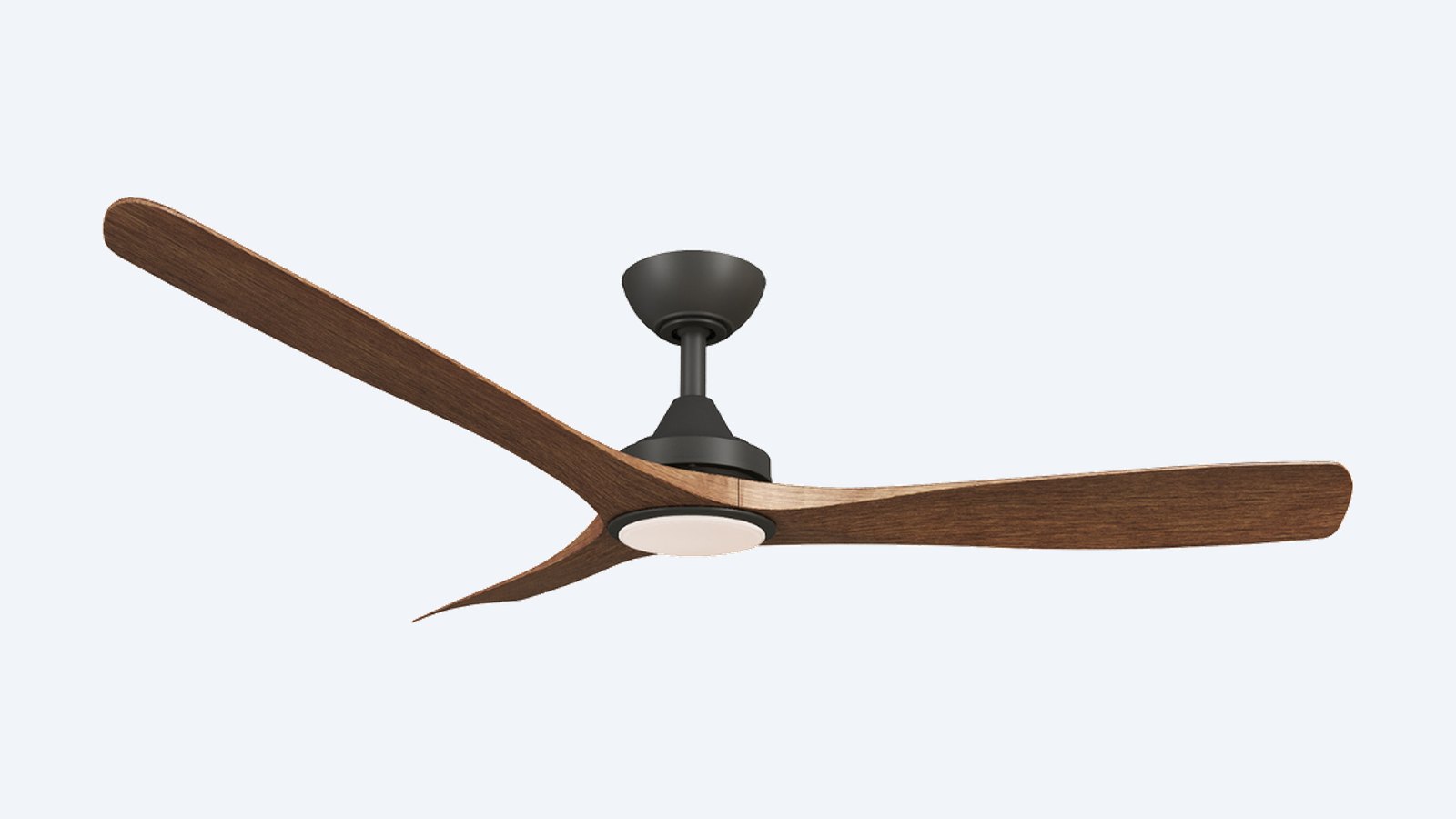

Timber-look blades to match floors and joinery.

Studies

A steady breeze without papers flying on low speeds.

Alfresco

Rated for undercover outdoor areas.

Holiday rentals

Simple remote that guests can use.

Winter

Reverse on low to push warm air down.

What size room suits the Spitfire DC 52"?

A 132 cm (52") fan suits a standard bedroom, study or living room up to about 4 × 4 m, or a smaller alfresco. For an open-plan living area or large patio, step up to the 60".

How much air does it move?

Up to 13,420 cubic metres an hour on high, 6,941 on low.

How much power does it use?

About 30W / 17W / 7W on high, mid and low. A DC motor uses far less power than an AC ceiling fan for the same airflow.

Is a remote control included?

Yes. The 6-speed remote also does reverse, natural wind mode and a fan-off timer of 1, 4 or 8 hours, plus light on/off, dimming and colour.

Can I run it in reverse for winter?

Yes. Reverse is on the remote. On a low speed in reverse the fan pushes warm air down from the ceiling without a draught.

Can it go outside?

Yes, undercover. ThreeSixty rates the Spitfire DC for indoor and undercover outdoor use, like a covered alfresco or patio. It is not for exposed positions in the rain.

Will it fit a raked ceiling?

It handles ceiling slopes up to 12° as standard. Steeper ceilings need ThreeSixty’s sloped-ceiling accessory — ask us and we will quote it with the fan.

What ceiling height do I need?

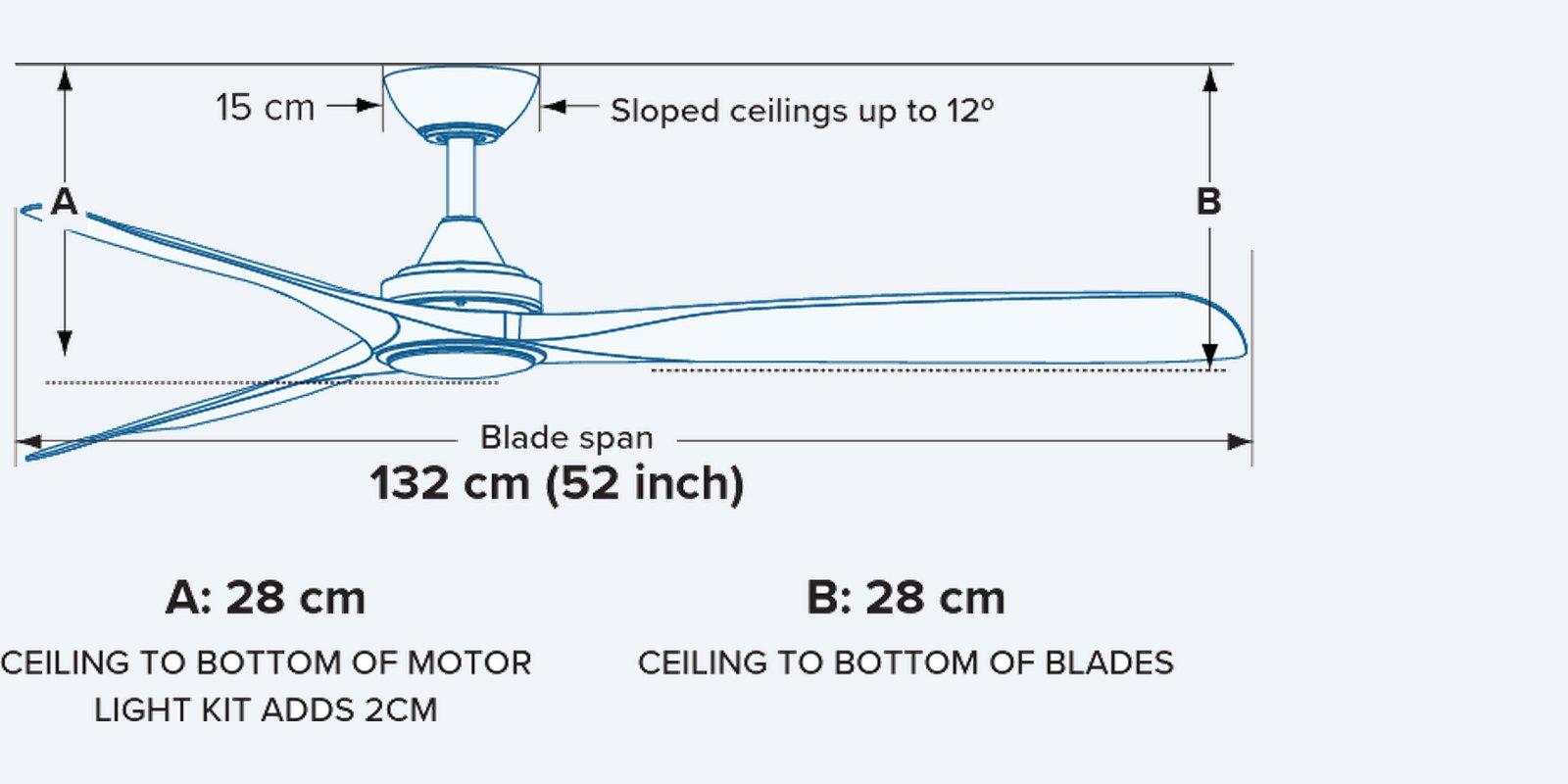

The lowest blade edge must be at least 2.1 m above the floor, so a standard 2.4 m ceiling is the practical minimum. Ceiling to bottom of the fan is about 28 cm plus 2 cm for the light. For high or raked ceilings, 90 cm and 180 cm downrods are available.

What does the light do?

It is a 18W LED light with three colour temperatures (3000K / 4300K / 6000K) and dimming, all from the same remote as the fan.

Do I need an electrician?

Yes. Ceiling fans are hard-wired. A licensed electrician must install it on an earthed circuit with an all-pole isolation switch, fixed to a structure that can hold four times the fan’s weight.

What is the warranty?

ThreeSixty gives a 3-year in-home warranty when the fan is installed by a licensed electrician to the owner’s manual. Contact us first and we will organise it.

Can I see the installation instructions first?

Yes. ThreeSixty’s Spitfire DC owner’s manual is on the Attachments tab. Your electrician can check the hanger bracket, wiring and downrod before the day.
