    Dahua 32-Channel WizSense AI NVR with 16 PoE Ports (8 ePoE), 32MP, 4 HDD Bays, Dual 4K HDMI, H.265 – DHI-NVR5432-16P-AI/ANZ

    SKU DHI-NVR5432-16P-AI/ANZ In Stock - Ready to Ship
    $1,040.00 inc GST

    Dahua NVR5432-16P-AI/ANZ 32-channel WizSense network video recorder with 16 PoE ports (8 ePoE). Cameras up to 32MP, 384 Mbps, two 4K HDMI outputs, four drive bays plus eSATA. No HDD, or one or two 2–8TB drives fitted.

    • ✓32 channels, 16 PoE ports
    • ✓Cameras up to 32MP, 384 Mbps
    • ✓4 SATA bays plus eSATA
    • ✓Two independent 4K HDMI outputs
    • ✓16 alarm in, 6 out
    • ✓DMSS app for iOS and Android
    Hard Disk Options



    Description

    Dahua DHI-NVR5432-16P-AI/ANZ 32-channel WizSense PoE network video recorder
    Dahua · WizSense NVR5000 · 32 channels · 16 PoE

    Thirty-two cameras,
    sixteen powered from the back.

    This is the Dahua DHI-NVR5432-16P-AI/ANZ. A 32-channel WizSense recorder with sixteen built-in PoE ports, four drive bays and two HDMI outputs. Plug sixteen cameras straight in and add sixteen more through a PoE switch.

    In one sentence: the DHI-NVR5432-16P-AI/ANZ is a 32-channel Dahua WizSense NVR with 16 PoE ports (130 W in total, 8 with long-reach ePoE), four SATA bays plus eSATA, 384 Mbps incoming bandwidth and two 4K HDMI outputs.

    Order it without a drive, or with one or two drives fitted (2, 4, 6 or 8TB each).

    The DHI-NVR5432-16P-AI/ANZ comes without cameras or a screen, and without a hard drive unless you choose one above. Add the cameras and a screen. Sixteen cameras run straight from its PoE ports; channels 17 to 32 connect through a PoE switch on the network.

    In the box
    • DHI-NVR5432-16P-AI/ANZ recorder
    • Mains power lead (the power supply is built in)
    • Quick start guide
    You also need
    • A hard drive, if you did not choose one fitted (the other bays are free for more)
    • Up to 32 IP cameras
    • A PoE switch for cameras beyond 16
    • Cat6 cable to each camera
    • A monitor or TV with HDMI or VGA

    Room to grow to 32 cameras.

    Sixteen PoE ports share 130 W and the other sixteen channels take cameras over the network. Four bays of drives up to 16TB, plus an eSATA port, hold long histories, and 384 Mbps of incoming bandwidth (200 Mbps with AI on) leaves room for high-resolution cameras across the channels.

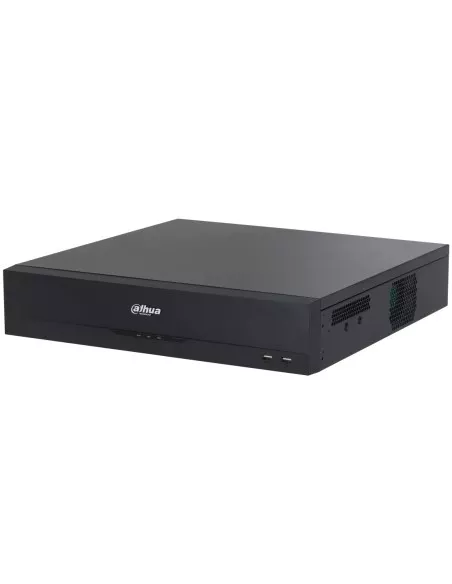

    Dahua DHI-NVR5432-16P-AI/ANZ front panel

    Front panel

    A 1.5U case with four drive bays inside.

    Status lights and a USB 2.0 port for a mouse or quick backups are on the front. Everything else connects at the back.

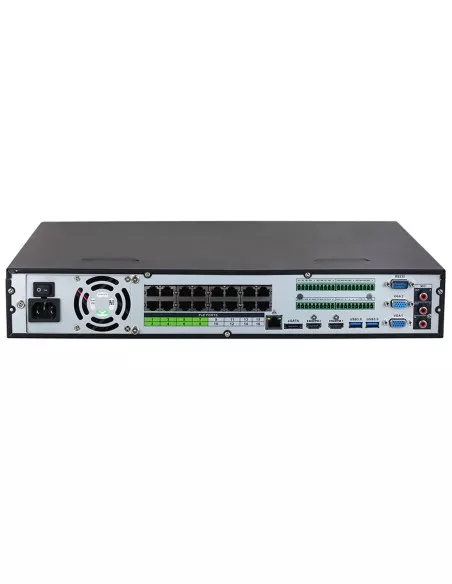

    Dahua DHI-NVR5432-16P-AI/ANZ rear panel with 16 PoE ports

    Rear panel

    Two screens, sixteen alarm inputs.

    The rear panel has the mains input and power switch, 16 PoE ports (10/100, 802.3af/at; ports 1–8 ePoE), the Gigabit network port, eSATA, 2 HDMI, 2 VGA, two USB 3.0 ports, RS-232, RS-485, RCA audio (1 in, 2 out) and alarm terminals for 16 inputs and 6 outputs.

    Dahua DHI-NVR5432-16P-AI/ANZ dimension drawing

    Size

    440 × 415.6 × 76 mm.

    Dahua lists it at 440.0 × 415.6 × 76.0 mm and 4.82 kg without drives, drawing 13 W or less before the drives and cameras. It is rated for rack or desktop installation.

    How it goes in

    From the box to recording.

    01

    Fit the hard drive

    If you did not order one fitted: with the power off, open the lid and fit a surveillance drive in each bay you are using, then format it from the setup wizard.

    02

    Plug in the cameras

    Run Cat6 from up to sixteen cameras to the PoE ports on the back, and connect the rest through a PoE switch on the same network. Dahua cameras are found and added automatically.

    03

    Connect screen and network

    HDMI or VGA to the monitor, the Gigabit port to your router, then switch on at the back and follow the setup wizard.

    04

    Add it to the app

    Scan the P2P QR code in Dahua’s DMSS app for live view, playback and alerts on your phone.

    Pair it with

    What goes with it

    Storage

    Seagate SkyHawk drive

    Surveillance-rated 2, 4 or 6TB drives built for 24/7 recording. Fill the four bays as the system grows; each takes a drive of up to 16TB.

    Cameras

    Dahua WizSense cameras

    Dahua WizSense turrets, bullets and domes add people and vehicle detection by the camera, so smart searches work on every channel.

    Cabling

    Cat6 cable

    Solid-copper Cat6 for PoE runs of up to 100 m from each port to each camera.

    Network

    Dahua 24-port PoE switch

    Powers and connects cameras 17 to 32 and links them to the recorder’s network port.

    Where it is used

    Where a 32-channel recorder fits

    Warehouses

    Docks, aisles, yards and fences on one recorder.

    Schools and clubs

    Entries, halls, car parks and grounds.

    Larger shops

    Every aisle and register plus back of house, with POS-linked recording.

    Strata and offices

    Lobbies, lifts, car parks and bin rooms, with a monitor at reception and one in the office.

    Dahua 16 PoE recorders side by side

    NVR4216-16P-AI/ANZNVR5216-16P-AI/ANZNVR5432-16P-AI/ANZ
    Camera channels161632
    PoE ports1616 (ports 1–8 ePoE)16 (ports 1–8 ePoE)
    Max camera resolution16MP32MP32MP
    Incoming bandwidth (AI off / on)256 / 180 Mbps384 / 200 Mbps384 / 200 Mbps
    AI run by the recorderFace 1 ch, perimeter 2 ch, SMD Plus 4 chFace 2 ch, perimeter 4 ch, SMD Plus 8 chFace 2 ch, perimeter 4 ch, SMD Plus 8 ch
    Video metadata search (Dahua AI cameras)—8 channels8 channels
    Hard drive bays2 × SATA, up to 20TB2 × SATA, up to 16TB4 × SATA, up to 16TB, plus eSATA
    Screen outputsHDMI (4K) + VGAHDMI (4K) + VGA2 × HDMI (4K) + 2 × VGA
    Alarm in / out4 / 24 / 216 / 6
    USB2 × USB 2.0USB 2.0 + USB 3.0USB 2.0 + 2 × USB 3.0
    Case1U, 375 mm wide, 2.6 kg1U, 375 mm wide, 2.66 kg1.5U, 440 mm wide, 4.82 kg

    All three record Smart H.265+, H.265, Smart H.264+ and H.264, have one Gigabit network port and 16 PoE ports (802.3af/at, 130 W in total, up to 25.5 W on one port), and run from 100–240 V AC. — means not listed. Figures from the Dahua datasheets.

    Common questions

    It has 16 PoE ports — how do I connect 32 cameras?

    Plug sixteen cameras into the PoE ports on the back. Connect the rest to a PoE switch on the same network as the recorder’s Gigabit port; it adds them as channels 17 to 32.

    Can I use two screens?

    Yes. HDMI 1 and HDMI 2 show different views (both support 4K), and each VGA port mirrors its HDMI port. The main screen splits up to 36 views.

    What can the alarm terminals do?

    It has 16 alarm inputs for door contacts, sensors or buttons and 6 outputs for sirens, strobes or gate triggers, one of them a 12 V 1 A supply. Events can also start recording, snapshots, presets and emails.

    Is a hard drive included?

    Not as standard. Order it without a drive, or with a 2, 4, 6 or 8TB surveillance drive fitted, plus an optional second drive of the same size or smaller. It has four SATA bays that take drives up to 16TB (Dahua notes the maximum depends on room temperature), so you can add more at any time.

    Will it work with cameras that are not Dahua?

    Yes, in most cases. It takes ONVIF cameras (Profile S, T and G) and Dahua lists several other major camera brands. The recorder’s own SMD Plus, perimeter and face functions run on a set number of channels; the camera-based AI searches need Dahua WizSense cameras. Send us the camera model and we will check it.

    Can I watch the cameras on my phone?

    Yes. Connect the network port to your router and add the recorder to Dahua’s DMSS app (iPhone and Android) by scanning its P2P QR code, for live view, playback and alerts. On a PC, use Dahua’s Smart PSS software or a web browser.

    What screen can I plug in?

    Any monitor or TV with HDMI or VGA. Both HDMI ports support 4K and can show different views; each VGA port shows the same picture as its HDMI port.

    What is Smart H.265+?

    Dahua’s improved H.265 compression. It cuts the space each camera uses, most of all on quiet scenes, so the drives hold more days of footage. H.265, Smart H.264+ and H.264 are supported too.

    What is SMD Plus?

    Smart Motion Detection that sorts motion into people and vehicles and ignores leaves, rain and lighting changes, so alerts and searches show what matters. This recorder runs it itself on 8 channels; Dahua WizSense cameras do it on the camera.

    How far can the cameras be from the recorder?

    Up to 100 m of Cat6 on any PoE port. Ports 1–8 also support Dahua ePoE, which Dahua quotes at up to 300 m at 100 Mbps or 800 m at 10 Mbps with ePoE-capable cameras or extenders. Cameras on a PoE switch can be 100 m from the switch.

    Can I mount it in a rack?

    Dahua lists it for rack or desktop installation; the 440 mm wide, 1.5U case suits a rack shelf in a 19-inch cabinet. Ask us if you need one.

    What is the warranty?

    Dahua 3-year manufacturer warranty, handled in Australia through InFront. Contact us first and we will organise any claim.

    Supported by Infront Technologies.

    Not sure how many channels or how much storage you need? Call 1300 736 970 or email [email protected] with the number of cameras and how many days you want to keep, and we will size the drives.

    Installation and safety

    Power. Runs from 100–240 V AC through its built-in power supply, with a power switch at the back. Switch off and unplug before fitting or removing a hard drive.

    Placement. Use indoors between −10 °C and 55 °C, 10–93% humidity without condensation, with space around the vents. Keep it somewhere secure so a thief cannot take the footage with it.

    Figures. From the Dahua DHI-NVR5432-16P-AI/ANZ datasheet. Dahua 3-year manufacturer warranty, handled in Australia through InFront.

    Dimensions
    440 × 415.6 × 76 mm
    Power Supply
    100–240 V AC
    Operating Environment
    −10 °C to 55 °C, 10–93% RH
    Weight
    4.82 kg without HDD
    Power Consumption
    13 W or less without HDD
    Video Compression
    Smart H.265+, H.265, Smart H.264+, H.264, MJPEG
    Video Input
    32 Channels
    Brand
    Dahua
    USB
    1 × USB 2.0, 2 × USB 3.0
    Incoming Bandwidth
    384 Mbps (200 Mbps with AI on)
    Interoperability
    ONVIF Profile S, T, G
    Recording Resolution
    Up to 32MP
    Alarm Interface
    16 in, 6 out
    Display Output
    2 × HDMI (4K), 2 × VGA
    Network Interface
    1 × RJ45 Gigabit
    Smart Search
    SMD Plus, perimeter protection, face recognition, video metadata, ANPR search
    Warranty
    3 years
    Product Type
    PoE Network Video Recorder
    Model
    DHI-NVR5432-16P-AI/ANZ
    HDD Bays
    4 SATA + 1 eSATA
    PoE Ports
    16 × 10/100, IEEE 802.3af/at (ports 1–8 ePoE)
    PoE Budget
    130 W total, 25.5 W max per port
    Max HDD Capacity
    16TB per drive
    Hard Drive
    Optional 1 or 2 drives of 2, 4, 6 or 8TB fitted (standard: no drive)
    Playback Decoding
    2 × 32MP @20, 4 × 16MP, 8 × 8MP, 16 × 4MP or 32 × 1080p @30
