VIP Vision Aluminium Surface Mount Magnetic Lock MAGLOC100S
    VIP Vision Aluminium Surface Mount Magnetic Lock MAGLOC100S
    VIP Vision Aluminium Surface Mount Magnetic Lock MAGLOC100S
    VIP Vision Aluminium Surface Mount Magnetic Lock MAGLOC100S
    VIP Vision Aluminium Surface Mount Magnetic Lock MAGLOC100S
    VIP Vision Aluminium Surface Mount Magnetic Lock MAGLOC100S

    VIP Vision Aluminium Surface Mount Magnetic Lock - MAGLOC100S

    MAGLOC100S
    In Stock - Ready to Ship
    $ 148.90
    inc-GST
    • Surface mount
    • Anodised Aluminium faceplate with a zinc finish
    • Fail-Safe - unlocks when power is removed from the electromagnet
    • Prevent lock from overcharging - built in spike suppressor
    • Built for new or existing installs - 12VDC/24VAC switchable
    • Highly durable - 272kg holding force

    Various Payment Types at Checkout.

    All Payment Options are available at Checkout: Visa/MC/Amex, Zip, Afterpay, Paypal and Bank Dep

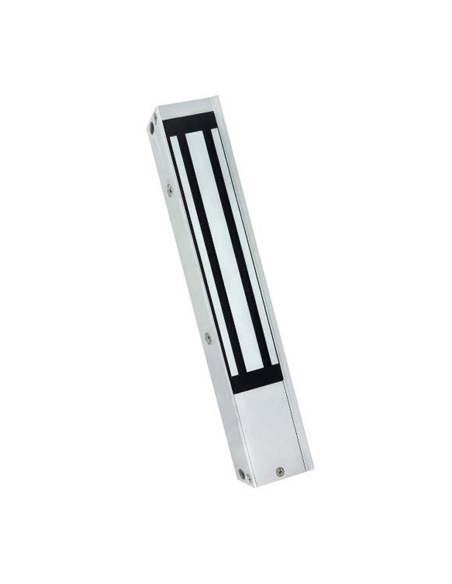

    VIP Vision Aluminium Surface Mount Magnetic Lock



    MAGLOC100S



    The MAGLOC100S from VIP Vision is an affordable surface mount electromagnetic lock designed to prevent entry/exit access from both sides of the door without granted access from a user. Electromagnetic locks are fail-safe, locking the door once electrical current reaches the steel armature plate and unlocks once power is turned off.

    With easily mountable components (see manual), electromagnets are your solution for new or existing applications and ideal for rooms that require special access, such as storage rooms.





    Product Features:



    • Surface mount

    • Anodised Aluminium faceplate with a zinc finish

    • Fail-Safe - unlocks when power is removed from the electromagnet

    • Prevent lock from overcharging - built-in spike suppressor

    • Built for new or existing installs - 12VDC/24VAC switchable

    • Highly durable - 272kg holding force



    VIP Vision Access Control Accessories Datasheet (PDF)_1.jpg

    Construction
    Anodised Aluminium with Zinc Finish
    Lock Configuration
    Fail Safe
    Lock Status Sensor
    No
    Power input
    12VDC / 24VDC (selectable)
    Type
    Surface Mount

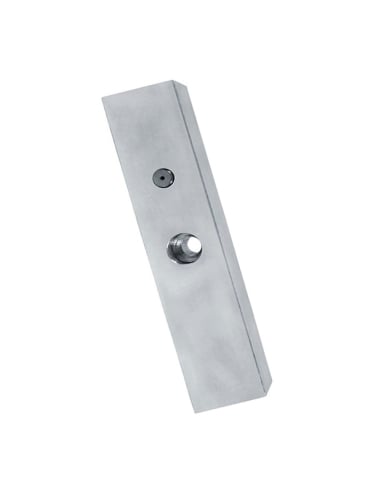

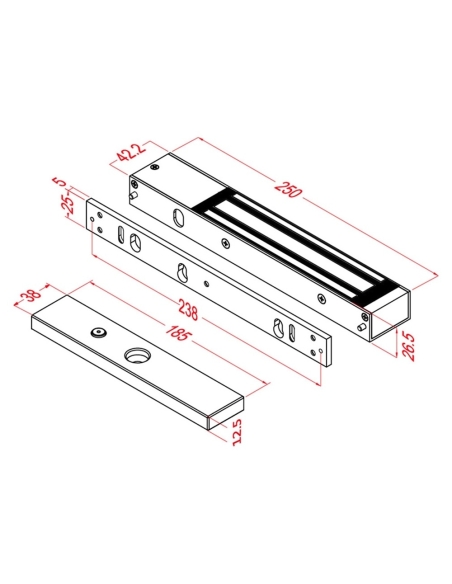

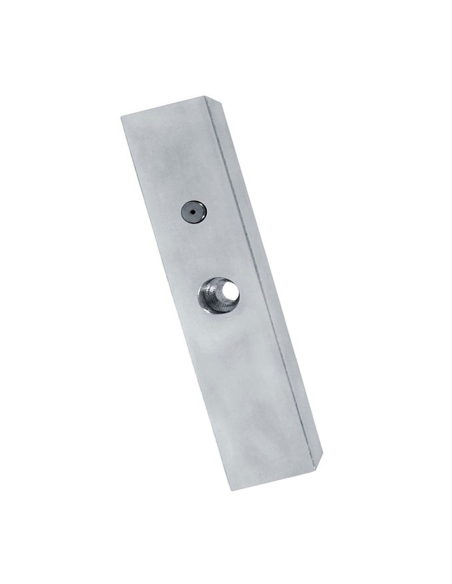

    Armature Dimensions
    185 x 38 x 12.5mm
    Current Draw
    500mA@12V / 250mA@24V
    Door Status Sensor
    No
    Holding Force
    270kg
    Lock Dimensions
    250 x 47.2 x 26.5mm
    Timer
    No
    Weather Rating
    Indoor Only
