Surface Mount Magnetic Lock - Door & Lock Monitored with Timer
MAGLOC100S-DST
In Stock - Ready to Ship
$ 207.35
inc-GST

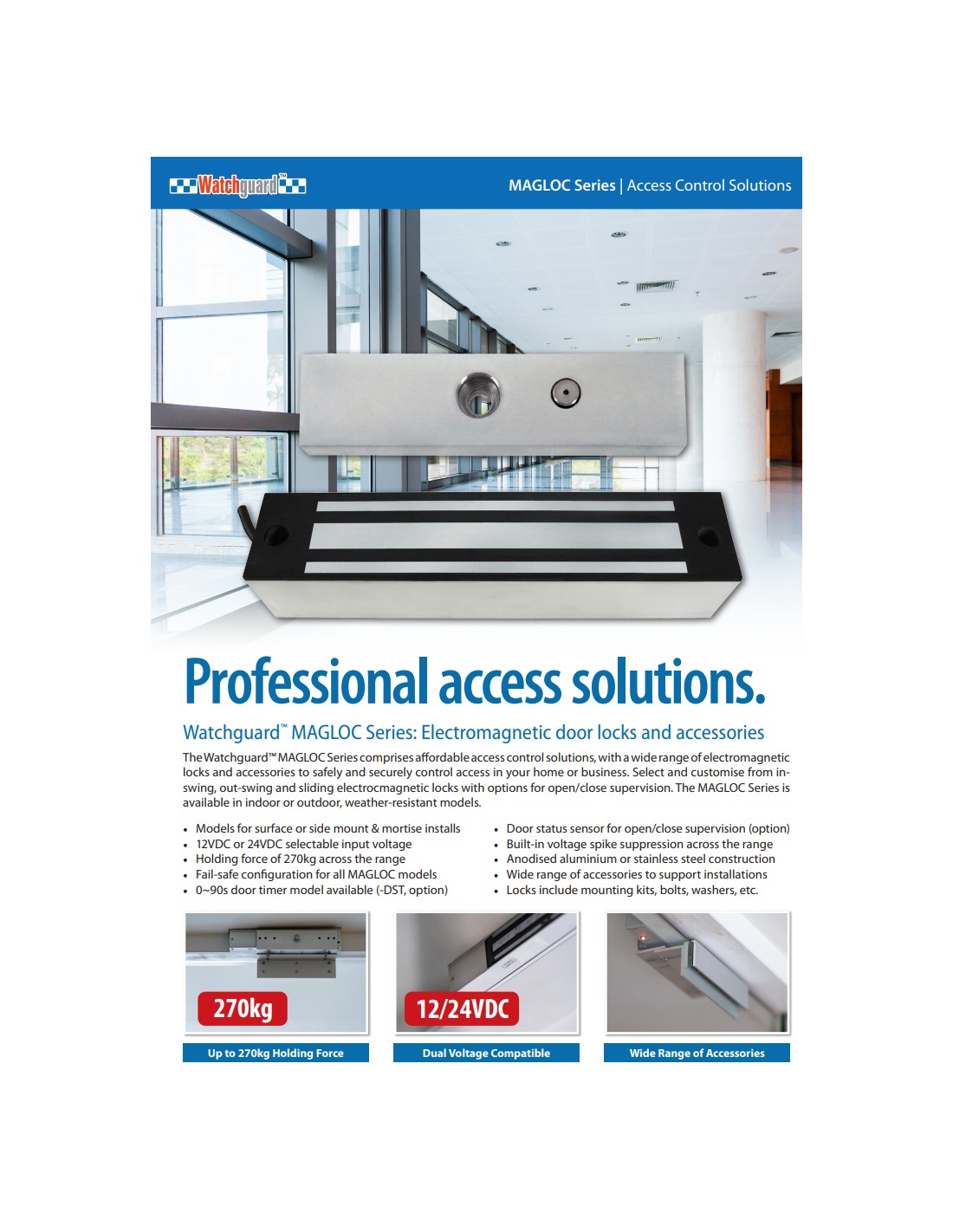

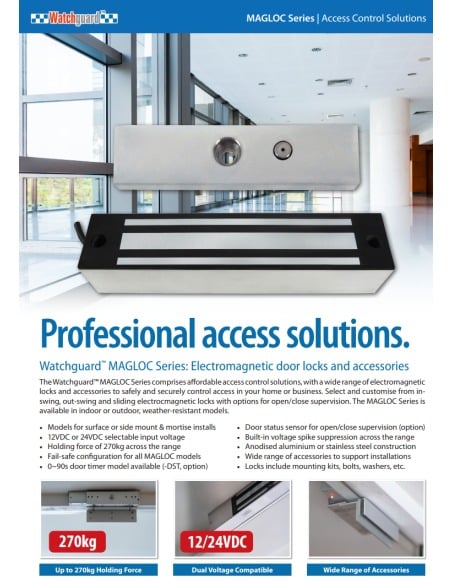

The Watchguard MAGLOC Series comprises affordable access solutions, with a wide range of electromagnetic locks and accessories to safely and securely control access in your home or business

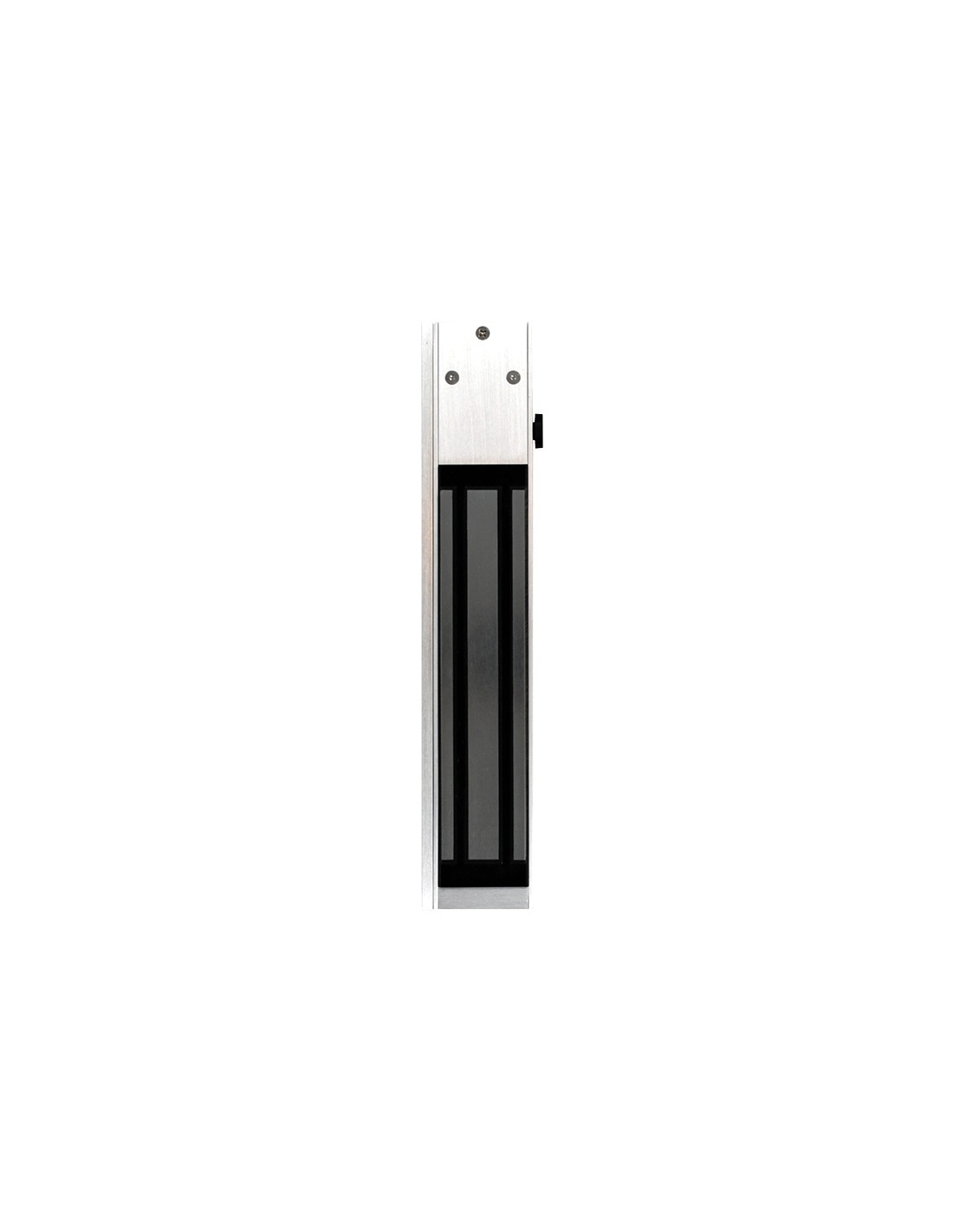

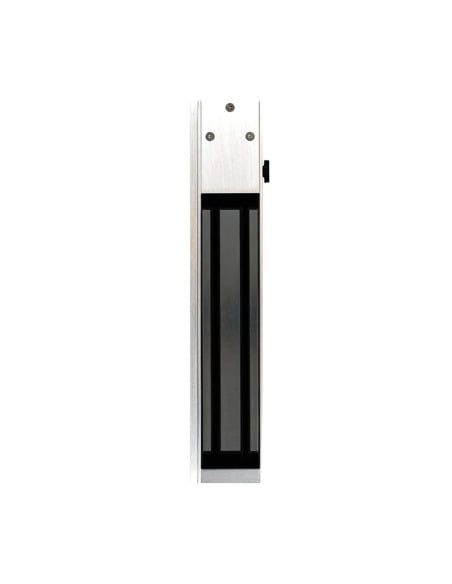

The MAGLOC100S-DST is a surface mounted electromagnetic door lock, designed for indoor use. It is the optimal choice for alarm integration with lock/door status sensors and a configurable timer (1~90s). This model includes the electromagnetic lock, armature plate and mounting component kit.
Product features:
• Surface mount design
• 270kg approximate holding force
• Anodised aluminium face plate with zinc finish
• Lock and door status sensors
• Configurable delay timer 1~90s
• 12V/24VDC selectable power input
• Overvoltage/voltage spike protection
MAGLOC100S-DST: High-Security Magnetic Lock with 270kg Holding Force
The MAGLOC100S-DST is a premium magnetic lock designed for high-security applications in residential, commercial, and industrial environments. With a holding force of 270kg (595 lbs), this lock ensures that your doors remain securely locked, providing reliable protection and peace of mind.
Key Features
- 270kg Holding Force: Withstands up to 270kg of force, perfect for securing sensitive areas.
- Fail-Safe Design: Automatically unlocks in the event of power failure, ensuring safety compliance.
- Adjustable Timer: Configurable delay (1-90 seconds) for secure and timed door unlocking.
- Dual Voltage (12V/24V DC): Flexible power input options to suit various access control systems.
- Durable Construction: Made from anodized aluminum with a zinc finish, designed for long-lasting performance.

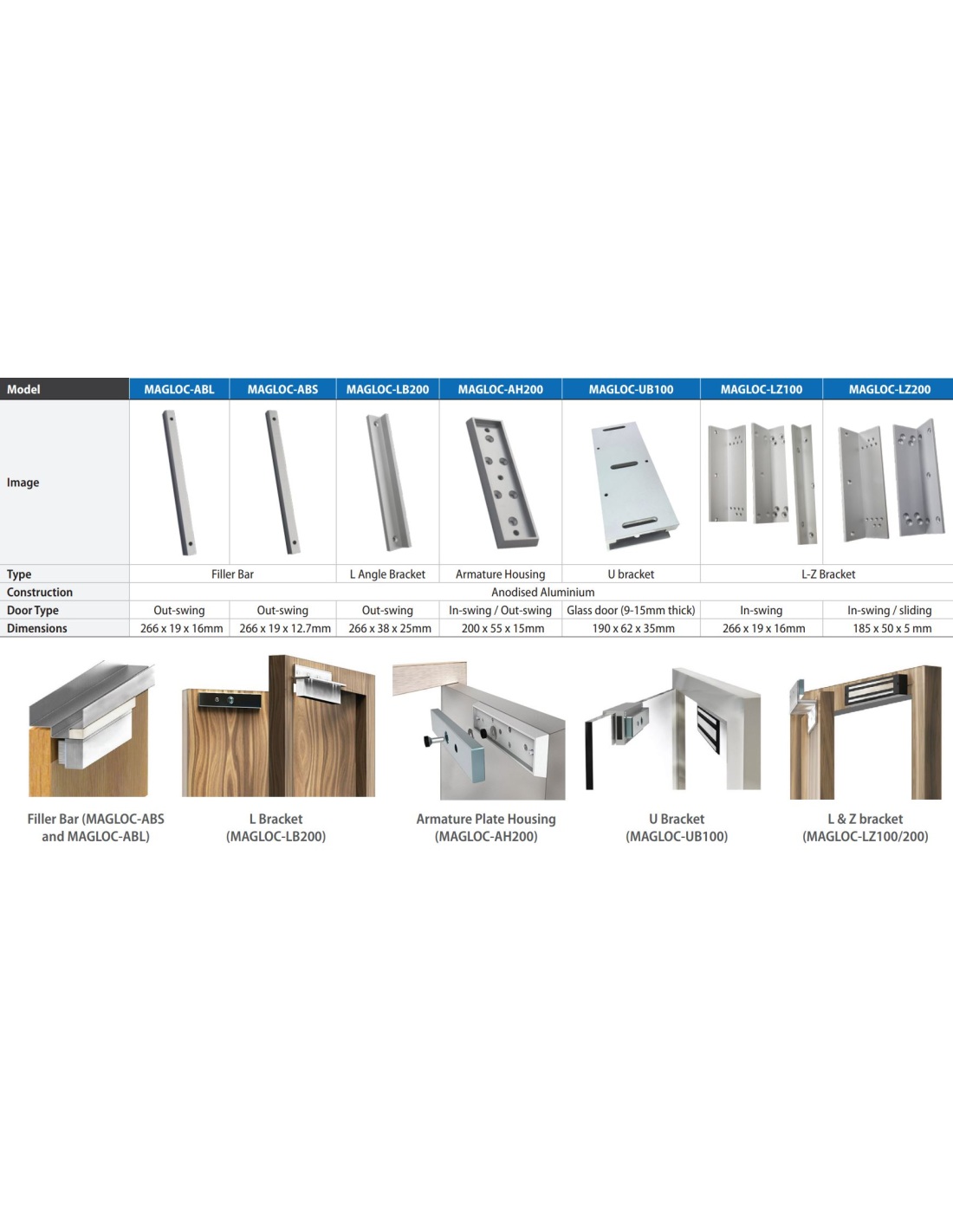

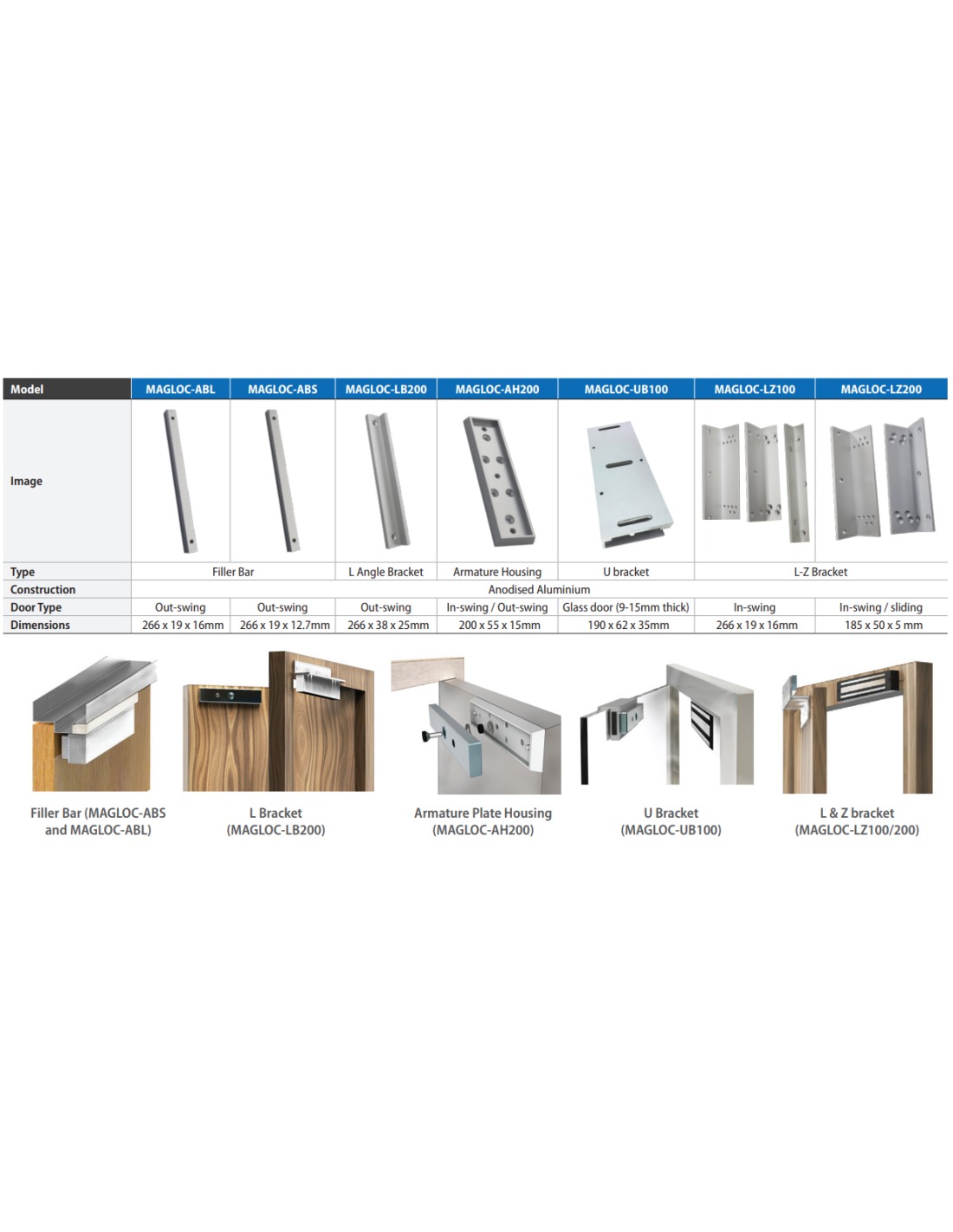

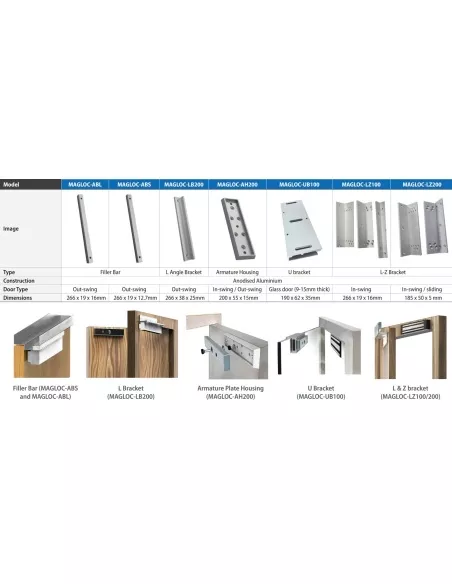

- Easy Installation: All mounting hardware is included, making it simple for professional or DIY installation.
Ideal Applications
The MAGLOC100S-DST is ideal for securing:
- Commercial and industrial doors
- Residential gates and access points
- Restricted areas such as server rooms
- Entry doors for high-traffic environments
- Interior security doors for sensitive areas

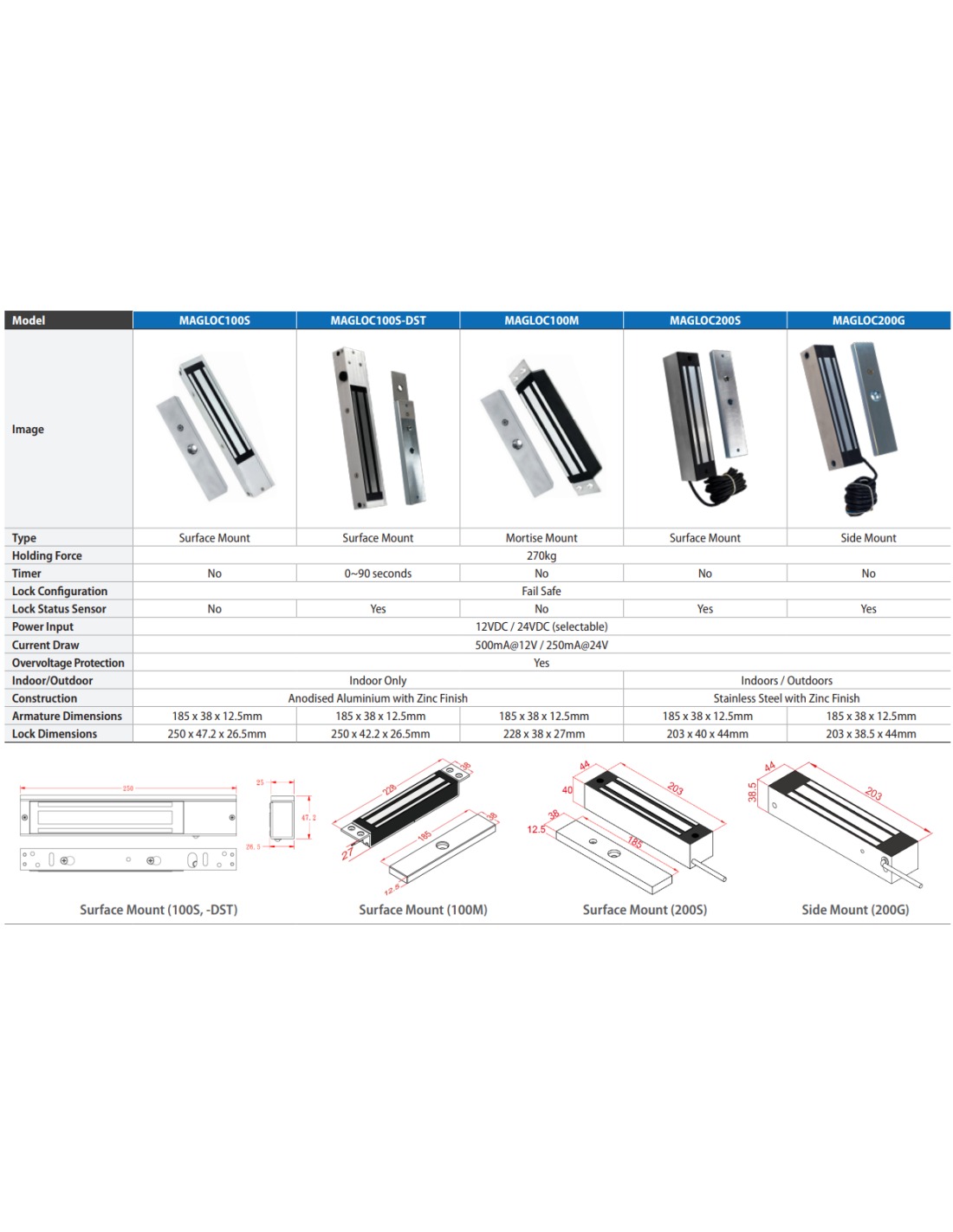

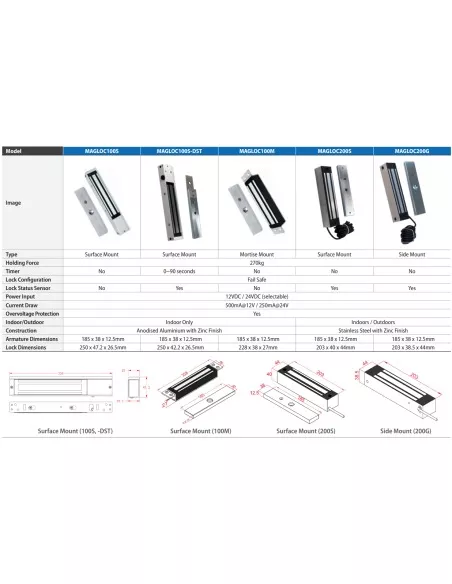

Technical Specifications
| Feature | Details |
|---|---|
| Holding Force | 270kg (595 lbs) |
| Voltage | 12V DC / 24V DC (selectable) |
| Current Draw | 500mA @ 12V / 250mA @ 24V |
| Dimensions (Lock Body) | 250mm x 47.2mm x 26.5mm |
| Dimensions (Armature Plate) | 185mm x 38mm x 12.5mm |
| Timer Delay | 1-90 seconds (adjustable) |
| Usage | Indoor use only |
Why Choose the MAGLOC100S-DST?
The MAGLOC100S-DST is the ideal choice for anyone looking to enhance their security infrastructure. With its robust holding force, reliable performance, and flexibility for various applications, it offers unmatched peace of mind for residential, commercial, and industrial environments.
Package Contents
- 1 x MAGLOC100S-DST Magnetic Lock
- 1 x Mounting Bracket Set
- 1 x Installation Manual
- All required screws and hardware
Upgrade your security today with the MAGLOC100S-DST – Order now!
- Construction
- Steel
- Lock Configuration
- Fail secure
- Lock Status Sensor
- No
- Power input
- 12VDC at 400mA
- Type
- Mortise Mount
- Armature Dimensions
- 185 x 38 x 12.5mm
- Current Draw
- 500mA@12V / 250mA@24V
- Door Status Sensor
- No
- Holding Force
- 270kg
- Lock Dimensions
- 228 x 38 x 27mm
- Timer
- No
- Weather Rating
- Indoor Only
