FUTURO IP Intercom KIT 7" Monitor and Surface Mount Door Station with POE Switch - White
- 2MP HD video intercom function
- Noise suppression and echo cancellation
- 7-inch colourful touch screen with resolution 1024 × 600
- 2ch transmission plan
- Remote unlocking via the client software or the mobile client
- Support port traffic control
- Support for secure mode, all downlink ports can communicate only with uplink ports
- Contains installation frame, cover, screws, lines, etc.
- Cover and installation frame are made of Aviation Aluminum
FUTURO IP Intercom KIT 7" Monitor and Surface Mount Door Station with POE Switch - White
FIP-KIT-SMW
FUTURO IP offers kits to suit your needs with the selection of black or white monitors, and flush or surface mounted door stations, including 4 PoE ports with multiple working modes to address your business needs: Normal, Secure and Surveillance.

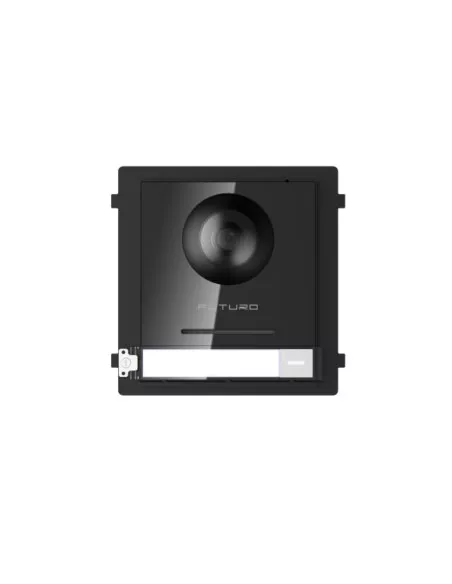

FUTURO IP Modular 2MP Door Station (FIP-L-Camera-IP)
Key Features:
2MP HD video intercom function
Access control function
Noise suppression and echo cancellation
H.264 video compression
Low illumination
Tampering alarm supported
Fisheye camera with IR supplement light
Supports sub-modules’ access (max. 8)
Name-tag customisation
Easy to and extend

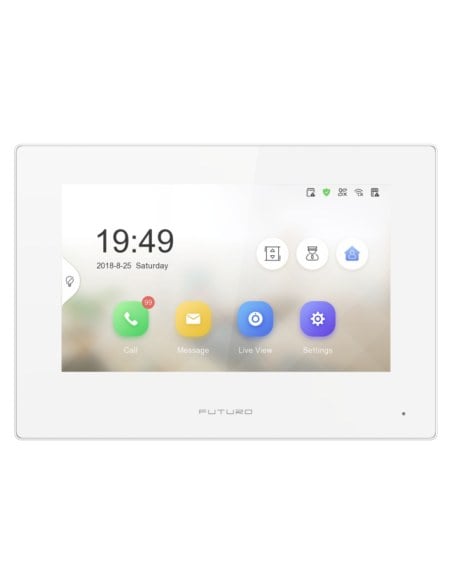

7" Touch Screen Room Station - White (FIP-M-8WiFi-White)
Key Features:
UI V2.0: User-friendly design
7-inch colorful touch screen with resolution 1024 × 600
Standard PoE
Stores messages and captured pictures in the TF card
Remote unlocking via the client software or the mobile client
Views live videos of door stations and linked cameras
Supports wireless network

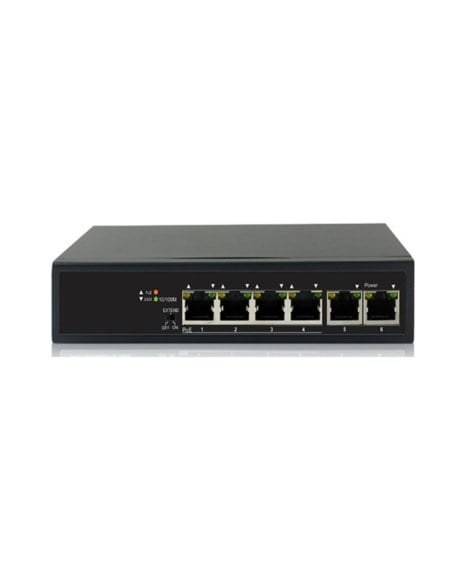

6 x 100Mbps network ports, including 4 POE ports (SIT-UNV2010-6T-POE)
Key Features:
6×100Mbps network ports; 4 POE Ports
PoE: Max capacity - 65W, Max capacity for single port - 30W
Multiple working modes to address your business needs: Normal, Secure and Surveillance
Support port traffic control
Support for secure mode, all downlink ports can communicate only with uplink ports
Up to 250m transmission distance on surveillance mode
Support buffer optimization
All metal housing, safe and reliable

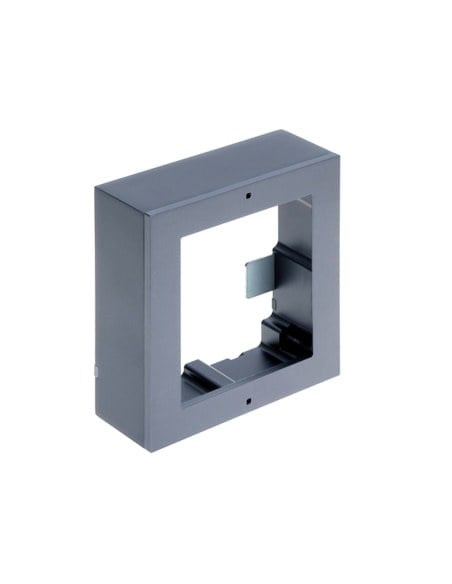

Surface Mount Bracket (FIP-L-Surface1)
Key Features:
Contains installation frame, cover, screws, lines, etc.
Adapts to one-module surface mounting
Cover Dimension: 117 x 107 × 4 mm (4.61" x 4.21" x 0.16")
Frame Dimension: 117 x 107 × 32.7 mm (4.61" x 4.21" x 1.29")
Working Temperature: -40° C to +60° C(-40° F to 140° F)
Working Humidity: 10% to 95%
Cover and installation frame are made of Aviation Aluminum

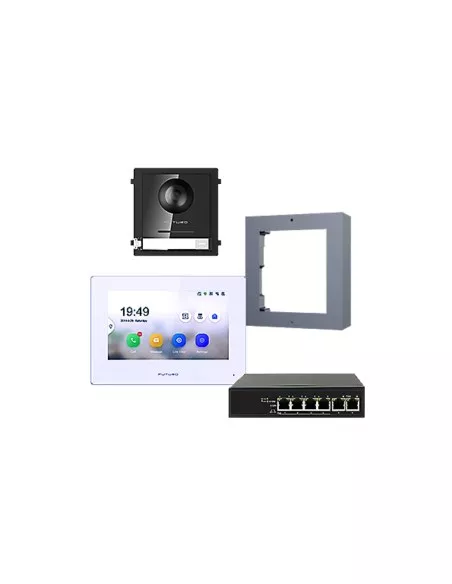

FIP-KIT-SMW Kit Components:
1 x FIP-L-Camera-IP (Modular Door Station with Camera, 1x Button, IP65, 12VDC/PoE)
1 x FIP-L-Surface1 (Door Station Surface Mount Bracket, Supports 1x Module)
1 x FIP-M-8WiFi-White (7" Touch Screen Room Station - White, WiFi, 1024 x 600, 12VDC/PoE)
1 x 4-Port Unmanaged PoE Switch
