FUTURO IP 2-Wire Residential Kit with Surface Mount Door Station, Distributor and 7" Monitor in Black

FUTURO IP 2-Wire Residential Kit with Surface Mount Door Station, Distributor and 7" Monitor in Black



FIP-KIT-SMB-2Wire



FUTURO IP offers kits to suit your needs with 7" touch screen monitors, surface mounted door stations, including 2-Wire Video/Audio Distributor with 6x 2-Wire interface, 1x Input & 1x Output, 1xRJ45, 24VDC • 6 two-wire cascade interfaces, including 1 interface (max. 16W) used for connecting door station • 2 cascade interfaces used for cascading FIP-D-2Wire-Distributor and FIP-D-2Wire-Splitter • 8 interface indicators used for displaying network status of interfaces.

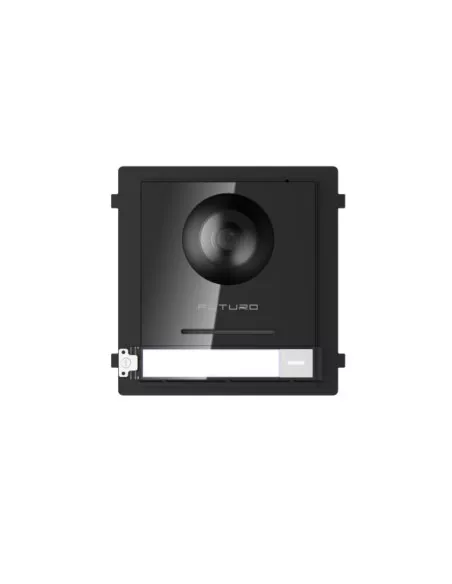

FUTURO IP Modular 2MP 2-Wire Door Station (FIP-L-Camera-2Wire)

Key Features:

Two-pin wire for power supply and network access

Access control function

Noise suppression and echo cancellation

H.264 video compression

Low illumination

Tampering alarm

Fisheye camera with IR supplement light

Supports sub-modules' access (max. 8)

Name-tag customization

Easy to and extend

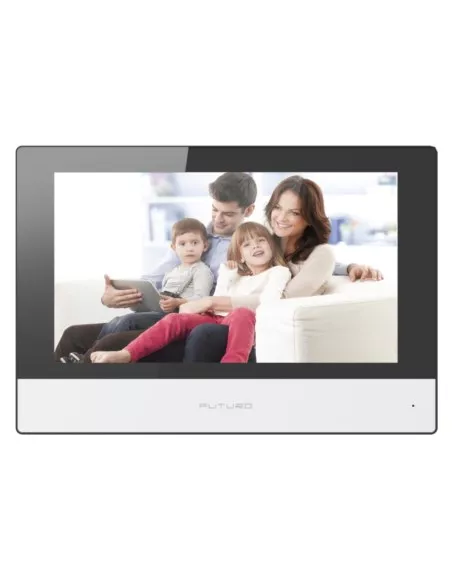

7” Touch Screen Monitor in Black (FIP-M-8WiFi-2Wire-Black)

Key Features:

Two-pin wire for power supply and network access

UI V2.0: User friendly design

7-inch colourful touch screen with resolution 1024 × 600

2ch transmission plan

Stores messages and captured pictures in the TF card

Remote unlocking via the client software or the mobile client

Views live videos of door stations and linked cameras

Supports wireless network

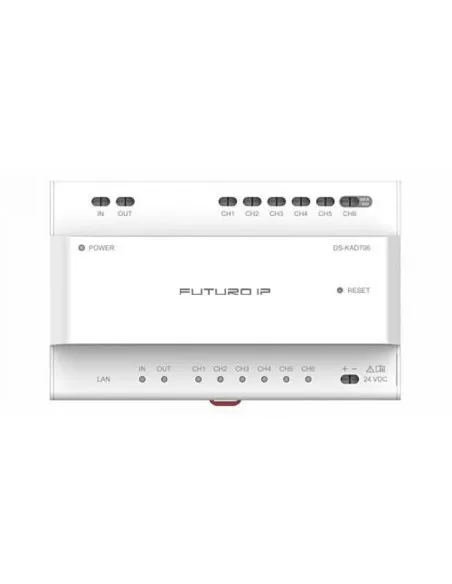

PSU & Video Distributor (FIP-D-2Wire-Distributor)

Key Features:

6 two-wire cascade interfaces, including 1 interface (max. 16 W) used for connecting door station

2 cascade interfaces used for cascading FIP-D-2Wire-Distributor)and FIP-D-2Wire-Splitter

8 interface indicators used for displaying network status of interfaces

Includes 24VDC power supply

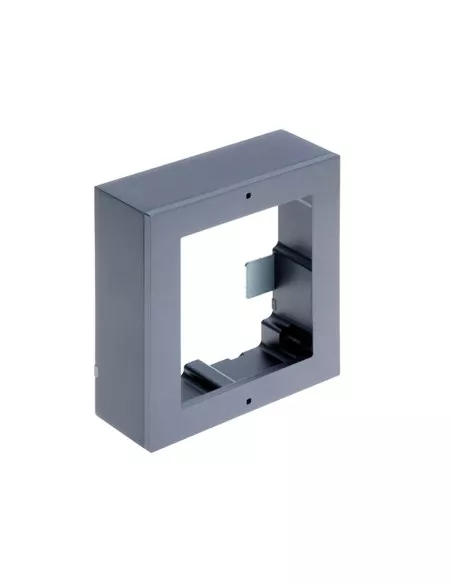

Surface Mount Bracket (FIP-L-Surface1)

Key Features:

Contains installation frame, cover, screws, lines, etc.

Adapts to one-module surface mounting

Cover Dimension: 117 x 107 × 4 mm (4.61" x 4.21" x 0.16")

Frame Dimension: 117 x 107 × 32.7 mm (4.61" x 4.21" x 1.29")

Working Temperature: -40° C to +60° C(-40° F to 140° F)

Working Humidity: 10% to 95%

Cover and installation frame are made of Aviation Aluminum

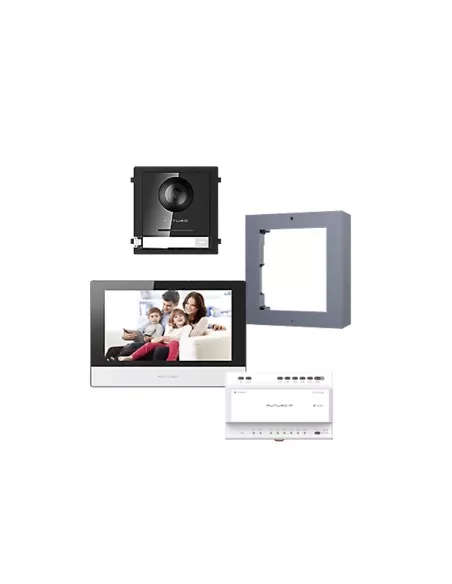

FIP-KIT-SMB-2Wire Kit Components:

1 x FIP-L-Camera-2Wire (Door Station with Single Door Module IP65)

1 x FIP-L-Surface1 (Surface Mount Bracket, Supports 1x Module)

1 x FIP-M-8Wifi-2Wire-Black (7” Touch Screen Monitor in Black)

1 x FIP-D-2Wire-Distributor (PSU & Video Distributor)
