FUTURO IP Intercom KIT 7" Monitor and Flush Mount Door Station with POE Switch - White
- 2MP HD video intercom function
- Noise suppression and echo cancellation
- 7-inch colourful touch screen with resolution 1024 × 600
- 2ch transmission plan
- Remote unlocking via the client software or the mobile client
- Support port traffic control
- Support for secure mode, all downlink ports can communicate only with uplink ports
- Contains gang box, cover, screws, lines, etc.
- Gang Box is made of Plastic and Cover is made of Aviation Aluminum
FUTURO IP Intercom KIT 7" Monitor and Flush Mount Door Station with POE Switch - White
FIP-KIT-FMW
FUTURO IP offers kits to suit your needs with the selection of black or white monitors, and flush or surface mounted door stations, including 4 PoE ports with multiple working modes to address your business needs: Normal, Secure and Surveillance.

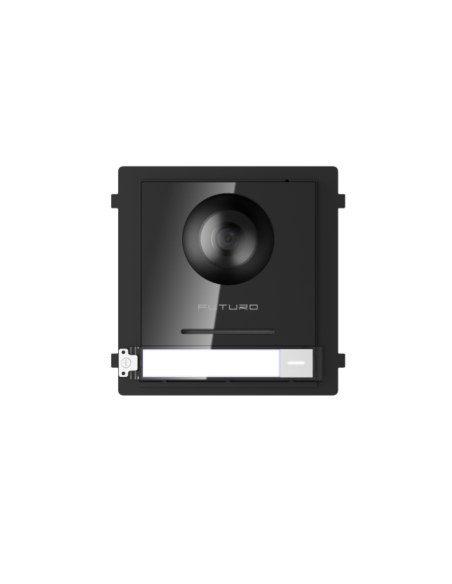

FUTURO IP Modular 2MP Door Station (FIP-L-Camera-IP)
Key Features:
2MP HD video intercom function
Access control function
Noise suppression and echo cancellation
H.264 video compression
Low illumination
Tampering alarm supported
Fisheye camera with IR supplement light
Supports sub-modules’ access (max. 8)
Name-tag customisation
Easy to and extend

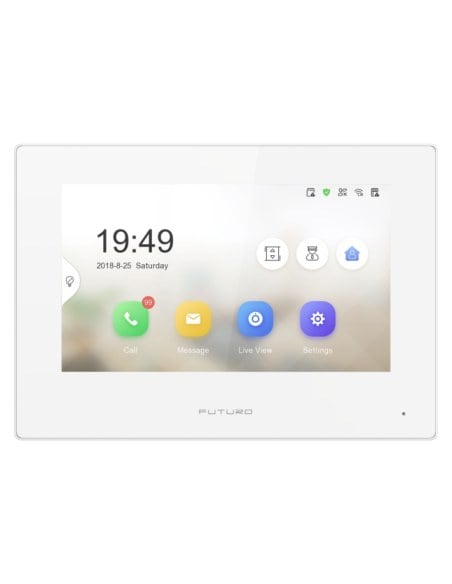

7" Touch Screen Room Station - White (FIP-M-8WiFi-White)
Key Features:
UI V2.0: User-friendly design
7-inch colorful touch screen with resolution 1024 × 600
Standard PoE
Stores messages and captured pictures in the TF card
Remote unlocking via the client software or the mobile client
Views live videos of door stations and linked cameras
Supports wireless network

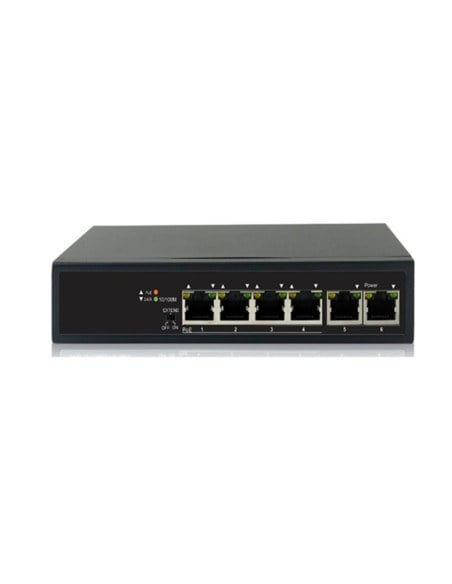

6 x 100Mbps network ports, including 4 POE ports (SIT-UNV2010-6T-POE)
Key Features:
6×100Mbps network ports; 4 POE Ports
PoE: Max capacity - 65W, Max capacity for single port - 30W
Multiple working modes to address your business needs: Normal, Secure and Surveillance
Support port traffic control
Support for secure mode, all downlink ports can communicate only with uplink ports
Up to 250m transmission distance on surveillance mode
Support buffer optimization
All-metal housing, safe and reliable

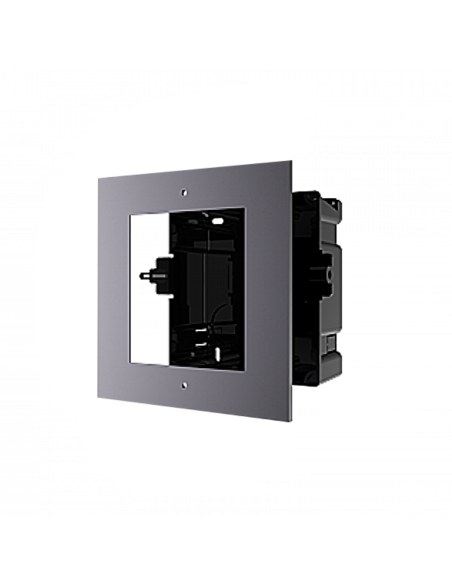

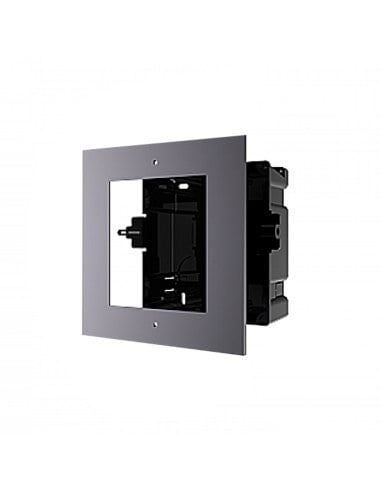

Surface Mount Bracket (FIP-L-Flush1)
Key Features:
Contains gang box, cover, screws, lines, etc.
Adapts to one-module flush mounting
Cover Dimension: 134 x 124 × 4 mm (5.28" x 4.88" x 0.16")
Gang Box Dimension: 134 x 135 × 56 mm (5.28" x 5.31" x 2.20")
Working Temperature: -40° C to +60° C(-40° F to 140° F)
Working Humidity: 10% to 95%
Gang Box is made of Plastic and Cover is made of Aviation Aluminum
Ref: DS-KD-ACF1/Plastic

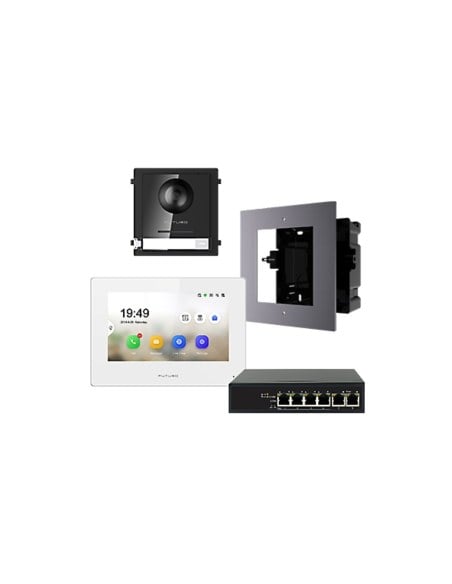

FIP-KIT-FMW Kit Components:
1 x FIP-L-Camera-IP (Door Station with Camera, 1x Button, IP65, 12VDC/PoE)
1 x FIP-L-Flush1 (Door Station Flush Mount Bracket, Supports 1 Module)
1 x FIP-M-8WiFi-White (7" Touch Screen Room Station - White, WiFi, 1024 x 600, 12VDC/PoE)
1 x 4-Port Unmanaged PoE Switch
