FUTURO IP Video Intercom Kit 7" Monitor and Flush Mount Door Station with PoE Switch - Black

FUTURO IP Intercom KIT 7" Monitor and Flush Mount Door Station with POE Switch - Black

FIP-KIT-FMB

FUTURO IP offers kits to suit your needs with the selection of black or white monitors, and flush or surface mounted door stations, including 4 PoE ports with multiple working modes to address your business needs: Normal, Secure and Surveillance.

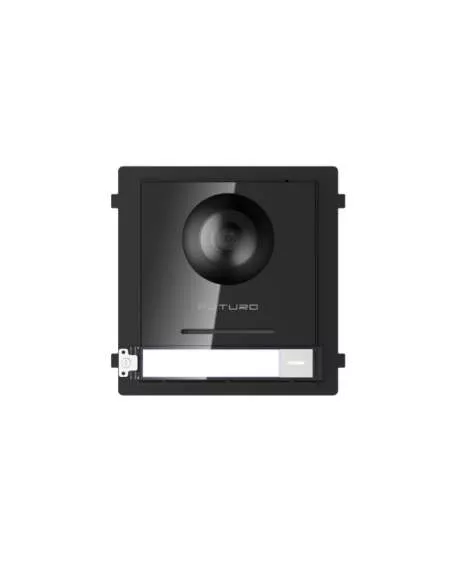

FUTURO IP Modular 2MP Door Station (FIP-L-Camera-IP)

Key Features:

2MP HD video intercom function

Access control function

Noise suppression and echo cancellation

H.264 video compression

Low illumination

Tampering alarm supported

Fisheye camera with IR supplement light

Supports sub-modules’ access (max. 8)

Name-tag customisation

Easy to and extend

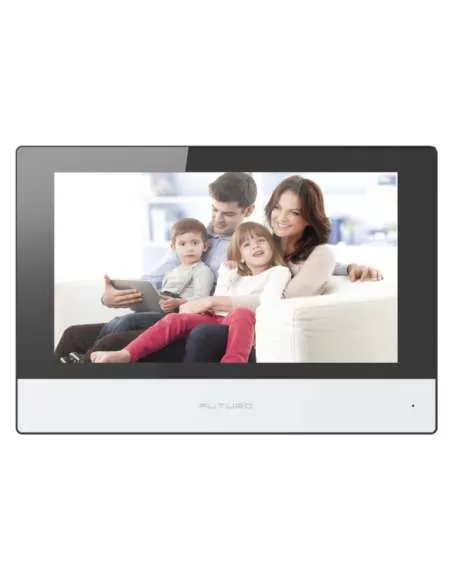

7" Touch Screen Room Station - Black (FIP-M-8WiFi-Black)

Key Features:

UI V2.0: User-friendly design

7-inch colorful touch screen with resolution 1024 × 600

Standard PoE

Stores messages and captured pictures in the TF card

Remote unlocking via the client software or the mobile client

Views live videos of door stations and linked cameras

Supports wireless network

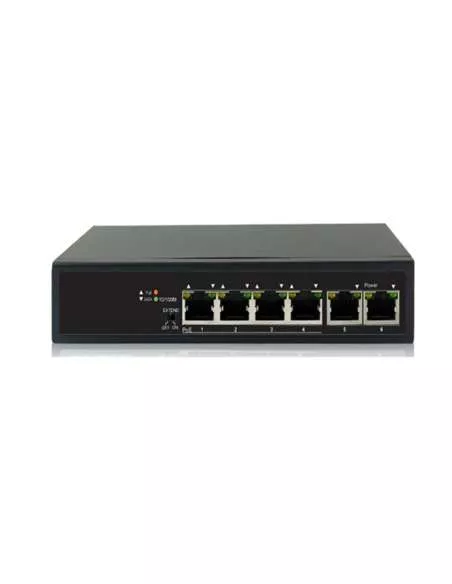

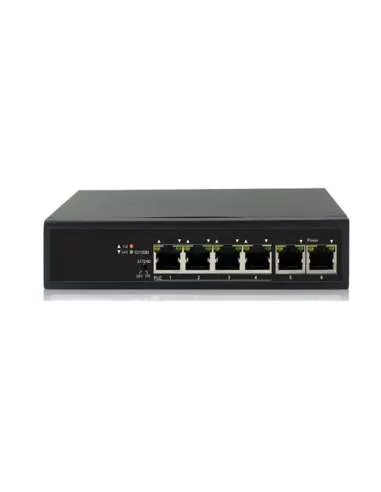

6 x 100Mbps network ports, including 4 POE ports (SIT-UNV2010-6T-POE)

Key Features:

6×100Mbps network ports; 4 POE Ports

PoE: Max capacity - 65W, Max capacity for single port - 30W

Multiple working modes to address your business needs: Normal, Secure and Surveillance

Support port traffic control

Support for secure mode, all downlink ports can communicate only with uplink ports

Up to 250m transmission distance on surveillance mode

Support buffer optimization

All-metal housing, safe and reliable

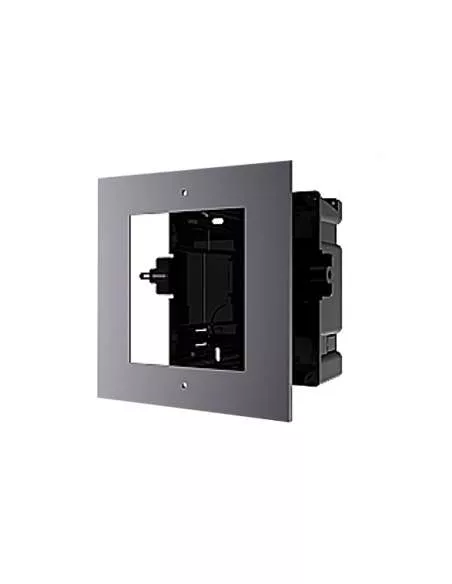

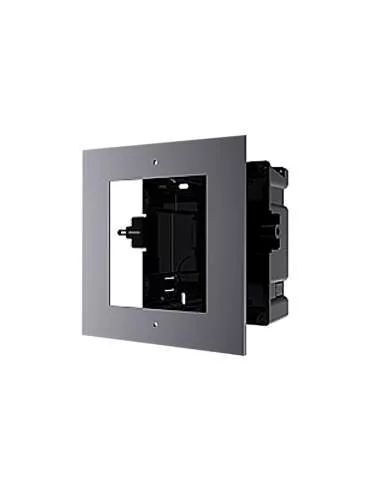

Surface Mount Bracket (FIP-L-Flush1)

Key Features:

Contains gang box, cover, screws, lines, etc.

Adapts to one-module flush mounting

Cover Dimension: 134 x 124 × 4 mm (5.28" x 4.88" x 0.16")

Gang Box Dimension: 134 x 135 × 56 mm (5.28" x 5.31" x 2.20")

Working Temperature: -40° C to +60° C(-40° F to 140° F)

Working Humidity: 10% to 95%

Gang Box is made of Plastic and Cover is made of Aviation Aluminum

Ref: DS-KD-ACF1/Plastic

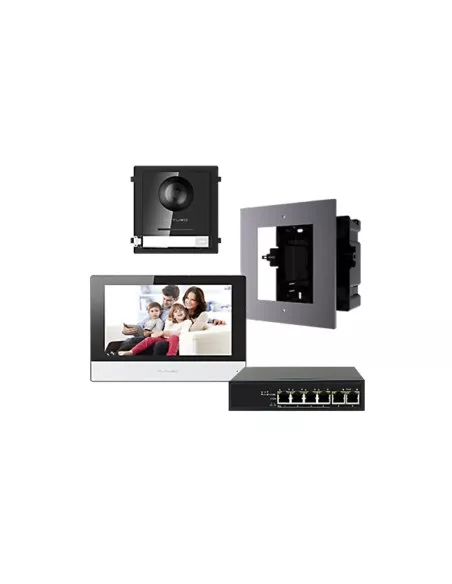

FIP-KIT-FMB Kit Components:

1 x FIP-L-Camera-IP (Door Station with Camera, 1x Button, IP65, 12VDC/PoE)

1 x FIP-L-Flush1 (Door Station Flush Mount Bracket, Supports 1 Module)

1 x FIP-M-8WiFi-Black (7" Touch Screen Room Station - Black, WiFi, 1024 x 600, 12VDC/PoE)

1 x 4-Port Unmanaged PoE Switch
