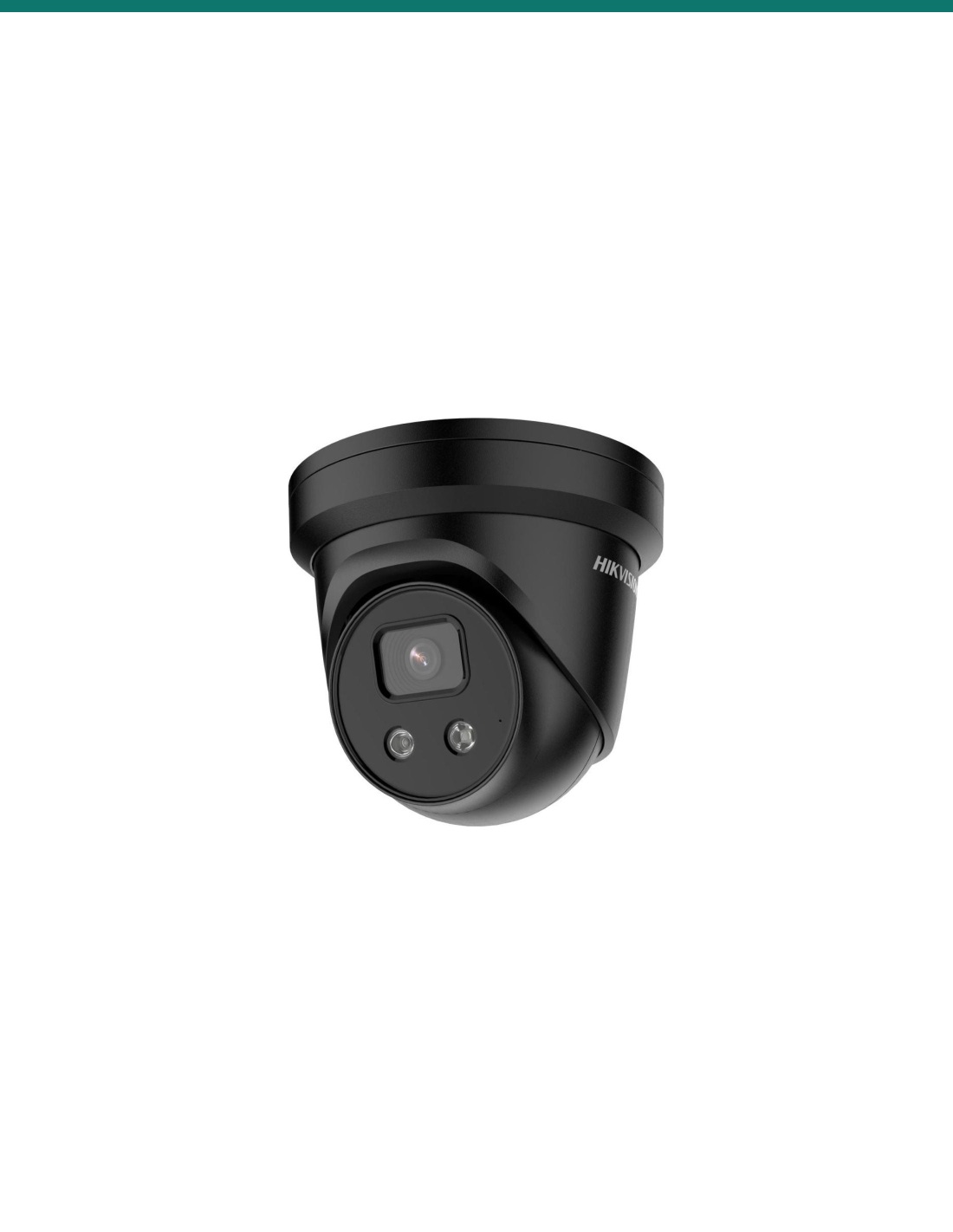

Hikvision DS-2CD2386G2-ISU/SL (BLACK) — 8 MP 4K AcuSense turret, 2.8 mm

Hikvision DS-2CD2386G2-ISU/SL — mechanical dimensions, Hikvision datasheet

Hikvision 8MP 4K ISU/SL 2.8mm BLACK — DS-2CD2386G2-ISU/SL(2.8mm)(C)(BLACK)

Name: Hikvision 8MP 4K ISU/SL 2.8mm BLACK — DS-2CD2386G2-ISU/SL(2.8mm)(C)(BLACK)
Brand: HIKVision Australia
SKU: DS-2CD2386G2-ISU/SL(2.8mm)(C)(BLACK)
Price: 287.5 AUD
Availability: InStock

Reference: DS-2CD2386G2-ISU/SL(2.8mm)(C)(BLACK)

In Stock - Ready to Ship

$ 287.50

inc-GST

BLACK 4K. Strobe + two-way audio on one PoE run (verify headroom).

Same ISU/SL class as the white 2.8 mm, with factory black finish. Deterrence + AcuSense for retail, perimeters, roller doors.

✓ Genuine Hikvision, supplied by Infront Technologies Australia.

Various Payment Types at Checkout.

All Payment Options are available at Checkout: Visa/MC/Amex, Zip, Afterpay, Paypal and Bank Dep

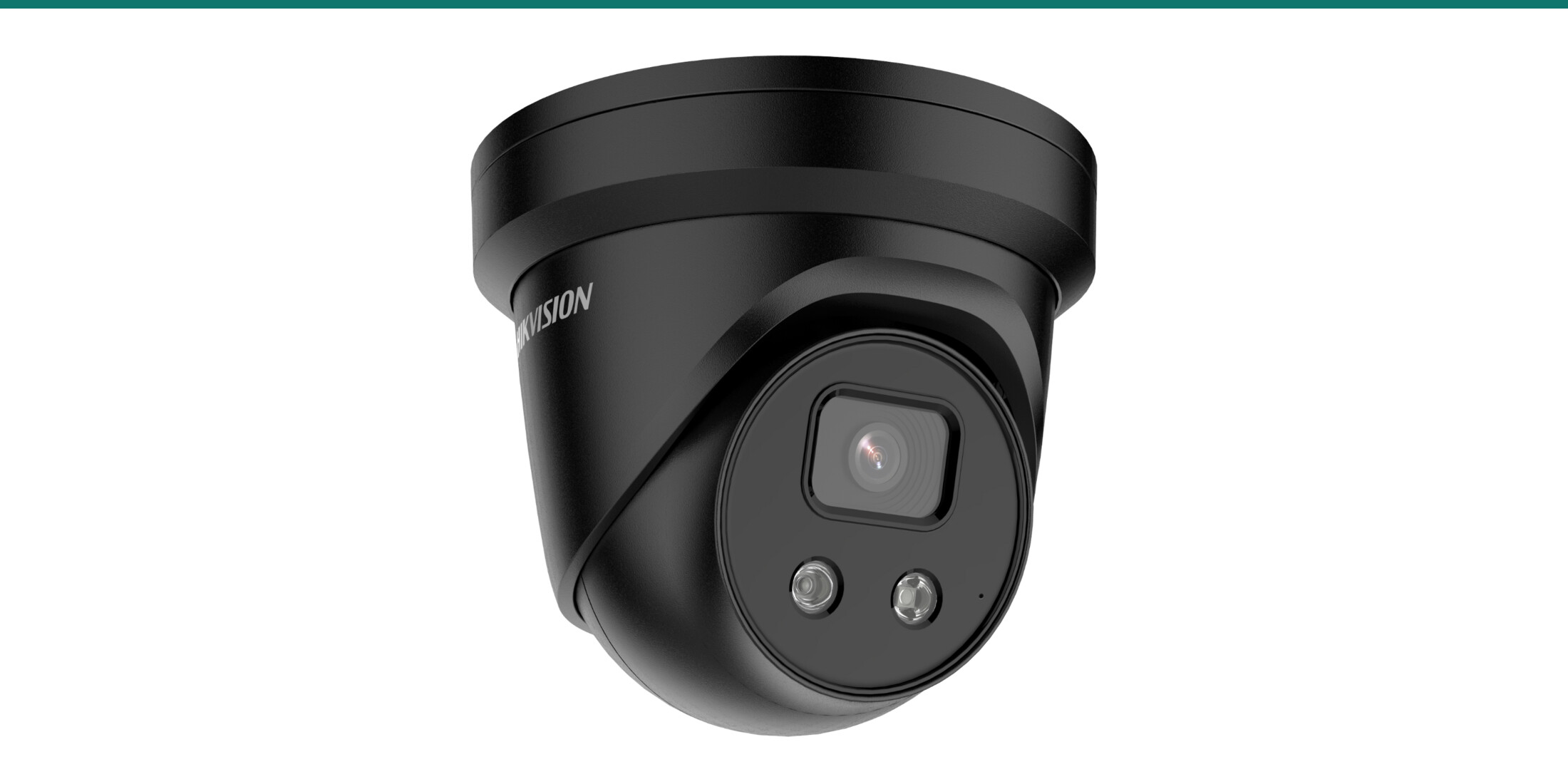

Hikvision DS-2CD2386G2-ISU/SL 8 MP 4K AcuSense turret with strobe and two-way audio

Hikvision · Pro Series EasyIP (8 MP, AcuSense)

4K deterrence. Not just a picture.
Strobe, audio, AcuSense.

The Hikvision DS-2CD2386G2-ISU/SL (BLACK, 2.8 mm) is an 8 MP 4K turret with human/vehicle AcuSense classification, 120 dB WDR, active strobe and audio alarm, and built‐in two‐way audio with speaker and microphone. It is a self‐contained network camera: add a recorder or VMS to match your retention needs.

Product shot may differ from the actual product.

This is a STANDALONE IP CAMERA — it is not a full recorder kit.

The DS-2CD2386G2-ISU/SL is a full network camera on one cable, but it does not include an NVR, hard drive or cloud subscription. You will typically add a PoE switch or NVR to record, or run event-only to the card or VMS of your choice.

In the box (typical retail)

8 MP turret camera and accessories bag (per Hikvision regional kit)
Drill template, waterproof gland and Torx key (class-typical)

Exact accessories vary by region; use the manufacturer quick-start if in doubt.

You may also need

802.3af (or 802.3at) PSE: PoE NVR or switch
External Cat cable to the mount point
Optional microSD, up to 512 GB (per datasheet)

Unsure what to pair? See Compatible hardware below or contact Infront Technologies before you order.

8 MP 4K, AcuSense, and on-board deterrence in one turret.

Hikvision positions the DS‐2CD2386G2‐ISU/SL line for customers who want human/vehicle classification, wide dynamic range, and an active warning path without running extra devices. The attached DS‐2CD2386G2‐ISU/SL‐C datasheet is the specification authority for this 2.8 mm SKU.

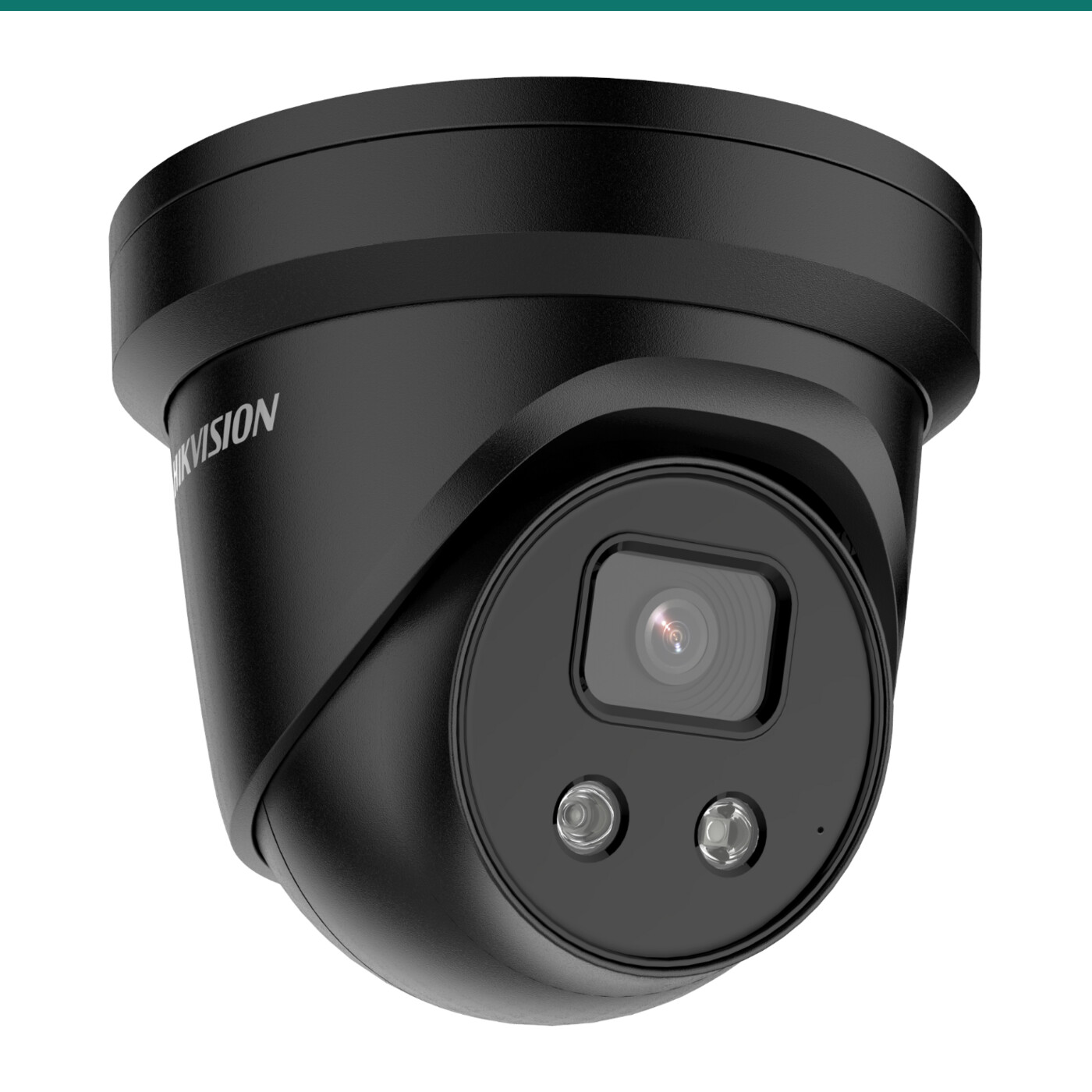

Hikvision DS-2CD2386G2-ISU/SL 8 MP turret — front

CLARITY · 01

4K, DarkFighter‐class low light, 120 dB WDR.

The 1/1.8" sensor behind F1.6 × 2.8 mm optics delivers 111° horizontal coverage with a main stream at 3840 × 2160 up to 25 fps (50 Hz) per the official datasheet, with H.265+, H.265, H.264+ and H.264.

Minimum scene illumination is documented at 0.003 lux in colour (F1.6, AGC on) and 0 lux in monochrome with 850 nm Smart IR out to 30 m.

DETER · 02

Strobe, speaker and two‐way audio on the same PoE run.

The SL suffix brings a visual strobe and audible warning path you can link to smart events, alongside the built‐in speaker and microphone for two‐way communication and line‐level audio I/O on terminal blocks.

Pair deterrence with AcuSense target classification so warnings follow people and vehicles rather than every shadow — configure rules in iVMS‐4200, Hik‐Connect or your ONVIF‐compatible VMS.

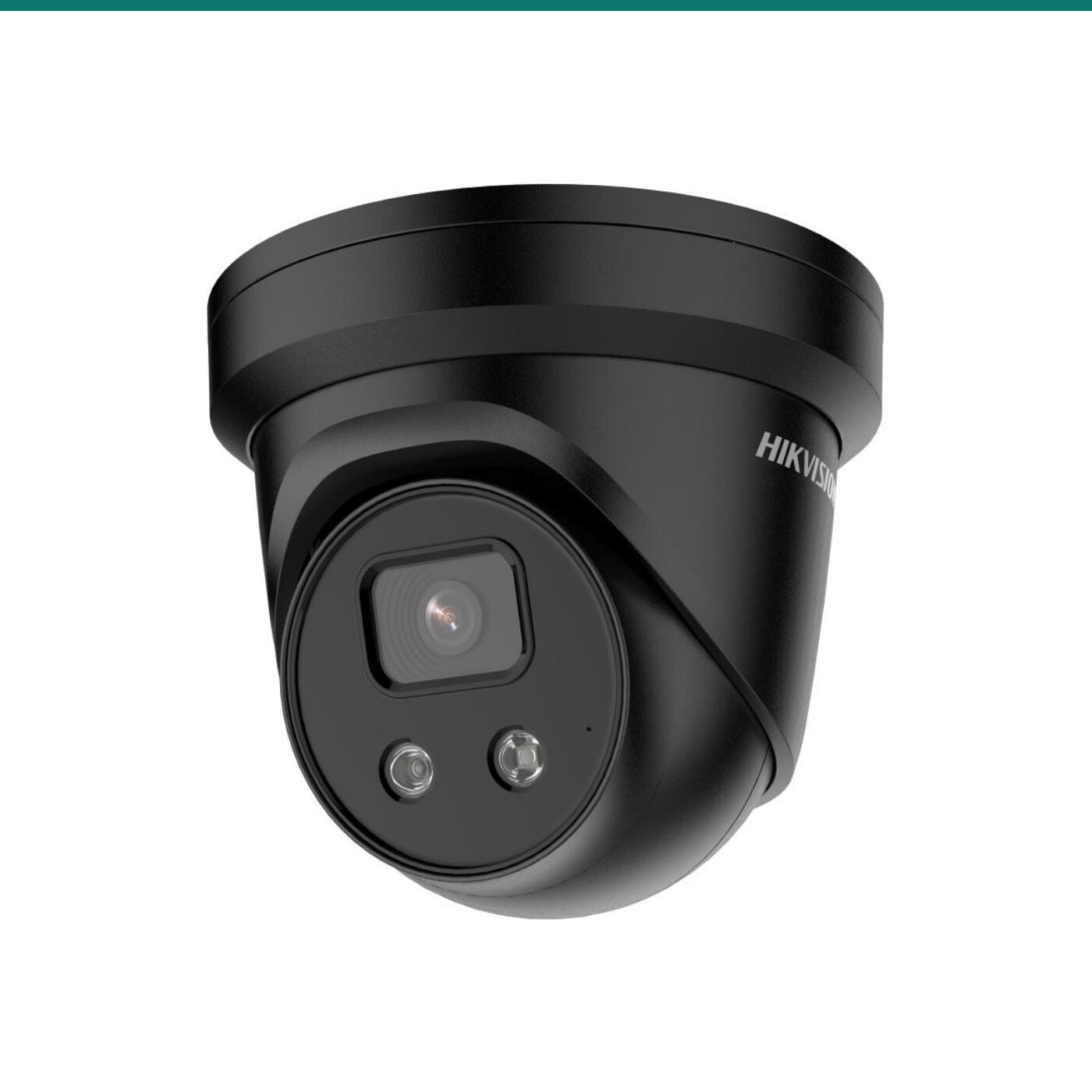

Hikvision DS-2CD2386G2-ISU/SL — lens and IR ring

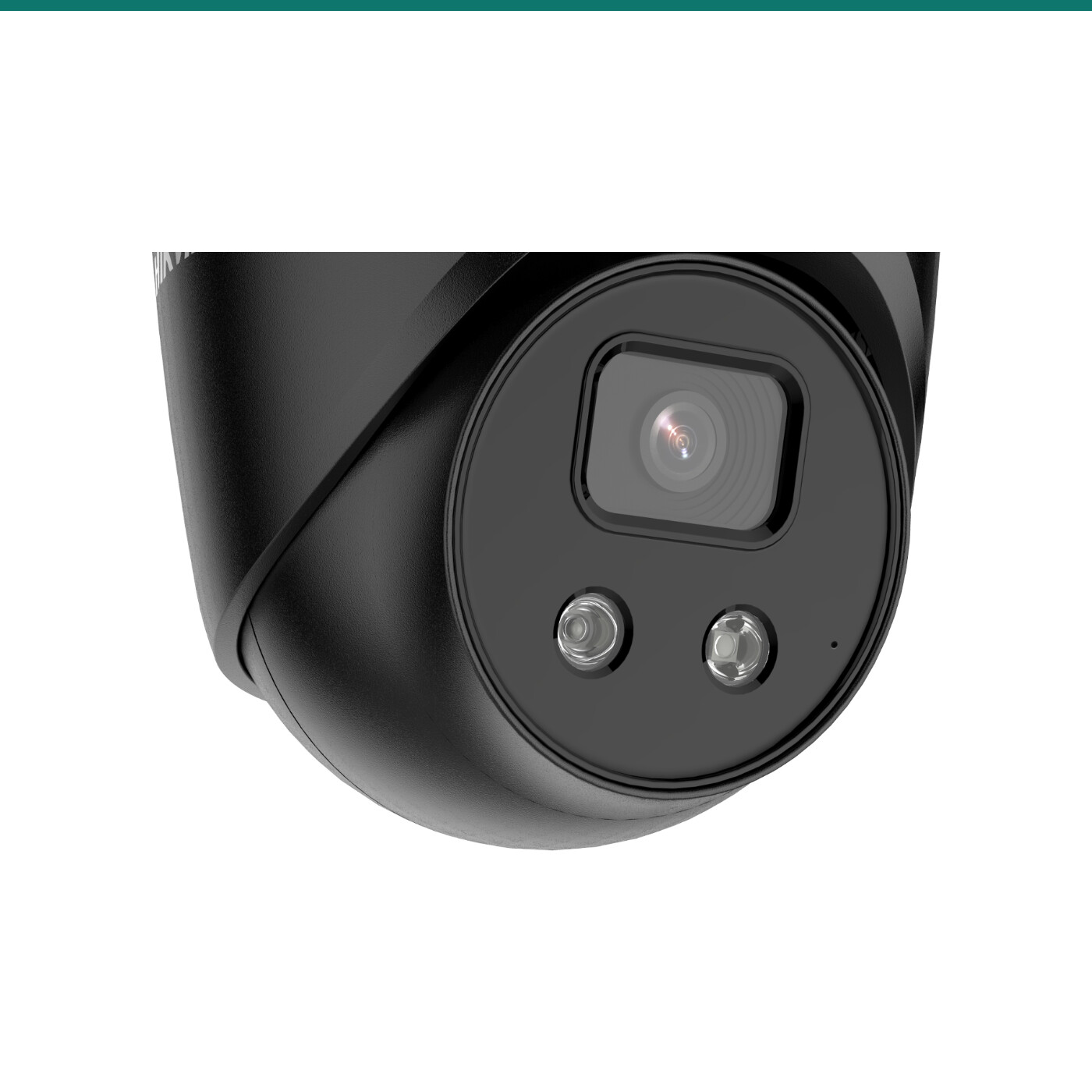

Hikvision DS-2CD2386G2-ISU/SL — housing base

BUILD · 03

IP67 metal, Ø138.3 mm footprint, 840 g.

The housing is IP67 to IEC 60529‐2013 with a 3‐axis turret head. Operating range is −30°C to +60°C and 95% RH non‐condensing, matching the published environmental table.

Use 802.3af PoE (max 10 W on PoE per datasheet) or 12 VDC. Add a 512 GB edge card if you need local redundancy alongside your NVR.

How it works

From cable pull to 4K + deterrence in four steps.

Power and data on one run

802.3af Class 3 PSE; allow headroom for the 10 W PoE maximum in the datasheet on longer runs.

Adopt in SADP or NVR

Set a strong password, enable H.265+ main stream, and map AcuSense events to record and notification rules.

Tune IR, strobe and audio

With consent, verify two‐way levels, set Smart IR distance, and only enable strobe/audible paths where policy allows.

Handover

Document where the edge card lives (if fitted), Hik‐Connect pairing, and which rules drive deterrence.

At a glance

Key specs — DS-2CD2386G2-ISU/SL (BLACK, 2.8 mm)

Form factor: Fixed turret (Gen 2 AcuSense, Pro Series EasyIP)
Resolution: 3840 × 2160 (4K UHD, 8 MP)
Sensor: 1/1.8" progressive scan CMOS
Lens: 2.8 mm fixed, F1.6, M12 mount (this SKU)
Field of view: 111° (H) / 59° (V) / 131° (D) on 2.8 mm, per datasheet
DORI (2.8 mm): D 89.2 m · O 35.4 m · R 17.8 m · I 8.9 m
Min. illumination: Colour: 0.003 lux @ (F1.6, AGC ON); B/W: 0 lux with IR
WDR: 120 dB true WDR
IR: Up to 30 m, Smart IR, 850 nm
Deterrence: Active strobe light and audio alarm, per model suffix SL
Onboard storage: microSD / SDHC / SDXC up to 512 GB (per datasheet) + ANR to NAS
Network: 1 × RJ45 10/100 Mbps
Power: 12 VDC ± 25% or 802.3af Class 3 PoE
Power consumption: 12 VDC max 9 W; PoE max 10 W (per datasheet)
Body: Metal (except trim ring), white, IP67 (IEC 60529-2013)
Audio: Built-in mic and speaker, two-way, line in / line out (terminal)
Alarm: 1 input, 1 output (max. 24 V, 500 mA), per datasheet
Weight (camera): Approx. 840 g
Dimensions: Ø 138.3 mm × 124.5 mm

Hikvision DS‐2CD2386G2‐ISU/SL‐C datasheet (stamped PDF) governs. Table is a summary only.

Physical

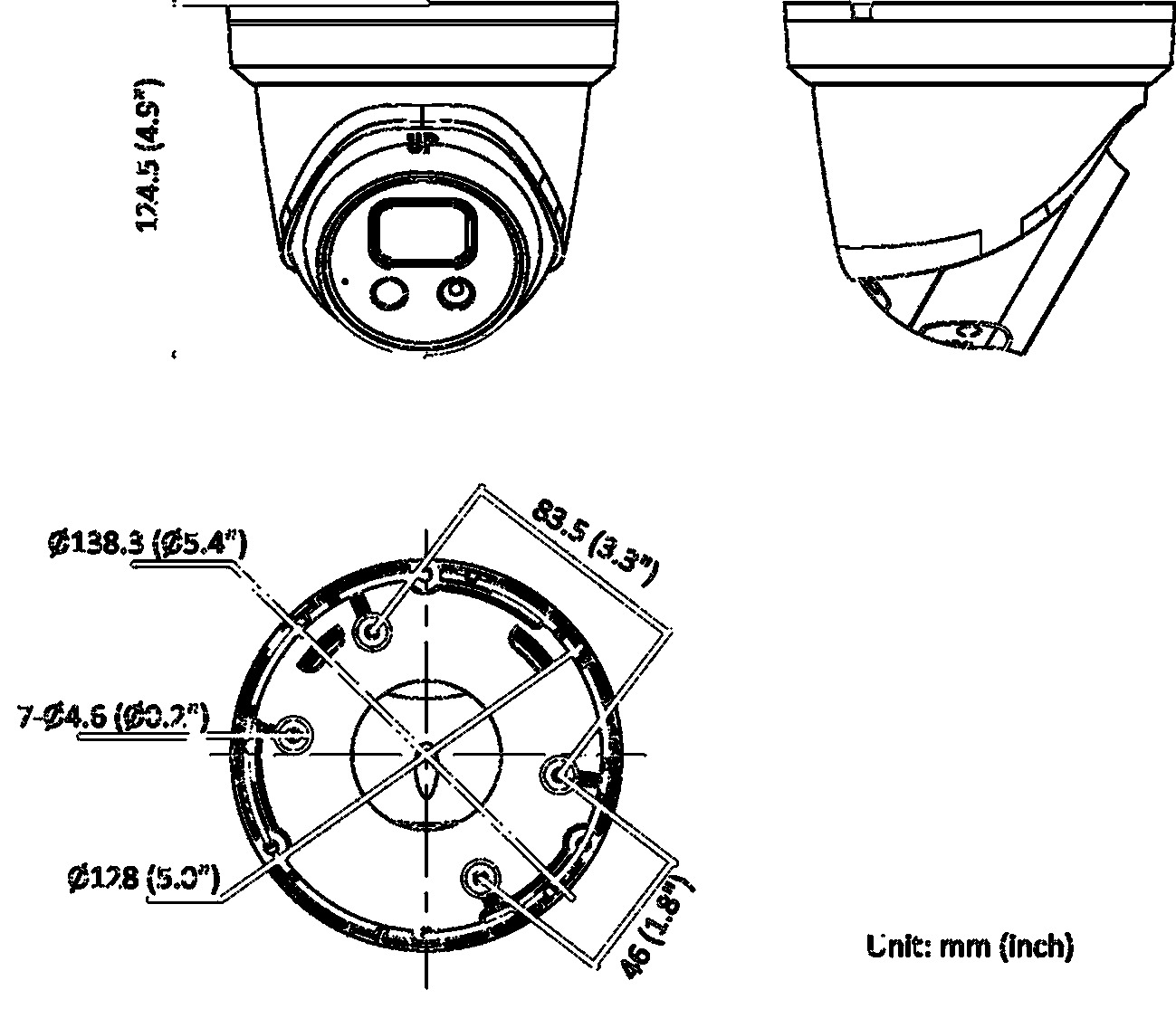

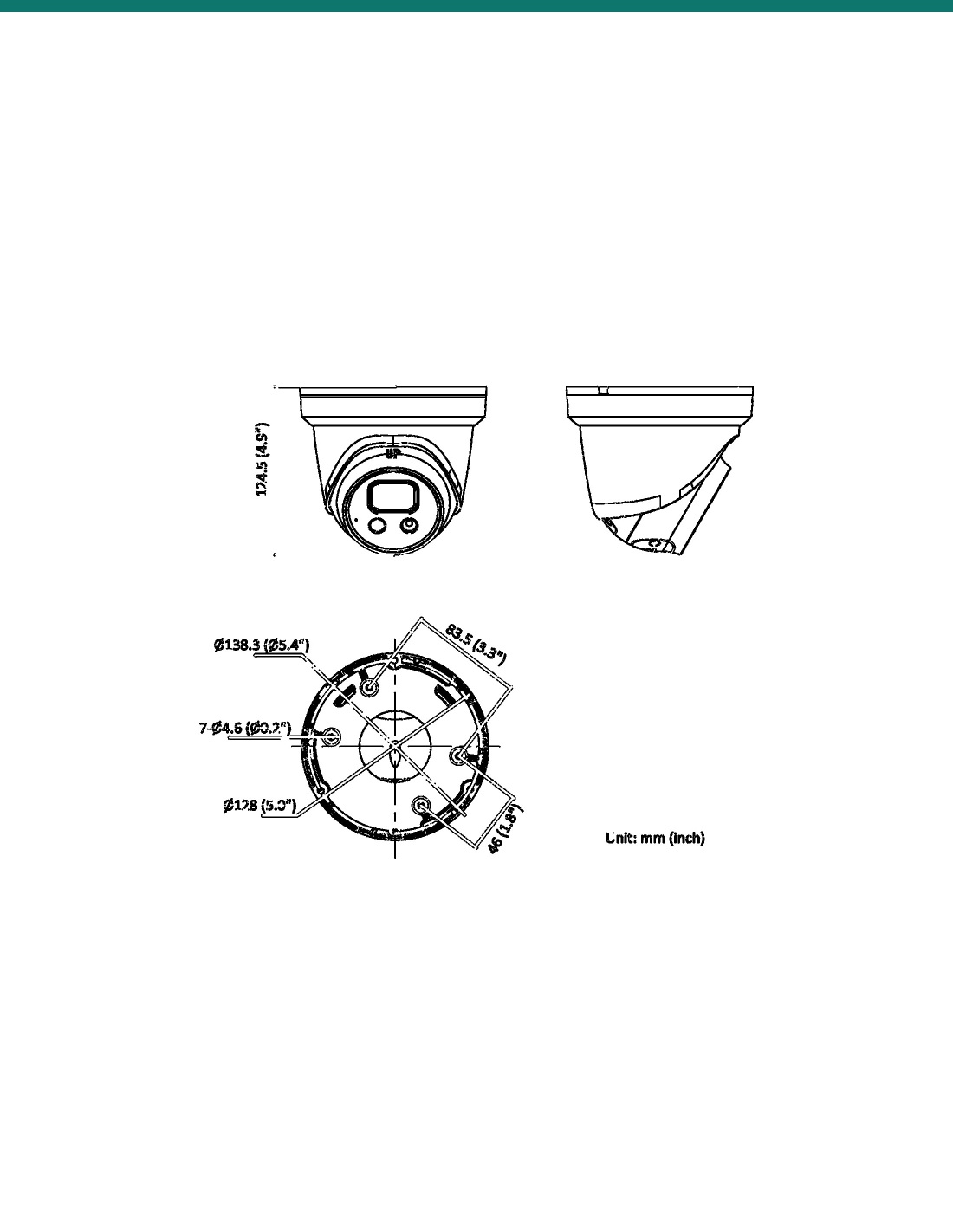

Mechanical drawing (Hikvision)

Hikvision DS-2CD2386G2-ISU/SL — outline dimensions from the manufacturer datasheet

Product shot may differ from the actual product.

Pair it with

Compatible hardware

RECORD

Hikvision M‐Series PoE NVR (example)

An 802.3af/802.3at NVR such as the DS‐7608NI‐M2/8P — schedule 4K streams, keep AcuSense events in one place.

CABLING

External Cat 6 run

Shielded or U/UTP outdoor‐rated Cat 6 between switch and turret; keep within channel budget for 4K+ substreams.

EDGE

Up to 512 GB microSD

Match Hikvision’s 512 GB ceiling with a high‐endurance card rated for 24/7 write.

SUPPORT

Infront Technologies

Australian sales, RMA, pre‐sale design help and warranty administration.

Answers

Frequently asked questions

What does ISU/SL mean on the model name?

ISU denotes built‐in two‐way audio. SL denotes the active strobe and audible‐warning feature set on the Hikvision datasheet. This listing is the 2.8 mm fixed lens variant.

What capacity microSD card can I use?

Hikvision documents up to 512 GB microSD / SDHC / SDXC in the current DS‐2CD2386G2‐ISU/SL‐C datasheet. Use a surveillance‐rated endurance card for continuous write.

How much PoE does the camera need?

The datasheet lists 802.3af Class 3 PoE with a maximum 10 W draw on PoE and 9 W on 12 VDC. Use a PSE that can deliver Class 3 on the run length you need.

Will it work with my non‐Hikvision NVR?

In most cases via ONVIF (Profiles S, G, T) and standard H.264/H.265 streams. For the deepest AcuSense event integration, pair with a Hikvision AcuSense‐capable NVR or iVMS‐4200.

Is the strobe and siren always on?

No. They are event‐driven deterrence features you enable and schedule in the camera or VMS. Follow local lighting and privacy rules for your state or territory.
