- New

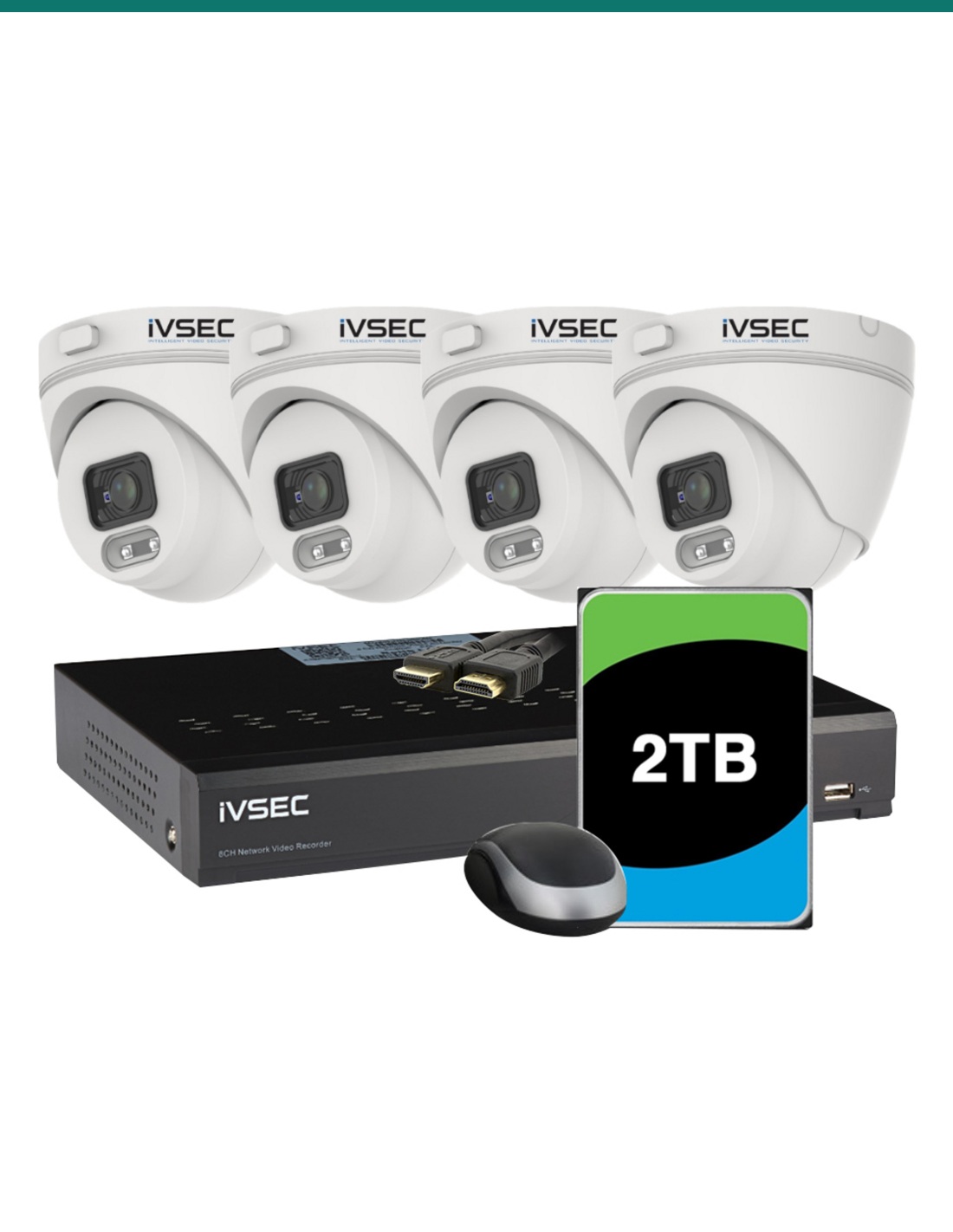

IVSEC LVK-000B: four NC000XA 4MP turret dome cameras with infrared night vision, plus an NR004XB 4-channel PoE recorder with a 2TB drive.
- ✓4 × NC000XA turret dome, 4MP, 88° view
- ✓Infrared night vision to 20 m
- ✓Smart motion and sound detection, microphone
- ✓IP67 weatherproof, IK08 vandal rated
- ✓NR004XB 4-channel PoE recorder, 2TB drive fitted
- ✓Free IVSEC X app, up to 16TB storage
Description

Four 4MP cameras, kept simple.
One 4-channel PoE recorder with 2TB.
A wired IVSEC LX Series starter kit: four NC000XA 4MP turret dome cameras with infrared night vision, a microphone and smart motion detection, plus an NR004XB 4-channel PoE recorder with a 2TB drive fitted.
In one sentence: the IVSEC LVK-000B is a wired PoE CCTV kit with four NC000XA 4MP turret dome cameras (2560 × 1440, 88° view, infrared night vision) and an NR004XB 4-channel recorder with a 2TB drive.
Four cameras, recorder and drive in the box.
Each camera runs on one network cable back to the recorder, which powers it. All four PoE ports are used by the kit cameras. Network cables are not included.
- 4 × IVSEC NC000XA 4MP turret dome cameras
- IVSEC NR004XB 4-channel PoE recorder
- 2TB Seagate SkyHawk surveillance hard drive, pre-installed in the recorder
- HDMI cable and USB mouse
- Recorder power supply, drive screws and quick guide
- Camera mounting screws, plugs and drilling templates
- Cat5e or Cat6 network cable for each camera, cut to your runs (not included)
- A TV or monitor with HDMI or VGA, for setup at the recorder
- A network cable from the recorder to your router, for the phone app
Clear 4MP footage without the extras.
The NC000XA is the plain camera in the LX range: 4MP at 25 fps, infrared night vision to 20 m, a microphone and smart motion detection that picks out people and vehicles. No strobes or siren, just a wired system that records on the recorder and shows on your phone.

The cameras
4MP turret domes with an 88° view.
The NC000XA has a 1/2.7-inch 4MP sensor recording 2560 × 1440 at 25 fps through a 2.8 mm lens, with infrared night vision up to 20 m and a built-in microphone.

The recorder
Compact, with one drive bay.
The NR004XB is 53 mm high and 300 mm wide, for a shelf or cabinet indoors. Its single SATA bay takes drives up to 16TB, and the kit comes with a 2TB drive fitted.

The recorder
Four PoE+ ports, one drive bay.
The NR004XB powers and records up to four cameras at up to 12MP each, with 50 Mbps of incoming bandwidth. HDMI and VGA show it on a TV up to 4K, and its single SATA bay takes drives up to 16TB.
How it goes in
From box to phone alerts.
01
Set up the recorder
The 2TB drive comes fitted. Connect a TV with an HDMI cable, connect your router with a network cable, then power the recorder up.
02
Run one cable per camera
Run Cat5e or Cat6 from each camera position back to a PoE port on the recorder. The cable powers the camera and carries its video; cables are not included, so buy them to length.
03
Mount and aim the cameras
Use the drilling template, screws and plugs that come with each camera, aim it, then plug its cable into a PoE port on the recorder.
04
Finish in the wizard and app
Set the password in the startup wizard, scan the recorder's QR code with the free IVSEC X app, then set up smart motion detection and the night mode.
At a glance
LVK-000B
Show specs
Cameras
4 × NC000XA turret dome, white
Recorder
IVSEC NR004XB, 4 channels, 4 × PoE+ ports
Storage
2TB drive supplied, 1 SATA bay, up to 16TB
Resolution
4MP (2560 × 1440) at up to 25 fps
Lens and view
2.8 mm fixed, 88° horizontal
Night vision
Infrared (black and white) up to 20 m
Smart detection
Smart motion detection (people and vehicles), perimeter intrusion, line crossing, sound detection
Audio
Microphone in each camera (records sound)
Camera storage
microSD card slot in each camera
Camera power
PoE (IEEE 802.3af) from the recorder, or 12 V DC, under 4 W
Camera housing
IP67 weatherproof, IK08 vandal rated, -10 to +55 °C
Camera size
100 × 100 × 100 mm, 0.22 kg
Recording
Up to 12MP per channel, 50 Mbps incoming
Compression
H.265+, H.265, H.264+, H.264
Display
HDMI and VGA, up to 4K
Recorder ports
Gigabit network port, 2 × USB 2.0, audio in and out
Recorder power
48 V DC 1.2 A plug-in supply, 5 W without drive
Recorder size
53 × 300 × 227 mm, 0.70 kg, indoor 5 to 40 °C
Interoperability
ONVIF Profile S, G, T
Software
IVSEC X app (QR code setup), PC client, device search tool
Warranty
Cameras 12 months (parts), recorder 2 years (parts)
Pair it with
Good to add
Cabling
Cat5e or Cat6 cable
One run per camera back to the recorder. Outdoor-rated cable for exposed runs; ask us for lengths and connectors.
Room to grow
An 8-channel kit
All 4 ports are used here. If you may want more cameras later, look at the 8-channel LX kits, which leave PoE ports free.
Storage
A bigger drive
The recorder bay takes a drive up to 16TB for longer recording before the oldest footage is overwritten. Ask us about swapping or upgrading the drive.
Security
A lockable cabinet
Keep the recorder out of reach so a thief can't take the footage with it. Ask us about the 24SECCAB security cabinet.
Where it is used
Where a 4-camera kit fits.
Homes
Front door, driveway, side gate and back yard, with alerts for people and cars on your phone.
Shops
Counter, entry, stockroom and rear lane, viewed on a PC or the phone app.
Workshops and sheds
Roller doors, yards and parked vehicles, recorded on site.
Small offices
Entry, reception and car park on one recorder.
Rental and holiday properties
Check the place from the app between visits.
Farms and rural blocks
Sheds, gates and machinery near the house, cabled back to one recorder.
LVK-000B or LVK-119B
| LVK-000B (this kit) | LVK-119B | |
|---|---|---|
| Cameras | 4 × NC000XA | 4 × NC119XA |
| Resolution and view | 4MP, 88° | 4MP, 95° |
| Frame rate | 25 fps | 25 fps |
| Night vision | IR only, 20 m | Colour or IR, 25 m |
| Strobes and siren | No | Yes |
| Audio | Mic only | Mic and speaker |
| Camera warranty | 12 months (parts) | 3 years |
| Recorder and drive | NR004XB, 2TB | NR004XB, 2TB |
| PoE ports free | 0 of 4 | 0 of 4 |
The NC119XA kit adds red and blue strobes, a siren, two-way talk and colour night vision; the NC000XA kit keeps to infrared and a microphone. Both use the same NR004XB recorder.
Common questions
What is in the LVK-000B kit?
In the box: 4 × IVSEC NC000XA 4MP turret dome cameras; IVSEC NR004XB 4-channel PoE recorder; 2TB Seagate SkyHawk surveillance hard drive, pre-installed in the recorder; HDMI cable and USB mouse; recorder power supply, drive screws and quick guide; camera mounting screws, plugs and drilling templates.
Are network cables included?
No. Each camera needs one Cat5e or Cat6 cable back to the recorder, so buy cable to suit your runs. We can help work out lengths.
Can I add more cameras later?
Not on the recorder's own ports: all 4 PoE ports are used by the kit cameras and the recorder records 4 channels. For room to grow, choose an 8-channel LX kit.
How long will the 2TB drive record?
It depends on how many cameras record, the bit rate and whether you record all the time or only on events. When the drive is full the oldest footage is overwritten. The bay takes a drive up to 16TB for longer recording.
Do the cameras need a power point each?
No. The recorder powers each camera through its network cable (PoE), so one cable per camera is all it needs. They can also run from a 12 V DC supply if needed.
Can I see colour at night?
No. The NC000XA uses infrared at night, which records in black and white up to 20 m. For colour night vision, look at the NC119XA kits such as the LVK-119B.
Do the cameras have a siren or strobe lights?
No. The NC000XA has no strobe, siren or speaker. For those, choose a kit with NC119XA cameras such as the LVK-119B.
Do the cameras record sound?
Yes. Each camera has a built-in microphone, so recordings include audio, and it can alert on sound. There is no speaker, so you can't talk back through it.
What smart detection does it have?
Smart motion detection that picks out people and vehicles, to cut false alarms from leaves and shadows, plus perimeter intrusion and line crossing, and sound detection.
Are the cameras weatherproof?
Yes. The cameras are IP67 weatherproof and IK08 vandal rated, for walls and eaves outdoors. The recorder is for indoor use, between 5 and 40 °C.
Can I watch it on my phone?
Yes. Scan the recorder's QR code with the free IVSEC X app to watch live and play back from anywhere. There is also a PC client. The recorder must stay connected to your router.
What warranty does the kit have?
IVSEC rates the NC000XA cameras at 12 months (parts) and the NR004XB recorder at 2 years (parts). InFront Technologies handles warranty and support in Australia on 1300 736 970.
Supported by InFront Technologies.
Help choosing cable, a bigger drive or more cameras: call 1300 736 970 or email [email protected].
Installation and safety
Power. The recorder runs from its 48 V plug-in supply and powers the cameras over PoE. There is no mains wiring in the kit. A new power point needs a licensed electrician.
Cabling. Cable run inside walls or ceilings is customer cabling under AS/CA S009 and needs an ACMA-registered cabler.
Privacy and audio. Recording people and conversations is covered by state and territory surveillance laws. Point cameras at your own property, put up signage, and check the rules before you switch on audio.
What it does not do. These are wired cameras: no Wi-Fi, no battery and no 4G. No strobe, siren, speaker or colour night vision. The recorder must stay connected to your router for the app to work away from home.
Figures. From IVSEC's datasheets for the NC000XA camera and NR004XB recorder, and IVSEC's kit page for the box contents. IVSEC's kit page calls the cameras IP66; the camera datasheet says IP67, which is what we show.
- Product Series
- LX Series
- Camera Qty
- 4
- Kit Components
- 4 x NC000XA cameras, 1 x NR004XB NVR
- Storage
- 2TB
- Camera Quantity
- 4
- Camera Type
- IP camera kit
- Camera Model
- NC000XA
- Storage Capacity
- 2TB
- Camera Quantity Included
- 4
- Video Recorder Display Resolution
- 4K
- Number of Cameras Included
- 4
- Camera Resolution
- 4MP
- NVR Camera Channels
- 4-channel
- PoE
- PoE NVR
- Camera Configuration (IP)
- IP
- Video Output Resolution
- 4K
