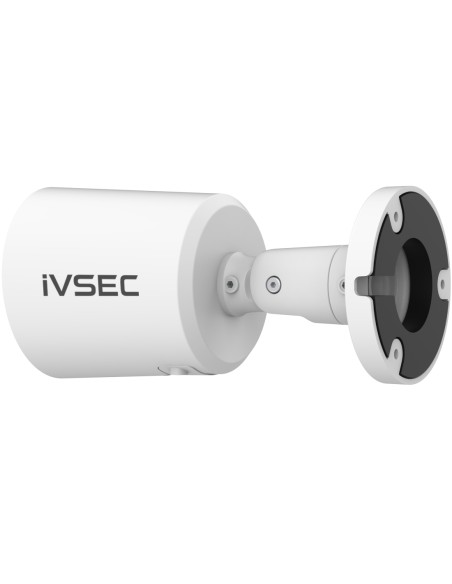

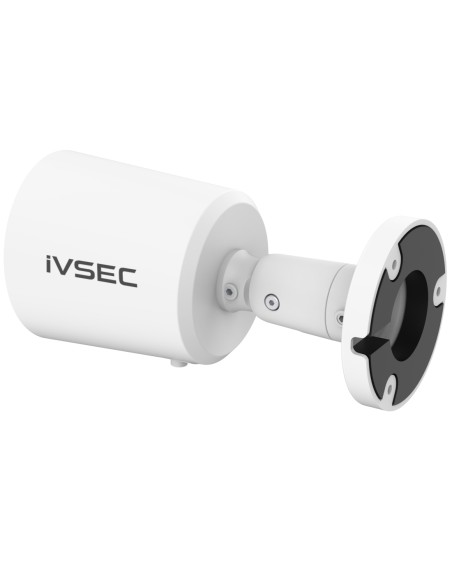

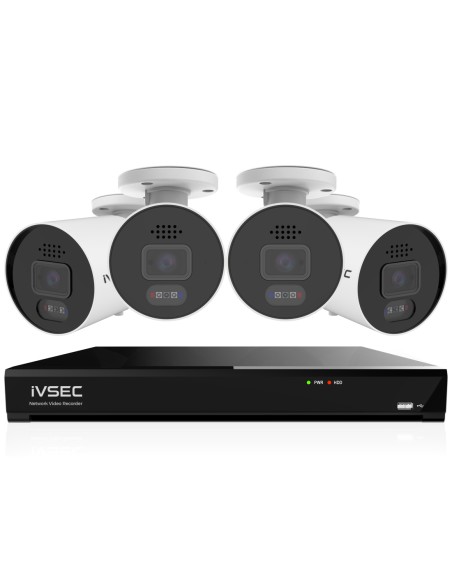

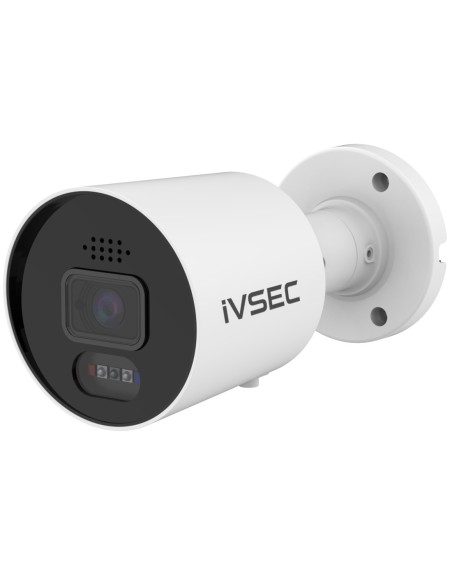

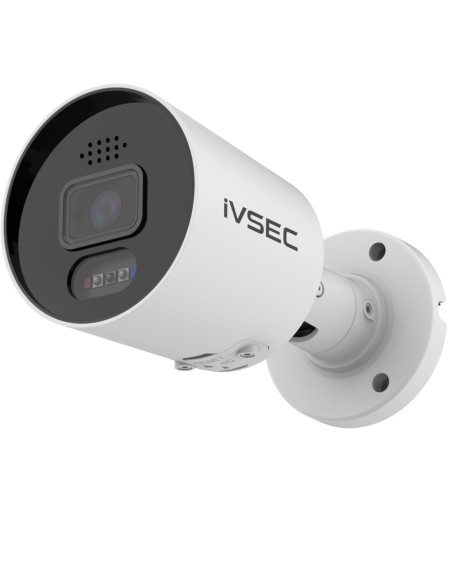

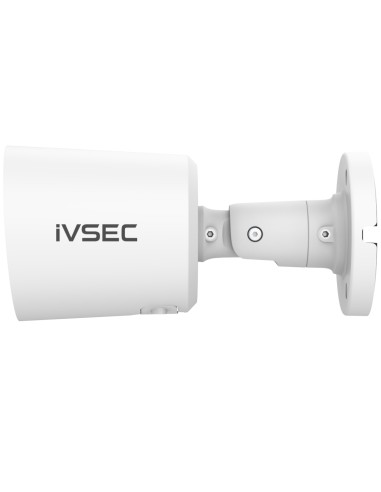

• 4 × IVSEC 880B 8MP bullet cameras (IVNC-880B-AI)

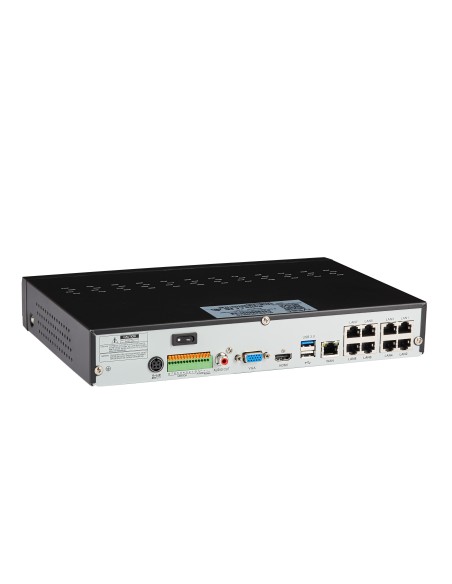

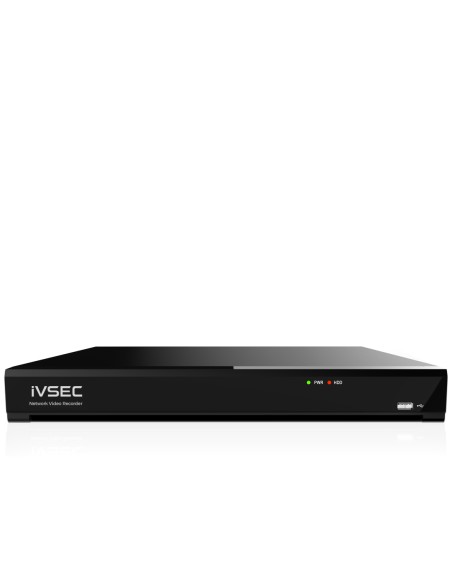

• IVSEC NVR 8000 8-channel PoE+ recorder
• 2TB surveillance drive, installed in the recorder
• 2 × 20 m and 2 × 30 m Cat5e cables
• 1.8 m Cat5e cable, recorder to your router
• 48 V recorder power supply, 1 m HDMI cable and USB mouse
• Mounting screws, plugs and an installation template for each camera
• 4 × IVSEC security stickers

• A TV or monitor with HDMI or VGA, for setup at the recorder
• Your router within reach of the 1.8 m cable, or the IVSEC NVR wireless antenna (sold separately) to connect over Wi-Fi
• Longer or extra cable if a camera is more than 30 m away

01

Set up the recorder

Plug the NVR 8000 into a TV with the HDMI cable and into your router with the network cable supplied, then power it up. The 2TB drive is already fitted.

02

Run one cable per camera

Cat5e from each camera back to a PoE+ port on the recorder. The kit includes two 20 m and two 30 m cables; runs can go up to 100 m.

03

Mount and aim the cameras

Fix each camera with the supplied screws and plugs, using the installation template, then aim it. The cameras are found automatically when they are plugged in.

04

Finish in the wizard and app

Set the password in the startup wizard, scan the recorder's QR code with the free IVSEC X app, then give each camera its AI task and set the deterrent schedule.

Storage

A bigger drive

Choose a 4TB to 14TB drive option above instead of the 2TB, for longer recording before the oldest footage is overwritten. The recorder takes one drive of up to 16TB.

More cameras

IVSEC 880D or 880B

Four PoE+ ports are free. Add more 880D turret domes or 880B bullets and they appear on the recorder when plugged in.

Mounting

IVSEC brackets

IVSEC lists the IV2422X junction box, and the IV2433X adaptor box with the IV2444X pendant or IV2455X wall mount, as accessories for the 880 cameras. Ask us which suits your wall or ceiling.

Security

A lockable cabinet

Keep the recorder out of reach so a thief can't take the footage with it. Ask us about the 24SECCAB security cabinet.

Homes

Front door, driveway, side gate and back yard, with a siren and flashing lights for anyone who shouldn't be there.

Rental and holiday properties

Check the place from the app between visits, with alerts only for people and cars.

Shops

Counter, door and stockroom, with heat map and queue length run on the cameras to see how people move.

Workshops and sheds

Roller doors and yards, with colour night vision so you can see the vehicle as well as the person.

Small offices

Entry, reception and car park, viewed from a PC, a Mac or the phone app.

Farms and acreage

House, sheds and gates within cable reach of the recorder, up to 100 m per run.

What is in the IVK8P-8804B kit?

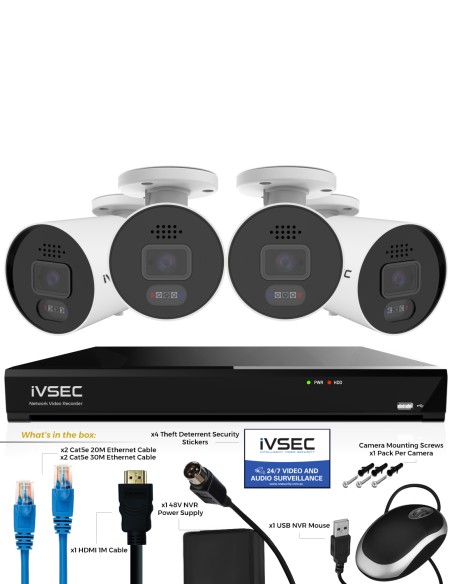

In the box: 4 × IVSEC 880B 8MP bullet cameras (IVNC-880B-AI); IVSEC NVR 8000 8-channel PoE+ recorder; 2TB surveillance drive, installed in the recorder; 2 × 20 m and 2 × 30 m Cat5e cables; 1.8 m Cat5e cable, recorder to your router; 48 V recorder power supply, 1 m HDMI cable and USB mouse; mounting screws, plugs and an installation template for each camera; 4 × IVSEC security stickers.

Can I add more cameras later?

Yes. The recorder has eight PoE+ ports and this kit uses four, so you can add four more IVSEC cameras such as the 880D or 880B. ONVIF cameras from other brands also connect, though some features may not work on every model.

How long will the 2TB drive record?

It depends on how many cameras record, the bit rate and whether you record all the time or only on events. When the drive is full the oldest footage is overwritten. For longer recording, choose a 4TB to 14TB drive option; the recorder takes one drive of up to 16TB.

Do the cameras need a power point each?

No. Each camera is powered by the recorder through its network cable (PoE), so one Cat5e run per camera is all it needs.

Can I see colour at night?

Yes. With the white light on, the 880 cameras record in full colour at night. You can instead use infrared, which records in black and white up to 35 m without a visible light.

What does the deterrence do?

When a camera detects a person or vehicle it can switch on the white light, flash red and blue, sound the siren, or any mix of these, on a schedule you choose, for example only between 9 pm and 5 am.

Can I talk through the cameras?

Yes. Each camera has a built-in microphone and speaker for two-way audio from the IVSEC X app, so you can warn someone off or speak to a delivery driver.

Do I have to register an account to use the app?

No. The free IVSEC X app connects by scanning the recorder's QR code and does not need you to register an email address, and you can add as many users as you need.

Which AI detections do the cameras have?

Face recognition, human and vehicle detection, perimeter intrusion, line crossing, stationary object, crossing count, heat map, crowd density and queue length. The 880 runs its AI on a separate chipset in the camera, so it works on every channel, with one AI function per camera at a time.

Can the recorder connect to my router over Wi-Fi?

Yes. The kit includes a 1.8 m cable for a wired connection, and if the router is too far away you can add the IVSEC NVR wireless antenna (IVSEC-ACC-NVRANT), which connects the recorder to your Wi-Fi. The cameras still run on their own network cables back to the recorder.

Is the image sensor a Sony Starvis?

IVSEC's current 880 datasheet lists a 1/2.8" progressive CMOS sensor and does not name its maker. Our listing has called it Sony Starvis from IVSEC's earlier specification; if the sensor brand matters for your job, confirm with us before ordering.

What warranty does the kit have?

IVSEC's datasheet gives the 880 cameras a 3-year warranty. For the recorder's term, please confirm with us. InFront Technologies handles warranty and technical support in Australia on 1300 736 970.
