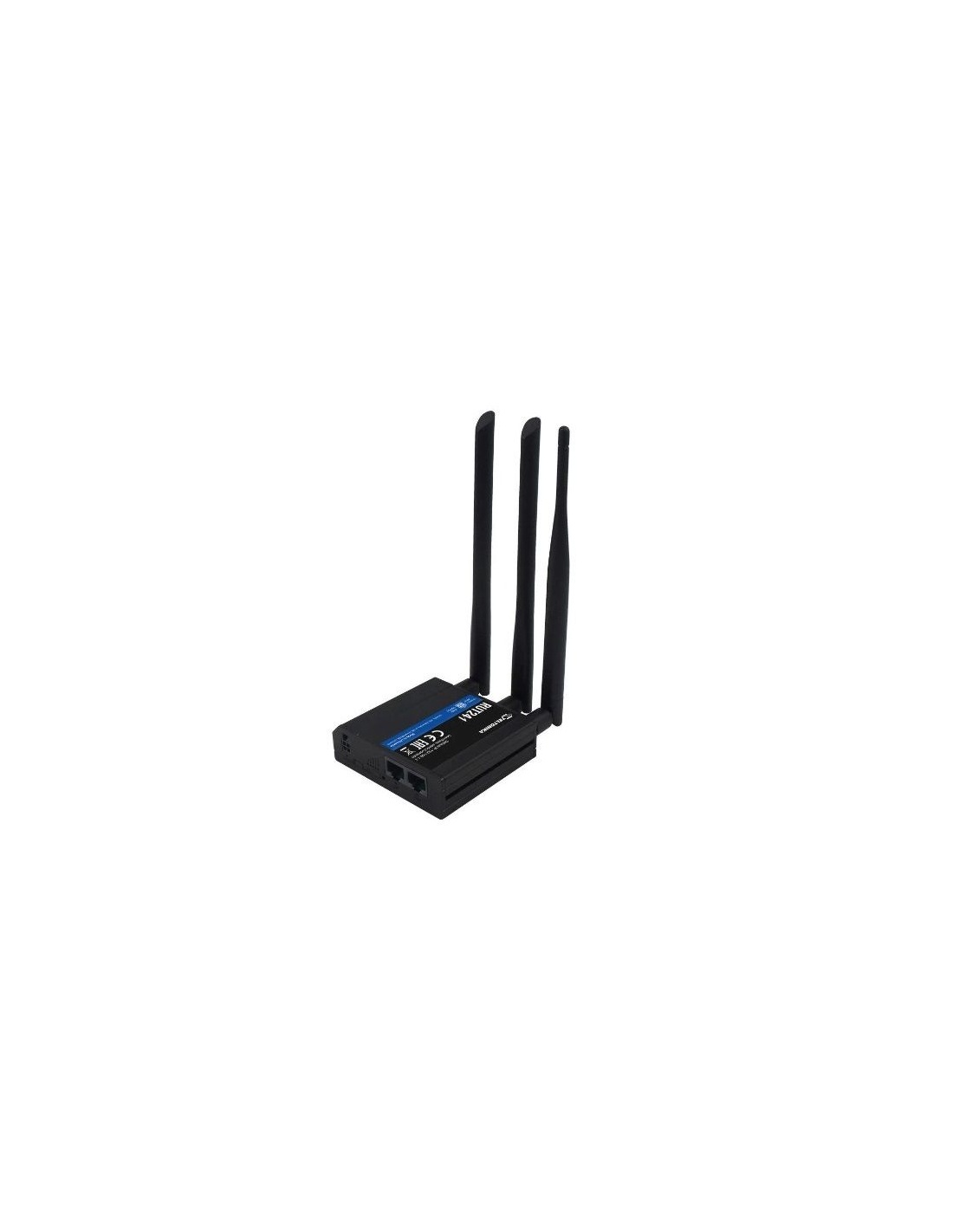

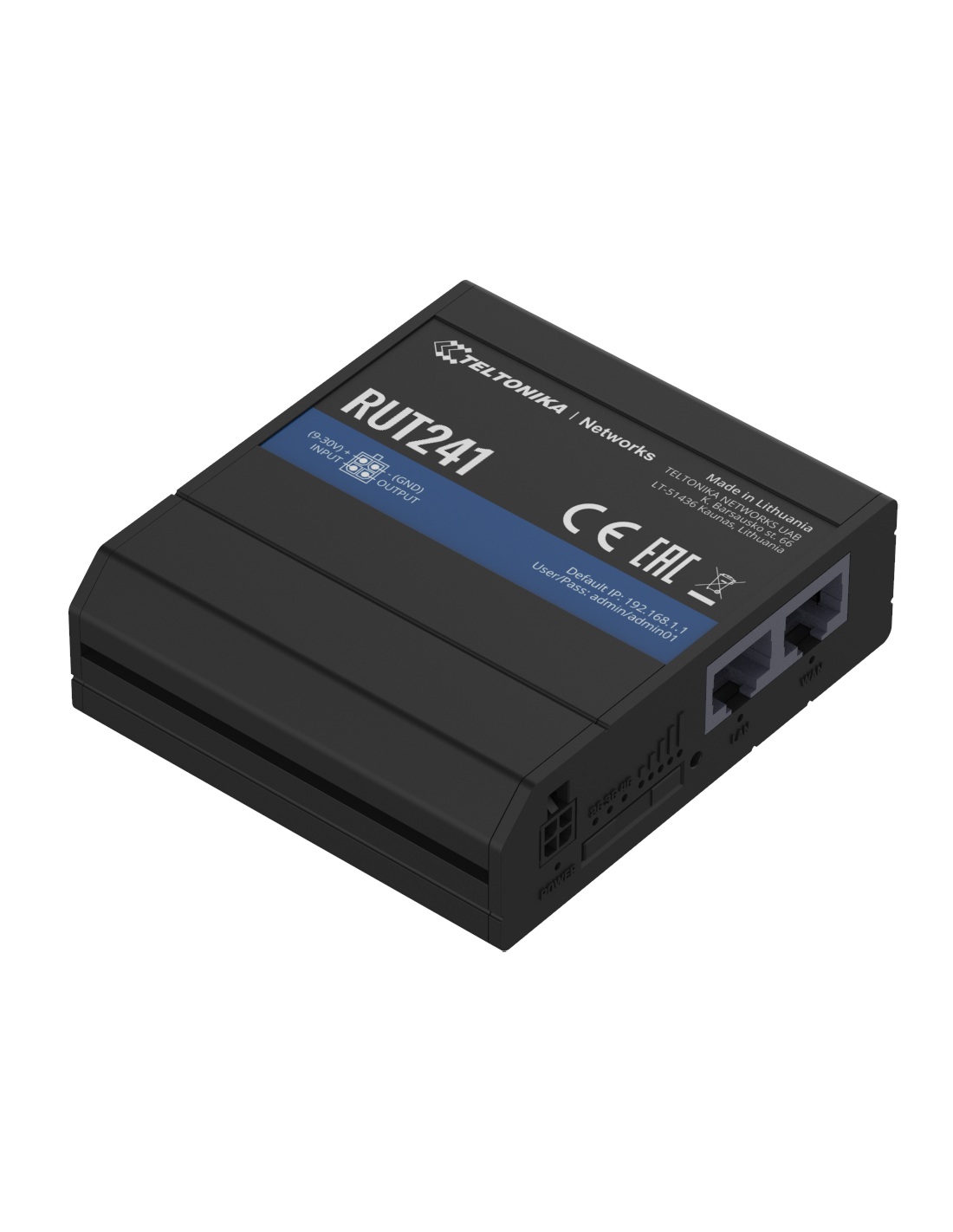

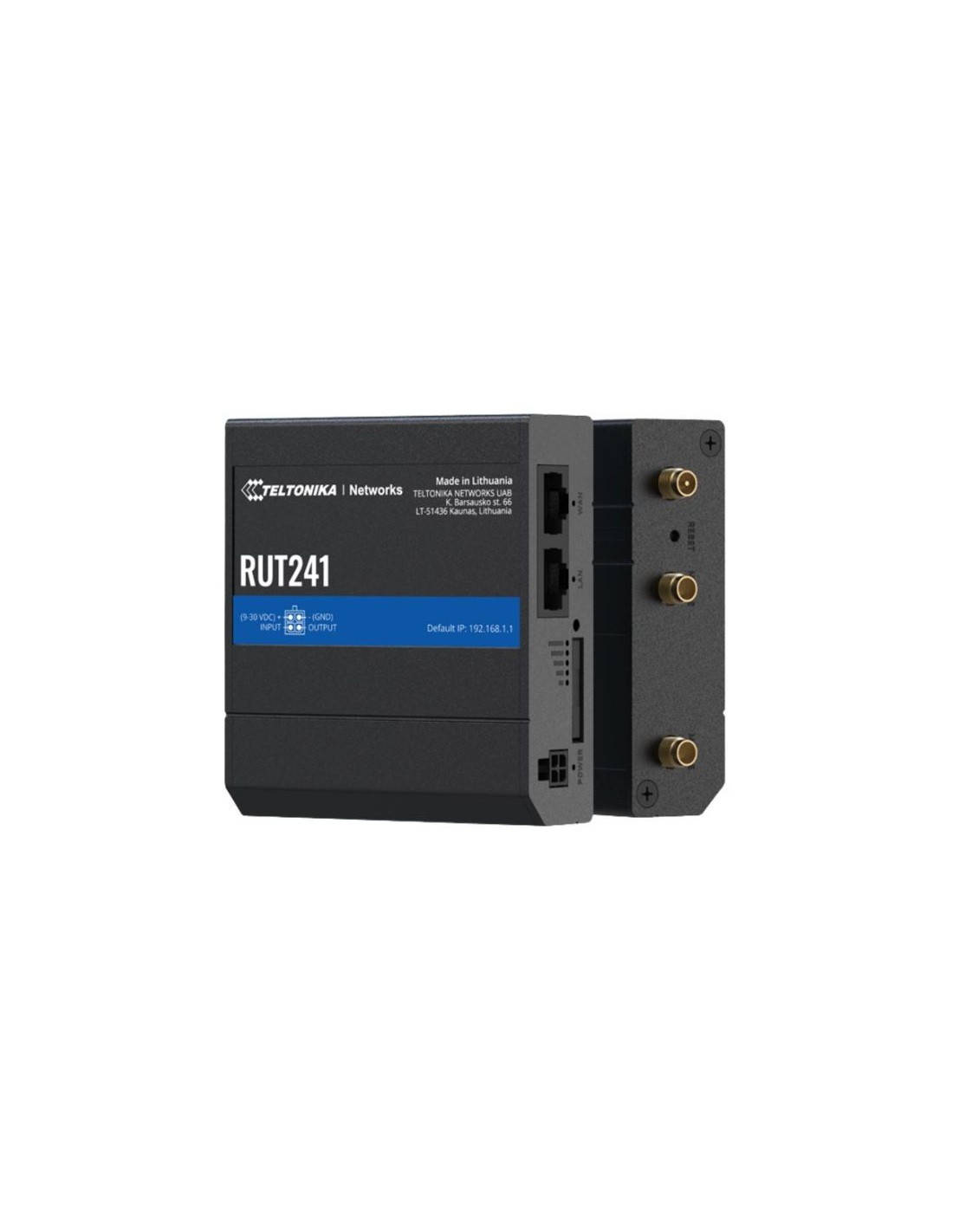

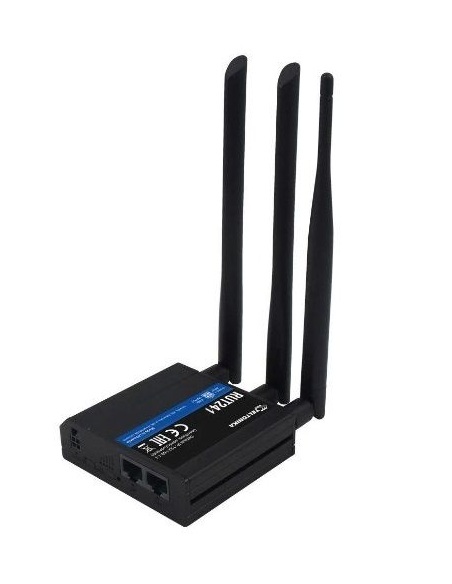

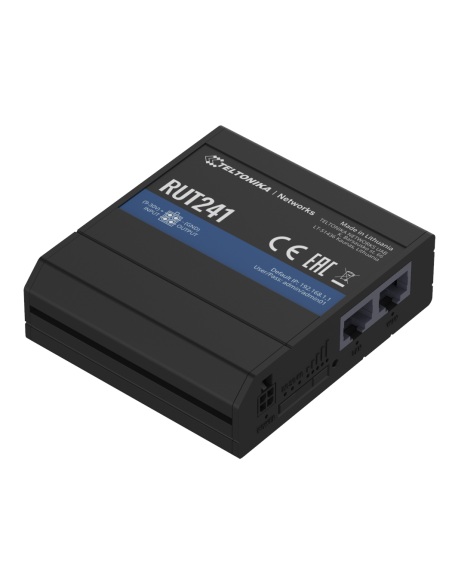

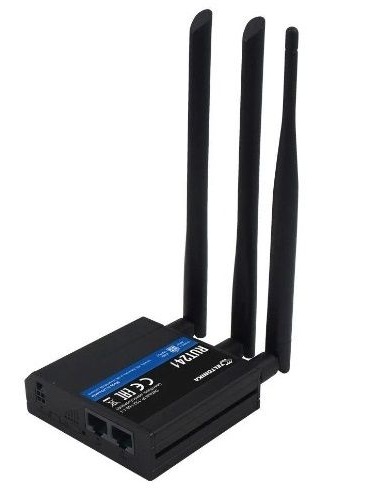

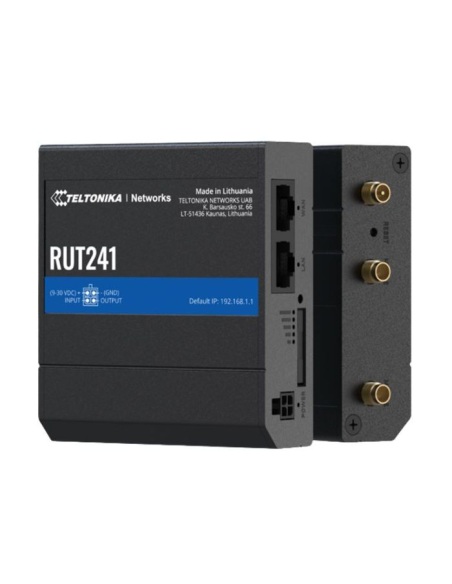

RUT241 - Teltonika Compact Industrial 4G (LTE) Router

Equipped with 2x Ethernet ports and WAN Failover

Key Highlights

• High-speed connectivity options: 4G (LTE) Cat 4 up to 150 Mbps
• PoE (passive): Passive PoE over spare pairs. Possibility to power up through LAN1 port, not compatible with IEEE802.3af, 802.3at and 802.3bt standards, Mode B, 9 - 30 VDC
• Routing: Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP), Policy based routing

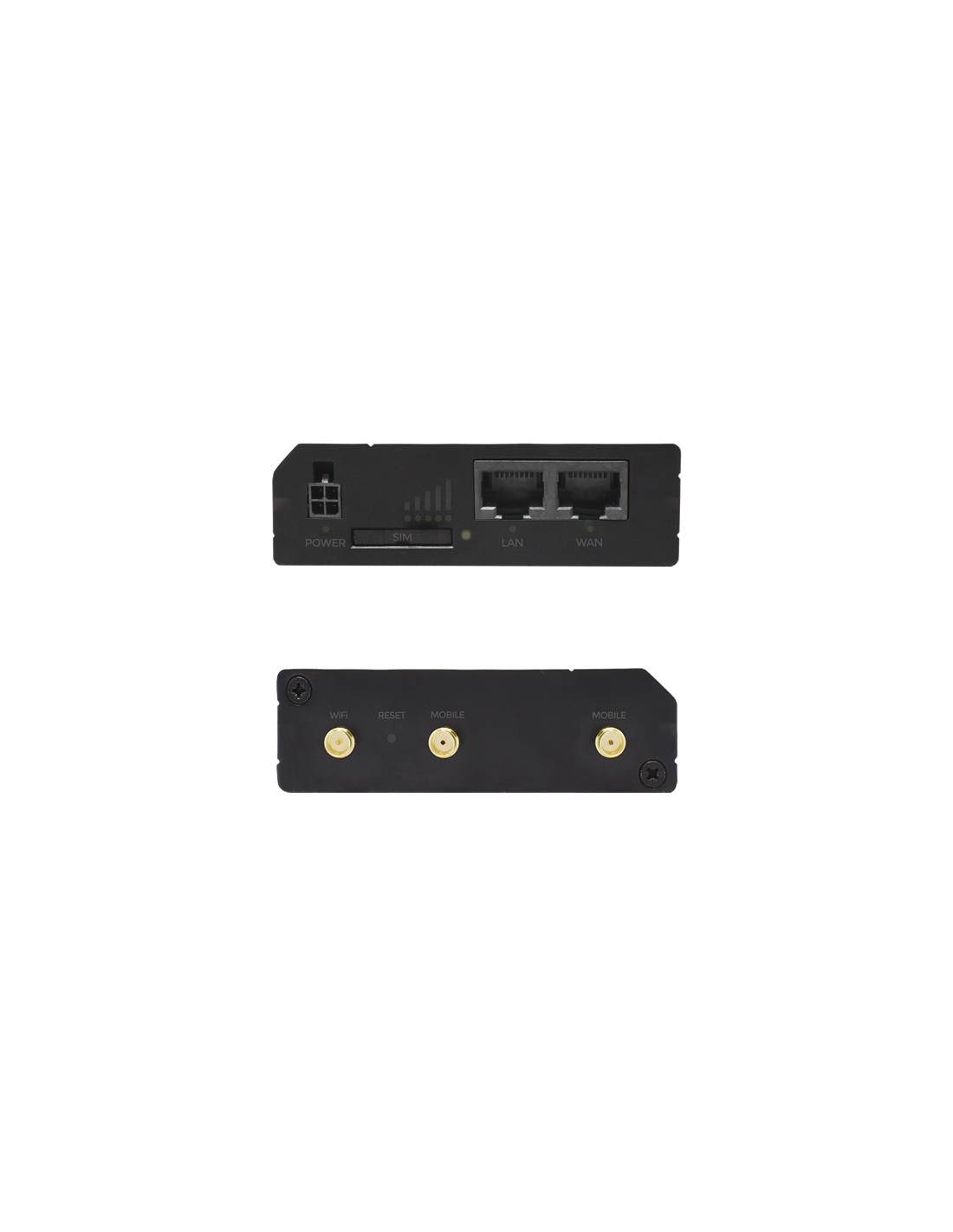

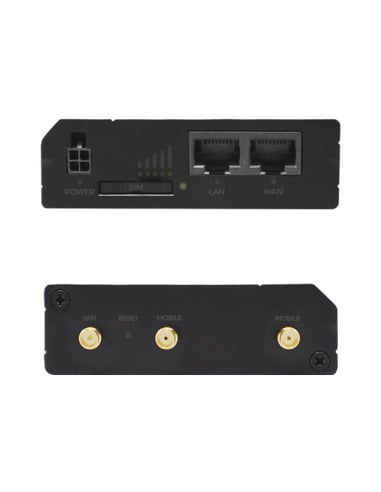

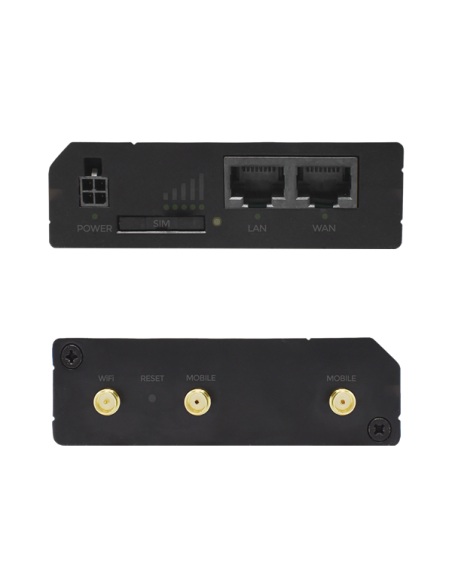

• Antennas: 2 x SMA for LTE, 1 x RP-SMA for Wi-Fi antenna connectors
• Operating temperature: -40 °C to 75 °C
• RAM: 128 MB, DDR2
• Power consumption: < 6.5 W Max
• Ethernet: 2 x RJ45 ports, 10/100 Mbps
• Dimensions (W x H x D): 83 x 25 x 74 mm

• RUT241 is the modified version of our all-time bestseller RUT240 that inherited its best features, including industrial design, compact size, multiple connection interfaces, and compatibility with RMS.
• Equipped with 4G LTE, Wi-Fi, and two Ethernet ports, this router offers unstoppable connection continuity with a backup through automatic failover.
• Digital inputs and outputs coupled with advanced RutOS software enable solution automation scenarios.
• RUT241 is an excellent fit in various IoT and M2M solutions that require easy setup, reliable network, and remote accessibility.

RUT241 Specifications:

• Mobile Module: 4G (LTE) – Cat 4 up to 150 Mbps, 3G – up to 42 Mbps, 2G – up to 236.8 Kbps
• Status: Signal Strength (RSSI), SINR, RSRP, RSRQ, EC/IO, RSCP, Bytes Sent/Received, Connected Band, IMSI, ICCID
• SMS: SMS Status, SMS Configuration, Send/Read SMS via HTTP POST/GET, Email to SMS, SMS to Email, SMS to HTTP, SMS to SMS, Scheduled SMS, SMS Autoreply, SMPP
• Black/White List: Operator Black/White List
• Band Management: Band Lock, Used Band Status Display
• APN: Auto APN
• Bridge: Direct connection (Bridge) between mobile ISP and device on LAN
• Passthrough: Router assigns its mobile WAN IP address to another device on LAN
• Multiple PDN (Optional): Possibility to use different PDNs for multiple network access and services (Not available in Standard FW)

Wireless:

• Wireless Mode: IEEE 802.11b/g/n, Access Point (AP), Station (STA)
• WiFi Security: WPA2-Enterprise - PEAP, WPA2-PSK, WEP, WPA-EAP, WPA-PSK; AES-CCMP, TKIP, Auto Cipher Modes, Client Separation
• SSID: SSID Stealth Mode and Access Control based on MAC Address
• WiFi Users: Up to 50 simultaneous connections
• Wireless Hotspot: Captive Portal (Hotspot), Internal/External Radius Server, built-in customizable landing page
