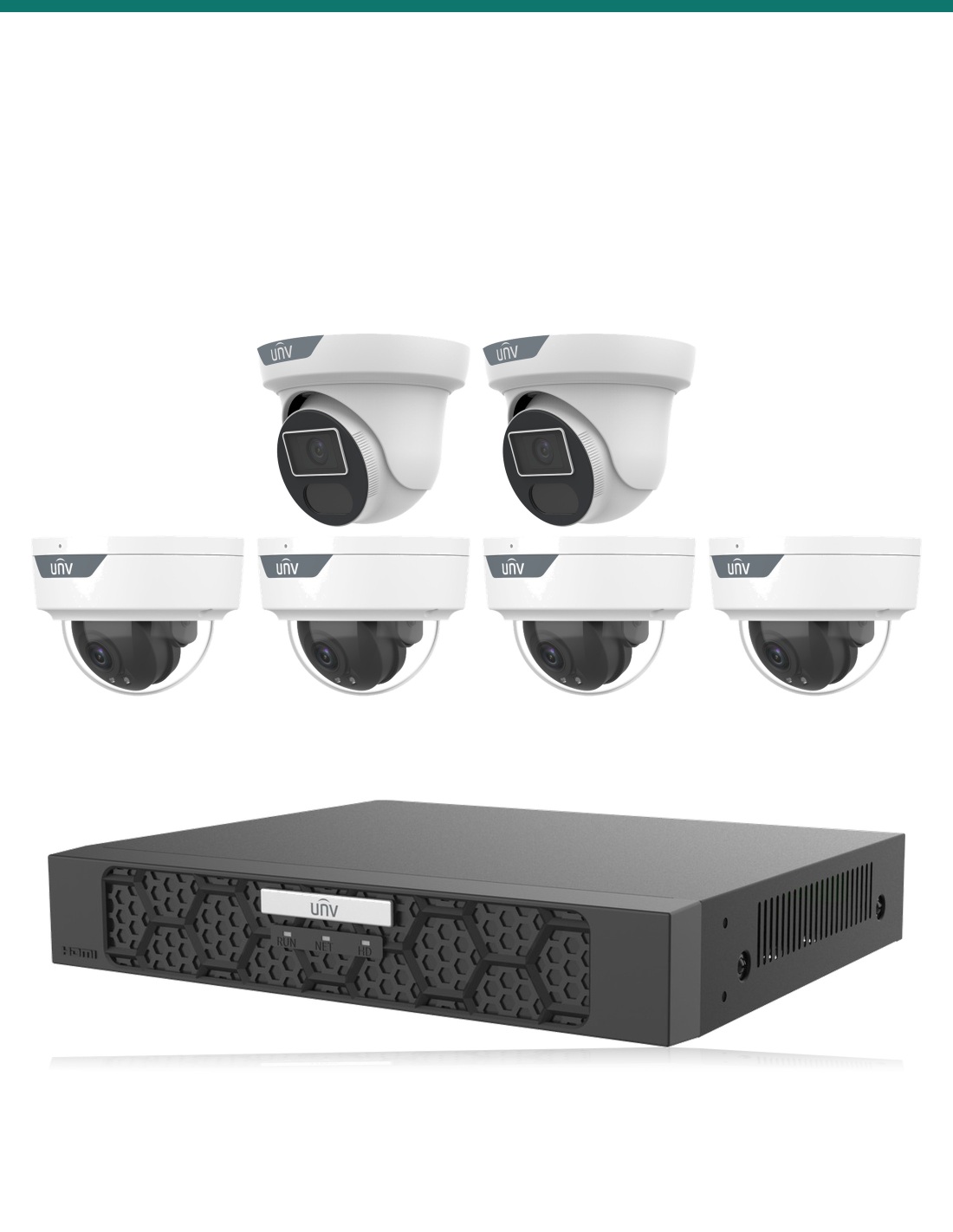

Uniview Shop & Office 4K Kit — 2× IPC3618SS LightHunter Turret + 4× IPC328SS LightHunter Dome + 8CH NVR501-08B-P8-IQ
UV-K806-SHP-0T
In stock $ 1,699.00
inc-GST
or 4 interest-free payments of $424.75 with
Four Uniview LightHunter 8MP vandal domes and two LightHunter 8MP turrets for shops and offices, on the 8-channel NVR501-08B-P8-IQ.
- ✓6 cameras: 2× IPC3618SS, 4× IPC328SS
- ✓8-channel NVR with 8 PoE ports (75 W)
- ✓8MP 4K cameras, smart IR up to 40 m
- ✓Smart human detection and phone alerts
- ✓No HDD or 2–8TB drive fitted
- ✓Free EZView app, 3-year warranty
Uniview kit · 6 cameras · 8 channels
Domes inside, turrets outside.
Made for shops, offices and clinics.

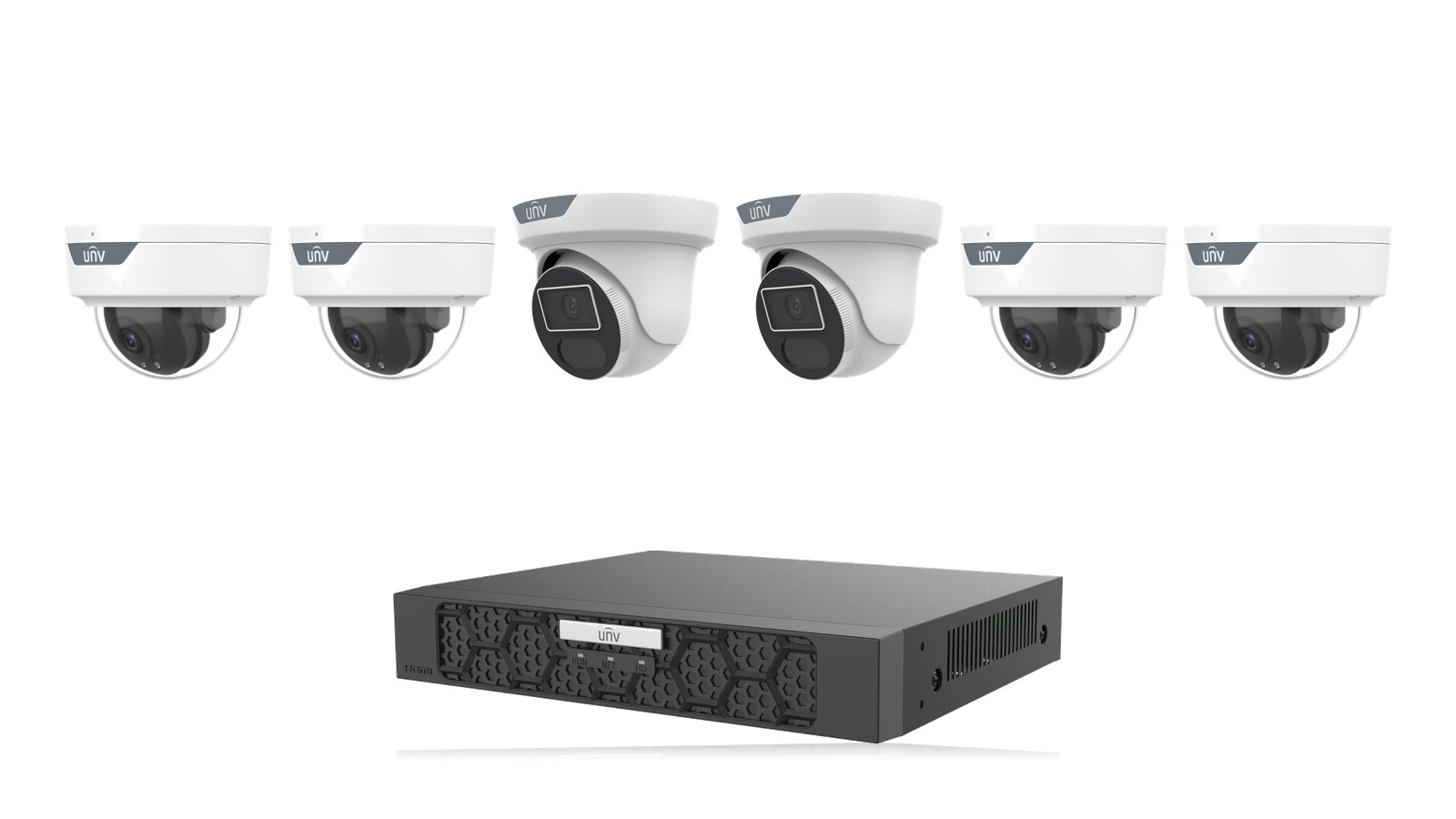

Uniview Shop & Office 4K Kit. Four Uniview LightHunter IPC328SS 8MP vandal domes for the counter, aisles and reception, two LightHunter IPC3618SS 8MP turrets for the entry and rear door, on the 8-channel NVR501-08B-P8-IQ.
In one sentence: the UV-K806-SHP is two 8MP 4K LightHunter turrets and four 8MP 4K LightHunter domes with the Uniview NVR501-08B-P8-IQ 8-channel PoE NVR, with the hard drive as an option.
Order it without a drive, or with a 2, 4, 6 or 8TB drive fitted.
Everything in the kit is matched: every camera plugs into the recorder’s PoE ports and appears automatically. Add the Cat6 cable and a screen and you are recording.
In the box
- 1 × Uniview NVR501-08B-P8-IQ 8-channel PoE NVR with power supply
- 2 × Uniview IPC3618SS-ADF28K-I1 8MP 4K LightHunter turret
- 4 × Uniview IPC328SS-ADF28K-I1 8MP 4K LightHunter dome
- Mounting screws and plugs for each camera
- Quick guides
- Hard drive fitted if you choose a 2, 4, 6 or 8TB option
You also need
- A hard drive, if you choose the No HDD option
- Cat6 cable from the recorder to each camera (up to 100 m per run)
- A monitor or TV with HDMI or VGA
- Your router and internet connection, for the phone app
- Optional junction boxes for a neat, weatherproof cable entry
The right look for a business.
Domes suit ceilings and are IK10 rated, so they stand up to knocks and tampering where the public can reach them. The turrets cover the outside, and every camera can count people and sort them from vehicles.
The recorder

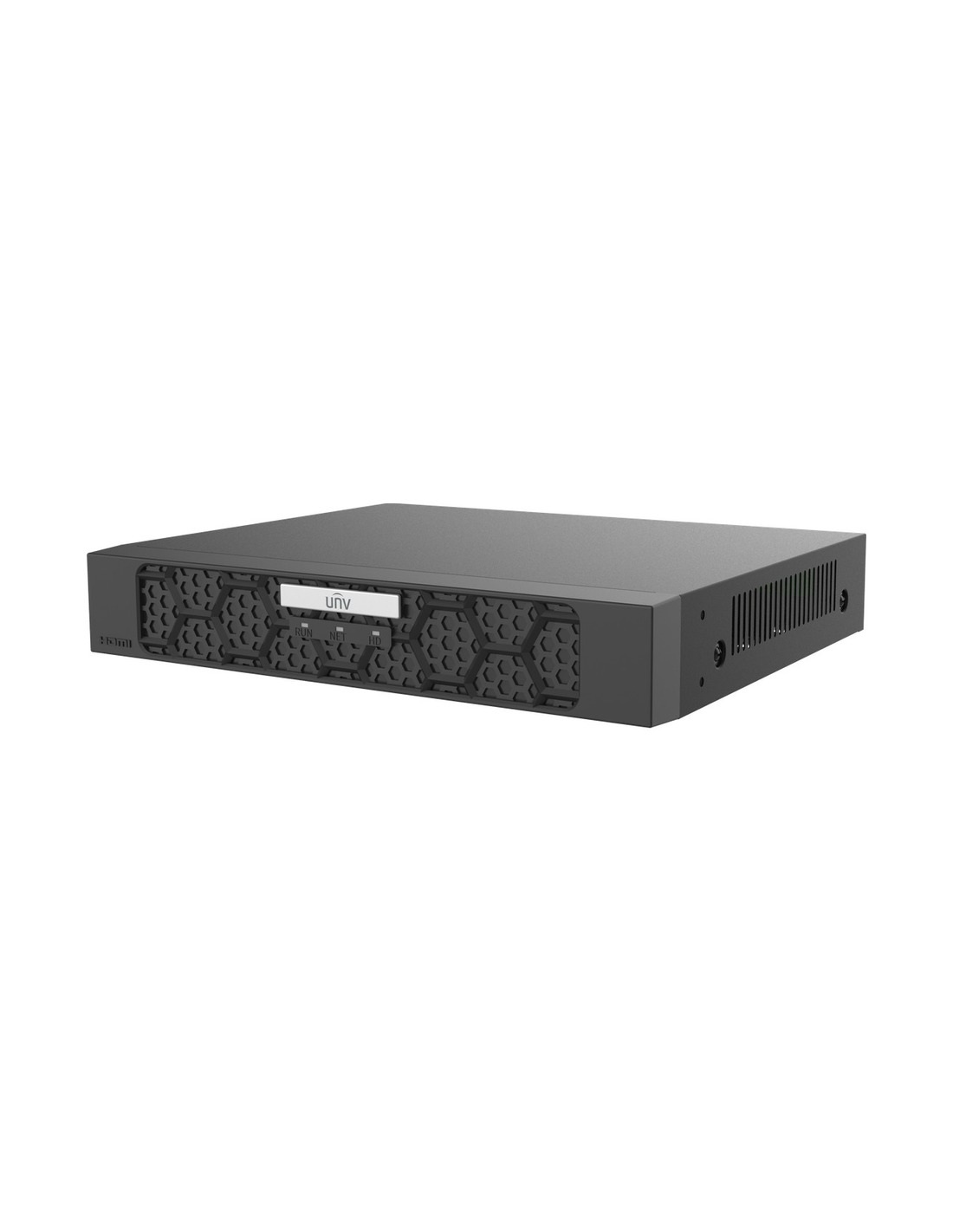

The NVR501-08B-P8-IQ: 8 PoE ports, 75 W.
Every camera in the kit plugs into its own PoE port, which carries power and video on one Cat6 cable. The kit draws at most about 42 W of the 75 W budget, and 2 channels are left for more cameras. It records up to 16MP, outputs 4K on HDMI and takes one drive of up to 24TB.
Two in the kit

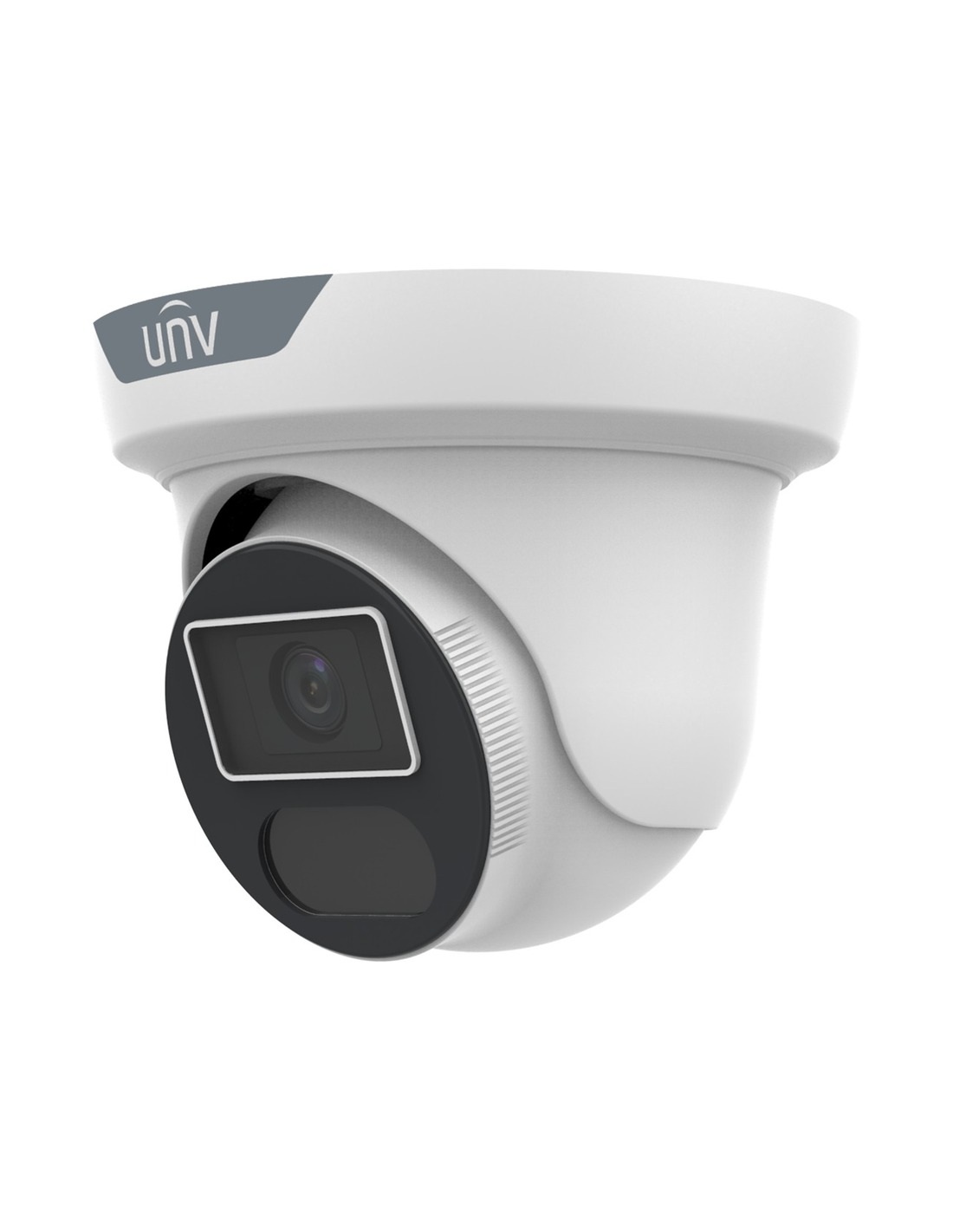

Uniview IPC3618SS-ADF28K-I1, 8MP 4K LightHunter turret.
An eyeball turret that is easy to aim, with no dome cover to catch infrared glare. 8MP 4K with 40 m Smart IR and IP67 weather rating. Its deep-learning smart detection sorts people, vehicles and bikes, and a built-in mic comes standard.
Four in the kit

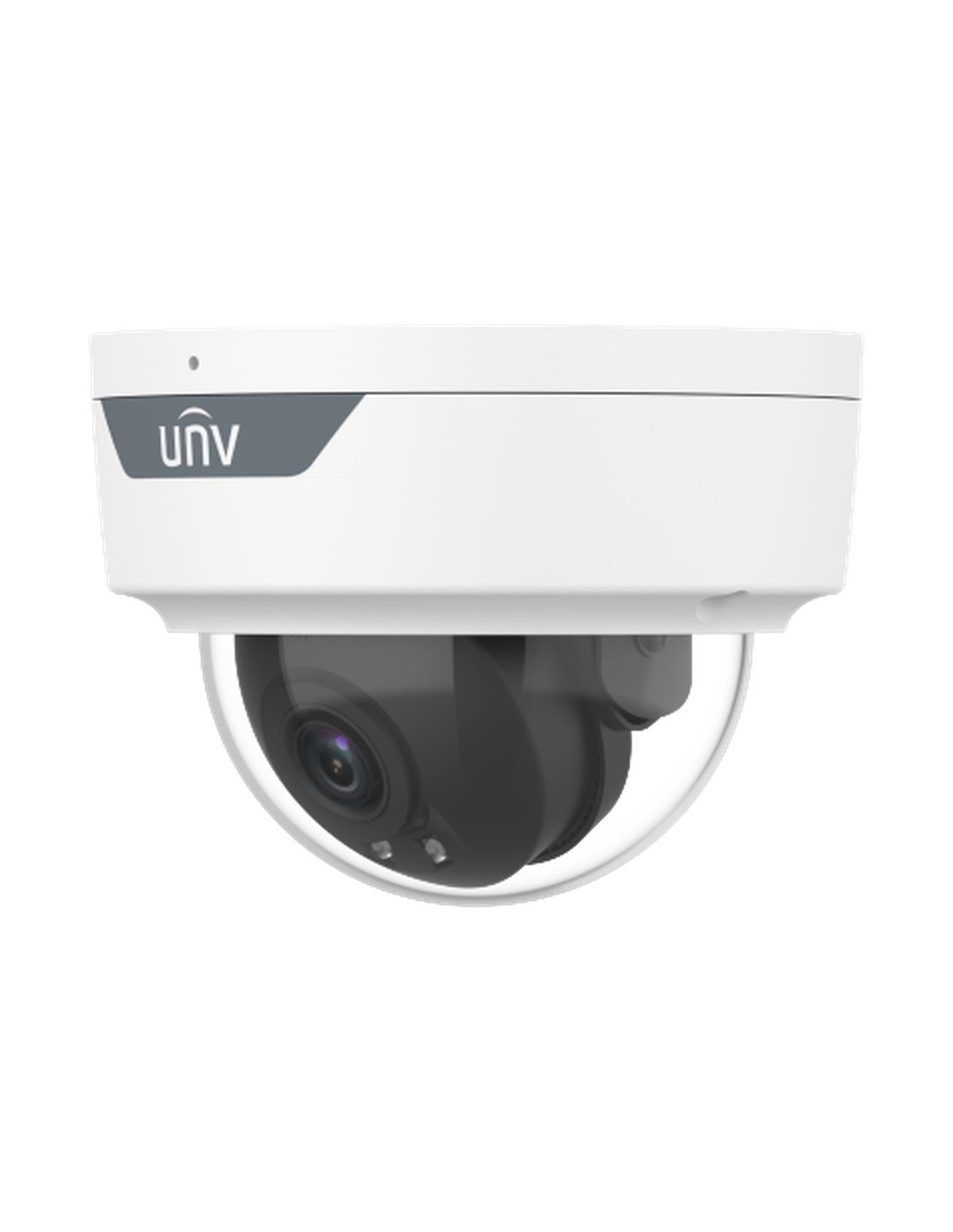

Uniview IPC328SS-ADF28K-I1, 8MP 4K LightHunter dome.
A low-profile IK10 vandal-resistant dome that stands up to knocks and tampering. 8MP 4K with 40 m Smart IR and IP67, IK10 weather rating. Smart detection sorts people, vehicles and bikes, and a built-in mic comes standard.
On your phone
Every camera in the free EZView app.
Scan the recorder’s QR code with the EZView app on iPhone or Android for live view, playback and alerts. No subscription and no monthly fee.
How it goes in
From the box to recording.
01
Plan the positions
Mount cameras about 2.4–3 m high, under eaves where possible, aimed at doors, gates and paths rather than open sky.
02
Run the Cat6
One cable from each camera back to the recorder, up to 100 m. Fit a junction box behind each camera for a neat, sealed join.
03
Connect the recorder
Plug the cameras into the PoE ports, the screen into HDMI and the network port into your router, then power on and follow the wizard.
04
Add the app and zones
Scan the QR code in the EZView app, then draw detection lines and zones so alerts only fire for people and vehicles.
At a glance
UV-K806-SHP
Show specs
Kit code
UV-K806-SHP
Recorder
Uniview NVR501-08B-P8-IQ, 8 channels, 8 PoE ports (75 W)
Cameras
2 × Uniview IPC3618SS-ADF28K-I1 8MP 4K LightHunter turret
4 × Uniview IPC328SS-ADF28K-I1 8MP 4K LightHunter dome
Spare channels
2 for more cameras
Camera resolution
8MP 4K
Night vision
Smart IR up to 40 m
Deterrence
Smart human detection with phone alerts
PoE power used
About 42 W of 75 W at most
Storage
No HDD standard; 2, 4, 6 or 8TB option. 1 bay, up to 24TB each
Compression
Ultra 265, H.265, H.264
Display
HDMI up to 4K, VGA up to 1080p
Network
10/100
Phone app
EZView app, iOS and Android, no fees
Warranty
3 years
Pair it with
What goes with it
Cabling
Cat6 305 m box
Solid-copper Cat6 for PoE runs of up to 100 m to each camera.
Mounting
Junction boxes
TR-JB03-H-IN for the LightHunter Turret and TR-JB03-G-IN for the LightHunter Dome: hides the cable join and seals it from the weather.
Viewing
22" CCTV monitor
A Full HD screen with HDMI and speakers, rated for 24/7 viewing.
Where it is used
Where this kit fits
Retail
Counter, aisles, entry and stock room.
Offices
Reception, corridors, entry and car park.
Medical and dental
Waiting room, reception and rear entry.
Compared with similar kits
| Shop & Office 4K | LightHunter Family 4K | Business Pro 4K | |
|---|---|---|---|
| Cameras | 2 × 8MP 4K LightHunter turret, 4 × 8MP 4K LightHunter dome | 6 × 8MP 4K LightHunter turret | 2 × 8MP 4K Tri-Guard bullet, 4 × 8MP 4K Tri-Guard turret, 6 × 8MP 4K LightHunter dome |
| Recorder | NVR501-08B-P8-IQ | NVR501-08B-P8-IQ | NVR502-16B-P16-IQ |
| Spare channels | 2 | 2 | 4 |
| Light and sound deterrence | No | No | Yes |
| Night vision range | 40 m | 40 m | 40 m |
Every Uniview kit records Ultra 265, works with the EZView app and carries a 3-year warranty. Camera figures from the Uniview datasheets.
Common questions
Can the cameras record sound?
Each camera has a built-in mic. In most states, recording conversations without consent is restricted, so check the local surveillance laws and signage rules before switching audio on in a business.
Is a hard drive included?
Choose it in the options: No HDD, or a 2, 4, 6 or 8TB surveillance drive fitted and formatted. The standard option is No HDD, for people who already have a drive.
How many days will it record?
As a rough guide, each 4K camera recording around the clock with Ultra 265 uses about 25–40GB a day, so 6 cameras keep roughly 16–26 days on 4TB. Recording on motion, or at a lower bitrate on quiet cameras, stretches that a long way.
Is the cable included?
No, because every site needs a different length. Each camera needs its own Cat6 run of up to 100 m back to the recorder; a 305 m Cat6 box covers most homes.
Do the cameras need power points?
No. The recorder powers every camera through the Cat6 cable (PoE), so the only power point needed is at the recorder.
Can I add more cameras later?
Yes. There are 2 spare channels on the NVR501-08B-P8-IQ, and any Uniview camera plugs straight in.
Can I watch it on my phone?
Yes. Connect the recorder to your router and scan its QR code in the free EZView app for live view, playback and alerts on iPhone and Android. There are no monthly fees.
Can I install it myself?
Many customers do: each camera needs one cable and the recorder finds the cameras automatically. In Australia, Cat6 run inside walls and ceilings should be installed by a registered cabler.
Will it work with cameras I already own?
Usually. ONVIF (Profile S, G or T) and RTSP cameras record on the NVR501-08B-P8-IQ, with basic motion events; smart events come from Uniview cameras.
What is the warranty?
Uniview 3-year manufacturer warranty, handled in Australia through us. Contact us first and we will organise any claim.
Supported by Infront Technologies.
Want to change a camera or add more? Call 1300 736 970 or email [email protected] with your layout and we will put together the right mix.
Installation and safety
Power. Use only the power supply supplied with the recorder. Power off before fitting or removing a hard drive.
Placement. Keep the recorder indoors between −10 °C and 55 °C with space around its vents, somewhere secure so a thief cannot take the footage with it. Cameras are rated IP67 for outdoor use.
Privacy. Aim cameras at your own property. Recording audio and filming neighbours or public areas are covered by state surveillance laws.
Figures. From the Uniview datasheets for each component. Uniview 3-year manufacturer warranty, handled in Australia through us.
- Mobile App
- EZView (iOS, Android)
- Video Compression
- Ultra 265, H.265, H.264
- Video Input
- 8 channels
- Brand
- Uniview
- Interoperability
- ONVIF Profile S, G, T
- Display Output
- HDMI up to 4K, VGA up to 1080p
- Active Deterrence
- No
- Camera Resolution
- 8MP 4K
- Warranty
- 3 years
- Product Type
- IP CCTV Kit
- Two-Way Audio
- No — built-in mic
- Model
- UV-K806-SHP
- HDD Bays
- 1
- Night Vision
- Smart IR up to 40 m
- PoE Ports
- 8 (75 W total)
- Hard Drive
- Optional 2, 4, 6 or 8TB fitted (standard: no drive)
- Number of Cameras
- 6
- Recorder
- Uniview NVR501-08B-P8-IQ
