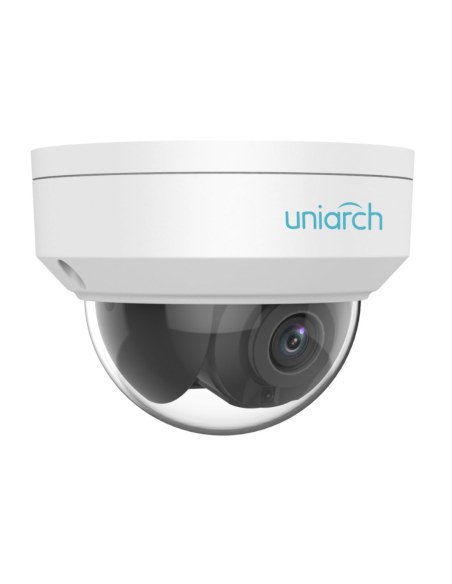

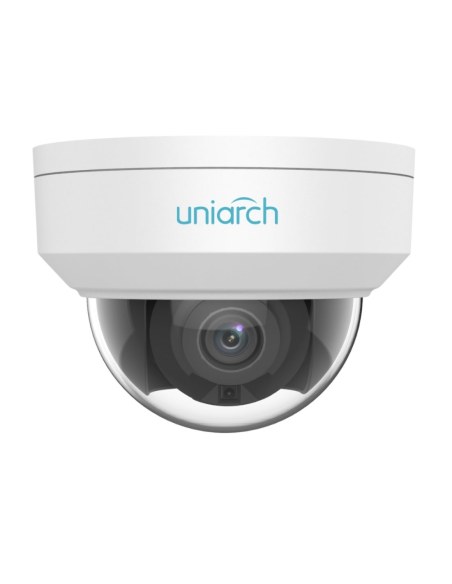

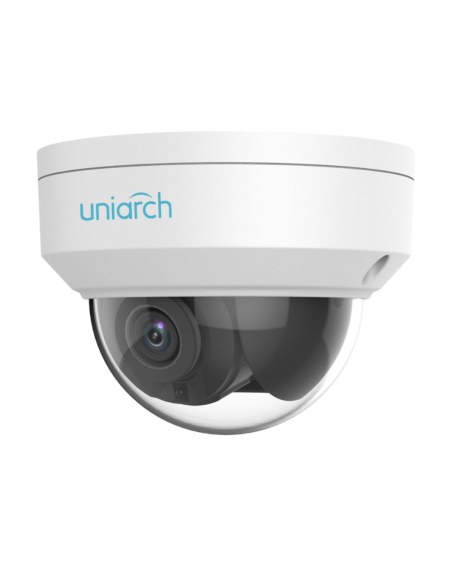

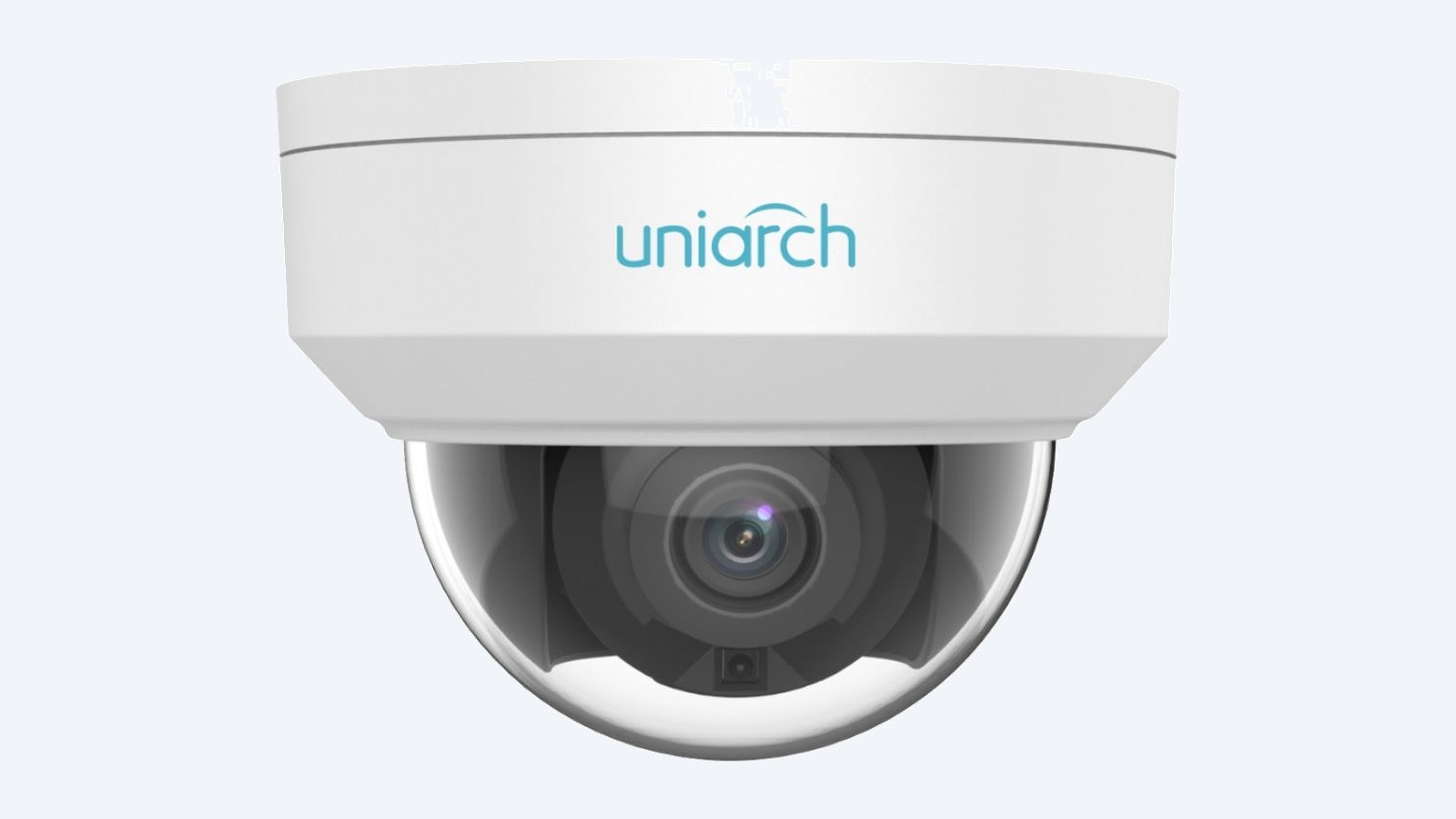

• IPC-D1E6-AF28K camera
• Fixing screws and drill template
• Quick guide

• A PoE NVR or switch (802.3af), or a 12 V DC supply
• Cat6 cable to the camera
• A microSD card up to 256GB, to record on the camera
• TR-JB03-G-IN junction box or TR-WM03-D-IN wall mount, if needed

01

Pick the spot

High enough to be out of easy reach, close enough to see faces, with a route for one Cat6 cable. Under an eave keeps sun and rain off the lens.

02

Fix the dome

Screw it to the ceiling, onto a TR-JB03-G-IN junction box, or to a wall with the TR-WM03-D-IN mount.

03

Plug it in

Run Cat6 to a PoE port on the NVR or a PoE switch. The camera powers up from the cable.

04

Aim and add

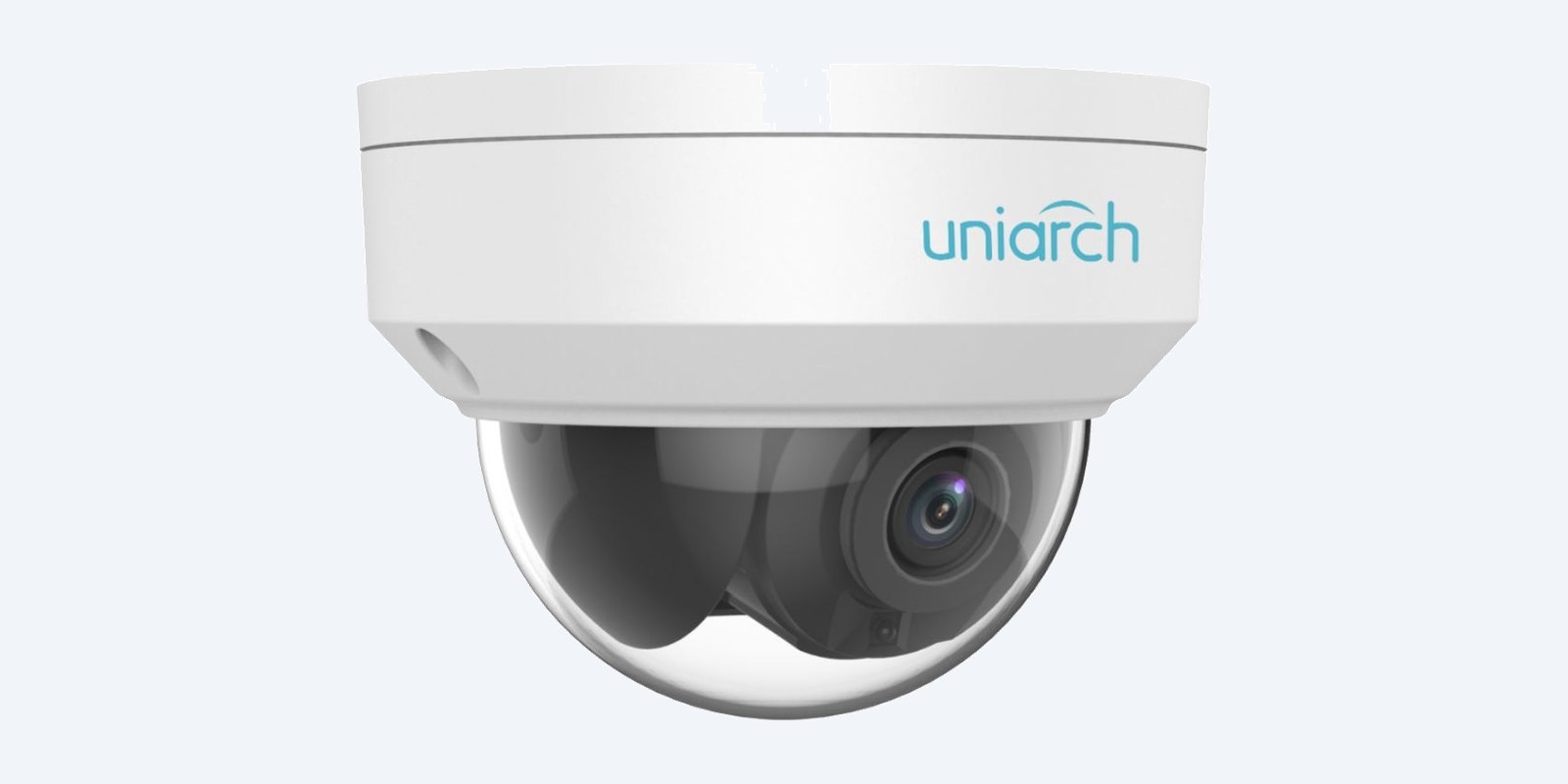

Open the cover, aim the lens on its three-axis gimbal and refit the cover, then add it to the NVR or the Uniarch app.

Recorder

Uniarch PoE NVR

4, 8, 16 and 32-channel recorders that power the camera over one Cat6 cable and add it automatically.

Mounting

TR-JB03-G-IN junction box

Encloses the cable joint behind the camera on brick, render or a soffit with no cavity.

Walls

TR-WM03-D-IN wall mount

Holds the camera out from the wall so it can look along the building.

Cabling

Uniarch Cat6 cable

A 305 m box of solid copper Cat6 for PoE runs up to 100 m.

Entries and foyers

Faces at the door, mounted out of easy reach.

Stairwells and lifts

Low ceilings where a camera can be hit.

Undercover car parks

Wide view across the bays, IR for dim corners.

Shops and counters

A discreet ceiling camera over the register.

What does IK10 mean?

IK10 is the top of the impact scale used for equipment housings (20 joules). The dome is built to survive being hit, kicked or struck with a tool, which is why it suits low ceilings and public areas.

Can I mount it on a wall?

Yes. It mounts on a ceiling, or on a wall with the TR-WM03-D-IN wall mount. Add the TR-JB03-G-IN junction box where there is no cavity behind to hide the cable joint.

How far does it see at night?

Up to 30 m with infrared. Smart IR turns the IR down on close objects so faces are not washed out white.

What resolution and frame rate does it record?

6MP (3072 × 2048) at up to 20 fps. If smoother motion matters more than detail, set 5MP at 25 fps or 3MP and 1080p at 30 fps.

Does it tell people from other movement?

Yes. Intrusion detection looks for the shape of a person, so swaying plants and passing headlights are less likely to send an alert. Motion, tampering and audio detection are built in as well.

Does it record sound?

Yes, through the built-in microphone. It has no speaker; for talk-back and warnings, see the Uniarch Tri-guard models.

Will it work with my recorder?

Uniarch and Uniview NVRs find it on their PoE ports and add it automatically. Other recorders that support ONVIF Profile S, G or T can add it too, although the smart events may only come through on Uniarch and Uniview.

Can I watch it on my phone?

Yes. View it through your Uniarch NVR in the Uniarch app, or add the camera to the app on its own. Live view in a web browser works without a plug-in in current Chrome, Firefox and Edge.

Can it record without an NVR?

Yes. Fit a microSD card of up to 256GB and it records on the camera itself. With an NVR, the card also covers network drop-outs: ANR sends the missed footage to the recorder when the link returns.

How is it powered?

By PoE (IEEE 802.3af) over the same Cat6 cable as the video, from a PoE NVR or switch. Without PoE, it runs on a 12 V DC supply. It draws 4.5 W at most.

What is Ultra 265?

Uniarch’s video compression. It keeps the same picture as H.265 in less space, so the recorder holds more days of footage. H.265, H.264 and MJPEG are there too.

What is the warranty?

Uniarch 3-year manufacturer warranty, handled in Australia through us. Contact us first and we will organise any claim.
