Uniview Mini Dome and Turret Junction Box, IPC32X and IPC31X Domes, Uniarch Turrets, White - TR-JB03-G-IN
TR-JB03-G-IN
In stock $ 13.50
inc-GST
or 4 interest-free payments of $3.38 with
Uniview TR-JB03-G-IN aluminium junction box for IPC32X and IPC31X domes. Keeps the camera’s cable joint covered, with 3/4" side and rear cable entries.
- ✓Fits Uniview IPC32X and IPC31X domes
- ✓Hides the cable tail and RJ45 plug
- ✓3/4" side and rear cable entries
- ✓Ø108.6 × 38.5 mm, 0.2 kg
- ✓Also fits Uniarch D1E, T1E and T1P cameras
- ✓Aluminium alloy, white
Uniview · Junction box · Mini domes and turrets
A neat base for the dome or turret,
with the cable joint inside.

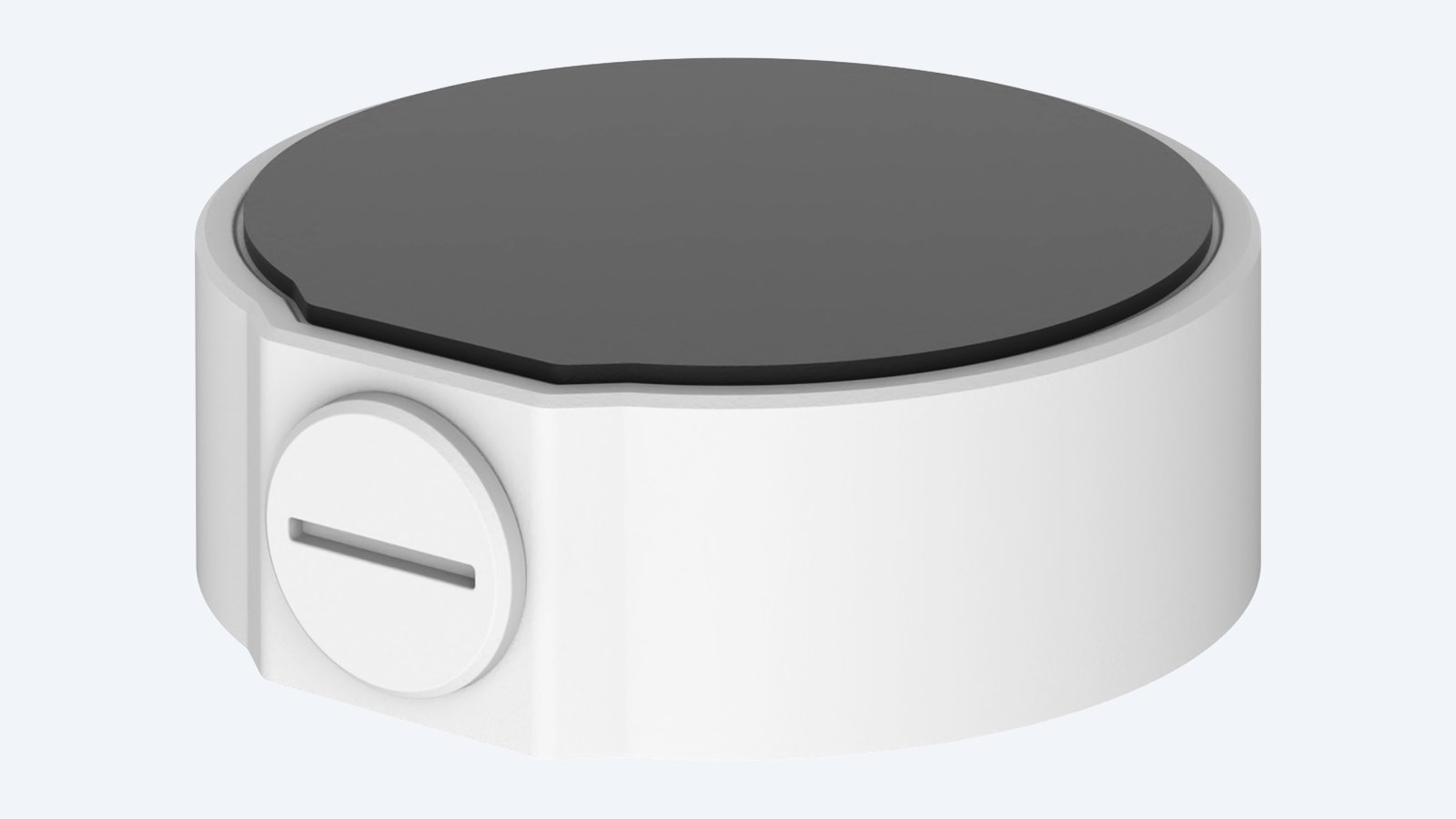

This is the Uniview TR-JB03-G-IN. A round aluminium junction box that sits between the wall or ceiling and the camera. The camera’s cable tail and RJ45 plug tuck inside it, so you do not need a large hole behind the camera and the joint is not left hanging outside.
In one sentence: the TR-JB03-G-IN is a Ø108.6 × 38.5 mm aluminium alloy junction box for Uniview IPC32X and IPC31X domes, with 3/4" threaded side and rear cable entries, weighing 0.2 kg.
The box only. The camera and wall fixings are separate.
Order it with a matching dome or turret and use fixings that suit your surface.
In the box
- TR-JB03-G-IN junction box
You also need
- A compatible dome or turret (see the list below)
- Screws and plugs to suit your wall or ceiling
- A drill
- Outdoor sealant for the cable hole
- An NPT 3/4" cable gland or conduit fitting if you use the side entry
Room for the plug, so the cable stays out of the weather.
Most IP cameras have a short cable tail with an RJ45 plug. Mounted flat, that joint is either exposed or needs a big hole behind the camera. The box gives it a dry space, with the cable in from behind or along the surface into the side entry.
Side entry
Cable in from the back or the side.

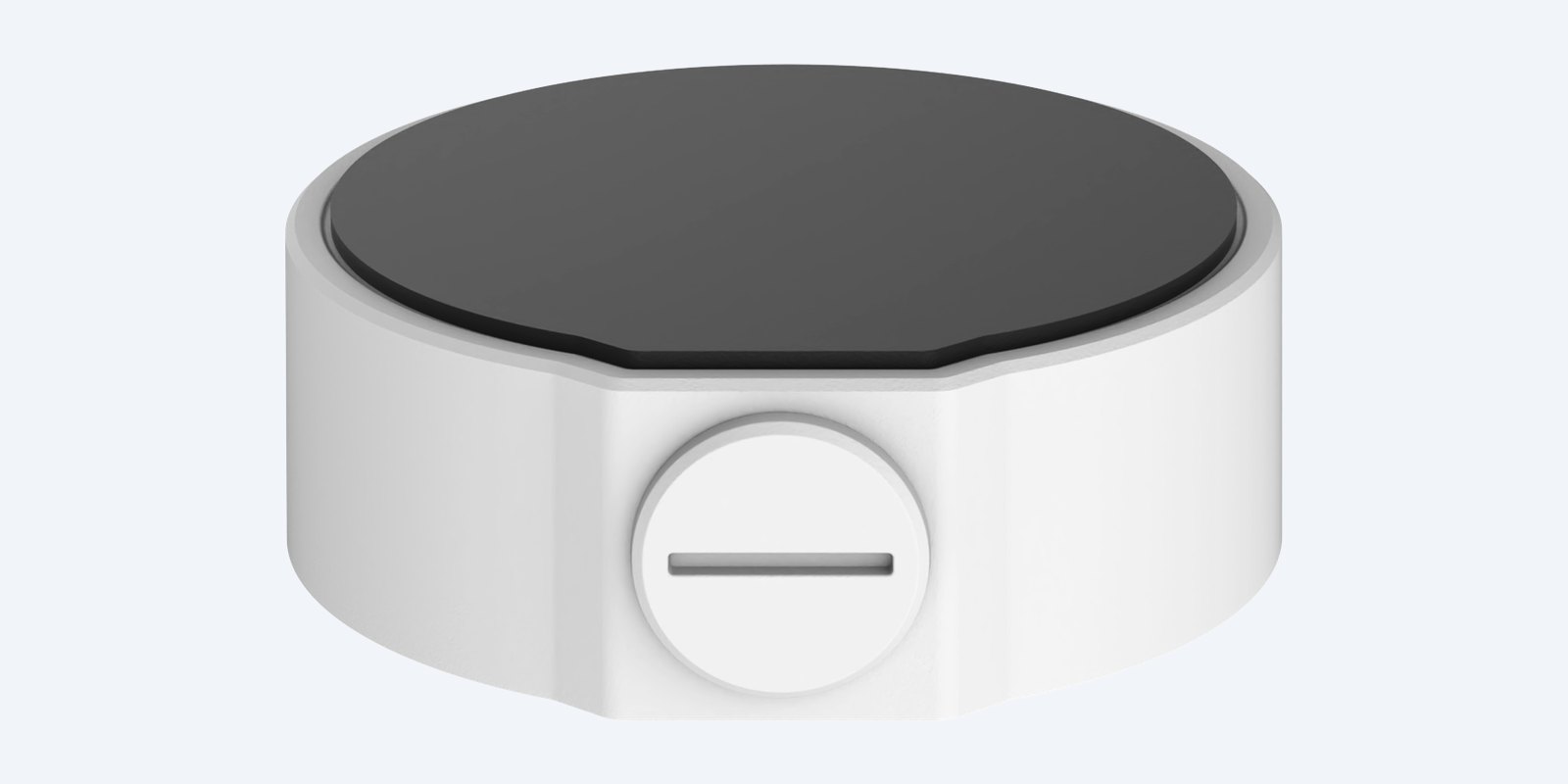

A screw cap closes the 3/4" side entry when the cable comes from the wall behind. Take it off to bring surface cable or conduit straight in from the side.

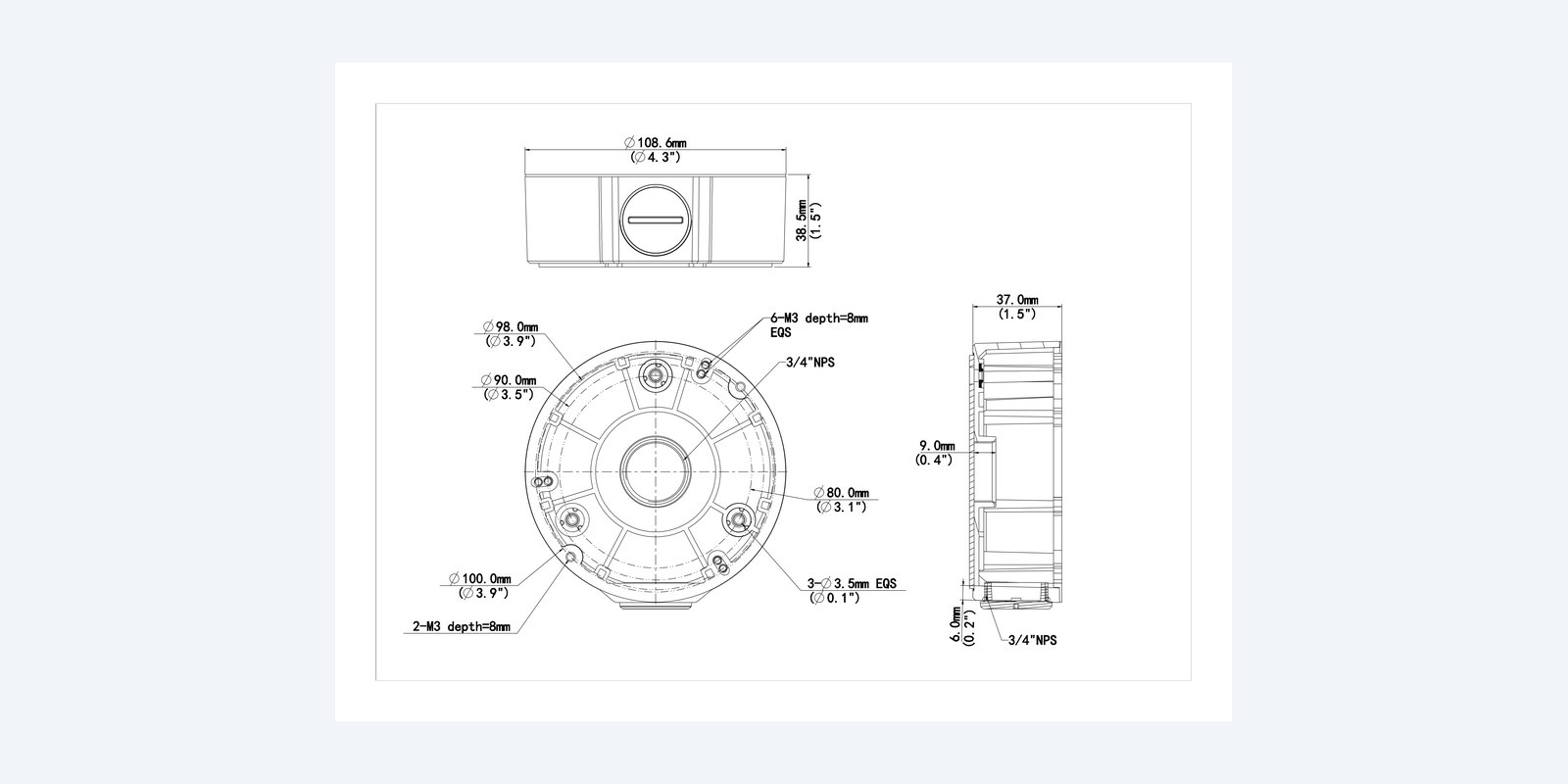

Size
Ø108.6 mm across, 38.5 mm deep.
Three Ø3.5 mm holes on an 80 mm circle fix the base. M3 holes around the rim on 90, 98 and 100 mm circles take the camera’s base. Both cable entries are 3/4" NPS.
How it goes in
From the box to a mounted camera.
01
Mark and drill
Hold the box in place and mark the base holes. Drill a cable hole in the middle if the cable comes from the wall or ceiling.
02
Fix the box
Screw the box down. For surface cable, fit a gland or conduit to the side entry; otherwise leave the cap on.
03
Connect the camera
Plug in the camera’s cable tail and tuck the joint inside the box.
04
Fit and aim
Screw the camera’s base to the box, then aim the camera.
At a glance
TR-JB03-G-IN
Show specs
Type
Junction box
Fits
Uniview IPC32X and IPC31X domes
Size
Ø108.6 × 38.5 mm
Weight
0.2 kg
Material
Aluminium alloy
Cable entries
3/4" side (with cap) and 3/4" rear
Camera fixing
M3 holes on Ø90, Ø98 and Ø100 mm circles
Mounting
Wall or ceiling
Colour
White
Pair it with
What goes with it
Camera
Uniview IPC328SS dome
8MP LightHunter dome, one of the cameras this box is listed for.
Wall arm
TR-WM03-D-IN wall mount
Holds the same cameras out from a wall.
Pendant

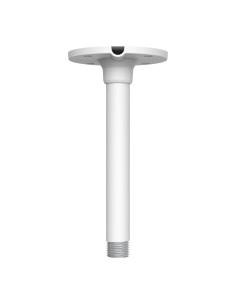

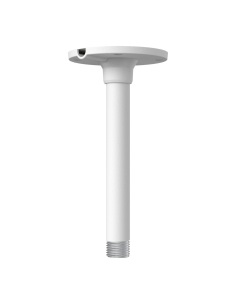

TR-CM24-IN pendant
Hangs the camera and box from an indoor ceiling.
Black
TR-JB03-G-IN-BK
The same box in black, for black cameras.
Where it is used
Where it is used
Brick and render walls
No large hole needed behind the camera.
Eaves and soffits
A tidy, solid base under eaves and verandas.
Surface conduit
Conduit straight into the side entry on finished walls.
Retrofits
Covers an old, oversized hole from a previous camera.
Uniview round junction boxes side by side

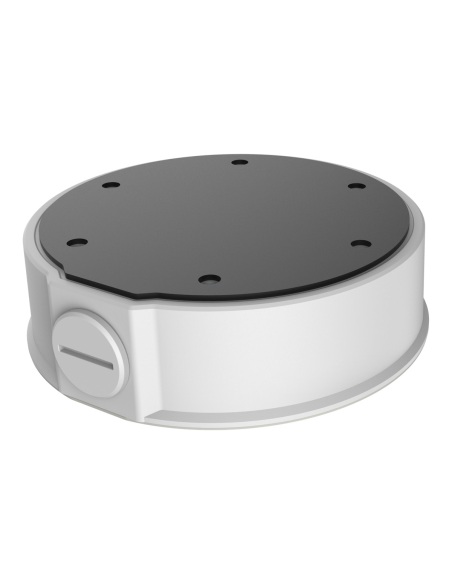

| TR-JB03-G-IN | TR-JB03-H-IN | TR-JB03-I-IN | TR-JB04-D-IN | TR-JB05-B-IN | |
|---|---|---|---|---|---|
| For | IPC32X domes, IPC31X mini domes | IPC363X, IPC36XXS/E turrets | IPC36XXL Easy turrets | Fisheye domes | IPC21XX mini bullets |
| Size | Ø108.6 × 38.5 mm | Ø126 × 38.5 mm | Ø117.8 × 38.5 mm | Ø149.2 × 42.5 mm | Ø104.4 × 57 mm |
| Weight | 0.2 kg | 0.24 kg | 0.2 kg | 0.31 kg | 0.36 kg |
| Cable entries | 3/4" side and rear | 3/4" side and rear | 3/4" side and rear | 3/4" side and rear | 3/4" side and rear |
| Black version | TR-JB03-G-IN-BK | TR-JB03-H-IN-BK | TR-JB03-I-IN-BK | — | — |
All aluminium alloy. Thread sizes from the Uniview dimension drawings (3/4" NPS). — means Uniview does not make that version. Figures from the Uniview datasheets.
Common questions
Which cameras does it fit?
Uniview lists it for its IPC32X fixed domes, and its accessory guide adds the IPC31X mini domes. From our range: IPC326SS, IPC328SS, IPC314SB, IPC318SB and IPC3608SB (the IPC3608SB OmniView turret lists it in its own datasheet). It also fits the Uniarch IPC-D1E6, IPC-D1E8, IPC-T1E8, IPC-T1P5 and IPC-T1P8. For the Uniview IPC36XX turrets use the TR-JB03-H-IN or TR-JB03-I-IN instead.
Why use a junction box at all?
It gives the camera’s cable tail and RJ45 plug a covered space. Without it, the joint either hangs outside or needs a large hole behind the camera.
Can the cable come in from the side?
Yes. Uniview’s drawing shows a 3/4" NPS threaded entry on the side (closed with a screw cap) and another in the base. Uniview’s TR-A01-IN is an NPT 3/4" waterproof gland for it; for Australian 20 mm conduit use a matching thread adapter.
How big is it?
Ø108.6 mm across and 38.5 mm deep. It weighs 0.2 kg.
What screws do I need?
Screws and plugs to suit your surface: masonry plugs for brick, cavity anchors for plasterboard, or timber screws into eaves and battens. The base has three Ø3.5 mm holes on an 80 mm circle. Uniview does not list fixings in the box.
Can I use it outdoors?
Yes, it is made for Uniview’s outdoor domes. Uniview does not publish an IP rating for the box itself, so seal the wall hole and fit a gland or the cap on the side entry.
Can I hang the camera from a pendant?
Yes. Uniview’s accessory guide pairs this box with the TR-CM24-IN indoor pendant bracket for the IPC32X and IPC31X domes.
Box or wall arm?

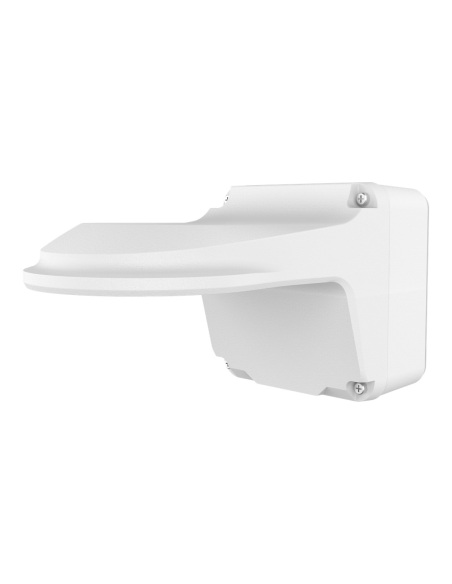

The box sits the camera flat on a wall or ceiling. To hold the camera out from a wall use the TR-WM03-D-IN arm, or the TR-JB07/WM03-G-IN arm with a junction box built in.
What is it made of?
Aluminium alloy, 0.2 kg. It will not rust like steel and adds little load to the wall.
Is it white or black?
White. A black version (TR-JB03-G-IN-BK) is listed separately for black cameras.
Do I need a licensed installer?
Fixing the bracket is a normal handyman job. In Australia, fixed data cabling inside walls and ceilings must be run by a registered cabler; plugging a camera into an existing outlet does not need one.
What is the warranty?
Uniview 3-year manufacturer warranty, handled in Australia through InFront. Contact us first and we will organise any claim.
Supported by Infront Technologies.
Not sure which mount suits your camera or wall? Call 1300 736 970 or email [email protected] with the camera model and a photo of the spot, and we will match the bracket.
Installation and safety
Fixing. Fix into solid material or a proper cavity anchor. On ceilings, fix into a joist or batten where possible. Turn off power to the camera before connecting it.
Weather. Seal any unused cable entry and point cable glands downward so water cannot run into the camera connection.
Figures. From the Uniview TR-JB03-G-IN datasheet and dimension drawing; camera fits from Uniview’s camera datasheets and accessory guide. Uniview 3-year manufacturer warranty, handled in Australia through InFront.
- Dimensions
- Ø108.6 × 38.5 mm
- Weight
- 0.2 kg
- Material
- Aluminium Alloy
- Colour
- White
- Installation
- Wall or ceiling
- Brand
- Uniview
- Warranty
- 3 years
- Product Type
- Camera Junction Box
- Model
- TR-JB03-G-IN
- Cable Entry
- 3/4" NPS side (with cap) and 3/4" NPS rear
- Use
- Indoor or outdoor
- Mount type
- Junction box
- Height
- 38.5 mm
- Compatible Cameras
- Uniview IPC326SS, IPC328SS, IPC314SB, IPC318SB, IPC3608SB; Uniarch IPC-D1E6, IPC-D1E8, IPC-T1E8, IPC-T1P5, IPC-T1P8
- Camera Series
- Uniview IPC32X domes, IPC31X mini domes; Uniarch D1E, T1E, T1P
- Diameter
- 108.6 mm
- Camera Fixing
- M3 holes on Ø90, Ø98 and Ø100 mm circles
- Base Fixing
- 3 × Ø3.5 mm on an Ø80 mm circle
In stock
In stock
In stock
In stock
In stock
- New
In stock
Uniview Panoramic & Fisheye Cameras

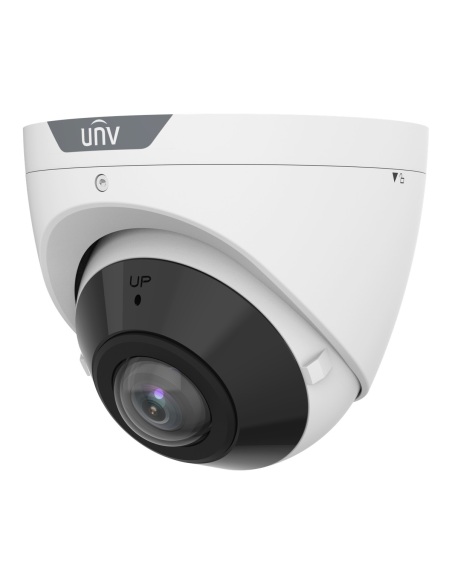

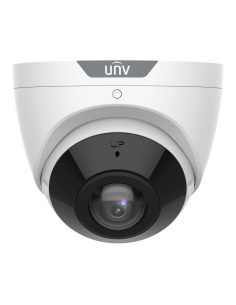

Uniview 8MP 4K OmniView 180° Panoramic Turret Camera, 1.68mm, 20m IR, Built-in Mic -...
- New
In stock
Uniview Dome Cameras

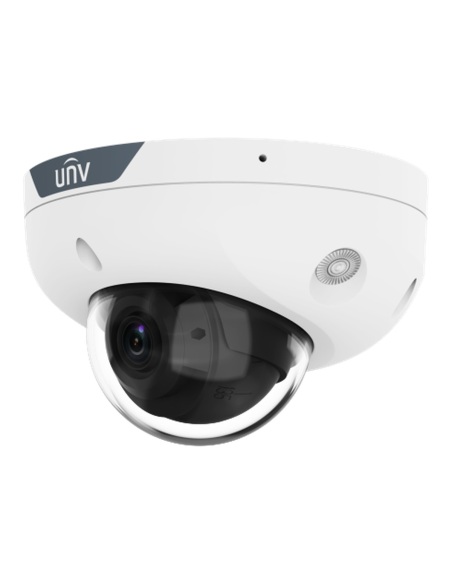

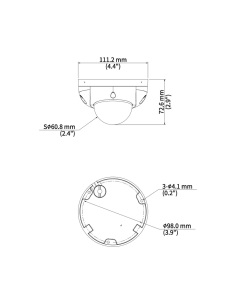

Uniview 8MP 4K Dual-Light Mini Dome Camera, ColorHunter, Mic & Speaker, IK10 -...
- New
In stock
Uniview Dome Cameras

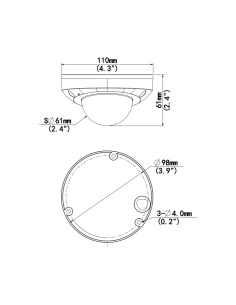

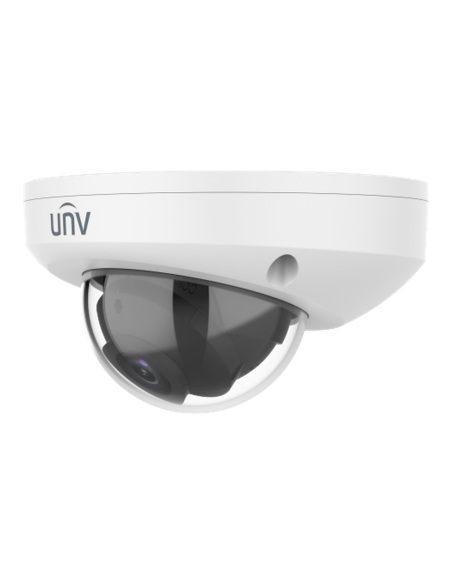

Uniview 8MP 4K Mini Dome IP Camera, 2.8mm, 30m IR, Mic, IK10 - IPC318SB-ADF28K-I0
