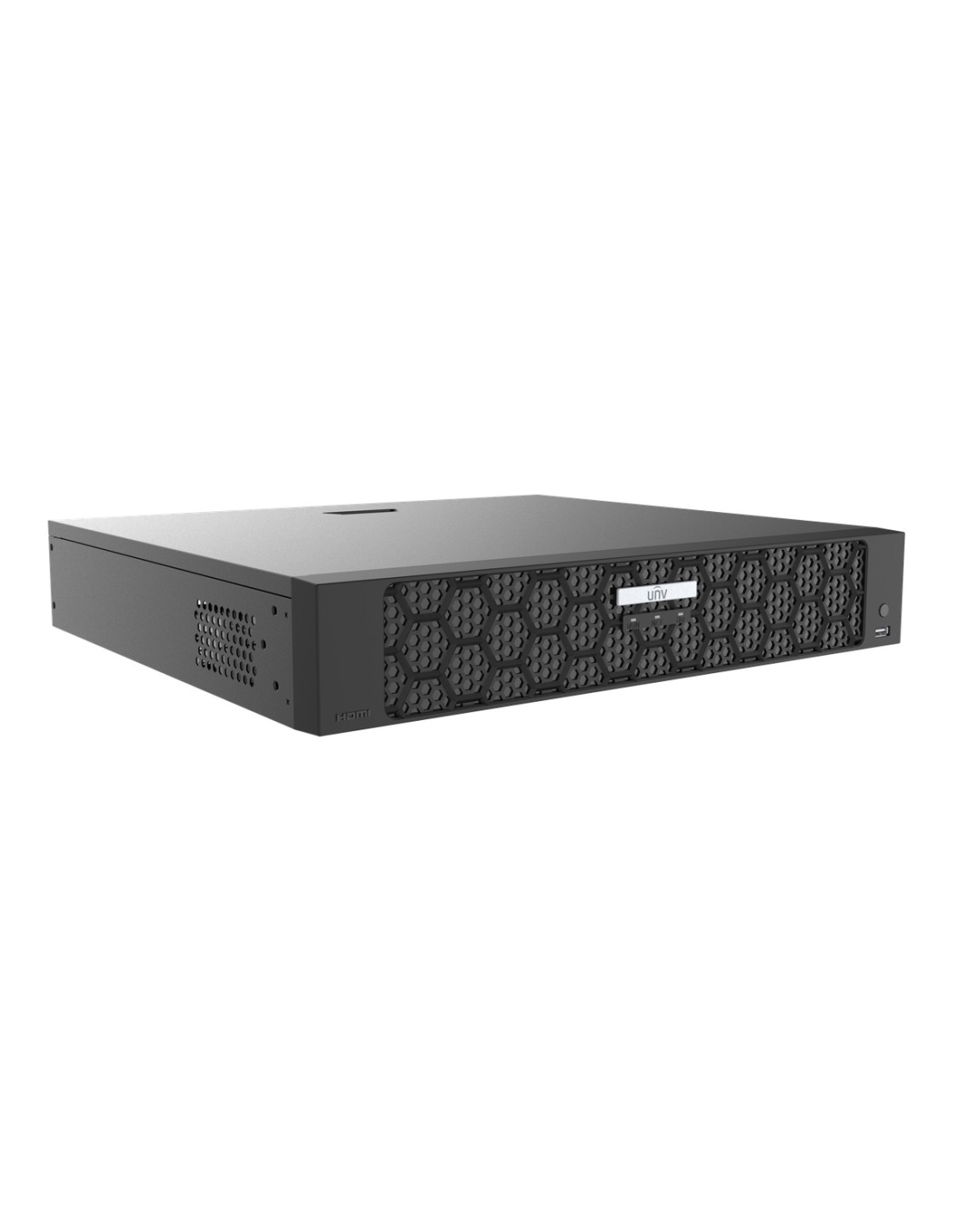

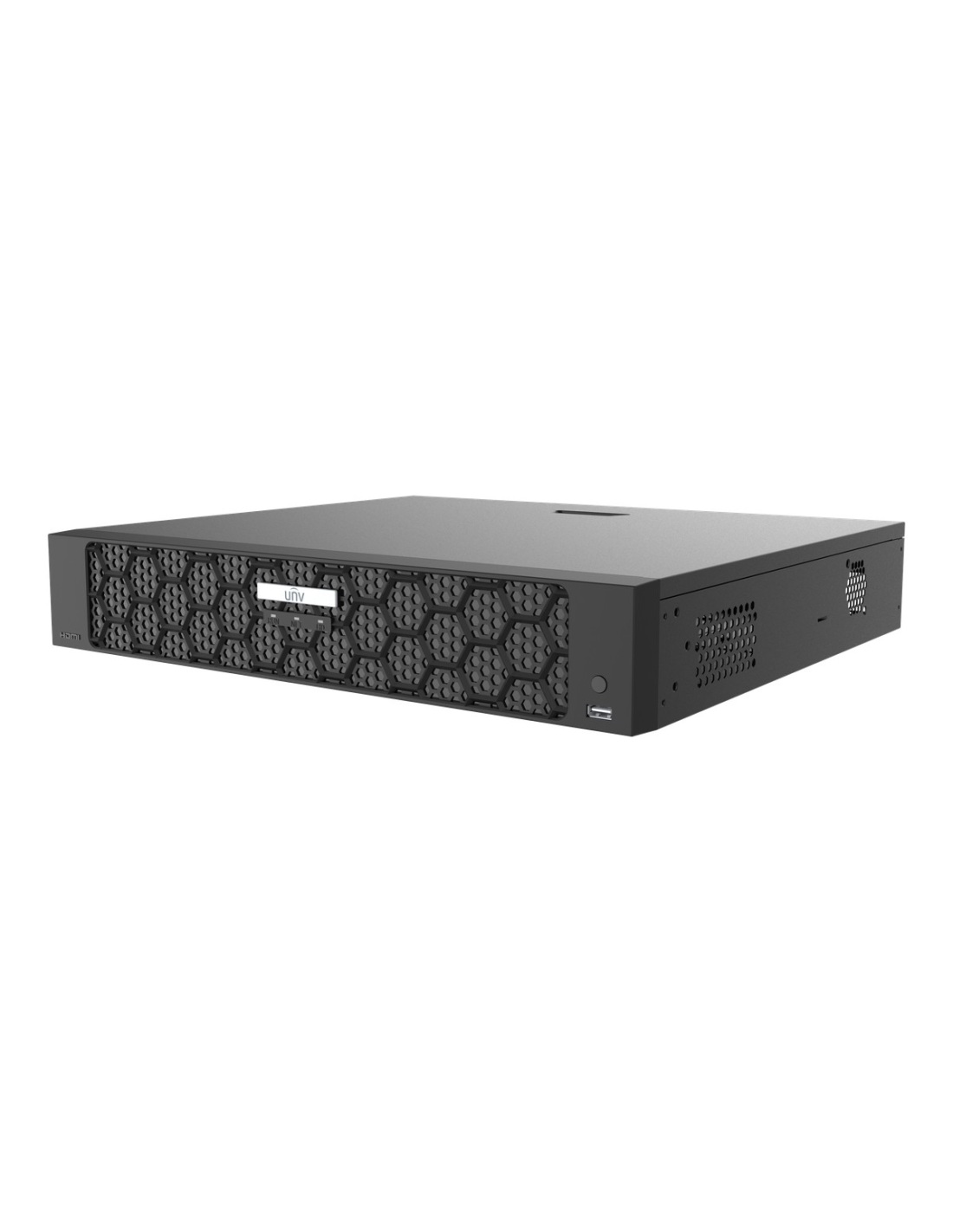

Uniview 32-Channel 4K NVR, 16 PoE Ports, 16MP Recording, 4 HDD Bays, RAID 1/5 - NVR504-32B-P16-IQ
NVR504-32B-P16-IQ-0T
In stock $ 990.00
inc-GST
or 4 interest-free payments of $247.50 with
Uniview NVR504-32B-P16-IQ 32-channel network video recorder with 16 PoE ports (150 W). Records up to 16MP, 4K HDMI plus independent VGA, four drive bays with RAID 1 and 5. No HDD, or 2–8TB fitted.
- ✓32 channels, 16 PoE ports
- ✓Up to 16MP recording, 4K HDMI
- ✓4 SATA bays, RAID 1 and 5
- ✓Independent HDMI and VGA
- ✓16 alarm in, 4 out
- ✓UNV-Link app for iOS and Android
Uniview · 32 channels · 16 PoE
Thirty-two cameras,
sixteen powered from the back.
This is the Uniview NVR504-32B-P16-IQ. A 32-channel recorder with sixteen built-in PoE ports and four drive bays. Plug sixteen cameras straight in, add up to sixteen more through a PoE switch, and protect the footage with RAID 5.
In one sentence: the NVR504-32B-P16-IQ is a 32-channel Uniview NVR with 16 PoE ports (150 W in total), four SATA bays up to 24TB each with RAID 1 and 5, Gigabit networking and 4K HDMI output.
Order it without a drive, or with a 2, 4, 6 or 8TB drive fitted.
The NVR504-32B-P16-IQ comes without cameras or a screen, and without a hard drive unless you choose one above. Add the cameras and a screen. Sixteen cameras run straight from its PoE ports; channels 17 to 32 connect through a PoE switch on the network.
In the box
- NVR504-32B-P16-IQ recorder
- Mains power cord
- Quick guide
You also need
- A hard drive, if you did not choose one fitted (up to 3 more are optional)
- Up to 32 IP cameras
- A PoE switch for cameras beyond 16
- Cat6 cable to each camera
- A monitor or TV with HDMI or VGA
Room to grow to 32 cameras.
Sixteen PoE ports supply up to 30 W each with 150 W shared across them; the other sixteen channels take cameras over the network. Four bays of up to 24TB each, with RAID 5, keep long histories safe from a single drive failure.

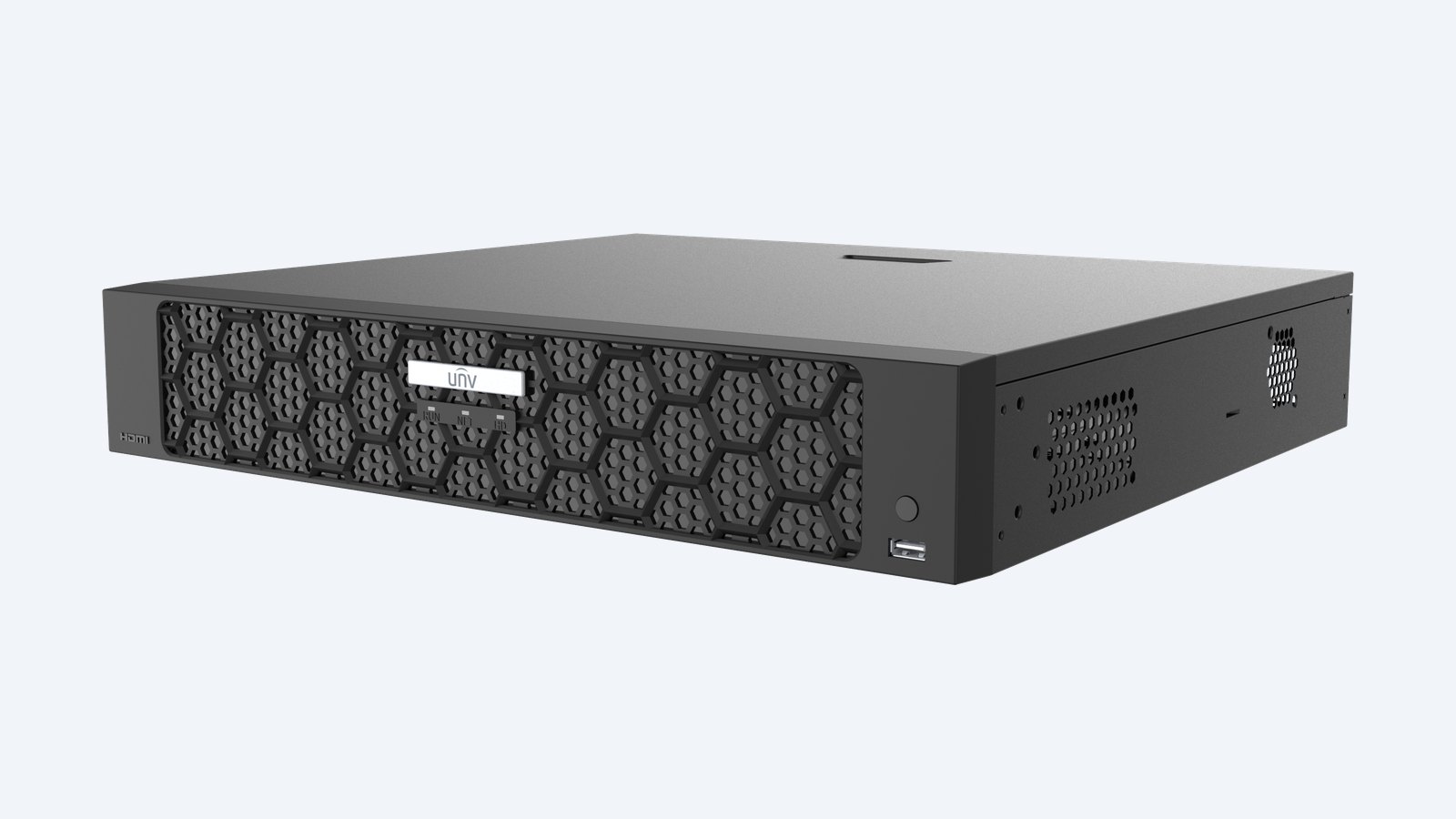

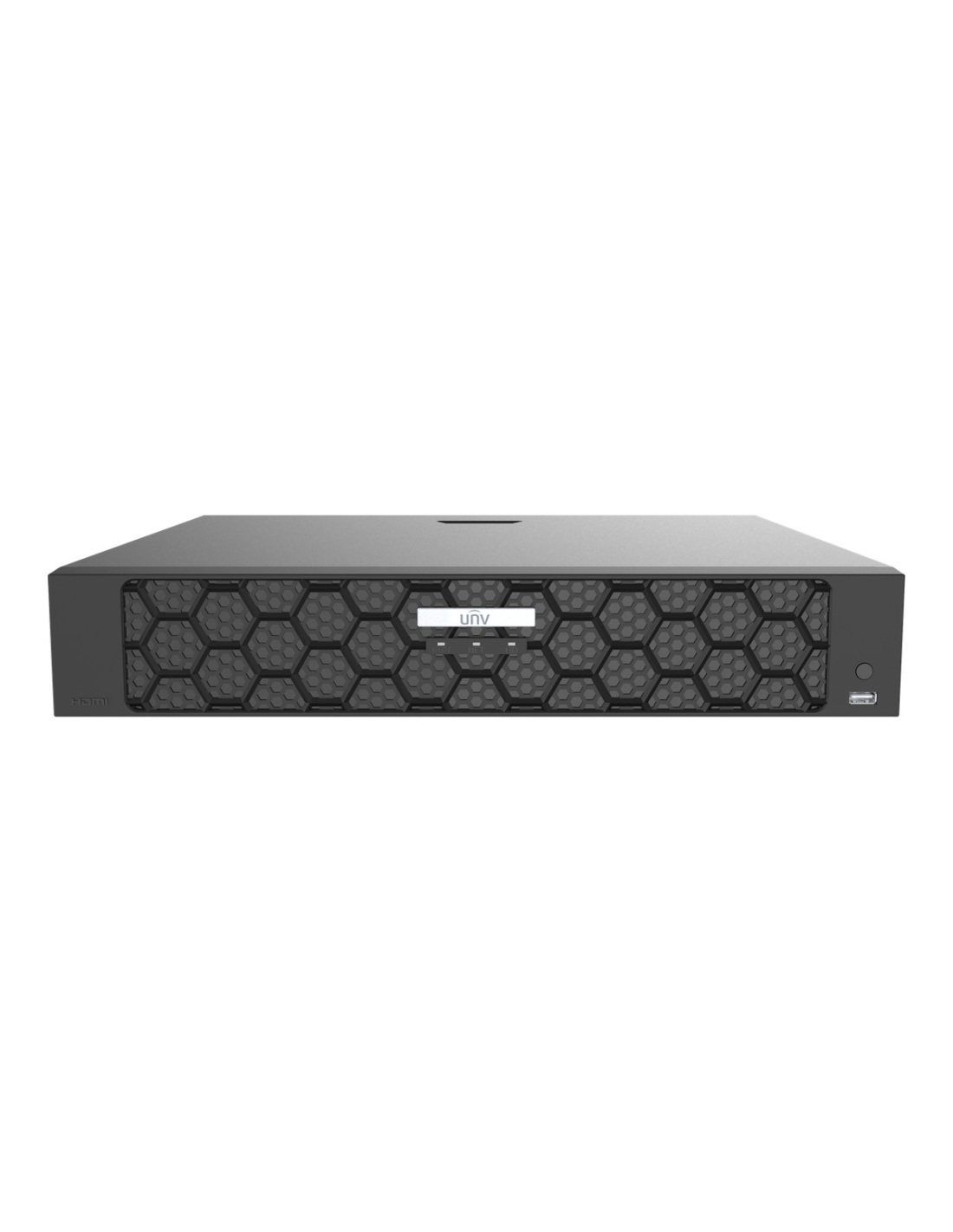

Front panel
A 1.5U case with four drive bays inside.
Status lights and a USB 2.0 port are on the front. Sixteen PoE ports, the Gigabit LAN, HDMI, VGA, RCA audio, USB 3.0, RS485 and alarm terminals (16 in, 4 out) are at the back.

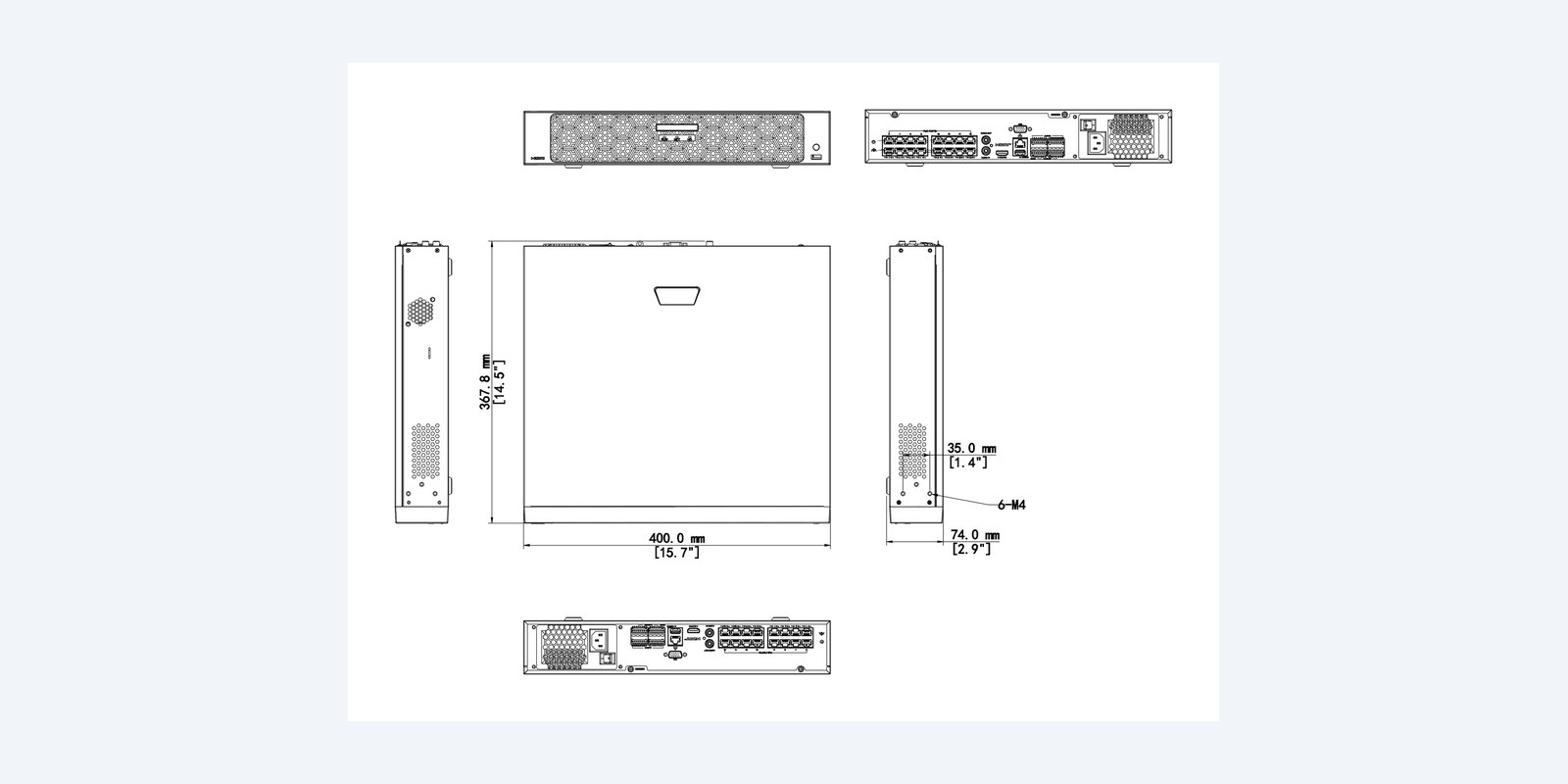

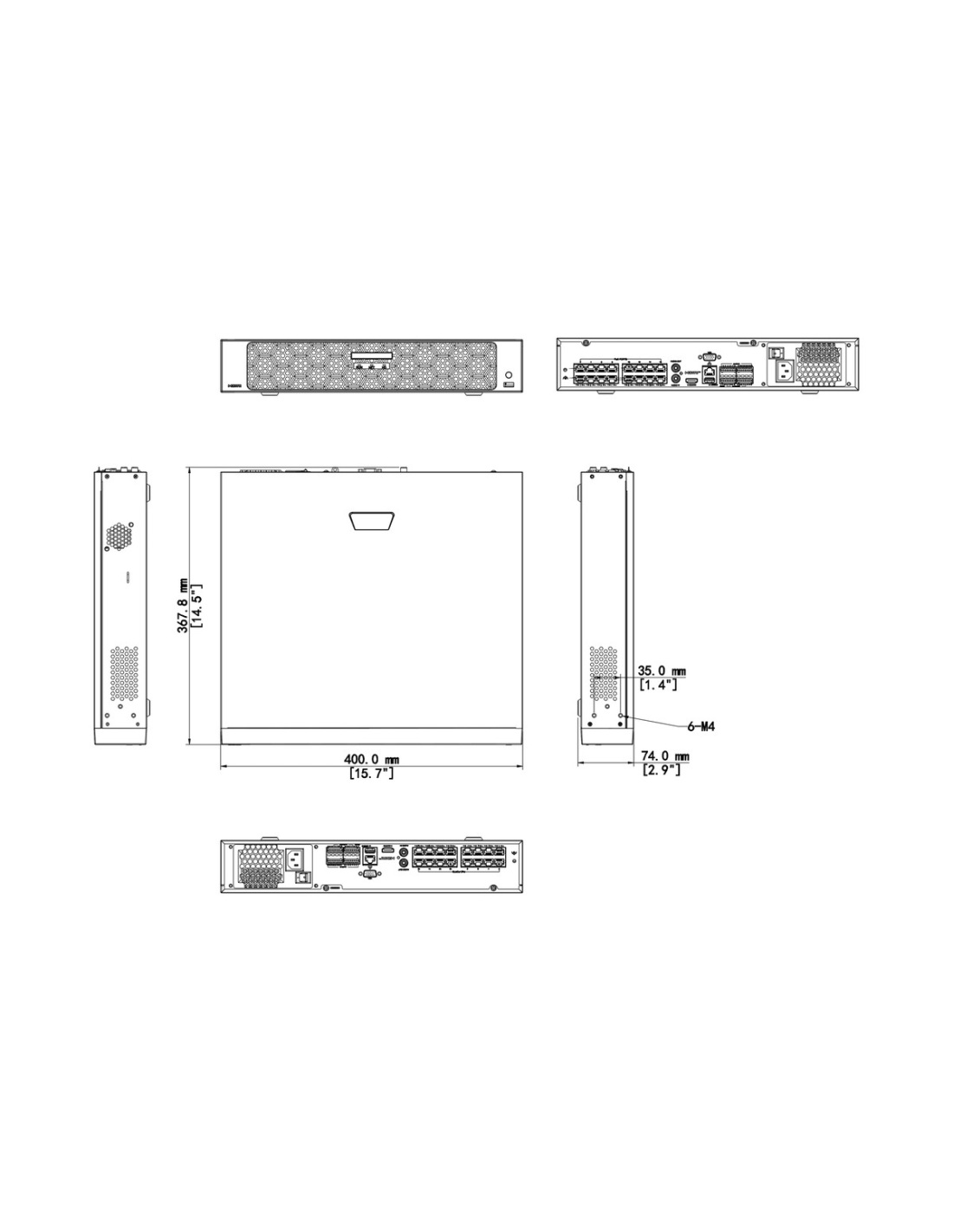

Size
400 × 368 × 74 mm.
It weighs 4 kg or less without drives and draws 12 W or less before drives and cameras. The optional Uniview RM-1.5U-400 bracket fits it in a 19-inch rack.
How it goes in
From the box to recording.
01
Fit the hard drive
If you did not order one fitted: with the power off, open the lid and fit a surveillance drive in each bay you are using, then format it from the setup wizard.
02
Plug in the cameras
Run Cat6 from each camera to a PoE port on the back. The port powers the camera, and Uniview cameras are found automatically.
03
Connect screen and network
HDMI or VGA to the monitor, the network port to your router, then power on and follow the wizard.
04
Add it to the app
Scan the P2P QR code in the UNV-Link app for live view, playback and alerts on your phone.
At a glance
NVR504-32B-P16-IQ
Show specs
Channels
32 IP cameras
PoE
16 ports, 30 W max per port, 150 W total (802.3af/at)
Recording
Up to 16MP
Compression
Ultra 265, H.265, H.264
Bandwidth
320 Mbps in (160 Mbps with smart on), 160 Mbps out
Decoding
2 × 16MP, 4 × 4K, 8 × 4MP, 16 × 1080p or 32 × 720p @30 (smart off)
Outputs
HDMI up to 4K and VGA, independent
Storage
4 SATA, up to 24TB each, RAID 1 and 5
Network
1 × RJ45 Gigabit
USB
1 × USB 2.0 front, 1 × USB 3.0 rear
Alarm
16 in, 4 out; RS485
Audio
1 in, 1 out (RCA), two-way audio
Power
100–240 V AC, ≤12 W without HDD
Size and weight
400 × 368 × 74 mm, ≤4 kg
Operating
−10 °C to 50 °C, ≤90% RH
Pair it with
What goes with it
Storage
Seagate SkyHawk drive
Surveillance-rated 2, 4 or 6TB drives built for 24/7 recording. With RAID 5 across three or four drives, one drive can fail without losing footage.
Cameras
Uniview IP cameras
Uniview turrets, bullets and domes add the smart events and fast searches this recorder is built around.
Cabling
Cat6 cable
Solid-copper Cat6 for PoE runs of up to 100 m from each port to each camera.
Audio
Uniview IP speaker
Up to 32 Uniview IP speakers can be linked for announcements and alarm messages.
Where it is used
Where a 32-channel recorder fits
Warehouses
Docks, aisles, yards and fences on one recorder.
Schools and clubs
Entries, halls, car parks and grounds.
Larger shops
Every aisle and register plus back of house.
Strata and offices
Lobbies, lifts, car parks and bin rooms.
Uniview PoE recorders side by side
| NVR501-04B-P4-IQ | NVR501-08B-P8-IQ | NVR502-16B-P16-IQ | NVR504-32B-P16-IQ | |
|---|---|---|---|---|
| Camera channels | 4 | 8 | 16 | 32 |
| PoE ports (budget) | 4 (50 W) | 8 (75 W) | 16 (240 W) | 16 (150 W) |
| Max recording | 16MP | 16MP | 16MP | 16MP |
| Hard drive bays | 1 × up to 24TB | 1 × up to 24TB | 2 × up to 24TB | 4 × up to 24TB |
| RAID | — | — | RAID 1 | RAID 1, 5 |
| Incoming bandwidth | 80 Mbps | 80 Mbps | 320 Mbps | 320 Mbps |
| Network port | 10/100 | 10/100 | Gigabit | Gigabit |
| HDMI and VGA | Same picture | Same picture | Independent | Independent |
| Alarm in / out | — | — | 8 / 2 | 16 / 4 |
| Case | 1U, 260 mm wide | 1U, 260 mm wide | 1U, 380 mm wide | 1.5U, 400 mm wide |
All four record Ultra 265/H.265/H.264, output up to 4K on HDMI plus VGA, and have built-in PoE (802.3af/at, up to 30 W per port). Incoming bandwidth with smart functions off. — means not fitted. Figures from the Uniview datasheets.
Common questions
It has 16 PoE ports — how do I connect 32 cameras?
Plug sixteen cameras into the PoE ports on the back. Connect the rest to a PoE switch on the same network as the recorder’s LAN port; it adds them as channels 17 to 32.
What RAID does it support?
RAID 1 (mirroring two drives) and RAID 5 (three or more drives, survives one drive failure while keeping most of the space).
Can I use two screens?
Yes. HDMI (up to 4K) and VGA are independent outputs, so a monitor at reception and one in the office can show different views.
Is a hard drive included?
Not as standard. The NVR504-32B-P16-IQ is sold without a drive, or with a 2, 4, 6 or 8TB surveillance drive fitted — choose the option above. It has four SATA bays of up to 24TB each. A fitted drive fills one bay; add more at any time for more space or RAID.
Will it work with cameras that are not Uniview?
Uniview lists standard cameras of other brands for the recorder’s own motion and face detection on a limited number of channels, so most third-party IP cameras can be added. Fast searches such as AcuSearch need Uniview cameras. Send us the camera model and we will check it.
Can I watch the cameras on my phone?
Yes. P2P is built in: connect the network port to your router and add the recorder to Uniview’s UNV-Link app by scanning its QR code. Live view, playback and alerts then work on iPhone and Android, and up to 128 remote users can connect.
What screen can I plug in?
Any monitor or TV with HDMI or VGA. HDMI runs up to 4K (3840 × 2160), and HDMI and VGA are independent, so two screens can show different views.
What is Ultra 265?
Uniview’s compression. It records the same picture as H.265 in less space, so the drive holds more days of footage. H.265 and H.264 are supported too.
What does ANR do?
If the network drops, compatible Uniview cameras keep recording to their SD card and the NVR pulls the missing footage back when the link returns.
How far can the cameras be from the recorder?
Up to 100 m of Cat6 per PoE port, which is the Ethernet limit. Beyond that, add a PoE switch or extender part way.
Can I mount it in a rack?
Yes, with the optional Uniview RM-1.5U-400 bracket in a 19-inch rack. Otherwise it sits on a shelf.
What is the warranty?
Uniview 3-year manufacturer warranty, handled in Australia through InFront. Contact us first and we will organise any claim.
Supported by Infront Technologies.
Not sure how many channels or how much storage you need? Call 1300 736 970 or email [email protected] with the number of cameras and how many days you want to keep, and we will size the drives.
Installation and safety
Power. Runs from 100–240 V AC. Power off before fitting or removing hard drives.
Placement. Use indoors between −10 °C and 50 °C, under 90% humidity, with space around the vents. Keep it somewhere secure so a thief cannot take the footage with it.
Figures. From the Uniview NVR504-B-P-IQ series datasheet. Uniview 3-year manufacturer warranty, handled in Australia through InFront.
- Dimensions
- 400 × 368 × 74 mm
- Power Supply
- 100–240 V AC
- Operating Environment
- −10 °C and 50 °C, ≤90% RH
- Weight
- ≤4 kg without HDD
- Power Consumption
- ≤12 W without HDD
- Video Compression
- Ultra 265, H.265, H.264
- Video Input
- 32 Channels
- Brand
- Uniview
- USB
- 1 × USB 2.0, 1 × USB 3.0
- Incoming Bandwidth
- 320 Mbps (160 Mbps with smart on)
- Recording Resolution
- Up to 16MP
- Display Output
- HDMI up to 4K, VGA (independent)
- Network Interface
- 1 × RJ45 Gigabit
- Smart Search
- AcuSearch, AcuTrack, face, vehicle and human body search
- Warranty
- 3 years
- Product Type
- PoE Network Video Recorder
- Model
- NVR504-32B-P16-IQ
- HDD Bays
- 4 SATA
- RAID
- RAID 1, 5
- Outgoing Bandwidth
- 160 Mbps
- PoE Ports
- 16 × 10/100, IEEE 802.3af/at
- PoE Budget
- 30 W per port, 150 W total
- Max HDD Capacity
- 24TB per drive
- Hard Drive
- Optional 2, 4, 6 or 8TB fitted (standard: no drive)
- Playback Decoding
- 2 × 16MP, 4 × 4K, 8 × 4MP, 16 × 1080p or 32 × 720p @30
